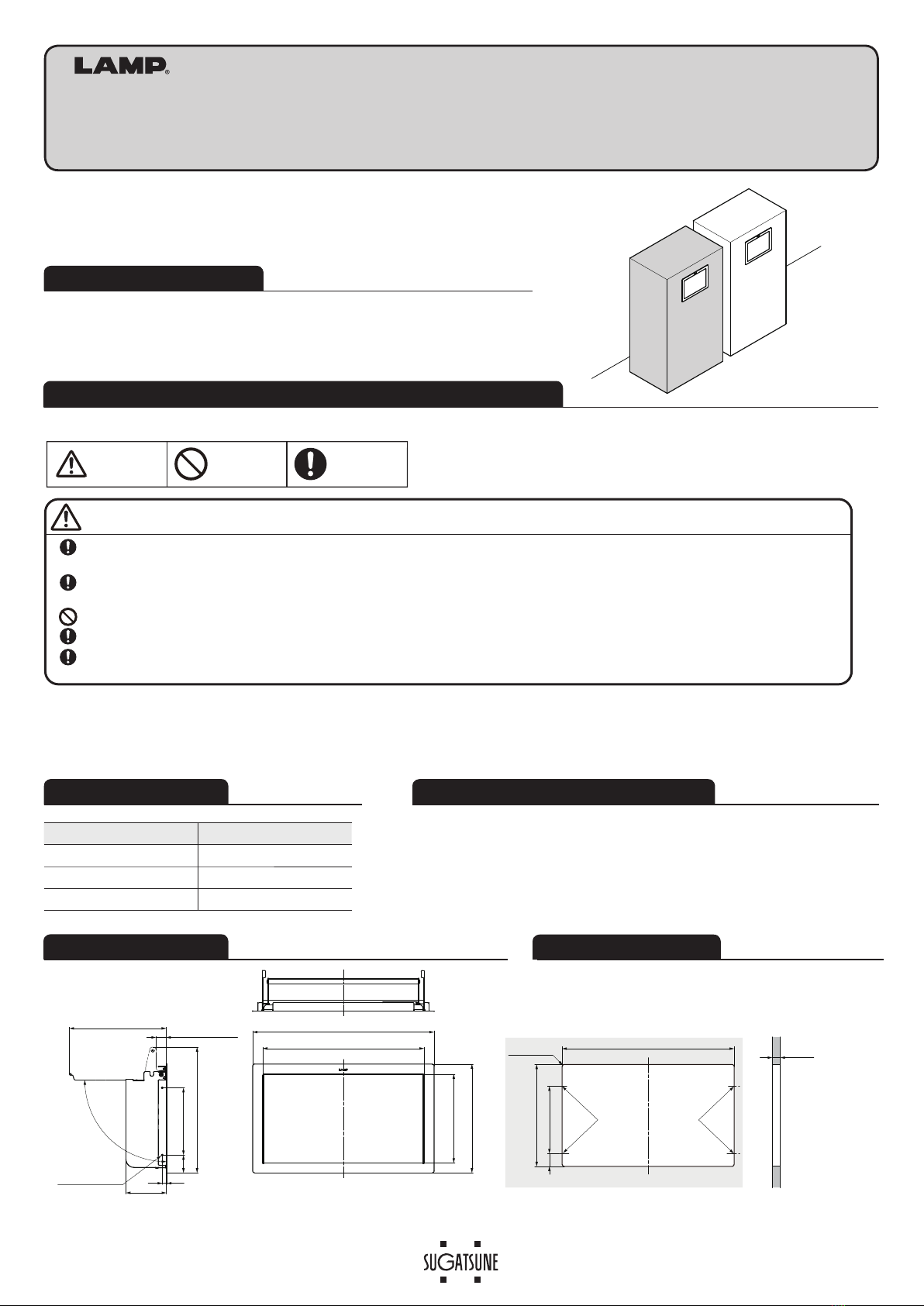

Lamp AZ-GD400-HL User manual

Combustibles Incombustibles
AZ-GD400-HL STAINLESS STEEL SOFT CLOSING FLAP LID SYSTEM
Installation instructions
Thank you for selecting our product. Before starting installation,
please read this manual thoroughly to ensure correct installation.
Please keep this manual at hand for future reference.
ABOUT THE PRODUCT
●Damper allows silent closing of lid.
●Side plates for anti-pinch function.
FOR YOUR SAFE WORK AND CORRECT INSTALLATION
PARTS DESCRIPTION
●Screws (not provided)
Choose the suitable length according to the material to be
mounted.
Recommended screw : 3mm tapping screw・・・・・・ 4 pcs
Description Quantity
Flap lid body 1
Warning sticker 1
Cover cap 4
TOOLS NEEDED FOR INSTALLATION
DIMENSION DRAWING CUTOUT DIMENSIONS
400
450
220
270
(25.5)
ZKHQIODSLVDWÛ
90°
100
10 1.5
44 167
427+1
0
253+1
0
167
32
4×R6 Max 18󱓨20
(240.5)
ZKHQIODSLVDWÛ Cutout : front view
Mounting screw holes
Cutout : side view
ZKHQIODSLVDWÛ
4× I3.5 holes
for installation
screws
Caution
If not followed injury or damage may result.
The product is designed to function when installed vertically as shown below. Horizontal, slanted orupside down installation
will result in improper function and may lead to injury.
To prevent the risk of the product falling and causing injury, ensure that the lid body is securely fastened to a structure
with adequate strength.
Do not disassemble nor modify any parts other than those described in this document.
Recommended ambient temperature range is 0 to 40 degrees centigrade.
The closing speed of the lid may vary according to ambient temperature .If the product is stored below zero degrees, please
store in room temperature for several hours before use.
Prohibited
Warning
Caution Required
Meaning of symbols
1

1
2
3
4
5
6
Make sure that the LAMP logo is at the top. Slowly open and close the lid completely a few
times in order to ensure correct operation.
Paste the warning sticker in a visible position to
avoid any injury when operating the lid.
'RQRWOHDYHDQ\JDSEHWZHHQWKHÀDSOLGERG\
and the mounting surface.
【1】Having opened the lid, insert the screws through
the provided access screw holes (two on each side) and
IDVWHQWKHÀDSOLGERG\VHFXUHO\
【2】0DNHVXUHWKDWWKH¿QDODVVHPEO\LVVHFXUHO\IDVWHQHG
Cover the access holes with the cover caps
provided.
INSTALLATION PROCEDURE
SUGATSUNE KOGYO CO.,LTD
Tokyo, JAPAN
Phone: [phone] E-mail:[email protected]
SUGATSUNE KOGYO (UK) LTD
Reading, UK
Phone: [phone] E-mail:[email protected]
SUGATSUNE EUROPE GmbH
Dusseldorf, GERMANY
Phone: [phone] E-mail:[email protected]
SUGATSUNE SHANGHAI Co., LTD
Shanghai, CHINA
Phone: [phone] E-mail:[email protected]
Guangzhou, CHINA
Phone: [phone] E-mail:[email protected]
SUGATSUNE KOGYO INDIA PRIVATE LIMITED
Mumbai, INDIA
Phone: [phone] E-mail:[email protected]
SUGATSUNE AMERICA, INC
California, USA
Phone: [phone] E-mail:[email protected]
Chicago, USA
Phone: [phone] E-mail:[email protected].
SUGATSUNE CANADA, INC.
Phone: [phone] E-mail:[email protected]
2019.04 1283-2
Access holes
two on each side
Screws (not provide
d
3mm tapping scre
w
is recommende
d
Cover caps
Access holes
two on each side
LAMP logo
Lid
TOP
BOTTOM
Side plate
2
