Lancaster SPREETAIL ARC108 147P User manual

Please mention model # ARC108_147P_V2
www.wearespreetail.com877-472-4296
Assembly Instructions
MODEL
ARC108_147P
SPREETAIL
CAUTION - ELECTRICALLY OPERATED PRODUCT
NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE.
AS WITH ALL ELECTRICAL PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED
DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK.
INPUT: 100-240V ~50/60Hz 0.15A Max OUTPUT: 5.0V 0.55A ，2.75W

This product is covered by a limited warranty that is effective for 90 days from the date of purchase. If, during the limited
warranty period, a part is found to be defective or breaks, we will offer replacement parts at no cost to you, the customer.
The only exceptions to the warranty include mainframes, table tops, playing surfaces, batteries or tools.
The above warranty will not apply in cases of damages due to improper usage, alteration, misuse, abuse, accidental
damage or neglect.
This Limited Warranty gives you specific legal rights and you may also have other rights vary from one State (province) to
another.
A PURCHASE RECEIPT (or other proof of purchase) will be required before any warranty service is initiated. For all
requests for warranty service, please feel free to contact our Consumer Service Department.
Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Lancaster, cannot
handle the product which is out of product’s limited warranty since we only provide available parts. Thank you!
PLEASE CONTACT US BEFORE RETURNING THE PRODUCT TO THE STORE!
English
LIMITED 90 DAYS WARRANTY
ARC108_147P www.wearespreetail.com1(Continued on the next page.)
LANCASTER
877-472-4296
www.wearespreetail.com
Customer Service Toll Free
Please Contact
Mon.-Fri., 9:00 a.m. to 5:00 p.m. EST
For additional resources and Frequently Asked Questions, please visit us at
DO NOT RETURN TO STORE
WE ARE READY TO HELP

English
TOOLS REQUIRED
ARC108_147P www.wearespreetail.com2(Continued on the next page.)
This product is intended for INDOOR use only.
Please do not sit, climb or lean on the product.
Please do not drag the product when moving it in order to avoid damaging the legs.
Please only use spray furniture polish to clean the exterior surfaces of the product.
This is not a children's toy, adult supervision is required for children playing this game.
1.
2.
3.
4.
5.
- Not Included
- Not Included
- Included
RECOMMENDED
IMPORTANT NOTICE
Adult Assembly Required.
CHOKING HAZARD - This item contains small parts. Not suitable for children under 3 years.
WARNING
Phillips Screwdriver
Standard (Flat Head Screwdriver)
Allen Key
Electric Screwdrivers may be helpful during assembly; however, please set a low
torque and use extreme caution.
X2
At least 2 adults needed No children in assembly
area
Keep away from pets in
assembly area
Do not use or keep
product outdoors. For
indoor use only. No
wet/humid conditions.
Power Tools: Set to Low Torque
High Torque Over Tightened

End Apron
1
x1
FOR FIG. 3
PART NUMBER FIG. NUMBER
QUANTITY
PART
PART NAME
Bottom Board
5
x1
FOR FIG. 12
Adapter
2
x1
FOR FIG. 20
Right Front Leg
3
x1
FOR FIG. 3
Left Front Leg
4
x1
FOR FIG. 3
Left Back Leg
9
x1
FOR FIG. 10
Target Board
with Sensor
6
x1
FOR FIG. 13
Support Board - A
7
x2
FOR FIG. 12
Right Back Leg
8
x1
FOR FIG. 10
FOR FIG. 1, 3, 4FOR FIG. 4 FOR FIG. 5FOR FIG. 5
Support Board - B
24
x1
Metal
Connecter
25
x16
Apron Corner
22
x1
Ball Return Board
23
x1
FOR FIG. 9FOR FIG. 6 FOR FIG. 6
Support Board - C
26
x2
Support Board - D
27
x1
FOR FIG. 6
“L” Bracket
28
x6
Goal Box
Board
29
x1
Playfield
21
x1
FOR FIG. 2
Top Rail - B
18
x1
FOR FIG. 1
Top Rail - C
19
x1
FOR FIG. 3
Top Rail - D
20
x1
FOR FIG. 3
FOR FIG. 1FOR FIG. 17 FOR FIG. 1
Isolator
14
x1
Left Side Apron
15
x1
FOR FIG. 1
Right Side Apron
16
x1
Top Rail- A
(Control Switch)
17
x1
FOR FIG. 14FOR FIG. 15 FOR FIG. 14 FOR FIG. 20
Back Board - B
12
x1
Electronic Scorer
13
x1
Back Board - A
10
x1
Top Panel
11
x1
English
PARTS IDENTIFIER
ARC108_147P www.wearespreetail.com3(Continued on the next page.)

Target Support
Board
34
x2
FOR FIG. 10 36
x2
FOR FIG. 7
Trim strip - Left
30
x1
FOR FIG. 21
Back Board - C
31
x1
FOR FIG. 19
Back Board - D
Connecting Board
32
x1
FOR FIG. 10
Top Rail
Corner
33
x2
FOR FIG. 21
Trim strip - Right
35
x1
FOR FIG. 21
ACCESSORIES
Ball
37
x4
HARDWARE
FOR FIG. 1, 3, 4, 5, 6, 7
M6 Washer
A5
x20
FOR FIG. 7, 10, 11, 15
Allen Key
A9
x1
M6 Spring
Lock Washer
A6
x20
FOR FIG. 7, 10, 11, 15
3x22mm
Screw
A7
x8
FOR FIG. 14, 18
4x21mm
Screw
A8
x4
FOR FIG. 4
3.5x28mm
Screw
A2
x52
FOR FIG. 2, 3, 8, 9, 10,
12, 13, 16, 19, 20
3x12mm
Screw
A3
x14
FOR FIG. 21
M6x24mm
Bolt
A4
x20
FOR FIG. 7, 10, 11, 15
4x12mm
Screw
A1
x90
English
PARTS IDENTIFIER
ARC108_147P www.wearespreetail.com4(Continued on the next page.)

ANTES DE MONTARBEFORE ASSEMBLY

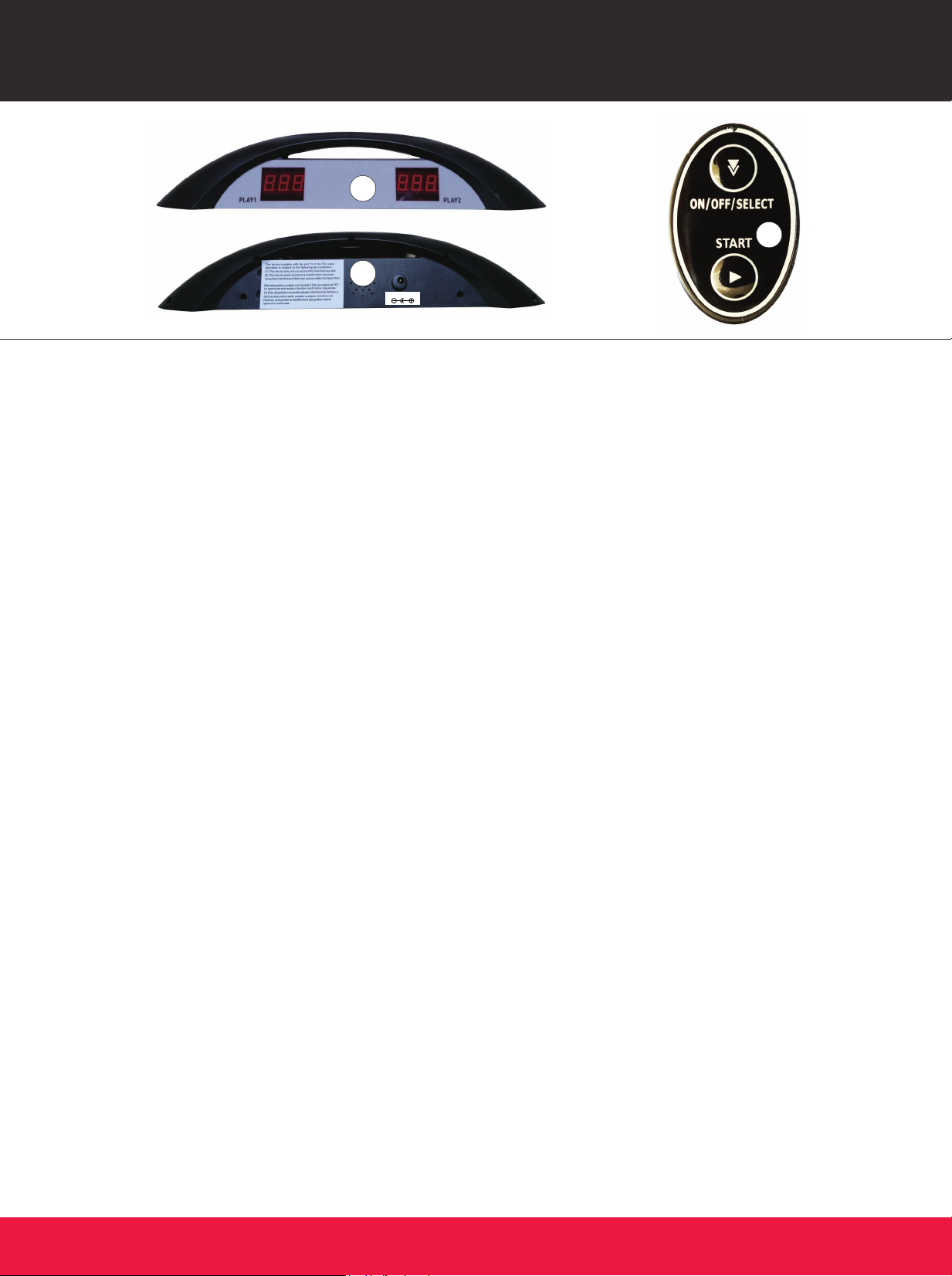

LED
P1
x1
FOR FIG. 14
Ball Return
Cover
P2
x1
FOR FIG. 3
Target
Sensor Wire
P3
x7
M6 Nut
P5
x20
FOR FIG. 1, 10
Control Switch
P4
x1
FOR FIG. 1
ON/OFF/SELECT
START
English
PRE-INSTALLED PARTS
ARC108_147P www.wearespreetail.com5(Continued on the next page.)
BEFORE ASSEMBLY
Find a clean, level place to begin the assembly of your product.
Verify that you have all listed parts as shown on the parts list pages. If any parts are missing, call our customer service.
1.
2.

FIG. 1
x1
16
15 x1
x1
17
x1
18
x10
25
x40
A1
P4 x1
Pre-installed
Note: Install the Control Switch (P4). Ensure it is
fully in place before proceeding to the next step.
x6
P5
Pre-installed
15
16
17
18
25
15
17
P4
15
15 17
A1 P4
P5
16
P5
25
A1
18
English
ASSEMBLY
ARC108_147P www.wearespreetail.com6(Continued on the next page.)
ON/OFF/SELECT
START

FIG. 2
21
x10
x1
A2
FIG. 3
1x1
P2 x1
x1
3
x1
4
x1
20
x4
25
x16
A1
x4
A2
19 x1
A2
15
16
21
17
18
20
25
25
4
A1
P2
4
A2
3
1
25
19
25
A1
3
Pre-installed
Note: Black laminate this side.
English
ASSEMBLY
ARC108_147P www.wearespreetail.com7(Continued on the next page.)

FIG. 4
22 x1
x2
25
x8
A1
x4
A8
A1
25
16
A8
1
22
21
1
BACK VIEW
1
21
22
SIDE VIEW
English
ASSEMBLY
ARC108_147P www.wearespreetail.com8(Continued on the next page.)

FIG. 5
x1
23
x1
24
x2
A1
A1
24
23
FIG. 6
x1
27
x6
28
26 x2
A1 x12
26
28
A1
28
A1
27
English
ASSEMBLY
ARC108_147P www.wearespreetail.com9(Continued on the next page.)

FIG. 7
x12
A1
36 x2
x6
A5
x6
A6
x1
A9
A4 x6
36
A5
A6
A4
36
A1
26
26
A1
27
28
English
ASSEMBLY
ARC108_147P www.wearespreetail.com10(Continued on the next page.)

FIG. 8
A2 x2
FIG. 9
x4
A2
29 x1
Note: Press the Goal Box Board (29) to the
position and fasten the screws.
23
27
26
23
24
A2
Note: Black side is facing down.
27
A2
29
29
English
ASSEMBLY
ARC108_147P www.wearespreetail.com11(Continued on the next page.)

FIG. 10
x1
9
8x1
x1
32
34 x2
x14
P5
Pre-installed
FIG. 11
x6
A5
x6
A6
A4 x6
A9 x1
9
8
32
A2
P5
P5
x4
A4
x4
A5
x4
A6
x1
A9
x6
A2
A4
A6
A5
36
A4 A6 A5
P5
9
8
34
34
34
English
ASSEMBLY
ARC108_147P www.wearespreetail.com12(Continued on the next page.)

FIG. 12
x2
7
5x1
x8
A2
Note: Black EVA side facing up.
7
5
A2
A2
5
23
5
23
5
SIDE VIEW
5
23
English
ASSEMBLY
ARC108_147P www.wearespreetail.com13(Continued on the next page.)

FIG. 14
x1
P1
x1
13
11 x1
A7 x2
13
11
Front
11
A7
Pre-installed
11
P1
BACK VIEW
FIG. 13
6x1
x2
A2
English
ASSEMBLY
ARC108_147P www.wearespreetail.com14(Continued on the next page.)
6
SIDE VIEW
A2
34
6

FIG. 16
x4
A2
FIG. 15
x4
A5
A4 x4
x1
A9
A6 x4
10 x1
10
10
A2
BACK VIEW
13
A4 A5
A6
10
11
English
ASSEMBLY
ARC108_147P www.wearespreetail.com15(Continued on the next page.)

FIG. 17
14 x1
FIG. 18
A7 x6
A7
14
14
11
English
ASSEMBLY
ARC108_147P www.wearespreetail.com16(Continued on the next page.)

FIG. 20
2x1
12 x1
A2 x8
FIG. 19
31 x1
A2 x4
2
12
A2
6
P4
13
Note: Connect Target Sensor Wire
(6) and Control Switch (P4).
31
A2
P4
6
English
ASSEMBLY
ARC108_147P www.wearespreetail.com17(Continued on the next page.)

FIG. 21
30 x1
33 x2
35 x1
A3 x14
30
33
35
A3
33
A3
13
P1
2
P4
ON/OFF/SELECT
START
6
P3
ELECTRONIC CONNECTIONS DIAGRAM
English
ASSEMBLY
ARC108_147P www.wearespreetail.com18(Continued on the next page.)

Insert the power plug.
Press "ON/OFF/SELECT" to activate the scorer.
The screen will show “1P 1P”; press the select button to switch between single-player and double-player mode.
Single-player mode:
Press the start button and the score screen will show “000 000” to start the single-player mode.
For each round, the scores will be counted 9 times. After 9 score counts (where the player has cast the ball 9 times), the
game for Player is over and the final score is shown the left side of the player.
Press the start button to start another single-player game or press the select button to select other game modes.
Double-player mode:
Press the start button and the score screen will show “000 000” to start the double-player mode. The score screen will
show “000 000” to start the game for Player 1.
After 9 score counts (where the player has cast the ball 9 times), the game for Player 1 is over and the final score is shown
the left side of the player.
After the game sound has finished, Player 2 can start the game.
After 9 score counts (where the player has cast the ball 9 times), the game for Player 2 is over and the final score is shown
the right side of the player.
Scores comparison display:
PLAY1>PLAY2, the sound of Player 1 winning will occur.
PLAY2>PLAY1, the sound of Player 2 winning will occur.
PLAY1=PLAY2, the sound of a tied game will occur.
After the game sound has finished you can press the start button to restart the game or press the select button to choose
other games.
After booting or after the game is over, if there is no operation within 5 minutes, it will automatically shut down. Please
unplug the power when it is not in use.
(Note: during the game, you can press the select button to immediately return to the function selection mode and
reselect the game mode).
Score rules:
The player gets 10 points for the ball entering the 10-point hole.
The player gets 20 points for the ball entering the 20-point hole.
The player gets 30 points for the ball entering the 30-point hole.
The player gets 40 points for the ball entering the 40-point hole.
The player gets 50 points for the ball entering the 50-point hole.
The player gets 100 points for the ball entering the 100-point hole.
Caution: Do not “Throw” the ball at the target board as damage may occur. Correct and safe operation is to always “roll”
the ball along the runway.
13
13
P4
DC5V 550mA
English
GAME DESCRIPTIONS
ARC108_147P www.wearespreetail.com19(Continued on the next page.)
