LANCOM Antenna
AirLancer ON-Q60ag

MOUNTING INSTRUCTIONS
Preparation for wall mounting
Use the antenna as a drilling template to mark out the drill
holes for the wall mounting. The horizontal and vertical
separation of the adjacent holes is 173.7mm.
Size of the drill holes
Using the markings as a guide, drill the holes and insert
dowels if appropriate. Depending on the underground the
size of the holes may vary.
Mounting the antenna
Line-up the antenna with the holes and make sure that
the connectors are pointing downwards. Then attach the
antenna with the supplied screws.
Mounting the antenna with a free orientation can be
achieved with the AirLancer Mount (ON) which is available
optionally.

MOUNTING INSTRUCTIONS
Important
Working responsibly with high frequencies
The AirLancer ON-Q60ag meets the requirements of the
R&TT directives EN62479 and the FCC regulations. To ensure
compliance with these requirements, a minimum distance
of 20 cm must be maintained between the antenna and the
human body when operating the antenna.
Important
Electrical and electronic equipment law
In the interests of recycling, please do not dispose of
electrical and electronic waste in your household garbage.
Ensure that your electrical and electronic waste is disposed
of in accordance with the regulations in your country.
Important
Proper handling of antenna cables
Antenna cables are sensitive RF cables. During installation
it is important that the cables are not creased, and bent as
little as possible, otherwise the antenna will suffer a loss in
performance. Do not coil the antenna cable in tight loops.

MOUNTING INSTRUCTIONS
Important
Antenna gain and terminating unused antenna connectors on the access point
It is essential for unused antenna connectors on the access point to be terminated with the supplied
rod antenna. The terminating resistor supplied with the adapter AirLancer AN-RPSMA-NJ is suitable
for use with indoor access points. In addition, you must disable the unused antenna connectors in
LCOS (changing the antenna grouping of the respective WLAN module), and configure the antenna
gain of the antenna. The settings can be found in LANconfig at:
Configuration > Wireless LAN > General > Physical WLAN settings > Radio
Operating mode
4x4 MIMO
In the 4x4 MIMO operating mode, all four antenna connectors are connected to the same WLAN
module of the access point.
Operating mode
2x2 MIMO & 2x2 MIMO
Apart from its standard operation as a 4x4 MIMO antenna, this antenna can also be used by two
different WLAN modules. For this purpose one set of the connectors marked with -45° and +45°
are connected with the each WLAN module. The two WLAN modules should not be operated in the
same frequency band.
Surge Arrester AirLancer SN-ANT
(not included)
WLAN 1
5 GHz
2x2 MIMO
Ant 1
WLAN 1
5 GHz
2x2 MIMO
Ant 2
WLAN 2
2,4 GHz
2x2 MIMO
Ant 1
WLAN 2
2,4 GHz
2x2 MIMO
Ant 2

LANCOM, LANCOM Systems and LCOS are registered trademarks. All other names or descriptions used may be trademarks or registered trademarks of their owners. Subject to change without notice. No liability for technical errors and/or omissions

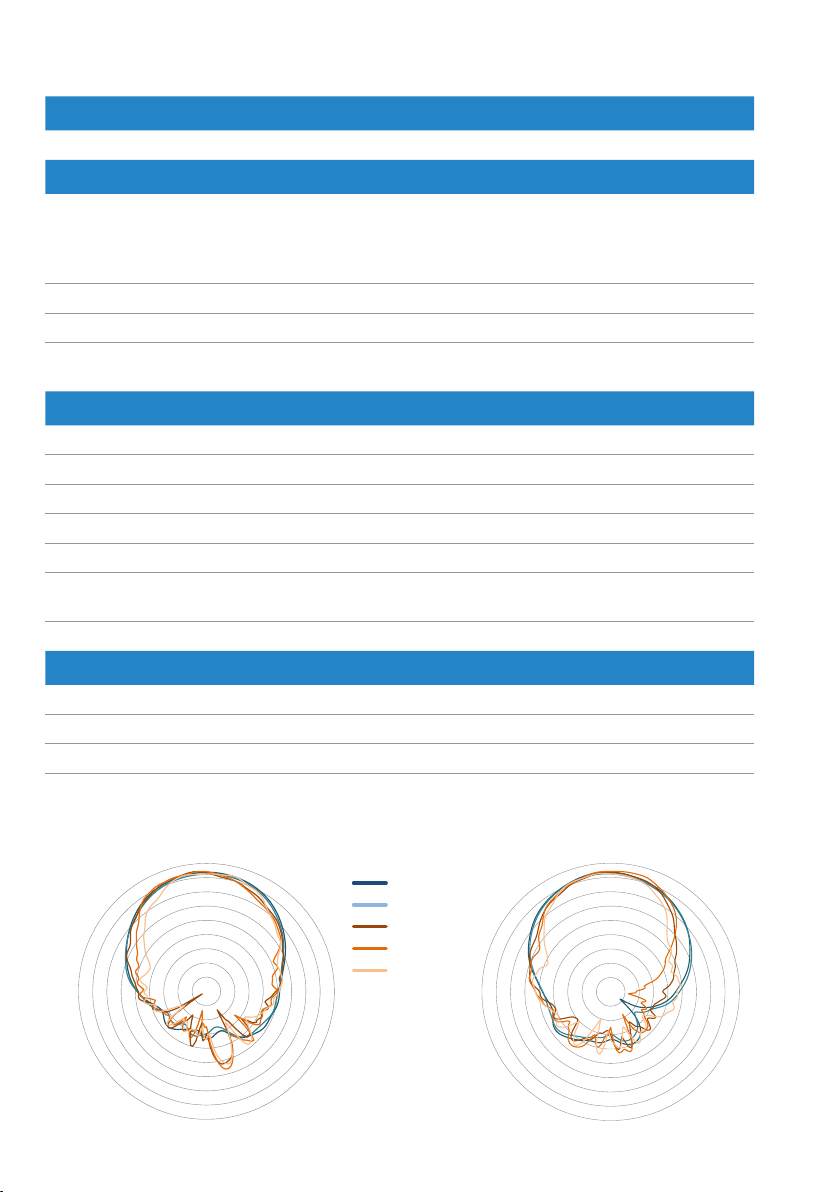

Technical details
Frequency range 2400 - 2500 MHz, 4900 - 5900 MHz
Antenna characteristics
Radiation characteristics
horizontal (2.4 GHz) 65°
vertical (2.4 GHz) 65°
horizontal (5 GHz) 65°
vertical (5 GHz) 65°
Recommended use Point-to-multipoint, sector
VSWR 1.5:1 typ. / 2.0:1 max.
Gain 2.4 GHz 6.5 dbi max.
5 GHz 7.5 dbi max.
Mechanical details
Size 200 x 200 x 34 mm (length x width x height)
Weight 450 g (antenna without mounting kit)
Temperature range -40°C bis 70°C
Color Light grey
Material UV-resistant plastic
Mounting options Wall mounting, xed
Wall, and pole mounting, adjustable (with optionally available AirLancer Mount (ON))
Cables, connectors 3 x 81.2 cm UV-resistant RG316 cable with N-plug connector
Item
Warranty 2 years for AirLancer and accessories
Item number 61248
Package content Antenna, fastening screws, dowels, Quick Reference Guide
2415 MHz
2475 MHz
5000 MHz
5300 MHz
5800 MHz
-35
-30
-25
-20
-15
-10
-5
0
5
10
0
30
60
90
120
150
180
210
240
270
300
330
2410 MHz
2470 MHz
5000 MHz
5300 MHz
5800 MHz
-35
-30
-25
-20
-15
-10
-5
0
5
10
0
30
60
90
120
150
180
210
240
270
300
330
2410 MHz
2470 MHz
5000 MHz
5300 MHz
5800 MHz
2.4 & 5 GHz h-plane 2.4 & 5 GHz e-plane
