Land Pride Pallet Forks PF10 User manual

Table of Contents
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator’s Manual and Decal Kit in French
Language, please see your Land Pride dealer.
Read the Operator’s Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception.Your life and the lives of others depend on it!
!
Pallet Forks
PF10 & PF20
319-033M
Operator’s Manual
Printed 12/6/18
25760

12/6/18PF10 & PF20 Pallet Forks 319-033M
Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were
originally ordered, the weights and measurements are no longer accurate for your machine. Update the record by
adding the machine weight and measurements provided in the Specifications & Capacities Section of this manual with
the Option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
!
California Proposition 65

Table of Contents
© Copyright 2018 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Land Pride assumes no responsibility for errors or omissions.Neither is any liability assumed for damages resulting from the use
of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit.This publication describes the state of this
product at the time of its publication, and may not reflect the product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
12/6/18 PF10 & PF20 Pallet Forks 319-033M
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look for the Safety Alert Symbol . . . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . 5
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Section 1: Installation . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Two Pallet Fork Installation . . . . . . . . . . . . . . . . . . . 6
Three Pallet Fork Installation . . . . . . . . . . . . . . . . . 6
Section 2: Operating Procedures . . . . . . . . . . 7
Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Pallet Fork Operation . . . . . . . . . . . . . . . . . . . . . . . 8
Picking up a load . . . . . . . . . . . . . . . . . . . . . . . . . 8
Traveling with a load . . . . . . . . . . . . . . . . . . . . . . 8
Placing a load . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
General Operating Instructions . . . . . . . . . . . . . . . . 8
Section 3: Maintenance & Lubrication . . . . . . 9
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Thrusts & Bearing Surface . . . . . . . . . . . . . . . . . . 9
Section 4: Specifications & Capacities . . . . 10
Section 5: Features & Benefits . . . . . . . . . . . 11

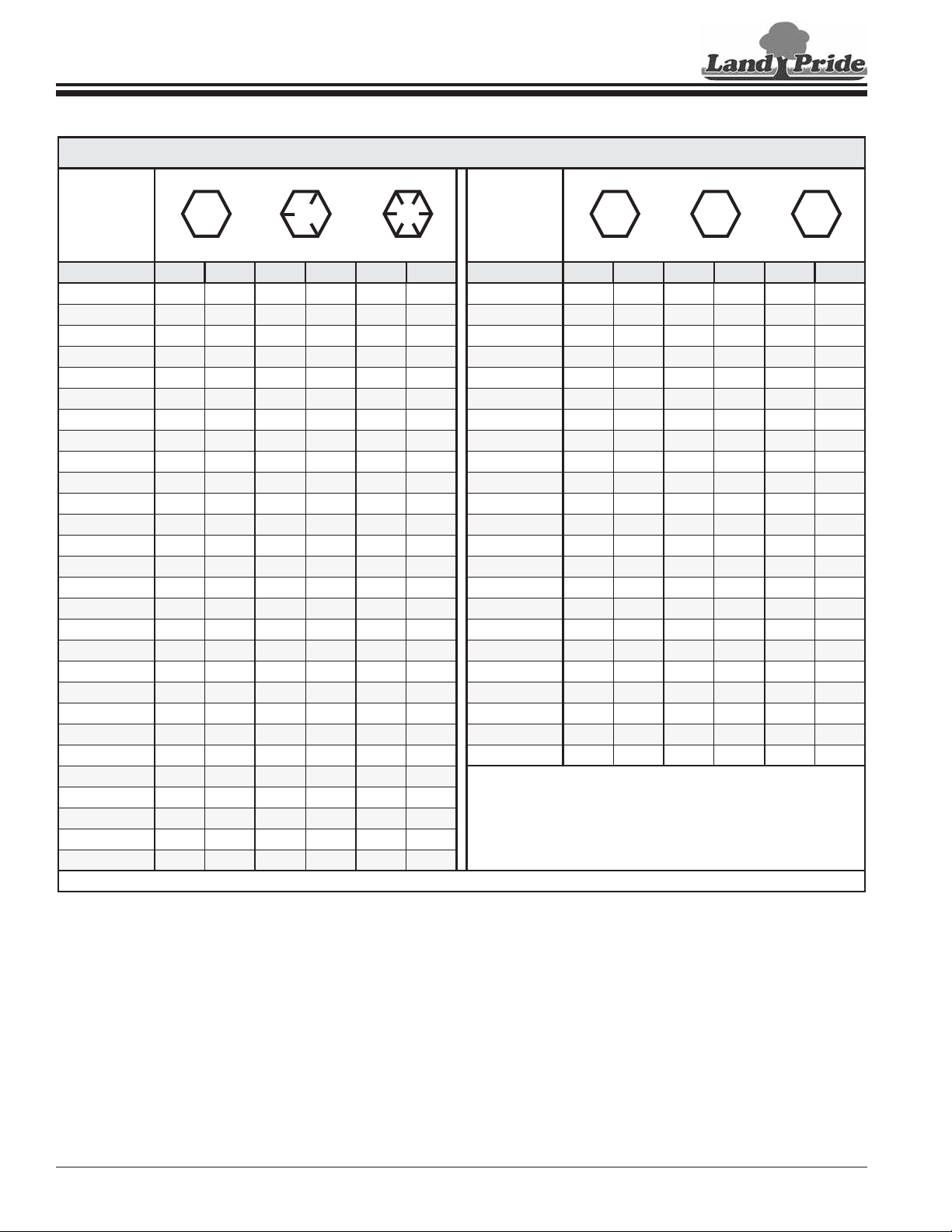

Section 6: Torque Values Chart . . . . . . . . . . 12
Section 7: Warranty . . . . . . . . . . . . . . . . . . . . 13

Table of Contents Continued
Parts Manual QR Locator
The QR (Quick Reference) code on the
cover and to the left will take you to the
Parts Manual for this equipment.
Download the appropriate App on your
smart phone, open the App, point your
phone on the QR code and take a picture.
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Land Pride products.
Refer to Parts Manual QR
Locator on this page for
detailed instructions.
Table of Contents
12/6/18PF10 & PF20 Pallet Forks 319-033M
See previous page for Table of contents.

Important Safety Information
12/6/18 1
Important Safety Information
Listed below are common practices that may or may not be applicable to the products
described in this manual.


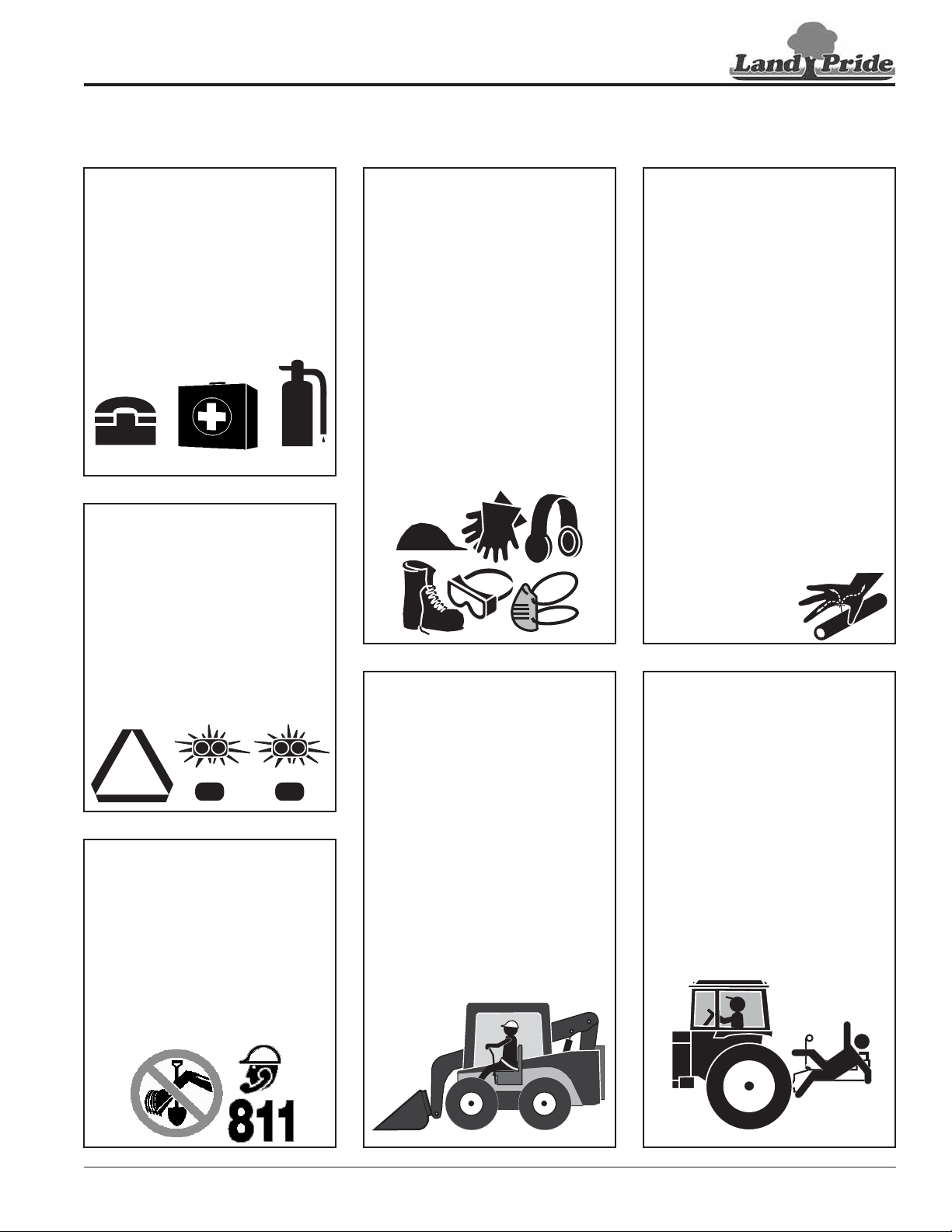

Safety at All Times
Careful operation is your best
assurance against an accident.
All operators, no matter how much
experience they may have, should
carefully read this manual and
other related manuals, or have the
manuals read to them, before
operating the power machine and
this attachment.
Thoroughly read and understand
the “Safety Label” section. Read
all instructions noted on them.
Do not operate the equipment
while under the influence of drugs
or alcohol as they impair the ability
to safely and properly operate the
equipment.
Operator should be familiar with all
functions of the tractor/skid steer
and attachment and be able to
handle emergencies quickly.
Make sure all guards and shields
appropriate for the operation are in
place and secured before
operating attachment.
Keep all bystanders away from
equipment and work area.
Start tractor/skid steer from the
driver’s seat with steering levers
and hydraulic controls in neutral.
Operate tractor/skid steer and
controls from the driver’s seat only.
Never dismount from a moving
tractor/skid steer or leave machine
unattended with engine running.
Do not allow anyone to stand
between tractor/skid steer and
attachment while hooking-up.
Keep hands, feet, and clothing
away from power-driven parts.
While transporting and operating
equipment, watch out for objects
overhead and along side such as
fences, trees, buildings, wires, etc.
Store attachment in an area where
children normally do not play.
When needed, secure attachment
against falling with support blocks.
Look for the Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control, and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of personnel involved in the operation,
transport, maintenance, and storage of equipment.
OFF
REMOVE
Skid Steer Shutdown
And Storage
Reduce engine speed and shut-off
all power to the attachment.
Park on solid, level ground and
lower attachment until it is flat on
the ground or support blocks.
Turn off engine, and remove
switch key to prevent unauthorized
starting.
Relieve all hydraulic pressures.
If included, raise seat bar and
move controls until both lock.
Wait for all components to stop
before leaving operator’s seat.
Use steps, grab-handles and
anti-slip surfaces when stepping
on and off the skid steer.
Detach and store attachment in an
area where children normally do
not play. Secure attachment by
using blocks and supports.
Tractor Shutdown & Storage
Reduce engine speed and shut-off
all power to the attachment.
Park on solid, level ground and
lower attachment to ground or
onto support blocks.
Put tractor in park or set park
brake, turn off engine, and remove
switch key to prevent unauthorized
starting.
Relieve all hydraulic pressures.
Wait for all components to stop
before leaving operator’s seat.
Use steps, grab-handles and
anti-slip surfaces when stepping
on and off the tractor.
Detach and store implement in an
area where children normally do
not play. Secure implement using
blocks and supports.
OFF
REMOVE
Be Aware of
Signal Words
A signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates a hazardous situation that, if
not avoided, will result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, could result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, may result in minor or
moderate injury.
WARNING
CAUTION
!
!
!
DANGER
!

Important Safety Information
12/6/18
2
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Transport Safely
Comply with federal, state, and
local laws.
Use towing vehicle and trailer of
adequate size and capacity. Secure
equipment towed on a trailer with
tie downs and chains.
Sudden braking can cause a towed
trailer to swerve and upset. Reduce
speed if towed trailer is not
equipped with brakes.
Avoid contact with any overhead
utility lines or electrically charged
conductors.
Always drive with load on end of
loader arms low to the ground.
Always drive straight up and down
steep inclines with heavy end of
skid steer or tractor with loader
attachment on the “uphill” side.
Engage park brake when stopped
on an incline.
Maximum transport speed for an
attached equipment is 20 mph. DO
NOT EXCEED. Never travel at a
speed which does not allow
adequate control of steering and
stopping. Some rough terrains
require a slower speed.
As a guideline, use the following
maximum speed weight ratios for
attached equipment:
20 mph when weight of attached
equipment is less than or equal
to the weight of machine towing
the equipment.
10 mph when weight of attached
equipment exceeds weight of
machine towing equipment but
not more than double the weight.
IMPORTANT: Do not tow a load
that is more than double the weight
of the vehicle towing the load.
Tire Safety
Tire changing can be dangerous
and must be performed by
trained personnel using the
correct tools and equipment.
Always maintain correct tire
pressure. Do not inflate tires
above recommended pressures
shown in the Operator’s Manual.
When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
Securely support the attachment
when changing a wheel.
When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
Make sure wheel bolts have been
tightened to the specified torque.
Safety Precautions for
Children
Tragedy can occur if the operator
is not alert to the presence of
children. Children generally are
attracted to attachments and their
work.
Never assume children will remain
where you last saw them.
Keep children out of the work area
and under the watchful eye of a
responsible adult.
Be alert and shut the attachment
and skid steer/track loader down if
children enter the work area.
Never carry children on the power
machine or attachment. There is
not a safe place for them to ride.
They may fall off and be run over
or interfere with the control of the
power machine.
Never allow children to operate the
power machine, even under adult
supervision.
Never allow children to play on the
power machine or attachment.
Use extra caution when backing
up. Before the power machine
starts to move, look down and
behind to make sure the area is
clear.
Practice Safe Maintenance
Understand procedure before doing
work. Refer to the Operator’s Manual
for additional information.
Work on a level surface in a clean
dry area that is well-lit.
Lower attachment to the ground and
follow all shutdown procedures
before leaving the operator’s seat to
perform maintenance.
Do not work under any hydraulic
supported equipment. It can settle,
suddenly leak down, or be lowered
accidentally. If it is necessary to work
under the equipment, securely
support it with stands or suitable
blocking beforehand.
Use properly grounded electrical
outlets and tools.
Use correct tools and equipment for
the job that are in good condition.
Allow equipment to cool before
working on it.
Disconnect battery ground cable (-)
before servicing or adjusting
electrical systems or before welding
on equipment.
Inspect all parts. Make certain parts
are in good condition & installed
properly.
Replace parts on this attachment
with genuine Land Pride parts only.
Do not alter this attachment in a way
which will adversely affect its
performance.
Do not grease or oil attachment
while it is in operation.
Remove buildup of grease, oil, or
debris.
Always make sure any material and
waste products from the repair and
maintenance of the attachment are
properly collected and disposed.
Remove all tools and unused parts
before operation.

Important Safety Information
12/6/18 3
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Avoid High
Pressure Fluids Hazard
Escaping fluid under pressure can
penetrate the skin causing serious
injury.
Relieve all residual pressure
before disconnecting hydraulic
lines or performing work on the
hydraulic system.
Make sure all hydraulic fluid
connections are tight and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
Use a piece of paper or
cardboard, NOT BODY PARTS, to
check for suspected leaks.
Wear protective gloves and safety
glasses or goggles when working
with hydraulic systems.
DO NOT DELAY. If an accident
occurs, see a doctor familiar with
this type of injury immediately. Any
fluid injected into the skin or eyes
must be treated within
a few hours or
gangrene may
result.
Wear Personal Protective
Equipment (PPE)
Wear protective clothing and
equipment appropriate for the job
such as safety shoes, safety
glasses, hard hat, and ear plugs.
Clothing should fit snug without
fringes and pull strings to avoid
entanglement with moving parts.
Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
Operating equipment safely
requires the operator’s full
attention. Avoid wearing
headphones while operating
equipment.
Keep Riders Off
Machinery
Never carry riders on the power
machine or attachment.
Riders obstruct operator’s view
and interfere with the control of
the power machine.
Riders can be struck by objects or
thrown from the equipment.
Never use power machine or
attachment to lift or transport
riders.
Avoid Underground
Utilities
Dig Safe, Call 811 (USA).
Always contact your local utility
companies (electrical, telephone,
gas, water, sewer, and others)
before digging so that they may
mark the location of any
underground services in the area.
Be sure to ask how close you can
work to the marks they positioned.
Prepare for Emergencies
Be prepared if a fire starts.
Keep a first aid kit and fire
extinguisher handy.
Keep emergency numbers for
doctor, ambulance, hospital, and
fire department near phone.
911
Use Safety
Lights and Devices
Slow moving tractors, skid steers,
and self-propelled machines can
create a hazard when driven on
public roads. They are difficult to
see, especially at night. Use the
Slow Moving Vehicle (SMV) sign
when on public roads.
Flashing warning lights and turn
signals are recommended
whenever driving on public roads. Use Seat Belt and ROPS
Land Pride recommends the use
of a CAB or roll-over-protective-
structures (ROPS) and seat belt
in almost all power machines.
Combination of a CAB or ROPS
and seat belt will reduce the risk
of serious injury or death if the
power machine should be upset.
If ROPS is in the locked-up
position, fasten seat belt snugly
and securely to help protect
against serious injury or death
from falling and machine
overturn.

Important Safety Information
Table of Contents
12/6/18PF10 & PF20 Pallet Forks 319-033M
4

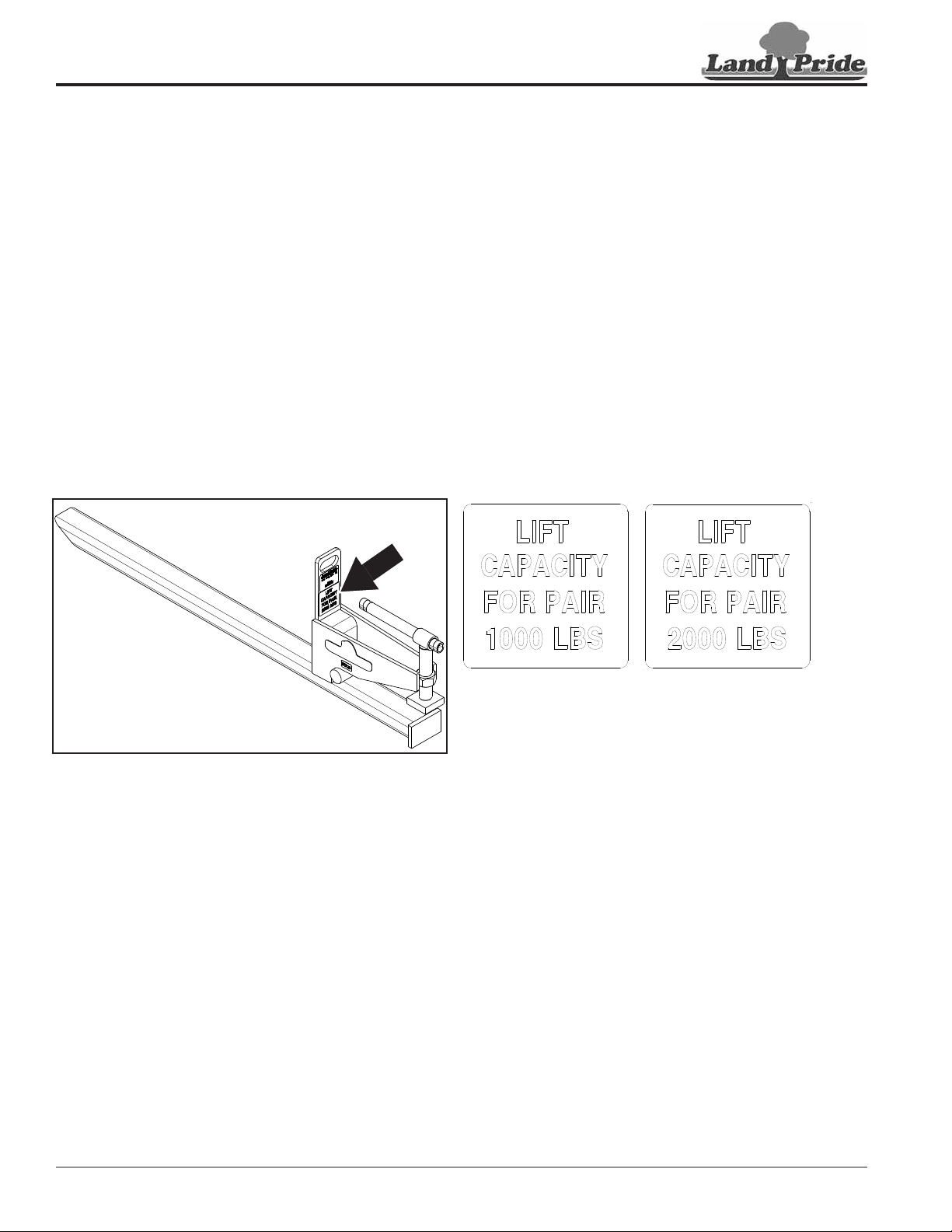

848-144C
Lift capacity for 1000 lbs rating - PF10 Model
848-143C
Lift capacity for 2000 lbs rating - PF20 Model
25761
Safety Labels
Your Pallet Forks comes equipped with all safety labels in
place. They were designed to help you safely operate your
implement. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Land Pride dealer. To find your nearest dealer,
visit our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean surface area where label is to be placed.
b. Spray soapy water onto the cleaned area.
c. Peel backing from label and press label firmly onto the
surface.
d. Squeeze out air bubbles with edge of a credit card or
with a similar type of straight edge.
Important Safety Information

Introduction
Table of Contents
12/6/18 PF10 & PF20 Pallet Forks 319-033M 5
The parts on your Pallet Forks have been specially
designed by Land Pride and should only be replaced with
genuine Land Pride parts. Contact a Land Pride dealer if
customer service or repair parts are required. Your Land
Pride dealer has trained personnel, repair parts, and
equipment needed to service the implement.
Serial Number
For quick reference and prompt service, record model
and serial number on the inside cover page and again on
the warranty page. Always provide model number and
serial number when ordering parts and in all
correspondences with your Land Pride dealer. For
location of your serial number plate, see Figure 1.
Serial Number Plate Location
Figure 1
Further Assistance
Your dealer wants you to be satisfied with your new Pallet
Forks. If for any reason you do not understand any part of
this manual or are not satisfied with the service received,
the following actions are suggested:
1. Discuss any problems you have with your implement
with your dealership service personnel so they can
address the problem.
1. Discuss any problems you have with your attachment
with your dealership service personnel so they can
address the problem.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
problem, and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpser[email protected]
25761
Introduction
Land Pride welcomes you to the growing family of new
product owners.This Pallet Fork has been designed with
care and built by skilled workers using quality materials.
Proper assembly, maintenance, and safe operating
practices will help you get years of satisfactory use from
this Pallet Fork.
Application
The Land Pride PF10 and PF20 Bucket Mounted Pallet
Forks have uses and applications in farming, ranching,
construction sites, nurseries, campuses, theme parks,
salvage operations, warehouses, lumber yards, and
large or small retail outlets. They have the capability of
turning your tractor or skid steer bucket loader into a
forklift for expanded material handling capability.
Whether you choose the 1000 lb. capacity PF10 series or
2000 lb. capacity PF20 Series Pallet Forks you’ll find that
the Land Pride product will save you time and money and
make getting the material handling job done a great deal
easier.
See “Specifications & Capacities”on page 10 and
“Features and Benefits” on page 11 for additional
information and performance enhancing options.
Using This Manual
•This Operator’s Manual is designed to help familiarize
the operator with safety, assembly, operation,
adjustments, troubleshooting, and maintenance. Read
this manual and follow the recommendations to help
ensure safe and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual, contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge, from our website at
www.landpride.com
Terminology
“Right” or “Left” as used in this manual is determined by
facing forward in the direction the machine will operate
while in use unless otherwise stated.
Definitions
Owner Assistance
The dealer should complete the Online Warranty
Registration at the time of purchase. This information is
necessary to provide you with quality customer service.
IMPORTANT: A special point of information related
to the following topic. Land Pride’s intention is this
information must be read & noted before continuing.
NOTE: A special point of information that the
operator should be aware of before continuing.

Section 1: Installation
Table of Contents
12/6/18PF10 & PF20 Pallet Forks 319-033M
6
Installation
The PF10 and PF20 Pallet Forks are designed for Skid
Steer and Tractor Loader buckets.
WARNING
!
To avoid serious injury or death:
Lightweight power machines may need weight added to the
rear to maintain steering control and prevent forward tipping
or side tipping caused by a heavy front load. Consult your
power machine Operator’s Manual to determine proper
weight requirements and maximum weight limitations..

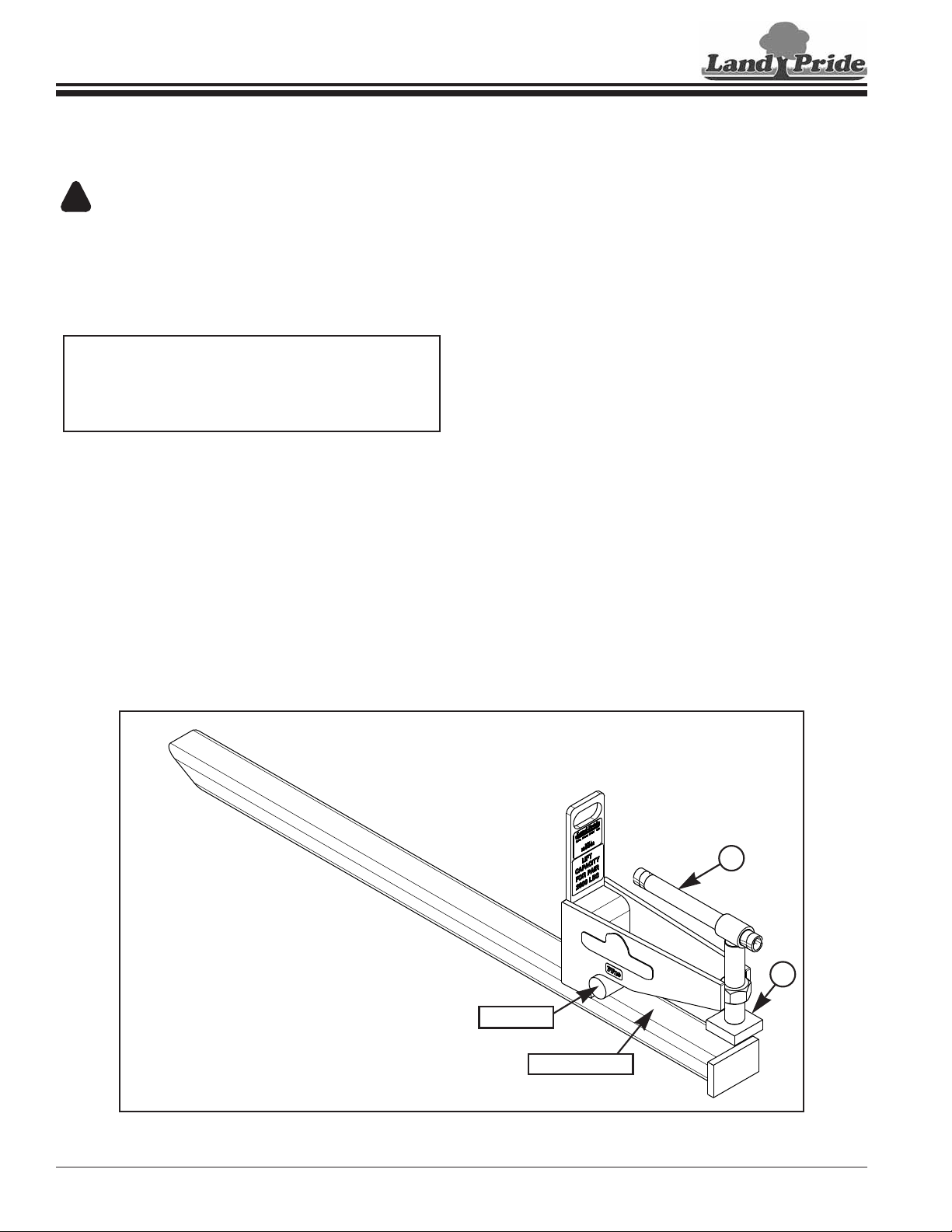

Two Pallet Fork Installation
Refer to Figure 1-1:
1. Open throat of Pallet Forks by unscrewing swivel
pad (#2) with sliding clamp handle (#1).
2. When possible, attach Pallet Fork to a reinforced
section of the bucket approximately 8 1/2" right of
bucket center. If bucket is equipped with teeth, make
sure Pallet Fork is positioned between the teeth.
3. Slide throat of Pallet Fork onto the bucket floor until
front of bucket is as far forward as possible under the
round bar.
IMPORTANT: The throat opening is designed to
accommodate a variety of bucket sizes and does not
fit tight. Therefore, it is normal for the Pallet Forks to
have some movement around the throat opening
when not under load.
4. Position the other Pallet Fork an equal distance left of
bucket center and slide throat of Pallet Fork onto the
bucket floor until front of bucket is as far forward as
possible under the round bar. If bucket is equipped
with teeth, make sure unit is positioned between the
teeth.
5. Secure Pallet Forks to the bucket by tightening
handles (#1) until swivel pad (#2) is tight against the
bucket floor. Do not overtighten.
Three Pallet Fork Installation
Refer to Figure 1-1:
1. Open throat of Pallet Forks by unscrewing swivel
pad (#2) with sliding clamp handle (#1).
2. Center one of the Pallet Forks in the middle of the
bucket and slide throat of Pallet Fork onto the bucket
floor until front of bucket is as far forward as possible
under the round bar. If bucket is equipped with teeth,
make sure the unit is positioned between the teeth
when sliding it on.
3. Position the other two Pallet Forks an equal distance
(8 1/2" or more) left and right of center fork and slide
throat of Pallet Forks onto the bucket floor until front
of bucket is as far forward under the round bar. If
bucket is equipped with teeth, make sure the Pallet
Forks are positioned between the teeth when sliding
them on.
4. Secure Pallet Forks to the bucket by tightening
sliding clamp handles (#1) until swivel pad (#2) is
tight against the bucket floor. Do not over-tighten.
Section 1: Installation
Pallet Fork Installation
Figure 1-1
25761
Round Bar
1
2
Throat Opening

Section 2: Operating Procedures
Table of Contents
12/6/18 PF10 & PF20 Pallet Forks 319-033M 7
Operating Checklist
Hazard control and accident prevention are dependent
upon the awareness, concern, prudence, and proper
training involved in the operation, transport, storage, and
maintenance of the Pallet Forks. Therefore, it is
absolutely essential that no one operates the Pallet Forks
without first having read, fully understood, and become
totally familiar with the Operator’s Manual. Make sure the
operator has paid particular attention to:
•Important Safety Information, page 1
•Section 1: Installation, page 6
•Section 2: Operating Procedures, page 7
•Section 3: Maintenance & Lubrication, page 9
Safety Information
DANGER
!
To avoid serious injury or death:
•Keep load slightly tilted back when using Pallet Forks.
Rotating the front of the Pallet Forks too high can cause the
load to shift and fall on the operator and others. Rotating
the front of the Pallet Forks level or lower than the back can
cause the load to fall forward.
•Always keep load centered on the Pallet Forks and machine
at all times, even when stopped. Otherwise, the machine
could tip or the load could shift and fall causing damage to
the machine, load, and injury to yourself and others.
•Do not drive up to anyone or an animal in front of a fixed
object such as a wall or bench. Never assume that the power
machine will stop in time.
•Use a “spotter” when it is hard to see in the direction you
are traveling and when placing a load that obstructs your
vision. A person or animal could be nearby in a blind spot.
•Keep bystanders, pets, and livestock away from your work
area. Never allow anyone to go near or under the
attachment or its load. The attachment and/or load can fall.
•Always secure equipment with solid, non-concrete supports
before working under it. Never go under equipment
supported by concrete blocks or hydraulics. Concrete can
break, hydraulic lines can burst, and/or hydraulic controls
can be actuated even when power to hydraulics is off.
•Keep attachment, loader arms, and/or load away from
overhead electrical power lines. Place an orange warning
sign under overhead lines indicating type of danger above.
WARNING
!
To avoid serious injury or death:
•Always travel straight up and straight down inclines. Make
turns only on level ground.
•Backup alarm must be in good working order to warn
others. Use a rear-view mirror that is in good condition to
help see undesirable situations behind the unit. Drive at a
slower speed to compensate for blind spots.
•Always transport over ramps and inclines with the heavy
end of the power machine on the “uphill” side. This may
require one to drive up and back down inclines.
•Transporting loads across inclines, over ramps, on bumpy,
soft, or slippery surfaces reduces machine stability and lift
capacity. Transporting and lifting loads under these
conditions is extremely dangerous. Follow all transport
instructions in your power machine Operator’s Manual.
•Lift objects only with pallets. Make sure objects on the
pallets are secure. Not using pallets can result in the load
falling, damaging the machine and load, and injury to
yourself and others.
•Do not lift loads that exceed the back height of the bucket
or if available, bucket load guard.
•Using Pallet Forks will reduced stability of a machine.
Always transport a load on the Pallet Forks low to the
ground to help maintain stability of the load and machine.
Follow recommendations provided by the manufacturer of
the machine when adding counter weights and other ballast.
•Never carry riders on the attachment or power machine.
Riders can obstruct the operator’s view, interfere with
control of the equipment, be pinched by moving
components, become entangled in rotating components, be
struck by objects, be thrown or fall from the equipment, etc.
CAUTION
!
To avoid minor or moderate injury:
Do not use Pallet Forks for digging, pushing, or pulling
objects, and do not use them for lifting objects except on
pallets. Misuse of the Pallet Forks can damage the forks and
bucket.
Instructions
1. Make sure Pallet Forks are fully on, swivel pads are in
good working condition and clamped tight to the
bucket.
2. Always know the weight of the load being lifted.
Never lift a load exceeding the maximum lift capacity
of the Pallet Forks and machine, whichever is less.
Maximum lift capacity of the machine should be
approximately 17% less than the rated lift capacity
due to the increased load stresses caused by the
added extension of the Pallet Forks.
3. Always lower Pallet Forks to ground level before
dismounting from the machine. Follow
manufacturer’s recommendations when dismounting
and parking the machine.
4. Always store Pallet Forks in a secure position so that
they will not fall over.
5. Always stack pallets in such a manner that they will
not tip or fall.
Section 2: Operating Procedures

Section 2: Operating Procedures
Table of Contents
12/6/18PF10 & PF20 Pallet Forks 319-033M
8
Pallet Fork Operation
Picking up a load
1. Make sure the load does not exceed forklift capacity.
2. Center forks under the pallet to evenly distribute the
weight.
3. Make sure the load is balanced and secure.
4. Check for overhead obstructions.
5. Stop completely before positioning the forks at the
correct height.
6. Drive into the load as far as possible.
7. Lift the load slightly and tilt it back.
8. Back out slowly to clear racks or other obstacles.
9. Lower load to safe traveling height (two to four inches
above the floor) before moving.
Traveling with a load
1. Pedestrians always have the right-of-way.
2. Keep the load tilted back slightly.
3. Keep the forks low, two to four inches above the floor,
if possible.
4. Continually scan all sides for pedestrians or other
traffic.
5. If the load is large and blocks your view, travel in
reverse.
6. Always drive at a safe speed and slow down when
going around corners. Avoid sudden braking.
7. Leave enough clearance when turning so the Pallet
Forks and load do not contact obstacles such as
buildings, trees, or fences.
8. When traveling over a ramp or incline, keep the load
on the “uphill” side of the forklift.
9. If possible, travel straight up and down on grades,
ramps, or inclines, and avoid turning.
10. Lift or lower the load only when stopped, never when
traveling.
Placing a load
1. Stop in front of desired location.
2. Slowly raise load to required height.
3. Move forward slowly with load raised.
4. Position load for placement, tilting it forward to level.
5. Place load square and straight.
6. Before backing, check all sides for pedestrians or
other traffic.
7. Once the load has settled, back up slowly.
8. Make sure the forks clear the pallet before turning or
changing fork height.
9. Lower forks before moving again.
General Operating Instructions
By now you should have familiarized yourself with the
operator’s manual for your PF10 or PF20 Bucket
Mounted Pallet Forks. If you haven’t, please do so now.
Then proceed by getting onto the seat of your tractor or
loader and starting it up. It isn’t going to take you long to
learn how to use your new Land Pride Pallet Forks, but
we do recommend that you take a little time to practice
lifting, lowering, maneuvering, and placing an empty
pallet on a level site just until you gain enough confidence
and skill to develop a good feel for what you are doing.
We can not begin to overstress the importance of
following the safety operating procedures that are spelled
out in the operator’s manual.
As you quickly become more skilled and adept in using
your PF10 or PF20 Pallet forks, you will soon learn that “it
is always more important to focus on the don’ts than it is
to focus on the dos”. For example don’t exceed the lift
capacity of your forks, tractor, or loader. Don’t lift your
load too high creating an unstable load and unsafe
situation. Don’t tilt your load too far backwards, setting up
a situation that could cause your load to roll or spill
backwards onto you, the tractor and the operator’s
platform. Don’t drive too fast for your ground and load
conditions. Don’t work on or around slippery or sloped
areas that could cause you to lose control of the tractor or
the load. Don’t allow pedestrians, pets, or livestock to
approach the danger zone of your working area. Don’t
leave you tractor or loader with the forks or a load raised
off of the ground.
If you follow these few safety reminders you will find that
you will quickly become very adept, handy, and skillful at
using your PF10 and PF20 Land Pride Pallet Forks. See
the Features and Benefits section of this Operator’s
Manual for additional information.

Section 3: Maintenance & Lubrication
Table of Contents
12/6/18 PF10 & PF20 Pallet Forks 319-033M 9
Maintenance
DANGER
!
To avoid serious injury or death:
Always secure equipment with solid, non-concrete supports
before working under it. Never go under equipment supported
by concrete blocks or hydraulics. Concrete can break,
hydraulic lines can burst, and/or hydraulic controls can be
actuated even when power to hydraulics is off.
WARNING
!
To avoid serious injury or death:
•Perform scheduled maintenance. Check for loose
hardware, missing parts, broken parts, structural cracks,
and excessive wear. Make repairs before putting implement
back into service. Serious breakdowns can result in injury
or death.
•Do not alter implement or replace parts on the implement
with other brands. Other brands may not fit properly or
meet OEM (Original Equipment Manufacturer)
specifications. They can weaken the integrity and impair the
safety, function, performance, and life of the implement.
Replace parts only with genuine OEM parts.
Thrusts & Bearing Surface
Multi-purpose Spray Lube
Quantity = As needed
Section 3: Maintenance & Lubrication
Lubrication
25761
As
Required
Proper servicing and adjustments are key to the long life
of any implement. With careful inspection and routine
maintenance, you can avoid costly downtime and repair.
1. After using your Pallet Forks for a few lifts, check
clamps to be sure they are tight.
2. Replace any worn, damaged, or illegible safety
labels by obtaining new labels from your Land Pride
dealer.
50
Hrs
Multi-purpose
spray lube
Multi-purpose
grease lube
Multi-purpose
oil lube
Intervals in hours at which
lubrication is required
Lubrication
Legend

Section 4: Specifications & Capacities
Table of Contents
12/6/18PF10 & PF20 Pallet Forks 319-033M
10
PF10 & PF20 Pallet Forks
Description Model PF10 Model PF20
Lift Capacity
Per Set of 2 Pallet Forks
1,000 lbs. 2,000 lbs.
Tine Length 31 5/8" 35 5/8"
Weight Each 45 lbs. 55 lbs.
Tine Width 3"
Tine Height 2"
Threaded Clamp Rod 1 1/4" - 7"
Throat Opening 1 1/2"
Throat Depth 10 3/4"
Sliding Clamp Handles 9" Arm Length (Center of screw to end of arm)
Section 4: Specifications & Capacities
26759

Section 5: Features & Benefits
Table of Contents
12/6/18 PF10 & PF20 Pallet Forks 319-033M 11
PF10 & PF20 Series
Features Benefits
Large clamp spacing Stabilizes forks and spreads load across a wider area.
Large sliding clamp handles Makes clamping easier and ensures tight secure fit.
Tall rear uprights Keep loads from slipping backwards.
PF10 Fork: 3" x 2" x 3/16" x 31 5/8" Tube
PF20 Fork: 3" x 2" x 1/4" x 35 5/8"Tube
Set of two pallet forks are capable of lifting 1,000 lbs.
Set of two pallet forks are capable of lifting 2,000 lbs.
Swiveling top and hinged bottom Ensures easy fit and function.
Two capacities and two sizes Meets most needs for low cost fork lift handling on customers own front loader or
skid steer loader.
Section 5: Features & Benefits

Section 6:Torque Values Chart
Table of Contents
12/6/18PF10 & PF20 Pallet Forks 319-033M
12
Section 6: Torque Values Chart
Torque Values Chart For Common Bolt Size
Bolt Head Identification Bolt Head Identification
Bolt Size
(inches) Grade 2 Grade 5 Grade 8
Bolt Size
(Metric) Class 5.8 Class 8.8 Class 10.9
in-tpi 1 N · m 2ft-lb 3N · m ft-lb N · m ft-lb mm x pitch 4N · m ft-lb N · m ft-lb N · m ft-lb
1/4" - 20 7.45.611 81612M 5 X 0.8 436597
1/4" - 28 8.5 613 10 18 14 M 6 X 1 7 5 11 815 11
5/16" - 18 15 11 24 17 33 25 M 8 X 1.25 17 12 26 19 36 27
5/16" - 24 17 13 26 19 37 27 M 8 X 1 18 13 28 21 39 29
3/8" - 16 27 20 42 31 59 44 M10 X 1.5 33 24 52 39 72 53
3/8" - 24 31 22 47 35 67 49 M10 X 0.75 39 29 61 45 85 62
7/16" - 14 43 32 67 49 95 70 M12 X 1.75 58 42 91 67 125 93
7/16" - 20 49 36 75 55 105 78 M12 X 1.5 60 44 95 70 130 97
1/2" - 13 66 49 105 76 145 105 M12 X 1 90 66 105 77 145 105
1/2" - 20 75 55 115 85 165 120 M14 X 2 92 68 145 105 200 150
9/16" - 12 95 70 150 110 210 155 M14 X 1.5 99 73 155 115 l215 160
9/16" - 18 105 79 165 120 235 170 M16 X 2 145 105 225 165 315 230
5/8" - 11 130 97 205 150 285 210 M16 X 1.5 155 115 240 180 335 245
5/8" - 18 150 110 230 170 325 240 M18 X 2.5 195 145 310 230 405 300
3/4" - 10 235 170 360 265 510 375 M18 X 1.5 220 165 350 260 485 355
3/4" - 16 260 190 405 295 570 420 M20 X 2.5 280 205 440 325 610 450
7/8" - 9 225 165 585 430 820 605 M20 X 1.5 310 230 650 480 900 665
7/8" - 14 250 185 640 475 905 670 M24 X 3 480 355 760 560 1050 780
1" - 8 340 250 875 645 1230 910 M24 X 2 525 390 830 610 1150 845
1" - 12 370 275 955 705 1350 995 M30 X 3.5 960 705 1510 112 0 2100 1550
1-1/8" - 7 480 355 1080 795 1750 1290 M30 X 2 1060 785 1680 1240 2320 1710
1-1/8" - 12 540 395 1210 890 1960 1440 M36 X 3.5 1730 1270 2650 1950 3660 2700
1-1/4" - 7 680 500 1520 1120 2460 1820 M36 X 2 1880 1380 2960 2190 4100 3220
1-1/4" - 12 750 555 1680 1240 2730 2010 1in-tpi = nominal thread diameter in inches-threads per inch
1-3/8" - 6 890 655 1990 1470 3230 2380 2N· m = newton-meters
1-3/8" - 12 1010 745 2270 1670 3680 2710 3ft-lb= foot pounds
1-1/2" - 6 1180 870 2640 1950 4290 3160 4 mm x pitch = nominal thread diameter in millimeters x thread
pitch
1-1/2" - 12 1330 980 2970 2190 4820 3560
Torque tolerance + 0%, -15% of torquing values. Unless otherwise specified use torque values listed above.
5.8 8.8 10.9

Section 7: Warranty
Table of Contents
12/6/18 PF10 & PF20 Pallet Forks 319-033M 13
Warranty
Land Pride warrants to the original purchaser that this Land Pride product will
be free from defects in material and workmanship beginning on the date of
purchase by the end user according to the following schedule when used as
intended and under normal service and conditions for personal use.
Overall Unit: One year Parts and Labor
This Warranty is limited to the repair or replacement of any defective part by
Land Pride and the installation by the dealer of any such replacement part, and
does not cover common wear items. Land Pride reserves the right to inspect any
equipment or parts which are claimed to have been defective in material or
workmanship.
This Warranty does not apply to any part or product which in Land Pride’s
judgment shall have been misused or damaged by accident or lack of normal
maintenance or care, or which has been repaired or altered in a way which
adversely affects its performance or reliability, or which has been used for a
purpose for which the product is not designed. Misuse also specifically includes
failure to properly maintain oil levels, grease points, and driveline shafts.
Claims under this Warranty should be made to the dealer which originally sold
the product and all warranty adjustments must be made through an authorized
Land Pride dealer. Land Pride reserves the right to make changes in materials or
design of the product at any time without notice.
This Warranty shall not be interpreted to render Land Pride liable for damages
of any kind, direct, consequential, or contingent to property. Furthermore, Land
Pride shall not be liable for damages resulting from any cause beyond its
reasonable control. This Warranty does not extend to loss of crops, any expense
or loss for labor, supplies, rental machinery or for any other reason.
No other warranty of any kind whatsoever, express or implied, is made
with respect to this sale; and all implied warranties of merchantability and
fitness for a particular purpose which exceed the obligations set forth in this
written warranty are hereby disclaimed and excluded from this sale.
This Warranty is not valid unless registered with Land Pride within 30 days from
the date of purchase.
Section 7: Warranty
IMPORTANT: The Online Warranty Registration should be completed by the dealer at the time of
purchase. This information is necessary to provide you with quality customer service.
Model Number ____________________ Serial Number ____________________

Corporate Office: P.O. Box 5060
Salina, Kansas 67402-5060 USA
www.landpride.com
