Land Pride PFS4000 User manual

Table of Contents
Cover photo may show optional equipment not supplied
with standard unit.
For an Operator’s Manual and Decal Kit in French
Language, please see your Land Pride dealer.
Read the Operator’s Manual entirely. When you see this symbol,
the subsequent instructions and warnings are serious - follow
without exception. Your life and the lives of others depend on it!
!
Pendulum Spreaders
PFS4000, PFS5060 & PFS8010
309-124M
Operator’s Manual
Printed 11/20/20
30752
PFS4000
PFS5060 (Shown) & PFS8010

11/20/20PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M
Machine Identification
Record your machine details in the log below. If you replace this manual, be sure to transfer this information to the new
manual.
If you, or the dealer, have added Options not originally ordered with the machine, or removed Options that were
originally ordered, the weights and measurements are no longer accurate for your machine. Update the record by
adding the machine weight and measurements provided in the Specifications & Capacities Section of this manual with
the Option(s) weight and measurements.
Dealer Contact Information
Model Number
Serial Number
Machine Height
Machine Length
Machine Width
Machine Weight
Delivery Date
First Operation
Accessories
Name:
Street:
City/State:
Telephone:
Email:
WARNING: Cancer and reproductive harm - www.P65Warnings.ca.gov
!
California Proposition 65

Table of Contents
11/20/20
© Copyright 2020 All rights Reserved
Land Pride provides this publication “as is” without warranty of any kind, either expressed or implied. While every precaution has been taken in the
preparation of this manual, Land Pride assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use
of the information contained herein. Land Pride reserves the right to revise and improve its products as it sees fit. This publication describes the state of this
product at the time of its publication, and may not reflect the product in the future.
Land Pride is a registered trademark.
All other brands and product names are trademarks or registered trademarks of their respective holders.
Printed in the United States of America.
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M
Table of Contents
Important Safety Information . . . . . . . . . . . . . 1
Safety at All Times . . . . . . . . . . . . . . . . . . . . . . . . . 1
Look for the Safety Alert Symbol . . . . . . . . . . . . . . . 1
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . 12
Owner Assistance . . . . . . . . . . . . . . . . . . . . . . . . . 12
Section 1: Drive Unit Assembly . . . . . . . . . . 14
Tractor Requirements . . . . . . . . . . . . . . . . . . . . . . 14
Assembly & Set-Up . . . . . . . . . . . . . . . . . . . . . . . . 14
Torque Requirements . . . . . . . . . . . . . . . . . . . . . . 14
Pendulum Flange Assembly . . . . . . . . . . . . . . . . . 14
Pendulum Spout Assembly . . . . . . . . . . . . . . . . . . 14
Shaft Shield Assembly . . . . . . . . . . . . . . . . . . . . . 15
MIN, MID, & MAX Decal Placement . . . . . . . . . . . 15
Section 2: PFS4000 Assembly & Set-Up . . . 16
Drive Unit Assembly to Main Frame . . . . . . . . . . . 16
Hopper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 16
Gate Lever Assembly . . . . . . . . . . . . . . . . . . . . . . 17
Section 3: PFS5060 Assembly & Set-Up . . . 18
Drive Unit Assembly to Main Frame . . . . . . . . . . . 18
Hopper Support Frame Assembly . . . . . . . . . . . . . 19
Hopper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 20
Gate Lever Assembly . . . . . . . . . . . . . . . . . . . . . . 20
Section 4: PFS8010 Assembly & Set-Up . . . 21
Connecting Hooks & Hook-Up Bar . . . . . . . . . . . . 21
Drive Unit Assembly to Main Frame . . . . . . . . . . . 21
Hopper Support Ring Assembly . . . . . . . . . . . . . . 22
Hopper Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 23
Gate Lever Assembly . . . . . . . . . . . . . . . . . . . . . . 23
Section 5: Driveline Assembly & Set-Up . . . 24
Tractor 3-Point Hook-Up . . . . . . . . . . . . . . . . . . . . 24
PFS4000 & PFS5060 3-Point Hook-Up . . . . . . . 24
PFS8010 3-Point Hook-Up . . . . . . . . . . . . . . . . . 24
Driveline Installation . . . . . . . . . . . . . . . . . . . . . . . 25
Check Driveline Collapsible Length . . . . . . . . . . . . 26
Shorten Driveline Length . . . . . . . . . . . . . . . . . . . . 26
Check Driveline Maximum Length . . . . . . . . . . . . . 27
Check Driveline Interference . . . . . . . . . . . . . . . . . 27
Section 6: Options & Accessories . . . . . . . . 28
PFS5060 Hydraulic Gate Kit . . . . . . . . . . . . . . . . . 28
PFS8010 Hydraulic Gate Kit . . . . . . . . . . . . . . . . . 28
PFS5060 & PFS8010 Agitator Extension Kit . . . . . 29
Small Seed Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Hopper Top Extension Kit . . . . . . . . . . . . . . . . . . . 30
Spout Accessories . . . . . . . . . . . . . . . . . . . . . . . . 31
Section 7: Operating Procedures . . . . . . . . . 32
Operating Checklist . . . . . . . . . . . . . . . . . . . . . . . . 32
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . 32
Transporting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Leveling & Setting Spreader Height . . . . . . . . . . . . 34
Initial Adjustments and Checks . . . . . . . . . . . . . . . 34
Set Hopper Discharge Rate . . . . . . . . . . . . . . . . . . 35
Load Hopper with Product . . . . . . . . . . . . . . . . . . . 35
Effective Spread Width . . . . . . . . . . . . . . . . . . . . . 36
Field Application . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Unhook the Pendulum Spreader . . . . . . . . . . . . . . 37
General Operating Instructions . . . . . . . . . . . . . . . 37
Section 8: Adjustments . . . . . . . . . . . . . . . . . 38
English System of Measurements . . . . . . . . . . . . . 38
Spout Swing Angle (English System) . . . . . . . . . . 38
Regulation Bar (English System) . . . . . . . . . . . . . . 38
Stationary Calibration (English System) . . . . . . . 39
Field Calibration (English System) . . . . . . . . . . . 39
Slide Ruler Calibration (English System) . . . . . . 40
Metric System of Measurements . . . . . . . . . . . . . . 42
Spout Swing Angle (Metric System) . . . . . . . . . . . 42
Regulation Bar (Metric System) . . . . . . . . . . . . . . . 42
Stationary Calibration (Metric System) . . . . . . . . 43
Field Calibration (Metric System) . . . . . . . . . . . . 43
Slide Ruler Calibration (Metric System) . . . . . . . 44
Section 9: Maintenance & Lubrication . . . . . 46
General Maintenance . . . . . . . . . . . . . . . . . . . . . . 46
Long-Term Storage . . . . . . . . . . . . . . . . . . . . . . . . 46
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Spout Pivot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Drive Unit Input Shaft . . . . . . . . . . . . . . . . . . . . . 47
Spout Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Driveline Yokes . . . . . . . . . . . . . . . . . . . . . . . . . 48
Inner Tube Bearings . . . . . . . . . . . . . . . . . . . . . . 48
Driveline Profiles . . . . . . . . . . . . . . . . . . . . . . . . 48
Section 10: Specifications & Capacities . . . . 49
Section 11: Features & Benefits . . . . . . . . . . 50
Section 12: Troubleshooting . . . . . . . . . . . . . 51
Section 13: Torque Values Chart . . . . . . . . . . 52
Section 14: Warranty . . . . . . . . . . . . . . . . . . . 53

Table of Contents Continued
11/20/20
Parts Manual QR Locator
The QR (Quick Reference) code on the
cover and to the left will take you to the
Parts Manual for this equipment.
Download the appropriate App on your
smart phone, open the App, point your
phone on the QR code and take a picture.
Dealer QR Locator
The QR code on the left will
link you to available dealers
for Land Pride products.
Refer to Parts Manual QR
Locator on this page for
detailed instructions.
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M
Table of Contents
See previous page for Table of contents.

Important Safety Information
11/20/20 1
Important Safety Information
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Tractor Shutdown & Storage
If engaged, disengage power
take-off.
Park on solid, level ground and
lower implement to ground or onto
support blocks.
Put tractor in park or set park
brake, turn off engine, and remove
switch key to prevent unauthorized
starting.
Relieve all hydraulic pressure to
auxiliary hydraulic lines.
Wait for all components to stop
before leaving operator’s seat.
Use steps, grab-handles and
anti-slip surfaces when stepping
on and off the tractor.
Detach and store implement in an
area where children normally do
not play. Secure implement using
blocks and supports.
OFF
REMOVE
Look for the Safety Alert Symbol
The SAFETY ALERT SYMBOL indicates there is a
potential hazard to personal safety involved and extra
safety precaution must be taken. When you see this
symbol, be alert and carefully read the message that
follows it. In addition to design and configuration of
equipment, hazard control, and accident prevention are
dependent upon the awareness, concern, prudence, and
proper training of personnel involved in the operation,
transport, maintenance, and storage of equipment.
Safety Precautions for
Children
Tragedy can occur if the operator
is not alert to the presence of
children, Children generally are
attracted to implements and their
work.
Never assume children will remain
where you last saw them.
Keep children out of the work area
and under the watchful eye of a
responsible adult.
Be alert and shut the implement
and tractor down if children enter
the work area.
Never carry children on the tractor
or implement. There is not a safe
place for them to ride. They may
fall off and be run over or interfere
with the control of the power
machine.
Never allow children to operate the
power machine, even under adult
supervision.
Never allow children to play on the
power machine or implement.
Use extra caution when backing
up. Before the tractor starts to
move, look down and behind to
make sure the area is clear.
Safety at All Times
Careful operation is you best
assurance against an accident.
All operators, no matter how much
experience they may have, should
carefully read this manual and
other related manuals, or have the
manuals read to them, before
operating the power machine and
this implement.
Thoroughly read and understand
the “Safety Label” section. Read
all instructions noted on them.
Do not operate the equipment
while under the influence of drugs
or alcohol as they impair the ability
to safely and properly operate the
equipment.
The operator should be familiar
with all functions of the tractor and
attached implement, and be able
to handle emergencies quickly.
Make sure all guards and shields
appropriate for the operation are in
place and secured before
operating the implement.
Keep all bystanders away from
equipment and work area.
Start tractor from the driver’s seat
with hydraulic controls in neutral.
Operate tractor and controls from
the driver’s seat only.
Never dismount from a moving
tractor or leave tractor unattended
with engine running.
Do not allow anyone to stand
between tractor and implement
while backing up to implement.
Keep hands, feet, and clothing
away from power-driven parts.
While transporting and operating
equipment, watch out for objects
overhead and along side such as
fences, trees, buildings, wires, etc.
Do not turn tractor so tight as to
cause hitched implement to ride
up on the tractor’s rear wheel.
Store implement in an area where
children normally do not play.
When needed, secure implement
against falling with support blocks.
!

Be Aware of
Signal Words
A signal word designates a degree or
level of hazard seriousness. The
signal words are:
Indicates a hazardous situation that, if
not avoided, will result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, could result in death or
serious injury.
Indicates a hazardous situation that, if
not avoided, may result in minor or
moderate injury.
WARNING
CAUTION
!
!
DANGER
!

Important Safety Information
11/20/20
2
Listed below are common practices that may or may not be applicable to the products
described in this manual.

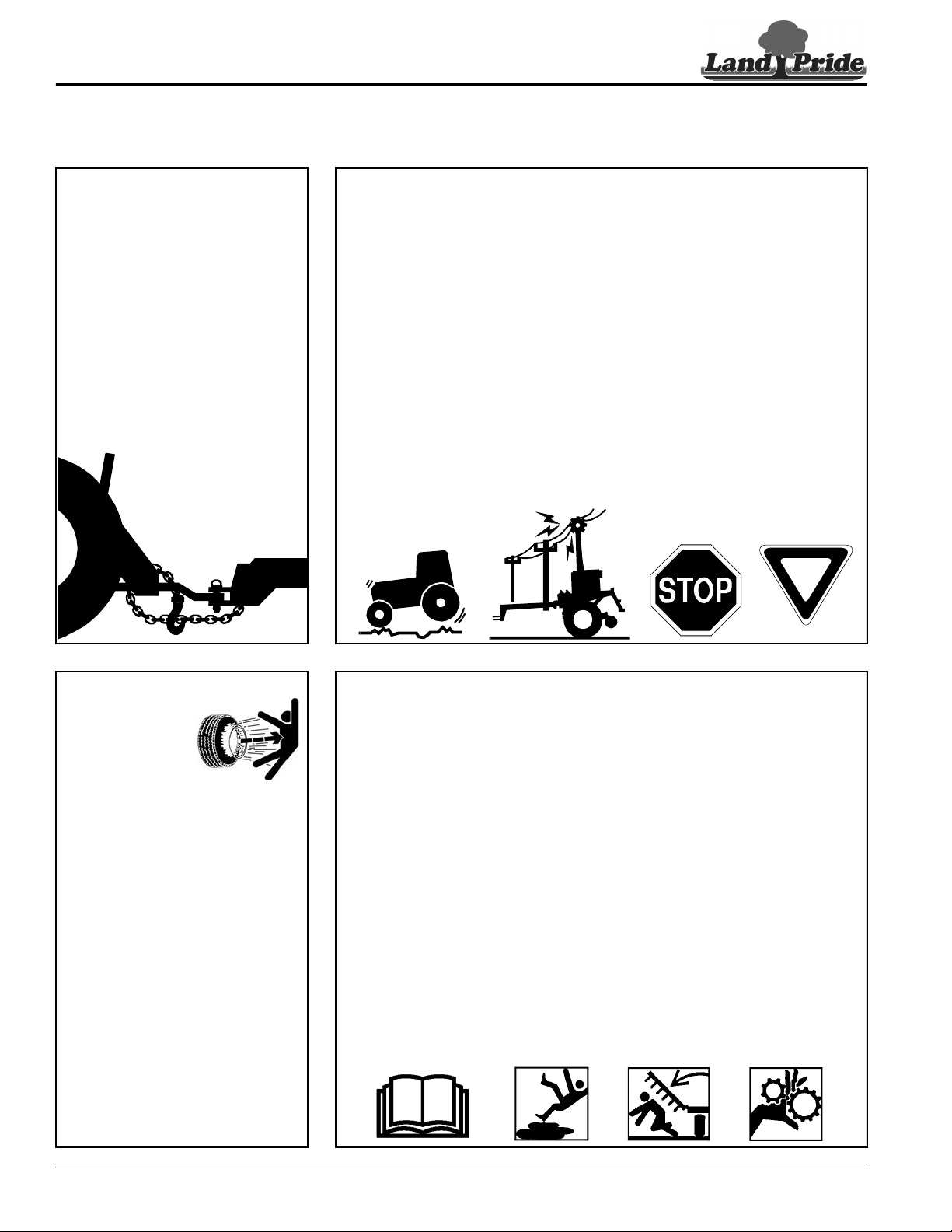

Use A Safety Chain
A safety chain will help control
drawn machinery should it
separate from the tractor drawbar.
Use a chain with the strength
rating equal to or greater than the
gross weight of the towed
implement.
Attach the chain to the tractor
drawbar support or other specified
anchor location. Allow only
enough slack in the chain to
permit turning.
Always hitch the implement to the
machine towing it. Do not use the
safety chain to tow the implement.
Practice Safe Maintenance
Understand procedure before doing
work. Refer to the Operator’s
Manual for additional information.
Work on a level surface in a clean
dry area that is well-lit.
Lower implement to the ground and
follow all shutdown procedures
before leaving the operator’s seat to
perform maintenance.
Do not work under any hydraulic
supported equipment. It can settle,
suddenly leak down, or be lowered
accidentally. If it is necessary to
work under the equipment,
securely support it with stands or
suitable blocking beforehand.
Use properly grounded electrical
outlets and tools.
Use correct tools and equipment for
the job that are in good condition.
Allow equipment to cool before
working on it.
Disconnect battery ground cable (-)
before servicing or adjusting
electrical systems or before welding
on implement.
Inspect all parts. Make certain
parts are in good condition &
installed properly.
Replace parts on this implement
with genuine Land Pride parts only.
Do not alter this implement in a way
which will adversely affect its
performance.
Do not grease or oil implement
while it is in operation.
Remove buildup of grease, oil, or
debris.
Always make sure any material and
waste products from the repair and
maintenance of the implement are
properly collected and disposed.
Remove all tools and unused parts
from equipment before operation.
Do not weld or torch on galvanized
metal as it will release toxic fumes.
Tire Safety
Tire changing
can be
dangerous
and must be
performed by
trained personnel using the
correct tools and equipment.
Always properly match the wheel
size to the properly sized tire.
Always maintain correct tire
pressure. Do not inflate tires
above recommended pressures
shown in the Operator’s Manual.
When inflating tires, use a clip-on
chuck and extension hose long
enough to allow you to stand to
one side and NOT in front of or
over the tire assembly. Use a
safety cage if available.
Securely support the implement
when changing a wheel.
When removing and installing
wheels, use wheel handling
equipment adequate for the
weight involved.
Make sure wheel bolts have been
tightened to the specified torque.
Transport Safely
Comply with federal, state, and
local laws.
Use towing vehicle and trailer of
adequate size and capacity. Secure
equipment towed on a trailer with
tie downs and chains.
Sudden braking can cause a towed
trailer to swerve and upset. Reduce
speed if towed trailer is not
equipped with brakes.
Avoid contact with any over head
utility lines or electrically charged
conductors.
Always drive with load on end of
loader arms low to the ground.
Always drive straight up and down
steep inclines with heavy end of a
tractor with loader attachment on
the “uphill” side.
Engage park brake when stopped
on an incline.
Maximum transport speed for an
attached equipment is 20 mph. DO
NOT EXCEED. Never travel at a
speed which does not allow
adequate control of steering and
stopping. Some rough terrains
require a slower speed.
As a guideline, use the following
maximum speed weight ratios for
attached equipment:
20 mph when weight of attached
equipment is less than or equal
to the weight of machine towing
the equipment.
10 mph when weight of attached
equipment exceeds weight of
machine towing equipment but
not more than double the weight.
IMPORTANT: Do not tow a load
that is more than double the weight
of the vehicle towing the load.

Important Safety Information
11/20/20 3
Listed below are common practices that may or may not be applicable to the products
described in this manual.

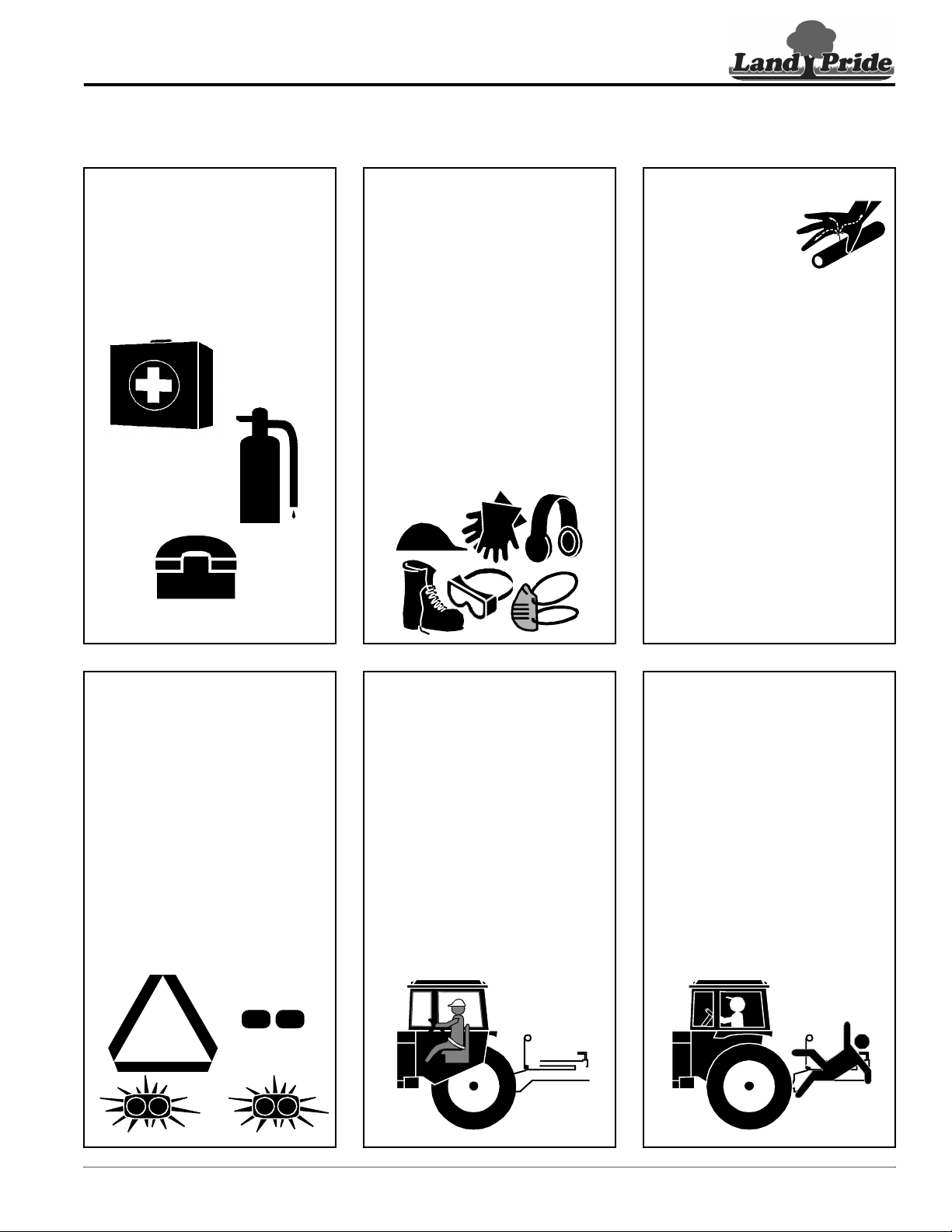

Wear Personal Protective
Equipment (PPE)
Wear protective clothing and
equipment appropriate for the job
such as safety shoes, safety
glasses, hard hat, and ear plugs.
Clothing should fit snug without
fringes and pull strings to avoid
entanglement with moving parts.
Prolonged exposure to loud noise
can cause hearing impairment or
hearing loss. Wear suitable
hearing protection such as
earmuffs or earplugs.
Operating equipment safely
requires the operator’s full
attention. Avoid wearing
headphones while operating
equipment.
Use Seat Belt and ROPS
Land Pride recommends the use
of a CAB or roll-over-protective-
structures (ROPS) and seat belt
in almost all power machines.
Combination of a CAB or ROPS
and seat belt will reduce the risk
of serious injury or death if the
power machine should be upset.
If ROPS is in the locked-up
position, fasten seat belt snugly
and securely to help protect
against serious injury or death
from falling and machine overturn.
Keep Riders Off
Machinery
Never carry riders on the tractor or
implement.
Riders obstruct operator’s view
and interfere with the control of
the power machine.
Riders can be struck by objects or
thrown from the equipment.
Never use tractor or implement to
lift or transport riders.
Prepare for Emergencies
Be prepared if a fire starts.
Keep a first aid kit and fire
extinguisher handy.
Keep emergency numbers for
doctor, ambulance, hospital, and
fire department near the phone.
911
Use Safety
Lights and Devices
Slow moving tractors, and
self-propelled equipment can
create a hazard when driven on
public roads. They are difficult to
see, especially at night. Use the
Slow Moving Vehicle (SMV) sign
when on public roads.
Flashing warning lights and turn
signals are recommended
whenever driving on public roads.
Avoid High Pressure
Fluids
Escaping fluid
under pressure can
penetrate the skin
causing serious injury.
Relieve all residual pressure
before disconnecting hydraulic
lines or performing work on the
hydraulic system.
Make sure all hydraulic fluid
connections are properly
tightened/torqued and all
hydraulic hoses and lines are in
good condition before applying
pressure to the system.
Use a piece of paper or
cardboard, NOT BODY PARTS,
to check for suspected leaks.
Wear protective gloves and
safety glasses or goggles when
working with hydraulic systems.
DO NOT DELAY. If an accident
occurs, see a doctor familiar with
this type of injury immediately.
Any fluid injected into the skin or
eyes must be treated within a few
hours or gangrene may result.

Important Safety Information
11/20/20
4

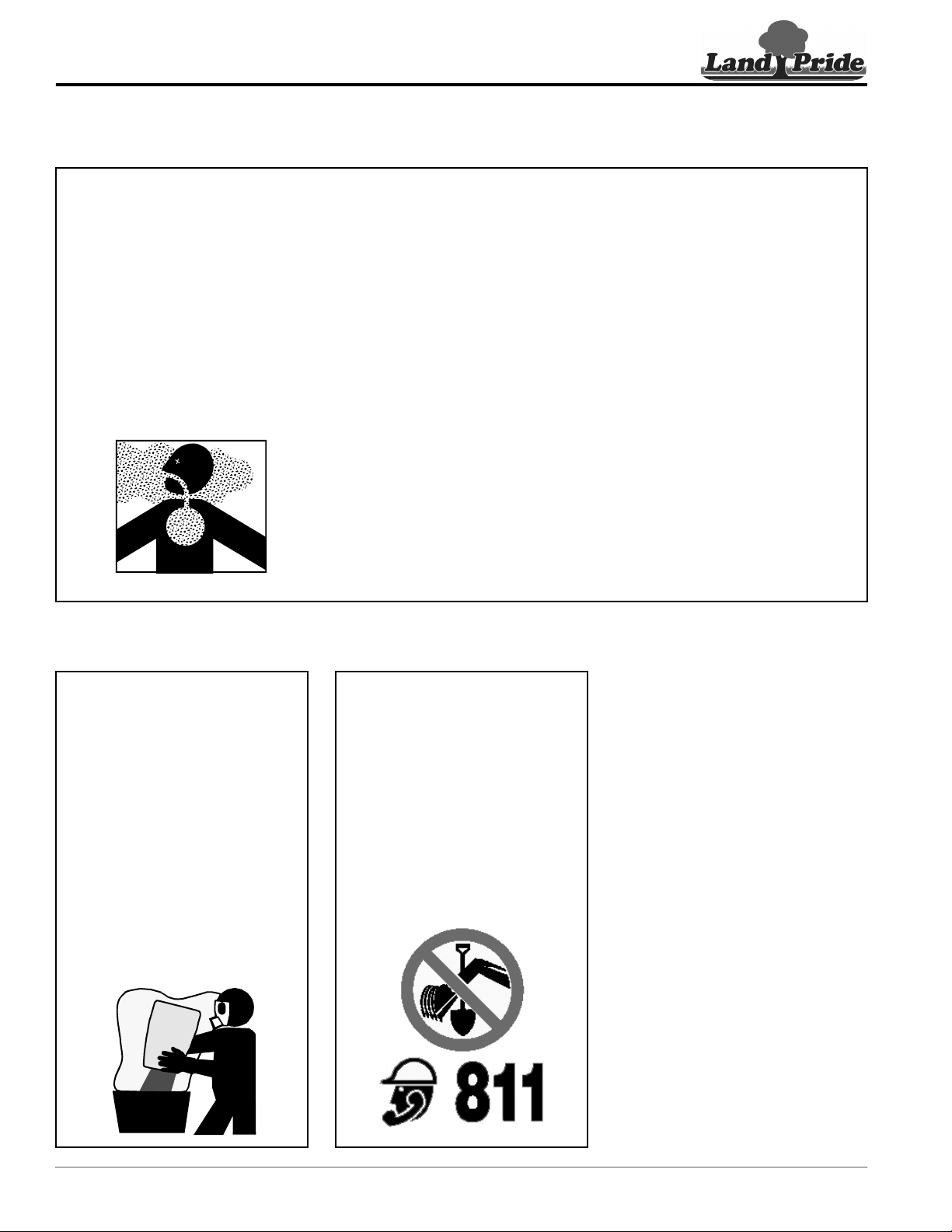

Handle
Chemicals Properly
Protective clothing should be
worn.
Handle all chemicals with care.
Follow instructions on container
label.
Agricultural chemicals can be
dangerous. Improper use can
seriously injure persons, animals,
plants, soil, and property.
Inhaling smoke from any type of
chemical fire can be a serious
health hazard.
Store or dispose of unused
chemicals as specified by the
chemical manufacturer.
Dig Safe - Avoid
Underground Utilities
USA: Call 811
CAN: digsafecanada.ca
Always contact your local utility
companies (electrical, telephone,
gas, water, sewer, and others)
before digging so that they may
mark the location of any
underground services in the area.
Be sure to ask how close you can
work to the marks they positioned.
Listed below are common practices that may or may not be applicable to the products
described in this manual.
Avoid crystalline Silica
(quartz) Dust
Because crystalline silica is a basic
component of sand and granite,
many activities at construction sites
produce dust containing crystalline
silica. Trenching, sawing, and boring
of material containing crystalline
silica can produce dust containing
crystalline silica particles. This dust
can cause serious injury to the
lungs (silicosis).
There are guidelines which should
be followed if crystalline silica
(quartz) is present in the dust.
Be aware of and follow OSHA
(or other local, State, or Federal)
guidelines for exposure to airborne
crystalline silica.
Know the work operations where
exposure to crystalline silica may
occur.
Participate in air monitoring or
training programs offered by the
employer.
Be aware of and use optional
equipment controls such as water
sprays, local exhaust ventilation,
and enclosed cabs with positive
pressure air conditioning if the
machine has such equipment.
Otherwise respirators shall be worn.
Where respirators are required, wear
a respirator approved for protection
against crystalline silica containing
dust. Do not alter respirator in any
way. Workers who use tight-fitting
respirators can not have beards/
mustaches which interfere with the
respirator seal to the face.
If possible, change into disposable
or washable work clothes at the
work site; shower and change into
clean clothing before leaving the
work site.
Do not eat, drink, use tobacco
products, or apply cosmetics in
areas where there is dust containing
crystalline silica.
Store food, drink, and personal
belongings away from the work
area.
Wash hands and face before eating,
drinking, smoking, or applying
cosmetics after leaving the exposure
area.

Important Safety Information
11/20/20 5
This page left blank intentionally.

PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M 11/20/20
6
Table of Contents
Safety Labels
Your Pendulum Spreader comes equipped with all safety labels
in place. They were designed to help you safely operate your
implement. Read and follow their directions.
1. Keep all safety labels clean and legible.
2. Refer to this section for proper label placement. Replace
all damaged or missing labels. Order new labels from your
nearest Land Pride dealer. To find your nearest dealer,
visit our dealer locator at www.landpride.com.
3. Some new equipment installed during repair requires
safety labels to be affixed to the replaced component as
specified by Land Pride. When ordering new components
make sure the correct safety labels are included in the
request.
4. Refer to this section for proper label placement.
To install new labels:
a. Clean surface area where label is to be placed.
b. Spray soapy water onto the cleaned area.
c. Peel backing from label and press label firmly onto the
surface.
d. Squeeze out air bubbles with edge of a credit card or
with a similar type of straight edge.
30757
30758
818-541C
Danger: Toxic Chemical Hazard
Important Safety Information

PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M11/20/20 7
Table of Contents
30757
30758
838-293C
Warning: To Prevent Serious Injury or Death

PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M 11/20/20
8
Table of Contents
30757 30758
308109
Warning: Driveline Hazard
Important Safety Information

PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M11/20/20 9
Table of Contents
30794
30795
818-539C
Danger: Thrown Object / Rotating Paddles Hazard
Important Safety Information

PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M 11/20/20
10
Table of Contents
30796
30797
30797
308.004
Danger: Pinch Point Hazard
311.415
Danger: Guard Missing
311.416
Danger: Rotating Driveline
Important Safety Information

PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M11/20/20 11
Table of Contents
This page left blank intentionally.

Introduction
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M 11/20/20
12
Table of Contents
Using This Manual
•This Operator’s Manual is designed to help familiarize
you with safety, assembly, operation, adjustments,
troubleshooting, and maintenance. Read this manual
and follow the recommendations to help ensure safe
and efficient operation.
•The information contained within this manual was
current at the time of printing. Some parts may change
slightly to assure you of the best performance.
•To order a new Operator’s or Parts Manual contact
your authorized dealer. Manuals can also be
downloaded, free-of-charge from our website at
www.landpride.com.
Terminology
“Right” or “Left” as used in this manual is determined by
facing forward in the direction the machine will operate
while in use unless otherwise stated.
Definitions
Owner Assistance
The dealer should complete the Online Warranty
Registration at the time of purchase. This information is
necessary to provide you with quality customer service
If customer service or repair parts are required contact a
Land Pride dealer. A dealer has trained personnel, repair
parts and equipment needed to service the spreader.
The parts on your Pendulum Spreader have been
specially designed and should only be replaced with
genuine Land Pride parts. Therefore, should your
spreader require replacement parts go to your Land Pride
dealer.
NOTE: A special point of information that the
operator should be aware of before continuing.
IMPORTANT: A special point of information related
to its succeeding topic. Land Pride’s intention is that
this information must be read and noted before
continuing.
Introduction
Land Pride welcomes you to the growing family of new
product owners. This Pendulum Spreader has been
designed with care and built by skilled workers using
quality materials. Proper assembly, maintenance and
safe operating practices will help you get years of
satisfactory use from this implement.
Application
The Land Pride’s PFS4000, PFS5060 and PFS8010 are
professional pendulum-type seeder/broadcast spreaders
that provide maximum spreading accuracy, ease of
operation and simple calibration. The PFS4000 is
designed for Category I 3-point hitch mounting, PFS5060
is designed for Category I & II 3-point hitch mounting and
PFS8010 is designed for Category II
3-point hitch mounting. They are capable of spreading
seed, sand, salt, top dressings, prilled/granular fertilizer,
lime, and most all other types of granular materials at
delivery rates ranging from 4 to 890 lbs/acre with effective
spread widths ranging from 20’ to 46’ (Depending on
material). Optional spouts are available for narrow
effective spread widths ranging from
6’ to 14’ and vineyard/orchards banding on rows only
3’ to 33’ overall width.
Each of these models offer specific hopper capacities
with the PFS4000 at 925 lbs, PFS5060 at 1,150 lbs or
1,393 lbs with optional extension and PFS8010 at 2,040
lbs or 2,522 lbs with optional extension or 2,998 lbs with
larger optional extension. (Capacity is based on average
weight of granular fertilizer.)
The precision spread pattern and range of hopper
capacities make the Land Pride’s Fertilizer Spreaders
well suited for applications on vineyards, orchards, farms,
golf courses, park systems, athletic fields, and large
campuses. They also work well for smaller municipal or
commercial applications of salt and sand for snow and
ice control.
See “Specifications & Capacities” on page 49 and
“Features & Benefits” on page 50 for additional
information and performance enhancing options.

Introduction
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M11/20/20 13
Table of Contents
Serial Number
For quick reference and prompt service, record model
and serial number on the inside cover page and again on
the warranty page. Always provide model number and
serial number when ordering parts and in all
correspondences with your Land Pride dealer. For
location of your serial number plate, see Figures 1 & 2.
Further Assistance
Your dealer wants you to be satisfied with your new
Pendulum Spreader. If for any reason you do not
understand any part of this manual or are not satisfied
with the service received, the following actions are
suggested:
1. Discuss any problems you have with your implement
with your dealership service personnel so they can
address the problem.
2. If you are still not satisfied, seek out the owner or
general manager of the dealership, explain the
question/problem and request assistance.
3. For further assistance write to:
Land Pride Service Department
1525 East North Street
P.O. Box 5060
Salina, Ks. 67402-5060
E-mail address
lpservicedep[email protected]
PFS4000 Serial Number Plate Location
Figure 1
PFS5060 & PFS8010 Serial Number Plate Location
Figure 2
30757
30758

Section 1: Drive Unit Assembly
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M 11/20/20
14
Table of Contents
Tractor Requirements
WARNING
!
To avoid serious injury or death:
Lightweight tractors with rear attached implements may need
weights added to the front to maintain steering control.
Consult your tractor Operator’s Manual to determine proper
weight requirements and maximum weight limitations.
Minimum Horsepower1 . . . . . . . . . . . . . . . . . . . .6 hp
Minimum Tractor Weight . . . . . . . See Warning Above
3- Point Hitch Type:
PFS4000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. I
PFS5060 . . Cat. I inside & Cat. II outside the frame
PFS8010 . . . . . . . . . . . . . . . . . . . . . . . . . . . Cat. II
Rear Power Take-Off Speed . . . . . . . . . . . . 540 rpm
Power Take-Off Shaft Type . . . . . . . . . 1 3/8”-6 Spline
Hydraulic Outlet2 . . . . . . . . . . . . . . . . . . Single Outlet
Notes:
1 Horsepower required to power the drive unit only.
2 Required for optional PFS5060 & PFS8010
Hydraulic Gate Kit only.
Assembly & Set-Up
This Pendulum Spreader will require some assembly
before the unit can be attach to the customer’s tractor.
Read and understand this Operator’s Manual before
assembling the spreader. An understanding of how the
unit works will aid in the assembly and setup.
Torque Requirements
Refer to “Torque Values Chart for Common Bolt Sizes” on
page 52 to determine correct torque values when
tightening hardware.
Pendulum Flange Assembly
Refer to Figure 1-1:
1. Apply blue loctite (not permanent loctite) to
M12-10.9 x 65 (2 1/2") bolts (#4). Loctite to be
supplied by the customer.
2. Attach flange (#2) to drive unit flange (#1) with
M12-10.9 x 65 (2 1/2") bolts (#4), flat washers (#3)
and special square nuts (#5). Screw bolts onto nuts
only 3 or 4 complete 360o turns. Do not tighten at this
time.
Pendulum Flange Assembly
Figure 1-1
Pendulum Spout Assembly
Refer to Figure 1-2:
1. Rotate pendulum spout (#1) 90 degrees
counterclockwise and insert into flange opening (#2).
2. Rotate pendulum spout 90 degrees clockwise to
upright position. Verify spout is properly seated and
then tighten bolts (#3) to the correct torque.
30778
Special Square Nut
Apply blue loctite to bolt threads
Section 1: Drive Unit Assembly
Pendulum Assembly (Upright Rotation Shown)
Figure 1-2
30779

Section 1: Drive Unit Assembly
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M11/20/20 15
Table of Contents

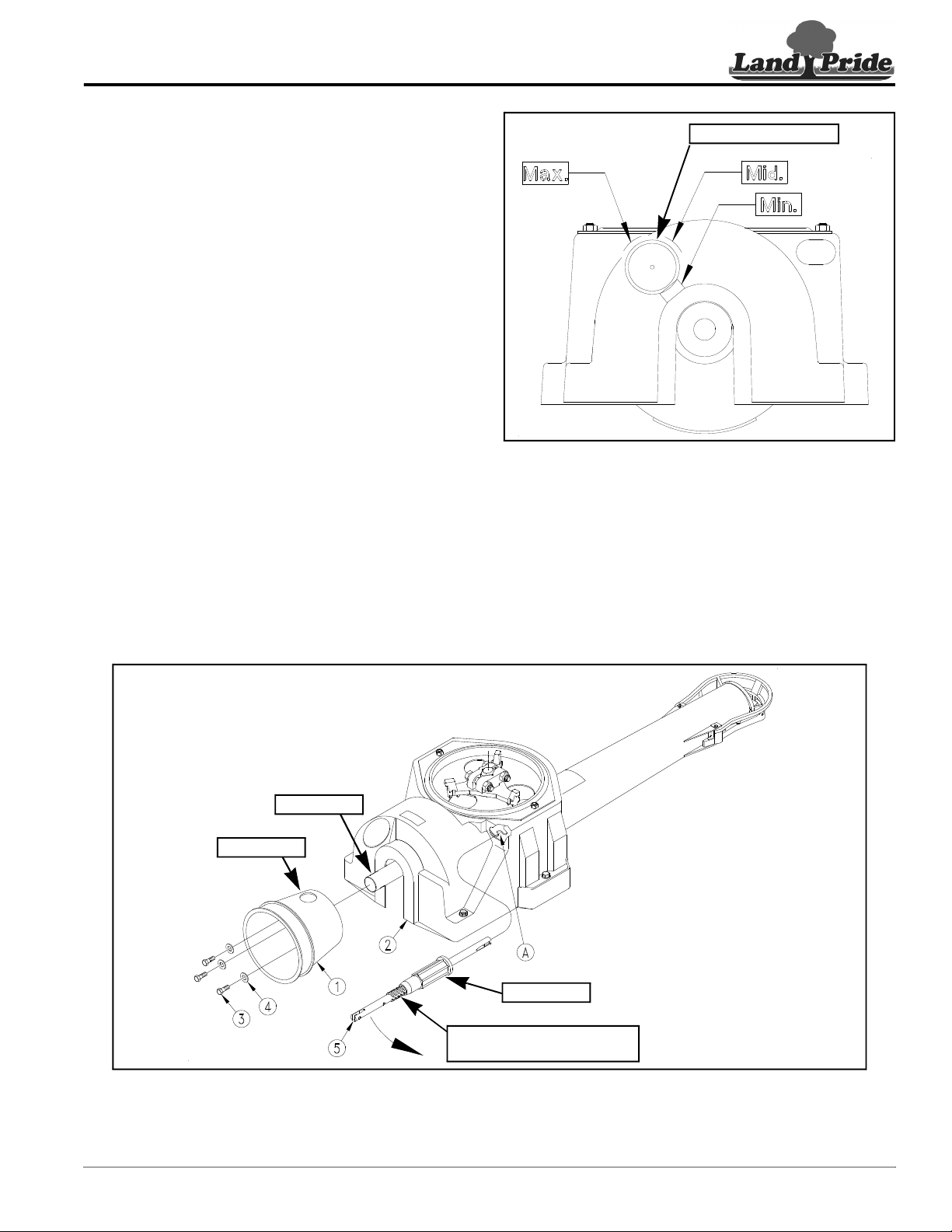

Shaft Shield Assembly
Refer to Figure 1-3:
1. Position shaft shield (#1) with hole in shield up.
2. Center shaft shield over drive shaft and attach shield
to drive unit with three #10 x 3/4" self taping
screws (#3) and fender washers (#4). Tighten self
taping screws.
3. Position regulation bar (#5) with numbers on bar in
front of adjusting nut and facing to the left
4. Rotate front of regulation bar (#5) away from drive
unit and hook end of bar to gate fork “A”.
5. Push on regulation bar until end of adjusting nut is
against drive unit housing.
MIN, MID, & MAX Decal Placement
Refer to Figure 1-4:
If the three (Max., Mid., & Min) decals are include, peel
their backing paper and place them on the drive unit as
noted below.
1. Place “Max.” decal above the angle adjustment cover
on the smooth flat area provided.
2. Place “Min.” decal below the angle adjustment cover
on the smooth flat area provided.
3. Place “Mid.” decal in-between the “Max.” and “Min.”
decals as shown.
Min & Max Decal Location
Figure 1-4
4. The drive unit is now ready to be assembled to the
main frame. Continue as follows:
•Go to page 16 for PFS4000 Assembly & Set-Up.
•Go to page 18 for PFS5060 Assembly & Set-Up.
•Go to page 21 for PFS8010 Assembly & Set-Up.
30922
Angle Adjustment Cover
Shaft Shield Assembly
Figure 1-3
30780
Locate numbers this side of
regulation bar & adjusting nut.
Adjusting nut.
Hole in shield
Drive shaft

Section 2: PFS4000 Assembly & Set-Up
PFS4000, PFS5060 & PFS8010 Pendulum Spreaders 309-124M 11/20/20
16
Table of Contents
The following instructions are for the PFS4000 model.
See page 18 for PFS5060 and page 21 for PFS8010.
See page 14 for drive unit assembly instructions.
Drive Unit Assembly to Main Frame
Refer to Figure 2-1:
1. Attach hitch pins (#7) to the main frame with 3/4" hex
nuts (#8). Tighten nuts to the correct torque.
2. Insert M12 x 50 (2") bolts (#5) into front holes and
M12 x 40 (1 1/2") bolts (#3) into the back holes of
drive frame (#1).
3. Attach drive frame (#1) to inside slots “B” first and
outside slots “A” last in mounting plate (#2) with hex
nuts (#4 &#6). Do not tighten hex nuts at this time.
Drive Unit Assembly
Figure 2-1
IMPORTANT: Drive Unit assembly is heavy and
requires 2 people to safely install to the main frame.
Do not tighten nuts (#4 & #6) until after hopper is
installed. This will allow for proper alignment of
hopper to drive unit assembly.
NOTE: If rear bolts (#3) are difficult to install into
slots “A” in mounting plate (#2), pivot rear of drive
unit up and down to insert bolts through slots “A”.
30759
2" Lg. Bolts
1 1/2" Lg. Bolts
Hopper Assembly
Refer to Figure 2-2:
1. Rotate hopper until mounting holes in hopper are in
alignment with main frame mounting holes (Land
Pride Logo will be to the back).
2. Lower hopper (#2) onto main frame (#1) until
centered and resting above drive unit flange (#9).
3. Attach hopper sides first to the main frame with
M10 x 30 (1 3/16") round head screws (#6) and hex
nuts (#7). Draw nuts up snug, do not tighten at this
time.
4. Adjust drive unit forward or rearward until hole in the
front of the hopper mates with hole in the 3-point
clevis bracket (#8) and hopper bottom is centered
over the drive unit flange (#9).
5. Attach hopper front to 3-point clevis bracket (#8) with
M10 x 30 (1 3/16") round head screw (#3), flat washer
(#4) and hex nut (#5) as shown.
6. Tighten hopper mounting nuts (#5 & #7) to the
correct torque.
7. Refer to Figure 2-1: Make final adjust to the position
of the drive unit and tighten hex nuts (#4 & #6) to the
correct torque.
Hopper Assembly
Figure 2-2
30760
Section 2: PFS4000 Assembly & Set-Up
