Landmann 42224 Guide

1
ASSEMBLY, CARE AND USE INSTRUCTIONS
READ CAREFULLY
IMPORTANT:
RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
4 Burner LP Barbecue Grill
MODEL 42224
5005342
Español p. 29
Questions, problems, missing parts? Before returning to your retailer, call our customer
service department at: 1-800-321-3473 8:00 AM - 5:00 PM (EST) English Only,
or Email [email protected]
This appliance is for
outdoor use only.
This is not a
commercial appliance.

2
Table of Contents
Important Safety Information ................................3-4
Liquid Propane (LP) Safety Information....................5
Package Contents .................................................6-7
Preparation................................................................8
Hardware Contents ..................................................8
Tools Required..........................................................8

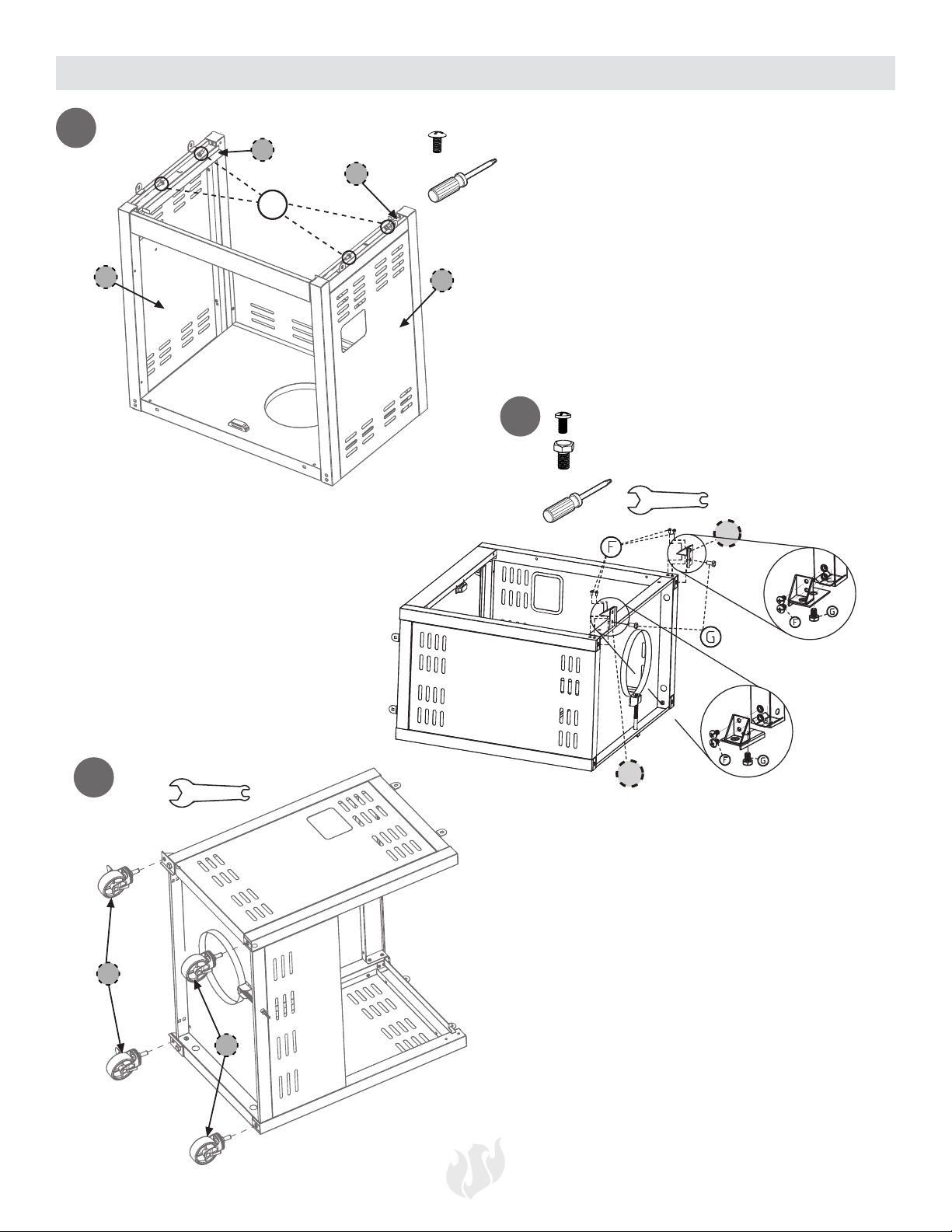

Assembly Instructions ........................................8-17
Assembler/Installer
This instruction manual contains important information necessary for the proper assembly and safe use of this
appliance. Read and follow all warnings and instructions before assembling and using this appliance.
Leave these instructions with the consumer.
Consumer/User
Follow all warnings and instructions when using this appliance.
Keep these instructions for future reference.
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
5. Failure to follow these instructions could
result in explosion, or burn hazard which
could cause property damage, personal
injury or death.
1. DO NOT store or use gasoline or other flam-
mable liquids or vapors in the vicinity of this or
any other appliance.
2. An LP (liquid propane) cylinder not connected
for use should not be stored in the vicinity of
this or any other appliance.
3. This grill is FOR OUTDOOR USE only and
shall not be used in a building, garage, under
overhangs or any other enclosed area.
4. DO NOT leave a lit grill unattended. Keep chil-
dren and pets away from the grill at all times.
5. This appliance is for Household use only.
This is not a commercial appliance.

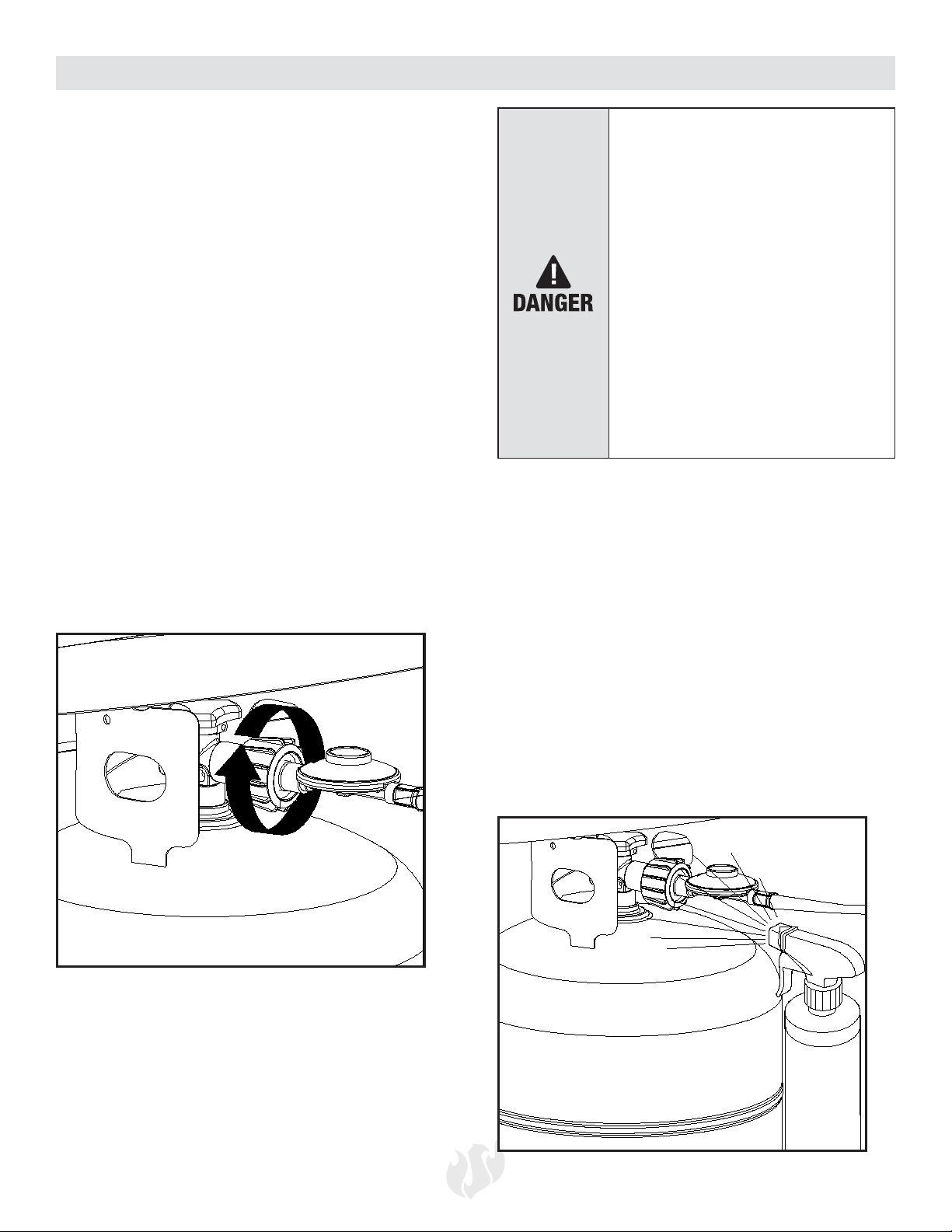

Connecting Gas Cylinder ..................................18
Lighting Instructions ..........................................19
Care and Maintenance .................................20-21
Cooking Methods and Grilling Tips ...................22
Troubleshooting .................................................23
Grilling Guidelines ........................................24-25
Replacement Parts ......................................26-27
Warranty ............................................................28

3
Important Safety Information
Warnings and Cautions contained
in this instruction manual may result in
serious bodily injury or death, or may
result in a fire or explosion causing
damage to property.
• Make sure to follow all assembly instructions
carefully. Improper assembly of this grill may be
dangerous.
• NEVER use charcoal, lighter fluid, gasoline, kerosene
or alcohol to ignite this grill.
• NEVER place more than 10 pounds on a side table.
DO NOT lean on grill.
• NEVER use charcoal briquettes or lighter fluid in a
gas grill. DO NOT move grill while it is lit.
• When igniting the grill or cooking, DO NOT lean over
the open grill.
• Always open the grill lid slowly and carefully as heat
trapped inside the grill can cause severe burns.
• DO NOT place hands or fingers at edge of the
firebox and the lid when the lid is open or the grill is
hot.
• Keep children and pets away from the grill when in
use. Accessible parts may be very hot.
• DO NOT attempt to disconnect the gas regulator
and hose assembly or any gas fitting while your grill
is operating.

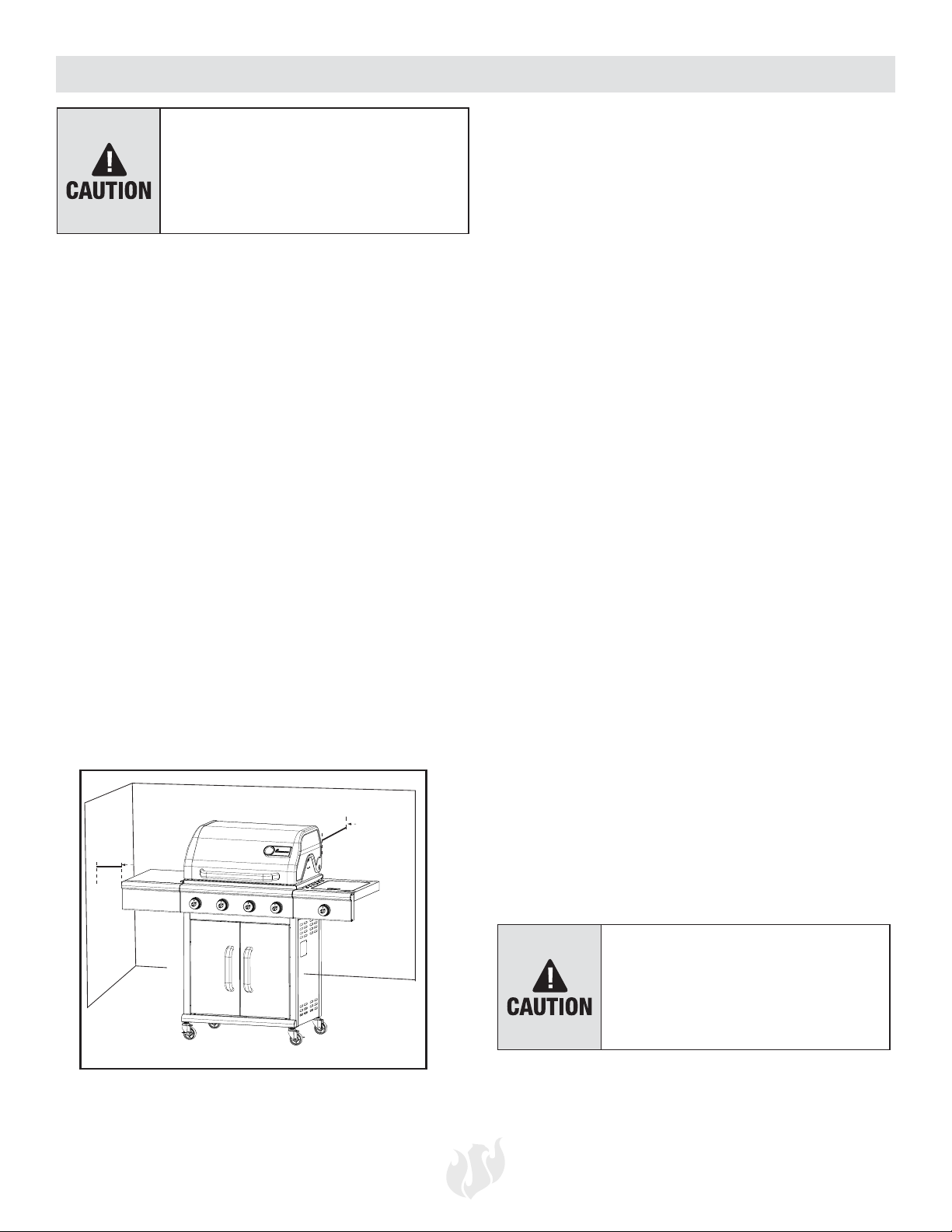

• This grill SHOULD NOT be located under any
overhead unprotected combustible construction.
Always allow at least 24” from the top, bottom,
back and 24” from the sides of the grill (see below).
• This grill is an outside appliance and SHOULD
NOT be operated in a building, garage, or any other
enclosed area.
• DO NOT obstruct the flow of combustion and
ventilation air. Keep the ventilation openings of the
cylinder enclosure free and clear of debris.
• Should the burners go out while the grill is in
operation, turn all gas valves off. Open the lid and
wait five minutes before attempting to relight the
grill, using the igniting instructions.
• Keep this grill clear and free from combustible
material, gasoline and other flammable vapors and
liquids.
• NEVER store an extra or disconnected liquid
propane cylinder under or near this grill.
• Always use heat-resistant barbecue mitts or
gloves when operating the grill.
• DO NOT leave a hot grill unattended or move it
during operation.
• This grill is not intended to be used in or installed
on recreational vehicles, boats, portable trailers, or
in any moving location.
• DO NOT put a grill cover or anything flammable
on the grill while the grill is in operation or is hot.
• Storage of an outdoor cooking gas appliance
indoors is permissible only if the cylinder is
disconnected and removed from the outdoor
cooking gas appliance.
• When the grill is not in use, make sure the gas is
turned • OFF at the supply cylinder.
• Cylinders must be stored outdoors and out of the
reach of children. Cylinder must not be stored in a
building, garage or other enclosed areas.
• Always inspect the gas supply hose before every
use. If the hose shows any signs of abrasions or
cuts, DO NOT use the grill. The hose must be
replaced before using again.
• Always check the burners and venturi tubes for
insects and insect nests. A clogged tube can lead
to a fire beneath the grill.
• Always check the connections for leaks each time
you connect and disconnect the LP gas supply
cylinder.
• DO NOT enlarge the valve orifices or burner
ports when cleaning the valves or burners.
The pressure regulator and hose
assembly supplied with this grill
must be used. Any requirements for
a replacement regulator and hose
assembly must be made through the
manufacturer, LANDMANN-USA.
24’’
(609mm)
24’’
(609mm)

4
Important Safety Information
• If you see, smell or hear hissing of gas escaping
from the LP gas cylinder, move away from the
LP gas cylinder. DO NOT attempt to correct the
problem yourself and call the fire department.
• If a grease fire occurs, turn • OFF the burner and
leave the lid closed until the fire is out.
• DO NOT alter this grill in any manner. Any
alteration automatically voids the warranty.
• DO NOT use the grill in high wind situations.
The LP gas supply cylinder to be used must be
constructed and marked in accordance with the
Specification for LP Gas Cylinders of the U.S.
Department of Transportation (DOT) or the National
Standard of Canada, CAN/CSA-b339 (Cylinders,
Spheres, and Tubes for transportation of Dangerous
Goods).
To avoid the possibility of tipping over the grill,
NEVER place more than 10 pounds on the side table.
NEVER leave cooking food unattended. Continually
observing the food will help in maintaining an even
temperature, conserve fuel, improve the food’s flavor
and lessen flare-ups.
State of California Proposition 65 Warnings
A fire causing death or serious
injury may occur if the following
is not followed exactly:
NEVER store or use gasoline or
other volatile substances in the
vicinity of this grill. NEVER store
a spare propane cylinder in the
vicinity of this grill, or in the vicinity
of another potential heat source.
DO NOT store spare gas cylinder
in or near grill.
Place dust cap on cylinder valve
outlet whenever the cylinder is not
in use. Install only the type of dust
cap on cylinder valve outlet that is
provided with the cylinder valve.
Other types of caps or plugs may
result in leakage of propane.
This product contains chemicals
known to the State of California
to cause cancer and birth defects
or other reproductive harm.

5
Liquid Propane (LP) Safety Information
General Information
• This grill is designed certified by ETL for use with a
standard 20 lb. LP gas cylinder.
• This grill CANNOT be converted to natural gas.
DO NOT attempt to convert this grill with a different
gas type.
Safety Information
• LP gas has an odor similar to natural gas.
• LP gas is heavier than air and leaking gas may collect
in low areas and resist dispersion.
• LP cylinders should not be dropped or handled
roughly.
• DO NOT use a damaged LP cylinder. A dented or
rusty LP cylinder or an LP cylinder with a damaged
valve may be hazardous and should be replaced with
a new cylinder immediately.
• ALWAYS close the cylinder valve after use.
• ALWAYS close the cylinder valve when disconnecting
the regulator.
• ALWAYS treat possible empty LP cylinders with the
same care as a full LP cylinder. There may still be gas
pressure inside a possible empty LP cylinder.
• NEVER store or transport an LP cylinder where the
temperature can reach 125ºF.
• Keep LP cylinders away from children and pets.
• DO NOT store disconnected LP cylinders in a
building, garage or other enclosed areas.
• If the LP cylinder is kept in the grill between
uses, make sure to keep both the grill and
the cylinder in an outdoor area with good
ventilation.
• ALWAYS leak test the LP cylinder
connection to the regulator when ever
changing LP cylinders.
Installation of LP Cylinder
1. Make sure all burner controls are in the OFF
position.
2. Open the cabinet door.
3. Carefully position in the large hole on the
bottom panel.
4. To secure the LP cylinder in place, screw the
tank holding tray bolt through the bottom
section of the LP cylinder.
5. Attach the regulator to the cylinder by
carefully HAND TIGHTENING only.
6. NEVER use a wrench or other tool to tighten
this connection.
7. Observe all governing codes and
ordinances.
Important
The United States LP gas appliance installation
must conform with local codes and ordinances.
In the absence of local codes, appliance
installation must conform with either the
National Fuel Gas Code, ANSI Z223.1/NFPA54,
Natural Gas and Propane Appliance code,
CSA B149.1, or Propane Storage and Handling
Code, B149.2, as applicable.
For Canada, installation of this grill must comply
with local codes and/or Standard CSA B149.2
(Propane Storage and Handling Code).
Please review the below guidelines and safety information when using Liquid Propane (LP) gas.

6

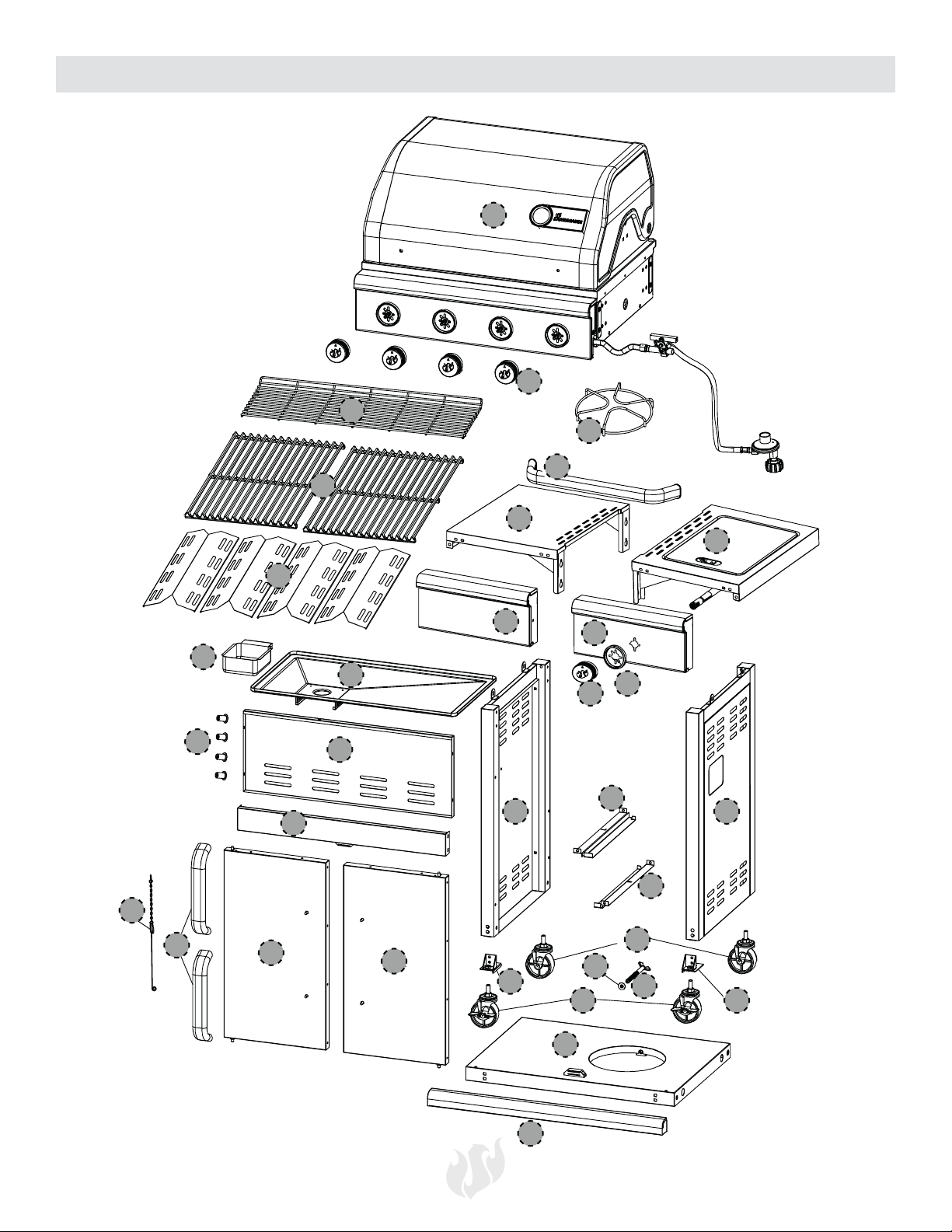

Package Contents
Part Description Quantity
1
5
15
25
3
13
23
33
7
17
27
10
20
30
2
12
22
32
6
16
26
9
19
29
4
14
24
8
18
28
11
21
31
1
2
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
1
1
2
1
5
1
Cart Base Panel
Locking Caster
Match Lighting Tool & Chain
Side burner shelf
Cart left side panel
Cart Door Left
Side Burner Control Panel
LP Tank Bolt And Cap
Caster Support Left
Cart Back Panel
Heat Tent
Grease Tray Support Right
Grease Tray
Grill firebox
Cart Base Front Trim
Cart Door Right
Control Knob Bezel
Side Burner Grate
Non-Locking Caster
Cart Top Cross Brace
Left Side Shelf
LP Tank Bolt
Grease Cup
Warming Rack
Cart right side panel
Cart Door Handle
Side Shelf Control Panel
Caster Support Right
Cart Door Handle Sleeve
Cooking Grate
Grease Tray Support Left
Control Knob
Lid Handle

7
Package Contents
30
29
28
27
19
20
18 17
16
15
14 13 12
10
11
21 22
23
25
26
31
32
24
1
2
5
6
3 4
7
8
9
33
21

8
Preparation
Before beginning assembly of this grill, please remove all packing material and verify that all of the
assembly parts are included (see Package Contents on page 6). If any part is missing or damaged,
DO NOT attempt to assemble the product.
E M4X8 mm Screw (x1)
Estimated assembly time: 45 minutes with two people.
Tools Needed: Phillips Head screw driver.
Assembly Instructions
1.
2 pt Phillips Screwdriver
M4 x 10 M6 x 12 M5 x 10 M4 x 6 M4 x 8 M6 x 10
Wrench
M10 x 12
x 18 x 22 x 7 x 2 x 1 x 4
x 1
x 2
x 2
Hardware Contents Tools Required
E
9
33
1
C D E F GA
H
B

9
Assembly Instructions
B M6X12 mm Screw (x4)
A M4X10 mm Screw (x4)
A M4X10 mm Screw (x4)
2.
3.
4.
4
4
4
3
17
3
3
16
1
B
A
A

10
Assembly Instructions
5.
6.
7.
A
11
10
4
3
5
6
A M4X10 mm Screw (x4)
F M6X10 mm Screw (x4)
G M10X12 mm Screw (x2)
8
7

11
Assembly Instructions
8.
A
B
B
B
2
1
30
A M4X10 mm Screw (x4)
B M6X12 mm Screw (x12)
1/4˝
1/4˝
9.

12
Assembly Instructions
11.
10.
C M5X10 mm Screw (x6)
24
23
25
26
C
C
A M4X10 mm Screw (x1)

13
Assembly Instructions
12.
13.
A M4X10 mm Screw (x1)
D M4X6 mm Screw (x2)
1
2
34
22
30
21
A
D
A M4X10 mm Screw (x1)

14
Assembly Instructions
15.
12
C M5X10 mm Screw (x1)
15
C
14
14
14
12
12
13
13
B
B M6X12 mm Screw (x4)

15
Assembly Instructions
17
16.
H
B
21
31
B M6X12 mm Screw (x2)
H (x2)

16
19.
Assembly Instructions
28
29
18.
27

17
21.
20.
Assembly Instructions
20
19

18
Connecting Gas Cylinder
1. ALWAYS place the propane cylinder on the tank
holder under the cart.
2. ALWAYS confirm that all burner control knobs
are in OFF position before activating the gas
supply.
3. Before connection, be sure that there is no
debris caught in the head of the gas cylinder,
head of the regulator valve, or in the head of the
burner and burner ports.
4. ALWAYS connect the gas supply regulator as
follows: Insert the nipple of the valve coupling
into the tank valve and tighten the connection
collar by turning it clockwise with one hand
while holding the regulator with the other hand.
5. Disconnect the propane cylinder from the
regulator valve when the grill is not in use.
6. DO NOT obstruct the flow of combustion air
and ventilation air to the grill.
7. Keep ventilation openings of the cylinder
enclosure free and clear from debris.
Please make sure the cylinder valve connection
device shall properly and safely mate with the
connection device attached to the inlet of the
pressure regulator.
Checking for Leaks
1. Make 2-3 oz. of leak solution by mixing one part
liquid dishwashing soap with three parts water.
2. Make sure control knobs are in the OFF position.
3. Spray some solution on the tank valve up to the
valve connection. (See diagram to below.)
4. Inspect the solution at the connections for
bubbles. If no bubbles appear, the connection is
secure.
5. If bubbles appear, you have a leak. Go to step 6.
6. Disconnect the regulator from the tank and
reconnect. Make sure the connection is tight and
secured.
7. Retest with solution.
8. If “growing” bubbles appear do not use or move
the LP cylinder. Contact an LP gas supplier or
your fire department!
To prevent fire or explosion hazard
when testing for a leak:
1. ALWAYS perform the 'leak test'
before lighting the grill and each time
the cylinder is connected for use.
2. DO NOT smoke or allow other
sources of ignition in the area while
conducting a leak test.
3. Conduct the leak test outdoors in a
well-ventilated area.
4. DO NOT use matches, lighters or a
flame to check for leaks.
5. DO NOT use grill until all leaks have
been stopped. If you are unable to
stop a leak, disconnect the propane
supply, call for gas appliance service
or your local propane gas supplier.

19
Lighting Instructions
Prior to the first use, it is important to clean your grill with heat.
This will clean the internal parts by burning off any residue and
odor from the manufacturing process. To perform this cleaning,
operate the grill for approximately 15-20 minutes at the highest
heat setting with the cooking hood closed.
IMPORTANT
Please read these instructions before attempting to light the
grill.
Note: Match lighting tool is located on the inside of the
door.
1. Turn all gas control knobs to the
•
OFF position
2. Turn on gas valve from gas source.
3. Lid MUST be open when lighting.
4. Remove the match lighting tool and stick a match into
the end of the tool.
5. Light the match.
6. Once lit, guide the lit match under the grate.
7. Push in and turn the control knob to Max for the
burner closest to the light match. The burner should
light immediately.
8. Adjust burner control knob to the desired cooking
temperature.
Failure to open the lid before igniting
may result in an explosive flare-up,
which can cause serious bodily
injury or death.
DO NOT lean over the open grill
when lighting.
1. Open lid.
2. Ensure that all burner control knobs are in the “
•
OFF”
position.
3. Turn on the gas supply.
4. Push and turn any main burner control knob to the
“Max” position.
5. If the burner does not ignite, then immediately turn the
control knob back to the “
•
OFF” position and repeat
step 4 several times.
6. If the ignition flame and burner will not ignite within 5
seconds, turn the control knob to the “
•
OFF” position
and wait 5 minutes for the gas to dissipate and then
repeat step 4.
7. To extinguish the burner, push in the control knob and
turn clockwise to the “
•
OFF” position.
Match Lighting
Failure to follow the five-minute
waiting period may result in an
explosive flare-up, which can cause
serious bodily injury or death.

20
Please use the following guidelines to keep your grill
clean and looking new. Before any cleaning, make
sure the control knob is in the
•
OFF position and
grill is cool to the touch.
Cleaning the Outside of the Grill
For painted surfaces clean thoroughly with a hot
soapy water solution. Rinse with water and allow to
completely dry.
For the stainless steel surfaces, use a good quality
stainless steel cleaner.
• When cleaning, always rub or wipe in the
direction of the stainless steel grain.
• For stubborn spots, always scrub in the direction
of the stainless steel grain.
• DO NOT clean stainless steel with anything
containing acid, mineral spirits or xylene.
• DO NOT use a wire brush or any abrasive cleaner
on the stainless steel surface as this will cause
scratches in the stainless steel finish.
Cleaning the Inside of the Grill
For safety and efficiency, it is important to remove
any debris or excess grease that may accumulate
inside the grill.
• Wipe off the inner lid liner with a paper towel to
prevent grease build up.
• For the stainless steel heat tents, clean residue off
with wire brush or a flat scraper.
• Remove the grease cup and empty into a suitable
container. Then wipe with a paper towel to remove
excess grease.
• Remove the grease tray from the grill and clean off
residue with a wire brush or flat scraper, then wipe
with a paper towel to remove any excess grease.
If using a bristle brush to clean cooking
surfaces make sure no loose bristles
remain on the cooking surface
as they may attach to food.
Care and Maintenance
Do not allow drippings or food residue
to remain on the heat tents or
grease tray. Clean regularly to ensure
proper cooking performance.
DO NOT line grease tray or grease
cup with aluminum foil.
Grease cup
The grease cup is located below the grill and should
be cleaned after each use to prevent heavy buildup
of debris.
Note: Allow the grease cup to cool before
attempting to clean.
Hose Inspection
The hose should be inspected periodically for any
signs of cracking, nicks, cuts or abrasions.
• If the hose is found to be damaged in any way
DO NOT use the grill.
• The hose must be replaced be a certified hose
as shown in the replacement parts section.

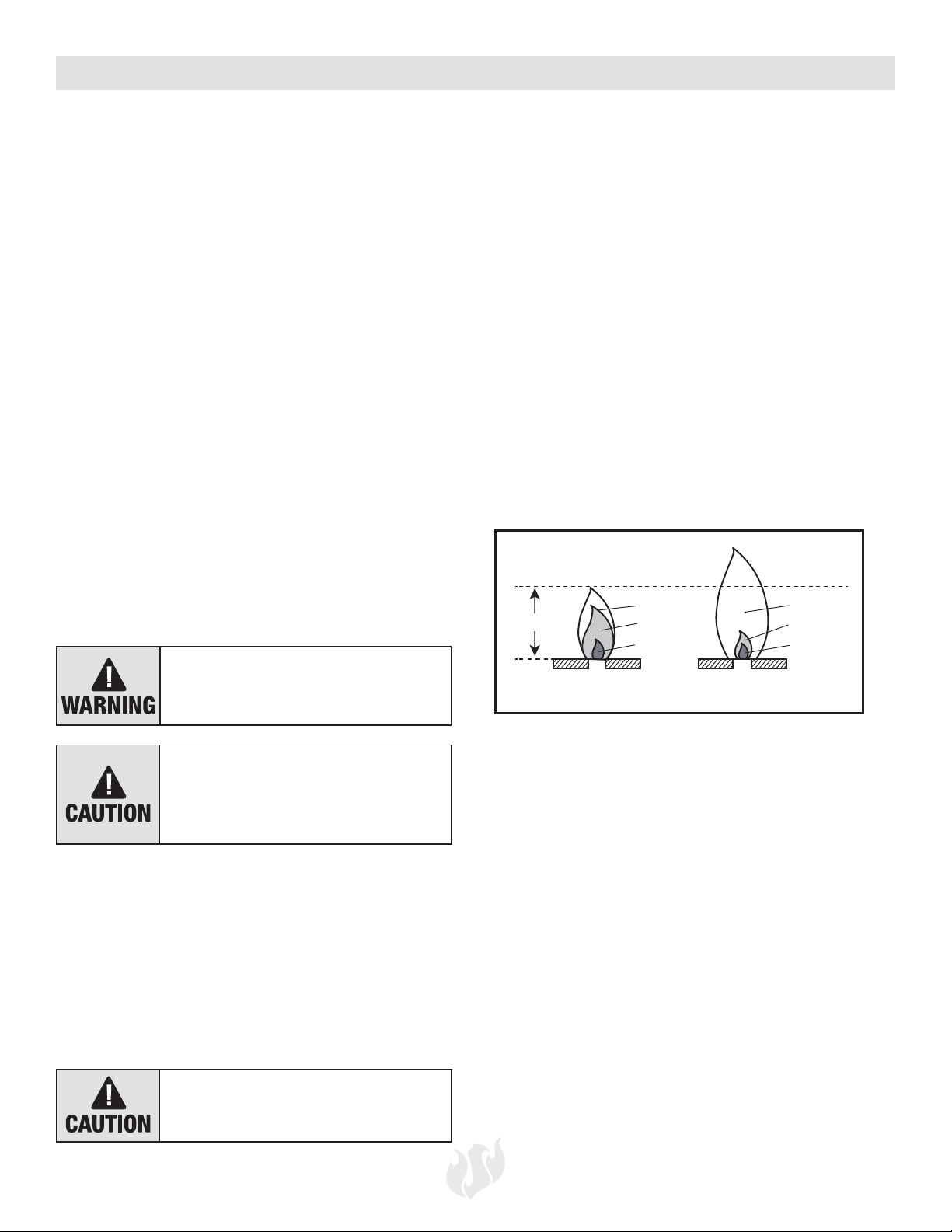

Checking the Flame
The flame coming out of the burners should be a
blue/yellow combination and between one to two
inches tall (see below).
To Remove Burner
Make sure all control knobs are in the OFF position,
the LP gas supply valve has been closed, and the
gas hose is disconnected from the gas supply.
1. Open Lid and remove warming rack, cooking
grates and heat tents.
2. Using a 2 pt Phillips screw driver, loosen the
screw holding the burner in the back of the grill.
Note: This is a screw/nut combination so make
sure to hold the nut while removing the screw.
3. Slide the burner forward and then lift up and out
of the firebox.
4. Unscrew the electrode & wire from the burner.
To Clean Burner
• Make sure all burner ports are clear of any clogs
Tip: Use a pin or paper clip to unclog.
• Make sure the burner is free of any damage. If
damage is found, replace the burner.
• Make sure the end of the burner and primary air
screen are clear from insect nests, dirt, or debris.
GoodFlame
Y
ellow
LightBlue
2in.(5cm)
Blue
Y
ellow
LightBlue
Blue
BadFlame
