Landworks LBB0103 User manual

REV 07/03/19
Instruction Manual
Electric Power Cart
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules
and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required. Keep
these instructions to assist in future servicing.

SPECIFICATIONS
POWER CART SAFETY USE WARNINGS
1. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
2. Wear shoes with non-slip treads. If you have safety shoes, wear them. Do not use your power cart while barefoot
or wearing open sandals.
3. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or
dust. Power- tools create parks which may ignite the dust or fumes.
4. Never operate your power cart in the rain or in tall wet grass. Remember, this is an electric garden cart.
5. Keep children and by standers away while operating a power tool. Distractions can cause you to lose control.
6. When operating the machine, stand behind the machine and hold the handles firmly.
7. Do not operate the machine while riding on the machine.
8. Do not allow others to ride on the machine.
9. When operating the machine in reverse and walking backward, watch behind you and be careful not to slip or
trip.
10. Do not use the machine when visibility is poor, because there is a risk of striking obstacles.
11. When operating the machine on rough ground, decrease speed and exercise caution.
12. When using the machine, avoid soft ground to prevent overturn due to the shoulder of the road collapsing.
13. Do not operate the machine on upward slopes greater than 15°.
14. If you find an abnormality, stop the machine on flat ground. Before inspecting the machine, step the brake lever
and lock the brake, and then turn the power off.
15. Before operating the machine, make sure that the lock lever is fully pulled down and completely locked. If the
lock is incomplete, there is a risk of accident or injury as the carrier or bucket may be tilted and the objects fall
when going downhill.
16. Be careful not to entangle the cords with the load or obstacles.
17. Use only manufacturer-recommended replacement parts and accessories
PERSONAL SAFETY WARNINGS
1. This is not a toy. Children under 14 years of age are not allowed to operate it.
2. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power
tool while you are tired or under the influence of drugs, alcohol or medication.
3. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal
injuries.
4. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or
BATTERY pack, picking up or carrying the tool.
5. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
6. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in
unexpected situations.
7. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving
parts.
8. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected
and properly used. Use of dust collection can reduce dust-related hazards.
9. Does not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety
principles. A careless action can cause severe injury within a fraction of a second.
10. Always wear protective goggles to protect your eyes from injury when using power tools.
11. It is an employer's responsibility to enforce the use of appropriate safety protective equipment’s by the tool
operators and by other persons in the immediate working area.
Item No.
Rating
Loading Capacity
Battery Pack
Speed
LBB0103
48 Volt DC/500W
230kgs/500lbs
48V,4Ah,177.6Wh Lithium Battery*
Forward: 0-5km/h Variable, Reverse: 0-3.5km/h Variable
1

OPERATION ON SLOPS WARNINGS
1. Do not cross on slopes. Be sure to decrease speed and exercise caution.
2. Exercise caution when starting or stopping the machine on slopes.
3. As the loads become less stable on slopes, firmly secure the loads with ropes
4. As the machine becomes unstable depending on the condition of the road, keep the load to a minimum
5. As the view is obscured on slopes, keep the height of the load to a minimum
6. Never park the machine on steep slopes. Park the machine on flat ground, pull the brake lever and lock the
brake, and then turn the power off.
7. Do not change the direction or speed mode on steep slopes
8. Do not release the switch trigger on upward slopes. The machine may go in reverse and cause an accident.
9. Make sure that the remaining battery capacity is enough before operating on slopes. If the remaining battery
capacity is not enough, charge the battery or replace it with a charged one.
LOADING OBJECTIVE WARNINGS
1. Do not overload objects. When loading objects, be sure to follow the instructions and load limits in the manual.
2. Firmly secure the objects with ropes.
3. Load the objects within the carrier or bucket. If the objects protrude from the carrier or bucket, there is a risk of
accidents due to the objects falling or contact obstacles such as walls
4. Be sure that loaded objects are below eye level. If the load is too high, it is dangerous because the view is
obscured. Also, there is a risk of overturning and injury because the load is likely to be unbalanced.
5. Load the objects on the carrier or bucket evenly. If the objects are loaded unevenly, there is a risk of overturning
and injury because the load is likely to be unbalanced.
6. Before loading the objects or operating the machine, make sure that the lock lever is fully pulled down and
completely locked.
7. Load and unload objects on flat ground.
8. When lifting and tilting the carrier or bucket, hold the handles and frame firmly, and work in a stable posture.
BATTERY POWER TOOL USE AND CARE WARNINGS
1. Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools
that have the switch on invites accidents.
2. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery
pack may create a risk of fire when used with another battery pack.
3. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk
of injury and fire.
4. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails,
screws, or other small metal objects that can make a connection from one terminal to another. Shorting the
battery terminals together may cause burns or fire.
5. Under abusive conditions, liquid may be ejected from the battery; avoid contact. if contact accidentally occurs,
flush with plenty of soap and water. If liquid contacts eyes, immediately seek medical help. Liquid ejected from
the battery may cause irritation or burns.
6. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or grounded.
7. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric
shock.
8. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away
from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
9. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for
outdoor use reduces the risk of electric shock.
2

3

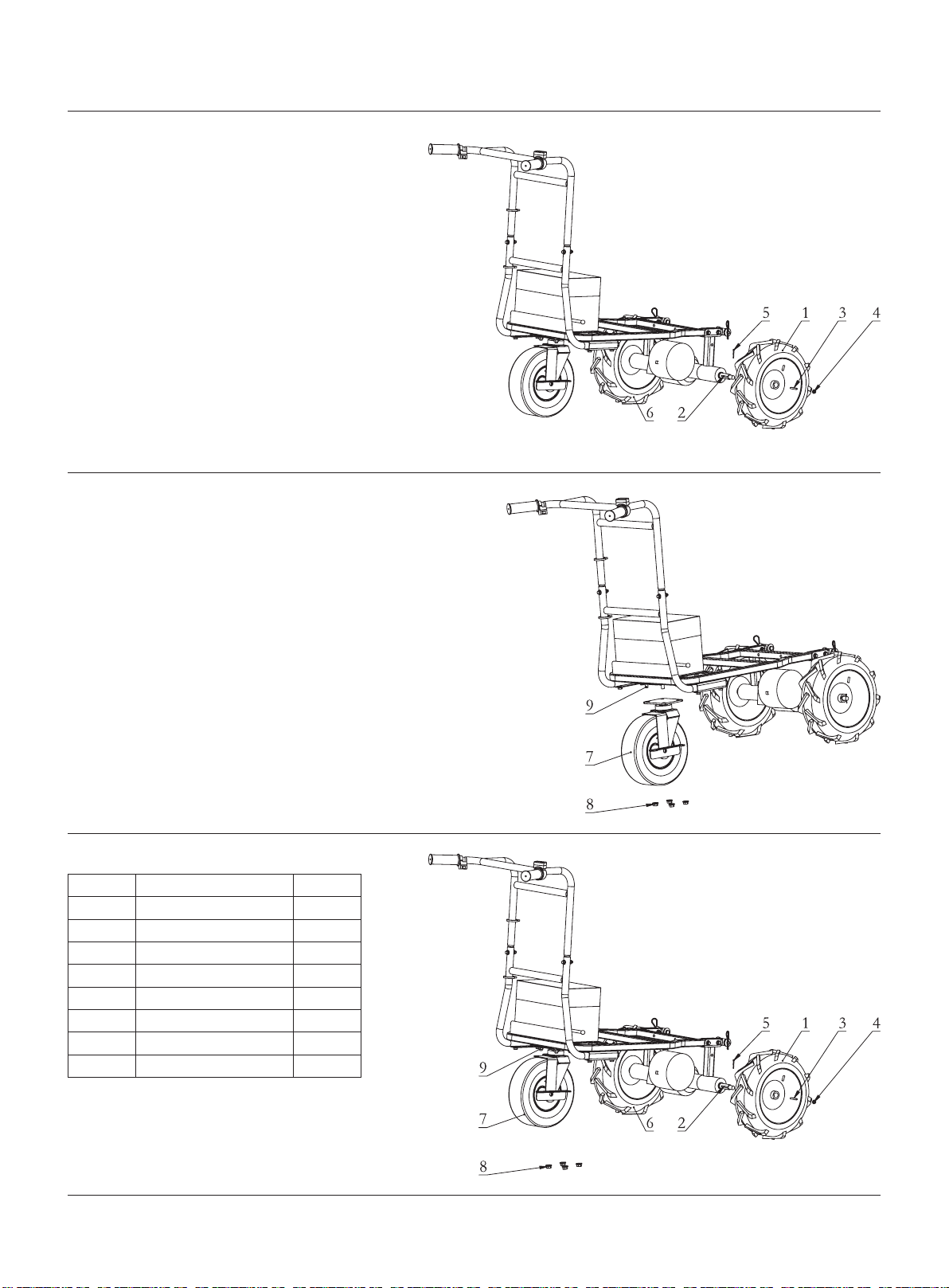

ASSEMBLY- Wheel
1. Unpack the carton and take everything out. Move the
cart base and wheels aside for assembly first
2. Align the wheel (1) groove with the motor drive
axle (2) groove, assemble the wheel on and put
the flat key(3) entirely into the key groove. Tighten
the wheel by nut(4) and lock by Cotter Pin(5)
3. Assemble another wheel (6) in the same way.
(See Figure 1)
4. Align the swivel wheel (7) bracket holes with the
welded bolt (9), assemble it on and tighten by Flange
nut (8). (See Figure 2)
Wheel assembly parts list
Figure 1
Figure 2
Part No.
1
2
3
4
5
6
7
8
Description
Right wheel
Motor driver
Flatkey 5*5*35
Flange nut M14
Cotter Pin 3*30
Left wheel
Swivel caster
Flange nut M8
Q’ty
1
1
2
2
2
1
1
4

4

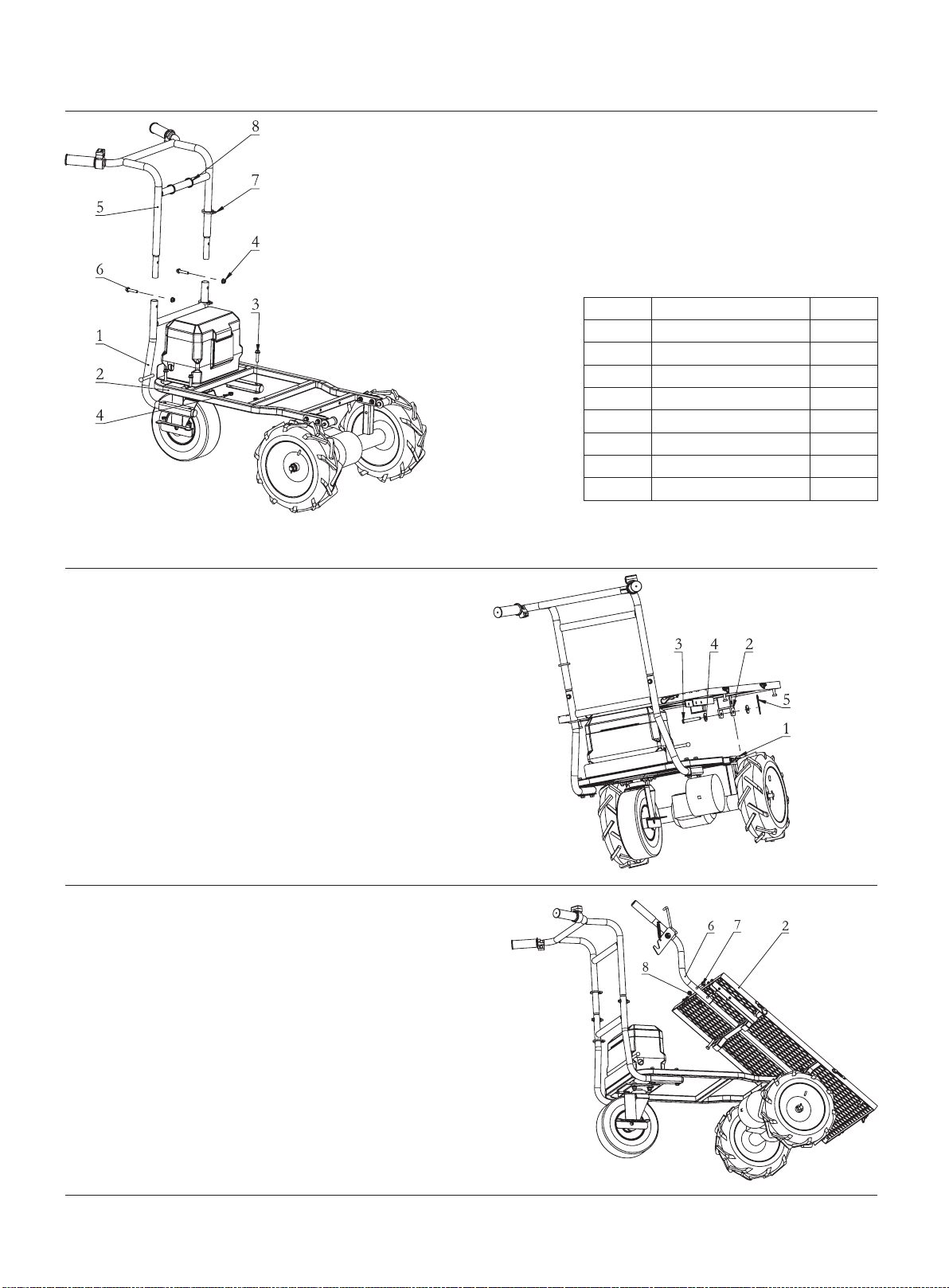

1. Take the bottom wire deck(2), face the flat wire
upside and position the dumping handle groove side
to main handle. Put the bottom wire deck(2) on to the
base frame (1) , fasten by bolt (3) and washer (4),
locked by the pin (5) (See Figure 4)
2. Attach the dumping handle(6) to the bottom wire
deck(2), screwed by Flange bolt (7) and nut(8);
(See Figure 5)
Figure 3
ASSEMBLY- Main Handle
ASSEMBLY- Frame
1. Place the main handle of bottom part (1) into the base frame (2), fixed by
Flange bolt (3) & Flange Nut(4)
2. Insert the main handle of top part (5) into bottom part (1) tube, fixed by Flange
bolt (6) and nut (4).
3. Secure the wire by bellows clip (7) and binding (8), the main handle assembly
finished.
(See Figure 3)
Part No.
1
2
3
4
5
6
7
8
Description
Main handle bottom
Base frame
Flange bolt M8*70
Flange Nut M8
Main handle top
Flange bolt M8*40
Bellow sclip
Binding
Q’ty
1
1
4
6
1
2
3
3
Wheel assembly parts list
Figure 4
Figure 5

5

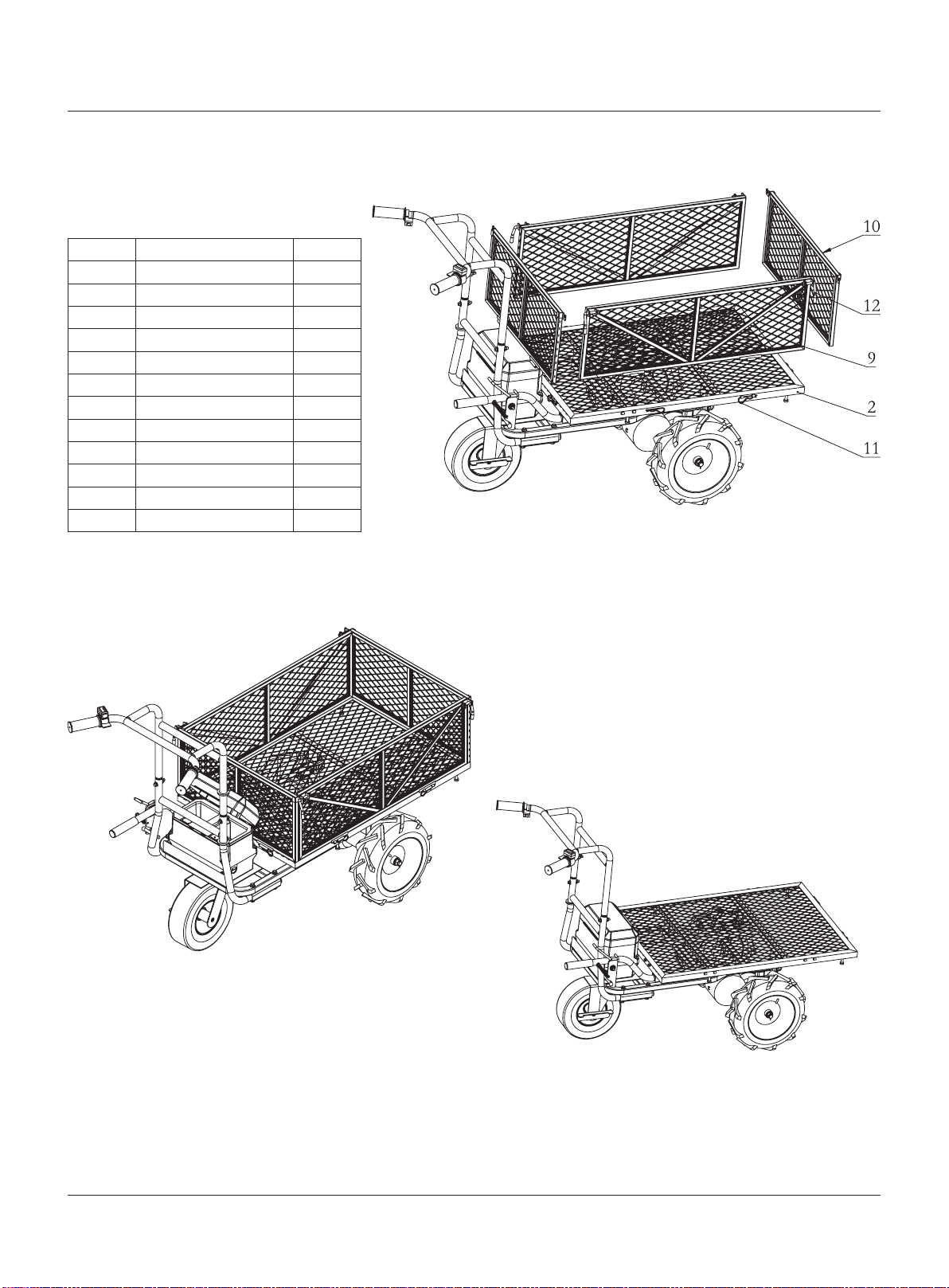

3. Assemble the left & right frame (9), and the front &
back frame (10), locked by Pin (11).
4. Locking the entire frame by handle bar (12), the
electric cart assembly finished.(See Figure 6)
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
Description
Base Frame
Bottom Wire
Bolt
Washer 10
Pin 3*60
Dumping handle
Flange bolt M8*70
Flange nut M8
Left & Right frame
Front & Back frame
Pin 4*80
Handle bar
Q’ty
1
1
2
1
2
1
2
2
2
2
8
4
Frame assembly parts list
ASSEMBLY- Frame
The finished power cart can be two types, with the side frames or without side frames. Power cart without side
frames is for abnormal sizes items, which need to be loaded within the loading capacity and in reasonable size to
keep the cart be balance.
Figure 6
Figure 7
Figure 8

6

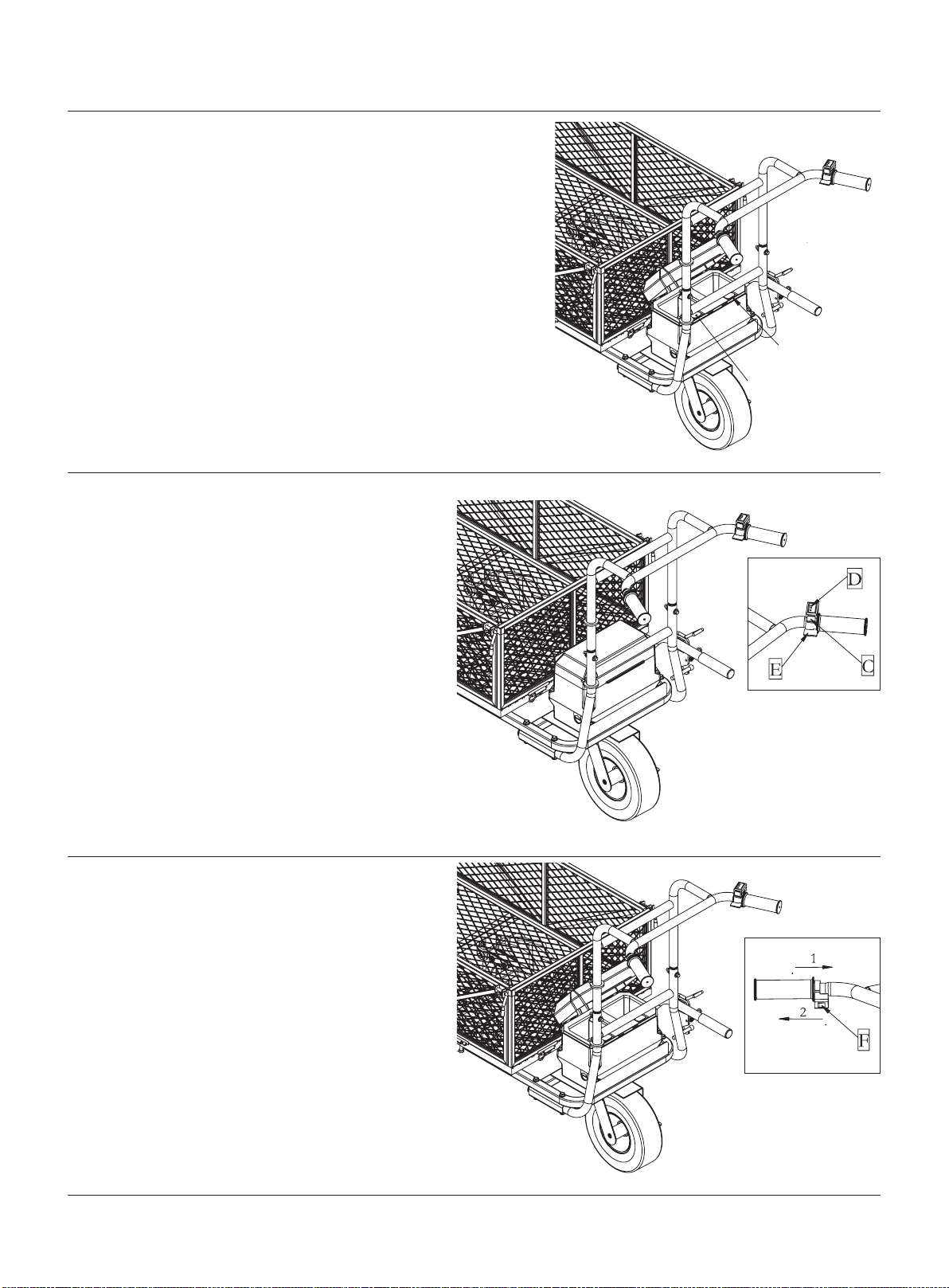

OPERATION
1. Open the battery box, turn on the power switch (A),
there are 2 battery compartments,make sure the
battery switch button on the right position (B)
(See Figure 9)
2. Press the start switch (C) on the right handle, then
the battery indicator (D) will light up with all 3 LED
lights and machine is ready for working. Press and
hold the Switch trigger (E) to start working. By
pressing less or more to control the moving speed.
(See Figure 10)
3. Use the direction button (F) on the left handle for
forward and reverse. (See Figure 11)
Figure 10
Figure 11
Figure 9
A
B

OPERATION ON SLOPS WARNINGS
1. Do not cross on slopes. Be sure to decrease speed and exercise caution.
2. Exercise caution when starting or stopping the machine on slopes.
3. As the loads become less stable on slopes, firmly secure the loads with ropes.
4. As the machine becomes unstable depending on the condition of the road, keep the load to a minimum
5. As the view is obscured on slopes, keep the height of the load to a minimum
6. Never park the machine on steep slopes. Park the machine on flat ground, pull the brake lever and lock the
brake, and then turn the power off.
7. Do not change the direction or speed mode on steep slopes
8. Do not release the switch trigger on upward slopes. The machine may go in reverse and cause an accident.
9. Make sure that the remaining battery capacity is enough before operating on slopes. If the remaining battery
capacity is not enough, charge the battery or replace it with a charged one.
REMAINING BATTERY CAPACITY CHECKING
During the normal working, the 3 LED lights of battery indicator are all on which means the battery is in full power.
When the orange light in the middle starts to flash, it warns the power shortage and battery need to be charged or
changed to a new one. If the lights turn to red, the machine stops automatically.
BATTERY CHARGE
1. Battery charge: When the battery in low capacity, please do recharge. Open the battery box, unplug the lithium
battery, and connected with the charge G side., and connect the charge plug (H) with electric power to start
charging. Once the adaptor light (J) turns green, the battery is fully charged.It usually takes about 1-2 hours.
For a long service life of the battery, please recharge only with charger specified by the manufacture.
7
4. Release the lock lever (1) out from the dumping
handle holder, push the dumping handle to lift the
cart for dumping. (See Figure 12)
Figure 12
Figure 13 Figure 14

TROUBLESHOOTING
WARRANTY
All new machinery is supplied with limited 12 months Warranty.
1. The manufacturer warrantees this electric power cart against defects in material and craftsmanship, for a period
of 12 months from date of original purchase;
2. Items considered as consumable parts are not normally covered by the warranty, including but not limited to:
Batteries, Electric cables; Filters;
3. This warranty excludes parts that are worn or damaged due to normal wear, routine tune up or adjustment,
abuse/misuse or neglect, overheating lack of maintenance, fittings/fasteners becoming loose/detached through
lack of maintenance.
4. The warranty does not cover damage caused by accident, misuse or faulty installation, improper handling,
routine maintenance items such as O-rings, seals, and lubricants, accessory parts.
5. The electric power cart must be installed and maintained in compliance with the instructions.
Problem(s)
The power cart
does not run.
The power cart
runs sluggishly.
Possible Cause
Battery is not charged.
The wire is loose.
The controller is damaged.
Battery volume is low.
The battery is old and does not accept full
charge.
The conditions are too stressful for your power
cart.
Corrective Action
Charge the battery pack according to the
instructions included with you model.
Check all the connectors and to see if any part
is loose or not.
Replace the damaged one with specific controller
See the battery indicator to check the volume.
Charge the battery pack according to the
instructions included with you model.
Replace the battery with a new one.
The cart is intended for residential use.
If slopes are too steep or the terrain too bumpy,
your cart might experience a noticeable decrease
in performance.
8

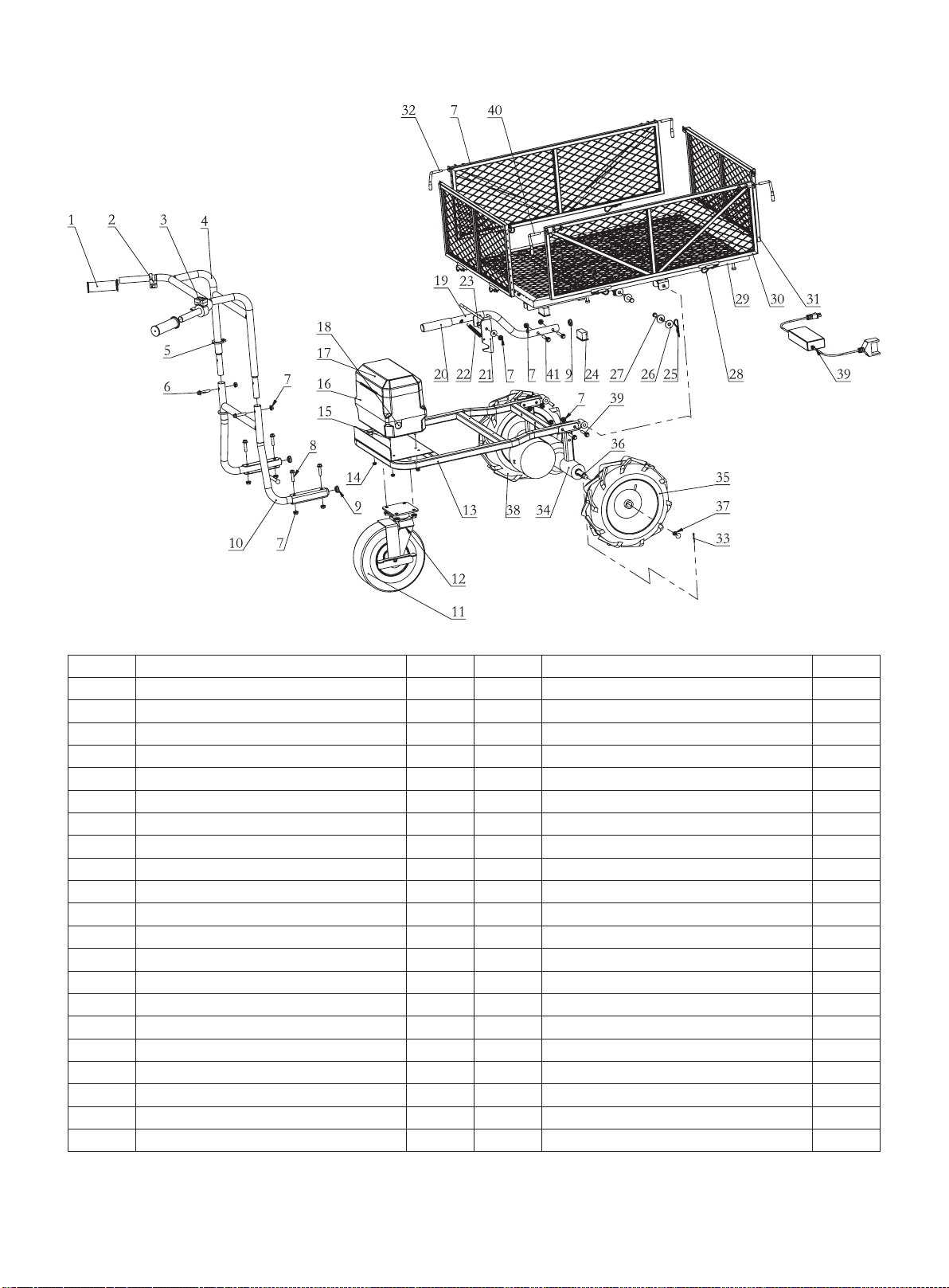

PARTS BREAKDOWN
Part No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
Description
Handleba rgrips
Direction control panel
Switch and speed controller
Main Handle-Top
Bellows Clamp
Flange bolt M8*40
Flange nut M8
Flange bolt M8*70
Plastic plug
Main Handle-Bottom
Swivel caster
Wheel support
Base frame
Flange nut M6
Flange bolt M6*15
Battery case
Lithium battery
Motor driver
Dumping handle
Dumping handle grip
Carrier lock lever
Q’ty
2
1
1
1
2
2
21
4
3
1
1
1
1
4
4
1
1
1
1
1
1
Part No.
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
Description
Spring
Washer
Square plug
Pin
Washer
Bolt pin
Pin
Bottom wire
Left & right frame
Front & back frame
Lock handle left
Cotter pin
Drive axle 48V 500W
Right wheel
Flat Key 5*5*35
Flange nut M14
Left wheel
Charger
Lock handle right
Flange bolt M8*45
Q’ty
1
2
2
2
4
2
8
1
2
2
2
2
1
1
2
2
1
1
2
6
9
