Lang CLB36-1-400V User manual

1
Electric Cruise Line
Single Broiler
w/ Cabinet Base
CLB36-1-400V
CLB36-1-440V
Installation and
Operation
Instructions
2M-W1256 Rev. A 1/2/2009
CLB36-1-440V

2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star Manufacturing exercises good faith efforts to provide
information that is accurate, we are not responsible for errors or omissions
in information provided or conclusions reached as a result of using the
specications. By using the information provided, the user assumes all risks in
connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance. Please record
the model number, serial number, voltage and purchase date in the area below and have it
ready when you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone] Local [phone]
Fax: [phone] Local [phone]
E-mail [email protected]
[email protected]
W[email protected]
Website: www.star-mfg.com
The Star Service Help Desk
Authorized Service Agent
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Telephone: [phone] Local [phone]
Mailing Address: Star Manufacturing International Inc.
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
TABLE OF CONTENTS
CHAPTER PAGE
1. TABLE OF CONTENTS ...............................................................................3
2. READ FIRST .................................................................................................4
3. UNPACKING.................................................................................................6
4. INSTALLATION...........................................................................................7
5. INITIAL START-UP......................................................................................8
6. OPERATION..................................................................................................8
7. CLEANING....................................................................................................9
8. TROUBLESHOOTING .................................................................................10
9. PARTS LISTS................................................................................................11
10. EXPLODED VIEW........................................................................................12
11. WIRING DIAGRAM .....................................................................................17

4
IMPORTANT READ FIRST IMPORTANT
CAUTION: THE BROILER WEIGHS 370 LBS. (167.83 kg). FOR
SAFE HANDLING, INSTALLER SHOULD OBTAIN
HELP AS NEEDED, OR EMPLOY APPROPRIATE
MATERIALS HANDLING EQUIPMENT (SUCH AS A
FORKLIFT, DOLLY, OR PALLET JACK) TO REMOVE
THE UNIT FROM THE SKID AND MOVE IT TO THE
PLACE OF INSTALLATION.
CAUTION: ANY STAND, COUNTER OR OTHER DEVICE ON
WHICH BROILER WILL BE LOCATED MUST BE
DESIGNED TO SUPPORT THE WEIGHT OF THE
BROILER (370 LBS.).
CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN
SNAP BACK WHEN CUT.
DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE
TERMINAL PROVIDED. FAILURE TO GROUND THE
APPLIANCE COULD RESULT IN ELECTROCUTION
AND DEATH.
WARNING: INSTALLATION OF THE UNIT MUST BE DONE BY
PERSONNEL QUALIFIED TO WORK WITH
ELECTRICITY. IMPROPER INSTALLATION CAN
CAUSE INJURY TO PERSONNEL AND/OR DAMAGE
TO EQUIPMENT. UNIT MUST BE INSTALLED IN
ACCORDANCE WITH ALL APPLICABLE CODES.
NOTICE: The data plate is located behind the access cover to
the right of the unit. The broiler voltage, wattage,
serial number, wire size, and clearance specifications
are on the data plate. This information should be
carefully read and understood before proceeding
with the installation.
NOTICE: The installation of any components such as a vent
hood, grease extractors, fire extinguisher systems,
must conform to their applicable National, State and
locally recognized installation standards.
CAUTION: ALWAYS KEEP THE AREA NEAR THE APPLIANCE
FREE FROM COMBUSTIBLE MATERIALS.
CAUTION: KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN
AND DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY,
TO AVOID THE DANGER OF SLIPS OR FALLS.

5
IMPORTANT READ FIRST IMPORTANT
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS.
NEVER SPRAY OR HOSE CONTROL CONSOLE,
ELECTRICAL CONNECTIONS, ETC.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES,
MUCOUS MEMBRANES AND CLOTHING.
PRECAUTIONS SHOULD BE TAKEN TO WEAR RUBBER
GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY READ THE
WARNING AND FOLLOW THE DIRECTIONS ON THE
LABEL OF THE CLEANER TO BE USED.
NOTICE: Service on this, or any other, LANG appliance must be
performed by qualified personnel only. Consult your
authorized service station directory or call the factory at
1-800-807-9054, or WWW.STAR-MFG.COM for the
service station nearest you.
WARNING: BOTH HIGH AND LOW VOLTAGES ARE PRESENT
INSIDE THIS APPLIANCE WHEN THE UNIT IS
PLUGGED/WIRED INTO A LIVE RECEPTACLE. BEFORE
REPLACING ANY PARTS, DISCONNECT THE UNIT
FROM THE ELECTRIC POWER SUPPLY.
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN
THOSE SUPPLIED BY LANG OR THEIR AUTHORIZED
DISTRIBUTORS CAN CAUSE BODILY INJURY TO THE
OPERATOR AND DAMAGE TO THE EQUIPMENT AND
WILL VOID ALL WARRANTIES.

6
UNPACKING
3.1 Receiving the Broiler
Upon receipt, check for freight damage, both visible and concealed. Visible
damage should be noted on the freight bill at the time of delivery and signed by the
carrier's agent. Concealed loss or damage means loss or damage, which does not
become apparent until the merchandise has been unpacked. If concealed loss or
damage is discovered upon unpacking, make a written request for inspection by the
carrier's agent within 15 days of delivery. All packing material should be kept for
inspection. Do not return damaged merchandise to Lang Manufacturing Company.
File your claim with the carrier.
3.2 Location
Prior to un-crating, move the broiler as near its intended location as practical.
The crating will help protect the unit from the physical damage normally associated
with moving it through hallways and doorways.
3.3 Un-crating
The broiler is packaged on a pallet, wrapped in plastic to protect from moisture and
surrounded by a wooden frame. Remove the wood crating carefully. Improper use
of tools can result in damage to the equipment. Remove and discard plastic wrap.
Remove and discard desiccant bags placed inside broiler cavity.
The broiler rack frame and rack are secured for shipping purposes and for safety,
and should remain secured until unit is at its final location.
Legs, where applicable, are packed inside broiler cavity or cabinet base and should
remain there until unit is at the final installation location.
The unit can be safely lifted from bottom with forklift or straps. Use extreme care
and follow proper safety procedure regardless of method used and be aware of
gravity center, especially with banks of multiple units.
CAUTION: THE BROILER WEIGHS 370 LBS. (167.83 kg). FOR
SAFE HANDLING, INSTALLER SHOULD OBTAIN HELP
AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS
HANDLING EQUIPMENT (SUCH AS A FORKLIFT,
DOLLY, OR PALLET JACK) TO REMOVE THE UNIT
FROM THE SKID AND MOVE IT TO THE PLACE OF
INSTALLATION.
CAUTION: ANY STAND, COUNTER OR OTHER DEVICE ON WHICH
BROILER WILL BE LOCATED MUST BE DESIGNED TO
SUPPORT THE WEIGHT OF THE BROILER (370 LBS.).
CAUTION: SHIPPING STRAPS ARE UNDER TENSION AND CAN
SNAP BACK WHEN CUT.
Remove broiler from skid and place in intended location.

7
INSTALLATION
DANGER: THIS APPLIANCE MUST BE GROUNDED AT THE
TERMINAL PROVIDED. FAILURE TO GROUND THE
APPLIANCE COULD RESULT IN ELECTROCUTION AND
DEATH.
WARNING: INSTALLATION OF THE UNIT MUST BE DONE BY
PERSONNEL QUALIFIED TO WORK WITH ELECTRICITY.
IMPROPER INSTALLATION CAN CAUSE INJURY TO
PERSONNEL AND/OR DAMAGE TO EQUIPMENT. UNIT
MUST BE INSTALLED IN ACCORDANCE WITH ALL
APPLICABLE CODES.
NOTICE: The data plate is located behind the access cover to the
right of the unit. The range voltage, wattage, serial
number, wire size, and clearance specifications are on the
data plate. This information should be carefully read and
understood before proceeding with the installation.
NOTICE: The installation of any components such as a vent hood,
grease extractors, fire extinguisher systems, must
conform to their applicable National, State and locally
recognized installation standards.
4.1 Electrical Connection
Electrical connection must be made behind the control compartment in the cabinet
base. The electrical connection must be made in accordance with local codes or in
the absence of local codes with NFPA No. 70 latest edition (in Canada use: CAS
STD. C22.1).
Supply wire size must be large enough to carry the amperage load for the appliance
being installed. Wire size information can be found on the data plate.
4.2 Broiler Voltage
The Lang Model CLB36-1 operates on 400 or 440 Volts, depending on what
voltage the unit is designed to handle. See nameplate for unit’s voltage.

8
INITIAL START UP
5.1 PRE-POWER ON
Initial Start-up
Before the initial use of the broiler, the unit must be wiped down thoroughly with a
dry rag, to remove any oils used in manufacturing. Also the unit must be
thoroughly allowed to dry itself out. This is done be setting the thermostat to 350°.
Allow the range oven to heat until all vapor and condensation has been eliminated.
For best results allow the oven to thoroughly dry out. Allow 8 to 12 hours for this
process. Note: There may be a small amount of smoke from the unit for the first
couple of hours of use, this is normal.
OPERATION
CAUTION: ALWAYS KEEP THE AREA NEAR THE APPLIANCE
FREE FROM COMBUSTIBLE MATERIALS.
CAUTION: KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND
DRY. IF SPILLS OCCUR, CLEAN IMMEDIATELY, TO
AVOID THE DANGER OF SLIPS OR FALLS.
6.1 Broiler Controls
The controls are located on the right side of the unit. There are two switches. One
on top and one on bottom. The top one controls the front half of the broiler, while
the bottom one controls the rear half. There are three positions on each switch:
Low, Off, & High.
The broiler rack is adjustable. There are three rack positions available. To set the
position, put the product on the rack, push the lever down and forward into one of
the positions.

9
CLEANING
7.1 After each Meal Cleaning
WARNING: KEEP WATER AND SOLUTIONS OUT OF CONTROLS.
NEVER SPRAY OR HOSE CONTROL CONSOLE,
ELECTRICAL CONNECTIONS, ETC.
CAUTION: MOST CLEANERS ARE HARMFUL TO THE SKIN,
EYES, MUCOUS MEMBRANES AND CLOTHING.
PRECAUTIONS SHOULD BE TAKEN TO WEAR
RUBBER GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY READ THE
WARNING AND FOLLOW THE DIRECTIONS ON THE
LABEL OF THE CLEANER TO BE USED.
Empty crumb tray daily or when 1/3 full. It is easily removed for washing.
Clean exterior of the broiler with hot water and a mild detergent to maintain a
gleaming appearance.
7.2 Daily Cleaning
The broiler should be thoroughly cleaned at least once a week in addition to the
normal daily cleaning to insure against the accumulation of foreign material. Keep
the inside of the broiler and metal deck clean.

10
TROUBLESHOOTING
9.1 Symptoms
What follows is a chart of Symptoms and Possible Causes to aid in diagnosing
faults with the oven.
Refer to the Symptoms column to locate the type of failure then to the Possible
Cause for the items to be checked.
To test for a possible cause, refer to the TEST section and locate the Possible Cause
then refer to test to identify test procedures.
SYMPTOM POSSIBLE CAUSE
Broiler will not heat •Failed element
•Failed 2 heat switch
Product burning •Product is cooked too long
9.2 TESTS
NOTICE: Service on this, or any other, LANG appliance must be
performed by qualified personnel only. Consult your
authorized service station directory or call the factory
at 1-800-807-9054, or WWW.STAR-MFG.COM for the
service station nearest you.
WARNING: BOTH HIGH AND LOW VOLTAGES ARE PRESENT
INSIDE THIS APPLIANCE WHEN THE UNIT IS
PLUGGED/WIRED INTO A LIVE RECEPTACLE.
BEFORE REPLACING ANY PARTS, DISCONNECT THE
UNIT FROM THE ELECTRIC POWER SUPPLY.
If an item on the list is followed by an asterisk (*), the work should be done by a factory
authorized service representative.
Possible Cause TEST
Product is cooked too long •No test available, operational condition
Failed 2 heat switch •Check poles on switch for continuity
Failed element •Remove the wires and check for continuity
across the element
CAUTION: USE OF ANY REPLACEMENT PARTS OTHER THAN
THOSE SUPPLIED BY LANG OR THEIR AUTHORIZED
DISTRIBUTORS CAN CAUSE BODILY INJURY TO THE
OPERATOR AND DAMAGE TO THE EQUIPMENT AND
WILL VOID ALL WARRANTIES.

11
PARTS LIST
CLB36-1-400V & CLB36-1-440V
Fig No. Part No. Qty Description
1 NLA 1
Body
2 J9-CLB-226 1 PAN - BROILER
3 1M-72602-04 44 GSKTTPEHITMP1/2X1/16X10YD
4 J9-CLB-225 1 SWITCH PANEL - CLB
5 2E-30304-32 2 SWT 2 HEAT 25 AMP, comes with #36
6 J9-CLB-319 1 RACK ADJUSTMENT - BROILER
7 2C-20111-09 46 SCRW HXHD CAP 10-32X1/2
8 J9-CLB-212 1 FRONT HOOD - BROILER
9 2K-70801-02 1 SNAP BUSH 1 3/8 SB1375-16
10 J9-CLB-224 1 TERMINAL BLOCK MOUNT -
11 J9-CLB-218 1 HEAT SHIELD - BROILER
12 J9-CLB-001 1 BROILER CAN ASSY
13 OB-CLB-309 3 OBS ELEMENT HOLDER -
14 2N-11100-13 4 ELMNT BROILER CLS 400V
2N-11100-11 4 ELE BROILR CLS 440V
15 J9-CLB-427 2 ELEMENT HEAT SHIELD -
16 2E-30500-11 2 TRM BLOCK 2 PLE LG 175AMP
17 2C-20303-08 32 NUT HX SS 10-24
18 2C-20203-06 32 WASHER S/S 5/16 SAE FLAT
19 2C-20111-25 6 SCRW HXHD CAP 1/4-20X1.25
20 J9-CLB-310 6 BEARING WASHER - BROILER
21 2P-70202-03 6 BEARING BROILER/FAB ONLY
22 2P-CLB-401 6 BEARING BRACKET SLEVE -
23 2C-20301-29 4 NUT HEX ACORN 1/4-20 S/S
24 J9-CLB-002 1 CARRIAGE ASSY
25 J9-CLB-420 1 HEAT SHIELD ASSY - w/ Clips
26 J9-CLB-425 1 HEAT SHIELD #2 - BROILER
27 2B-50200-80 1 RACK HEAVY DUTY CLB
28 J9-CLB-219 1 REAR FIREWALL SINGLE -
29 J9-CLB-320 1 CAN WIRE SUPPORT
30 J9-CLB-330 1 MAIN STACK ASSY SINGLE
31 J9-CLB-209 1 BACK SINGLE - BROILER
32 J9-CLB-211 2 VENT TRIM - BROILER
33 J9-CLB-244 1 PANEL VENT ASSY - BROILER
34 J9-CLB-243 1 PANEL VENT TOP - BROILER
35 2E-CLB-501 1 WIRE HARNESS SINGLE
36 2E-30304-32 2 SWT 2 HEAT 25 AMP, Comes with #5 Knob
37 J9-CLB-625 1 C. B. PANEL - BROILER
Highlighted items indicate parts that should have at least quantity of one stocked for spares

12

13

14

15

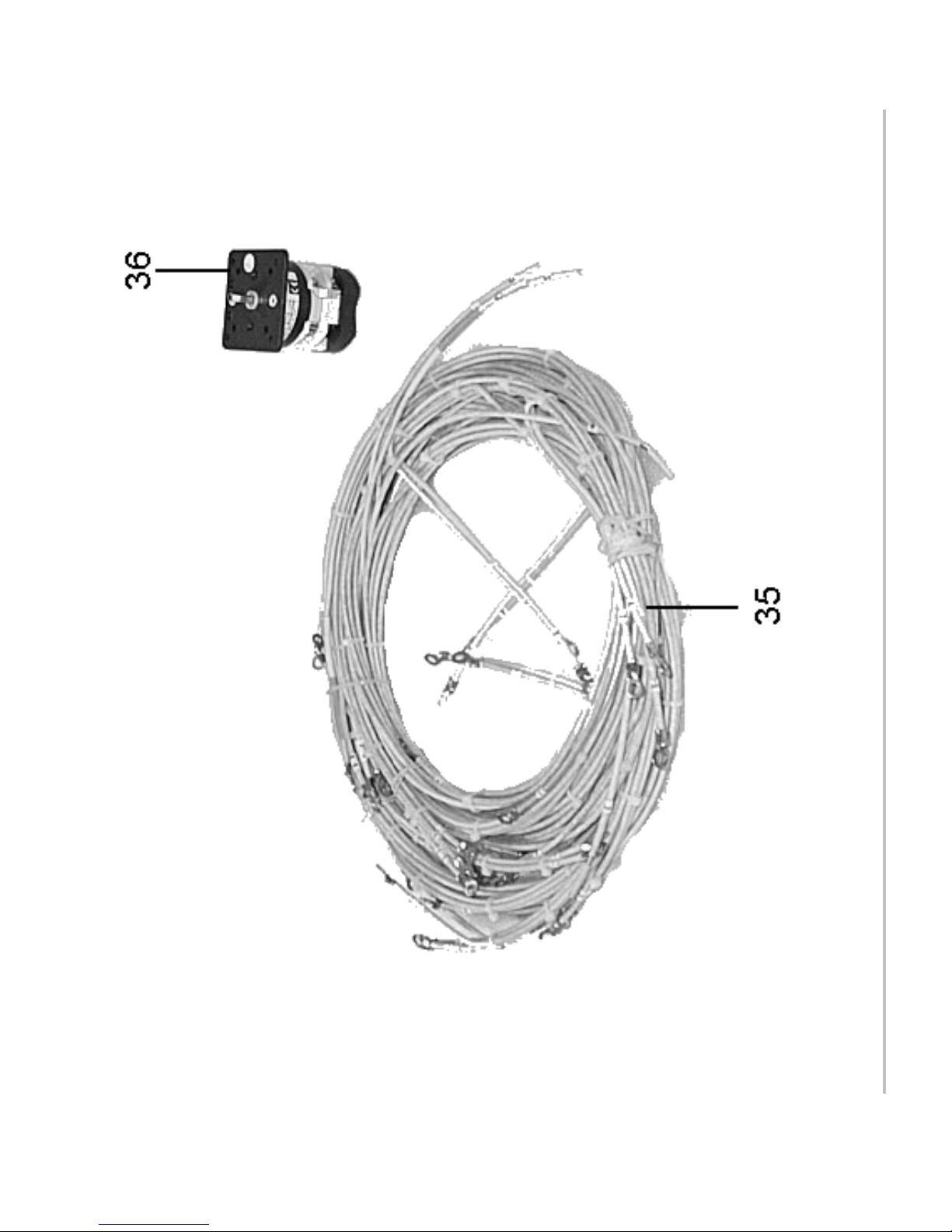

16

17
WIRING DIAGRAM

STAR MANUFACTURING
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
[phone] [phone]
Parts & Service [phone]
www.star-mfg.com
