Lang ECCO-AP Owner's manual

Lang Manufacturing Company 6500 Merrill Creek Parkway Everett, WA 98203
Rev. C Phone: [phone] Fax: [phone]
Part # 60800-32 WWW.LANGWORLD.COM © Copyright 2001
Installation, Operation, & Maintenance
Model: ECCO-AP, Electric Full Size Convection Oven

Lang Manufacturing Company 6500 Merrill Creek Parkway Everett, WA 98203
Rev. C Phone: [phone] Fax: [phone]
Part # 60800-32 WWW.LANGWORLD.COM © Copyright 2001
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND
AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS MANUAL.
DANGER POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH.
WARNING POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY.
CAUTION POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, MAY RESULT IN MINOR OR MODERATE INJURY.
NOTICE Helpful operation and installation instructions and tips are
present.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN
THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
POST IN A PROMINENT LOCATION
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT USER SMELLS GAS. THIS
INFORMATION SHALL BE OBTAINED BY CONSULTING YOUR LOCAL GAS SUPPLIER.
AS A MINIMUM, TURN OFF THE GAS AND CALL YOUR GAS COMPANY AND YOUR
AUTHORIZED SERVICE AGENT. EVACUATE ALL PERSONNEL FROM THE AREA.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ THE
INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR SERVICING THIS EQUIPMENT.
Model #: Purchased From:
Serial #: Location:
Date Purchased: Date Installed:
Purchase Order #: For Service, Call:

3
TABLE OF CONTENTS
CHAPTER PAGE
TABLE OF CONTENTS ...................................................................................... 3
READ FIRST ........................................................................................................ 4
EQUIPMENT DESCRIPTION ............................................................................. 6
UNPACKING ....................................................................................................... 7
INSTALLATION.................................................................................................. 8
INITIAL START-UP ............................................................................................ 11
OPERATION ........................................................................................................ 12
MAINTENANCE & CLEANING PROCEDURES ............................................. 15
TROUBLE SHOOTING ....................................................................................... 16
PARTS LIST ......................................................................................................... 18

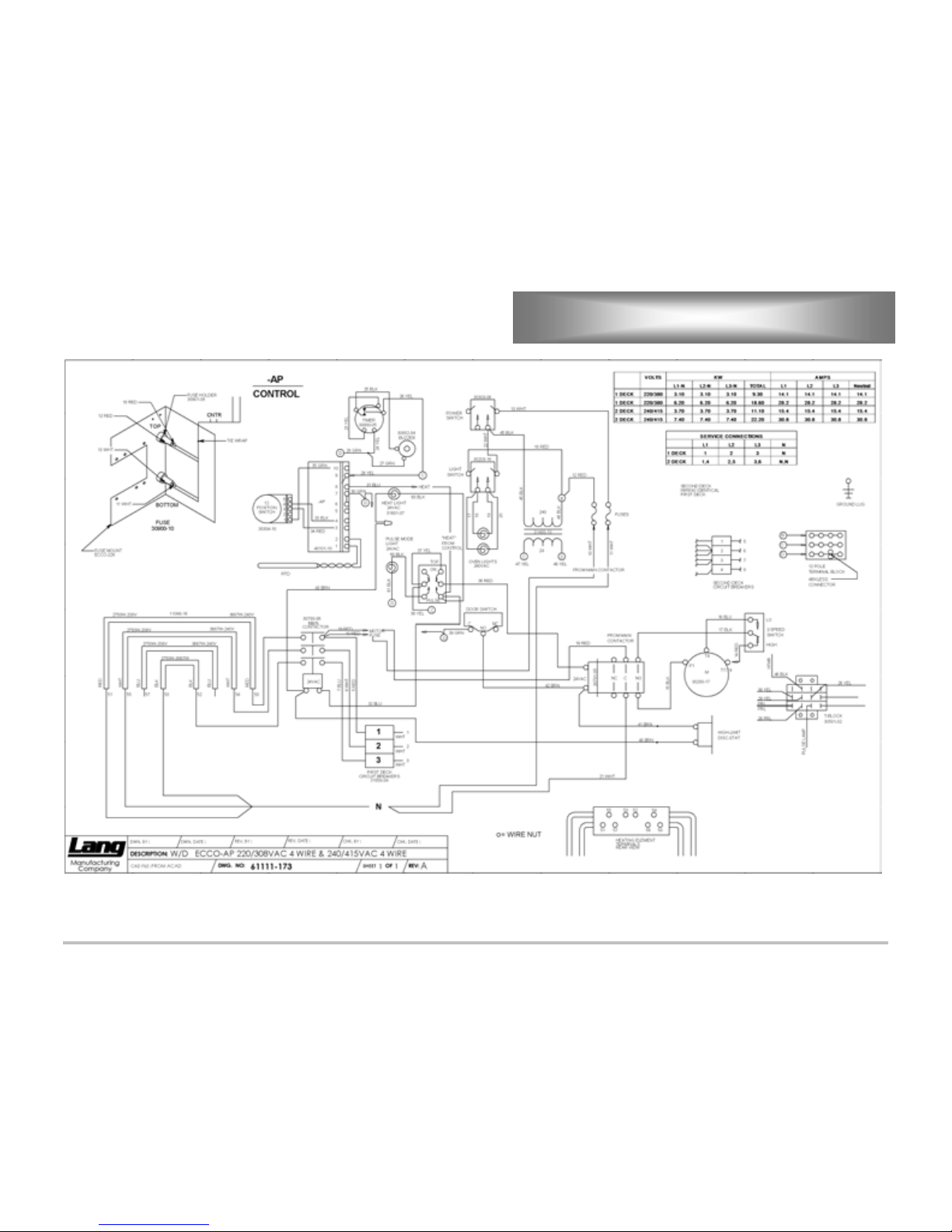

WIRING DIAGRAM ............................................................................................ 19
WARRANTY........................................................................................................ 21

4
IMPORTANT READ FIRST IMPORTANT
CAUTION EACH UNIT WEIGHS 430 LBS. FOR SAFE HANDLING, INSTALLER SHOULD
OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS
HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET
JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE
PLACE OF INSTALLATION.
CAUTION ANY STAND, COUNTER OR OTHER DEVICE ON WHICH OVEN WILL BE
LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE OVEN.
CAUTION SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN
CUT.
DANGER THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED.
FAILURE TO GROUND THE APPLIANCE COULD RESULT IN
ELECTROCUTION AND DEATH.
WARNING INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED
TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER
INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE
TO EQUIPMENT. UNIT MUST BE INSTALLED IN ACCORDANCE WITH ALL
APPLICABLE CODES.
NOTICE The data plate is located above control panel behind wire mesh screen. The
oven voltage, wattage, serial number, wire size, and clearance
specifications are on the data plate. This information should be carefully
read and understood before proceeding with the installation.
NOTICE The installation of any components such as a vent hood, grease extractors,
fire extinguisher systems, must conform to their applicable National, State
and locally recognized installation standards.
NOTICE During the first few hours of operation you may notice a small amount of
smoke coming off the oven, and a faint odor from the smoke. This is
normal for a new oven and will disappear after the first few hours of use.
CAUTION ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
CAUTION KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR
FALLS.
WARNING KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR
HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.
CAUTION MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO
WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE
CLOTHING. CAREFULLY READ THE WARNING AND FOLLOW THE
DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED.
NOTICE Never leave a chlorine sanitizer in contact with stainless steel surfaces
longer than 10 minutes. Longer contact can cause corrosion.
NOTICE Service on this, or any other, LANG appliance must be performed by
qualified personnel only. Consult your authorized service station directory
or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM
for the service station nearest you.

5
IMPORTANT READ FIRST IMPORTANT
WARNING BOTH HIGH AND LOW VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE
WHEN THE UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE.
BEFORE REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE
ELECTRIC POWER SUPPLY.
CAUTION USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY
LANG OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE BODILY
INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL
VOID ALL WARRANTIES.

6
EQUIPMENT DESCRIPTION
Lang Model: Lang Model: ECCO-AP
Exterior Construction
The oven exterior dimensions are 40” (100 cm) Wide, 27” (67.5 cm) High, 38” (95
cm) Deep. The Top, Front, Back, and Sides are constructed of stainless steel with an
aluminized bottom.
The oven doors come standard with double pane windows.
The door handle is constructed of Stainless Steel and Phonolic Tubing.
The oven cavity is insulated with high temperature insulation for efficiency and
reduced heat loss.
Interior Construction
The oven cavity dimensions are 29” (72.5 cm) Wide, 20” (50.84 cm) High, 21”
(53.38 cm) Deep.
The interior of the oven is constructed of porcelainized stainless steel.
Operation
The ECCO-AP oven is a forced air convection oven with a vented oven cavity.
The air is driven by a 1/3 HP fan motor.
Controls
Easy to use manual control knobs.
Solid state temperature sensing and controls.
Pulse and two-speed fan.
Technical
The ECCO-AP oven operates on either 208/240V or 480V. This must be specified
when ordering.
Floor space required is 48” (122.6 cm) wide, 44” (112.5 cm) deep.
The oven weighs 430 lbs.

7
UNPACKING
Receiving the Oven
Upon receipt, check for freight damage, both visible and concealed. Visible
damage should be noted on the freight bill at the time of delivery and signed by the
carrier's agent. Concealed loss or damage means loss or damage, which does not
become apparent until the merchandise has been unpacked. If concealed loss or
damage is discovered upon unpacking, make a written request for inspection by the
carrier's agent within 15 days of delivery. All packing material should be kept for
inspection. Do not return damaged merchandise to Lang Manufacturing
Company. File your claim with the carrier.
Location
Prior to un-crating, move the oven as near to its intended location as practical. The
crating will help protect the unit from the physical damage normally associated
with moving it through hallways and doorways.
Un-crating
The oven will arrive completely assembled inside a wood frame and strapped to a
skid. Cut the straps and remove the wood frame.
Remove Oven from skid and place in intended location.
CAUTION EACH UNIT WEIGHS 430 LBS. FOR SAFE HANDLING, INSTALLER SHOULD
OBTAIN HELP AS NEEDED, OR EMPLOY APPROPRIATE MATERIALS
HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY, OR PALLET
JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO THE
PLACE OF INSTALLATION.
CAUTION ANY STAND, COUNTER OR OTHER DEVICE ON WHICH OVEN WILL BE
LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE OVEN.
CAUTION SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN
CUT.

8
INSTALLATION
DANGER THIS APPLIANCE MUST BE GROUNDED AT THE TERMINAL PROVIDED.
FAILURE TO GROUND THE APPLIANCE COULD RESULT IN
ELECTROCUTION AND DEATH.
WARNING INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL QUALIFIED
TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER
INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE
TO EQUIPMENT. UNIT MUST BE INSTALLED IN ACCORDANCE WITH ALL
APPLICABLE CODES.
NOTICE The data plate is located above control panel behind wire mesh screen. The
oven voltage, wattage, serial number, wire size, and clearance
specifications are on the data plate. This information should be carefully
read and understood before proceeding with the installation.
NOTICE The installation of any components such as a vent hood, grease extractors,
fire extinguisher systems, must conform to their applicable National, State
and locally recognized installation standards.
Leg Installation
Legs are available for both the single and double deck installations. Single deck
installations require a 27-inch leg. Double deck installations require 6-inch legs or
casters.
To install the 27-inch legs, place some cardboard on the floor and gently tip the
oven onto its back. Fasten two legs to the oven's front corners using the four 5/16
inch bolts provided in the leg kit. Lift the oven onto its front legs and block the
back up using one of the 27-inch legs set upside down in the center rear of the oven
body. Install the last 27-inch leg onto the oven body on the control side rear.
Gently lift the oven rear, remove the leg set to support the oven center and install it
on the last rear corner.
To install the 6-inch legs or casters, follow the instructions in the Leg Pad section
on the following pages or in the Leg Pad box supplied with the oven.
The adjustable feet on the bottom of each leg may be screwed in or out as
necessary to level the oven.
A torpedo level placed on an oven rack will assist in leveling the oven.
Stacking the Ovens
Remove all the plug buttons from the top of the lower oven.
Remove the stacking kit from the oven compartment of one oven and install the 1
1/4-inch plastic bushing into the top of the lower oven.
Tip the top oven backwards and install two 3/8-inch socket head bolts, found in the
stacking kit, into the two front leg holes that match the holes in the top of the lower
oven. Install the socket head bolts with the heads of the bolt pointing away from
the oven.
Lift the top oven and gently set on top of the lower oven so that the heads of the
socket head bolts nest into the holes in the top of the lower oven.

9
INSTALLATION CONT’D
Leg Pad Adapter
Identify the front and rear leg adapters (the front adapters have two threaded inserts, the
rear has four).
Leg to Adapter Installation:
Install the leg’s threaded stud through the hole in the adapter labeled “C” with the bent
flange of the adapter facing away from the leg.
Screw the 3/4-inch nut supplied in the adapter kit onto the leg stud and tighten.
Caster to Adapter Installation:
Place the swivel caster against the front leg adapter with the flange of the adapter facing
away from the caster.
Install the four 5/16 inch bolts through the caster base and the adapter holes labeled “A”
then install the 5/16 inch nuts with washer and lock washers.
Place the rigid casters against the rear leg adapter with the flange of the adapter facing
away from the caster.
Align the caster to the holes in the adapter labeled “B”. NOTE: There are two sets of
“B” holes set at 90°from the each other. One set will create a left rear adapter and the
other set will create a right rear adapter.
Install four 5/16-inch bolts through the caster base and the adapter holes labeled “B” then
install 5/16-inch nuts with lock washers and flat washers.
Adapter to Oven Installation:
Gently tip the oven onto its back. Place the front leg adapter into the front corers of the
oven. The holes without the threaded inserts face the front of the oven and the flange on
the adapter points toward the bottom of the oven.
The edge of the leg adapter with the threaded insert slips under the flange on the oven
side, while the edge without the inserts sits on top of the threaded angle on the oven
front.
Install two 3/8-inch bolts with lock washers and flat washers through the front holes “D”
in the leg adapter and into the threaded inserts on the oven.
Thread one 3/8-inch bolt with lock washer and flat washer into the rear threaded hole
labeled “E” on each of the leg adapters.
The forward threaded hole on the front leg adapter does not get a bolt installed.
Place the rear leg adapters into the rear corners of the oven so that the adapter is under
the flange of the oven side and back. NOTE: If installing a caster place the adapter on
the oven so that the casters roll forward.
Install for 3/8-inch bolts with lock washers and flat washers through the holes labeled
“E” in the flange of the oven and into the threaded inserts of the leg adapter.

10
INSTALLATION CONT’D
Ventilation and Clearances
Standard minimum clearance from combustible construction is as follows.
4” from side
4” from back
6” from floor
These ovens may be set directly, without legs, on a curbed base or non-combustible
floor.
If the oven is set without legs on a non-combustible floor or a curbed base, maintain a
4-inch back clearance.
If the oven is set directly against a non-combustible back wall, maintain a 6-inch
clearance to the floor.
Do not install the oven closer than 4 inches from another oven on the right hand side
(control panel side).
Do not install the oven closer than 12 inches from an uncontrolled heat source (char
broiler etc.) on the right side.
Keep the appliance area free and clear of combustible material and do not obstruct the
flow of combustion or ventilation air.
The installation of any components such as a vent hood, grease extractors, and/or fire
extinguisher systems, must conform to the there applicable nationally recognized
installation standards.
Electrical Connection
The electrical service entrance is provided by a 1 1/4-inch knockout in the bottom right
front corner of each oven, or at the oven back directly behind the control compartment.
Grounding lugs are provided at both the front and rear service entrances.
The 208/240-volt oven is a dual voltage oven and is shipped from the factory as 208
volt. The oven must be field converted to operate on a 240-volt power supply.
To convert the oven to 240 volt, remove the jumper wire located under the control
compartment behind the bottom trim piece.
With 480-volt installations check to be sure that the motor rotates in a clockwise
direction as viewed from the front of the oven.
To reverse the motor rotation, switch any two incoming power supply leads and
recheck the rotation.
Supply wire size must be large enough to carry the amperage load for the number of
ovens being installed. Wire size information can be found on the oven DATA
PLATE.
This oven can be installed on both single and three-phase supplies and is shipped from
the factory for three-phase.
To phase the oven to match the power supply, follow the charts on the Wiring
Diagram located at the back of the Manual.

11
INITIAL START UP
Pre-Power On
After the oven is installed and connected to power, prior to turning on, verify the
following:
• The doors open and close freely.
• All racks are in the oven correctly.
• All packing materials have been removed from the inside of the oven.
Power On
Once oven has been turned on verify that the blower wheel is spinning freely in a
clockwise position and that the elements are heating properly.
Confirm that both thermostat knob and timer knob move freely and that the timer
beeps.
NOTICE During the first few hours of operation you may notice a small amount of
smoke coming off the oven, and a faint odor from the smoke. This is
normal for a new oven and will disappear after the first few hours of use.

12
OPERATION
Control Panel
Typical Operation Sequence
ACTION RESULT
Turn power switch to ON. Control panel heat call light comes on.
Adjust proper temperature, between 140°F&
450°F and allow to preheat up to 20 minutes.
Oven begins heating.
Open oven doors and insert product, set timer
up to 60 minutes.
Timer begins counting down.
Timer beeps continuously when done. Product should now be done.
TIME
TEMP
PULSE FAN HI-SPEED
FAN LOW-SPEED
LIGHT
ON
OFF
Power switch.
Light switch. Inspection light only.
Push toggle switch to the up
position to inspect product. Switch
will automatically return to the off
position.
Pulse fan switch. Pulse fan
setting will only turn the fan
on when the oven is calling
for heat.
Dual speed switch.
Toggles the fan between
high and low speed.
Timer Control. Electronic one
hour timer with continuous
beeper.
Vent Knob.
Temperature Control. Allows
temperature to be set in 25°F
increments from 140°F.

13
OPERATION CONT’D
Hints & Suggestions
Convection ovens constantly circulate air over and around the product. This strips away the thin layer
of moisture and cool air from around the product allowing heat to penetrate more quickly.
Cooking times can be shortened and cooking temperatures can be reduced.
To convert standard deck oven recipes, reduce the temperature 50 degrees and the time by 25%.
Make minor adjustments as necessary.
The lower the oven temperature the more even the bake.
Always weigh your product. This will give you a more consistent size, color and quality.
Check the product near the end of the initial cooking cycle by turning on the oven light and looking
through the oven door windows.
Do not open the oven doors during baking as this will change the baking characteristics of the oven
and make it difficult to determine a final program.
If the product is overdone on the outside and underdone on the inside, reduce the baking temperature.
If the product is pulling away from the edge of the pan, the temperature is too high or the cooking
time too long.
The convection is a mechanical piece of equipment. The same control settings will always give the
same results. If the results vary, problems may be because of product preparation.

14
OPERATION CONT’D
Loading
When loading and unloading the oven, stage products and racks so the oven doors are
opened for the least amount of time.
Be sure that racks are level within the oven.
Bent or warped pans can greatly affect the evenness of the cook or bake.
If using baker’s parchment, be sure the parchment does not blow over the product.
The will create a uneven bake.
Load each shelf evenly. Spaces should be maintained equally between the pan and
oven walls, front and back.
Do not overload pan’s this will create a uneven bake.
For best baking results, load the oven from the center out during random loading.
CAUTION ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
CAUTION KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN IMMEDIATELY, TO AVOID THE DANGER OF SLIPS OR
FALLS.

15
MAINTENANCE & CLEANING
WARNING KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR
HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.
CAUTION MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO
WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND PROTECTIVE
CLOTHING. CAREFULLY READ THE WARNING AND FOLLOW THE
DIRECTIONS ON THE LABEL OF THE CLEANER TO BE USED.
NOTICE Never leave a chlorine sanitizer in contact with stainless steel surfaces
longer than 10 minutes. Longer contact can cause corrosion.
Cleaning
• Always start with a cold oven.
• The stainless exterior can easily be cleaned using Lang Mfg. Prime Shine (72804-
41) oven cleaner.
• Always follow the cleaner manufacturer's instructions when using any cleaner.
• Care should be taken to prevent caustic cleaning compounds from coming in
contact with the blower wheel.
• The oven racks, rack slides, and interior may be cleaned using Lang Mfg. Foam
Deluxe (72804-36) oven cleaner.
• Discoloration or heat tint may be removed using Lang Mfg. Carbon Release
(72804-32) oven cleaner.
• Always apply these cleaners when the oven is cold and rub in the direction of the
metal's grain.

16
TROUBLESHOOTING
Symptoms
What follows is a chart of Symptoms and Possible Causes to aid in diagnosing
faults with the oven.
Refer to the Symptoms column to locate the type of failure then to the Possible
Cause for the items to be checked.
To test for a possible causes refer to the TEST section and locate the Possible
Cause then refer to test to identify test procedures.
SYMPTOM POSSIBLE CAUSE
Power indicator is not lit. • No power to cord outlet
• Oven unplugged from outlet
• Failed power cord or plug
• Failed power switch
• Failed indicator light
Oven will not heat • Power Switch is not “ON”
• Failed Transformer
• Failed Probe
• Failed Circuit board
• Failed Contactor
• Failed Over-temperature Thermostat
• Failed Element
Oven motor will not run • Power Switch is not “ON”
• Failed Transformer
• Failed Contactor
• Failed Motor
Product burning • Product is cooked too long
• Failed Probe
• Failed Circuit board
Product under done • Product is not cooking long enough
• Failed Probe
• Failed Circuit board

17
TROUBLESHOOTING CONT’D
TESTS
If an item on the list is followed by an asterisk (*), the work should be done by a
factory authorized service representative.
NOTICE Service on this, or any other, LANG appliance must be performed by
qualified personnel only. Consult your authorized service station directory
or call the factory at 1-800-224-LANG (5264), or WWW.LANGWORLD.COM
for the service station nearest you.
Possible Cause TEST
Product is cooked too long • No test available, operational condition
Failed Probe • Check probe for proper resistance*
Failed Circuit board • Confirm that Circuit board is getting correct
voltage and putting out correct voltage*
Failed Transformer • Check both Primary and Secondary coils for
correct voltage*
Failed Contactor • Remove the wires from the contactor coil and
check for continuity across the contactor coil
connection*
• Ensure the contactor moveable points move
freely up and down*
Failed Motor • Confirm that motor is getting correct voltage*
Failed or disconnected safety
thermostat
• Check across the thermostat connectors for
continuity*
Failed Element • Confirm that Elements are getting correct
voltage and have continuity*
CAUTION USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED BY
LANG OR THEIR AUTHORIZED DISTRIBUTORS CAN CAUSE BODILY
INJURY TO THE OPERATOR AND DAMAGE TO THE EQUIPMENT AND WILL
VOID ALL WARRANTIES.

18
PARTS LIST
DESCRIPTION PART NO.
Element ECCO Oven 208/240 Volt 11000 Watts 11090-16
Element ECCO Oven 480 Volt 11000 11090-18
Motor 1/3 HP 480 Volt 2 Speed 30200-16
Motor 1/3 HP 208/240 Volt 2 Speed 30200-17
Micro Switch, Oven Door 30301-02
Switch, Toggle, On-Off 30303-06
Switch, Toggle, Spring Return 30303-16
Switch, Temperature Control 12 Position 140-450°F 30304-16
Thermostat Safety 490°F Open 30401-09
Contactor 3 Pole 24 VAC 30700-06
Contactor 2 Pole 30 Amp 24 VAC (208/240V Only) 30701-05
Contactor 2 Speed Motor 24 VAC (480V Only) 30705-03
Timer Electric 1 Hour 24V 30800-05
Buzzer Electric Timer 24V 30802-04
Fuse 15 Amp 300 Volt 30900-10
Fuse Holder 15 Amp 30901-08
Transformer 120-208-240/24 VAC 31400-07
Transformer 480/24 VAC 31400-15
Pilot Light 28 VAC 31601-07
Lamp Socket 31602-04
Lamp 250 Volt 31603-04
Oven Lamp Lens (Watch Glass) 31604-01
Oven Lamp Lens Gasket 31604-02
Circuit Breaker 208/240 Volt 1-Pole 31800-01
Circuit Breaker 480 Volt 3 Pole 31800-04
Circuit Board Temperature Control 40101-19
Probe Temperature Sensor 41100-08
Turn Buckle Assembly 50312-02
Door Left Hand 51100-45
Door Right Hand 51100-46
Panel Label Accu-Plus 60301-100
Handle Assembly Single-handle Oven 70603-15
Knob Damper Black 70701-25
Knob Temperature / Timer Control 70701-28
Window Assembly 71301-04
Blower Wheel 71500-05
Rack 50200-20
Rack Slide 50200-93
Extra Deep Rack 50200-31
Extra Deep Rack Slide 50200-94

19
WIRING DIAGRAM 208/240

20
WIRING DIAGRAM 220/380 & 240/415
