Lang Electric Clamshell CSE12-208VCD Manual

Star Manufacturing International 10 Sunnen Drive St. Louis, MO.63143-3800
Part Number: 2M-W363 Ph: 800-438-5264 Fax: [phone]
Rev. C www.langworld.com June 15, 2011
Installation,
Operation, and
Maintenance Instructions
Electric Clamshell
Model:
CSE12-208VCD
CSE12A-1-208V
CSE12A-2-208V
CSE12A-1G thru CSE12A-6G (Glass Surface)

Safety
Safety
THE INFORMATION IN THIS MANUAL IS CRUCIAL AND MUST BE
RETAINED FOR FUTURE REFERENCE. READ, UNDERSTAND AND
FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED IN THIS
MANUAL.
DANGER POTENTIALLY HAZARDOUS SITUATION, WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH.
WARNING POTENTIALLY HAZARDOUS SITUATION, WHICH, IF NOT
AVOIDED, COULD RESULT IN DEATH OR SERIOUS INJURY.
CAUTION POTENTIALLY HAZARDOUS SITUATION WHICH, IF NOT
AVOIDED, MAY RESULT IN MINOR OR MODERATE INJURY.
NOTICE Helpful operation and installation instructions and tips are
present.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS OR
LIQUIDS NEAR THIS OR ANY OTHER APPLIANCE.
WARNING: IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION,
SERVICE OR MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY
OR DEATH. READ THE INSTALLATION, OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY BEFORE INSTALLING OR SERVICING THIS
EQUIPMENT.
Model #: Purchased from:
Serial #: Location:
Date purchased: Date installed:
Purchase order #: For service, call:

SAFETY
ETL File 68964 Rev.A2007
3
THE UNIT IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER
SHOULD OBTAIN HELP AS NEEDED OR EMPLOY APPROPRIATE
MATERIALS-HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY OR
PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO
THE PLACE OF INSTALLATION.
CAUTION
ANY STAND, COUNTER OR OTHER DEVICE ON WHICH UNIT WILL BE
LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE UNIT.
DANGER
WHEN CUTTING SHIPPING STRAPS, USE CAUTION, THE SHIPPING
STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN CUT,
CAUSING SERIOUS INJURY AND OR DEATH.
DANGER
GROUND THIS APPLIANCE AT THE TERMINAL PROVIDED. FAILURE TO
COMPLY MAY RESULT IN SERIOUS INJURY AND/OR DEATH.
WARNING
INSTALLATION OF THE UNIT MUST BE DONE BY PERSONNEL
QUALIFIED TO WORK WITH ELECTRICITY AND PLUMBING. IMPROPER
INSTALLATION CAN CAUSE INJURY TO PERSONNEL AND/OR DAMAGE
TO EQUIPMENT. UNIT MUST BE INSTALLED IN ACCORDANCE WITH ALL
APPLICABLE CODES.
WARNING
BROILER ELEMENTS CAN IGNITE GREASE FIRES ON THE GRIDDLE
SURFACE, WHICH MAY RESULT IN PROPERTY DAMAGE, SERIOUS
INJURY OR DEATH. ENSURE GRIDDLE SURFACE IS SLOPPED DOWN
FROM BACK TO FRONT BY AT LEAST ¼” BEFORE COOKING
The data plate is located behind the Clamshellbetween the two pivot
arms. The Clamshellvoltage, wattage, serial number, wires size and
clearance specifications are on the data plate. This information should be
carefully read and understood before proceeding with the installation.
The installation of any components such as a vent hood, grease
extractors or fire extinguisher systems must conform to their applicable
National, State and locally recognized installation standards.
NOTICE
During the first few hours of operation you may notice a small amount of
smoke and a faint odor from the smoke. This is normal for a new unit and
will disappear after the first few hours of use.
ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
CAUTION KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF SPILLS
OCCUR, CLEAN IMMEDIATELY TO AVOID THE DANGER OF SLIPS OR
FALLS.
WARNING KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER SPRAY OR
HOSE CONTROL CONSOLE, ELECTRICAL CONNECTIONS, ETC.
CAUTION
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE TAKEN TO
WEAR RUBBER GLOVES, GOGGLES OR FACE SHIELD AND
PROTECTIVE CLOTHING. CAREFULLY READ THE WARNING AND
FOLLOW THE DIRECTIONS ON THE LABEL OF THE CLEANER TO BE
USED.

Safety
4
NOTICE
Qualified personnel must perform service on this or any other Lang
appliance only. Consult your authorized service agent directory. You
can call our toll free number 1-800-438-5264 or visit our website
www.langworld.com for the service station nearest you.
WARNING
HIGH VOLTAGES ARE PRESENT INSIDE THIS APPLIANCE WHEN THE
UNIT IS PLUGGED/WIRED INTO A LIVE RECEPTACLE. BEFORE
REPLACING ANY PARTS, DISCONNECT THE UNIT FROM THE
ELECTRIC POWER SUPPLY.
CAUTION
USE OF ANY REPLACEMENT PARTS OTHER THAN THOSE SUPPLIED
BY Star Manufacturing International OR THEIR AUTHORIZED
DISTRIBUTORS CAN CAUSE BODILY INJURY TO THE OPERATOR AND
DAMAGE TO THE EQUIPMENT AND WILL VOID ALL WARRANTIES.
Safety Precautions
Lang manufacturer, hereby disclaims any and all responsibility for injury, damage, loss or other
claim that may occur to person or property from improper alteration, modification, addition,
operation, maintenance or service, whether it be mechanical, electrical, or otherwise, which may
occur from such improper alteration, modification, addition, operation, maintenance or service to
this piece of equipment.
Safety Considerations
Your 12-inch Clamshellis manufactured to rigid standards. This equipment is approved by a
certifying agency to conform to safety and sanitation standards.
The presence of safety equipment control and interlocks on an appliance and attendant
components of installation cannot in and of themselves, assure absolute safety of operation.
Diligent, capable, well-trained operators and maintenance personnel, as well as proper
programs of operation and maintenance, are essential to the safe and reliable operation of this
appliance.
A. The responsibility of the manufacturer is to supply suitable, comprehensive instructions
and recommendations for the operation and maintenance of the appliance.
B. Trained qualified and factory-authorized personnel must perform all operation, maintenance
and repair of these appliances. It is the responsibility of the owner/operator to ensure
that this happens.
C. A regular periodic program of cleaning, inspection and maintenance must be established
and comprehensive maintenance records maintained. It is the sole responsibility of the
user to establish, schedule and enforce the frequency and scope of these programs in
keeping with recommended practice and with due consideration given to actual operating
conditions.
D. Operate this appliance within the limits it was designed for, which will not exceed the
working limits of any component within the appliance as a whole.

Table of Contents
ETL File 68964 Rev.A2007
5
Chapter Page
Safety ............................................................................................................................................................. 2
General Information...................................................................................................................................... 6
Installation..................................................................................................................................................... 7
Initial Start Up ............................................................................................................................................... 8
Cleaning......................................................................................................................................................... 9
Hood Stop Adjustment............................................................................................................................... 10
Parts List ................................................................................................................................................ 11-12
CSE12A-1G thru CSE12A-6G Exploded View & Parts List................................................................ 13-14

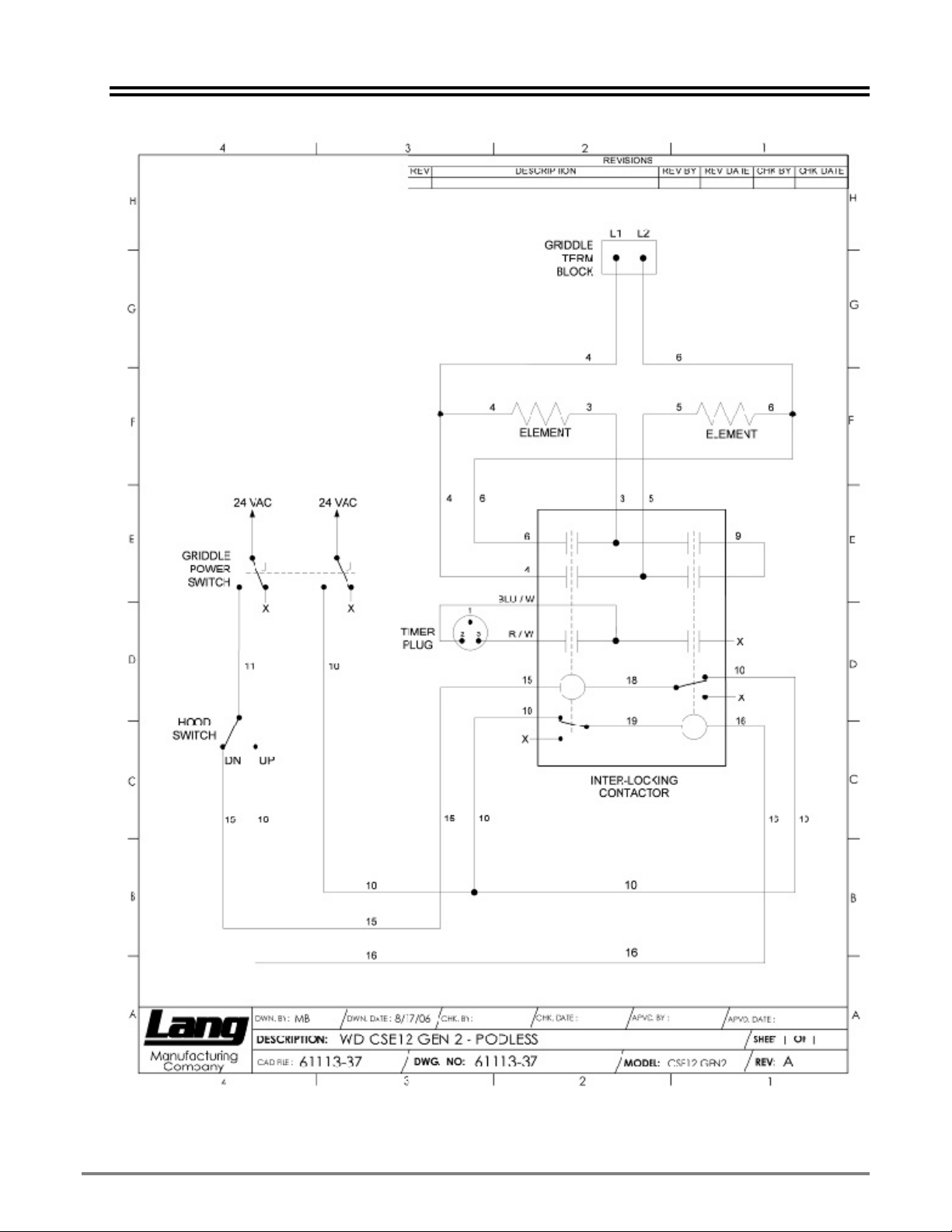

Wiring Diagram ........................................................................................................................................... 15

General Information
6
General Information
Lockout Procedure
Announce lockout to other personnel.
Turn power off at main panel.
Test lockout by turning power switch on and observing if elements come on. Check heater
circuit with voltmeter.
Perform necessary repairs or tests.
Clear the unit of personnel before starting the griddle.
Turn power on at main panel.
Announce unit is “on” to other personnel.
Controls
The broiler turns on with the power switch of the griddle.
The broiler operates with full power when it is in the closed position. In the open position, the broiler will
operate with partial power and be in the “idle” mode.
Technical
The broiler, not including the griddle, is standard 208 or 240V, single phase. Specify voltage when
ordering.
Receiving the Unit
Upon receipt, check for freight damage, both visible and concealed. Note visible damage on the freight
bill at the time of delivery and have the carrier's agent sign the freight bill at that time. Concealed loss or
damage means loss or damage, which does not become apparent until the merchandise has been
unpacked. Make a written request for inspection upon unpacking and finding concealed damage within
15 days of delivery. Keep all packing material for inspection. Do not return damaged merchandise to
Star Manufacturing Company. File your claim with the carrier.
Location
Prior to un-crating, move the unit as near its intended location as practical. The crating will help protect
the unit from the physical damage normally associated with moving it through hallways and doorways.
Un-crating
The unit will arrive completely assembled inside a wood frame covered by cardboard box and strapped
to a skid. Remove the cardboard cover, cut the straps and remove the wood frame.
THE UNIT IS EXTREMELY HEAVY. FOR SAFE HANDLING, INSTALLER
SHOULD OBTAIN HELP AS NEEDED OR EMPLOY APPROPRIATE
MATERIALS-HANDLING EQUIPMENT (SUCH AS A FORKLIFT, DOLLY OR
PALLET JACK) TO REMOVE THE UNIT FROM THE SKID AND MOVE IT TO
THE PLACE OF INSTALLATION.
CAUTION ANY STAND, COUNTER OR OTHER DEVICE ON WHICH THE UNIT WILL
BE LOCATED MUST BE DESIGNED TO SUPPORT THE WEIGHT OF THE
UNIT.
SHIPPING STRAPS ARE UNDER TENSION AND CAN SNAP BACK WHEN
CUT.
Remove the unit from the skid.

Installation
ETL File 68964 Rev.A2007
7
Installation
DANGER
THIS APPLIANCE MUST BE GROUNDED AT THE
TERMINAL PROVIDED. FAILURE TO GROUND THE
APPLIANCE COULD RESULT IN ELECTROCUTION
AND DEATH.
WARNING
INSTALLATION OF THE UNIT MUST BE DONE BY
PERSONNEL QUALIFIED TO WORK WITH
ELECTRICITY AND PLUMBING. IMPROPER
INSTALLATION CAN CAUSE INJURY TO PERSONNEL
AND/OR DAMAGE TO EQUIPMENT. UNIT MUST BE
INSTALLED IN ACCORDANCE WITH ALL
APPLICABLE CODES.
WARNING
BROILER ELEMENTS CAN IGNITE GREASE FIRES ON
THE GRIDDLE SURFACE, WHICH MAY RESULT IN
PROPERTY DAMAGE, SERIOUS INJURY OR DEATH.
ENSURE GRIDDLE SURFACE IS SLOPPED DOWN
FROM BACK TO FRONT BY AT LEAST ¼” BEFORE
COOKING
NOTICE
The data plate is located behind the Clamshell
between the two pivot arms. The Clamshell voltages,
wattage, serial number, wire size and clearance
specifications are on the data plate. Carefully read
and understand this information before proceeding
with the installation.
NOTICE
The installation of any components such as a vent
hood, grease extractors or fire extinguisher systems
must conform to the applicable National, State and
locally recognized installation standards.
Electrical Connection
Verify griddle installation was performed as directed in the installation instructions.
Connect electrical service to the box at the back of the griddle.
Electrical specifications are located on the data plate.
Clearance
Use this griddle only in non-combustible locations.
Maintain clearances of base appliance.

Initial Start Up
8
Initial Start Up
CAUTION ALWAYS KEEP THE AREA NEAR THE APPLIANCE FREE FROM
COMBUSTIBLE MATERIALS.
CAUTION
KEEP FLOOR IN FRONT OF EQUIPMENT CLEAN AND DRY. IF
SPILLS OCCUR, CLEAN IMMEDIATELY TO AVOID THE DANGER
OF SLIPS OR FALLS.
Once the griddle has been loaded properly, lower the hood over the product.
Elements must not touch product when clamshell is in the closed position.
NOTICE
During the first few hours of operation, you may notice a small amount of
smoke and a faint odor from the smoke. This is normal for a new unit and
will disappear after the first few hours of use.
Each unit is preheated, tested and calibrated at the factory prior to shipment. However, due to
temperature and climate changes during shipment the unit can absorb moisture. Check griddle
for moisture and allow the unit to dry before placing the unit into full operation.
Prior to putting any unit into full time operation at normal cooking temperatures, it must be
thoroughly "seasoned" or dried out. Moisture absorption in the closed spaces, in the insulation
and even inside the heating elements can cause future trouble if not properly treated.
Allow the element in the unit to dry thoroughly prior to the initial use. To dry the unit, cycle the
unit on and place the hood into the down position. Allow the unit to saturate until all vapor and
condensation have been removed. For best operating results allow the unit to thoroughly dry out
for 8 to 12 hours.
Pre-heat the griddle for one hour, if the unit has been out of service for three days, especially
when exposed to high humidity and/or cool temperatures.

Cleaning
ETL File 68964 Rev.A2007
9
Cle
WARNING
KEEP WATER AND SOLUTIONS OUT OF CONTROLS. NEVER
SPRAY OR HOSE CONTROL CONSOLE, ELECTRICAL
CONNECTIONS, ETC.
CAUTION
MOST CLEANERS ARE HARMFUL TO THE SKIN, EYES, MUCOUS
MEMBRANES AND CLOTHING. PRECAUTIONS SHOULD BE
TAKEN TO WEAR RUBBER GLOVES, GOGGLES OR FACE
SHIELD AND PROTECTIVE CLOTHING. CAREFULLY READ THE
WARNING AND FOLLOW THE DIRECTIONS ON THE LABEL OF
THE CLEANER TO BE USED.
Daily Cleaning
The CSE12 broiler is a self-cleaning device. When the hood is in the down position, it
will bake off any debris that may accumulate during normal business operation.
Do not use water or cleaning solution on the elements.
Clean the exterior of the appliance with cleaner and water.
Wipe drip shield between hood and griddle to remove any grease.
Weekly Cleaning
Allow the hood to burn off any carbon build up after high use periods.
With a cold griddle, lower the hood and allow the hood to cook for 30 minutes.
Additional time may be necessary for more baked-on grease.

ADJUSTMENT
HOOD STOP ADJUSTMENT
Units with an Adjustable Hood Stop Installed have the capablity to adjust between a 40° to 45° degree
settings. These simple steps will assist you in accomplishing this. If you have difficulty accomplishing this,
please call a qualified service agent or Star Manufacturing Technical Service Department.
1. Remove the front bolts from the hood stop, and loosen the back bolts up, do not completely
remove the back bolts.
2. Adjust the hood stop to the desired position, the top hole is to stop the hood at 40° degrees the
bottom hole is to stop the hood at 45° degrees.
3. Re-install the front bolts and tighten up the back bolts.

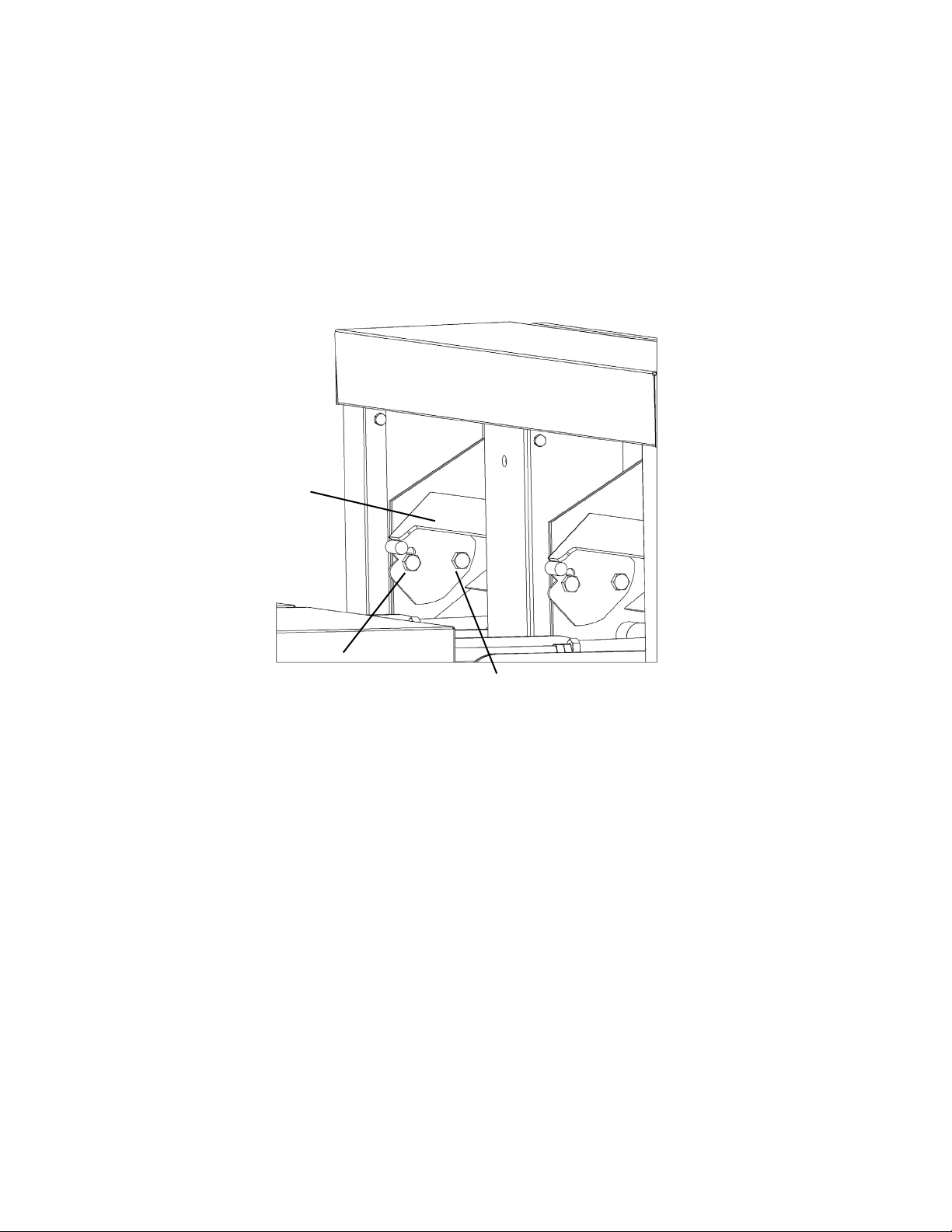

(Fig. 1)
Hood Stop
Front Bolt
Rear Bolt

Parts List
ETL File 68964 Rev.A2007
11
Parts List

Parts List December 5, 2007, Rev. C
12
Model: CSE12-208VCD, CSE12A-1-208V, CSE12A-2-208V
Item Part Description Qty Application
1 2N-11160-32-2 STLHTR208VXLH1600W42.5WSI 2
CSE12-208VCD, A-1-208, A-2-208,
A-3-208, A-4-208, A-5-208, A-6-208
1A 2N-11160-32-4 STLHTR240VXLH1600W42.5WSI 2
CSE12A-1-240, A-2-240, A-3-240,
A-4-240, A-5-240, A-6-240
2 2E-30500-02 TRM STRP 4 POLE 30A 600V 1 ALL
3 2E-30501-03 TERM STRP 4 POLE W/PUSH 1 ALL
2E-30705-01 CONTC 2-SPD MTR-COIL 240VA 1 ALL ELECTRIC GRIDDLES
4 2E-30705-02 CONTC 2-SPD MTR 25A 24VAC 1 ALL GAS GRIDDLES
5 2J-40302-02 CANCTR/RECEPTACLE GGB 1 ALL
6 2P-51002-15 HOOD SPRING XLH12 NEW 1 ALL
7 K9-60102-13582 BRIDGE TO HOOD WIRE 1 ALL
8 K9-60102-13588 ROD ASY HOOD SPRNG XLH12 1 ALL
9 K9-60102-
XLH609 FRONT HOOD WRAP 1 ALL
10 2K-70801-04 SNAP BUSH 3/4 SB750-10 1 ALL
11 K9-EZG-418-1 OUTER BOX SPOTWELD
CSE12 1 ALL
12 K9-EZG-429 SPOT CONNECTOR MOUNT 1 ALL
13 K9-EZG-430 BOX HEAT SHIELD COMBO 1 ALL
14 K9-EZG-433 BOX HEAT SHIELD #2 COMBO 1 ALL
15 K9-EZG-436-1 BOX HEAT SHIELD SPACER 1 ALL
16 K9-XLH-709-1 HANDLE ASSY. CSE12 1 ALL
17 K9-XLH-740-1 Hood switch svc kit 1 ALL
17 2E-30307-04 SWT MERCURY TILT HI-TEMP 2 ALL
18 K9-XLH-636-21 BRIDGE COVER 2' CSE12 NO 1 ALL
19 K9-XLH-659 RIGHT STANCHION COVER 1 ALL
19 K9-XLH-659-1 RIGHT STANCHION CVR 1 ALL
20 K9-XLH-660-1 LEFT STANCHION CVR 1 ALL
21 K9-XLH-735-221 CON. BOX/FLUE 2'GAS-12 NO 1 ALL
NI K9-XLH-704-01 ELEMENT ASSY 208 1
CSE12-208VCD, A-1-208, A-2-208,
A-3-208, A-4-208, A-5-208, A-6-208
NI K9-XLH-704-02 ELEMENT ASSY 240 1
CSE12A-1-240, A-2-240, A-3-240,
A-4-240, A-5-240, A-6-240
NI K9-XLH-781 HOOD STOP BRACKET 1 CSE12-208VCD
NI 2A-XLH-782 HOOD STOP 2 CSE12-208VCD

SK2522, Rev. -, 6/15/2011
Model: CSE12A-1G thru CSE12A-6G
CLAMSHELL HOOD GLASS
Purchase these
items together
1
2
3
1
25
26
27
22 23
24
4
5
7
8
9
1
13
15
1
19 20
21
16
17
14
12
11
10
6
18

Model: CSE12A-1G thru 6G, Clamshell Hood Glass
Fig No. Part Number Description Qty Application
1 2C-20111-09 SCRW HXHD CAP10-32X1/2 24
2 K9-XLH-706-W1 REAR COVERASSEMBLY-XLH12 1
3 K9-XLH-734 BRIDGE TO HOOD WIRE 1
4 K9-XLH-788 BASE - ELEMENT BRACKET 2
5 K9-XLH-789 BRACKET - ELEMENT 4
62N-11160-32-2 STLHTR208VXLH1600W42.5WSI 2208V
2N-11160-32-4 STLHTR240VXLH1600W42.5WSI 240V
7 2Q-71300-20 GLASS - HIGH TEMPCERAMIC 1
8 1P-72602-38 TAPE-FIBERGLASS 1”x1/16TK 5.21 FT
9 K9-XLH-268 FRAME - GLASS CLAMSHELL 1
10 2C-Z6925 SCREW #8X1/2 HEXW B SS 6
11 K9-XLH-705-01 ELEMENT HOLDERASSY 1
12 K9-XLH-628-01 ELEMENT CLAMP 1
13 2C-20301-11 NUT HEX 8-32 PLTD 2
14 2C-20202-12 WSHR LOCK #8 INT STAR 2
15 K9-XLH-742-1 MERCURY SWITCH BRACKET 1
16 K9-XLH-741-1 MERCURY SWITCH BASE 1
17 2C-20101-28 SCRWTHD MS 8-32X3/8 PLTD 2
18 2I-70803-04 CERMC INSLTR 9/32ID11/16 1
19 2E-30307-04 SWITCH MERCURYTILT 2
20 K9-60102-13588 RODASSY HOOD SPRNG 1
21 2P-51002-15 HOOD SPRING XLH12 NEW 1
22 K9-XLH-611 HANDLE BRACE TOP 1
23 K9-XLH-612 HANDLE BRACE BOTTOM 1
24 2C-20104-61 SCRW 1/4-28X3/4 FLTHD SO 2
25 K9-XLH-709-1 HANDLE ASSY. CSE12 1
26 K9-XLH-707 FOREWARD HOODWRAPASSY 1
27 2M-60301-W2 LANG CLAMSHELLLOGO 1
PARTS LIST June 15, 2011
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE GAS DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
1
1

Wiring Diagram
ETL File 68964 Rev.A2007
13
Wiring Diagram

STAR INTERNATIONAL HOLDINGS INC. COMPANY
Star - Holman - Lang - Wells - Bloomeld - Toastmaster
10 Sunnen Drive, St. Louis, MO 63143 U.S.A.
[phone]
www.star-mfg.com
