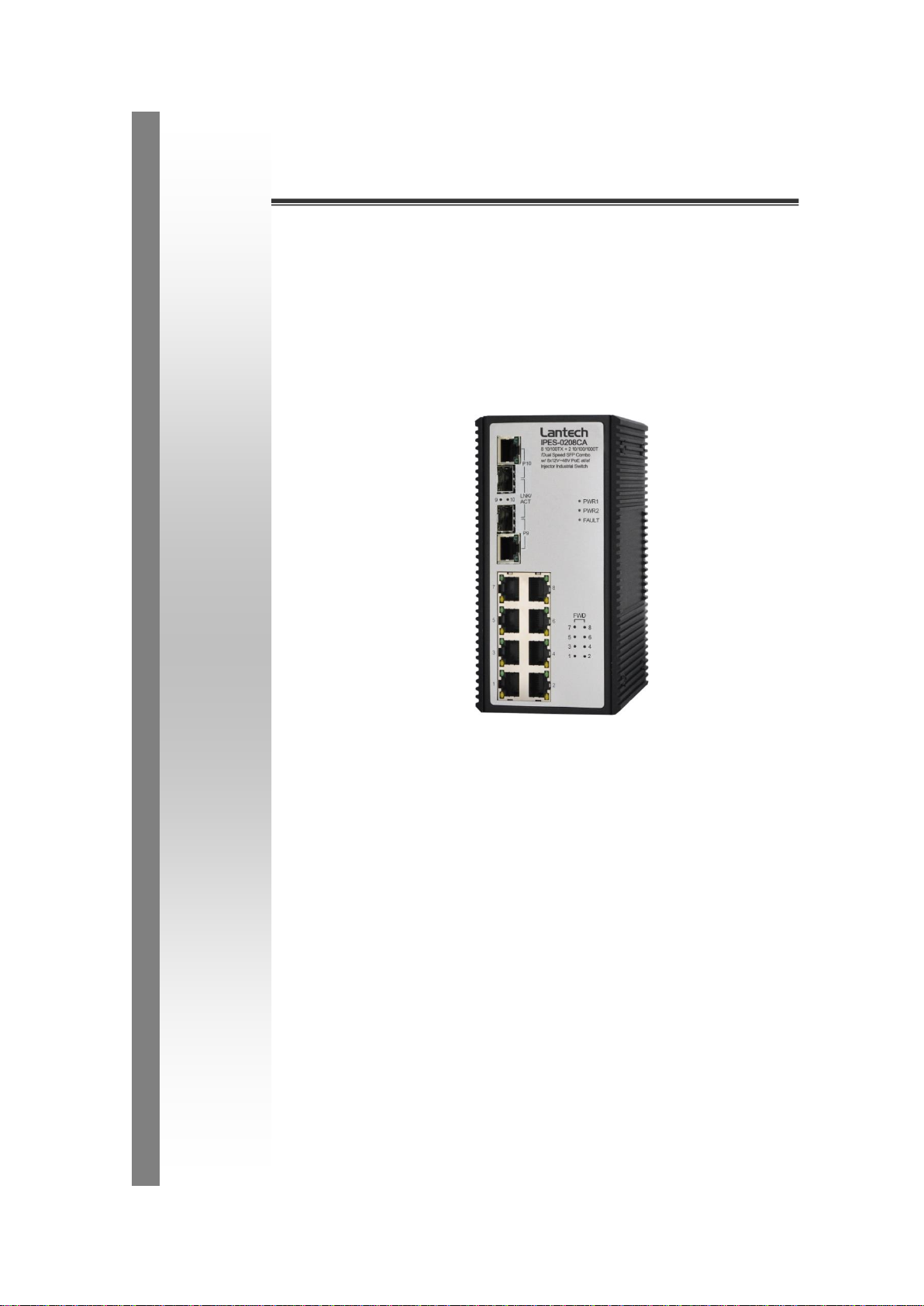

Lantech IPES-0208CA-12V User manual

Lantech
IPES-0208CA
8 10/100TX + 2 10/100/1000T/Dual Speed SFP Combo w/
8x12V/24V/48V PoE at/af Injector Industrial Switch
User Manual
V1.2
May 2021

FCC Warning
This Equipment has been tested and found to comply with the limits for a
Class-A digital device, pursuant to Part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy. It may cause harmful interference to radio
communications if the equipment is not installed and used in accordance
with the instructions. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CE Mark Warning
This is a Class-A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

Content
Introduction................................................................ 1
Features................................................................... 1
Technical Specification............................................ 2
Package Contents................................................... 5
Safety Precaution.................................................... 5
Hardware Description ............................................... 6
Physical Dimension................................................. 6
Front Panel.............................................................. 7
Top View.................................................................. 8
LED Indicators......................................................... 8
Ports......................................................................... 9
Cabling................................................................... 10
Wiring the Power Inputs .......................................11
Wiring the Fault Alarm Contact........................... 13
Mounting Installation .............................................. 14
DIN-Rail Mounting................................................. 14
Wall Mounting........................................................ 15
Hardware Installation .............................................. 17
Installation Steps................................................... 17
Network Application................................................ 18
Troubleshooting ...................................................... 19

1
Introduction
IPES-0208CA Industrial Switch is a cost-effective solution, which meets the high
reliability requirements demanded by industrial applications, and also supports to
operate in the wide temperature -40°C ~ 75°C environments(-E model). Besides, the
equipment supports 12V/24V/48V DC power input and provides the PoE function with
48VDC output for any kinds of powered devices to receive power as well as data over
an RJ-45 cable.
Features
System Interface/Performance
RJ-45 port support Auto MDI/MDI-X Function
Embedded 8-port booster PoE injector function
SFP (Mini-GBIC) supports 100/1000 Dual Mode
IEEE 802.3af/at Standards
Back-plane (Switching Fabric): 5.6Gbps
1Mbits Packet Buffer
8K MAC Address Table
Support Operating Temperature (-20°C~60°C)/ (-40°C~75°C)-E models
DC 12V/24V/48V Redundant Power Input
Operating Temperature
Standard Temperature: -20°C~60°C
Extended Temperature: -40°C~75°C
Case/Installation
IP-30 Protection
Installation in a Pollution Degree 2 environment
DIN Rail and Wall Mount** Design
Provides EFT protection 3,000 VDC for power line
Supports 6,000 VDC Ethernet ESD protection
**Optional

2
Technical Specification
The technical specifications of IPES-0208CA Industrial Switch are listed as follows.
Communications
Compatibility
IEEE 802.3, 802.3u, 802.3ab 802.3z, 802.3x,
802.3af/at
LAN
10/100Base-T
Switch Architecture
Back-plane (Switching Fabric): 5.6Gbps
Packet throughput ability(Full-Duplex): 8.3Mpps
@64bytes
Interface
Connectors
10/100TX: 8 x RJ-45
10/100/1000T/ Mini-GBIC Combo: 2 x RJ-45 + 2 x
100/1000 SFP sockets
LED Indicators
Unit: Power1, Power2, P-Fail, PoE
Ethernet port: Link/Active, Speed
PoE
Power Output
Per port 48 VDC, 15.4 Watts(802.3af)/30Watts(at)
Pin Assignment
RJ-45 port #1 ~ # 8 support IEEE 802.3af/at
End-point, Alternative A mode.
Positive (VCC+): RJ-45 pin 1, 2.
Negative (VCC-): RJ-45 pin 3, 6.
Data (1,2,3,6 )
Power
Power Consumption
10 Watts (Max.); POE Power Budget:240 Watts
(48V input); 120W(24V input); 90W(12V)

3
Power Input
External Power Supply: DC 9~56V, Redundant
power D9V~DC 56V and connective removable
terminal block
Fault Output
1 Relay Output
Mechanism
Dimensions (WxHxD)
74mm (W) x 114mm (D) x 152mm (H)
Enclosure
IP-30, Metal shell with solid mounting kits
Mounting
DIN Rail and Wall Mount** Design
Protection
ESD (Ethernet)
6,000 VDC
Surge (EFT for power)
3,000 VDC
Power Reverse
Yes
Overload current protection
Yes
Environment
Operating Temperature
Standard: -20°C~60°C /-4°F~140°F
Extended:- 40°C~75°C /-40°F~167°F
Operating Humidity
5% ~ 95% (non-condensing)
Storage Temperature
-40 ~ 85oC
Storage Humidity
5% ~ 95% (non-condensing)
Certifications
EMC
FCC Class A, CE EN55032 Class A, CE
EN61000-4-2 (ESD), CE EN61000-4-3 (RS), CE
EN-61000-4-4 (EFT),
CE EN61000-4-5 (Surge), CE EN61000-4-6 (CS),
CE EN61000-4-8, CE EN61000-4-11,
CE EN61000-4-12, CE EN61000-6-2, CE
EN61000-6-4

4
Free Fall
IEC60068-2-32
Shock
IEC60068-2-27
Vibration
IEC60068-2-6

5
Package Contents
Please refer to the package contents list below to verify them against the checklist.
IPES-0208CA Industrial Switch (with DIN-Rail Bracket)
User manual (By request)
Removable Terminal Block
Optional Wall-mount Kit** (2 wall-mount bracket with screws)
Compare the contents of the industrial switch with the standard checklist above. If any
item is damaged or missing, please contact the local dealer for service.
Safety Precaution
Attention
IF DC voltage is supplied by an external circuit, please use a protection
device on the power supply input.

6
Hardware Description
In this paragraph, the Industrial switch’s hardware specs, ports, cabling information, and
wiring installation will be described.
If this switch needs to uplink with another switch via a PoE copper port, please
make sure the uplink port on the other unit is a none-PoE interface. You may also
contact our sales team to confirm if the switch supports power isolation.
Physical Dimension
IPES-0208CA Industrial Switch dimensions (W x D x H) is 74mm x 114mm x 152mm,
the detail dimensions as Figure-1
Figure-1: Mechanical Dimensions

7
Front Panel
The Front Panel of IPES-0208CA Industrial Switch is shown below Figure-2
Figure-2: Front Panel of the PoE Injectors Industrial Switch

8
Top View
The top view of IPES-0208CA Industrial Switch has one terminal block connector of two
DC power inputs and Relay circuit contact. Please refer to Figure-3 for further
information.
Figure-3: Top View of the PoE Injectors Industrial Switch
LED Indicators
The diagnostic LEDs located on the front panel of the industrial switch provide real-time
information of system and operation status. Table-1 provides the description of the LEDs
status and their definitions for the switch.
LED
Color
Description
P1
Green
On
Power input 1 is active
Off
Power input 1 is inactive
P2
Green
On
Power input 2 is active
Off
Power input 2 is inactive
P-Fail
Red
On
Power input 1 or 2 has failed
Off
Power input 1 and 2 are both functional, or no power
inputs
PoE indicator
(Port 1 ~ 8)
Green
On
The port is supplying power to the powered-device
Off
No powered-device attached or power supplying fails
LAN Port 1 ~ 8
Green
On
Connected to network

9
(RJ-45)
Flashing
Networking is active
Off
Not connected to network
Green
On
Connected to network at speed of 100Mbps
Off
Connected to network at speed of 10Mbps or not
connected to network
Table-1: LED Indication Definition
Ports
RJ-45 ports
The Fast Ethernet ports (RJ-45) will auto-sense for 10Base-T or 100Base-TX
connections. Auto MDI/MDI-X means that the switch can connect to another switch or
workstation without changing straight-through or crossover cabling. Please refer to
Table-2 for RJ-45 pin assignment.
Pin Number
Assignment
1
Tx+
2
Tx-
3
Rx+
6
Rx-
Table-2: RJ-45 Pin Assignment
Note
“+” and “-” signs represent the polarity of the wires that make up each wire
pair.
All ports on this industrial switch supports automatic MDI/MDI-X operation, users can
use straight-through cables (See figures below) for all network connections to PCs or
Servers, or to other switches/hubs. In straight-through cable, pins 1, 2, 3, and 6, at one
end of the cable, are connected straight through to pins 1, 2, 3 and 6 at the other end of
the cable. Table-3 shows the 10BASE-T/100BASE-TX MDI and MDI-X port pin-outs.

10
Pin
MDI-X Signal
MDI Signal
1
Receive Data plus (RD+)
Transmit Data plus (TD+)
2
Receive Data minus (RD-)
Transmit Data minus (TD-)
3
Transmit Data plus (TD+)
Receive Data plus (RD+)
6
Transmit Data minus (TD-)
Receive Data minus (RD-)
Table-3: MDI/MDI-X Port Pin-outs

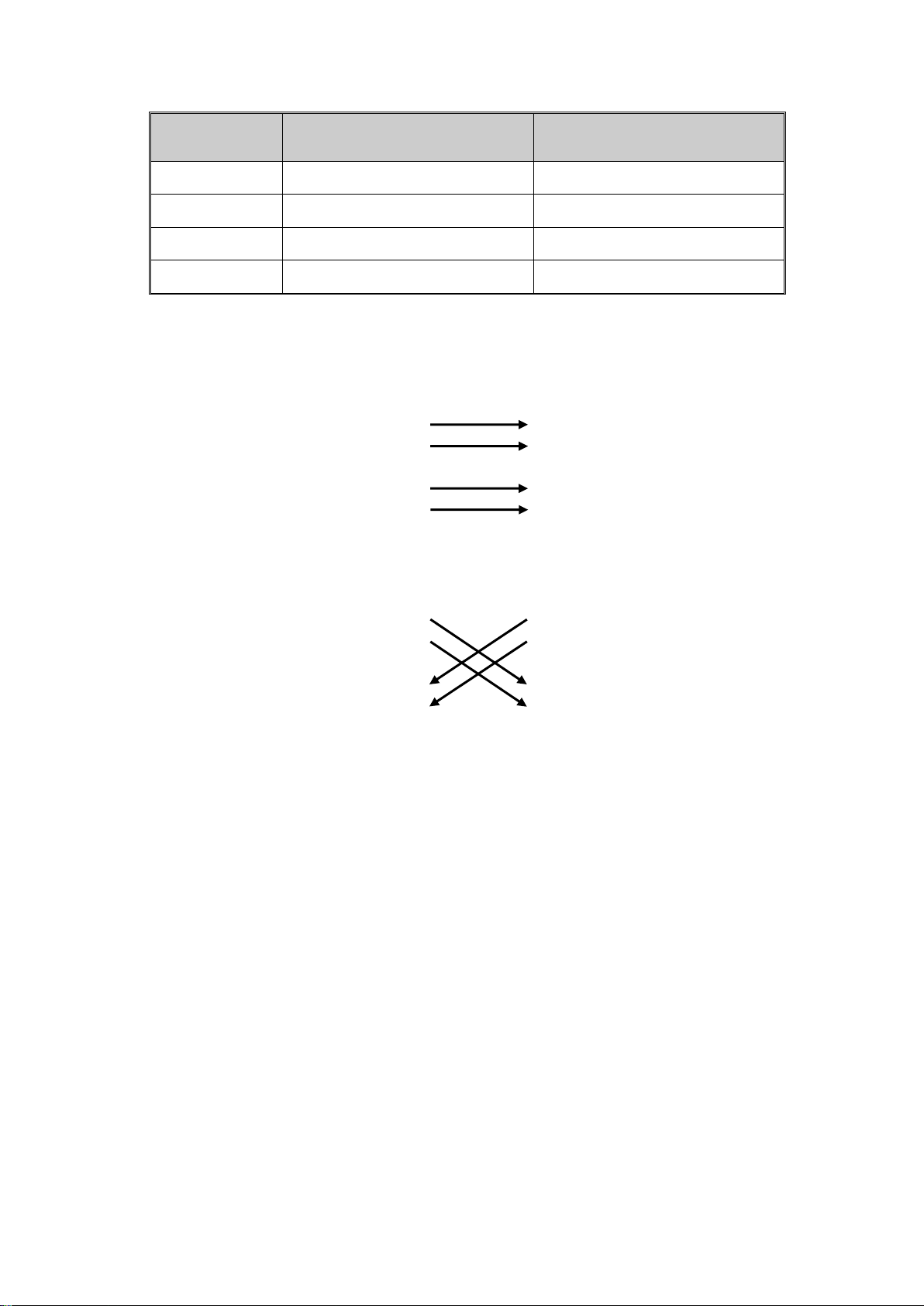

The following figures show the cable schematic for straight-through type (Figure-4) and
crossover type (Figure-5).
Switch
Router / PC
3 TD+
3 RD+
6 TD-
6 RD-
1 RD+
1TD+
2 RD-
2 TD-
Figure-4: Straight Through Cable Schematic
Switch
Switch
3 TD+
3 RD+
6 TD-
6 RD-
1 RD+
1TD+
2 RD-
2 TD-
Figure-5: Crossover Cable Schematic
Cabling
Twisted-pair segments can be connected with unshielded twisted pair (UTP) or
shielded twisted pair (STP) cable. The cable must comply with the IEEE 802.3u
100Base TX standard (e.g. CAT.5, CAT.5e, or CAT.6). The cable between the
equipment and the link partner (switch, hub, workstation, etc.) must be less than
100 meters (328 ft.) long.

11
Wiring the Power Inputs
Please follow the steps below to wire the power cord which from the other compliant
external DC power supplier.
1. Insert the positive and negative wires into the PWR1 (V+, V-) and PWR2 (V+, V-)
contacts on the terminal block connector as shown in Figure-6.

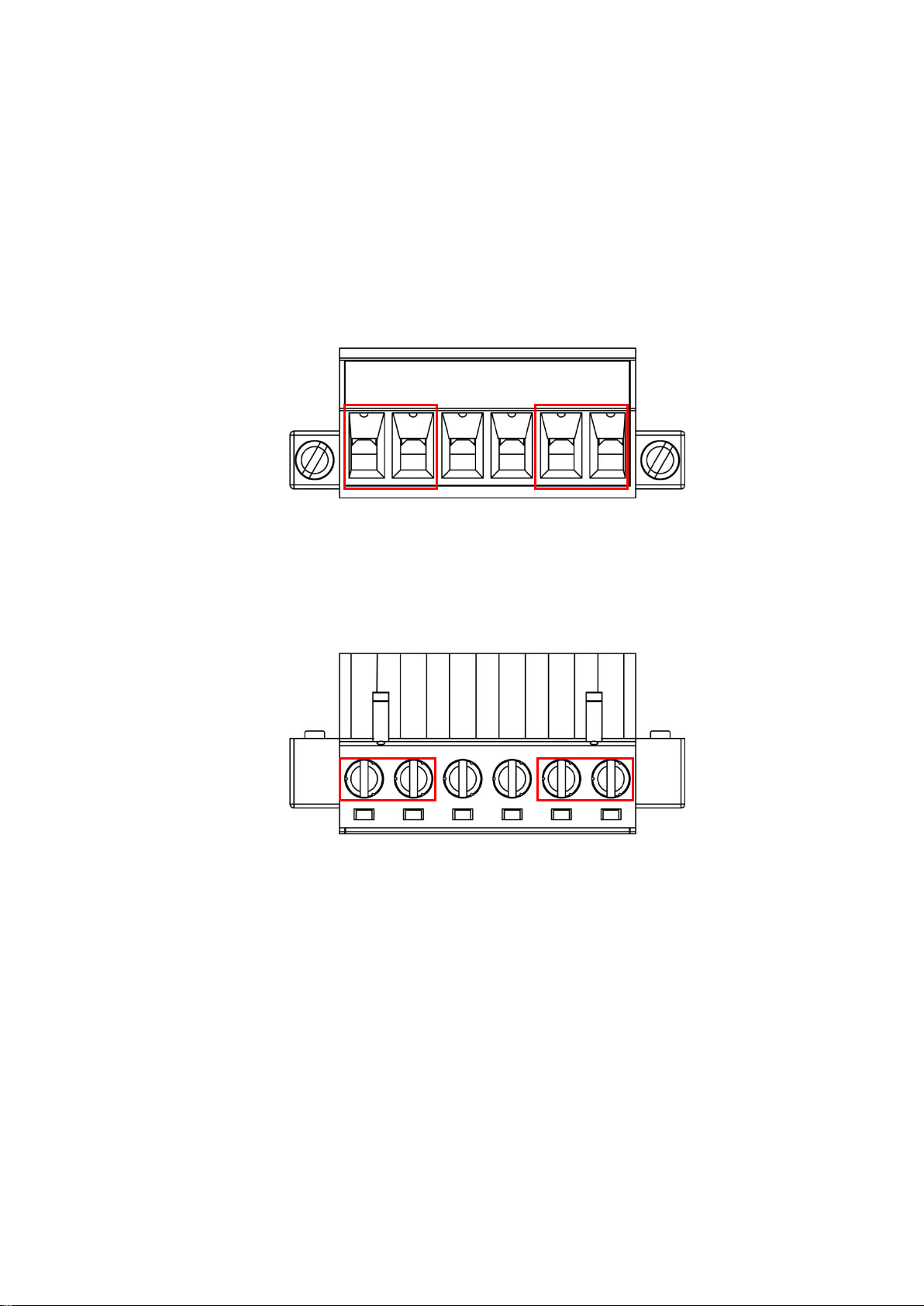

Figure-6: Terminal Block Front View for Power1 & Power2 Contact
2. Tighten the wire-clamp screws which as shown in the Figure-7 for preventing the
wires from loosing.
Figure-7: Terminal Block Top View
Note
Use Copper Conductors Only, 60/75  C, Tighten to 5 lb in
The wire gauge for the terminal block should be in the range
between 12~ 24 AWG.
V+ V- V+ V-

12

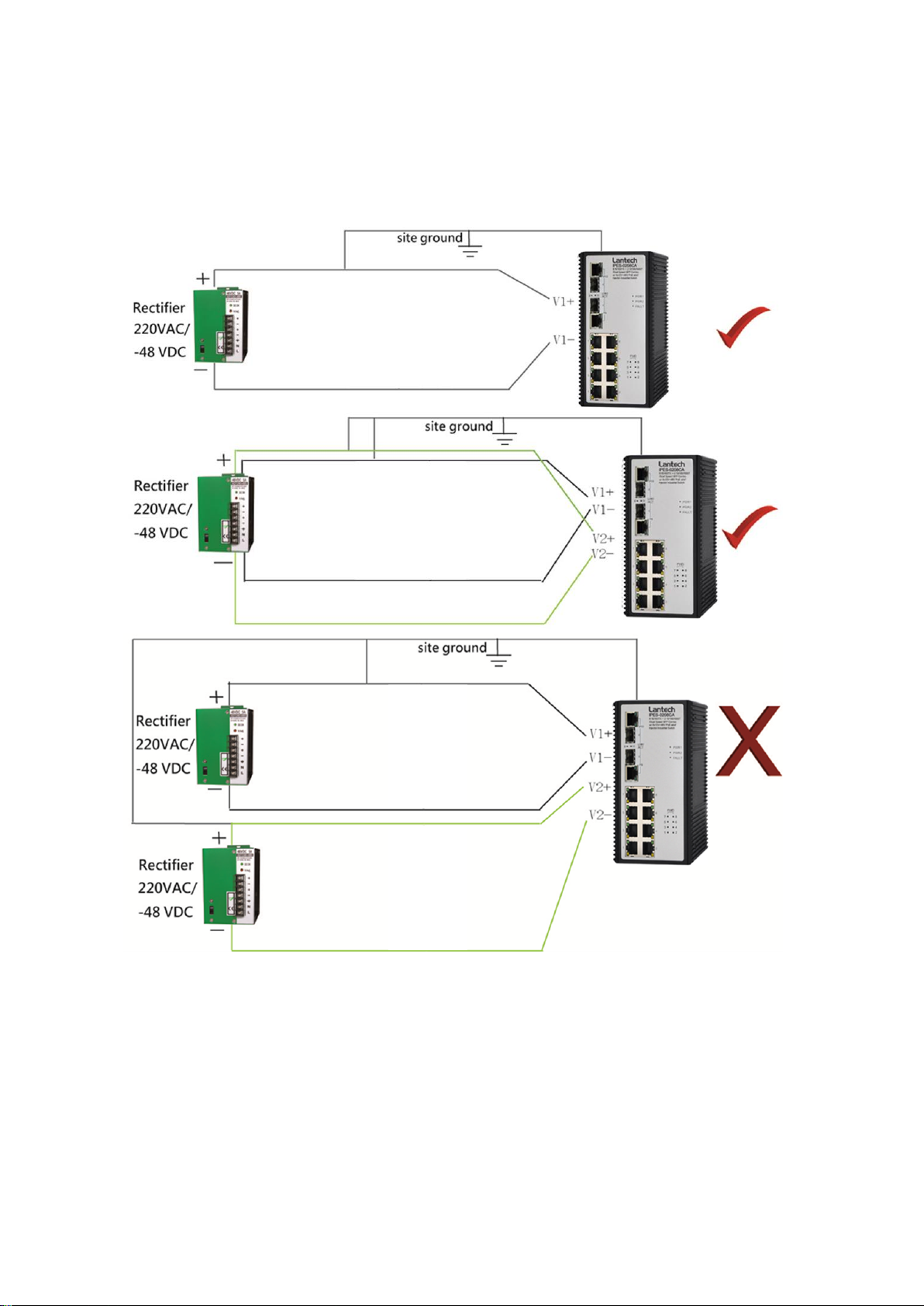

Power Restriction (under - 48VDC power)
IPES-0208CA only can support one -48VDC power source. If using two -48VDC power
source, IPES-0208CA may cause damage.

13
Wiring the Fault Alarm Contact

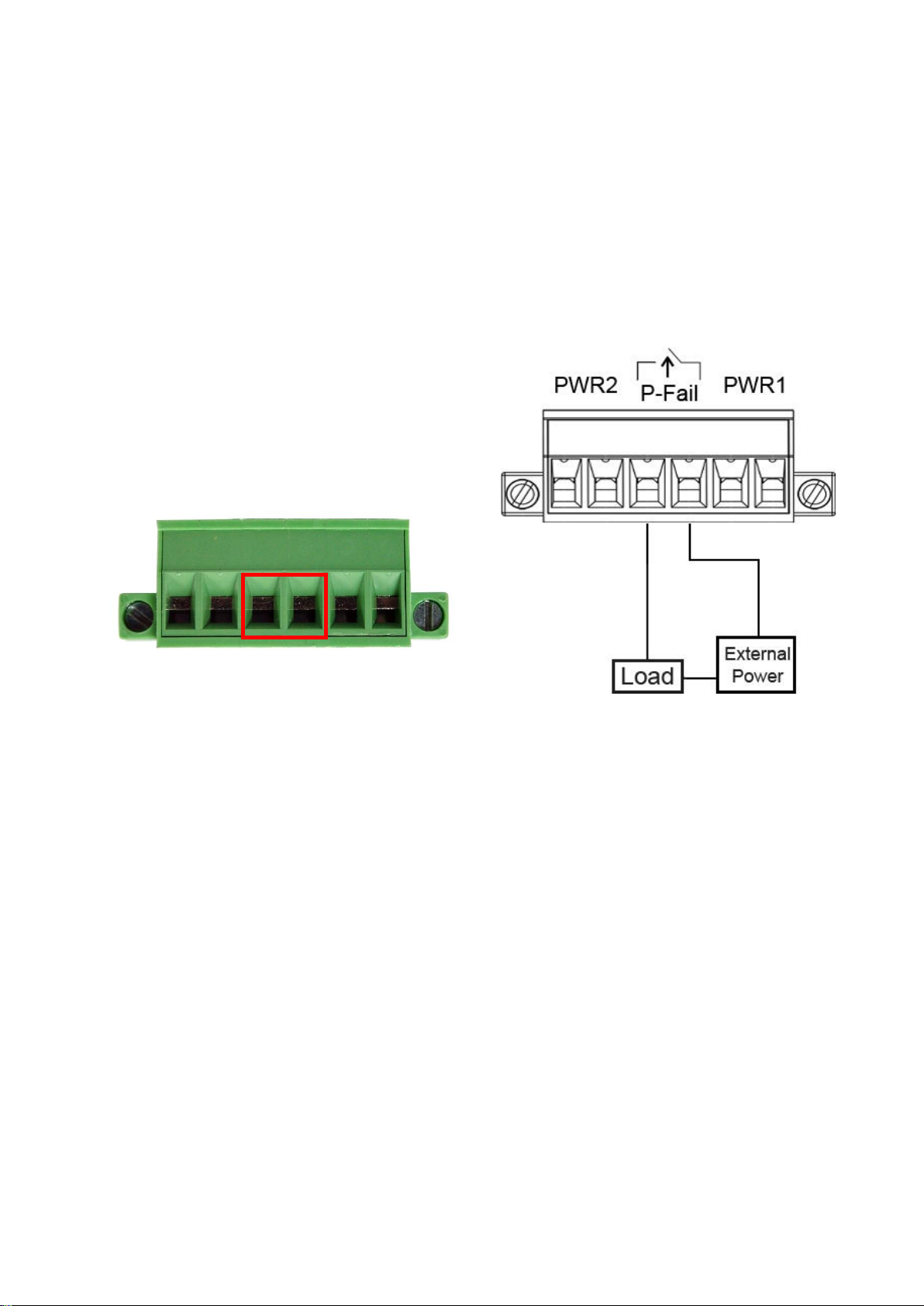

The fault alarm contact is in the middle of terminal block connector as the picture shows
below. Inserting the wires, will detect the fault status including power failure or port link
failure (managed industrial switch only) and from a Normally Close circuit. Please refer
to Figure-8 for the fault alarm contact, and Figure-9 shows the application example for
the fault alarm operation.
Figure-8:
Terminal Block Front View for Fault Alarm Contact
Figure-9:
Fault Alarm Application Example
Note
Use Copper Conductors Only, 60/75  C, Tighten to 5 lb in
The wire gauge for the terminal block should be in the range
between 12~ 24 AWG.
24V dc, 1A
Resistance

14
Mounting Installation
DIN-Rail Mounting
The DIN-Rail bracket is screwed on the switch on the production line in the factory. If the
bracket is not screwed on the switch, please refer to Figure-10 to screw it on the switch.
Follow the steps below to hang the industrial switch.

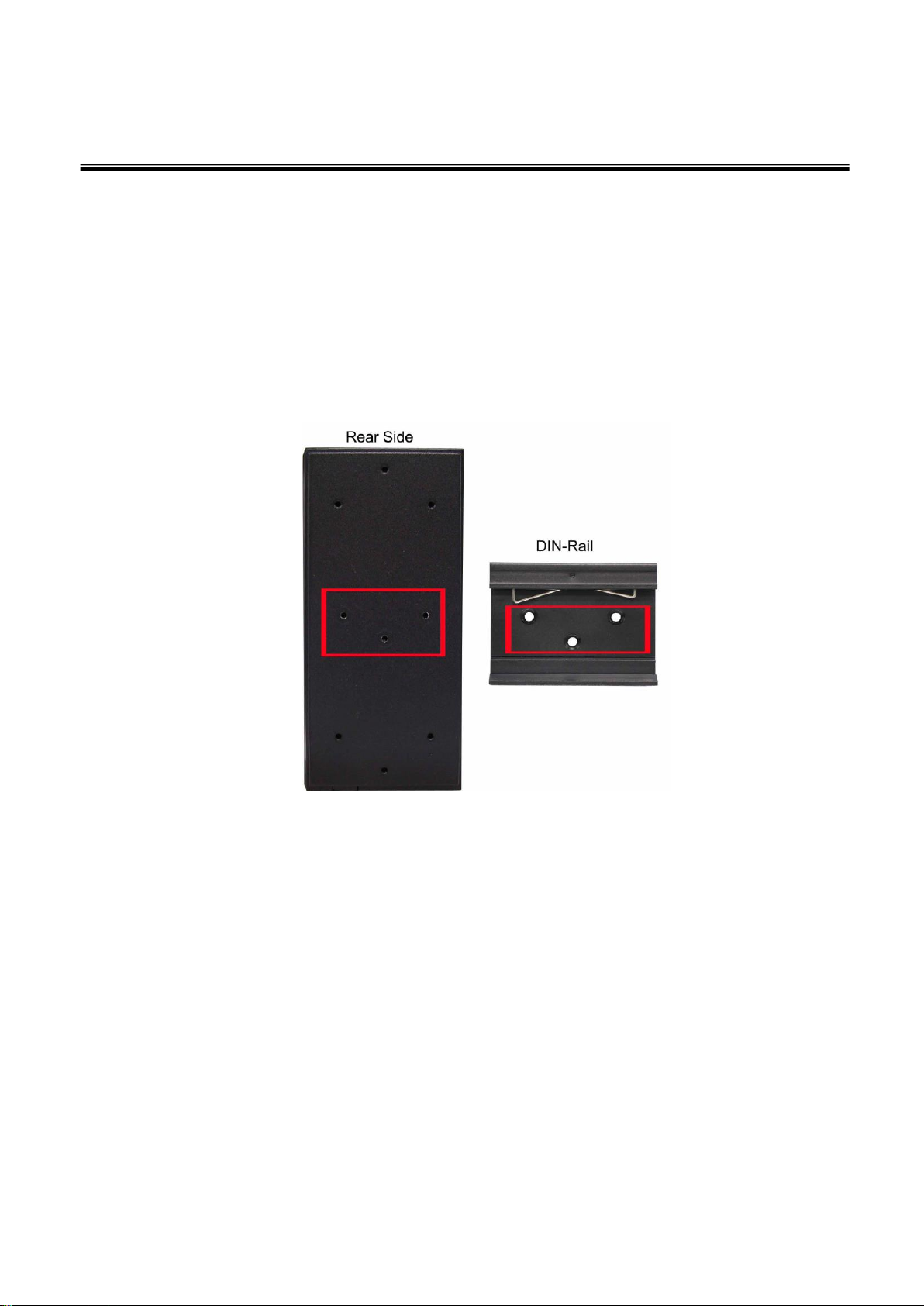

Figure-10: Rear side of the PoE Injectors Industrial Switch
1. Use the screws to screw the DIN-Rail bracket on the rear side of the industrial
switch.
2. To remove the bracket, reverse the step 1.
3. After the DIN-Rail bracket is screwed on the rear side of the switch, insert the top of
the bracket into the rail as Figure-11.

15
Figure-11

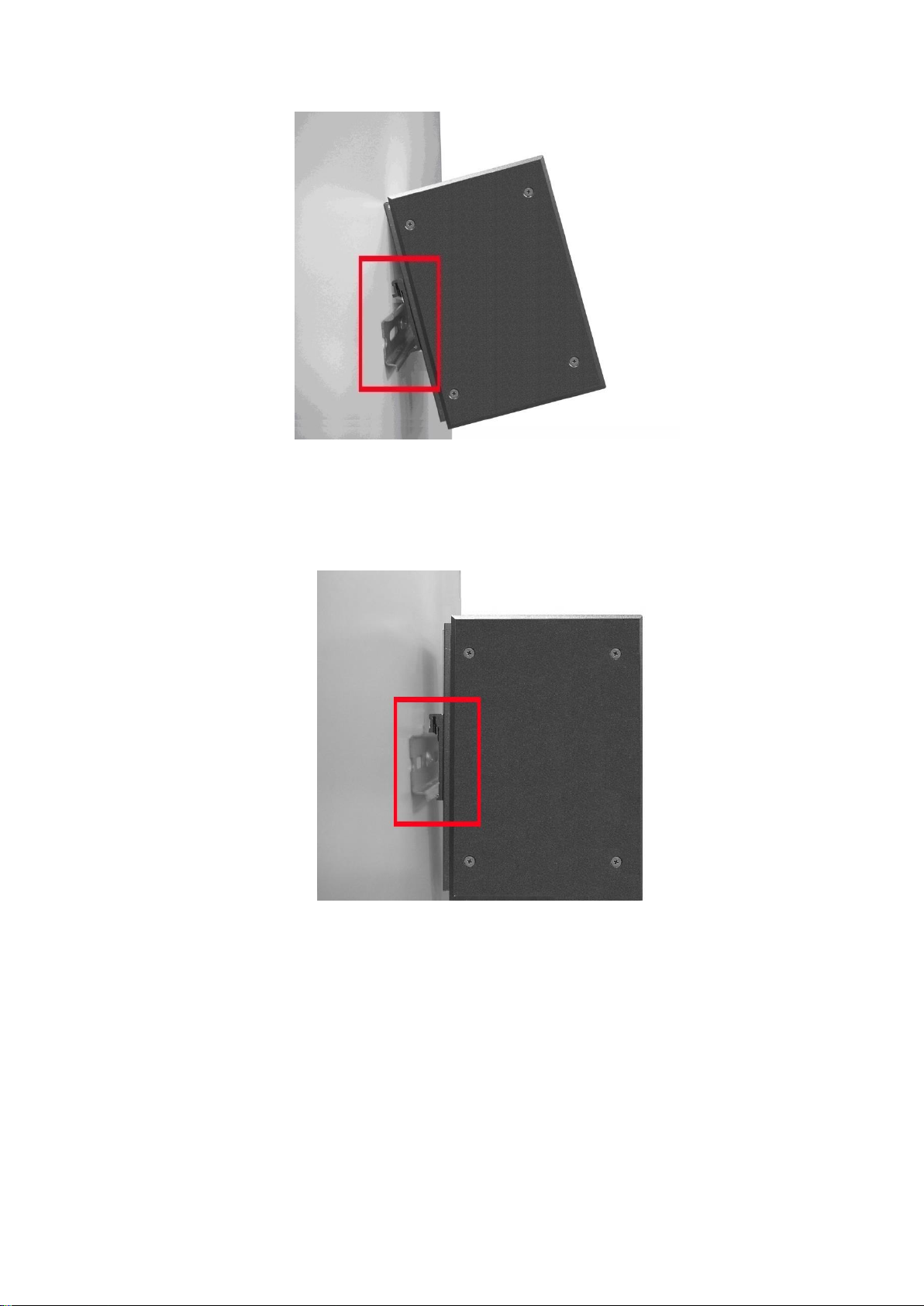

4. Then, lightly pull-down the bracket into the rail as shown in Figure-12.
Figure-12
5. Check if the bracket is tightened on the rail or not.
6. To remove the switch from the rail, reverse steps above.
Wall Mounting**(optional)
Please refer to Figure-13 and follow the steps below to mount the industrial switch with

16
wall-mount bracket, and the detail dimension of the bracket as Figure-14.
1. Remove the DIN-Rail bracket from the switch; loose the screws to remove it.
2. Place the wall-mount bracket on the top side and bottom side of the switch.
3. Use the screws to screw the wall-mount bracket on the switch.
4. Use the hook holes at the corners of the wall-mount bracket to hang the industrial
switch on the wall.
5. To remove the wall-mount bracket, reverse steps above.
NOTE : Wall mount kits are optional accessories

17
Hardware Installation
In this paragraph, we are going to explain how to install IPES-0208CA Industrial Switch
and the installation points to be attended to it.
Installation Steps
1. Unpack the Industrial switch packing.
2. Check if the DIN-Rail bracket is screwed on the Industrial switch or not. If the bracket
is not screwed on the Industrial switch, please refer to DIN-Rail Mounting section for
DIN-Rail installation. If the user wants to mount the Industrial switch on the wall, then
please refer to Wall Mounting section for wall mount plate installation.
3. To hang the Industrial switch on the DIN-Rail or wall, please refer to the Mounting
Installation section.
4. Power on the Industrial switch. Please refer to the Wiring the Power Inputs section
for knowing the information about how to wire the power cord. The power LED on the
Industrial switch will light up. Please refer to the LED Indicators section for indication
of LED lights.
5. Prepare the twisted-pair, straight through CAT.5/above cable for Ethernet connection.
6. Insert one side of the RJ-45 cable into the Industrial switch Ethernet port and another
side to the network device’s Ethernet port, e.g. Switch, PC or Server. The Ethernet
port (RJ-45) LED on the Industrial switch will light up when the cable is connected
with the network device. Please refer to the LED Indicators section for LED light
indication.
7. When all connections are set and LED lights all show in normal, the installation is
complete.
