Lantronix PremierWave User manual

PremierWave
Evaluation Board Quick Start
Part Number 900-582
Revision C July 2014

Intellectual Property
© 2014 Lantronix. All rights reserved. No part of the contents of this book may be transmitted or
reproduced in any form or by any means without the written permission of Lantronix. Printed in
the United States of America.
Lantronix and PremierWave are registered trademarks of Lantronix, Inc. in the United States and
other countries. U.S. patents 7,309,260; 7,698,405; 8,024,446; 8,219,661; 8,504,740.
Ethernet is a trademark of XEROX Corporation. UNIX is a registered trademark of The Open
Group. Windows is a trademark of Microsoft Corporation. Linux is a registered trademark of
Linus Torvalds. Wi-Fi is a trademark of Wi-Fi Alliance Corporation. All other trademarks and
trade names are the property of their respective holders.
Contacts
Lantronix Corporate Headquarters
167 Technology Drive
Irvine, CA 92618, USA
Phone: [phone]
Fax: [phone]
Technical Support
Online: www.lantronix.com/support
Sales Offices
For a current list of our domestic and international sales offices go to the Lantronix web site at
www.lantronix.com/about/contact.
Disclaimer and Revisions
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one of the following
measures:
♦Reorient or relocate the receiving antenna.
♦Increase the separation between the equipment and receiver.
♦Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
♦Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation. This device
is intended only for OEM Integrators.
PremierWave® Evaluation Board Quick Start 2

Revision History
Date
Rev.
Comments
January 2011
A
Initial Document.
July 2011
B
Updated with WebManager information, for v7.2 release.
July 2014
C
Updated to include the PremierWave SE1000 embedded
system on module.
For the latest revision of this product document, please check our online documentation at
www.lantronix.com/support/documentation.
PremierWave® Evaluation Board Quick Start 3

Table of Contents
Intellectual Property_________________________________________________________ 2
Contacts__________________________________________________________________ 2
Disclaimer and Revisions ____________________________________________________ 2
Revision History____________________________________________________________ 3
Introduction _______________________________________________________________ 5
Evaluation Board Contents ___________________________________________________ 5
Development Kit Contents____________________________________________________ 5
What You Need to Know_____________________________________________________ 6
Hardware Address ______________________________________________________ 6
IP Address_____________________________________________________________ 6
Connecting a PremierWave Device—Network Method _____________________________ 7
Option 1: Wired connection via Ethernet __________________________________ 7
Option 2: Wireless connection via Access Point or Wireless Router
(PremierWave EN model only)__________________________________________ 7
Option 3: Wireless connection via Wireless card
(factory default for PremierWave EN model only) ___________________________ 8
Connecting a PremierWave Device—Serial Method________________________________ 9
Installing DeviceInstaller _____________________________________________________ 9
Assigning an IP Address _____________________________________________________ 9
Configure Your PremierWave Device __________________________________________ 11
For the CLI Access via Telnet Configuration _________________________________ 11
For the Web Manager Access ____________________________________________ 11
PremierWave® Evaluation Board Quick Start 4

Introduction
Introduction
Thank you for purchasing the Lantronix® PremierWave® evaluation board or development kit.
This quick start guide describes the procedures for initial connection to the PremierWave device
through either a network connection or serial port. This user guide can be used for the
PremierWave EN and PremierWave SE1000 embedded system on modules.
Once a connection is established you can use the command line interface (CLI) for configuration
and control.
Evaluation Board Contents
♦PremierWave Evaluation Board
♦12V wall-mount power supply AC/DC, 1A
Development Kit Contents
♦PremierWave Evaluation Board
♦12V-wall-mount power supply AC/DC, 1A
♦Ethernet cable 10 ft
♦Type-A to Mini Type-B USB cable
♦RS-232, DB9F/F, 10 ft, null modem cable
♦Antenna - 2.4 GHz/5 GHz 2.15 dbi reverse polarity SMA*
♦SMA to UFL adapter cable*
Notes: *Items listed in the development kit are only available with the PremierWave EN
model. The PremierWave device must be purchased separately.
PremierWave® Evaluation Board Quick Start 5

What You Need to Know
What You Need to Know
Hardware Address
You need to know the unit hardware address (also known as MAC address) to identify the unit in
the Device Installer search list. It is on the product label in the format:
XX-XX-XX-XX-XX-XX, where the XXs are unique numbers assigned to the product.
The product label denotes the hardware MAC address for the Wired Ethernet interface for
PremierWave. The hardware MAC address for the WLAN interface (if available) is the next MAC
address in the sequence.
E.g. If product label hardware MAC address is 00:20:4A:9D:01:80, then the WLAN MAC address
is 00:20:4A:9D:01:81.
Hardware Address (Ethernet): _____-_____-_____-_____-_____-_____
Hardware Address (WLAN): _____-_____-_____-_____-_____-_____
IP Address
Your PremierWave will need a unique IP address on your network. By default, the PremierWave
device is assigned an IP address by your DHCP server. If no DHCP server is available, the
PremierWave will generate an AutoIP address (169.254.xxx.xxx).
If you are planning to use a static IP address, make note of it. The system administrator generally
provides the IP address, subnet mask, and gateway. The IP address must be within a valid
range, unique to your network, and in the same subnet as your PC.
IP Address: _______ _______ _______ _______
Subnet Mask: _______ _______ _______ _______
Gateway: _______ _______ _______ _______
Note: The factory default mode for PremierWave EN keeps the Wireless LAN interface
enabled and the Ethernet interface disabled. The IP settings above get applied to the
active interface (WLAN interface – factory default mode).
PremierWave® Evaluation Board Quick Start 6

Connecting a PremierWave Device—Network Method
Connecting a PremierWave Device—Network Method
Choose the desired connection method for your PremierWave, and then follow the instructions in
the corresponding section. You have three options for connecting to PremierWave:
1. Wired connection via Ethernet cable.
2. Wireless connection via Wireless router (Infrastructure)*
3. Wireless connection via Wireless card (Adhoc – factory default)*
Notes: *Options listed above are only applicable to the PremierWave EN model.
Option 1: Wired connection via Ethernet
1. Connect the PC to the PremierWave Evaluation Board with a cross-over cable or a
hub/switch and two RJ45 cables. Make sure there is no router between the PC and the
Evaluation Board.
2. Select the appropriate power plug adaptor for your geographical location. Insert it into the slot
on the Universal Power Supply; then plug the power supply into an outlet.
3. Connect the output plug of the power supply to the PremierWave Evaluation Board.
4. Move the power switch on the Evaluation Board to ON.This is the last step in 'connection.'
The PremierWave is ready for configuration.
5. Continue with Installing DeviceInstaller on page 9.
Option 2: Wireless connection via Access Point or Wireless Router
(PremierWave EN model only)
1. Ensure the PC communicates with the access point (AP) or wireless router (WR) and that the
AP or WR is running correctly.
2. Ensure the PC is on the LAN (not the WAN) side of the AP or WR.
3. Make sure there is no other router between the PC and the AP or WR.
4. Change the AP or WR configuration as follows:
a. Set the Network name (SSID) to the Lantronix Initial Infra Network.
b. Disable all wireless security (no encryption, no/open authentication).
PremierWave® Evaluation Board Quick Start 7

Connecting a PremierWave Device—Network Method
5. Select the appropriate power plug adaptor for your geographical location. Insert it into the slot
on the Universal Power Supply; then plug the power supply into an outlet.
6. Connect the output plug of the power supply to the PremierWave Evaluation Board.
7. Move the power switch on the Evaluation Board to ON. This is the last step in 'connection.'
The PremierWave is ready for configuration.
8. Continue with Installing DeviceInstaller on page 9.
Option 3: Wireless connection via Wireless card (factory default for
PremierWave EN model only)
1. Ensure the wireless card is running correctly. Change the wireless card configuration as
follows:
a. Set Network name (SSID) to Lantronix Initial Adhoc Network.
b. Select AdHoc/Peer-to-Peer Mode network.
c. Disable all wireless security (no encryption, no/open authentication).
2. Select the appropriate power plug adaptor for your geographical location. Insert it into the
slot on the Universal Power Supply; then plug the power supply into an outlet.
3. Connect the output plug of the power supply to the Evaluation Board. The final setup should
look like this:
4. Move the power switch on the Evaluation Board to ON.This is the last step in 'connection.'
The PremierWave is ready for configuration.
5. Continue with Installing DeviceInstaller on page 9.
PremierWave® Evaluation Board Quick Start 8

Connecting a PremierWave Device—Serial Method
Connecting a PremierWave Device—Serial Method
In the event that the equipment required for a network
connection is not available for the initial configuration
of PremierWave, the serial method can be used.
1. Connect one end of the supplied DB9F/F serial
cable to the serial port on the laptop or desktop.
2. Connect the other end of the supplied DB9F/F
serial cable to Port 1 on the PremierWave
Evaluation Board.
3. Select the appropriate power plug adaptor for your
geographical location. Insert it into the slot on the
Universal Power Supply; then plug the power
supply into an outlet.
4. Connect the output plug of the power supply to
the PremierWave Evaluation Board.If the final
serial connection setup looks like the image to the
right, PremierWave is ready for configuration.
5. Refer to the PremierWave User Guide for
information on configuring the PremierWave using
this method.
Installing DeviceInstaller
Use DeviceInstaller to configure the IP address and other network parameters.
Note: You will need a Windows PC running Lantronix DeviceInstaller 4.3.0.3 or higher.
1. Download the latest version of DeviceInstaller from www.lantronix.com/downloads.
2. Run the executable to start the installation process
3. Respond to the installation wizard prompts. (If prompted to select an installation type, select
Typical.)
Note: For more information about DeviceInstaller, click Help > Contents…in the menu
bar of the software.

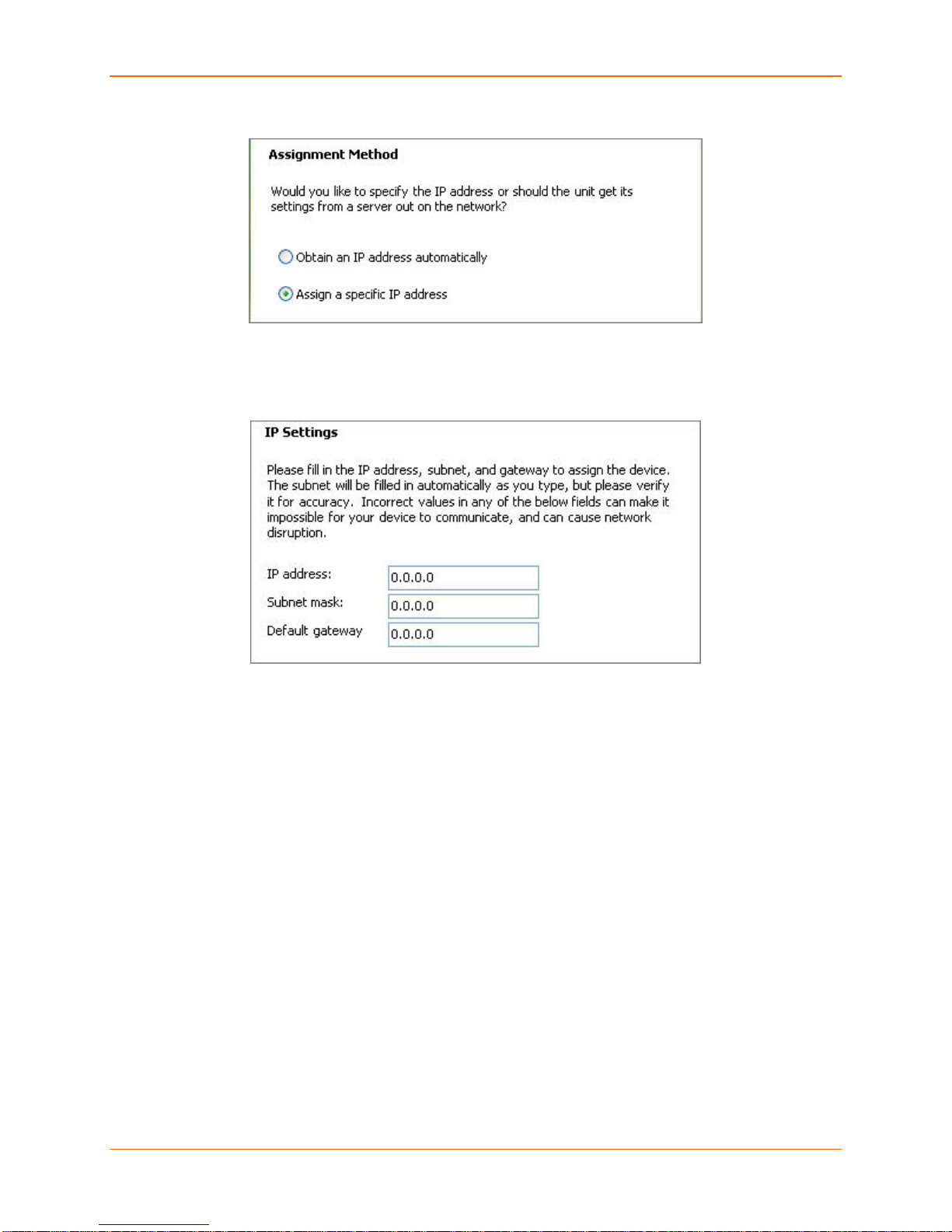

Assigning an IP Address
The unit IP address is set for DHCP by default at the factory. The hardware address is on the
product label. Assign a static IP address if you do not want the network to assign an IP address to
the PremierWave or do not have a DHCP server on the network.
1. Click StartPrograms LantronixDeviceInstallerDeviceInstaller. If your PC has more
than one network adapter, a message appears. Select an adapter and click OK.
2. Click the Search icon and select the unit from the list of Lantronix device servers on the local
network. (In case no DHCP server is available, it can take 30 seconds before an AutoIP
address is generated and the unit is detectable).
3. Click the Assign IP icon .
PremierWave® Evaluation Board Quick Start 9

Assigning an IP Address
4. Select Assign a specific IP address and click Next.
5. Enter the IP address.
The Subnet mask appears automatically based on the IP address.
You may change it. On a local network, you can leave the Default gateway blank (all zeros).
6. Click Next.
7. Click Assign and wait several seconds until a confirmation message appears.
8. Click Finish.
9. Select the PremierWave from the main window list and click Tools

Ping. The results
appear in the Status area.
PremierWave® Evaluation Board Quick Start 10

Configure Your PremierWave Device
10. Click Clear Status to clear the window to ping the device again.
Note: If you do not receive “Reply” messages, ensure the IP address assigned is valid for
the particular network segment you are working with. For a wireless unit, ensure the
PremierWave is visible on the network created by the laptop or desktop PC’s wireless
card.
11. Click Close.
Configure Your PremierWave Device
From DeviceInstaller, it is easy to access the CLI, via the Telnet Configuration tab, or start the
Lantronix browser-based tool, Web Manager, to configure the PremierWave. For detailed
information on configuration, see the PremierWave EN Embedded System on Module User Guide
and PremierWave EN Embedded System on Module Command Reference if you are using the
PremierWave EN model, or the PremierWave SE1000 Embedded System on Module User Guide
and PremierWave SE1000 Embedded System on Module Command Reference if using the
PremieWave SE 1000 system on module.
For the CLI Access via Telnet Configuration
1. In DeviceInstaller, select the unit and then the Telnet Configuration tab.
2. Press the Connect icon. The Lantronix CLI shell appears.
3. If line authentication for CLI is enabled, enter your user name and password. The default user
name is admin and the default password is PASS.
4. Use the CLI commands to configure the device.
5. Commit any changes with the write command.
For the Web Manager Access
1. In DeviceInstaller, select the unit and then the Web Configuration tab.
2. Press the Go icon. The Lantronix Web Manager login window appears.
PremierWave® Evaluation Board Quick Start 11

Configure Your PremierWave Device
3. Enter your User Name and Password and click OK. The default user name is admin and
the default password is PASS.
4. Use the menu on the left to navigate to the sub-pages where you can configure the device.
5. Commit any changes with the Submit button, on every sub-page, that immediately stores
and applies the new settings. Some settings (e.g. network) require a reboot to become
effective, which will be indicated once changes are submitted for the relevant settings. WLAN
pages also have an Apply button that only applies the new settings but does not store them
in Flash.
.
PremierWave® Evaluation Board Quick Start 12
