Larson Davis NoiseTutor User manual

NoiseTutor
System Manual

I021.02 Rev A NoiseTutor System Manual
NoiseTutor System Manual
Larson Davis

Copyright
Copyright 2011 by PCB Piezotronics, Inc. This manual is copyrighted, with all rights reserved. The
manual may not be copied in whole or in part for any use without prior written consent of PCB
Piezotronics, Inc.
Disclaimer
The following paragraph does not apply in any state or country where such statements are not
agreeable with local law:
Even though PCB Piezotronics, Inc. has reviewed its documentation, PCB Piezotronics, Inc. makes no
warranty or representation, either expressed or implied, with respect to this instrument and
documentation, its quality, performance, merchantability, or fitness for a particular purpose. This
documentation is subject to change without notice, and should not be construed as a commitment or
representation by PCB Piezotronics, Inc.
This publication may contain inaccuracies or typographical errors. PCB Piezotronics, Inc. will
periodically update the material for inclusion in new editions. Changes and improvements to the
information described in this manual may be made at any time.
Record of Purchase Date and Serial Number
Model 831 or
SoundTrack LxT: ________ Serial Number: ___________
Preamplifier Model: _________ Serial Number: ___________
Microphone Model: _________ Serial Number: ___________
Recycling
PCB Piezotronics, Inc. is an environmentally friendly organization and encourages our customers to
be environmentally conscious. When this product reaches its end of life, please recycle the product
through a local recycling center or return the product to:
PCB Piezotronics, Inc.
Attn: Recycling Coordinator
1681 West 820 North
Provo, Utah, USA 84601-1341
where it will be accepted for disposal
Product Warranty
Refer to our website, www.larsondavis.com, for a copy of the product warranty.

I021.02 Rev A NoiseTutor System Manual
Table of Contents
Chapter 1 Introduction 1-1
Setting up the NoiseTutor Station ...................................................1-2
Configuring the NoiseTutor Server .................................................1-3
System requirements for NoiseTutor Server Configuration ...........1-4
Installing NoiseTutor System Software ..........................................1-4
System Requirements for NoiseTutor System Software .................1-4
Chapter 2 Setting up the NoiseTutor Server 2-1
Installing IIS on Windows 7 ...........................................................2-1
Installing the NoiseTutor Server Configuration Tool ...................2-11
Running the NoiseTutor Configuration Tool ................................2-13
Creating User Accounts for FTP Uploads ....................................2-17
Setting up FTP Servers ..................................................................2-27
Configuring Windows Firewalls ...................................................2-31
Verifying Access to FTP Servers ..................................................2-40
Local Access .......................................................................................2-40
Local Network Access ........................................................................2-41
Public Access ......................................................................................2-42
Verifying Browser Connections ....................................................2-43
Chapter 3 Installation and Set-up 3-1
Installing NoiseTutor Software .......................................................3-1
Starting the NoiseTutor Station .......................................................3-3
Installing NoiseTutor System Licenses ...........................................3-4
Setting up Data Transmission .........................................................3-5
Deliver Data Files via E-mail ................................................................3-5
Deliver Data Files to an FTP Site .......................................................3-10
Create and Deliver Graphical Reports via E-mail ...............................3-12
Create and Publish Graphical Reports to Web Site ............................3-15
Chapter 4 NoiseTutor Station Setup Menu 4-1
Working Mode ......................................................................................4-2

Main Setup ............................................................................................ 4-3
Recipient Lists ...................................................................................... 4-5
Graph Setup .......................................................................................... 4-7
Data File ............................................................................................... 4-9
E-mail Service ..............................................................................................4-9
FTP Setup Service ......................................................................................4-11
Realtime Report Setup ........................................................................ 4-12
E-mail Publishing .......................................................................................4-13
Web Publishing ..........................................................................................4-14
System Administration Messages ....................................................... 4-18
Chapter 5 Commands Menu 1
Main commands ................................................................................... 5-1
Appendix A Technical Specifications A-1
System Power Requirements ................................................................A-1
Physical .................................................................................................A-1
Environmental ......................................................................................A-1
Station PC (provided) ...........................................................................A-2
Items not Included ................................................................................A-2
Appendix B Shipping Instructions B-1

NoiseTutor System Manual Introduction 1-1
CHAPTER
1Introduction
This manual describes how to set up and configure the
Larson Davis NoiseTutor System. The NoiseTutor System is
designed to interact with noise monitoring stations. It
provides portable and remote observation of monitoring
sites through a web interface.
Setting up the NoiseTutor System includes the following
steps:
Step 1 Setting up the NoiseTutor station
Step 2 Configuring the NoiseTutor server
The NoiseTutor System software
comes pre-installed when NoiseTutor
is purchased as a system.
Step 3 Installing the NoiseTutor System software, if not
already pre-installed.

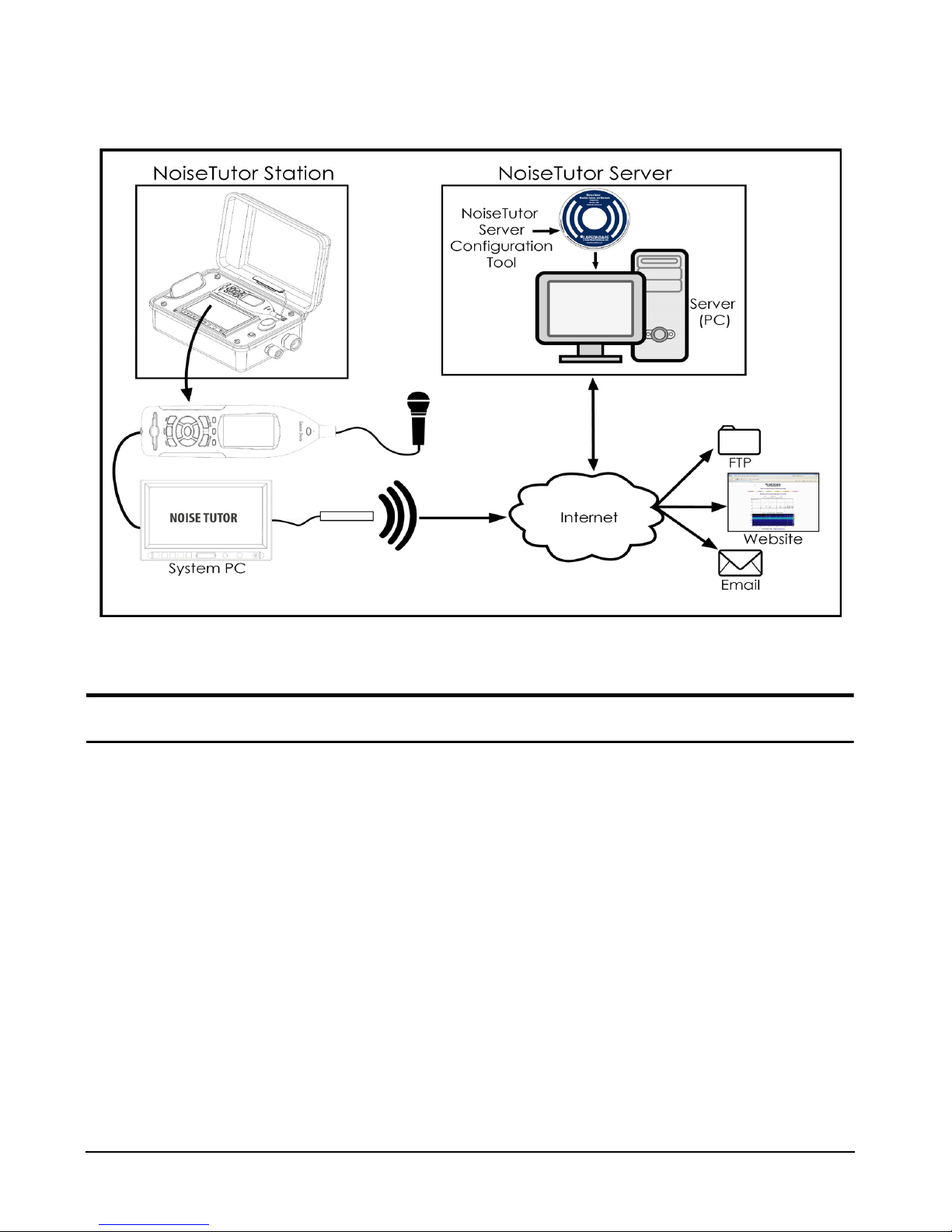

Figure 1-1 shows the components and architecture of the
NoiseTutor System.

NoiseTutor System Manual 1-2
FIGURE 1-1 Components and Architecture - NoiseTutor System
Setting up the NoiseTutor Station
Start by reading the NoiseTutor
Quick Start Guide. It is a card
located inside your station case that
describes the steps for deploying
your NoiseTutor station.
To set up your NoiseTutor station, refer to the NoiseTutor
Quick Start Guide and the NoiseTutor Installation
Reference.
The NoiseTutor station consists of the following:
• The NoiseTutor Quick Reference Guide
The NoiseTutor Installation
Reference is located inside your
NoiseTutor station case and
describes the assembly and
operation of your station.
• The NoiseTutor Installation Reference
• Model 831 or SoundTrack LxT®sound level meter
• Preamplifier model PRM831, PRMLxT1, PRMLxT1L,
PRMLxT2, or PRMLxT2L.
• Microphone model number 377B02 or 377B20
• Microphone cable connecting Model 831 to
preamplifier/microphone

1-3 NoiseTutor System Manual
Note: Larson Davis does not supply
an active SIM card. You must obtain
one separately.
• Active SIM card
Refer to the NoiseTutor Installation Reference on the inside
of the NoiseTutor case to install your system hardware.
Configuring the NoiseTutor Server
Larson Davis provides server configuration aids with the
NoiseTutor System to provide web access to sound level
monitoring sites. This includes the NoiseTutor Server
Configuration Tool that can be used with the instructions in
this manual to set up a server on a Windows-based
computer. The server consists of both a website--with a
collection of pre-designed web pages--and an FTP site.
The pre-designed server web pages present information
from each monitoring site in the following forms:
• Ten-minute report
• One-hour report
• One-day report
• One-week report
• One-month report
Although you can use any web site server that is capable of
rendering HTML pages, along with Java Script, with the
NoiseTutor System, the configuration aids in this manual
describe the steps for using Internet Information Services
(IIS) from Microsoft. This manual describes configuration
with IIS because it is currently the most common web server
for Windows and it is available at no cost.
Although the NoiseTutor system
provides server configuration aids,
you are responsible for setting up the
web server.
By setting up an FTP site, you can collect noise monitoring
data from Noise Tutor clients. This data can then be
displayed in graphic reports for each monitoring site on a
web site.
The process of installing and configuring the NoiseTutor
Server involves complex and technical tasks, and generally
requires the services of an IT professional. For your
assistance, detailed instructions for installing and
configuring the NoiseTutor Server on a Windows 7 platform
are provided in this manual.
The NoiseTutor System also functions on Windows XP SP 3
and Windows Vista SP 1. However, the steps and options are

NoiseTutor System Manual 1-4
different than those represented in this manual. To install
and configure the NoiseTutor System on these platforms,
Larson Davis recommends that you consult with an IT
professional. Detailed instructions for setting up a server on
other platforms are not available from Larson Davis.
System requirements for NoiseTutor Server
Configuration
• Windows 7 SP 1, Server or Professional editions. Server
edition is recommended.
• IIS 5.1 or higher
• One or more NoiseTutor Noise Monitoring Systems
(NMS)
• One 831 analyzer serial number for each NMS
Installing NoiseTutor System Software
The NoiseTutor System software comes pre-installed when
ordering the NMS-021 (with Model 831 or SoundTrack LxT
analyzers), and the EPS 041 (without Model 831 or
SoundTrack LxT analyzers). For other configurations, the
software must be installed on the PC that is connected to the
sound level meter. The software interacts with noise
monitoring stations by downloading measured data from the
sound level meters at predefined intervals. It then sends data
or graphical reports to specified recipients. If your system
does not include pre-installed software, refer to the
instructions in the chapter “Installation and Setup.”
System Requirements for NoiseTutor System
Software
• Larson Davis analyzers 824, 831 and SoundTrack LxT.
• All Windows operating system versions, starting from
Windows 2000.

NoiseTutor System Manual Setting up the NoiseTutor Server 2-1
CHAPTER
2Setting up the NoiseTutor
Server
This chapter lists and describes the steps for setting up the
NoiseTutor server on the Windows 7 operating system. To
install the server, complete the following process:
Although the NoiseTutor System
provides server configuration aids,
you are responsible for setting up the
web server.
1. Install IIS on Windows 7.
2. Configure the IIS web server.
3. Install the NoiseTutor Server Configuration Tool.
4. Run the NoiseTutor Server Configuration Tool.
5. Create an FTP user account.
6. Configure the Windows Firewall.
Each step is described in more detail in the following
sections.
Before You Begin: The process of installing and config-
uring the NoiseTutor Server involves complex and technical
tasks, and generally requires the services of an IT profes-
sional. These detailed instructions are provided for the con-
venience of an IT professional working with your NoiseTutor
System.
Installing IIS on Windows 7
The NoiseTutor System also functions on Windows XP SP 3
and Windows Vista SP 1. However, the steps and options are
different than those represented in this manual. To install
and configure the NoiseTutor System on these platforms,
Larson Davis recommends that you consult with an IT
professional. Detailed instructions for setting up a server on
other platforms are not available from Larson Davis.
Installing the IIS addin provides your host PC with both
web- and FTP-server functionality. If you do not want to use
IIS, you will need to supply your own web server and FTP
server. To install IIS, follow these steps:

NoiseTutor System Manual 2-2
Step 1 On the Start menu, click Control Panel.
If the Programs and Features icon
is not displayed in your Control
Panel, click the drop down arrow in
the address bar following the words
“Control Panel.” Click All Control
Panel Items. The Programs and
Features icon should then appear
with other icons in your Control
Panel.
Step 2 Click Programs and Features.
Step 3 On the left window border, click Turn Windows
features on or off, as shown in FIGURE 2-1.
FIGURE 2-1 Turn Windows Features On or Off
Step 4 Select Internet Information Services.
Step 5 Expand Internet Information Services.
Step 6 Expand FTP Server. Select all items, as shown in
FIGURE 2-2.

2-3 NoiseTutor System Manual
Step 7 Select Web Management Tools, as shown in
FIGURE 2-2. Accept all defaults.
Step 8 Select World Wide Web Services, as shown in
FIGURE 2-2. Accept all defaults.

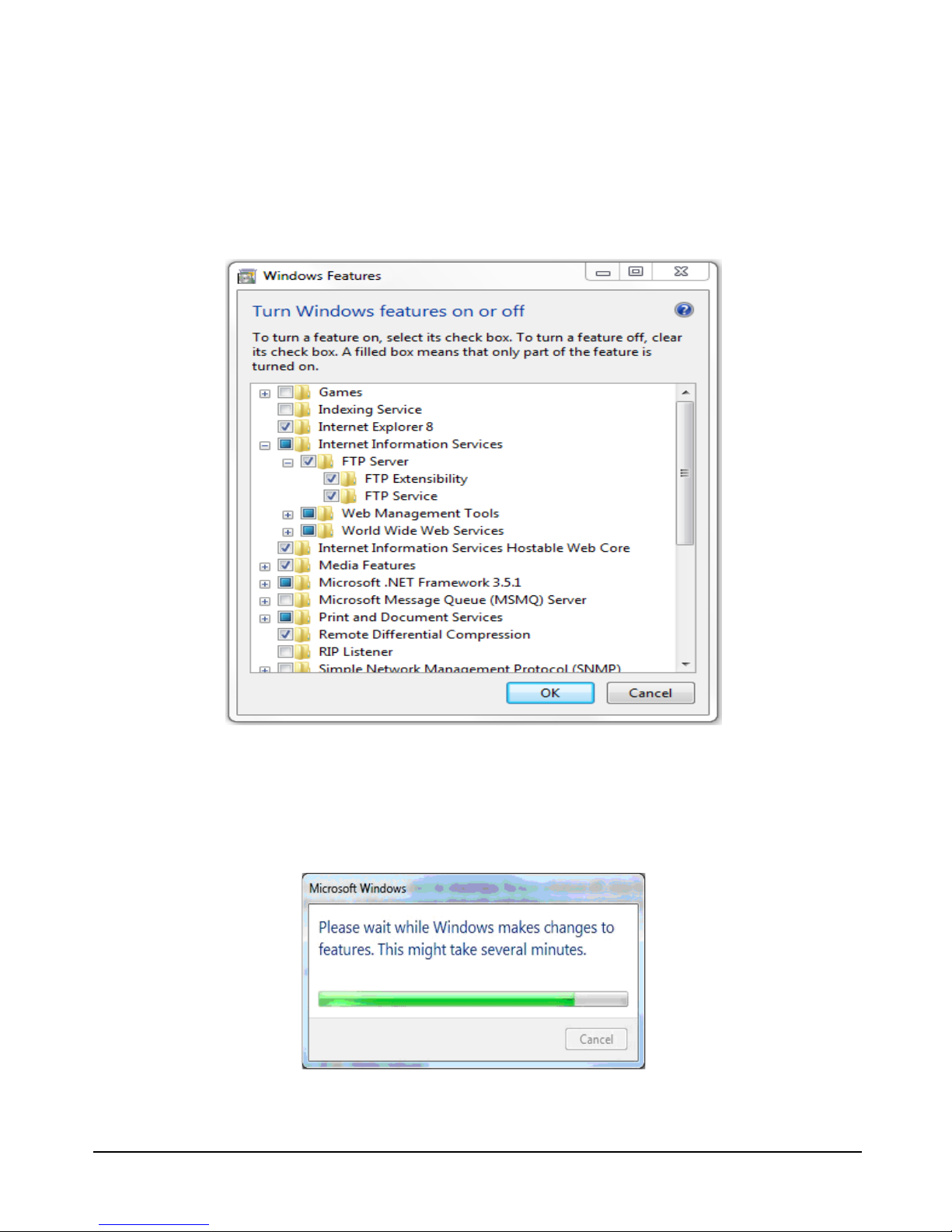

FIGURE 2-2 Windows Features - Internet Information Services
Step 9 Click OK.Wait for Windows to make changes, as
shown in FIGURE 2-3.
FIGURE 2-3 Microsoft Windows - Please Wait

NoiseTutor System Manual 2-4
Step 10 Close Programs and Features.
Configuring the IIS Web Server
You can configure the IIS web server to set up your
NoiseTutor web site. The following configuration places the
web pages for your site in a virtual directory and sets the
FTP server upload location as a subdirectory of that virtual
directory. To set up your web site, follow these steps:
Step 1 Browse to c:\inetpub\wwwroot\. Click the New
Folder button and name it LarsonDavis.
Step 2 Open inetmgr at the following location:
c:\windows\system32\inetsrv\inetmgr.exe.
Step 3 Expand the name of your computer.
Step 4 Expand Sites.
Step 5 Depending on your operating system, you may
have the option of creating a new web site. Otherwise, you
may be provided only with the default web site option, as
shown in FIGURE 2-4.

2-5 NoiseTutor System Manual
FIGURE 2-4 IIS Manager - Expand Sites
Step 6 Select Default Web Site.
Step 7 Select View Virtual Directories, as shown in
FIGURE 2-5.

NoiseTutor System Manual 2-6
FIGURE 2-5 IIS Manager - View Virtual Directories
Step 8 Click Add Virtual Directory, as shown in
FIGURE 2-6.
FIGURE 2-6 IIS Services Manager - Add Virtual Directory
Step 9 In the Add Virtual Directory dialog box, Alias,
type LarsonDavis in the Alias field, as shown in FIGURE
2-7.
Larson Davis strongly recommends
that you specify, select, or accept all
defaults for your configuration, as
demonstrated in this manual.
Step 10 For Physical path, specify LarsonDavis as the
default root directory by typing the path as shown in
FIGURE 2-7.

2-7 NoiseTutor System Manual
Step 11 Click Connect as…, as shown in FIGURE 2-7.

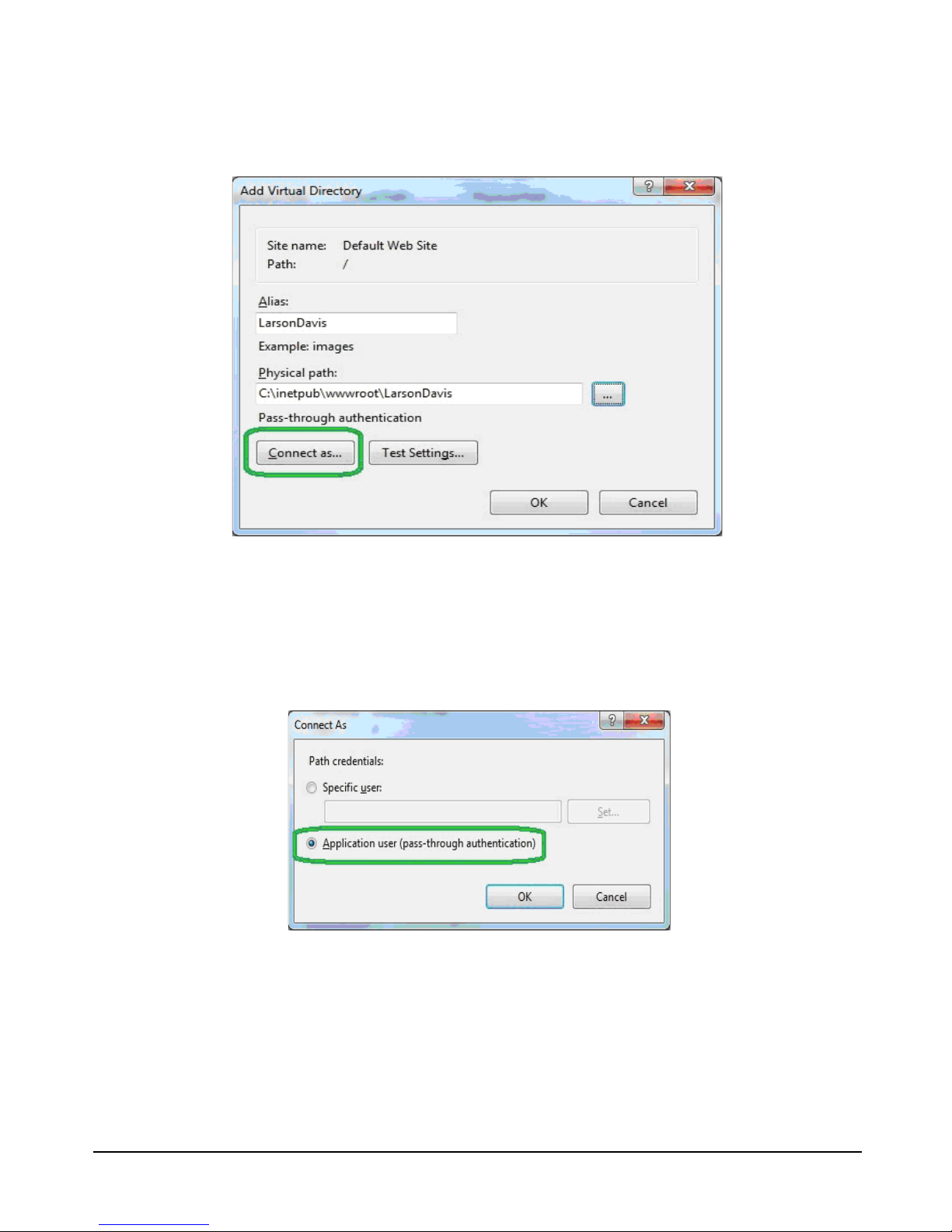

FIGURE 2-7 Add Virtual Directory - Connect As
Step 12 In the Connect As dialog box, select the
Application user (pass-through authentication) option
and click OK, as shown in FIGURE 2-8.
FIGURE 2-8 Connect As - Application User (pass through authentication)

NoiseTutor System Manual 2-8
Application user settings should not
include errors, but can include
warnings about being unable to
verify access to the virtual directory.
Such warnings are permissible
because the user names and
passwords are not available until the
user accesses the web site.
Step 13 Select the application path and click Edit
Permissions..., as shown in FIGURE 2-9.

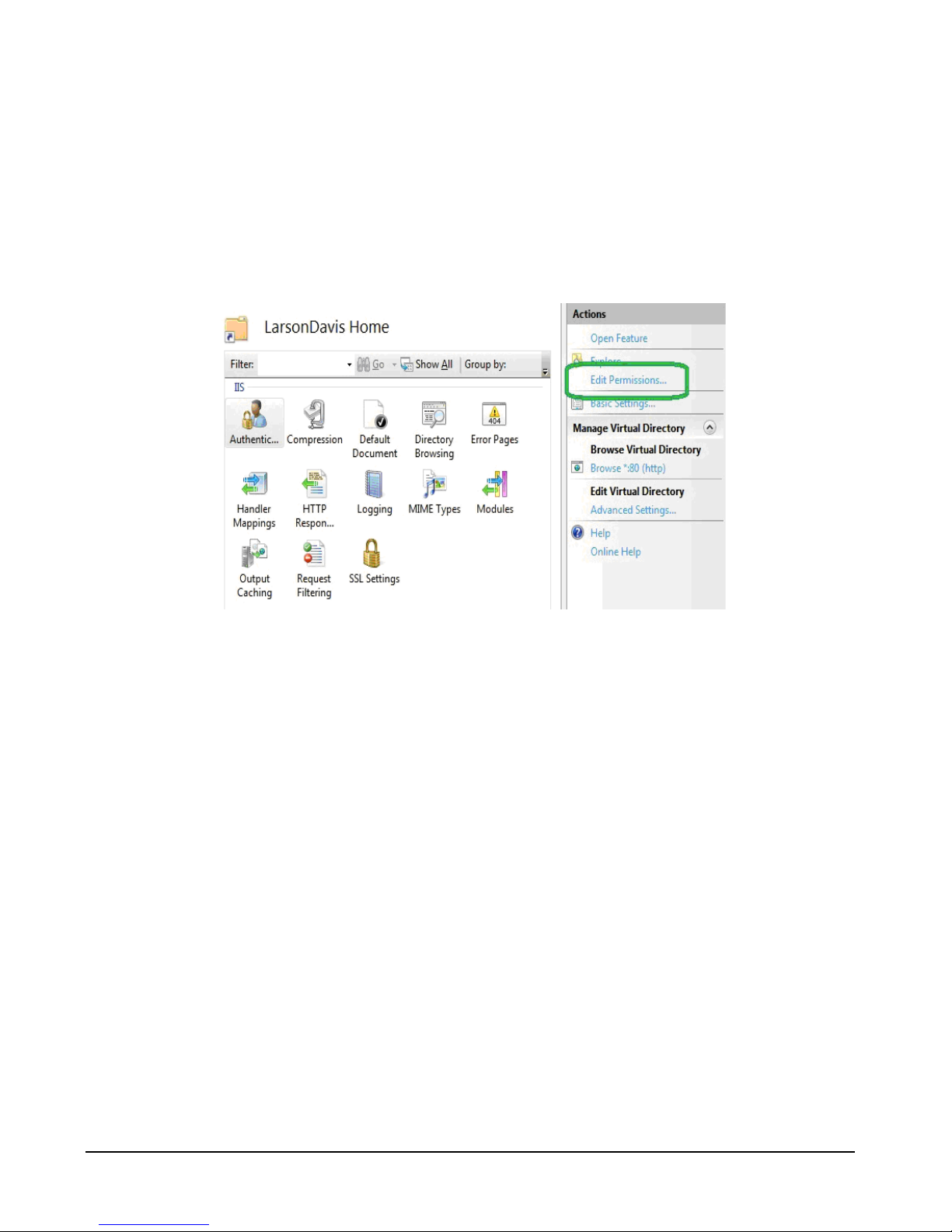

FIGURE 2-9 IIS Manager - Edit Permissions
Step 14 On the LarsonDavis Properties sheet, click the
Security tab, as shown in FIGURE 2-10.
Step 15 Select the user or group that will access the web
site, as shown in FIGURE 2-10. Ensure the user or group has
the following permissions:
A. Read & execute
B. List folder contents
C. Read
It is recommended that you not grant other permissions.
Step 16 Click Apply if you have made changes.
Otherwise, click OK.

2-9 NoiseTutor System Manual
FIGURE 2-10 Larson Davis Properties - Security
Step 17 Expand Default Web Site and double-click
LarsonDavis.
Step 18 Double-click Default Document, as shown in
FIGURE 2-11.

NoiseTutor System Manual 2-10

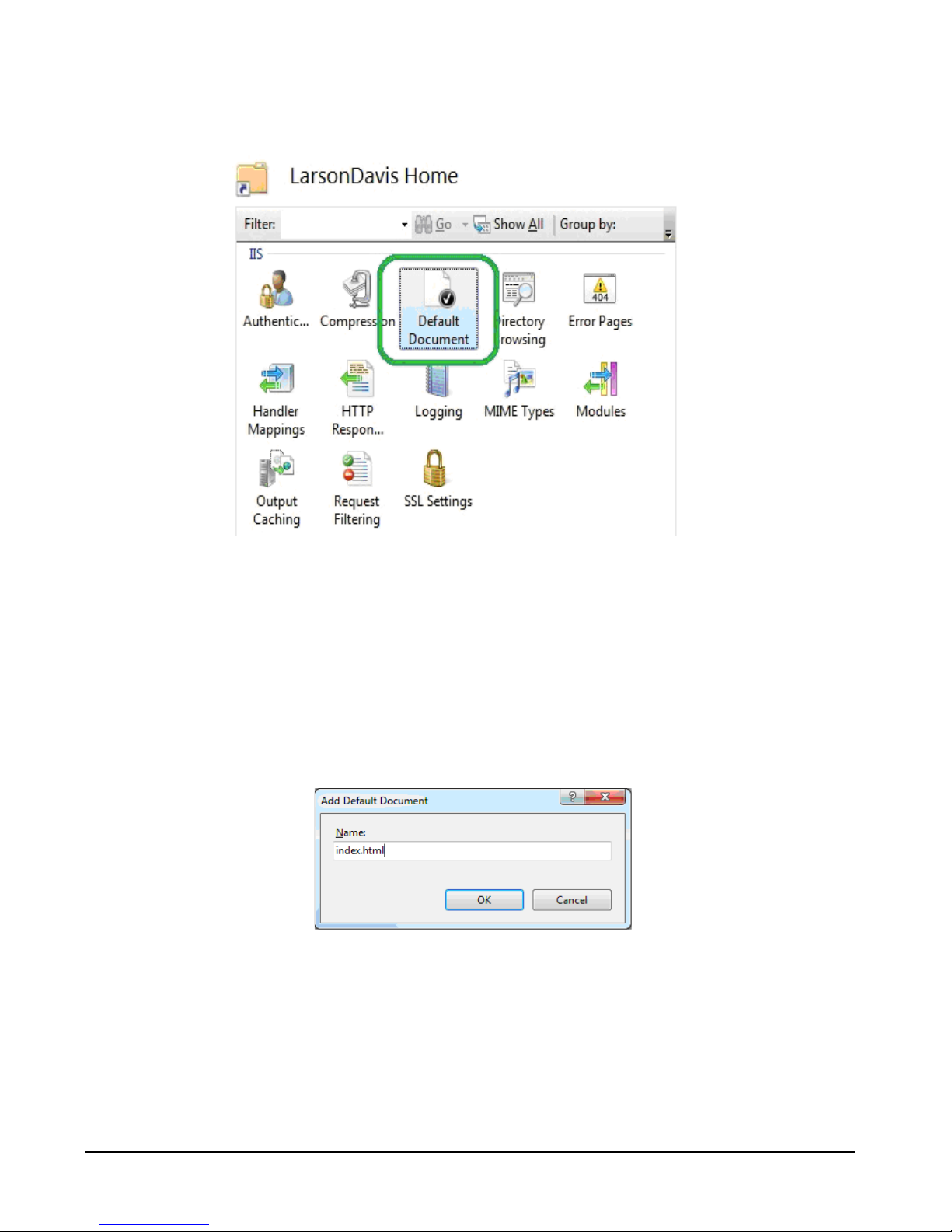

FIGURE 2-11 IIS Manager - Default Document
Step 19 Remove all default documents except for
index.html
Step 20 If index.html is not present, click Add and in the
Add Default Document dialog box, type index.html and
then click OK, as shown in FIGURE 2-12.
FIGURE 2-12 Add Default Document
Step 21 Close the IIS Manager.

2-11 NoiseTutor System Manual
Installing the NoiseTutor Server Configuration
Tool
To install the NoiseTutor Configuration Tool, follow these
steps:
Step 1 Insert NoiseTutor CD into your CD/DVD drive.
Step 2 If auto start is not enabled, Click [CD /
DVD]\NoiseTutorConfigurationInstaller.exe.
Step 3 On the NoiseTutor Configuration Tool Setup
Wizard, Click Next, as shown in FIGURE 2-13.

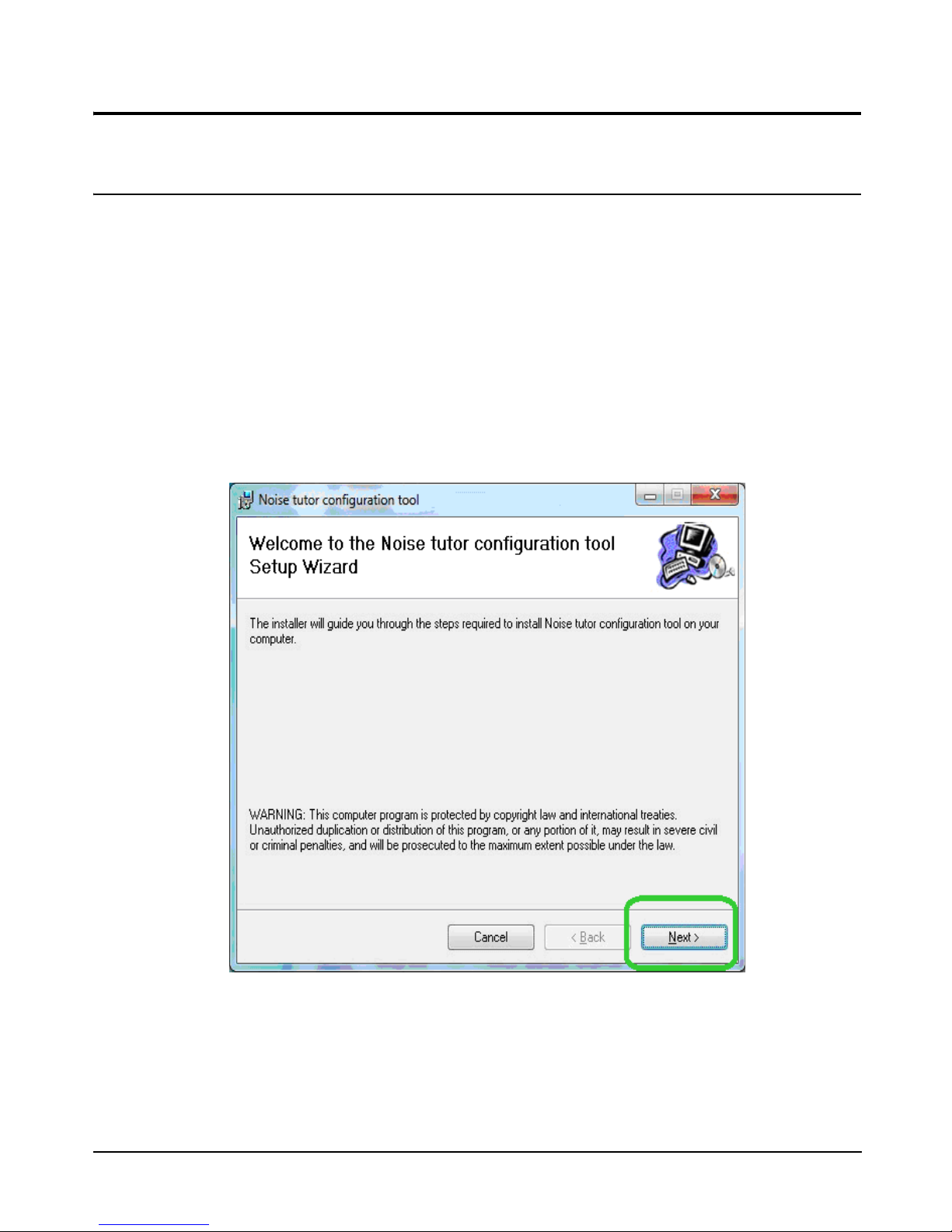

FIGURE 2-13 Configuration Tool Installer - Welcome
Step 4 Select the folder where you want to install the
NoiseTutor Configuration Tool, as shown in FIGURE 2-14.
Step 5 Select either Everyone or Just me.
