Lascal KIDDYBOARD-MAXI User manual

KIDDYBOARD-MAXI™
Control no.
Owner manual
EN x x x
BuggyBoard is a registered trademark
and is protected by patent.
80xxx

- 2 -

- 3 -
English
Dear customer, thank you for choosing a KIDDYBOARD-MAXI™ from Lascal. We hope you
will be satisfied with your purchase and will get good use for your KIDDYBOARD-MAXI™.
Content ..........................4 The wheels ................... 5 The connector .....................5
Leveling the platform ........7 When not in use ............ 8 Cleaning and recycling ..........8
Tests ..............................8 Warnings ...................... 9 Warranty ............................9
Other Lascal products .......xx Contact information ....... xx Product registration card .......xx
WARNING!
Read these instructions carefully before use and keep for future reference.
English
INDEX

- 4 -
BUGGYBOARD-
MAXI
™
• •
• •
• •
Con bracci estensibili
Con bracci estensibili
•
•
rmen
rmen
Control no.
Gebrauchsanleitung
Notice de montage
Manuale dell’utente
Gebruiksaanwijzing
DE FR IT NL
BuggyBoard is a registered trade-
mark and is protected by patent.
80505
CONTENT
Part no. Description Pre-
assembled
part
Qty
82100-82102 Platform 1
80200 Wheel locking catch 2
80220 Suspension housing, left 1
80221 Suspension housing, right 1
80318 Strap and hook 1
80420 Wheel 2
82200 Fixing-arm 1
82205 Fixing-arm clamp 1
82206 Fixing-arm screw 1
82220 Fixing-housing 1
82300 Connector cover 1
82301 Connector strap 1
82302 Connector bolt 1
82410 Owner manual 1
Black: 82100
Blue: 82101
Red: 82102
80200
82200
80420
80318
82220
KEEP FOR FUTURE REFERENCE
English
82302
L:80220
R:80221
82300
82302
xxxx
82301
82205

- 5 -
Detaching the wheels.
pull the red wheel locking catch (80200)
out 1 cm with a small screwdriver.
1. Attaching the wheels
Place the platform (82100-82102) upside
down on a sturdy surface. Push the wheels
(80420) firmly into the suspension housing
(80220-80221) until the wheels ‘click’ into
place.
1.
2. 2. Un-mount the connector
Unmount the Connector from the Fixing hou-
sing by pushing the red button on the top of
the Fixing housing.
THE WHEELS
THE CONNECTOR
English
1
2

- 6 -
4.
5.
4. Tightening the connectors
The connector must be firmly attached to the
stroller. To further tighten the connector, only
use a coin as a lever. Do not tighten more
than the connector still can turn around the
axle/tubing.
English
3
2
1
1
2
6. Adjusting the length
Loosen the Fixing-arm screw (82206) and
pull the Fixing-housing out. There are four
alternative positions on the protruding arms.
Chose the position that allows your child to
comfortably stand on the platform and in the
same time is as little as possible in the way
for the person who is walking in behind.
3. 3. Position and attach the Connector
The Connector can be fitted, either onto the
stroller’s rear wheel axle or onto any horizon-
tal tubing between the stroller’s rear wheels.
The maximum circumference of the tubing/
axle is xx cm/ x in.
Bend the strap (82301) around the rear axle
or tubing. Then feed the strap through the
slot in the Connector cover (82300), Pull the
strap until tight. Secure the Connector by
turning the Connector-bolt (82302) clock-
wise.
THE CONNECTOR
3
2
1
5. Connecting
Attach the board to the connector by pushing
the connector-bolt into the hole in the Fixing-
housing (82220). Make sure that the Connec-
tor-bolt is locked in position.
6.

- 7 -
7.
English
LEVELING THE PLATFORM
7. Adjusting the height
If the axle/tubing is too high or too low, the
KiddyBoard will not be flat. If this is the case,
adjust the height of the Fixing-arm and/or
Fixing-housing, refer to the diagram below.















Axel height Position of the Fixing-arms Position of the
Fixing-housing
(cm.) (in.)
7 - 10
10 - 13
13 - 15
15 - 18
18 - 19
18 - 20
19 - 23
22 - 25
3
2
2
1
2
1
2
3
2.8 - 4
4 - 5
5 - 6
6 - 7
7 - 7.5
7 - 8
7.5 - 9
8.5 - 10

- 8 -
9.
8.
WHEN NOT IN USE
English
9. When not in use.
If the KiddyBoard is temporarily not in use, it
can be placed in the resting position. Attach
the strap onto the handle of your stroller or
pram then clip the hook (80318) to the plat-
form. If needed adjust the length of the strap
by pulling the strap-end by the hook.
Cleaning instructions: Use warm water with a soft cloth and a mild non-abrasive clean-
ser. All parts and packaging of the BuggyBoard are made of recyclable raw materials.
CLEANING AND RECYCLING
We are committed to ensuring that this product is of the highest quality. The manu-
facturing process is regularly checked by both internal and external (TÜV) controllers.
Samples of parts and completed products are also taken out regularly for testing in our
own testing laboratory.
The KiddyBoard-Maxi™ is tested and approved by the test institutes below.
• SP Swedish National Testing and Research Institute
TESTS

- 9 -
English
• Intended for use with only one child at a time from
approximately 2 years of age and with a maximum weight
of 20 kg (44 lb).
• Always keep your hands on the pram when your child is
standing on the BuggyBoard. Never leave your child unat-
tended while he/she is standing on the BuggyBoard.
• Make sure your child is always standing with both feet on
the anti-slip rear portion of the BuggyBoard.
• Never use the stroller’s parking brake while your child is
standing on the BuggyBoard.
• Before each use, check the connectors and tighten if
necessary.
• Do not use the BuggyBoard if any part is broken, torn or
missing.
• Never let children play with the BuggyBoard.
• The use of any accessories with the KiddyBoard that
have not been approved by the manufacturer is not recom-
mended.
WARNING
WARRANTY
WARRANTY
Your BuggyBoard is warranted to be free from manufacturing defects for a period of
one year from date of purchase under normal use and in compliance with the ope-
rating instructions. This warranty extends only to the original retail purchaser and is
only valid when supplied with proof of purchase.

- 10 -

- 11 -
KIDDYGUARD™
• Needs minimum space, disappears
when not in use.
• Easy to attach. Can be fixed inside
or in front of openings
• Easy to use, one-hand operated.
• Locks automaticaly open or closed
• Warning signal when opening
• Safe and secure. Exceed both the
new European safety standard EN
1930 and the American ASTM safety
standard F1004-00
More information available on inter-
net: www.kiddyguard.com
KiddyGuard is a regis-
tered trademark and is
protected by patent.
Dangerous places... ...become safe
KIDDYGUARD™
safety gate which keeps
your child on the safe side
OTHER LASCAL PRODUCTS

- 12 -
KIDDYGBOARD™
OTHER LASCAL PRODUCTS

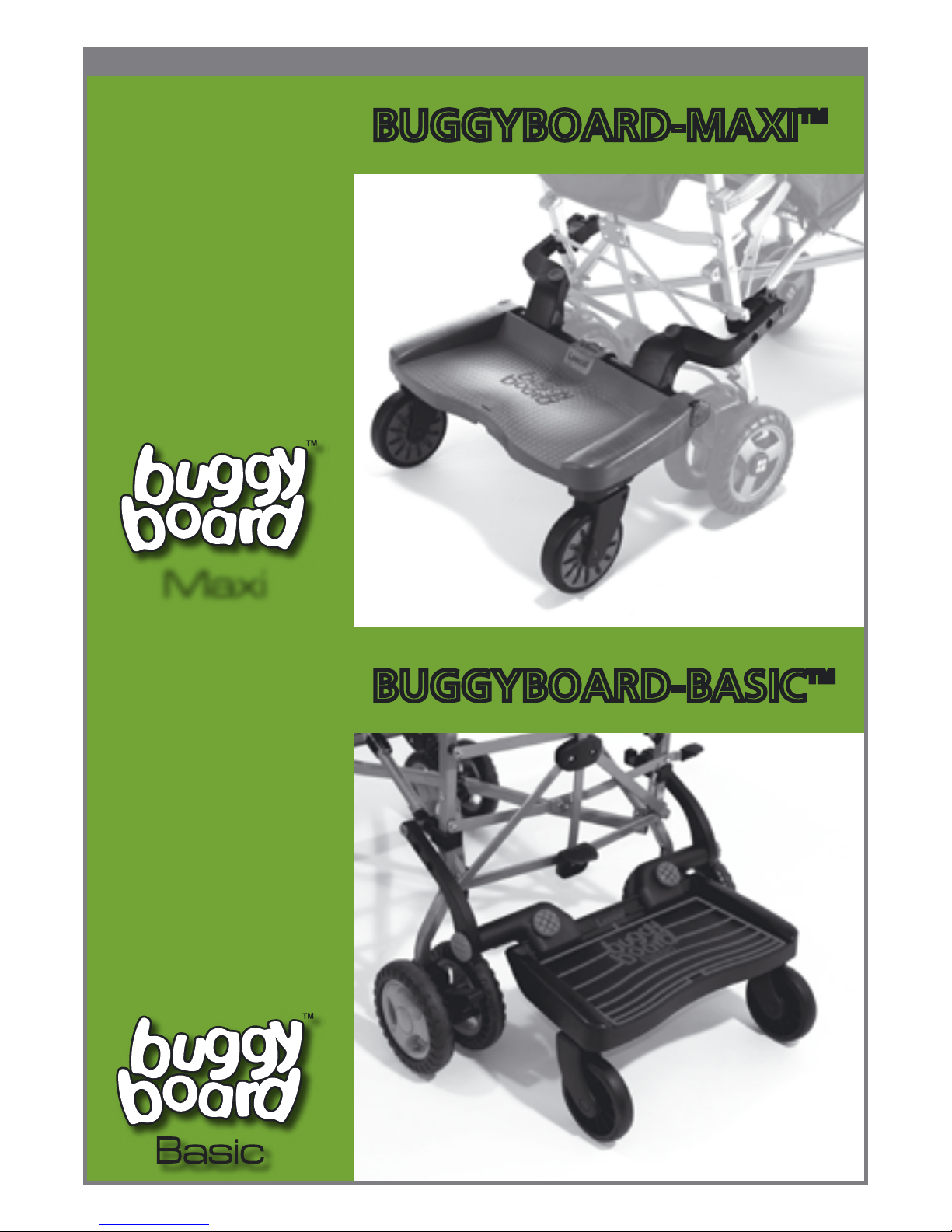

BUGGYBOARD-MAXI™
