Lasermet LEDS-1WB User manual

LEDS Mini Sign Instruction Manual
00519-53-000 Issue 6.3 22 January 2021
LASERMET
MINIATURE WARNING SIGN
INSTRUCTION MANUAL
TWO-WAY ILLUMINATED SIGN and
ONE-WAY ILLUMINATED SIGN

LEDS Mini Sign Instruction Manual
00519-53-000 Page 2 of 15 Issue 6.3 22 January 2021
LASERMET Miniature Warning Sign
Instruction Manual
Contents
1 Declaration of Conformity .................................................................................................. 3
2 Safety Warnings .................................................................................................................. 4
3 Concept ............................................................................................................................... 5
4 Installation .......................................................................................................................... 6
4.1 Positioning ................................................................................................................... 6
5 Wiring ................................................................................................................................. 8
5.1 Connecting to ICS-6 ..................................................................................................... 9
5.2 Attaching the Sign to the Backplate .......................................................................... 12
5.3 Removing the Sign from the Wall ............................................................................. 12
6 Indicators .......................................................................................................................... 13
7 Product Disposal ............................................................................................................... 13
8 Specifications .................................................................................................................... 14
9 Warranty ........................................................................................................................... 14
10 Contact Details .............................................................................................................. 15

LEDS Mini Sign Instruction Manual
00519-53-000 Page 3 of 15 Issue 6.3 22 January 2021
1 Declaration of Conformity
LASERMET LIMITED
Miniature Illuminated Signs type ‘LEDS’ Mini Sign
Part no. LEDS-1WB 00900-00-000
LEDS-1WY 00542-00-000
LEDS-2WRG 00563-00-000
DECLARATION OF CONFORMITY
This is to certify that the Miniature Illuminated Signs designated by the listed Lasermet
Part Numbers have been tested in accordance with the following directives and
standards and found to comply.
Lasermet certifies that this product complies with the basic requirements for health
and safety as provided by the following directives and standards:
Directives: Low Voltage Directive 2014/35/EU
CE Directive 93/68/EEC
EMC Directive 2014/30/EU
Standards: EN 60950-1:2006 +A2:2013
EN 55015:2006 +A2:2009
EN 61547:2009
EN 62471:2008
Supplier:
Lasermet Limited
Lasermet House
137 Hankinson Road
Bournemouth
BH9 1HR
Dorset
United Kingdom
Country of Origin: England
Date: 10 June 2019

LEDS Mini Sign Instruction Manual
00519-53-000 Page 4 of 15 Issue 6.3 22 January 2021
2 Safety Warnings
This device is intended to be used as part of a safety system which may be used to protect personnel
and equipment from possible injury, damage, or loss.
As such it must be installed and wired according to these instructions and tested by suitably qualified
persons. No attempt may be made to tamper with the parts, open them, or use them outside of the
parameters contained herein.
The units are only designed to be fixed to surfaces using their inbuilt fixing holes. They must not
come into contact with each other or any other moving part when in use. The parts should never be
subject to impact or mechanical strain.
Safety switches should never be defeated or bypassed. It is imperative that all steps are taken to
ensure that any spare actuators are made unavailable, such that they cannot be used to defeat the
switch or reduce the protection offered by the system in any way.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 5 of 15 Issue 6.3 22 January 2021
3 Concept
The Miniature Warning Sign is intended to be
used in an indoor position to indicate messages
to personnel. Typically, the sign is fitted in a
room, adjacent to a door or on a piece of
equipment. The high-quality moulded case is
pleasing to the eye and the gloss finish makes
the unit easy to clean.
The sign offers a red danger and a green safe
indication and is powered by 24VDC or 48VDC.
LEDs are used to give a long service life.
Different red and green messages may be
displayed in the same area of the sign.
Messages may include text and/or symbols.
Standard and custom messages are available.
No message is visible when the sign is switched
off.
When fitted adjacent to a door, the sign is
intended to be located adjacent to the door
handle, approximately in line of sight as a
person reaches for the door handle to open the door.
The sign offers significant safety advantages over traditional warning signs which tend to be erected
over the top of the door, such as:
 Safer low voltage operation - no working on live equipment;
 Ground level access for installation and maintenance - no working at height;
 Fitted beside the door, not over it - no obstruction of the doorway during installation and
maintenance.
The Miniature Warning Sign can be directly operated by Lasermet’s interlock systems. A matching
access keypad is available.
Lasermet provides a full range of laser interlock equipment including control systems, interlock
switches, illuminated warning signs, laser shutters, door locks, external power supplies etc. which
can be connected to provide a complete laser interlock system. Full support, design and installation
is available from Lasermet, please contact us for any queries. Contact details are given at the end of
this manual.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 6 of 15 Issue 6.3 22 January 2021
4 Installation
The Miniature Warning Sign is designed to be permanently attached to a wall or other fixed vertical
surface. It is intended for indoor use and is not waterproof.
4.1 Positioning
The Miniature Warning Sign should be mounted in a convenient position for use and wiring.
Normally it is located on the outside (‘safe’) side of the entry door of the controlled area, on the wall
adjacent to the door handle, approximately 1.4m up from floor level.
During installation, wired connections will need to be made from the Miniature Warning Sign to the
Interlock Control System and allowance should be made for the installation of electrical conduit or
trunking if required to make entry to the unit.
Ideally the sign should be attached directly to the wall with the cables being fed from within the
wall. For hollow walls this should be straightforward. For solid walls it may be easiest and neatest to
feed the cables right through the wall from the other side.
Alternatively, the sign may be attached to a round BESA conduit box which may be buried or surface-
mounted, though this last option will result in the unit projecting further from the wall, making it
less stable and more vulnerable.
It is recommended that the centre of mounting is at least 100mm horizontally from the door
surround/architrave and at least 150mm from the edge of the door. There must be a flat
unobstructed area of wall extending at least 70mm above and 110mm below the mounting centre to
allow fitment and removal.
If a Lasermet ICS-KP12 or ICS-KP14 keypad is being fitted below the sign the centres should be at
least 140mm apart vertically.
Refer to Figure 1 for details of the fixing holes and cable entry. The backplate is secured using
preferably four screws on a 35.4mm square around the cable entry point. The backplate may be
used as a marking template. If using a BESA round conduit box, the holes will align with the cover
fixing holes.
Once all the holes have been made, secure the backplate as shown in Figure 1.
Feed the cables through the hole in the centre of the backplate.
NOTE: Make the electrical connections before attaching the unit to the backplate, see the Wiring
section.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 7 of 15 Issue 6.3 22 January 2021
Figure 1. Wall Drilling Details

LEDS Mini Sign Instruction Manual
00519-53-000 Page 8 of 15 Issue 6.3 22 January 2021
5 Wiring
The standard sign is powered by 24VDC. A four-way terminal block is provided for the connections to
the red and green elements. The connections are shown in Figure 2.

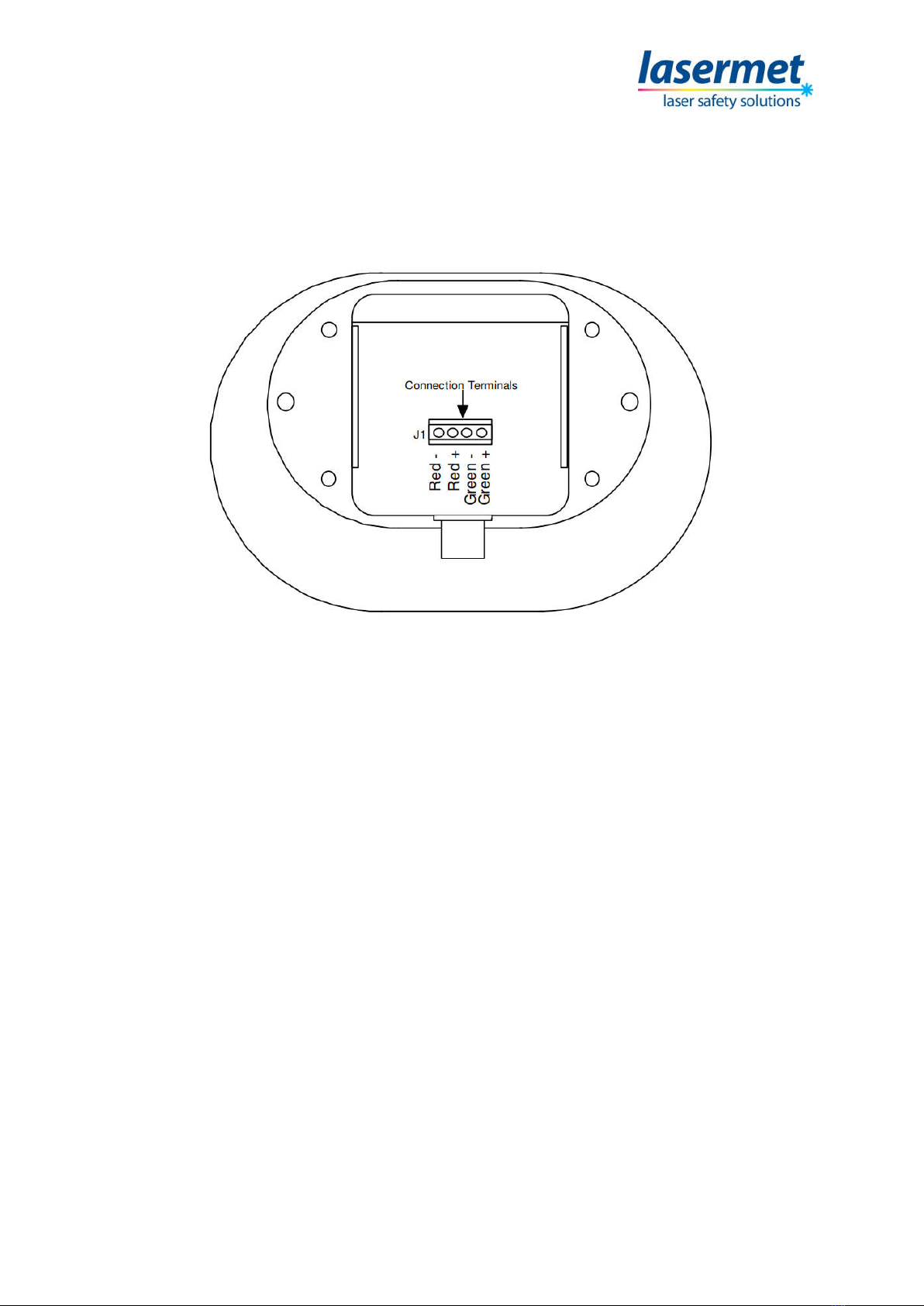

Figure 2. Terminal Identification
The supply to the green safe element is connected with the positive to the GN+ terminal and
negative to the GN- terminal.
The supply to the red danger element is connected with the positive to the RD+ terminal and
negative to the RD- terminal.
Low voltage four-core flexible wire such as burglar alarm wire is ideal for connecting to the sign.
The sign typically draws less than 0.2A per colour. To protect the wiring and terminals the supply
should have an overcurrent protection device rated at 1A maximum.
Wiring diagrams are given below for connecting the sign to Lasermet’s ICS-6 Interlock Controller.
Connecting to a 48VDC Supply
When fitted with a voltage converter, the sign can accept a 48VDC supply voltage.
Use the voltage converter terminals (to the far left and/or far right of the board) to connect the
voltage supply. Do NOT directly connect the voltage supply to the connection terminals in Figure 2.
NOTE: Check the label indication at the back of the sign to determine if the sign can accept 48VDC.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 9 of 15 Issue 6.3 22 January 2021
5.1 Connecting to ICS-6
Option 1 – One Way Illuminated Sign
The red warning sign will come on as soon as the mains switch of the ICS-6 is turned on.
24V Power Supply
48V Power Supply

LEDS Mini Sign Instruction Manual
00519-53-000 Page 10 of 15 Issue 6.3 22 January 2021
Option 2 – One Way Illuminated Sign
The red warning sign will come on when the ‘Arm Laser’ button is pressed.
24V Power Supply
48V Power Supply

LEDS Mini Sign Instruction Manual
00519-53-000 Page 11 of 15 Issue 6.3 22 January 2021
Option 3 – Two Way Illuminated Sign
The green sign will come on when the ICS-6 mains switch is turned on. The green indication will go
off and the red warning sign will illuminate when the ‘Arm Laser’ button is pressed.
24V Power Supply
48V Power Supply
Once the wiring connections have been made, attach the sign to the backplate as described below.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 12 of 15 Issue 6.3 22 January 2021
5.2 Attaching the Sign to the Backplate
Once all the wiring connections have been made, attach
the sign to the backplate by hooking the top of the sign
onto the backplate and swinging the bottom against the
wall. Press the sign firmly until it clicks into place.
Figure 3. Locking Case onto Backplate
5.3 Removing the Sign from the Wall
Once the sign has been locked to the wall, a 5mm flat
screwdriver is required to release the locking latch before
it can be removed, see Figure 4.
Ensure that the supply is turned off.
Insert the screwdriver into the recess in the bottom of the
sign at the back and push the latch upwards to disengage
it from the case. Note that the latch is quite secure, and
some force may be needed before it releases. When the
latch is released it will be possible to tilt the bottom of the
sign forwards and then lift it off the backplate.
Use a 3mm flat screwdriver to disconnect the wires from
the terminals.
Figure 4. Releasing Locking Pin

LEDS Mini Sign Instruction Manual
00519-53-000 Page 13 of 15 Issue 6.3 22 January 2021
6 Indicators
Danger and Safe Indications
The sign is normally wired to show a red message for danger or ‘stop’ condition and a green message
for safe or ‘go’ condition.
Various standard messages are available, and custom messages may be produced on request.
Messages may include text and symbols.
No Indication
When no power is applied to either element, the face of the sign appears black.
7 Product Disposal
To help protect the environment do not dispose of this product with landfill
waste. Take it to a waste recycling facility that processes electrical and electronic
items or return it to Lasermet or your local distributor for proper disposal.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 14 of 15 Issue 6.3 22 January 2021
8 Specifications
Voltage Supply 24VDC or 48VDC (30-60V)
Power Consumption at +24V Red 110mA (2.6W)
Green 40mA (1.0W)
Amber 100mA (2.4W)
at +48V Red 90mA (4.3W)
Green 60mA (2.9W)
Amber 100mA (4.8W)
Ingress Protection IP50
Size 160mm wide X 108mm high X 39mm deep
Weight 145g
Dimensions are approximate. Values given as ‘typical’ are average values measured across a number
of samples and are not guaranteed. Lasermet reserve the right to alter any specification without
prior notice.
9 Warranty
Lasermet provide a 12-month warranty for defects in materials and manufacture, from the date of
installation or delivery. Installations completed by Lasermet are covered against defects in
workmanship for 12 months.
Damage or defects caused by other factors are not covered. For example, industrial contamination,
incorrect cleaning, storm damage. Consequential loss is not covered under warranty. Compensation
for indirect or direct loss or damage is expressly excluded. Rectification of the defects or a
replacement does not initiate a new warranty period.
For all deliveries, payments and other legal transactions, English law takes precedence for any
litigation.

LEDS Mini Sign Instruction Manual
00519-53-000 Page 15 of 15 Issue 6.3 22 January 2021
10 Contact Details
Lasermet provide a full range of laser interlock equipment including interlock switches, illuminated
warning signs, laser shutters, entry keypads with built-in fail-safe override timer, door locks, external
power supplies etc. which can be interconnected to provide a complete system. We also supply
equipment and consultancy covering all aspects of laser safety. Full support, design, and installation
is available from Lasermet, please contact us for any queries.
For sales and technical support:
Lasermet Ltd.
Lasermet House,
137 Hankinson Road,
Bournemouth
BH9 1HR
United Kingdom.
Tel: [phone]
Fax: [phone]
Email: [email protected]om
Website: www.lasermet.com
Lasermet Inc.
10N Martingale Road, Suite 400,
Schaumburg, Illinois 60173
United States.
Tel: [phone]
Email: [email protected]
Website: www.lasermet.com
