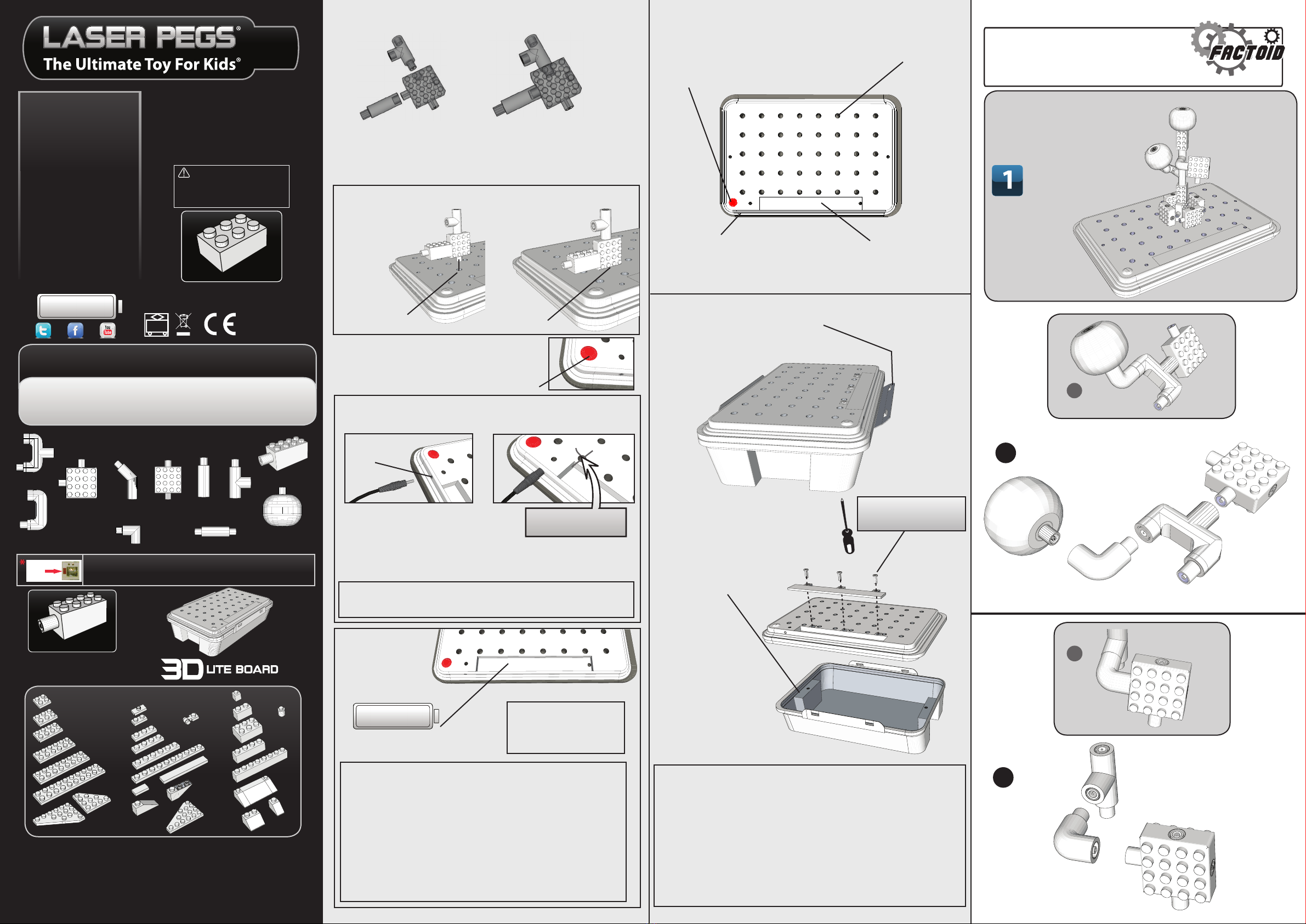

LaserPegs 1070 User manual

1070
For Boys And Girls
Ages 5 And Up
57 Models+
LIGHTED
CONSTRUCTION SET INCLUDES:
• 35 Laser Pegs®
• 225 Construction parts
• 3D Lite Board®
• Instruction Manual
Requires 3 AA Batteries
Batteries NOT
Included
Batteries NOT
Included
This manual is copyright and cannot be reproduced or used online without Laser
Pegs®Ventures LLC permission. Copyright 2012 © All Rights Reserved US Patent
#7,731,558 Additional Global & Multiple Patents Pending. Laser Pegs®Ventures LLC.
8304 Consumer Ct Sarasota FL. 34240. Contact: [email protected]om
Laser Peg® Parts List
Each Laser Peg® is color coded on the circuit board inside
each shape. There is No LED In The 90 Degree Peg.
Construction Parts List
www.LaserPegs.com
Color
Code
Connecting Pegs
Press button to turn on/o
Push button to cycle through 3 dierent light settings.
Peg Holes
AC Adapter
Connection
Requires (3AA) Batteries
Requires (3AA) Batteries
Remove all batteries from Laser Pegs®
3D lite Board®power base before using
5 volt AC adapter.
SQUARE
PEG
45° PEG
90° PEG WHEEL PEG
Stackable
STRAIGHT
T-PEG
STRAIGHT
HALF-O
PEG
Y PEG
Any creation you can build
There is No LED In The 90 Degree Peg
SQUARE
M-M PEG
STRAIGHT
M-M PEG
AC Adapter
INPUT is on side of
3D Lite Board®.
Battery Compartment
Power Button
3 light settings.
Press power button to
change light setting.
Hinge
Pull outward
to open.
Place batteries in
the correct position
when using.
Tote Box
Designed for storage
of Laser Pegs® parts.
Peg Holes Peg Holes
Connecting an AC Adapter
Plug AC Adapter plug into the side of the 3D Lite Board®.
Connect Laser Pegs® to 3D Lite Board®
NEVER place AC Adapter
Plug into top Peg Holes
Use Phillips head
screwdriver.
3D Lite Board®
Please read manual before you begin! Failure to
follow this manual’s instructions may result in
damage to the 3D Lite Board®, AC Adapter and/
or Laser Pegs®. Not adhering to these directions
will void the manufacturer’s warranty.
Packing has to be kept since it contains
important information.
To construct with Laser Pegs®, slide two pieces together to form a
connection. Slide each piece on and o smoothly. To build away from the
Triangle Power Base, use the peg cord in one of the top three peg holes to
illuminate your model! The 90° pegs are essential to construction but they
DO NOT ILLUMINATE.
WARNING! Each Laser Peg® draws current from the batteries. Therefore,
the more pegs you use, the quicker you will deplete your battery power!
As the power weakens, the current will slowly fail and some Laser Pegs®
will illuminate (typically the reds and yellows) and some won’t. When the
Laser Pegs® dim the Laser Pegs® are not broken, they just need stronger
batteries or an AC Adapter.
You have 3 simple options...
1. Use a 5 volt AC Adapter –available from www.LaserPegs.com
2. Change the batteries.
3. Use high quality batteries. They will last a little longer, but they will
still deplete rapidly the more laser pegs you connect!
Laser Pegs®link that
allows you to connect to
other construction kits.
Power button
All additional model instructions can
be downloaded at www.LaserPegs.com
MODEL INSTRUCTIONS
Laser Pegs
®
Stackable
*To avoid short-circuits, keep metal objects
and other un-authorized materials from
obstructing the peg holes.
The AC Adapter used with the power base are to be regularly examined for
damage to the cord, plug, enclosure and other parts, and in the event of such
damage, they must not be used until the damage has been repaired.
When Using Batteries
®
x4
x4
x6 x6
x6
x4
x2
x16 x8 x4
x8
x8
x12
x16
x6
x6
x1
x8
x8
x8
x8
x6
x20
x8
x6
x6
x6
x16
x8
x2
x2
x2
x4
x4
x8
x3
x1
x1x1x7
Compatible with other construction kits
WARNING:
CHOKING HAZARD-Small parts.
Not for children under 3 yrs.
Do not submerge in water.
Construction Compatible
EN71, RoHS COMPLIANT
This product complies to
all safety requirements
of ASTM F 963
1. Remove screws.
2. Place three AA batteries in the correct position - as displayed inside the
3D Lite Board®.
3. Push RED button to turn on!
4. Do not mix old and new batteries.
5. Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-
cadmium)batteries!
6. Exhausted batteries are to be removed from the power base.
7. Never connect more than 200 Laser Pegs®
8. Non-rechargeable batteries are not to be recharged.
9. Rechargeable batteries are only to be charged under adult supervision.
10. Rechargeable batteries are to be removed from the toy before being
charged.
11. Batteries are to be inserted with the correct polarity.
12. The supply terminals are not to be short-circuited.
Never connect more than 200
Laser Pegs® when using a 5 volt
(2000mA) AC Adapter.
*AC Adapter
sold seperatley.
Battery
Compartment
Battery Compartment
1
STEP
2
STEP
A
B
TULIP WITH FLOWER BOX - A bulbous
perennial plant with large owers
that bloom in spring time. Tulips
mostly have one ower per stem.
Model
Diculty
Level
TULIP WITH
FLOWER BOX

Copyright 2012© All Rights Reserved Global & Multiple Patents Pending.
US Patent #7,731,558
www.LaserPegs.com
ASSEMBLE MODEL ONTO 3D LITE BOARD
3
STEP
4
STEP
5
STEP
6
STEP
7
STEP
C
COMBINE
AB
