lassele LUI-150A User manual

ver.201701_01
I512A-091
Installation and User’s Manual
LUI-150A
LUI-250A
Manufacturer : DAEYEONG E&B Co., Ltd.
(BANWOL SMARTHUB 1-38)
55, SANDAN-RO 163 BEON-GIL, DANWON-GU, ANSAN-CITY,
GYEONGGI-DO, SOUTH KOREA
TEL.[phone] FAX. [phone]
www.daeyeong.co.kr

Freight Claim Procedure(Important)
1. Specifications ........................................................................................... 4
1.1Technical Specification
1.2 Product Dimensions
1.3 Accessories Included in the Machine
1.4 Nameplate Format
2. Installation & Operation Guide ............................................................ 7
2.1 Location Requirements
2.2 Installation Requirements
2.3 Electrical Requirements
2.4 Check list before, Installation
2.5 Setup
2.6 Water Supply & Drain Connections
2.6.1 Water Supply
2.6.2 Water Supply Line
2.6.3 Drainage Line
2.7 Wire
2.8 Final Check
2.9Test Run
3. Operation.................................................................................................. 14
3.1 Button
3.2 Status Light

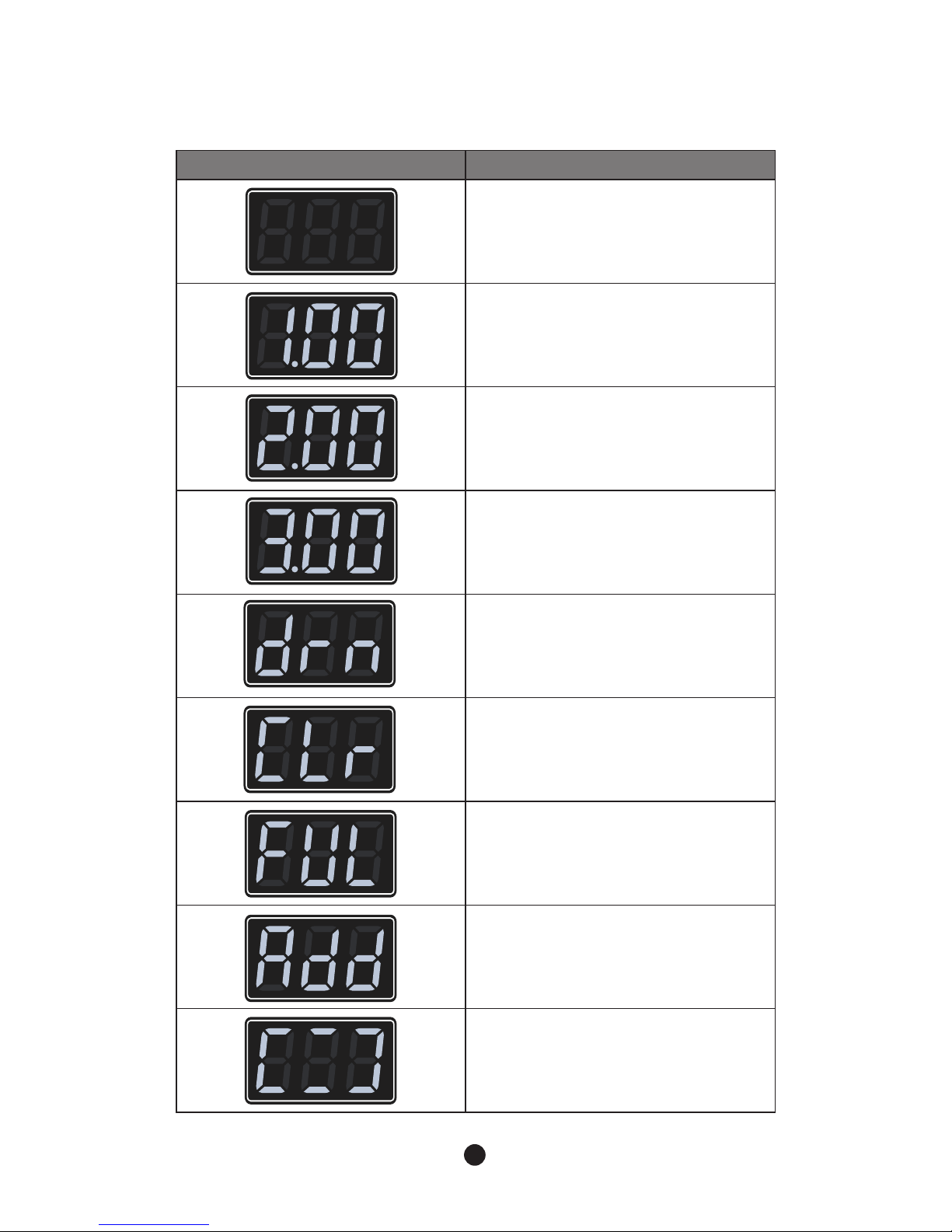

3.3 7-segment
3.4 Operation Cycle
3.5 Safety
3.6 Error Code
4. Maintenance & Cleaning ....................................................................... 18
4.1 Maintenance
4.2 [150A]Interior Cleaning & Sanitizing Procedure
4.2.1 150 Cleaning procedure
4.2.2 150 Sanitizing procedure
4.2.3 150 Product Disassembly
4.3 [250A]Interior Cleaning & Sanitizing Procedure
4.3.1 250 Cleaning procedure
4.3.2 250 Sanitizing procedure
4.3.3 250 Product Disassembly
4.4 Exterior Cleaning
4.5 Storage Container and Scoop
4.6 Air Filter
4.7 Condenser
4.8 How to Prepare for LongTerm Storage
Table of Contents
23

Freight Claim Procedure(Important)
23
Inspect Promptly
This product has been carefully inspected and packed in accordance with the
carrier’s packing specifications. Responsibility for safe delivery has been
assumed by the carrier. If loss or damage occurs, you as the consignee must file
a claim with the carrier and hold the container for carrier’s inspection.
Visible Loss or Damage
Any external evidence of loss or damage must be fully described and noted on
your freight bill or express receipt and signed by the carrier’s agent.The claim
should be filed on a form available from the carrier.
Concealed Loss or Damage
Concealed loss or damage should be reported to the carrier and vendor within 24
hours after delivery.
After this time the seller is not responsible for any freight damage incurred.
Keep the product as well as all of original packaging material in receiving area for
carrier's inspection.
Warning
Connect to potable water supply only.
Protection and observation of caregivers is required for safe use of children
under 8 years of age or lack of cognition.
The warranty shall not apply to followings.
• Repair or replacement of parts required due to misuse, improper care or
storage, negligence, alteration, use of incompatible supplies or lack of
specified maintenance.
• Regular maintenance items.
• Failures caused by improper or erratic voltages, adverse environmental or
water conditions, improper drainage, interruption in electrical or water supply.
• Improper or unauthorized repair.
• Any ice maker that has been installed and/or maintained inconsistent with the
instructions provided by Lassele

1. Specifications
1.1 Technical Specification
Model Total
AMPs Condenser
Rating
Safety
Approval
Sanitation
Approval
Energy
Star CE
150A 7A
Air
Cooling
115V/60Hz/1Ph ETL ETL Certified N/A
220-240V/50Hz/1Ph N/A N/A N/A Certified
220V/60Hz/1Ph N/A N/A N/A N/A
250A
8.3A 115-120V/60Hz/1Ph UL
ETL Certified N/A
5A
220- 240V/50Hz/1Ph N/A N/A N/A Certified
220V/60Hz/1Ph N/A N/A N/A N/A
150A 250A
Design Pressure HI - 220 psig
LOW - 105 psig
HI - 460 psig
LOW - 210 psig
Refrigerant
115V/60Hz
R-134a 240g (8.46 OZ) R-404A 450g (15.8OZ) 220V/50Hz
220V/60Hz
Compressor
115V/60Hz 98-132V 28.0LRA 5.6RLA 103-127V 39.7LRA 7.6RLA
220V/50Hz 187-276V 18.1LRA 4RLA 198-254V 18.6LRA 4.44RLA
220V/60Hz 187-253V 19.9LRA 3.19RLA 198-254V 14.8LRA 3.69RLA
Pump
115V/60Hz 115V 0.50FLA 33.4W 115V 0.93FLA 57.5W
220V/50Hz 220V 0.25FLA 32.9W 220V 0.4FLA 50.6W
220V/60Hz 220V 0.32FLA 40.8W 220V 0.47FLA 58.0W
Fan
115V/60Hz 115V 0.53FLA 59.6W
220V/50Hz
220-240V 0.27FLA 32.8W
220V/60Hz
45
● Electrical Data
● Refrigerant Data

CONTENTS1. Specifications
1.2 Product Dimensions
45
● 150A
● 250A

67
1.3 Accessories Included in the Machine
1.4 Nameplate Format
No Name Picture Quantity
1 Scoop 1
2Legs
6inch(150 ~ 176 mm) 4
3 User Manual 1
See the Nameplate for electrical and refrigeration specifications.
This Nameplate is located on the upper part of the Left Side Panel.
We reserve the right to make changes in specifications and design without prior notice.
LUI - 250A

67
2. Installation & Operation Guide
2.1 Location Requirements
2.2 Installation Requirements
WARNING
-The ice maker should be installed, following regulations of the country, state and region.
- Please install it after fully understanding the manual before installation.
It might cause breakdown, injury and death during installation.
- Please be careful not to drop tools to the bin or floor during installation. It might cause
a danger to the safety of workers.
-The marking "CAUTION or WARNING - Parts. Do Not Operate Unit With Enclosure Removed."
(When disassembly for cleaning or similar servicing exposes moving parts.)
- Power Should be off when installing an ice machine.
The installation of ice maker head should satisfy following conditions. If the place did not satisfy
these conditions, please install it to another place.
- A place should be in a room and have a good ventilation.
- A place should not be with a heat source and direct sunlight.
- An operating temperature is between 45°F~100°F (7°C~38°C)
- A place should have enough water supply and drainage and easy connection with wiring.
- A place should not have any obstacles, disturbing air circulation(heat exchange).
- A place should have enough clearance for wiring and plumbing on the rear.
- A place should have no food waste nor food contaminant.
- A place should be capable of sustaining the machine full of ice in it.
-The setup of the machine requires leg.
- In case you install the machine with no legs, a bumper at the bottom of the machine should be removed
beforehand.
NOTE : In case that it is a built-in installation, the machine requires 5inch(127mm) space on the rear.
-The Ice maker should be level.
-The vent of ice maker and drain of bin should be separated.
-The tip of drain of bin should have an air gap.
-The ice maker and bin should be completely cleaned after installed.
-The drain line should be easily separated from the ice maker.

89
Please read the following cautions;
-The Icemaker must have the earthwork done.
-The Icemaker must have exchangeable fuse or circuit breaker.
- Decide the appropriate size of the wire based on the length, thickness, and position of the wires.
- Above work has to be done by a qualified electrical engineer.
2.3 Electrical Requirements
WARNING
- All kinds of power wiring work including power cable connection and earth have to be done
in accordance to the law and regulations of the country, state, and region.
-The earthwork for icemaker has to be done in accordance to the law and regulations of the
country, state, and region.
● Voltage
- When operating the icemaker (with maximized electrical load) range of variation in maximum
voltage allowed is ±10% of the rate voltage.
● Fuse/Circuit Breaker
- Must have the exclusive fuse/circuit breaker for the ice maker.
- Must use a circuit breaker in accordance with applicable national, state and local regulations.
Condition Minimum Maximum
AmbientTemperature
°F 45 100
°C 7 38
WaterTemperature
°F 45 90
°C 7 32
Water Pressure
psig 30 100
kPa 206.8 689.4
Voltage
115V 100 130
220V
208 230
● Installation condition

89
- After unpacking, please check the product appearance. If there is damage on the product,
please contact local store.
- Please remove a packing box, tape and other packing components. If these things are not
removed, the ice maker might not be working properly.
- Please check whether installation requirements like model name and voltage are satisfied by
checking name plate.
- Please remove all accessories, enclosed with the ice maker.
- Please remove protective plastic film of the panel.
- Please check whether a compressor is fixed and the fan blade turns freely.

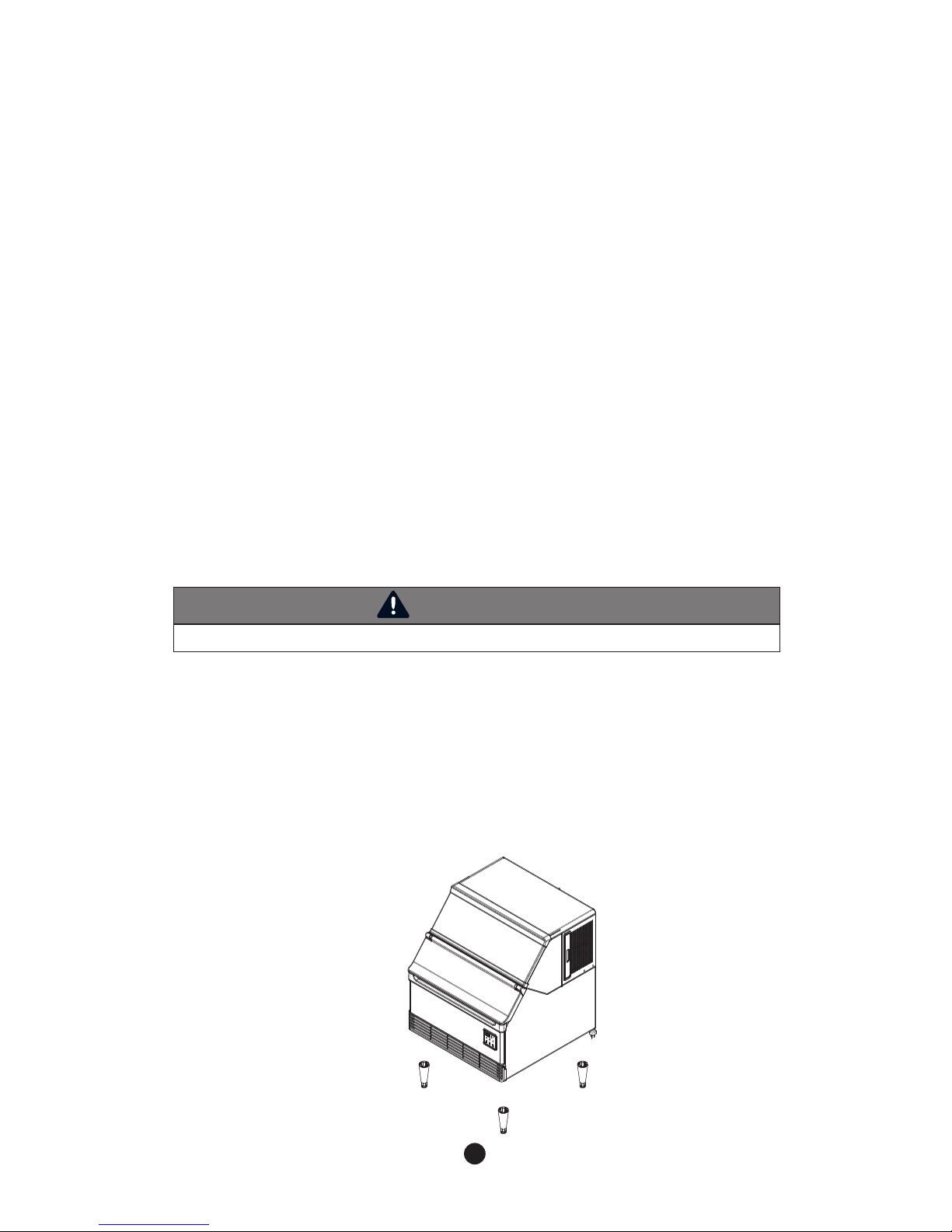

1. Remove all the wrapping box and tapings before you install the machine.
2. Position the icemaker in the selected permanent location.
3. Install legs at every bottom corner of the machine and level the machine. See the figure
below.
4.The legs are adjustable between 6” to 7”.
5. In case you install the machine with no legs, make the floor water resistant that you lay the
machine on. See figure 2.
6. In case you install the machine with no legs, a bumper at the bottom of the machine should
be removed beforehand.
2.4 Checklist before Installation
2.5 Setup
WARNING
- Putting objects which exceed 33lbs(15kg) might break the machine.
2.3.1 Power Connection
- For details about size of cable for power supply, please refer to the “1.1Technical Specification”.

10 11
To prevent backflow of icemaker and storage container, please refer to the following instructions
for installing drainage line.
- For the smooth drainage, gradient of 1 inch for every 3.3 feet (2.5cm per meter) is needed.
- Do not install any trap.
- Do not connect drainage pipe directly into the sewage pipe.
-There must be minimum 2 inch (5cm) of air gap vertically between end of drainage pipe
and the drain hole.
- Must install vent.
-The machine applies gravity drains and does not prevent counter-flow.
If you want parts for preventing it, you should purchase it separately.
In the place where icemaker is installed, it may require an additional processing system to
prevent formation of scale and removing impurities and chlorine for the water quality side.
2.6.1 Water Supply
Please refer to the following instructions for installing water supply line.
- Do not connect hot water system to the icemaker.
- Appropriate water pressure is 30 ~ 100 psig( 206.8-689.4kPa).
- Install shut-off valve to the water supply line.
- Insulate the water supply line to prevent condensation.
2.6.2 Water Supply Line
2.6.3 Drainage Line
2.6 Water Supply & Drain Connections
WARNING
- Installation of water supply and pipe system has to be done in accordance to the law and
regulation of the country, state, and region.
-The icemaker is to be installed with adequate backflow protection to comply with applicable
federal, state, and local codes.
- Water pipe work has to be done by qualified service technicians.

10 11
● 150A
Vent tube
Minimum 3 ⁄4:”
ID Hard pipe
Shut- Off
Valve
Floor
Water supply
inlet - 3/8”FPT
Drain Valve
Drain Outlet
- 3 ⁄ 4” FPT
Minimum 1/4”
ID copper pipe
Location Water
temperature
Water
pressure
connecting
fitting
Size of a
connecting hose
Water inlet 7°C (45°F) Min.
32°C(90°F) Max.
30 psig Min.
100 psig Max. 3/8” FPT ID 1/4” copper pipe(Min.)
Drain 3/4” FPT ID 3/4” HARD PIPE(Min.)
▶ Conditions for water supply and drainage
Floor
* Leave a 2inch(5 cm) vertical air gap between the end of each pipe and the drain.
Floor
* Leave a 2inch(5 cm) vertical air gap between the end of each pipe and the drain.
● 250A
Shut- Off
Valve
Drain Outlet
- 3 ⁄4” FPT
Minimum 1/ 4”
ID copper pipe
Water supply
inlet - 3/ 8”FPT
Vent tube
Drain Valve
Minimum 3/ 4
ID Hard pipe
Floor

12 13
2.7 Wire
WARNING
- Wiring should qualify standards of the country, state and county that the machine is
installed. Otherwise it might cause electric shock, injury, fire or death.
- Wiring should be done by a qualified electrical engineer who meets applicable national,
state and local regulations.
-The machine requires an independent power supply. See the nameplate for proper voltage and
breaker/fuse size.
- Otherwise, it might cause fuse cutout, damage on cords or parts or fire.
-The machine should be properly grounded. Otherwise, it might cause injury or death.
- Wiring should be done by a licensed electrician.
- Allowable voltage is ±10% of the standard voltage.
- Do not apply extension cords.
-Touching the control box with wet hand might cause an electric shock.
- Do not apply broken power cords. Do not tie nor convert power cords.
- Do not pull out power cords hard nor lay heavy objects on them. In case you pull out power
cords, use a plug.
-The green ground wire in the factory-installed power cord is connected to a screw on the
bracket where the cord enters the machine. If it becomes necessary to remove or
replace the power cord, be sure to connect the power cord's ground wire to this screw
upon reattachment.
- In case a power cord is broken, its manufacturer, distributor or a qualified person should replace it
for safety issue.

12 13
2.8 Final Check
2.9 Test Run
WARNING
After installation, make sure that all the components, fixture, and thumbscrews are tightly in
their places. Make sure that no impurities fall into the ice storage container.
WARNING
Icemaker is factory-adjusted. In general, no additional setting is required after installing the
product. In case of random modification, it may cause adverse influence on safety, function,
component lifespan, and warranty period. Warranty is not included in the setting and
maintenance process explained in this manual.
(1) Is ambient temperature of the installation area within the allowed range 45-100°F(7-37°C)?
(2) Is temperature of water supplied in the installation area within the allowed range 45-90°F (7-32°C)?
(3) Are all the packing materials such as packing box, inside tape, and other materials removed
completely?
(4) Is there an enough clearance from the icemaker for smooth air circulation?
(5) Is ice scoop placed in the right place?
(6) Is icemaker leveled on the floor?
(7) Is the product located indoor?
(8) Is the power supply to the icemaker installed properly?
(9) Is water supply pipe to the product properly connected?
(10) Is drain system properly connected?
(11) Is water pressure qualified (30 ~100 psig)(206.8-689.4 kPa)?
(12) Any leakage found in any pipes?
(13) Are all the components, fixtures, and thumbscrew fixed tightly?
(14) Have you informed to the customers about the product manual, how to use, and interval for
changing main components?
(15) Have you provided information on selling points and service center to the customer?
(1) Open the shut off valve in the water supply line.
(2) Press "Power" button for 2 seconds to operate the icemaker.
(3) Water tank is filled with water through the water supply valve.
(4) After water is filled, it turns into harvesting cycle and control board shows “2.00.”
(5) After this, it turns into freezing cycle and control board shows “3.00.”
(6) About 3 minutes after freezing cycle, press “Power” button for 2 seconds to stop the machine.
(7) ①150A : Disconnect ’Hose Drain Joint’ connected to‘ WaterTank’ to drain remaining water.
② 250A : Push ‘Wash’ button to drain remaining water.
(8) ①150A : Reconnect ‘Hose Drain Joint’ once remaining water is completely drained.
② 250A :Turn off the machine when ‘Add’ is appeared on the control panel.
(9) Press “Wash”button to release water inside the water tank.
(10) Unplug the power cord.
(11) Open the door and clean inside of the ice storage inside with neutral detergent.
(12) Wash thoroughly after cleansing.
(13) Operate the machine and check any leakage inside and outside the pipes.

14 15
3. Operation
3.2 Status Light
3.1 Button
(1) Power
Push the button for 2 seconds to turn on/off.
(2) Wash
Use the button when cleaning the machine. Refer to the
'cleaning' label on the left side of the machine.
(3) Check
Only for service persons to check status of the machine
(1) On/Off : shows power status in green.
If storage container is full of ice, it shows brown light.
If too low, it will show red light.
(2) Clean : show green light when in washing mode.
(3) Err : show red light if any problems occur during the machine operation.
(4) Freeze : shows green light when freezing cycle in operation.
(5) Harvest : shows orange light when ice harvesting cycle is in operation.

14 15
Display Status
Ready for cycle
1 = Water Supply Period
.00 = Elapsed time (x 10 sec)
2 = Harvesting Period
.00 = Elapsed time (min)
3 = Freezing Period
.00 = Elapsed time (min)
Drainage cycle
Wash mode
Shown when wash button is pressed.
Shown when the bin is full of ice.
During wash mode
Showing input timing or detergent or sanitizer.
Cleaning and saitization completed.
(User has to press the button to remove
this sign.)
3.3 7– segment

16 17
Icemaker is operated in accordance to the following process
3.4 Operation Cycle
3.5 Safety
(1) Water Supplying Cycle
Once power is on, water supply valve opens to fill the water tank with water required.
(2) Harvesting Cycle
To remove ice made on the evaporator, water flow stops and it becomes hot. Then, ice is released from
the evaporator to storage container. Once temperature sensor detects a certain temperature, freezing
cycle begins. Water is continued to be supplied during the harvesting cycle.
(3) Freezing Cycle
This is the process of making an ice. Water is supplied to the surface of evaporator and it becomes cold.
As water keep circulating, more and more iceis made. This process is repeated until water level sensor
reaches low. Once it becomes the low level, ice harvesting starts.
(4) Drainage Cycle
This occurs residue or impurities in the water tank while repeating the process of freezing and
harvesting cycles. Using ice machine for a long time without any drain may cause damage.
After a certain number of cycles, drain leftover water in the water tank completely by using pump.
(1) Maximum freezing time - 60min
To protect the icemaker, maximum freezing time is set to 60 minutes. When freezing cycle goes over 60
minutes, it turns into harvesting cycle. Also for the second freezing cycle, if time goes over 60 minutes,
machine halts and shows error code (E1) on the control panel with a beep sound.
(2) Maximum harvesting time - 20min
The maximum harvesting time is 20 minutes. If time goes over 20 minutes, it automatically turns into
freezing cycle. Also in the second harvesting cycle, if time goes over 20 minutes, error code (E2) is
shown on the control panel with a beep sound.
(3) HighTemperature safety
If temperature outside the evaporator during freezing cycles goes over 140°F(60°C), machine stops to
protect the cycle and error code (E3) is shown on the control panel.
(4) Low water safety
For protection of water pump, if water level is low after harvesting cycle, machine halts and error code (E5)
is shown on the control panel.

16 17
Code Problem Possible Cause Remarks
E1
Freezing error
(freezing time
exceeds
60 min)
Refrigerant leaked or pipe blocked
Compressor not operating
Fan motor not operating
Ambient or water temperature too high A/T: 45-100°F(7-38°C)
W/T: 45-90°F(7-32°C)
Voltage:
115V :
100~130V
220V : 208~230V
Voltage too high or too low
E2
Harvesting
error
(harvesting
time exceeds
20 min)
Refrigerant leaked or pipe blocked
Compressor not operating
Hot gas valve not operating
Evaporator temperature sensing error
Ambient or water temperature too low A/T: 45-100°F(7-38°C)
W/T: 45-90°F(7-32°C)
Voltage:
115V :
100~130V
220V : 208~230V
Voltage too high or too low
E3
Evaporator
temp too high
(temp
>60°C(140
°F )
Water temperature too high W/T: 45-90°F(7-32°C)
Sensor or connector defect
PCB defect
E5
Water supply not
enough
(water supply
time exceeds
4 min)
Float switch not operating
Water valve not operating
Water pressure too low W/P: 30-100psi
(206.8 ~ 689.4 kPa)
E6
Evaporator
sensor error Sensor short-circuit or disconnected
E7 PCB error PCB program error
3.6 Error Code

4. Maintenance & Cleaning
●
Maintenance Period
Please refer to the following table for guidance on Maintenance Period. It may be shorter
depending on surrounding environment and hygiene regulations of the installation area.
18 19
4.1 Maintenance
WARNING
Icemaker shall be maintained and cleaned based on this manual and cleaning label attached
on each unit
Interval Part Method
Daily Scoop Clean scoop with neutral detergent. Wash thoroughly
after cleaning.
Every two weeks
Air Filter If dirty, clean with warm water by using detergent.
Every month
Exterior water
supply filer
Check the appropriate water supply and change the filter if
necessary.
Icemaker exterior Wipe out dirty exterior part by applying neutral detergent onto
the soft cloth.
Storage bin & Door Wipe out with a soft cloth.
Every six
months
Icemaker
Storage bin
Wash and sanitize in accordance to the manual.
Please refer to the "4.2/4.3 cleaning and sanitizing."
Water supply area Close the water supply valve and drain all the water inside.
Condenser
Check dust or impurities first. If necessary, clean using brush or
vacuum. Cleaning interval may be shorter depending on the
surrounding environment.
Water drain Check water drain inside the icemaker and clean or replace if
necessary.

18 19
4.2 [150A] Interior Cleaning & Sanitizing Procedure
WARNING
- Please use a detergent and sterilizer, according to directions of the product. sanitizer for ice
machines, and follow directions of those products.
- During cleaning and sanitizing, please wear rubber gloves and protective eye glasses to
protect eyes and skin.
- Please keep a detergent and sterilizer out of the reach of small children.
- Please do not remove ices, made on evaporator, by force. It might cause damage to the
surface of evaporator.
Please do not remove ice on evaporator with a sharp ice pick.
1)Turn off the ice maker. If ices are being made, wait for cycle completion and then turn off the ice maker.
2) Remove all remaining ices in the storage.
3) Prepare 10 liters of cleaning solution by diluting 1 pack(56.7g/2 Oz) of Kay-Delimer with 4 liters of warm water.
4) Contact the distributor of ice maker to purchase cleaning solution [Kay - Delimer]
5) Press the “Wash” button.
6) Remaining water in the storage is drained and “drn” appears on the control board.
7) Once drainage is completed, “Add” will appear on the control board.
8) Pour 4 liters of cleaning solution from procedure 3) into the water tank.
(The next operation is automatically performed after 60 seconds)
9) “Crn” will appear on the control board after a minute.
10)The water pump drains the water after 30 minutes of operation.
11) After drainage, water will be supplied for 3 minutes.
12)The water pump operates for 5 minutes to remove the remaining cleaning solution.
13)The water is drained after 5 minutes washing procedure.
14)The ice maker repeats step 11 to step 13 three times for 30 minutes.
15) After 30 minutes operation, appears on the control board and Power turns off.
16) Disassemble hose and water tank referring to step 4 ~ 6 on 150 Product Disassembly
(All parts of ice maker has to be disassembled and cleaned referring to step 1 ~ 10 on 150 Product
Disassembly at least once every six months.)
Fig 1 Fig 2
The icemaker should be cleaned and sanitized every six months. Depending on the water
quality of the installation place, it could be done more often.
4.2.1 150A Cleaning Procedure

20 21
4.2.2 150 Sanitizing Procedure
1) Prepare 10 liters of cleaning solution by diluting 1 pack(28.4g/1 Oz) of Kay-5sanitizer with 9.5 liters of
warm water.
2) Contact the distributor of ice maker to purchase sanitizing solution [Kay -5 (Sanitizer)]
3) Soak the separated parts while cleaning procedure into the 6 liters of sanitizing solution for 5 minutes.
4) Sanitize ice maker and food zone of storage container by using spray.
5) Wait until the sanitized parts are dried.
6) Reassemble the separated parts after cleaning.
7) Press “WASH” button then “Add” will appear on the control board.
8) Pour 4 liters of sanitizing solution from procedure 1) into the water tank.
9) “Crn” will appear on the control board after a minute.
10)The water pump drains the water after 30 minutes of operation.
11) After drainage, water will be supplied for 3 minutes.
12)The water pump operates for 5 minutes to remove remaining sanitizing solution.
13)The water is drained after 5 minutes washing procedure.
14)The ice maker repeats step 12 to step 14 three times for 30 minutes.
15) After 30 minutes operation, appears on the control board and Power turns off.
16)Turn on the power to start freezing.
8IZ\Q\QWV 
M^IXWZI\WZ4. 8IZ\Q\QWV 
M^IXWZI\WZ:0
*ZIKSM\
M^IXWZI\WZ4.
*ZIKSM\
M^IXWZI\WZ:0
?I\MZX]UX
/]QLMQKM 
?I\MZ\IVS
.TWI\[_Q\KP
) )
Guide ice
Water tank
Fig 3 Fig 4
※ice machine cleaner & sanitizer has to comply with 40 CFR §180.9403 or registered with the USEPA
Office of Pesticides Program, Antimicrobials Division as a food contact ice machine cleaner & sanitizer.
17) Wash disassembled parts with 6 liters of cleaning solution from 3).
Only use nylon brush (Not wire brush), sponge and soft cloth to brush the parts. (Dishwashing liquid also
can be used while the cleaning procedure)
- BIN
- EVAPORATOR PLASTIC PARTS
18) Wash storage out with clean water and dry the storage.
