Latham 309 User manual

309 Flat Lid Installation Guide
RECESSED TOP TRACK SYSTEMS
Diagram & Parts ................................................. 2
Installing the 309 Flat Lid ................... 3-4
© Latham Pool Products, Inc. 2018. All rights reserved.
1 of 4

23 4
6
5 7
Splices (M9362) End Caps (A2426) Cut Covers (M9363)
Plastic Anchors (A1706) Flat Lid End Supports (A2429) Screw PFSM 12-1 3/4 (A2209)
1
A2432 Lid kit - Flat lid 309 for 77 14 in box (Includes Lid Brackets)
1. A2454 1 Flat Lid 309 End Support Assembly SET and system hardware kit
2. X0048 2 Lid Panel Flush (1 in by 6 in) 24 ft length
3. X0939 1 Flat Lid 309 Hinge, 22 ft length
4. X0940 1 Flat Lid 309 Lid Panel to Hinge Attachment, 24 ft
5. X0053 1 Metal Box C-Cap
6 A2425 1 Flat Lid 309 Wedge SET
7. A2430 1 Lid Bracket RTG (97 degree) 12 In SET of 2.
Assembly Part# Qty Description
(5) C-cap
(6) Wedge
(2) Lid Panel
(4) Lid Panel to Hinge
Attachment, 24 ft.
(1,A) Lid End Support
(3) Hinge
(2) Lid Panel
(1,D) Cut Cover
(1,A )
Lid End Support
(1,B) Splices
(6) Wedge (1,D) Cut Cover
Diagram above and Images below not to scale
A
A
BCD
(1,C) End Cap
(1,C) End Cap
309 Lid Kit Parts
© Latham Pool Products, Inc. 2018. All rights reserved.
2 of 4

Mark and cut the front side of the lid
end supports leaving at least 1in of flat
surface between the coping edge and
the lid end support.
Attach the 97 degree angled brackets
(A2430) to the back wall of the housing
1in below the top of deck.
Insert the end caps (A2426) to the lid
end supports.
Set the lid end support (A2429) in the
ends of the housing in order to get
an accurate measurement for the lid
panels.
1 2 3
4
7
5
8
6
9
Measure and cut the lid panels (X0048),
C-cap (X0053), and hinge attachment
(X0940) approximately 1 1/4in shorter
than the actual width to the inside of
the lid end supports. This allows space
for the cut cover and lid wedges to
attach to the ends of the lid panels to
cover any cuts.
Slide the lid panels (X0048) and C-cap
(X0053) together.
Measure and cut the lid hinge (X0939).
Measure from one lid end support to
the other.
Slide the hinge attachment (X0940) and
lid hinge onto the lid.
Use a rubber mallet to tap on the lid
wedges on both sides of the main lid
section.
Installing The 309 Flat Lid
© Latham Pool Products, Inc. 2018. All rights reserved.
3 of 4

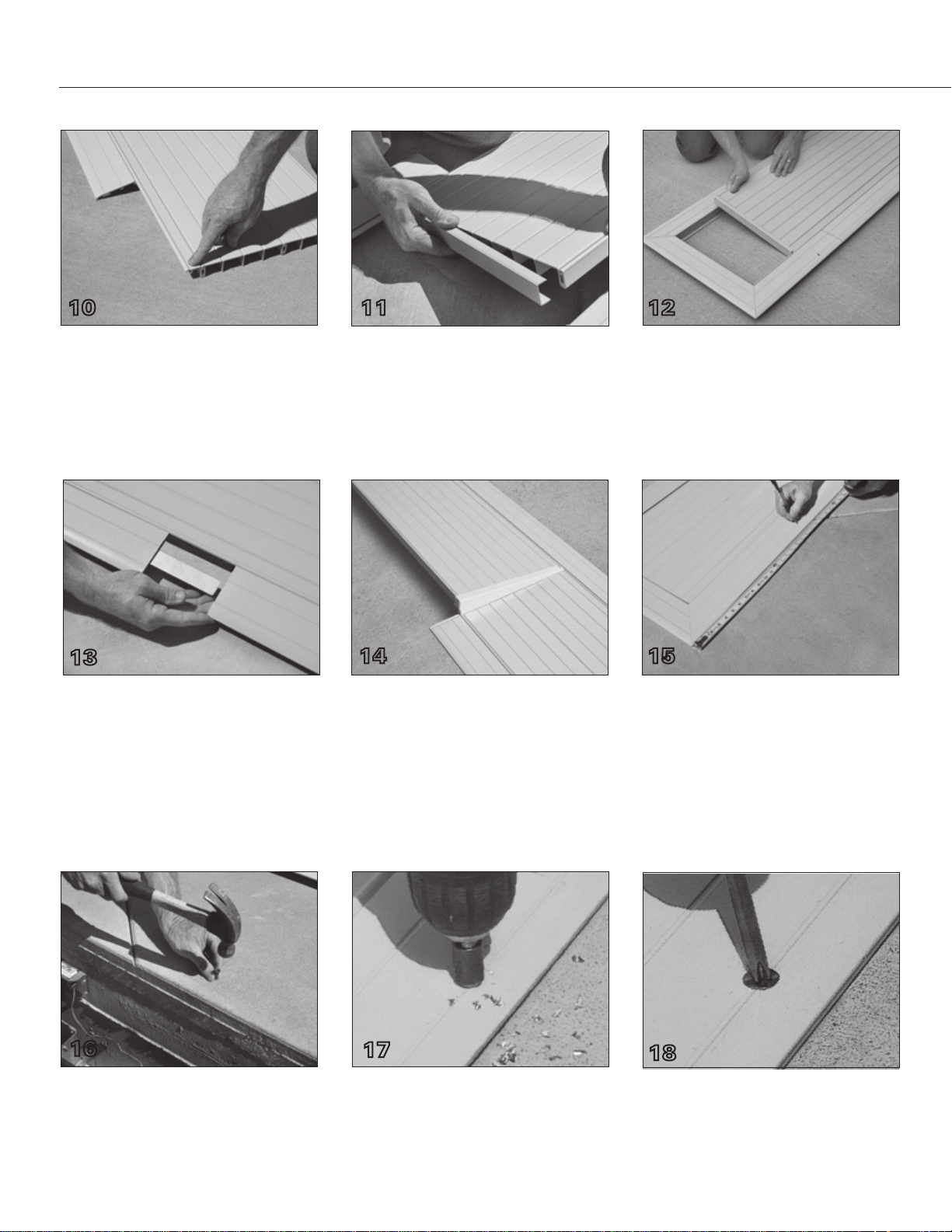

Slide the motor end and non-motor lid
sections onto the lid end support.
Measure and cut motor and non-motor
lid ends to fit. Attach the cut cover
pieces (M9363) to both sides of the mo-
tor and non-motor end lid.
The hinge attachment (X0940) should
be flush with the end of the lid and the
lid hinge is offset from the end.
Place assembled lid over the housing
and screw it into place using the 1 x
1-3/4 stainless steel screws (A2209).
10 11 12
13
16
14 15
Insert the lid hinge splices (M9362)
between each section of the lid end
support and the hinge and slide them
tightly together.
Remove the lid and hammer the plastic
anchors (A1706) into the holes.
Countersink the drill holes in the hinge.
With the lid completely assembled, set
itoverthe housing. Next, mark and drill
holes through the lid hinge approxi-
mately every 18 inches. Drill the holes
into the deck through the holes in the
lid hinge
Slide the center section through the
hinge into the position shown.
17 18
Installing The 309 Flat Lid
L9926 Ver 2.0, 10/22/18 BM
© Latham Pool Products, Inc. 2018. All rights reserved.
4 of 4
