LAUNCH TLT830WA Product Manual
ii
Caution labeling exemplify
（1）Read operating and safety manuals before using lift!
（2）Proper maintenance and inspection is necessary for
safe operation!
（3）Don not operate a damaged lift！
（4）Lift can be used by trained operators ONLY!
（5）only Authorized personnel can be in the lift area!
（6）use commend lifting points!
（7）use bracket to help disassembly or installation!
（8）Auxiliary adapters would reduce load capacity!
（9）keep area clear!
（10）the central of gravity should be between two arms!
（11）keep the area clean!
（12）do not shake the vehicle!
（13）do not lift single side of vehicle!

LAUNCH TLT830WA Product Manual
iii
（14）keep feet clear when lowering!
（15）When lifting or lowering, don’t stand under the lift!

LAUNCH TLT830WA Product Manual
iv
Table of Contents
1 NOTE ...............................................................................................................................................1
2 GENERAL INFORMATION.........................................................................................................2
2.1APPLICATION..........................................................................................................................................................2
2.2 FEATURES ..............................................................................................................................................................2
2.3 TECHNICAL SPECIFICATIONS.................................................................................................................................2
2.4 ENVIRONMENT REQUIREMENTS .............................................................................................................................2
3 STRUCTURE AND WORKING PRINCIPLE............................................................................3
3.1 STRUCTURE............................................................................................................................................................3
3.2 ELECTRICAL DIAGRAM ..........................................................................................................................................4
3.2 HYDRAULIC DIAGRAM............................................................................................................................................5
3.3 HYDRAULIC COMPONENTS IN CONTROL DESK.....................................................................................................5
3.4 PNEUMATIC DIAGRAM............................................................................................................................................6
3.5 OPERATION DESCRIPTION......................................................................................................................................6
4 INSTALLATIONAND COMMISSIONINGAND UNPACKING.............................................7
4.1 PLEASE GET THE FOLLOWING TOOLS READY FOR INSTALLATION：.....................................................................7
4.2 UNPACKING............................................................................................................................................................7
5. EQUIPMENT INSTALLATION..................................................................................................7
5.1 BASIC REQUIREMENTS...........................................................................................................................................7
5.2 INSTALLATION PROCEDURES.................................................................................................................................7
6 OPERATION.................................................................................................................................13
6.1 INSPECTION BEFORE OPERATION ........................................................................................................................13
6.2 OPERATIONAL PROCEDURES ..............................................................................................................................13
6.3 SAFETY PRECAUTIONS ........................................................................................................................................13
7 ADJUSTING..................................................................................................................................14
7.1 PREPARATIONS ....................................................................................................................................................14
7.2ADJUSTMENT PROCEDURES................................................................................................................................14
8 PARTS LIST..................................................................................................................................15
8.1 HOST ASSEMBLY..................................................................................................................................................16
8.2AUXILIARY ENGINE ASSEMBLY .............................................................................................................................21
8.3 DISTRIBUTION OF HYDRAULIC AND PNEUMATIC COMPONENTS...........................................................................25
9 TROUBLESHOOTING ...............................................................................................................28
10 MAINTENANCE........................................................................................................................29
10.1 DAILY MAINTENANCE.........................................................................................................................................29
10.2 MONTHLY MAINTENANCE ..................................................................................................................................29
10.3 BIANNUAL MAINTENANCE .................................................................................................................................29
10.4 MAINTENANCE FOR 3YEARS OR 5000 TIMES OPERATIONS............................................................................29
11 STORAGE AND SCRAPPING..................................................................................................29
11.1 STORAGE............................................................................................................................................................29
11.2 SCRAPPING ........................................................................................................................................................29
#2 LITHIUM LUBRICANTS ...........................................................................................................................................30
N32 MECHANIC OIL (FOR WINTER)............................................................................................................................30
N46 MECHANICAL OIL (FOR SUMMER)......................................................................................................................30

LAUNCH TLT830WA Product Manual
1
1 Note
Warning
zThis manual is an important part of the product. Please read and understand it thoroughly.
zKeep the manual for future use in inspection and maintenance.
zDo not use the product for any other purposes.
zThe manufacturer is not responsible for any damage caused by improper use or uses other than
the designed purpose.
Precautions
zOnly well-trained personnel can operate the lift. Any changes to the components or use for other
purpose without the consent of the manufacturer may cause direct or indirect damage to the
product.
zDo not expose the lift to extreme temperature or humidity. Keep it away from heating device,
faucet, humidifier or furnace.
zDo not install the lift outdoors or expose it to rain. If it is really necessary to do so, a special order
should be made from the manufacturer.
zKeep the lift away from the dust, ammonia, alcohol, thinner and spray adhesive.
zKeep away from the lift when it is in operation.
zInspection of the lift should be carried out regularly. Do not operate a damaged lift or a lift with
broken parts. All the parts are only replaceable with the parts provided by the manufacturer.
zDo not overload the lift. The maximum lifting weight is clearly marked on the nameplate.
zDo not operate the lift when there are personnel in the vehicle.
zKeep the lifting area clear of obstacle, grease, oil, garbage and other substances.
zUse the lifting point recommended by the auto manufacturer. Keep the support in close contact
with the vehicle.
zUse appropriate tools and safety protection equipments such as overall and working boots.
zPay special attention to the safety labels on the control desk.
zKeep hands and other body parts away from the moving parts of a lift in operation.
zDo not remove or override safety protection of the lift.
zHydraulic oil for the lift is N32 or N46 mechanical oil. Pay attention to the safe data as described in
this manual.
zFor the sake of technical improvements, Launch (Shanghai) Machinery Co., Ltd reserves the right
to change the specifications without prior notice.

LAUNCH TLT830WA Product Manual
2
2 General Information
2.1 Application
This lift is designed for the purpose of lifting light vehicles under 3.5 tons for vehicle test, service
and cleaning.
This machine can also be used as a lifting devise in production lines, for material transportation
and work piece assembly.
2.2 Features
1 Dual layer scissor lift，with front wheel turn table, side slide plate for rear-wheel, rolling bridge jack,
suitable for four - wheel alignment.
2 The lift features advanced design, durability, and compact layout.
3 Can be installed both under and above ground
4 Hydraulic system keeps both platforms level.
5 Mechanical protection device throughout the travel distance.
6 Automatic height limiting device, protect machine from damage
7 Automatic lubricating system and oil-less bearings
2.3 Technical Specifications
Max. Lifting
Height (mm)
Max.
Lifting
Weight
(kg)
Lifting
Time
(sec)
Lowering
Time
(sec)
Power
(kw)
Numbe
r of
Platfor
ms
Platform Size
(mm)
Overall
Weight (kg)
Synchroniz
ation
Precision
(mm)
Rolling
bridge jack
height
difference
(mm)
Small
scissor
450
3500 ≤30 ≥20 1400×580
Big
scissor
1850
3500 ≤60 ≥20
2.2 2
4500×580
1950
≤40 ≤8
Electric specifications：
Motor (Optional): 2.2kw voltage: According to customer demand
Voltage options: Single-phase/3-phase 220v/380v 50Hz
Noise
Noise emission at workstations < 75dB (A)
Hydraulic System
Max. Working Pressure: 22 MPa, Flow rate: 5-6L/min.
Pneumatic System
Working Pressure: 5 kg/cm2
2.4 Environment requirements
Temperature: 0℃~ +40℃
Relative Humidity: ≤80% Temperature ≥30℃
Transportation/Storage Temperature: -25℃～+55℃
Altitude: ≤2000m(78740″)

LAUNCH TLT830WA Product Manual
3
3 Structure and Working Principle

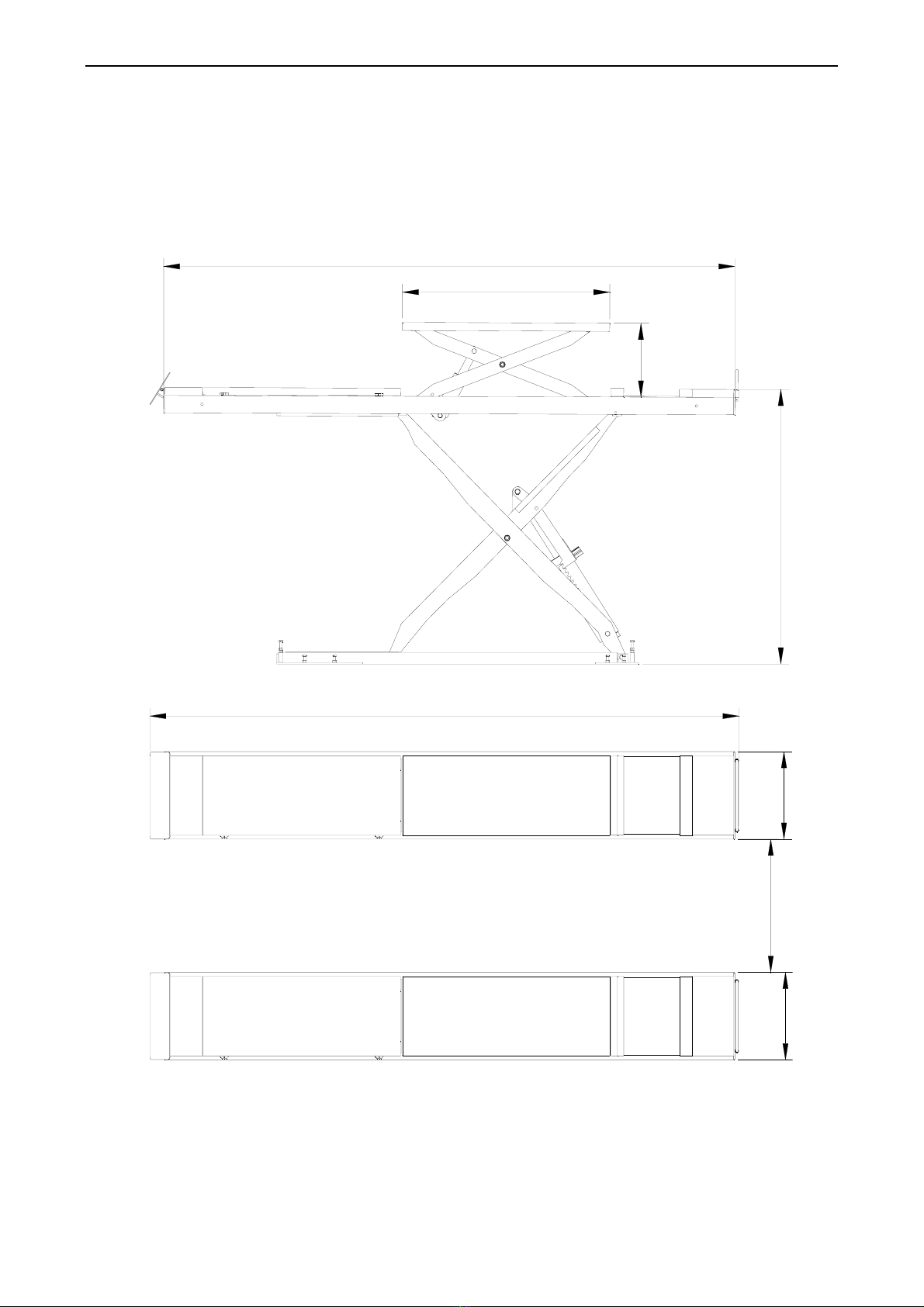

3.1 Structure
1400
605
4500
605
4660
780 330-1850
≥450
Fig1

LAUNCH TLT830WA Product Manual
4

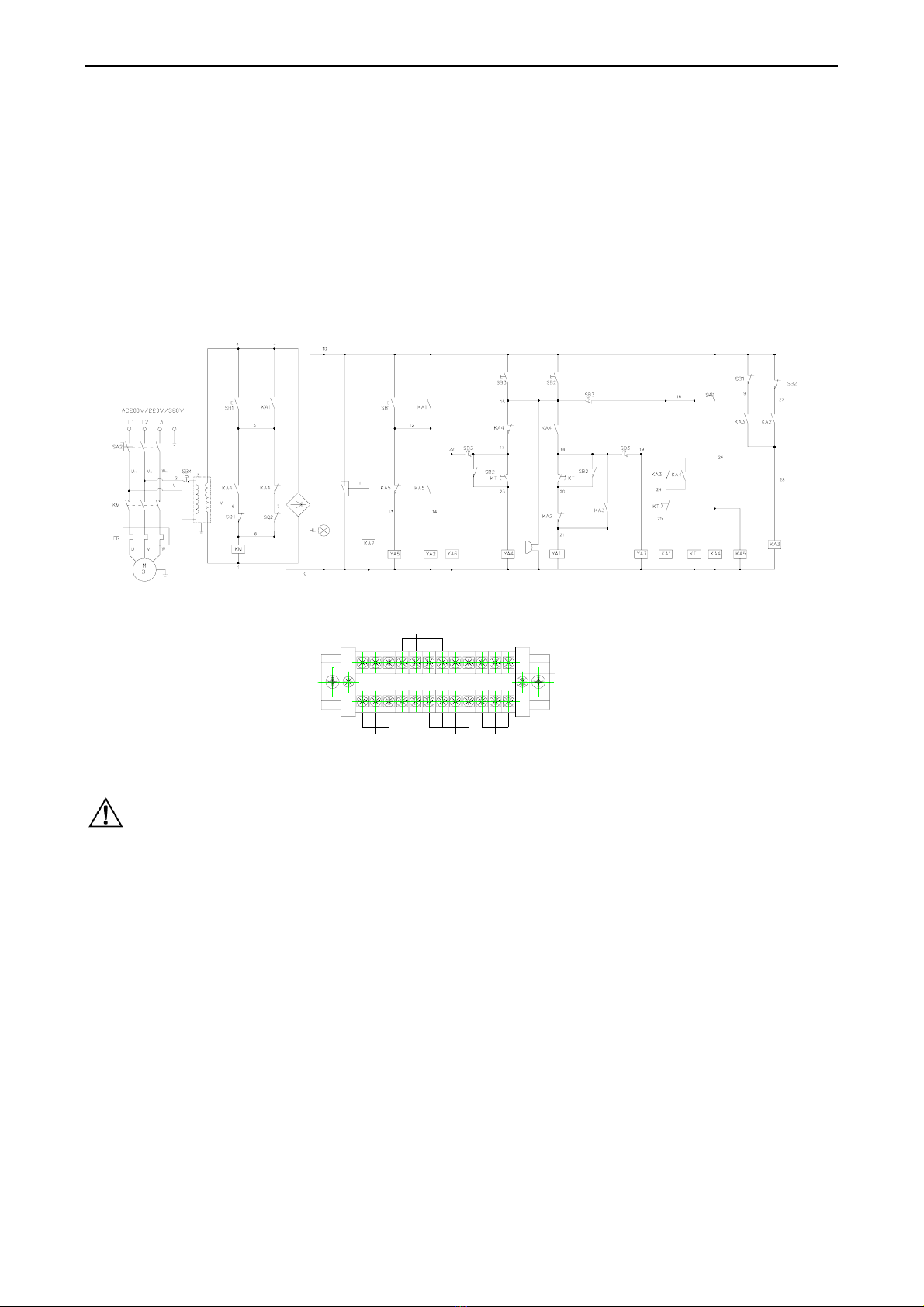

3.2 Electrical Diagram
lowering
valve I
time
relay
electric
relay
AC200V/220V/380V
small air
cylinder
valve I
lowering
valve II
smaller
cylinder
valve II
380 ~
U
~
3~
M
U
PEL1
VD
27
T
220V
~
U
1~
M
FR
U
SA2
KM
PEL1
AC110V/220V 1PH
1
2
KM-contactor
H-buzzer
YA-electron magnetic valve
H
buzzer
electric
relay
Bi-
directional
valve II
Bi-
directional
valve I
Fig 2
Big scissor lifting procedure: turn the switch（SA1）to“I”position，When the UP button SB1 is pressed
the contactor KM will close. The motor will drive the pump and send oil to the cylinder. Main two-way solenoid
valve YA2 coil pick-up, which will in turn raise the platform upward；Once the UP button SB1 is released,
contactor KM will be open and the power to the motor will be cut off to stop the platform. Keep pushing button
SB1; the platform will reach a position so that limit switch SQ1 is triggered. Then SQ will open to stop the
motor and the platform to protect the machine from damaged.
Safety procedure：Release button SB1 when the platform reaches a desired height and press SAFETY
LOCK button SB3 to actuate lowering solenoid valve YA1 and the safety ratchet will be engaged by lowering.
Before servicing the car, make sure the safety lock is functional.
Big scissor lower procedure：After service is completed, push the UP button SB2, time contactor KT and
contactor KM will close. The motor will drive the pump to send oil to the cylinder, Main two-way solenoid
valve YA2 coil pick-up, which will in turn push the platform upward 2 seconds (adjustable) to release the safety
ratchet. Meanwhile small YA3 air cylinder valve electrical connection is established, the safety cover is fully
open. After 2 seconds contactor KT will open. The motor and the platform will stop. And at the same time,
lowering solenoid valve YA1 begins to work so that the platform will start to go down (See Figure 2)
Small scissor lifting procedure：turn the switch to “II”position，When the UP button SB1 is pressed the
contactor KM will close. Auxiliary two-way solenoid valve YA5 coil pick-up，which will in turn raise the platform
upward；Once the UP button SB1 is released, contactor KM will be open and the power to the motor will be cut
off to stop the platform. Keep pushing button SB1; the platform will reach a position so that limit switch SQ1 is
triggered. Then SQ will open to stop the motor and the platform to protect the machine from damaged.
Safety procedure：Release button SB1 when the platform reaches a desired height and press SAFETY
LOCK button SB3 to actuate lowering solenoid valve YA4 and the safety ratchet will be engaged by lowering.
Before servicing the car, make sure the safety lock is functional.
Small scissor lowering procedure：Push the UP button SB2, time contactor KT and contactor KM will close.
The motor will drive the pump to send oil to the cylinder, auxiliary two-way solenoid valve YA5 coil pick-up,
which will in turn push the platform upward 2 seconds (adjustable) to release the safety ratchet. Meanwhile
small YA6 air cylinder valve electrical connection is established, the safety cover is fully open. After 2 seconds
contactor KT will open. The motor and the platform will stop. And at the same time, lowering solenoid valve
YA4 begins to work so that the platform will start to go down (See Figure 2).
Stop procedure: Press stop button SB4 when needed.

LAUNCH TLT830WA Product Manual
5
3.2 Hydraulic Diagram
Z1 Z2F1 F2
PP
1
3
2
4
5
6
7
88
99
1
10
10
11 11 1111
12
7
Fig3
3.3 Hydraulic Components in Control Desk
12 11
13
14
10 36
15
9
2
54
1
NO.3(Z2)
NO.4(F2)
NO.2(F1)
NO.1(Z1)
7
8
Top view
4
123
678910
11 12 13 14
15
5
motor big scissor control solenoid
valve
big scissor oil
interface
Small scissors and high
pressure cut-off valve
big scissor high pressure
cut-off valve
Small scissors oil interface
bismall scissor emergency lowering handle
bigscissor emergency lowering
handle
check valve
Small scissor control
solenoid valve
Exhaust Oil
Port
Oil cap
Speed control
valves
NO.1(Z1):big scissor main cylinders hydraulic tubing
tank(Oil capacity:15L)
NO.2(F1):big scissor offside cylinders hydraulic tubing
System pressure control valve
NO.3(Z2):small scissor main cylinders hydraulic tubing
NO.4(F2):small scissor offside cylinders hydraulic tubing
Fig 4
Under normal working conditions, the main cycle of the combined valve 5 is open, while the subsidiary

LAUNCH TLT830WA Product Manual
6
cycle is closed. Small scissor main high pressure valve 4 is opened, deputy valve is turned off (to open valve
counterclockwise, clockwise to turn off) If lifting hydraulic system failure or power outage, need to use the Jack
to move the insurance top gear, chocked with object to avoid insurance teeth meshing in the descent, then
rotate emergency back-port 12 to lowering the Small scissor lift. Then rotate emergency back-port 11 to
lowering the big scissor lift. System for lowering speed can be adjusted by adjusting the throttle valve 13.
During the adjustment process and adding oil, the operator should be careful.
Hydraulic oil leveling:
To fill oil to slave cylinder of the big scissor, open the deputy valve and close main high-pressure valve 5,
then push the big scissor's up button to filling and adjusting. If too much oil is added, press the DOWN button
to discharge oil to ensure the two platforms at same height. To fill oil to slave cylinder of the small scissor, open
the deputy valve and close main high-pressure valve 4, then push the small scissor's up button to filling and
adjusting. If too much oil is added, press the DOWN button to discharge oil to ensure the two platforms at
same height. After finishing the adjustment, open the main cycle and turn the subsidiary off.（see fig4）
3.4 Pneumatic Diagram
Air source
Valve
Filter
Cylinder
3.5 Operation description
Pay attention to balance during up and down。
Note things around when lowering the lift。
Safety locking device is engaged，in this case staff allowed work
under the car。
Attention：
TLT830WA
Fig 5

LAUNCH TLT830WA Product Manual
7
4 Installation and commissioning and Unpacking
4.1 Please get the following tools ready for installation：
Tools Specifications
Level Bar L=400（15.7″）
Chalk Line 10mm （0.4″）
Taper Plunger Chip
Hammer 1.5 kg (3 lb)
Crescent Wrench 40mm（1.6″）
Open end Wrench Set 11mm-23mm（0.43″-0.9″）
Allen Wrench Set 2mm～12mm
Screwdriver 150mm（5.9″）
Rotary Hammer Drill 20mm（0.8″）
Hard Alloy Drill Bit Φ19mm（0.75″）
Frame Level（JB3239-83）L*W*H＝300x40x300(11.8″x 0.16″x 11.8″)
4.2 Unpacking
The lift is delivered in three separate boxes: 2 platforms (with hydraulic hoses) and 1 control desk.
Unpack according to the instructions on the packages. Remove the packing materials and check for
damage and loss of components.
To avoid accidents from occurring, keep the packing material away from children. The packing materials
need to be disposed of properly if they may contaminate the environment.
5. Equipment installation
5.1 Basic requirements
yThe lift can only be installed on concrete floor with a minimal thickness of 200mm（7.9″），and at least
7 days of solidification time.
yThe strength of the concrete ground should exceed 3000PSI（2.1kgf/mm2）。
yThe tolerance of the concrete floor levelness should not exceed 5mm（0.2″）。Slight slope can be
corrected with shims. Excessive slope on the ground will greatly affect the performance of the lift. In
this case, new concrete slab should be made.
yInspect for possible hindrance such as low ceiling, overhead pipelines in the work area, passageways
and escapes. The working area of the lift should be 4.2M（165.4″）high to give enough space.
yAllow enough space（at least 2M（78.7″））at the front and back of the lift so that operation should not
be hindered. (see fig6)
yPower supply: Put the power source in place before installation. All the wiring should be performed by a
qualified electrician.
5.2 Installation Procedures
5.2.1 Tunnel Installation
Tunnel positioning mode is the same as the normal positioning，but tunnel positioning is more difficult
than the usual ones because to avoid cars slipping, the hanging plates hidden component need to be
replaced. Tunnel size see fig 6, normally only few people install the lift without the hanging plates hidden

LAUNCH TLT830WA Product Manual
8
component in the tunnel. Location of tunnel floor dimensions refer to figure 7
Warnings ：
♦The depth of the pits should over 200mm，The strength of the concrete ground should
be great than 3000PSI（2.1kg/mm2），and the tolerance of the concrete floor levelness
should not exceed 5mm（0.2″）。
♦Use the lifting equipment to put the host and vice machine into the pit
780670 670
2000Min
800Min
4600
400Min
1800Max
900
45°
φ 100
20
330
480
wall

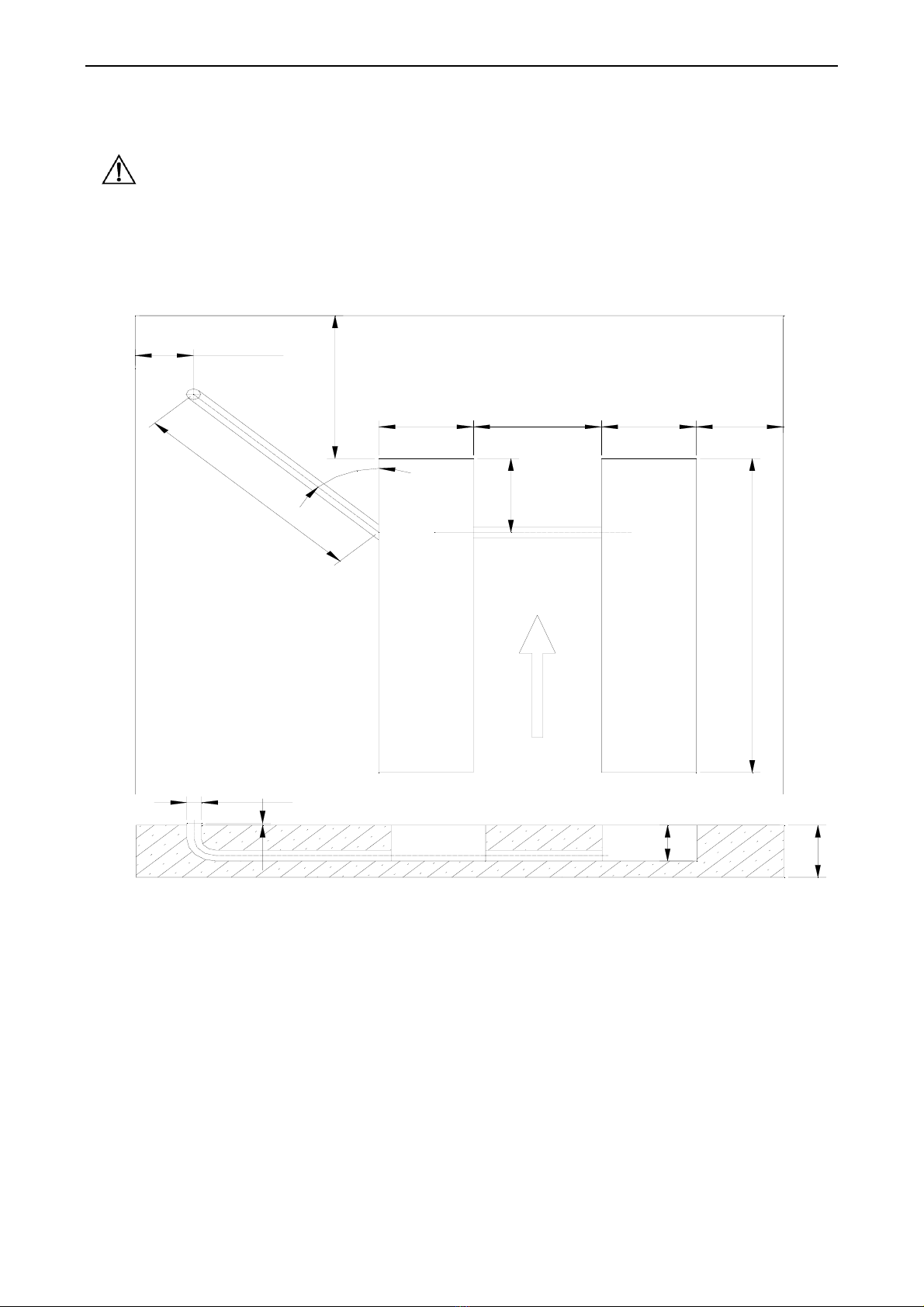

Fig 6
5.2.2 Above floor installation
♦Equipment installation shown in figure 7，total width with 2530 mm ( 99.6 '' ), draw two
parallel lines on top of the concrete slab ( 1# and 2# ), error in 3mm ( 0.1 in ).
♦And then draw the four parallel lines ( A, B, C, D ), and 1# and 2# perpendicular to the
line
♦According to figure 7 put the host and auxiliary machines in the wireframe

LAUNCH TLT830WA Product Manual
9
car direction
3267.1
543
480
2585
1565 235
549 599 800
25
1998
16-φ20
Master
Slave
Fig 7
Attention ：
♦All dimensions are based on outer boundary of the base plate.
♦Ensure that the overall error control within 6mm（0.24″）
♦Draw a layout is very important. If not, problems will arise in the final assembly and
operation
5.2.3 Control Desk Installation
zAccording to the situation on the ground to determine the positions of electronic control boxes and
determine power supply requirements for local use, according to the diagram requirements
zWiring diagram shown in figure 8.
zAfter opening the side door of electronic control box, connect the limit switch cable to terminals （5，7）
on the big scissor, connect the limit switch cable to terminals （6，7）on the small scissor. Then use
4x2.5mm2 wire (Supplied by the customers themselves) respectively to connect the terminals L1, L2, L3,
PE. Check the correct connection before let the power on; open the control box to turn on the power
switch, now the power indicator light on the operator panel is on.

LAUNCH TLT830WA Product Manual
10
zRequirements for the lifting machine control box installed near the power control switch, for maintenance
and emergency cut off power supply circuit. Electrical components damage due to error wire connection is
not covered by warranty.
zOil Injection capacity as required. Do not start the motor without oil
zFill hydraulic oil N32 or N46 (approximate 20L) into the oil tank (using oil gauge to check the level). Pay
special attention to avoid dust and contaminants into the oil.
zAfter hoses are assembled, press up button to check power system. If motor does not run, or gets
abnormal noise, or motor runs but lift does not go up or motor heats up. The power must be cut off and
check the wiring connection.
lowering
valve
II
380 ~
~
~
PE
VD
27
T
H
607811
13
141921
22
23 0
electric
relay
Bi -
directional
valve I
Bi -
directional
valve
II
smaller
cylinder
valve
II
lowering
valve
II
buzzer lowering
valve I
small
air
cylinder
valve I
electric
relay
time
relay
Bi -
directional
valve I Bi -
directional
valve II
small
air
cylinder
valve
I
lowering
valve
I
limit
switch
Ilimit
switch
II
Optical
switch
small
air
cylinder
valve
II
Fig 8
Notice：
High Voltage inside the control desk! Wiring should be performed carefully
5.2.4 Hydraulic Hose Connection
zTLT835WA Hydraulic pipeline as shown in figure 9。To inject hydraulic oil into the tank in accordance with
the requirements and capacities，then connect the hydraulic hose Z1 to hydraulic pipe fitting Z1 inside
the control box and tighten the fitting, Check the status of the combined valve. (Main cycle is opened and
the subsidiary is closed.)
zPress UP button，Test power supply unit：If the motor does not run, abnormal noise, the motor is running
but the table does not raise abnormal motor heat. At this point should be immediately shut down and
check the electrical connections are correct
zPress UP button, raise the host platform to 1.5 m (59') high, press the safety lock button, makes
machinery insurance work

LAUNCH TLT830WA Product Manual
11
zFollow the wiring diagrams connect the hydraulic hose F1 to hydraulic pipe fitting F1 inside the control box,
the same, connect hose Z2 and F2 to hydraulic pipe fitting Z2 and F2 and tighten the fitting
Small scissor offside cylinder
Small scissort master cylinder
big scissor offside cylinder big scissort master cylinder
T-fitting
YJF
NO.1(Z1)
NO.2(F1)
NO.3(Z2)
NO.4(F2)
pump
station

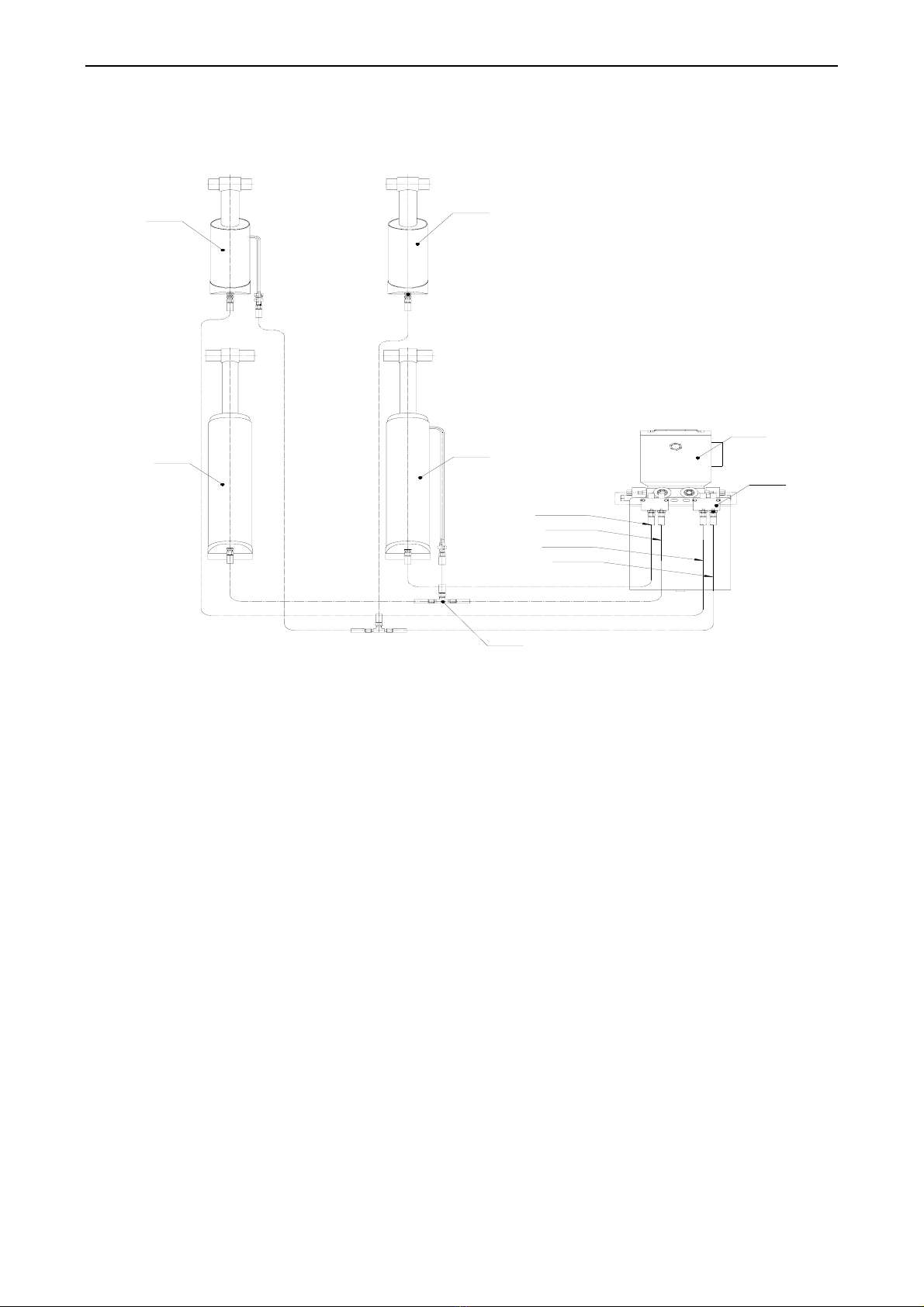

Fig 9
zTurn off the main high pressure cut-off valve on the big scissor, open the duty high pressure cut-off valve,
Press UP button, raise the auxiliary platform to 1.5 m (59') high, press the lowering button, makes
machinery insurance work. Requires host and auxiliary safety gear meshing at the same height position
so that the small scissor can be adjusted.
zPress UP button，raise the host platform of the small scissor to 0.35M（13.8″）high，Turn off the main
high pressure cut-off valve on the big scissor, open the duty high pressure cut-off valve，Press UP button,
raise the auxiliary platform to the same height. Turn the main and auxiliary high pressure valve to a
working state
zThe oil pipe in the machine should be installed reliably and securely, avoid squeezing the pipe when the
machine is lowering Cause damage to the pipe affect the normal use of the device
zTurn the main and auxiliary high pressure valve to a working state after all the oil pipe have been
installed.
zFor surface mounting, after piping connected to the slot cover plate must be installed
5.2.5 Anchoring
zWrap the oil fittings, cable connections and joints of the lift to prevent dusts from getting in.
zWith the help of the holes on the base plate, drill and install the anchor bolts. In the process of drilling,
make sure that there is no movement at the base frames. Fasten the base frames of the lift to the pits with

LAUNCH TLT830WA Product Manual
12

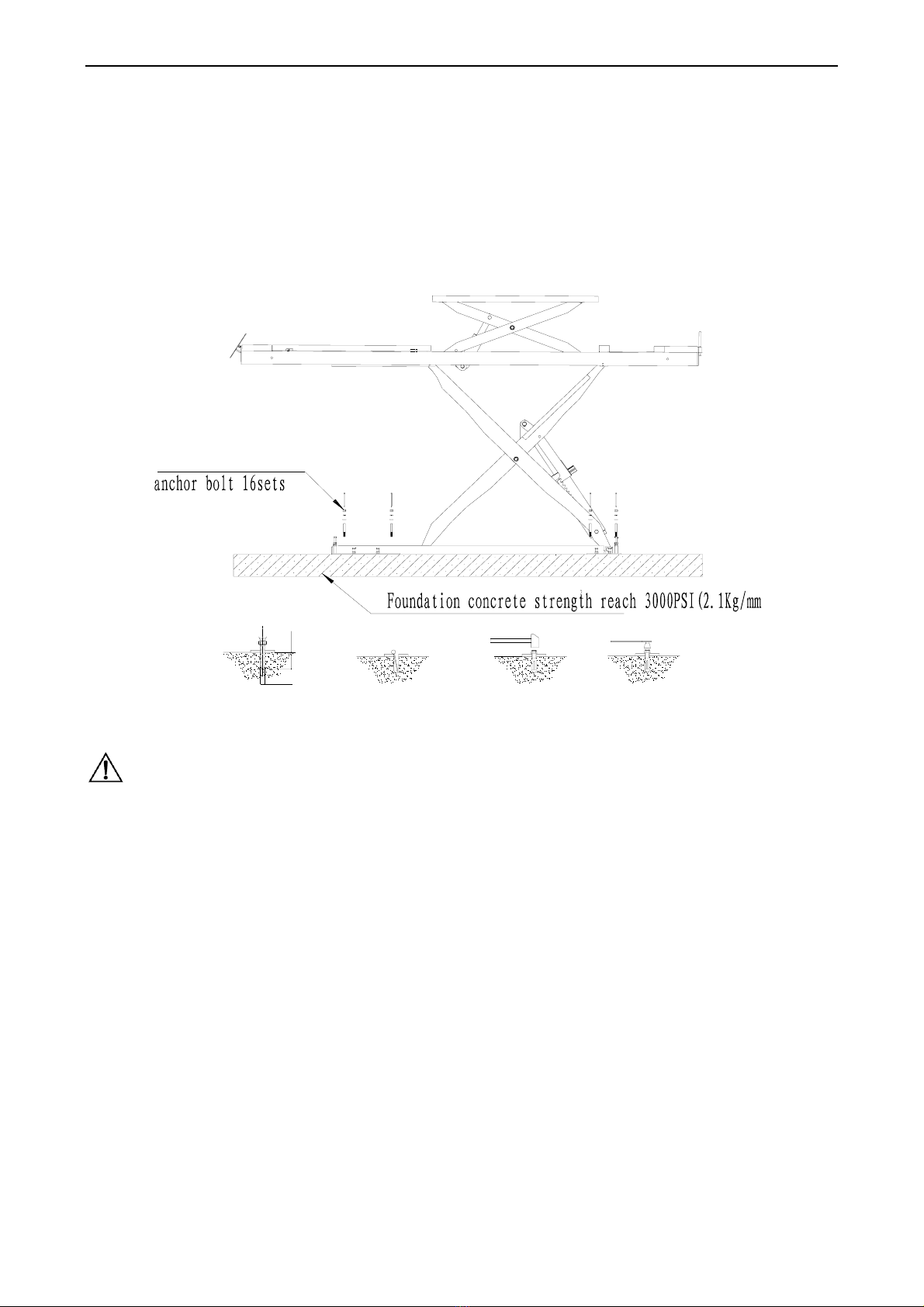

16 M16x160mm(M0.63″x6.3″) anchor bolts（Fig.11）
zRotate adjustment screws on the base plate; adjust the plat until they are leveled.
And the host and auxiliary table height difference is not greater than 3mm(0.1″)。Choose the right thickness
of steel plate as a gasket (accessories) put it under the base plate; gasket should be inserted with both sides
of expansion bolts.
zTighten out the nuts to fix the base frames on the pits.
zIf installed on the ground, then follow the steps above to install anchor bolts of the approach plate.
M16x160mm(M0.63"x6.3")
φ22
150
drilling
clean
expanding
fastening
Fig 10
Cautions:
zTo ensure safety and performance, follow the installation procedures step by step.
zWear safety goggles。
zUse strong alloy drill bit with a diameter of 17mm（0.7″）. Do not use worn-out drill bit
zKeep the hammer drill upright with the surface of the hole.
zKeep hammer drill going by itself. Do not apply extra pressure.
zThe depth of the hole depends on the length of the bolt. It is advisable that the bolts above the base
frames should be around 30mm. （1.2″）
zRemove the dust from the holes.
zTap the bolt into the hole, insert and hit the core until the bolt fully expands
zTighten out the bolts with torque wrench with a capacity of 80N.M
5.2.6 Air Hose Connection
zConnect the hoses according to the pneumatic diagram
zKeep the output pressure of the air source at 5kg/cm2.
zPress down button to check if the air cylinder acts correctly. If not, please check the hose connection.

LAUNCH TLT830WA Product Manual
13
6 Operation
6.1 Inspection before operation
zCheck for the synchronized and steady movement of the platforms.
zCheck the sensibility and reliability of safety ratchet.
zReview the platforms reach the highest position ( 1850mm 72.8 ), the platform will automatically stop
rising
zCheck if two small platforms up and down movement is consistent and smooth
zCheck when small platforms rose to the highest position（450mm 17.7″），whether the platform is
automatically stopped rising
zView cylinders, tubing and connectors with or without leakage
zCheck solenoid valve, air cylinder, pressure - regulating valve, connector has no leakage phenomenon
zCheck the motor, gear pump operation sound is normal
zCheck the slide plate for proper action
zCheck the emergency stop button is working correctly
6.2 Operational Procedures
zVehicle into the lift machine speed should be kept under 5km/h, confirm that the slide latch plates are
plugged in.
zWhen the vehicle is stopped, the front wheel is located at the centre of the turn plates, pull your hand
brakes
zPress the up button, rise the vehicle to 200mm~300mm (7.9″～11.8″)
zCheck whether the vehicles and lifting machine level and have no abnormal state。
zContinue pressing the up button, to lift the vehicle up to its required height。
zPress the lock button，bring down the platform，safety gear meshing and keep the platform level on both
sides
zPress the small scissors lift button to remove the tire
zCheck there are no foreign objects around or below the lift before start to repair and maintain the vehicle,
make sure there is no abnormal state and then press the down button; lowering down to the initial
position.
6.3 Safety Precautions
zThe hydraulic relief valves are well-adjusted before leaving factory. The manufacturer will not be
responsible for any damage caused by unauthorized adjustment.
zCheck the safety lock ratchets are engaged before going about any under-car jobs
zBefore the small scissors lift the vehicle up, suitable pad must be selected. Place rubber pads on the
platforms and spread them for maximal support.。
zIn case of any leakage in the hydraulic system, fix the problem and refill the oil to the proper level.
zWhen you press the lock button，after the safety gear on both side meshing，immediately release the
button，otherwise the cylinder back oil will be too much. After the completion, press the lowering button
(big scissor), circuit settings for the cylinder cannot supply enough oil to make the platform rise to
disengage the safety gear. At this point, platform could not be descended or only one side of safety gear
disengaged, and the other side still engaged, which leads to only one platform descended, and the
vehicle will rollover. (See hydraulic schematic diagram)

LAUNCH TLT830WA Product Manual
14
7 Adjusting
7.1 Preparations
zMove the contact surface of in roller filling in 2# lithium grease, from left to right scrolling surface evenly.
zAdd 2# lithium grease at the joints of the machines.
zFill up the tank with hydraulic Oil N32 or N46（Depending on the season and the local temperature）
7.2 Adjustment Procedures
zCheck if all the connection bolts are tightly fastened
zIf there is air in hydraulic system due to new installation, air bleeding performance is needed. The air in
the master cylinder can be bled after the platform goes up and down several times. The air in the slave
cylinder can be bled out by following steps: lift master platform close to the maximal height; adjust the
main high-pressure valve until it is turned off, open the deputy valve; press the UP button to raise the
slave platform reaches near the maximal height, press the DOWN button to lower slave platform to the
bottom. Repeat three more times, all the air in the slave cylinder can be bled after the operation.
zAdjust the amount of auxiliary engine oil, to let the platforms stop at appropriate height。
zTurn the high-pressure valve to working status.
zPress UP button, the platforms begin to raise, release the UP button, the platforms stop moving. Press
the safety lock button, scissor lock down. Then, press the DOWN button, the platforms will raise a little to
disengage to safety claw, meanwhile the safety cop is opened, lift will be lowered.
zThe same operation on the small platform.
zAdjust position of the mounting plate equipped with a limit switch make sure the platforms up to the
proper height, limit switch is triggered, pumping station stop working; cutting off cylinder oil, platform stop
rising and thus play a role in protecting the machine.
Notice：
zAttention should be paid to the position of oil pipes and hydraulic hose when the platforms move to the
minimal height for the first time. Make sure they do not get stuck with platforms moving downwards.
zWhen bleeding the air in the slave cylinder, do not lift Master Platform to the maximal height. Otherwise,
the limit switch is triggered, the power will be cut off and Slave Platform can't move.
zWhen bleeding the air in the slave cylinder lift Slave Platform to highest position, and then release the UP
button. Otherwise Oil pressure may damage the hydraulic cylinder

LAUNCH TLT830WA Product Manual
15
8 Parts List
This parts list is only to be used by maintenance and servicing personnel.
The manufacturer is not responsible in case it is used for any other purposes.
If any parts get damaged, please order from your dealer or Launch Tech.

LAUNCH TLT830WA Product Manual
16

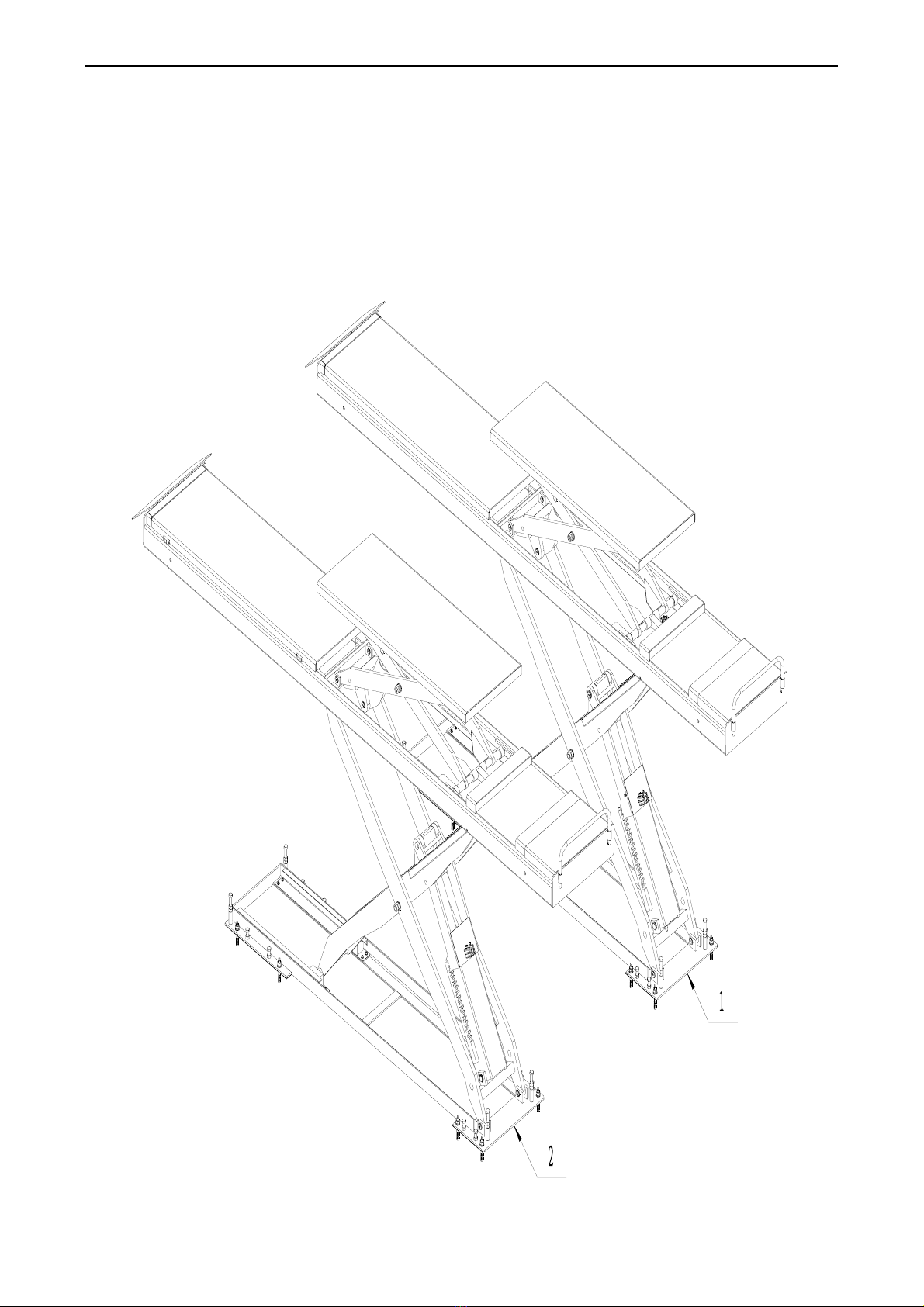

8.1 Host Assembly
No ERP Code Name
1 307041275 HG-DJ-2000-22 Side board welding part
2 307041276 HG-DJ-2000-5 Roller pad
3 307041277 HG-DJ-9000B Main connecting rod
4 307041278 HG-DJ-9000AVice connecting rod
5 307041279 Offside cylinder for auxiliary machinery
