LAZBOY Limited User manual

OWNER’S MANUAL
Limited
11620 54
th
Street North
Clearwater, FL 33760
866.461.3123
www.lazboylimitedspa.com
Part Number 8271118

Owner’s Information
Dealer:
Date Purchased: __________________________
Company: __________________________
Address: __________________________
Telephone: __________________________
Installer:
Date Installed: __________________________
Company: __________________________
Address: __________________________
Telephone: __________________________
Spa:
Date Delivered: __________________________
Model: __________________________
Color: __________________________
Serial Number: __________________________

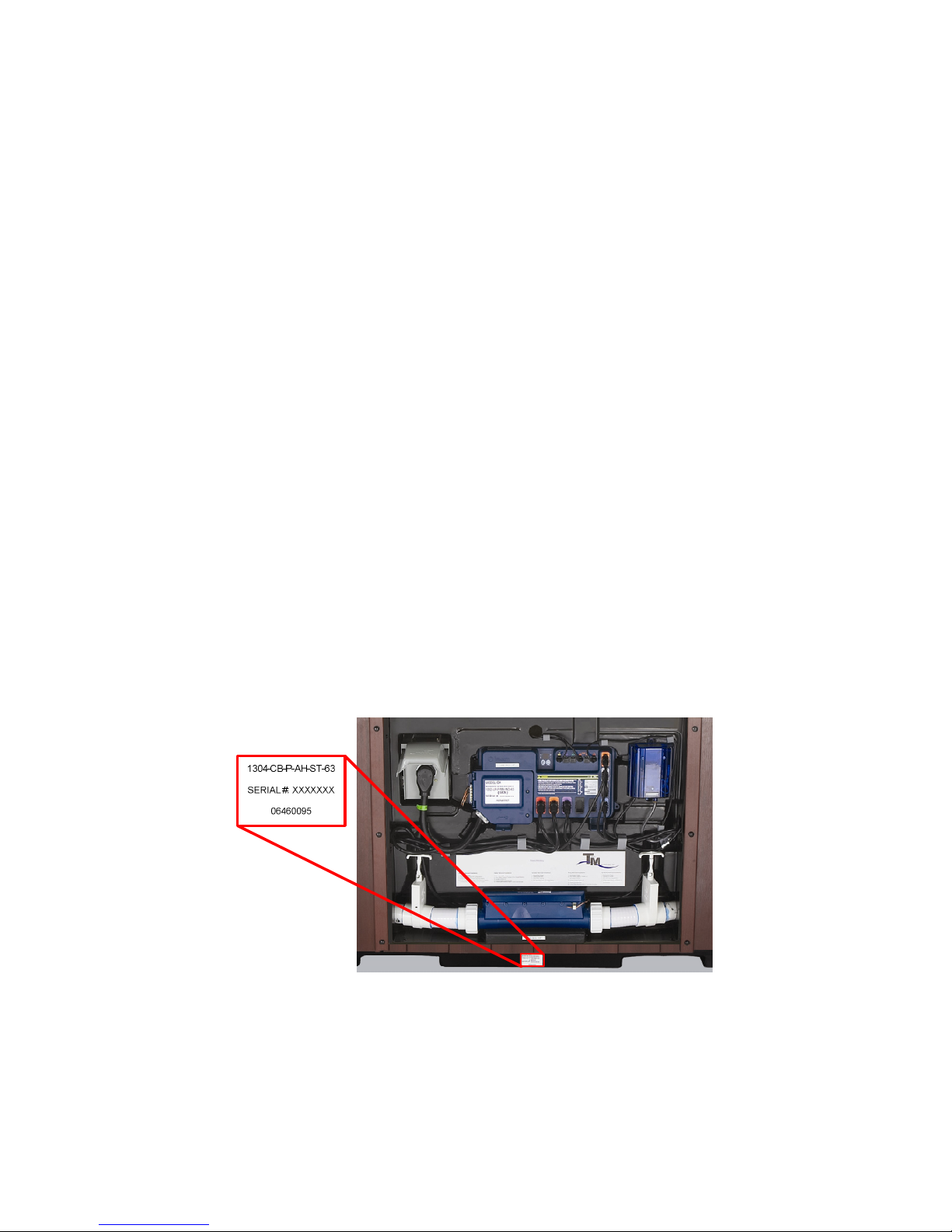

Your unique spa serial number is located on a data plate outside the
cabinet at ground level directly below the topside control panel. When
calling for service, have your serial number in hand.

Page 1
For HELP, call In-Touch at 866.461.3123
L
L
La
a
a-
-
-Z
Z
Z-
-
-B
B
Bo
o
oy
y
y®
®
®
S
S
Sp
p
pa
a
as
s
s O
O
Ow
w
wn
n
ne
e
er
r
r’
’
’s
s
s M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
T
T
Ta
a
ab
b
bl
l
le
e
e o
o
of
f
f C
C
Co
o
on
n
nt
t
te
e
en
n
nt
t
ts
s
s
Introduction ................................................................................. 2
Features ...................................................................................... 3
Safety Information ....................................................................... 4
Location and Installation ............................................................. 8
Electrical Specifications............................................................. 10
Startup ....................................................................................... 16
Topside ontrol ......................................................................... 22
Stereo System ........................................................................... 33
Remote ontrol ......................................................................... 34
over ......................................................................................... 35
Water Management ................................................................... 36
Frequently Asked Questions ..................................................... 36
Troubleshooting ........................................................................ 40
Maintenance and are .............................................................. 44
Shutdown / Winterizing ............................................................. 48
Glossary .................................................................................... 49
Specifications ............................................................................ 50
onditions of Warranties ........................................................... 54
Limited Warranty .............................................. Inside Back over
Additional information is available at www.lazboylimitedspa.com.
Important: Living Water
™
Products is dedicated to offering you the best in
customer satisfaction and service. Be sure to read, complete, sign, and send in
the limited warranty card within 30 days of purchase to ensure you
understand what you are entitled to in terms of service. If you have any
questions, you can call In-Touch
™
, our 24/7 customer care center, at
866.461.3123.
Printed in the U.S.A.
Part Number 8271118 Version 5.7
opyright © 2008, Living Water
™
Products. All rights reserved. No portion of this manual may be reproduced in any
manner without express written permission of Living Water Products.
La-Z-Boy
®
is a registered trademark of La-Z-Boy
Incorporated and is used under license to Living Water Products. In-Touch
™
, Living Water
™
, PowerDepot
™
, and
Thermazone
™
are trademarks of Living Water Products. All other brands, product names, company names, trade names,
trademarks, and service marks used are the property of their respective owners. Living Water Products may make product
modifications and enhancements. Specifications may change without notice. International products may be configured
differently to meet local electrical requirements. Dimensions are approximate. Patents pending.

Page 2
For HELP, call In-Touch at 866.461.3123
I n t r o d u c t i o n
Your choice of a La-Z-Boy™ spa indicates that you are devoted to
excellence. The management and staff appreciate your patronage and
takes pride in the tradition of quality spas that our company represents.
To properly acquaint yourself with your spa, we suggest that you take
time to read through this manual before hook up and operation. Doing so
will familiarize you with important operating and safety procedures,
thereby ensuring an enjoyable experience right from the start.
If you need any more information than this manual provides, feel free to
visit our Web site at www.lazboylimitedspa.com or call In-Touch™, our
24/7 customer care center, at 866.461.3123. In-Touch is the hot tub
industry’s only full-service diagnostic care center operating 24 hours a
day, 7 days a week. Staffed by fully-trained industry professionals, a
simple call to In-Touch puts help on the line.
WARNING: This manual was written to ensure the proper use and
installation of your spa. Any modifications to the
procedures outlined in this manual may result in voiding
your warranty.
This manual and its contents are subject to change without notice.
Although we have prepared this manual as accurate as possible, we are
not liable for errors or omissions; loss, injury, or damages caused by
improper installation; or use of spa (improper or otherwise).

Page 3
For HELP, call In-Touch at 866.461.3123

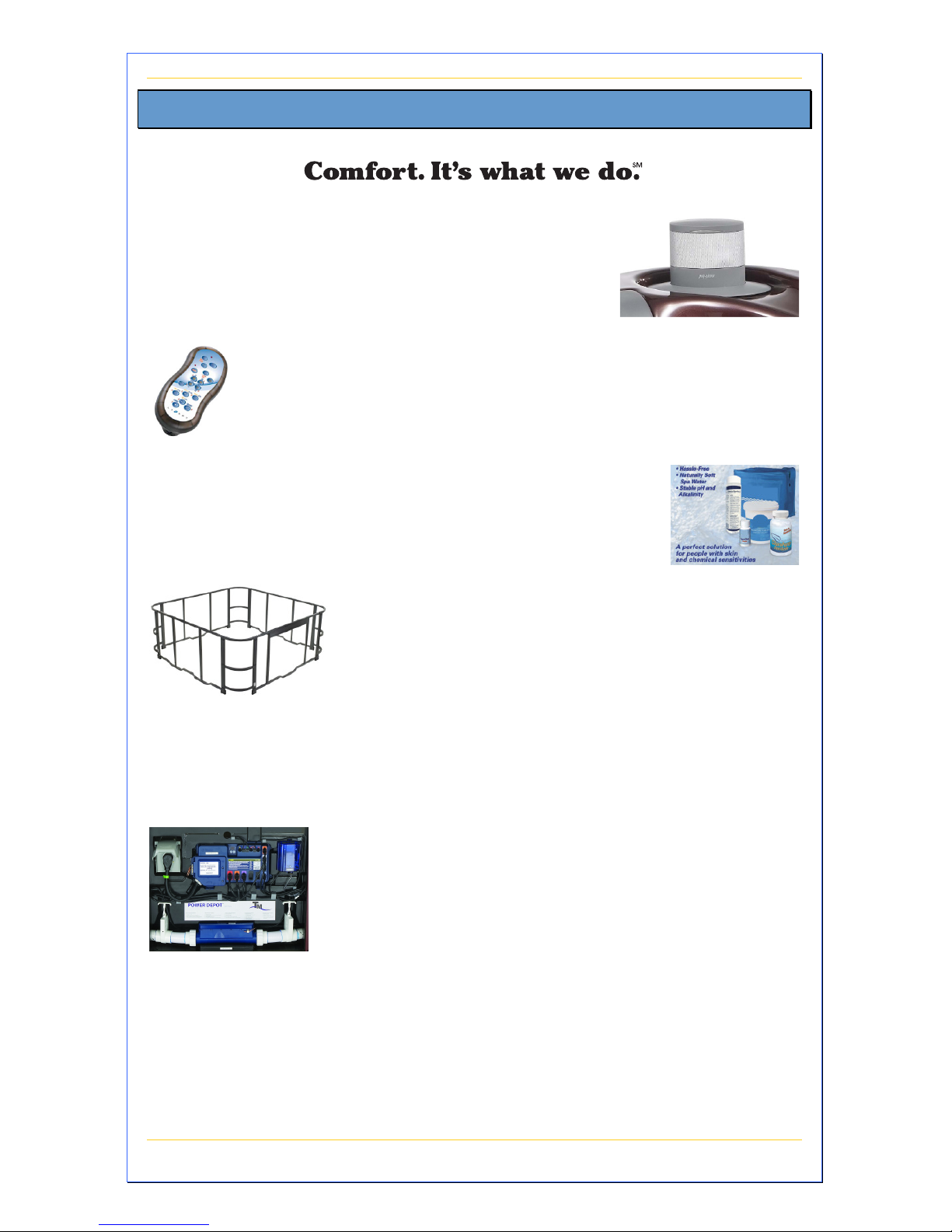

e a t u r e s
Premium quality loudspeakers (equipped with D
stereo and/or flat-screen monitor models) round
out your sound system. ompletely retractable,
these speakers deliver a lush, rich, musical tone.
From one touch of your floating wireless remote control, you
can start up your spa, launch the D player, tune in radio
stations, or listen to your favorite music.
Our enzyme-based water purification system is a
perfect match for your spa. AquaClara Natural
naturally solves most water treatment problems and
dramatically reduces spa maintenance.
La-Z-Boy spas are manufactured with heavy steel
frames. These frames can carry the weight of 10
black rhinos and allow for thicker barrier insulation
(thereby helping to lower your operating costs),
and are resistant to insects, weather, and warping.
La-Z-Boy spas are made with quality synthetic cabinet
materials. Synthetic materials won’t fade and are nearly
invulnerable to mold and mildew. Where wood splits, cracks,
and stains, synthetic materials stand in timeless perfection.
Natural
Beauty
that lasts
Designed for ease of maintenance, our patent
pending Power Depot™ makes servicing literally a
snap! No tools are needed for replacement of the
spa pack, ozonator, or heater.
Our In-Touch customer care center is the industry’s only
full service and diagnostic spa care center operating 24
hours a day, 7 days a week.
In-Touch™

Page 4
For HELP, call In-Touch at 866.461.3123
S a f e t y I n f o r m a t i o n
Read and ollow All Instructions
S
S
SA
A
AV
V
VE
E
E T
T
TH
H
HE
E
ES
S
SE
E
E I
I
IN
N
NS
S
ST
T
TR
R
RU
U
U T
T
TI
I
IO
O
ON
N
NS
S
S!
!
!
• Water will splash out of the spa during normal use. Install an
adequate perimeter around your spa that provides sound footing
thereby helping to avoid falls, slips, and accidents while preventing
damage to fine floors and wood finishes.
• DO NOT use a wall switch, ground fault circuit interrupter, circuit
breaker, fuse, or plugging and unplugging the spa as a means of
turning your spa on or off for normal everyday use.
• DO NOT permit any electrical appliance within 5 feet (1.5m) of the
spa (such as a light, telephone, radio, or television). Do not operate
such an appliance from either inside the spa or when you are wet
unless such appliances are built-in by the manufacturer.
• DO NOT bring electrical appliances into or near the spa (with the
exception of a space heater used for troubleshooting). all In-Touch,
our 24/7 customer care center, at 866.461.3123 for instructions.
• DO NOT connect auxiliary components (such as headphones,
cables, and additional speakers) to the stereo (if equipped).
• DO NOT leave the D access door open on the stereo (if equipped).
• Replace audio/video components only with identical components.
WARNING: People with infectious diseases should not use a spa.
WARNING: Do not use a spa immediately following strenuous
exercise.
WARNING: Do not use your spa without filters installed. Filters serve
as a barrier against bodily entrapment against the filter
suction fittings.
WARNING: Persons with chemical sensitivities should consult a
doctor before using your spa.
WARNING: Some types of hair dye can react with the sanitizers in
your spa water causing your hair to change color. Use
your spa at your own risk.

Page 5
For HELP, call In-Touch at 866.461.3123
Risks of Burns
• Before entering a spa, measure the water temperature with an
accurate thermometer since the tolerance of temperature-regulating
devices may vary by as much as ±5°F (±2° ).
• Test the water with your hand before entering the spa to be sure it’s
comfortable.
Risk of Electrocution
DANGER: RISK O ELECTRICAL SHOCK: Always install your spa
at least 5 feet (1.5m) from any metal surfaces (unless
each metal surface is permanently connected by a
minimum #6 American wire gauge [AWG] (10mm2) solid
copper conductor to the provided ground connector).
onnect all metal equipment, metal enclosures of
electrical equipment, metal water pipes, or conduits to the
provided ground connector with a minimum #6 AWG (10
mm2) solid copper conductor.
Risks To Children
DANGER: RISK O CHILD DROWNING: Extreme care must be
exercised to prevent unauthorized access by children. To
avoid accidents, ensure that children cannot use the spa
unless they are supervised at all times. Always cover the
spa and use safety locks.
WARNING: RISK O CHILD INJURY: Do not permit children to use
the spa unless they are closely supervised at all times.
Lower water temperatures are recommended for
children. hildren are especially sensitive to hot water.

Page 6
For HELP, call In-Touch at 866.461.3123
Risks of Hyperthermia
WARNING: To reduce the risk of injury, the water temperature in a
spa should never exceed 104ºF (40º ). Water
temperatures between 100ºF (38º ) and 104ºF (40º )
are considered safe for a healthy adult. Lower water
temperatures are recommended for young children,
senior citizens, and when spa use exceeds 10 minutes.
WATER TEMPERATURE IN EX ESS OF 100ºF (38º )
MAY BE INJURIOUS TO YOUR HEALTH.
Because excessive water temperatures have a high potential for causing
fetal damage during early pregnancy, pregnant or potentially pregnant
women should limit water temperatures to 100ºF (38º ). Before entering
a spa, measure the water temperature with an accurate thermometer.
The tolerances of water temperature-regulating devices vary.
Hyperthermia occurs when the internal temperature of the body reaches
a level several degrees above the normal body temperature of 98.6ºF
(37º ). The symptoms of hyperthermia include drowsiness, lethargy, and
an increase in the internal temperature of the body. The effects of
hyperthermia include:
• Unawareness of impending hazard
• Failure to perceive heat
• Failure to recognize the need to exit spa
• Physical inability to exit spa
• Fetal damage in pregnant women
• Unconsciousness and danger of drowning
Warning Sign
DURING PREGNANCY, SOAKING IN HOT TUB MAY CAUSE DAMAGE TO THE ETUS
LIMIT USE TO 10 MINUTES AT A TIME
PREVENT DROWNING
SPA HEAT SPEEDS UP E ECTS O
ALCOHOL, DRUGS OR MEDICINE AND
CAN CAUSE UNCONSCIOUSNESS.
LEAVE SPA IMMEDIATELY I
UNCOM ORTABLE OR SLEEPY.
PREVENT CHILD DROWNING
WATER ATTRACTS CHILDREN.
ALWAYS ATTACH A SPA COVER
A TER EACH USE.
ADDITIONAL COPIES O THE OWNER’S
MANUAL MAY BE REQUESTED 24/7
AT [phone].
!
C
Warning Sign Must Be Posted – The
red WARNING sign like the one shown
is packed with your new spa. This sign
must be posted in a prominent place in
close proximity to the spa installation
site immediately upon completion of spa
installation.

Page 7
For HELP, call In-Touch at 866.461.3123
Important: It is extremely important that this sign be permanently placed
in clear view of persons using the spa. Occasional spa users may not be
aware of some of the dangers hot water poses to pregnant women, small
children, and people under the influence of alcohol. If you did not receive
a warning sign or your sign has become damaged, please call In-Touch,
our 24/7 customer care center, at 866.461.3123 for a replacement.
Basic Safety Guidelines
Your La-Z-Boy spa is meant to be enjoyable, healthful, and relaxing.
Below are some basic safety guidelines to follow every time you use your
spa.
• Always check the temperature of your spa before entering. High
water temperatures can be hazardous to your health.
• Persons suffering from heart disease, diabetes, high or low blood
pressure, and pregnant women should consult a doctor before using
your spa.
• Persons under the influence of medication, drugs, or alcohol should
not be allowed into your spa.
• Remove all jewelry, metal, and watches from your person before
entering your spa.
• Do not allow children to use your spa without continuous supervision
of an adult.
• Do not use your spa alone.
• Test the ground fault circuit interrupter (GF I) breaker prior to using
your spa each time to ensure it operates properly.
• Any electrical devices near your spa must be GF I protected and out
of reach from inside the spa.
• Keep all breakables away from the spa area.
• Lock the cover on your spa when not in use.
• Enter and exit the spa slowly. Wet surfaces can be slippery.
• Prolonged immersion can be hazardous to your health.
• Maintain water chemistry in accordance with manufacturer’s
instructions.

Page 8
For HELP, call In-Touch at 866.461.3123
L o c a t i o n a n d I n s t a l l a t i o n
Proper planning is an important consideration when installing your new
spa. Site selection is a critical step and requires serious thought.
Planning ahead makes the installation process easier. The following
information is provided to assist you in site preparations.
1) Always comply with local building codes and obtain any necessary
permits. You may also need to consult with an engineer to address
your specific design needs.
2) ontact an electrician to assess your electrical needs, install wiring,
and assure a safe operation.
3) Position your spa with proper access to water, drainage, and
electricity.
4) Place your spa on a uniform solid, flat surface designed to properly
support its weight. For external installations, a 4-inch (10 cm) thick
cement pad suffices.
5) For internal installations, check the load carrying capabilities of the
floor on which the spa will reside. Most homes meet the requirement
of 80 pounds per square foot.
6) Assure that your spa will fit into the space you have chosen and the
delivery route will accommodate its large size.
7) Provide adequate ventilation for the humidity created by your spa. In
most cases, a Spa Hard over is sufficient.
8) Protect the pump and all equipment from the weather by ensuring
the cabinet panels are secure at all times.
9) Allow 36 inches (1 meter) of unobstructed access to all sides of your
spa for normal servicing. Your spa is not designed to be recessed in
the ground or in a deck.

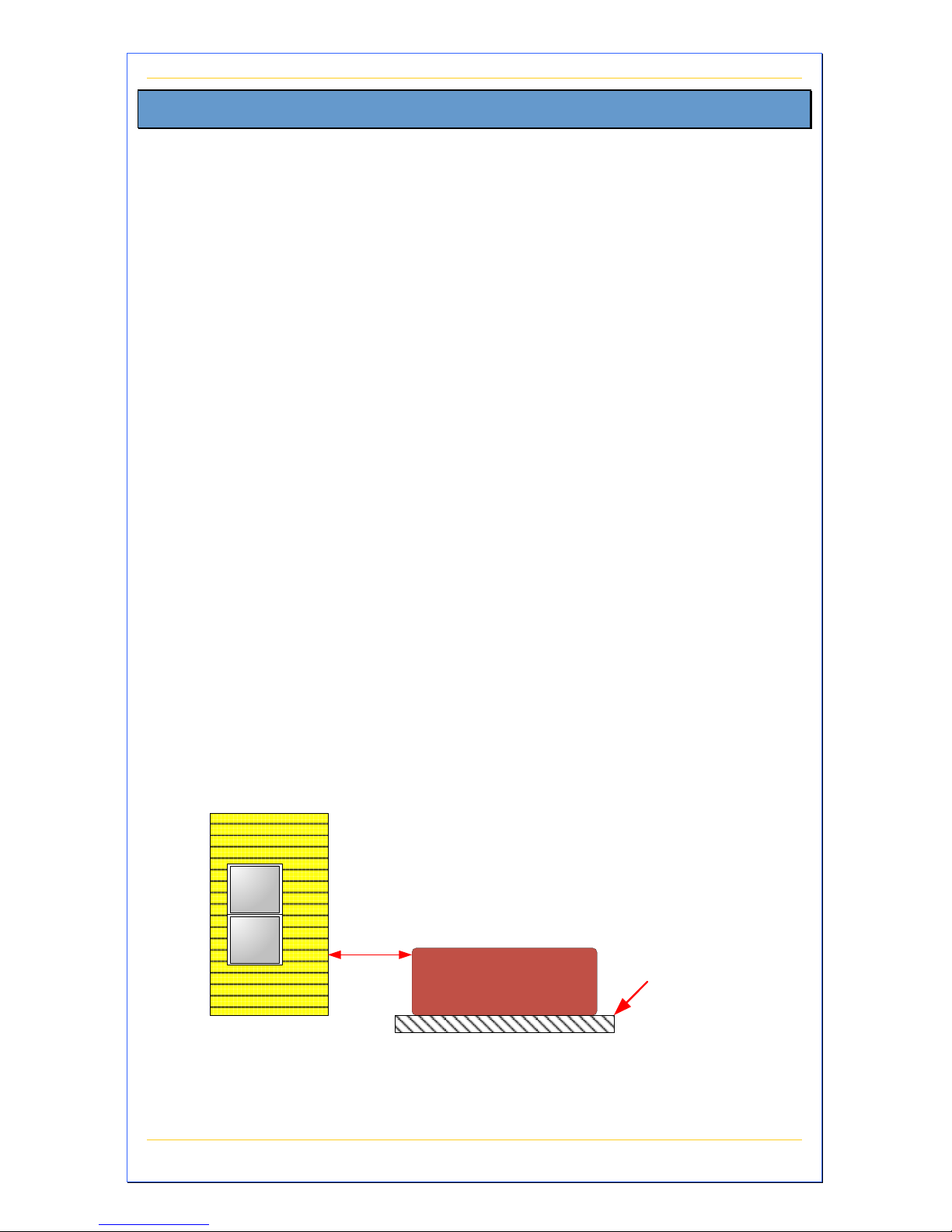

Hot Tub
36 inch
(1 m)
clearance
4 inch (10 cm)
oncrete slab
igure 1 – Clearances and Support

Page 9
For HELP, call In-Touch at 866.461.3123
The following dimensions can be used to determine the proper location
of submerged conduits in concrete slab installations. All dimensions are
made from the outside of the spa’s frame with the access panels
removed. The topside control panel is shown at bottom of diagram for
reference.
igure 2 – Conduit Entry Location Reference Points
Model
Dimension A Dimension B
Limited
5” (13 cm) 21” (53 cm)
Table 1 – Conduit Entry Location Dimensions
10) onsider positioning your spa out of or adequately protecting it from
the wind. Just as people can get cold on cool/windy days so can your
spa. Windy environments can significantly increase operating costs.
11) onsider using an insulating pad. In cold climates, the ground can
rob heat from the spa and increase your operating costs. onsider
using a suitable, outdoor insulating pad in such environments.

Page 1
For HELP, call In-Touch at 866.461.3123
E l e c t r i c a l S p e c i f i c a t i o n s
Important: Qualified and licensed electricians must perform all electrical
hookups. The following specifications must be followed in order to
ensure proper performance and safety.
WARNING: Starting an incorrectly wired spa could cause severe
damage to the mechanical equipment or even bodily
harm. Have your licensed electrician verify GF I (or
R D) wiring with the schematics on pages 12-15 prior to
starting the spa or call In-Touch, our 24/7 customer care
center, at 866.461.3123.
Caution: Failure to abide by specifications listed may result in
damage to the equipment and will void the warranty.
All spas must be wired with a 50 Amp breaker (or according to IEE wire
regulations for export models). Failure to do so will cause equipment
damage and will not be covered under your warranty.
All spas must be protected with an over current protective device with
built-in GF I (or R D for export models) in the service panel.
Volts
(V)
req.
(Hz) Phase
Rating
(A)
G CI
(A)
Wire size from G CI
(or RCD) to Main Panel*†
# of
Terminals
on plug
240 60 1 40 50
6-3 plus ground (up to 130’)
4-3 plus ground (up to 230’)
2-3 plus ground (up to 360’)
4
230 50 1 32 IEE wire
regulation
3x4 mm
2
4
230 50 2 16 IEE wire
regulation
5x1.5mm
2
5
230 50 3 16 IEE wire
regulation
5x1.5mm
2
5
Table 2 – Wire Size Chart
WARNING: Disconnect the electrical power before servicing. Before
obtaining access to terminals, all supply circuits must be
disconnected.
Caution: Test the GF I (or R D) before each use of the spa.
* Solid copper
†
Wire size may need to be reduced at GF I to fit into the breaker

Page 11
For HELP, call In-Touch at 866.461.3123
Our spas are certified by Intertek Testing, SNAa Ltd.
Ontario, anada to SA- 22.2 No. 218.1-M89 and
ANSI/UL 1563 standards.
Parts with extra low voltage not exceeding 12v must be inaccessible to a
person in the spa. Earthed appliances must be permanently connected
to fixed wiring. Parts incorporating electrical components must be located
or fixed so that they cannot fall into the spa.
Means for disconnection must be used in fixed wiring in accordance with
wiring rules.
Important: To allow the GF I to function properly, connect the white
Neutral wire from the spa to the Neutral terminal on the GF I breaker,
not the Neutral bus in the GF I breaker box. An improperly connected
Neutral causes the GF I breaker to trip.
igure 3 – G CI Wiring

Page 12
For HELP, call In-Touch at 866.461.3123
Important: Installation of this GF I ircuit Breaker,
including Ampere sizing and selection of conductor size
and type, must be performed by a qualified electrician in
accordance with the National Electrical ode, or the
anadian Electrical ode, and all federal, state, and local
codes and regulations in effect at the time of installation.
Note: The white Neutral wire from the back of the GF I
must be connected to the incoming Line Neutral. The
internal mechanism of the GF I requires this neutral
connection. The GF I will not work without it.

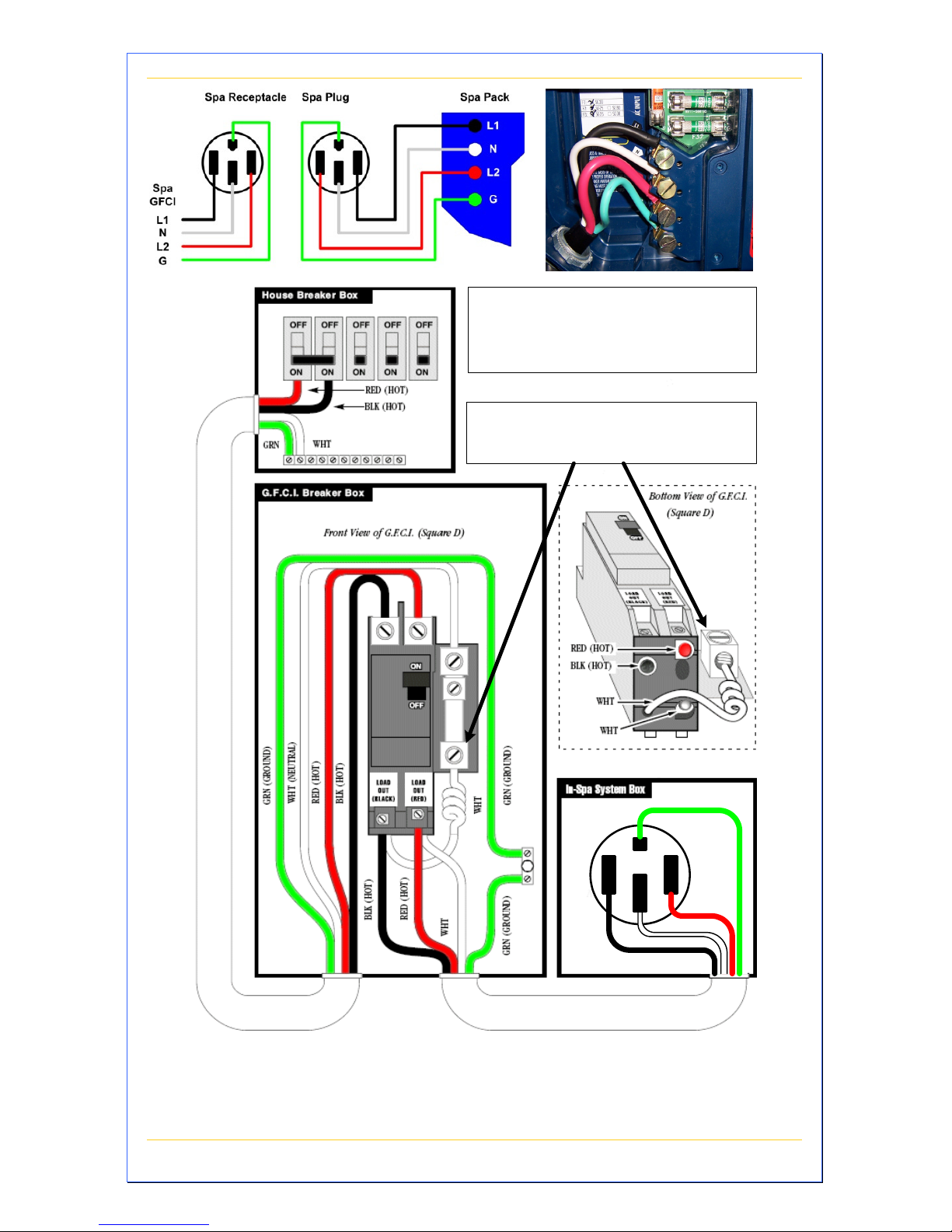

GRN (GROUND)
BLK (HOT)
RED (HOT)
WHT (NEUTRAL)
igure 4 – U.S. and Canada Wiring Diagram
See wire size chart on page 10.

Page 13
For HELP, call In-Touch at 866.461.3123
L1
L3 L2
G
Spa Plug
1x 32A
L1
L2
L3
N
G
Spa Pack
1x 32A
N
Jumper
L1-L2-L3
L1
L2 L3
N
G
Spa Receptacle
1x 32A
House
RCD
L1
G
N
Jumper L1-L2-L3
igure 5 – European 1x32A Wiring Diagram
Important: Match the Breaker setting (Br) of the spa pack to the
electrical phase wiring as described on page 43.

Page 14
For HELP, call In-Touch at 866.461.3123
Jumper L2-L3
igure 6 – European 2x16A Wiring Diagram
Important: Match the Breaker setting (Br) of the spa pack to the
electrical phase wiring as described on page 43.

Page 15
For HELP, call In-Touch at 866.461.3123
No Jumper
igure 7 – European 3x16A Wiring Diagram
Important: Match the Breaker setting (Br) of the spa pack to the
electrical phase wiring as described on page 43.

Page 16
For HELP, call In-Touch at 866.461.3123
S t a r t u p
Important: Read these step-by-step startup procedures before starting
your spa. Failure to follow any of these steps listed may result in damage
to the equipment and may void your warranty.
Note: If you are unsure of any of the above startup procedures, please
call In-Touch, our 24/7 customer care center, at 866.461.3123. For best
results, read each step in its entirety before proceeding.
Caution: Running the spa pump dry (without water running through it)
can cause IMMEDIATE damage and will void the warranty!
Be sure that the spa is installed properly in accordance with
the instructions in this manual.
Refer to the following picture for an explanation of your spa’s controls,
components, and technical terms. Note that not all models have all
features and components.
igure 8 – Callouts

Page 17
For HELP, call In-Touch at 866.461.3123
Before Adding Water
Before adding water, go through these simple steps now to prevent
common issues when setting up your spa for the first time. Verify that the
following have all been rechecked.
1. Turn off all power to the spa at the main breaker panel.
2. Open the side panels to access the internal components.

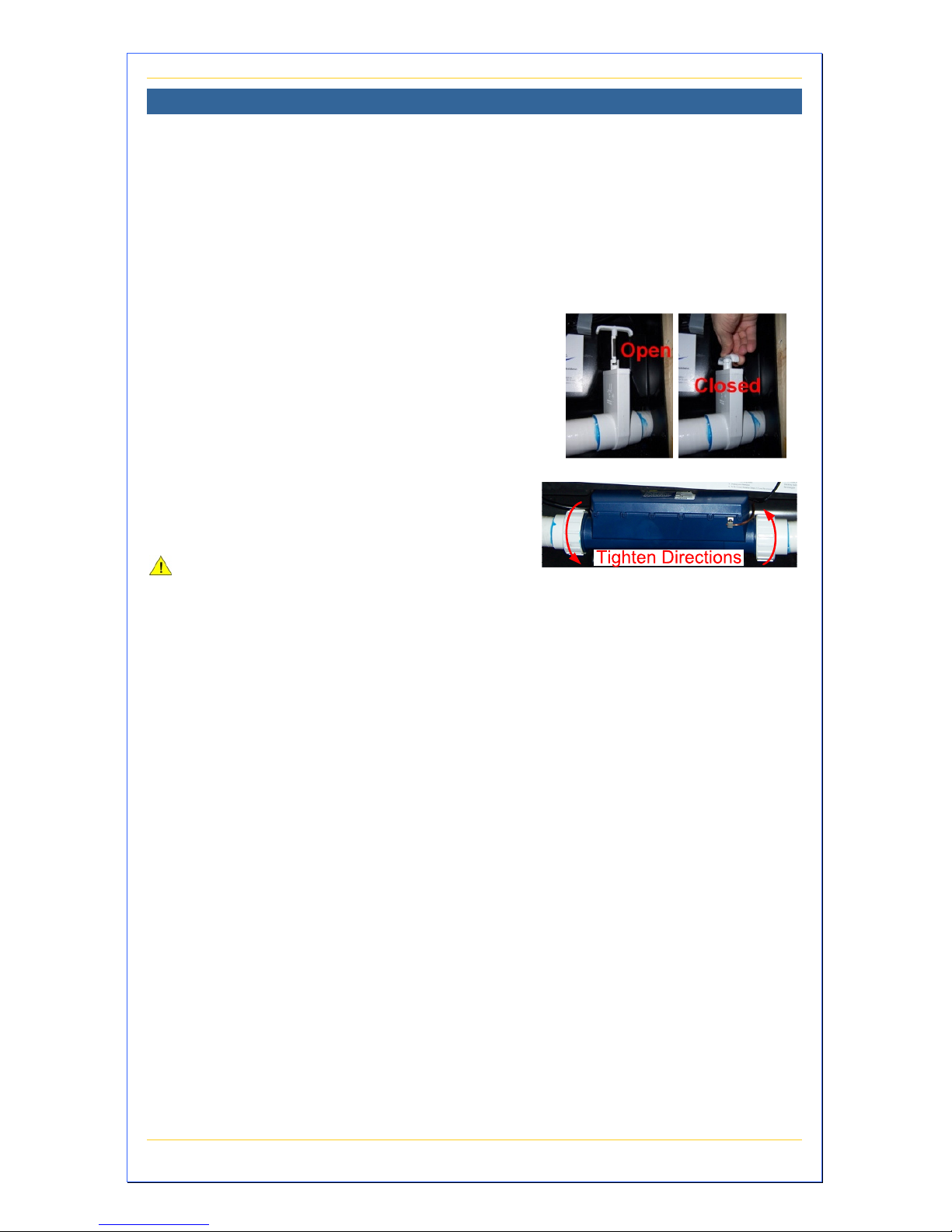

3. heck that all slide valves are opened
(T-handles pulled out) to the heater and
all pumps.
4. heck that there are no obvious signs of
loose wires or broken pipes.
igure 9 - Valve Open/Closed
5. heck that the two heater unions are
tight.
Caution: Do not use a wrench. Over-
tightening may cause
damage to unions and
gaskets, which will not be
covered under warranty.
igure 10 - Unions Tight
6. heck that the unions on all pumps are tight.
7. lean out any foreign debris from within the service access area or
inside of the spa itself.

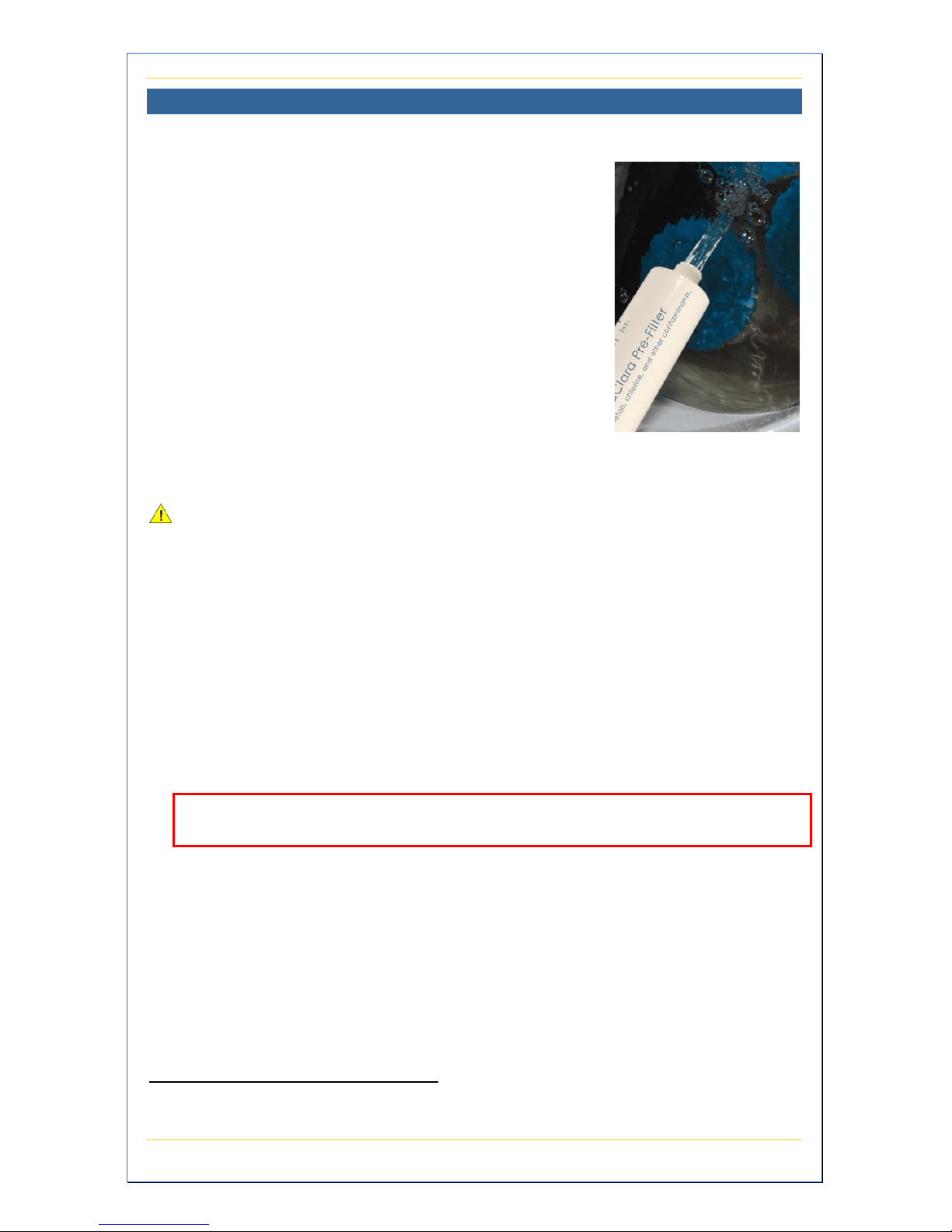

8. With the drain open and filters removed, thoroughly rinse out the spa
with warm water until the drained water runs clear. Run water
through the filtration canister and jet lines to remove any incidental
dust, dirt, and debris that may have accumulated during shipment or
installation. Drain all water completely.
9. Make sure that the spa drain valve is closed and the cap is on tight
(see page 45).
10. Install the filter(s) in the filtration canister.
11. heck that all of the spa jets are open (turned full counter-
clockwise).
12. Now is the best time to clean and polish the surfaces of your spa
(see page 44-47).

Page 18
For HELP, call In-Touch at 866.461.3123
illing Your Spa
Now it's time to fill your spa with water. Do not
turn on the electricity yet until the spa is
completely filled. To properly fill your spa:
1. Make sure that the filters (in the filtration
canister) are gently screwed into place. Turn
them clockwise until they stop being careful
not to over-tighten them (this avoids cracking
the filter).
2. onnect a standard garden hose to a faucet
with regular cold tap water (not softened
water or hot water).
igure 11 – iltration Canister
Caution: The water from your hot water tank should not be used to fill
the spa.
3. Put the Aqua lara pre-filter (if equipped‡) on the other end of the
hose, point the Aqua lara pre-filter into a suitable drain, turn on the
water, and allow any sediment to be flushed down the drain. Once
the water stream runs clear, turn off the hose.
4. Put the Aqua lara pre-filter (if equipped) into the filtration canister
and turn on the hose.
5. ill slowly. If too much water pressure is used, foaming water can
force air into the pipes and cause startup problems.
Important: To assure that the pump is properly primed, fill the spa
through the filter area only.
6. Fill the spa until the water level is about 1” above all jets (or about ½”
below the pillow). Do not over fill.
Note: Every person entering a spa displaces a given volume of water,
so adjust water level to the number of people regularly using the spa.
Turn off the hose and check again for any small leaks.
‡ Aqua lara pre-filters are available by calling [phone]
