LAZBOY Revive User manual

For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
2012 OWNER’S MANUAL
Revive | Relieve | Refresh | Rejoice
La-Z-Boy®Spas - Sales & Marketing Division
4411 Bee Ridge Road. # 299
Sarasota, Florida 34233
1.800.465.2933
www.lazboyspas.com
99399

2
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Important: La-Z-Boy Spas is dedicated to offering you the best in customer
satisfaction and service. Be sure to read, complete, sign, and send in the guarantee
card within 30 days of purchase to ensure you understand what you are entitled to
in terms of service. If you have any questions, you can call your local dealer for more
information.
Version 1.0
Copyright © 2010 La-Z-Boy®Spas. All rights reserved. No portion of this manual may be reproduced in
any manner without express written permission from La-Z-Boy Spas.
La-Z-Boy®is a registered trademark of La-Z-Boy Incorporated and is used under license to 2217044
Ontario Inc.
La-Z-Boy Spas may make product modifications and enhancements. Specifications may change without
notice. International products may be configured differently to meet local electrical requirements.
Dimensions are approximate.
La-Z-Boy®Signature Spas
Owner’s Manual
Table of Contents
Safety Information…………………………………………………………………………. 3

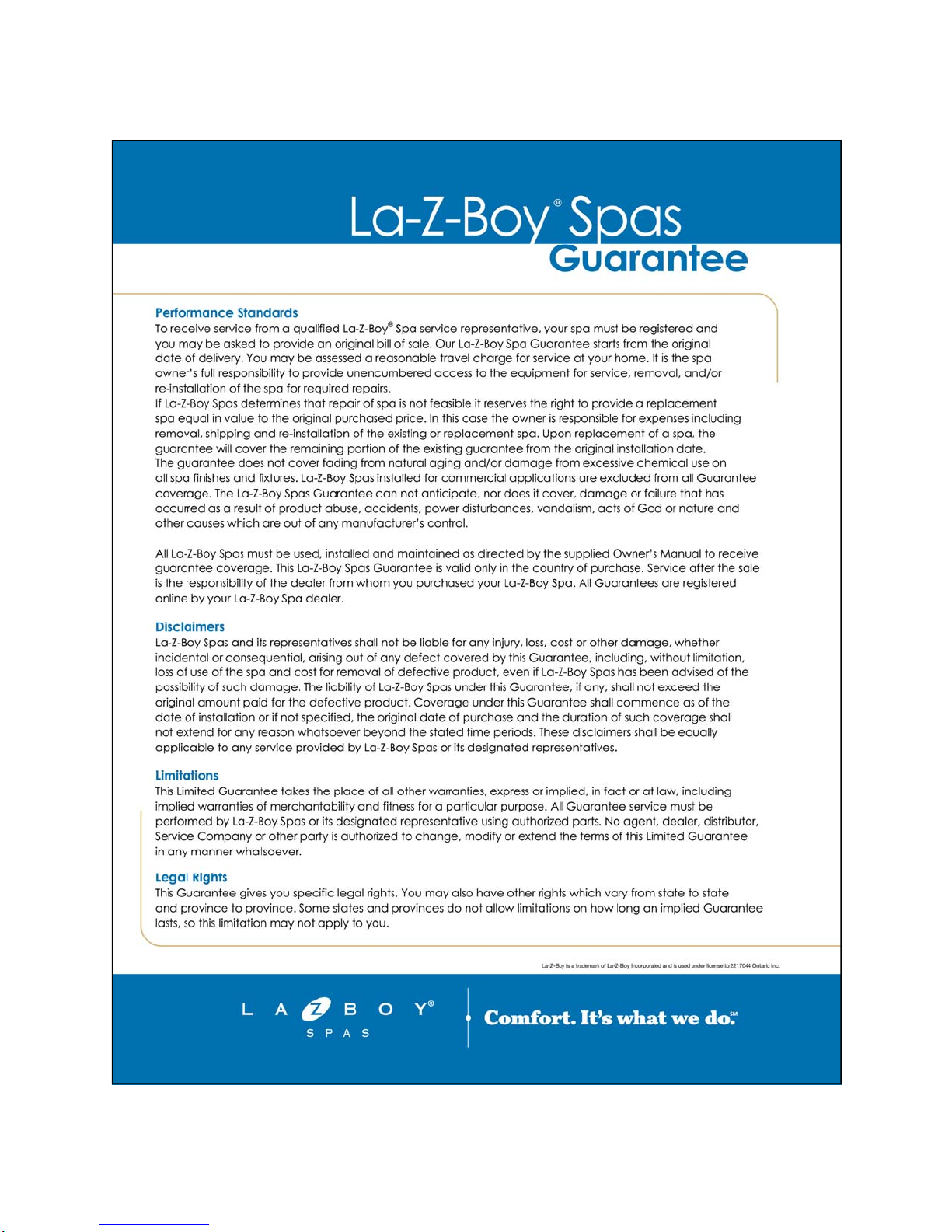

Guarantee………………………………………………………………………………….. 7
Introduction…………………………………………………………………………………. 9
Model Overview……………………………………………………………………………. 10
Location and Installation…………………………………………………………………... 14
Electrical Specifications…………………………………………………………………… 17
Start Up……………………………………………………………………………………... 20
Water Quality……………………………………………………………………………….. 25
In-Touch 2000 Controls…………………………………………………………………… 28
AquaCoustics Surround Sound Stereo………………………………………………….. 31
Color Coordinated Cover………………………………………………………………….. 32
Water Management………………………………………………………………………... 33
Frequently Asked Questions……………………………………………………………… 34
Troubleshooting……………………………………………………………………………. 37
Maintenance and Care……………………………………………………………………. 40
Shutdown / Winterization………………………………………………………………….. 43
Glossary…………………………………………………………………………………….. 44
Notes………………………………………………………………………………………... 45

3
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Safety Information
SAVE THESE INSTRUCTIONS
IMPORTANT USER SAFETY INSTRUCTIONS
Your physiological response to hot water is subjective and depends on your age,
health, and medical history. If you don’t know your tolerance to hot water, or if you get
a headache, or become dizzy or nauseous when using your spa / hot tub, get out and
cool off immediately.
WARNINGS
1. Children should NOT use a spa / hot tub without alert adult supervision.
2. Children should not enter a spa / hot tub where water temperature exceeds body temperature (37˚C /
98.6˚F).
3. Prolonged immersion in water temperatures in excess of 38˚C (100˚F) may be injurious to your
health. We recommend establishing lower temperatures and shorter use periods for young children and/
or those users potentially affected by hot temperatures. Always confirm water temperature with an
accurate thermometer before entering your hot tub.
4. Do not allow children to submerge their head under water.
5. Do not use a spa / hot tub unless all suction guards are installed to prevent body and hair entrapment.
Do not sit in front of, or on top of the suction fittings or skimmer, as this will obstruct proper circulation
and may result in personal injury.
6. Never operate the spa / hot tub pump at high speed without having all suction and return lines open.
7. Always keep the hardcover installed and locked when the hot tub is not in use.
8. People using medications and/or having any adverse medical history should consult a physician
before using a spa / hot tub.
9. People with infectious diseases should not use a spa / hot tub.
10. Exercise caution when entering or exiting a spa / hot tub. Where practical, install a safety grab bar
or handrail. Turn off the jets before entering the hot tub to improve visibility of the steps or flat entry ar-
ea.

4
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Hyperthermia
Since your spa / hot tub can be set to reach temperatures of 40˚C (104˚F), users should be aware that
extended submersion in water that exceeds normal body temperature can lead to hyperthermia.
The causes, symptoms and effects of hyperthermia may be described as follows:
Hyperthermia occurs when the internal temperature of the body reaches several degrees above the
normal body temperature of 37˚C (98.6˚F). The symptoms of hyperthermia include drowsiness, lethargy,
and an increase in the internal temperature of the body.
The effects of hyperthermia include:
• Unawareness of impending hazard
• Failure to perceive heat
• Failure to recognize the need to exit the hot tub
• Physical inability to exit the hot tub
• Fetal damage in pregnant woman
• Unconsciousness resulting in the danger of drowning
If you sense any of the symptoms of hyperthermia, safely exit the spa / hot tub immediately.
11. To avoid unconsciousness and possible drowning, do not use drugs or alcohol before or during the
use of a spa / hot tub.
12. Pregnant women should consult a physician before using a spa / hot tub.
13. Do not use a spa / hot tub immediately following strenuous exercise.
14. Do not permit or use electric appliances (such as a light, telephone, radio or television) within 1.5 m
(5 ft) of this hot tub, unless such appliances are rated at 12VDC or less.
15. Test the GFCI (Ground Fault Circuit Interrupter) monthly.
16. Post emergency phone numbers for Police, Fire Dept. and Ambulance at the nearest phone.
17. Maintain water chemistry/balance in accordance with manufacturer’s instructions.
THE USE OF ALCOHOL, DRUGS OR MEDICATION CAN SIGNIFICANTLY INCREASE
THE RISK OF FATAL HYPERTHERMIA.
WARNING

5
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Warning Sign
Warning Sign Must Be Posted – The orange WARNING sign like the one shown is
packed with your new spa/hot tub. This sign must be posted in a prominent place in
close proximity to the spa installation site immediately upon completion of spa installa-
tion.
Important: It is extremely important that this sign be permanently placed in clear view
of persons using the spa / hot tub. Occasional spa / hot tub users may not be aware of
some of the dangers hot water poses to pregnant women, small children, seniors, and
people under the influence of alcohol. If you did not receive a warning sign or your
sign has become damaged, please call your local dealer for a replacement.

6
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Dealer:
Installer:
Spa:
Date Purchased: ___________________________________________________________________
Company: ___________________________________________________________________
Address: ___________________________________________________________________
Telephone: ___________________________________________________________________
Date Installed: __________________________________________________________________
Company: __________________________________________________________________
Address: __________________________________________________________________
Telephone: __________________________________________________________________
Date Delivered: ___________________________________________________________________
Model: ___________________________________________________________________
Color: ___________________________________________________________________
Serial Number: ___________________________________________________________________
Your unique spa / hot tub serial number is located on a data plate inside the cabinet on
the frame. When calling for service, please have your serial number in hand.

7
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

8
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.

9
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Introduction
Your choice of a La-Z-Boy®Signature Spa indicates that you are devoted to
excellence. The management and staff appreciate your patronage and take pride in
the tradition of quality spas / hot tubs that our company represents.
To properly acquaint yourself with your spa / hot tub, we suggest that you take time to
read through this manual before hook up and operation. Doing so will familiarize you
with the important operating and safety procedures, thereby ensuring an enjoyable
experience right from the start.
If you need any more information than this manual provides, feel free to call your local
dealer or visit our web site at www.lazboyspas.com.
This manual was written to ensure the proper use and installation of
your spa / hot tub. Any modifications to the procedures outlined in this
manual may result in voiding your guarantee.
This manual and its contents are subject to change without notice. Although we have
prepared this manual as accurately as possible, we are not liable for errors or
omissions; loss, injury, or damages caused by improper installation; or use of spa / hot
tub (improper or otherwise).
Notes:_______________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
WARNING

10
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Model Overview
Revive
Dimensions: 89”L x 89”W x 37”D
Seats: 5
Water Jets: 53
Capacity: 556 USG / 1560L
Dry Weight: 800 Lbs/ 363 Kg
Filled Weight: 3500 Lbs/ 1588Kg
Electrical: 240VAC 42A 60Hz
GFCI: 50A

11
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Model Overview
Relieve
Dimensions: 88”L x 80”W x 37”D
Seats: 7
Water Jets: 47
Capacity: 360 USG / 1360 L
Dry Weight: 525 Lbs/ 302 Kg
Filled Weight: 2700 Lbs/ 1097 Kg
Electrical: 240VAC 42A 60Hz
GFCI: 50A

12
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Model Overview
Refresh
Dimensions: 88”L x 80”W x 37”D
Seats: 6
Water Jets: 51
Capacity: 360 USG / 1360L
Dry Weight: 525 Lbs/ 302 Kg
Filled Weight: 2700 Lbs/ 1097 Kg
Electrical: 240VAC 42A 60Hz
GFCI: 50A

13
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Model Overview
Rejoice
Dimensions: 88”L x 72”W x 36”D
Seats: 4
Water Jets: 44
Capacity: 280 USG / 795 L
Dry Weight: 525 Lbs/ 302 Kg
Filled Weight: 2700 Lbs/ 1097 Kg
Electrical: 240VAC 32A 60Hz
GFCI: 40A

14
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Location and Installation
Proper planning is an important consideration when installing your new spa / hot tub.
Site selection is a critical step and requires serious thought. Planning ahead makes the
installation process easier. The following information is provided to assist you in site
preparations.
1. Always comply with local building codes and obtain any necessary permits. You
may also need to consult with an engineer to address your specific design
needs.
2. Contact an electrician to assess your electrical needs, install wiring, and assure
a safe operation.
3. Position your spa / hot tub with proper access to water, drainage, and electricity.

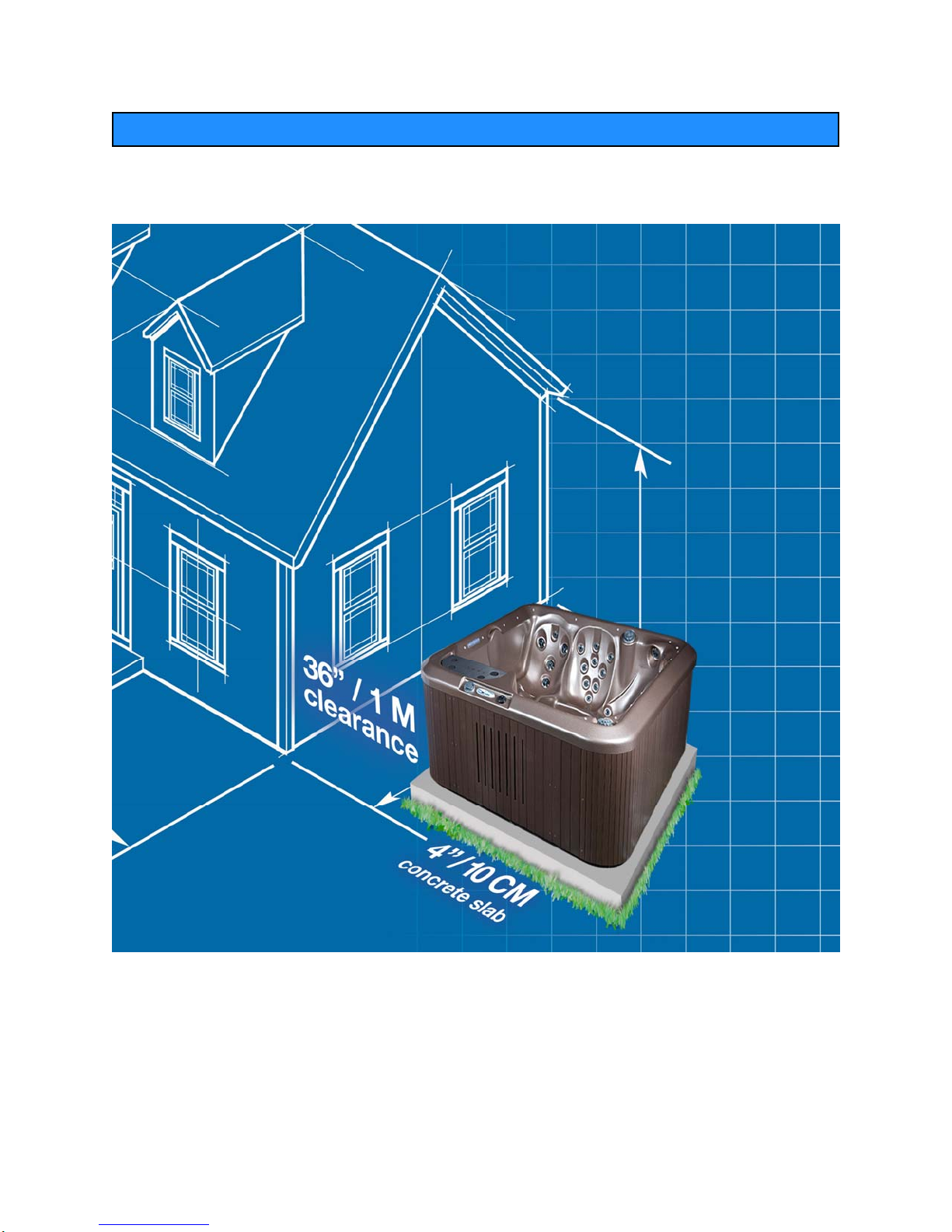

4. Place your spa / hot tub on a uniform solid, flat surface designed to properly
support its weight. For external installations, a 4-inch (10 cm) thick cement pad
suffices. See page 14 for conduit entry locations for your model spa.
5. For internal installations, check the load carrying capabilities of the floor on
which the spa will reside. Most homes meet the requirement of 80 pounds per
square foot.
6. Assure that your spa / hot tub will fit into the space you have chosen and the
delivery route will accommodate its large size.
7. Provide adequate ventilation for the humidity created by your spa / hot tub. In
most cases, the Color Coordinated Cover is sufficient.
8. Protect the pump and all equipment from the weather by ensuring the cabinet
panels are secure at all times.
9. Allow 36 inches (1 meter) of unobstructed access to all sides of your spa / hot
tub for normal servicing. Your spa / hot tub is not designed to be recessed in the
ground or in a deck.
10.Consider positioning your spa / hot tub out of or adequately protecting it from
the wind. Just as people can get cold on cool / windy days so can your spa / hot
tub. Windy environments can significantly increase operating costs.
11.Consider using an insulating pad. In cold climates, the ground can rob heat from
the spa / hot tub and increase your operating costs. Consider using a suitable,
outdoor insulating pad in such environments.

15
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Location and Installation
Figure 1 – Clearances and Support

16
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
The following dimensions can be used to determine the proper location of submerged
conduits in concrete slab installations. All dimensions are made from the outside of the
spa / hot tub frame with the access panels removed. The topside control panel is
shown at bottom of diagram for reference.
Figure 2 – Conduit Entry Location Reference Points
Model Dimension A Dimension B
Revive 12” (30.5 cm) 12” (30.5 cm)
Relieve 12” (30.5 cm) 12” (30.5 cm)
Refresh 12” (30.5 cm) 12” (30.5 cm)
Rejoice 12” (30.5 cm) 12” (30.5 cm)
Table 1 – Conduit Entry Location Dimensions

17
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Electrical Specifications
Important: Qualified and licensed electricians must perform all electrical hookups.
The following specifications must be followed in order to ensure proper performance
and safety.
Starting an incorrectly wired spa / hot tub could cause severe dam
age to the mechanical equipment or even bodily harm. Have your
licensed electrician verify GFCI wiring with the schematics on
pages 18 - 19 prior to starting the spa / hot tub or call your local
dealer.
Failure to abide by specifications listed may result in damage to
the equipment and will void the warranty.
Test the GFCI before each use of the spa / hot tub.
All spa / hot tubs (except Rejoice) must be wired with a 50 Ampere (Rejoice 40
ampere) breaker (or according to IEE wire regulations for export models). Failure to do
so will cause equipment damage and will not be covered under your guarantee. All
spa / hot tubs must be protected with an over current protective device with built-in
GFCI in the service panel.
Table 2 – Wire Size Chart
* Use only solid copper wire.
Volts
(V) Freq. (Hz) Phase Rating (A) GFCI (A) Wire size from GFCI to Main Panel*
# of
Terminals
on plug
240 60 1 32 40
8-3 plus ground (up to 130’)
6-3 plus ground (up to 230’)
4-3 plus ground (up to 360’) 4
Rejoice
Volts
(V) Freq. (Hz) Phase Rating (A) GFCI (A) Wire size from GFCI to Main Panel*
# of
Terminals
on plug
240 60 1 40 50
6-3 plus ground (up to 130’)
4-3 plus ground (up to 230’)
2-3 plus ground (up to 360’) 4
Revive, Relieve, Refresh
WARNING
CAUTION

18
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Parts with extra low voltage (not exceeding 12V) must be inaccessible to a person in
the spa / hot tub. Earthed appliances must be permanently connected to fixed wiring.
Parts incorporating electrical components must be located or fixed so that they
cannot fall into the spa / hot tub. Means for disconnection must be used with fixed wir-
ing configurations in accordance with local wiring rules.
IMPORTANT: To allow the GFCI to function properly, connect the white Neutral wire
from the spa / hot tub to the Neutral terminal on the GFCI breaker, not the Neutral bus
in the GFCI breaker box. An improperly connected Neutral causes the GFCI breaker
to trip.
Figure 3 - GFCI Wiring
Disconnect the electrical power before servicing. Before obtain-
ing access to terminals, all supply circuits must be disconnected.
WARNING

19
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Figure 4 - U.S. and Canada Wiring Diagram
See wire size chart on page 17.
Important: Use only a properly sized (50 amp, Revive, Refresh, Relieve / 40 amp
Rejoice) GFCI Circuit Breaker. Installation, including selection of conductor size and
type, must be performed by a qualified electrician in accordance with the National

20
For HELP, call La-Z-Boy®Spas at 1.800.465.2933.
Startup
Important: Read these step-by-step startup procedures before using your spa / hot
tub. Failure to do so may result in damage to the equipment and may void your
guarantee
Note: If you are unsure of any of the above startup procedures, please call your local
dealer for assistance. For best results, read each step in its entirety before proceeding.
Running the spa / hot tub pump dry (without water running
through
it) can cause IMMEDIATE damage and will void the guarantee. Be
sure that the spa / hot tub is installed properly in accordance with
Refer to the following picture for an explanation of your spa / hot tubs controls,
components, and technical terms.
Note:Not all models have all features and components.
Figure 5 - Callouts
CAUTION
