LAZBOY Signature User manual

For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
OWNER’S MANUAL
La-Z-Boy® Spas
335 Superior Blvd.
Mississauga, ON L5T 2L6
1.800.465.2933
www.lazboyspas.com
Registration of your hot tub is the Lazboy® Spas Retailer’s responsibility. Please verify with
your Lazboy® Spas Retailer that your hot tub has been registered for your warranty.
Contents subject to change without notice
BJAG

2
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Version 1.0
Copyright © 2010 La-Z-Boy® Spas. All rights reserved. No portion of this manual may be reproduced in
any manner without express written permission from La-Z-Boy Spas.
La-Z-Boy® is a registered trademark of La-Z-Boy Incorporated and is used under license to 2217044
Ontario Inc.
La-Z-Boy Spas may make product modifications and enhancements. Specifications may change without
notice. International products may be configured differently to meet local electrical requirements.
Dimensions are approximate.
La-Z-Boy® Signature Spas
Owner’s Manual
Table of Contents
Safety Information…………………………………………………………………………. 03

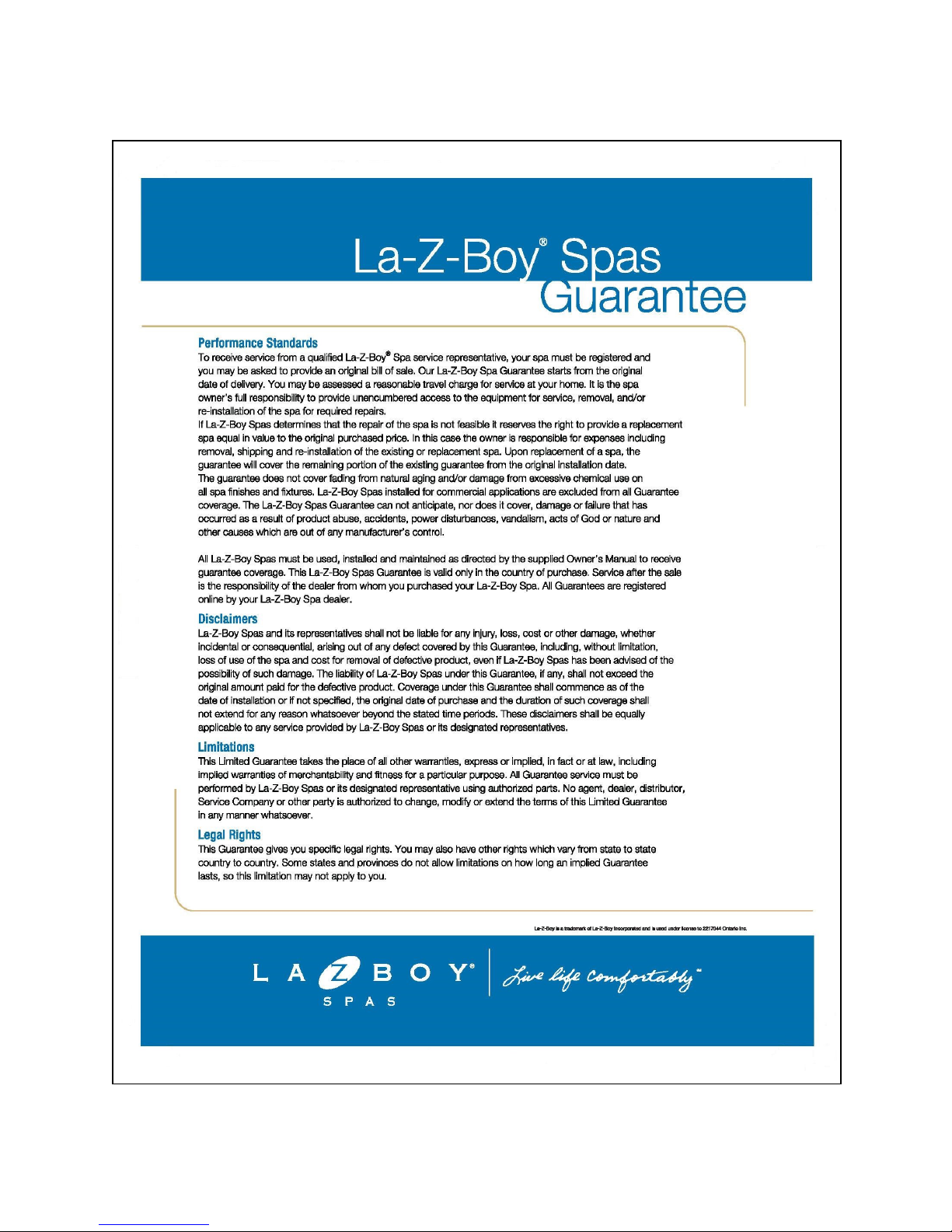

Guarantee………………………………………………………………………………….. 08
Introduction…………………………………………………………………………………. 10
Location and Installation…………………………………………………………………... 11
Electrical Specifications…………………………………………………………………… 12
Start Up……………………………………………………………………………………... 15
Water Quality……………………………………………………………………………….. 20
In-Touch 2000 Controls…………………………………………………………………… 23
AquaCoustics Surround Sound Stereo………………………………………………….. 29
Optional I-Command System…………………………………………………………….. 31
Color Coordinated Cover………………………………………………………………….. 32
Water Management………………………………………………………………………... 33
Frequently Asked Questions……………………………………………………………… 34
Troubleshooting……………………………………………………………………………. 37
Maintenance and Care……………………………………………………………………. 40
Shutdown / Winterization………………………………………………………………….. 43
Glossary…………………………………………………………………………………….. 44
Notes………………………………………………………………………………………... 45

3
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
SAFETY INFORMATION
SAVE THESE INSTRUCTIONS
IMPORTANT USER SAFETY INSTRUCTIONS
Your physiological response to hot water is subjective and depends on your age, health, and
medical history. If you don’t know your tolerance to hot water, or if you get a headache, or
become dizzy or nauseous when using your spa / hot tub, get out and cool off immediately.
WARNING
1. CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT SUPERVISION.
2. DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE INSTALLED TO PREVENT
BODY AND HAIR ENTRAPMENT.
3. PEOPLE USING MEDICATIONS AND/OR HAVING ANY ADVERSE MEDICAL HISTORY SHOULD
CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.
4. PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT TUB.
5. TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE SPA OR HOT TUB.
6. DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA OR HOT TUB, TO AVOID
UNCONSCIOUSNESS AND POSSIBLE DROWNING.
7. PREGNANT OR POSSIBLE PREGNANT WOMEN SHOULD CONSULT A PHYSICIAN BEFORE USING A
SPA OR HOT TUB.
8. WATER TEMPERATURE IN EXCESS OF 38°C (100°F)MAY BE INJURIOUS TO YOUR HEALTH.
9. BEFORE ENTERING THE SPA OR HOT TUB, MEASURE THE WATER TEMPERATURE WITH AN
ACCURATE THERMOMETER.
10. DO NOT USE A SPA OR A HOT TUB IMMEDIATELY FOLLOWING STRENUOUS EXERCISE.
11. PROLONGED IMMERSION IN A SPA OR HOT TUB MAY BE INJURIOUS TO YOUR HEALTH.
12. DO NOT PERMIT OR USE ELECTRIC APPLIANCES (SUCH AS LIGHT, TELEPHONE, RADIO OR
TELEVISION) WITHIN 1.5M (5FT) OF THIS SPA OR HOT TUB.
13. CHILDREN SHOULD NOT ENTER A HOT TUB WHERE THE WATER TEMPERATURE EXCEEDS BODY
TEMPERATURE (37°C / 98.6°F).
14. DO NOT ALLOW CHILDREN TO SUBMERGE THEIR HEAD UNDER WATER.
15. NEVER OPERATE THE HOT TUB PUMP AT HIGH SPEED WITHOUT HAVING ALL SUCTION AND
RETURN LINES OPEN.
16. ALWAYS KEEP THE HARDCOVER INSTALLED AND LOCKED WHEN THE HOT TUB IS NOT IN USE.
17. TEST THE GFCI (GROUND FAULT CIRCUIT INTERRUPTER) MONTHLY.
18. POST EMERGENCY PHONE NUMBERS FOR POLICE, FIRE DEPARTMENT, AND AMBULANCE AT THE
NEAREST PHONE.
19. TO REDUCE THE RISK OF INJURY
 THE WATER IN A SPA SHOULD NEVER EXCEED 40°C (104°F). WATER TEMPERATURES BETWEEN
38°C (100°F) AND 40°C (104°F) ARE CONSIDERED SAFE FOR A HEALTHY ADULT. LOWER WATER
TEMPERATURES ARE RECOMMENDED FOR YOUNG CHILDREN AND WHEN SPA USE EXCEEDS
10 MINUTES.
 SINCE EXCESSIVE WATER TEMPERATURES HAVE A HIGH POTENTIAL FOR CAUSING FETAL
DAMAGE DURING THE EARLY MONTHS OF PREGNANCY, PREGNANT OR POSSIBLY PREGNANT
WOMEN SHOULD LIMIT SPA WATER TEMPERATURES TO 38°C (100°F).
 BEFORE ENTERING A SPA, THE USER SHALL MEASURE THE WATER TEMPERATURE SINCE THE
TOLERANCE FOR WATER TEMPERATURE-REGULATING DEVICES VARIES.
 THE USE OF ALCOHOL, DRUGS, OR MEDICATION BEFORE OR DURING SPA USE MAY LEAD TO
UNCONSCIOUSNESS, WITH THE POSSIBILITY OF DROWNING.
 OBESE PERSONS AND PERSONS WITH A HISTORY OF HEART DISEASE, LOW OR HIGH BLOOD
PRESSURE, CIRCULATORY SYSTEM PROBLEMS OR DIABETES SHOULD CONSULT A PHYSICIAN
BEFORE USING A SPA.
 PERSONS USING MEDICATION SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA SINCE
SOME MEDICATION MAY INDUCE DROWSINESS WHILE OTHER MEDICATION MAY EFFECT
HEART RATE, BLOOD PRESSURE AND CIRCULATION.

4
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
SAVE THESE INSTRUCTIONS
IMPORTANT SAVE THESE INSTRUCTIONS
Your physiological response to hot water is subjective and depends on your age, health, and medical history. If you
don’t know your tolerance to hot water, or if you get a headache, or become dizzy or nauseous when using your hot
tub, get out and cool off immediately.
CAUTION
1. MAINTAIN WATER CHEMISTRY IN ACCORDANCE WITH THE MANUFACTURER’S INSTRUCTIONS.
DANGER
1. RISK OF ACCIDENTAL DROWNING. EXTREME CAUTION MUST BE EXERCISED TO PREVENT
UNAUTHORIZED ACCESS BY CHILDREN. TO AVOID ACCIDENTS, ENSURE THAT CHILDREN CAN’T
USE THE SPA UNLESS THEY ARE SUPERVISED AT ALL TIMES.
2. RISK OF INJURY. THE SUCTION FITTINGS IN THIS SPA ARE SIZED TO MATCH THE SPECIFIC WATER
FLOW CREATED BY THE PUMP. SHOULD THE NEED ARISE TO REPLACE THE SUCTION FITTINGS OR
THE PUMP, BE SURE THAT THE FLOW RATES ARE COMPATIBLE. NEVER OPERATE THE SPA IF THE
SUCTION FITTINGS ARE BROKEN OR MISSING. NEVER REPLACE A SUCTION FITTING WITH ONE
RATED LESS THAN THE FLOW RATE MARKED ON THE ORIGINAL SUCTION FITTING.
3. RISK OF ELECTRIC SHOCK. INSTALL AT LEAST 1.5M (5FT) FROM ALL METAL SURFACES. AS AN
ALTERNATIVE, A SPA MAY BE INSTALLED WITHIN 1.5M (5FT) OF METAL SURFACES IF EACH METAL
SURFACE IS PERMANENTLY CONNECTED BY A MINIMUM 8 AWG (8.4 mm2) SOLID COPPER
CONDUCTOR TO THE WIRE CONNECTOR ON THE TERMINAL BOX THAT IS PROVIDED FOR THIS
PURPOSE.
4. RISK OF ELECTRIC SHOCK. DO NOT PERMIT ANY APPLIANCE, SUCH AS A LIGHT, TELEPHONE,
RADIO, OR TELEVISION, WITHIN 1.5M (5FT) OF THE SPA.
HYPERTHERMIA
Since your hot tub can be set to reach temperatures of 40°C (104°
F), users should be aware that extended submersion in water that
exceeds normal body temperature can lead to hyperthermia.
The causes, symptoms and effects of hyperthermia may be
described as follows:
Hyperthermia occurs when the internal temperature
of the body reaches several degrees above the normal
body temperature of 37°C (98.6°F). The symptoms of
hyperthermia include drowsiness, lethargy, and an increase in the
internal temperature of the body. The effects of hyperthermia
include:
 Unawareness of impending hazard
 Failure to perceive heat
 Failure to recognize the need to exit the hot tub
 Physical inability to exit the hot tub
 Fetal damage in pregnant woman
 Unconsciousness resulting in the danger of drowning
If you sense any of the symptoms of hyperthermia, safely exit the
hot tub immediately.
WARNING
THE USE OF ALCOHOL, DRUGS OR
MEDICATION CAN SIGNIFICANTLY
INCREASE THE RISK OF FATAL
HYPERTHERMIA.

5
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
IMPORTANT ELECTRICAL SAFETY INSTRUCTIONS
SAFETY COMES FIRST WHEN INSTALLING & USING THIS ELECTRICAL EQUIPMENT, BASIC
SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED!
1. READ AND FOLLOW ALL INSTRUCTIONS.
2. Electrical installation must be completed by a qualified electrician in accordance with all National,
Regional and Local Codes and Regulations in effect at the time of installation.
3. Connect only to a dedicated circuit protected by a class “A” two-pole ground fault circuit
interrupter (GFCI).
4. Use copper conductors only.
5. The hot tub equipment and all electrical plugs, outlets and lights within 1.5m (5 ft) of the unit must be
GFCI protected. Consult your electrician or local electrical authority for further details.
6. A green colored terminal or a terminal marked “G”, “GR”, “Ground”, or “Grounding” is located inside
the supply terminal box or compartment. To reduce the risk of electric shock, this terminal must be
connected to the grounding means provided in the electric supply service panel with a continuous
copper wire equivalent in size to the circuit conductors supplying the equipment.
7. At least two lugs marked “BONDING LUGS” are provided on the external surface or on the inside
of the supply terminal box or compartment. To reduce the risk of electric shock, connect the local
common bonding grid in the area of the hot tub to these terminals with an insulated or bare copper
conductor not smaller than No. 6 AWG (Canada/Europe) / No. 8 AWG (USA).
8. All field installed metal components such as rails, ladders, drains or other similar hardware within 3m
(10 ft) of the hot tub shall be bonded to the equipment grounding bus with copper conductors not
smaller than No. 6 AWG.
9. SAVE THESE INSTRUCTIONS.
NORTH AMERICA
 The minimum wire size for systems that require a 40A GFCI is #8/3 conductor with ground. (also
referred to as #8 gauge / 4 conductor).
 The minimum wire size for systems that require a 50A or 60A GFCI is #6/3 conductor with ground
(also referred to as #6 gauge / 4 conductor).
IMPORTANT NOTE:
 This guide is for standard installations where the wire run is 15m (50 ft) or less. For longer runs,
consult a qualified electrician.
WIRE SIZES

6
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
SAFETY SIGN
Safety Sign Must Be Posted – The orange WARNING sign like the one shown is
packed with your new spa/hot tub. This sign must be posted in a prominent place in
close proximity to the spa installation site immediately upon completion of spa
installation.
Important: It is extremely important that this sign be permanently placed in clear view
of persons using the spa / hot tub. Occasional spa / hot tub users may not be aware of
some of the dangers hot water poses to pregnant women, small children, seniors, and
people under the influence of alcohol. If you did not receive a warning sign or your
sign has become damaged, please call your local dealer for a replacement.

7
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Dealer:
Installer:
Spa:
Date Purchased: ___________________________________________________________________
Company: ___________________________________________________________________
Address: ___________________________________________________________________
Telephone: ___________________________________________________________________
Date Installed: __________________________________________________________________
Company: __________________________________________________________________
Address: __________________________________________________________________
Telephone: __________________________________________________________________
Date Delivered: ___________________________________________________________________
Model: ___________________________________________________________________
Color: ___________________________________________________________________
Serial Number: ___________________________________________________________________
Your unique spa / hot tub serial number is located on a data plate outside the cabinet
at ground level directly below the topside control panel. When calling for service,
please have your serial number on hand.

8
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.

9
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.

10
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
INTRODUCTION
Your choice of a La-Z-Boy® Signature Spa indicates that you are devoted to
excellence. The management and staff appreciate your patronage and take pride in
the tradition of quality spas / hot tubs that our company represents.
To properly acquaint yourself with your spa / hot tub, we suggest that you take time to
read through this manual before hook up and operation. Doing so will familiarize you
with the important operating and safety procedures, thereby ensuring an enjoyable
experience right from the start.
If you need any more information than this manual provides, feel free to call your local
dealer or visit our web site at www.lazboyspas.com.
This manual and its contents are subject to change without notice. Although we have
prepared this manual as accurately as possible, we are not liable for errors or
omissions; loss, injury, or damages caused by improper installation; or use of spa / hot
tub (improper or otherwise).
Notes:_______________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
NOTICE
This manual was written to ensure the proper use and installation of
your spa / hot tub. Any modifications to the procedures outlined in
this manual may result in voiding your guarantee.

11
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
LOCATION AND INSTALLATION
Proper planning is an important consideration when installing your new spa / hot tub.
Site selection is a critical step and requires serious thought. Planning ahead makes the
installation process easier. The following information is provided to assist you in site
preparations.
1. Always comply with local building codes and obtain any necessary permits. You
may also need to consult with an engineer to address your specific design
needs.
2. Contact an electrician to assess your electrical needs, install wiring, and assure
a safe operation.
3. Position your spa / hot tub with proper access to water, drainage, and electricity.
4. Place your spa / hot tub on a uniform solid, flat surface designed to properly
support its weight. For external installations, a 4-inch (10 cm) thick cement pad
suffices.
5. For internal installations, check the load carrying capabilities of the floor on
which the spa will reside. Most homes meet the requirement of 250 pounds per
square foot.
6. Assure that your spa / hot tub will fit into the space you have chosen and the
delivery route will accommodate its large size.
7. Provide adequate ventilation for the humidity created by your spa / hot tub. In
most cases, the Color Coordinated Cover is sufficient.
8. Protect the pump and all equipment from the weather by ensuring the cabinet
panels are secure at all times.
9. Allow 36 inches (1 meter) of unobstructed access to all sides of your spa / hot
tub for normal servicing. Your spa / hot tub is not designed to be recessed in the
ground or in a deck.
10.Consider positioning your spa / hot tub out
of or adequately protecting it from the wind.
Just as people can get cold on cool / windy
days so can your spa / hot tub. Windy
environments can significantly increase
operating costs.
11.Consider using an insulating pad. In cold
climates, the ground can rob heat from the
spa / hot tub and increase your operating
costs. Consider using a suitable, outdoor
insulating pad in such environments.
Figure 1 – Clearances and Support

12
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
ELECTRICAL SPECIFICATIONS
Important: Qualified and licensed electricians must perform all electrical hookups.
The following specifications must be followed in order to ensure proper performance
and safety.
Starting an incorrectly wired spa / hot tub could cause severe damage
to the mechanical equipment or even bodily harm. Have your licensed
electrician verify GFCI wiring with the schematics on pages 13-14 prior to
starting the spa / hot tub or call your local dealer.
Failure to abide by specifications listed may result in damage to
the equipment and will void the warranty.
Test the GFCI before each use of the spa / hot tub.
* Use only solid copper wire.
WARNING
CAUTION
All spa / hot tubs must be wired with a GFCI breaker (or according to IEEE wire
regulations for export models). Failure to do so will cause equipment damage and will
not be covered under your guarantee. All spa / hot tubs must be protected with an over
current protective device with built-in GFCI in the service panel.
Volts
(V) Freq. (Hz) Phase Rating (A) GFCI (A) Wire size from GFCI to Main Panel*
# of
Terminals
on plug
240 60 132 40 8-3 plus ground (less than 50’)
4
240 60 140 50 8-3 plus ground (less than 50’) 6-3 plus ground (more than 50’)
4
Table 1 – Wire Size Chart
IMPORTANT NOTE: (FIGURE 2)
The following dimensions can be used to determine the proper
location of submerged conduits in concrete slab installations.
The dimensions are made from the outside of the spa / hot tub
frame with the access for panels removed. The topside control
panel is shown at the bottom of the diagram as a reference.
FIGURE 2: ELECTRICAL CONDUIT LOCATION

13
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Parts with extra low voltage (not exceeding 12V) must be inaccessible to a person in
the spa / hot tub. Earthed appliances must be permanently connected to fixed wiring.
Parts incorporating electrical components must be located or fixed so that they
cannot fall into the spa / hot tub. Means for disconnection must be used with fixed
wiring configurations in accordance with local wiring rules.
IMPORTANT: To allow the GFCI to function properly, connect the white Neutral wire
from the spa / hot tub to the Neutral terminal on the GFCI breaker, not the Neutral bus
bar in the GFCI breaker box. An improperly connected Neutral causes the GFCI
breaker to trip.
Figure 3 - GFCI Wiring
Disconnect the electrical power before servicing. Before obtaining
access to terminals, all supply circuits must be disconnected.
WARNING

14
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Figure 4 - U.S. and Canada Wiring Diagram
See wire size chart on page 12.
IMPORTANT: Installation, including selection of conductor size and type, must be
performed by a qualified electrician in accordance with the National Electrical Code or
the Canadian Electrical Code, and all federal, state and local codes and regulations in
effect at the time of installation.

15
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
STARTUP
Important: Read these step-by-step startup procedures before using your spa / hot
tub. Failure to do so may result in damage to the equipment and may void your
guarantee
Note: If you are unsure of any of the above startup procedures, please call your local
dealer for assistance. For best results, read each step in its entirety before proceeding.
Refer to the following picture for an explanation of your spa / hot tubs controls,
components, and technical terms.
Note: Not all models have all features and components.
Figure 5 - Callouts
CAUTION
Running the spa / hot tub pump dry (without water running through
it) can cause IMMEDIATE damage and will void the Guarantee. Be
sure that the spa / hot tub is installed properly in accordance with
the instructions in this manual.

16
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Before adding water, go through these simple steps now to prevent common issues
when setting up your spa / hot tub for the first time. Verify that the following have all
been rechecked.
1. Turn off all power at the main breaker panel.
2. Open the front panel to access the internal components.
3. Check that all gate valves are opened to the heater and
all pumps.
4. Check that there are no obvious signs of loose wires or
broken pipes.
5. Check that the two heater unions are tight.
6. Check that the unions on all pumps are tight.
7. Clean out any foreign debris from within the service access area or inside of the
spa / hot tub itself.
8. With the drain open and filters removed, thoroughly rinse out the spa / hot tub with
warm water until the drained water runs clear. Run water through the filtration
canister and jet lines to remove any incidental dust, dirt, and debris that may have
accumulated during shipment or installation. Drain all water completely.
9. Make sure that the spa / hot tub drain valve is closed and the cap is on tight.
10.Install the filters in the filtration canister.
11.Check that all of the jets are open (turned full counter-clockwise).
12.Now is the best time to clean and polish the surfaces of your spa.
CAUTION:
Do not use a wrench.
Over-tightening may cause
damage to unions and gaskets,
which will not be covered the
Guarantee.
BEFORE ADDING WATER
Figure 6 - Valve Open/Closed
Figure 7 - Unions Tight

17
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Now it's time to fill your spa / hot tub with water. Do not turn
on the electricity until the spa / hot tub is completely filled.
To properly fill your spa / hot tub:
1. Make sure that the filters (in the filtration canister) are
gently screwed into place. Turn them clockwise until
they stop, being careful not to over-tighten them (this
avoids cracking the filter).
2. Connect a standard garden hose to a faucet with regular
cold tap water (not softened water or hot water). Figure 8 - Filtration Canister
The water from your hot water tank should not be used to fill the
spa / hot tub.
3. Put the pre-filter* on the other end of the hose, point the pre-filter into a suitable
drain, turn on the water, and allow any sediment to be flushed down the drain.
Once the water stream runs clear, turn off the hose.
4. Put the pre-filter (if equipped) into the filtration canister and turn on the hose.
5. Fill slowly. If too much water pressure is used, foaming water can force air into
the pipes and cause startup problems.
* Pre-filters are available at most dealers
Important: To ensure that the pump is properly primed, fill the spa / hot tub through
the filter area only.
6. Fill the spa / hot tub until the water level is about 6” below the top lip of the spa /
hot tub. Do not over fill.
Note: Every person entering a spa / hot tub displaces a given volume of water, so
adjust water level to the number of people regularly using the spa / hot tub.
Turn off the hose and check again for any small leaks.
CAUTION
FILLING YOUR SPA

18
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Do not turn on any pump until your spa is properly filled with
water. Running any pump without water in your spa can cause
IMMEDIATE damage, which is not covered by the guarantee!
By now you have rechecked your spa / hot tub mechanical connections and filled it
with water to about 1” above all jets by adding cold tap water through the pre-filter (if
equipped). Turn on power to the spa / hot tub at the main breaker panel and test the
operation of the electrical system. If you encounter a problem, please reference the
troubleshooting guide.
Turn on the breaker and test the operation of the Ground-Fault Circuit Interrupter
(GFCI) breaker by pushing the small button. This should automatically trip the spa / hot
tub circuit breaker. Only if pushing this button successfully trips this circuit breaker
should you reset this breaker and proceed to the initial start up procedure.
If this breaker does not trip, immediately call your electrician.
Do not use your spa / hot tub!
1) Ensure the circuit breaker to the spa / hot tub is off.
2) Rotate all the jets in the spa /hot tub to the fully open position.
3) Ensure that all of the gate valves are open. The gate valve is open when the handle
is fully extended up and clipped in place. Models with 1 pump will include 2 valves and
models with 2 pumps will include 4 valves. Note: a circulation pump (when installed)
will include an additional 2 valves.
4) To prevent the possibility of leakage in the equipment bay, ensure the pump unions
are tight.
5) Close and cap the hose bib. This is used for draining the spa / hot tub.
6) Fill the spa / hot tub until the water level is about 6” below the top lip of the spa / hot
tub. Do not overfill.
INITIAL START UP PROCEDURE
DANGER
CAUTION
OPERATIONAL CHECKS

19
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
If water does not flow from the jets after 2 minutes, turn power off
at the main panel and bleed air from the system. Turn power on
again. Sometimes momentarily turning a pump off/on will prime it.
Only do this four times.
7) Turn on the circuit breaker. Set the desired temperature by using the up or down
keys.
8) Push the jets 1 keypad to turn on the low speed pump. Check to ensure water is
coming from some of the jets. If the water is not flowing out, open the pump union
slightly to release trapped air. Close the union when the pump pushes water out of the
jets. Push the jets 1 keypad and the pump will turn on high speed. Observe closely to
ensure adequate water flow. Push the jets 2 key pad (if equipped) and pump 2 will turn
on high speed. Observe to ensure adequate water flow. If there is no water flow
through the jets, the pumps need to be primed.
9) Re-attach the equipment access panel.
10) Ensure proper water chemistry only after completing the above steps.
11) To conserve energy and ensure your spa / hot tub is ready for use, place the color
coordinated cover securely on the spa.
CAUTION
NOTE:
In order to prevent damage to your pillows caused by the gassing effect of the
chemicals, we do recommend to remove them when the spa is not in use. By
removing them you will extend considerably the life length of your pillows. We
do design ours pillows to be removed easily in order to make sure they will not
remain in the spa when it’s not in use.

20
For HELP, call La-Z-Boy® Spas at 1.800.465.2933.
Note: Perform water quality testing weekly and whenever your water is changed (or
when your spa / hot tub is first filled).
Once your spa / hot tub reaches 95ºF, properly adjust the chemistry of your spa / hot
tub water by testing it with good quality test kits and adjusting levels as needed.
Note: Balancing and sanitization products are not included.
Figure 9 – Typical Test Strip Usage
Important: Total Alkalinity (TA) is the first parameter you should balance when
making routine adjustments to your water.
Once your water temperature reaches 95ºF, test the total alkalinity of your spa / hot tub
water with a good quality test kit. Maintain a total alkalinity level of 80 to 120 ppm.
Total alkalinity is the measure of alkaline buffers in your water. These buffers protect
the water against sudden changes in pH. Total alkalinity is considered the key to water
balance.
When the total alkalinity is too low, add sodium bicarbonate. If the total alkalinity is too
high, you can lower it by using muriatic acid or sodium bisulfate.
Test the pH of your spa water with a good quality test kit. Maintain a pH level of 7.2 to
7.8.
A balanced pH promotes bathing comfort and prevents corrosion, staining, scaling, or
cloudy water.
If the measured pH is too low, add soda ash to the spa water. If the pH is too high, add
sodium bisulfate to the spa water. Follow the directions on the manufacturer’s label
and make small changes. Circulate the water for 20 minutes before retesting.
WATER QUALITY
TOTAL ALKALINITY
ACID ALKALINE BALANCE (pH)
