LaZee Tek eeZee Mouse CURSOR User manual

LaZee Tek
Computer Access Technologies
1 of 5
224-H
eeZee Mouse™CURSOR
Operating Instructions
1.0 System Requirements
Hardware: Host computer or other device with powered USB connector
Software: - Microsoft WindowsTM: 8, 7, Vista, XP, ME, 2000, 98(with CD)
- OSXTM 8.0 or above
- UnixTM / Linux / Other utilizing standardized HID drivers
Compatibility: Can be used at the same time with all other hardware, or click/drag software.
2.0 Controls
Rear Panel
| |
Sensor Control
3) USB – USB input connector. Accepts standard USB mini-B cable from the host computer or other
device.
4) Home – External Home input jack. Accepts switch from most manufacturers using standard 3.5
mm plugs. Switch closure to ground activates Home command. Same functionality as Home
button on top of unit.
5) Sensor – Body Sensor input jack. Accepts LaZee Tek’s Body Sensor cable. This proprietary
interface is not compatible with other equipment.
6) Motion – Range of Motion (ROM) adjustment. The higher the motion setting (CW), the more
movement is required of the Body Sensor to achieve the same result.

LaZee Tek
Computer Access Technologies
2 of 5
224-H
2.0 Controls - continued
Front
7) Home – Home button sets a new home position for
the sensor when activated.
Button Functions
The eeZee Mouse™CURSOR provides only cursor movement. All mouse button functions must be
provided by another means. The eeZee Mouse™CURSOR is fully compatible with and can be used in
conjunction with any other hardware device, and also any software product such as click/dwell etc..

LaZee Tek
Computer Access Technologies
3 of 5
224-H

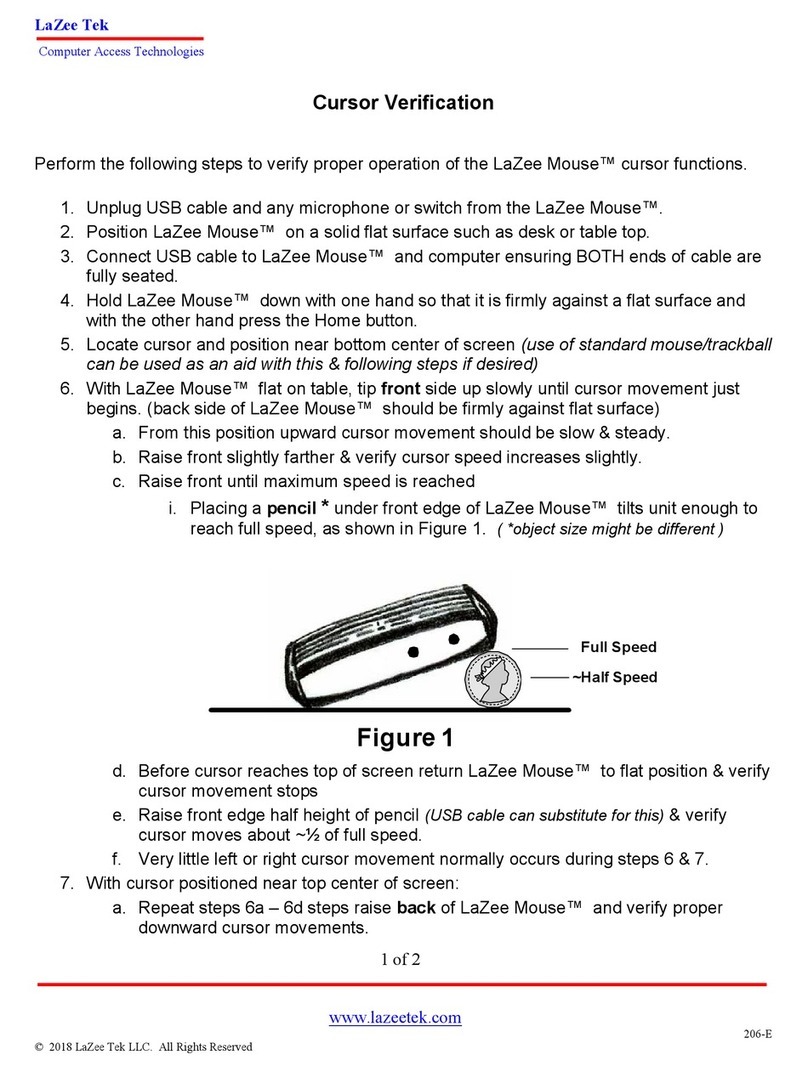

3.0 Basic Functionality
Body Sensor
The body sensor is used to control the computer cursor. The Body sensor utilizes tilt sensor
technology, and provides highly precise signals to control the cursor. It is operated by tilting slightly:
forward/backward to control the up/down cursor movements and right/left respectively. A virtual
joystick in space. . Because of its tiny size and extremely low weight, it can literally be worn
anywhere the user needs it! Any part of the user’s body can become a joystick.
Most importantly is to attach the sensor firmly to the activating surface
and to support the cable so that it doesn’t interfere with sensor travel during operation.
As a starting point, the user selects the “HOME” position.
Cursor movement will not occur when the sensor is in this position.
The HOME command performs electronic leveling, calibrating the
sensor to its present position. This eliminates the need to level the
sensor befor use. The HOME position is updated each time the
“HOME” button or external home switch is activated.
As the sensor is tilted, it sends signals to move the cursor.
Tilting the front of the sensor up moves the cursor up, while tilting
the front downward moves the cursor down. Returning it to the
home position stops the cursor. Tilting the left side of the sensor
downward moves cursor left. Tilting two directions at same time
move the cursor diagonally. This provides smooth accurate cursor movements in any direction
Cursor speed is proportional to the degree of sensor tilt. Tilt the sensor very slightly to move the
cursor very slowly. Tilting the sensor farther increases the cursor speed until the maximum Motion
setting is reached. Moving beyond this will not increase cursor speed any faster.
The “Motion” adjustment sets the Range of Motion (ROM) required for full cursor speed. The
ROM is how far the sensor needs to be tilted to move the cursor at full speed. A minimum Motion
setting will require the user to move very little in order to achieve full speed. While the “Motion”
control selects how far a user must tilt the sensor to reach full speed, the maximum speed setting is set
in the mouse properties menu. ( 4.0 Setup – Step 1 )
The tilt sensor is reported to be the most reliable and accurate positioning system ever used in
assistive technology computer control. One of its characteristics is that the sensor detects all
movements, intentional and not so. When this is understood, the sensor can be installed and operated
properly, thus providing the user the best computer control system available.
Refer to our Operational Notes section on the website for detailed explainations of various topics.

LaZee Tek
Computer Access Technologies
4 of 5
224-H
4.0 Setup
1. On host computer reduce mouse speed settings. Adjust as needed to match user’s proficiency.
Good starting point: maximum speed of 5 seconds for cursor to travel from Left to Right side
of monitor. Menu located: Start Menu / Settings / Control Panel / Mouse / Mouse Properties /
Pointer Options . Similar menus are available in other operating systems.
2. Determine appropriate placement of eeZee Mouse.
3. Set Range of Motion (ROM) adjustment to mid point or above, depending on users abilities.
4. Connect the Body Body Sensor connector to the Body Sensor input jack. Position Body
Sensor in desired operating position on user’s head, foot, or anywhere in between!
a. Body Sensor must be oriented so as the cable exits toward the rear.
b. Body Sensor must be attached firmly to activating surface.
c. Attach Body Sensor cable clip to support cable.
5. If desired, connect switch to external HOME input jack.
6. Connect small end of USB cable to eeZee Mouse.
7. Using standard ESD precautions connect large end of USB to host computer.
a. First time eeZee Mouse™is connected to computer, it may be recognized as New
Hardware. If so, wait several seconds for the “New Device Ready for Use” message.
b. Ignore cursor movements until Step 2 below.

LaZee Tek
Computer Access Technologies
5 of 5
224-H
5.0 Operation
1. With user in normal computer operating position:
a. Look at the center of the computer screen and keep Body Sensor motionless for ~ 1
second.
b. Set the HOME position by momentarily activating the HOME function either via
external switch or pressing the button on top of eeZee Mouse.
c. Tilting the Body Sensor in any direction will now begin cursor movement.
2. Locate cursor and begin operation!
a. If cursor is off screen, moving in a circular pattern can aid in finding it.
(Activating the CTRL key can aid in finding a lost cursor, if that option is enabled
in mouse properties menu.)
3. Setting Range of Motion (ROM) A minimum setting of ROM will generate cursor movement
with very little movement of the Body sensor. An ROM setting of maximum will require
greater movement of the body sensor to move the cursor. Try different ROM settings until the
desired body sensor movement is found. Adjusting the ROM control changes the HOME
position. After any ROM adjustment, the HOME position may need to be set again.
4. Mouse maximum speed settings are adjusted by the Mouse menus (Setup step 1) This is the
speed the cursor travels at full movement of the body sensor. The body sensor controls are
proportional, this setting also indirectly affects the slower speeds as well. It is usually best for
new users to begin with the menu settings at or near minimum. Adjust as skill level improves.
The Speed settings Rule of Thumb: (Crawl before walking!)
a. Reduce Speed If Frustrated or having difficulty controlling the cursor
b. Increase Speed – Bored and desire faster response
c. Increase speeds if desired as skill develops.
5. For technical support:
a. Web: www.lazeetek.com
b. Email: [e-mail]
c. Phone: [phone]
6. WEEE Take Back Program
a. To support the environment, LaZee Tek takes our products back
directly from customers. Contact us for details or visit:
www.lazeetek.com/html/weee/html
