Thank you for choosing LD-Systems!
We have designed this product to give you reliable operation over many years. Therefore LD-Systems underwrites
high quality products with its name and many years of experience as a producer.
Please, take a few moments to read these instructions carefully, as we want you to enjoy your new LD-Systems
products quickly and to the fullest.
Further information about LD-Systems check our website WWW.LD-SYSTEMS.COM

3
LD WIN42
UHF TRUE DIVERSITY WIRELESS SYSTEM
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
UHF PLL SINGLE CHANNEL RECEIVER
POWER ON/OFF
VOLUME
734.000
PHONES
WIN42
PUSH TO SELECT
MENU
GR/CH:01/01
MU

PREVENTIVE MEASURES:
4
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
CAUTION
RI SK OF E LEC TRIC SHOC K
DO N O T OPE N
1.Please read the attached safety instructions as well as the following instructions carefully.
2.Please keep all the instructions.
3.Please use the device only as intended.
4.Please respect the valid waste management rules. Please deliver the packaging divided into plastic and
paper/ cardboard to the recycling management.
5.Please refer all servicing to qualified personel only if the device is damaged, exposed to liquid/rain or if it
does not operate normally.
6.Please, do not expose to any kind of heat such as ovens, radiators, or any other devices (incl. amplifiers).
Please check for enough distance between amplifiers and walls, racks, etc. to prevent overheating.
7.After connection please check the wiring to prevent any kind of accident or damage.
Please never use any kind of damaged cable and wiring.
8.Only use authorized and stable stands, brackets, shelfs, tables etc. for installations. Please check for adequate
stability against collapse.
9. Appearance of interferences when using wireless systems.The simultaneous use of wireless microphones and
of mobile phones (if both devices are not very distant from each other) can lead to the appearance of interferen-
ces in the microphone signal which can be heard in the PA system.
CAUTION:
To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer
servicing to qualified personnel.
The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the
user to the presence of uninsulated “dangerous voltage” within the product´s enclosure that may be
of sufficient magnitude to constitute a risk to persons.
The exclamation mark within an equilateral triangle is intended to alert the user to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
CAUTION! HIGH VOLUME!
You will operate this transmission system for professional use. Therefore the commercial use of this equipment
is liable to the rules and regulations of the Accident Prevention & Insurance Association of your industry sector.
Adam Hall as a manufacturer is bound to inform you formally about the existence of eventual sanitary risks.
This system is able to induce an acoustic pressure of 80 db. 85 db is by law the maximum audio pressure
level which your ear can be exposed to during a work day. It was set according to the technical expertise of the
occupational medicine as a basis for the noise rating level. Higher sound levels or longer exposition times could
damage your ear. The time of exposition by higher sound pressure levels should be shortened in order to prevent
from ear damages. Here are a few reliable warning signals which show that you have exposed yourself for a too
long period to excessive sound pressure levels:
- You hear bell- or whistling sounds!
- You have the impression that you can’t hear high tones anymore!

The professional UHF true diversity wireless system LD WIN42 with its clear and dynamic sound offers a variety
of applications for live-sound and permanent installation. Handheld microphone and beltpack both allow singers,
speakers or instrumentalists best possible transmission and reproduction of their performance and biggest
possible mobility all together. The LD WIN42 wireless system offers a multitude of professional features to fulfill
any technical requirement. These properties and the use of high quality electronic components make it possible
to use up to 20 systems at the same time in the same place without interference.
UHF frequency range 734 – 776 MHz
1680 frequencies
20 groups with 577 fixed frequencies
user bank with 1680 free selectable frequencies in 25 kHz steps
225 addresses selectable
channel scan
true diversity receiver
microphone head exchangeable (dynamic / condenser)
transmitter sync via infrared
balanced XLR output
unbalanced 6,3 mm jack output
adjustable headphones output
The use of wireless microphone systems in the frequency range between 710 and 790 MHz may require a license
according to country-specific regulations. Please contact your local appropriate authority for more information.
INTRODUCTIONS & FEATURES:
5
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH

HANDHELD SYSTEM INCLUDES:
HHD WIN 42 MD /MC
6

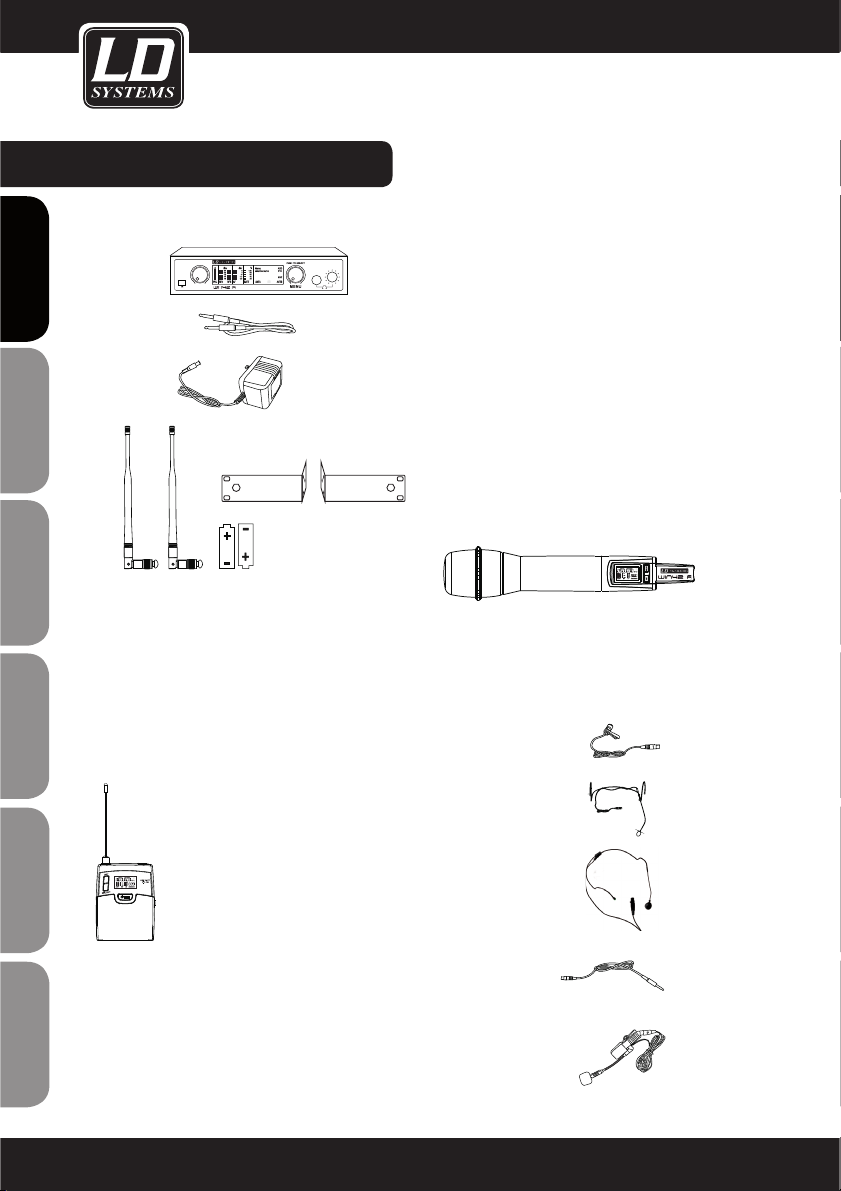

SYSTEM COMPONENTS:
ALL SYSTEMS INCLUDE:
WIN-42 Receiver
1 x Transmitter
2 x AA Batteries
1 x audio cable
Power adapter
2 x Antenna
2 x TNC cable
2 x Antenna connectors
Rack kit
User Guide
Rack kit
Beltpack transmitter
(included in every system)
BELTPACK SYSTEM AVAILABLE WITH:
BPL
Lavalier mic
BPH
Headset
BPHH
Skin colour headset
BPG
Guitar cable
BPW
Brass instrument mic
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
φ
UHFPLL SINGLE CHANNEL RECEIVER
POWER ON/OFF
VOLUME
PHONES
734.000
LD SYSTEMS
φ
φ
φ
φ
φ
φ
φ
φ
φ
+

7

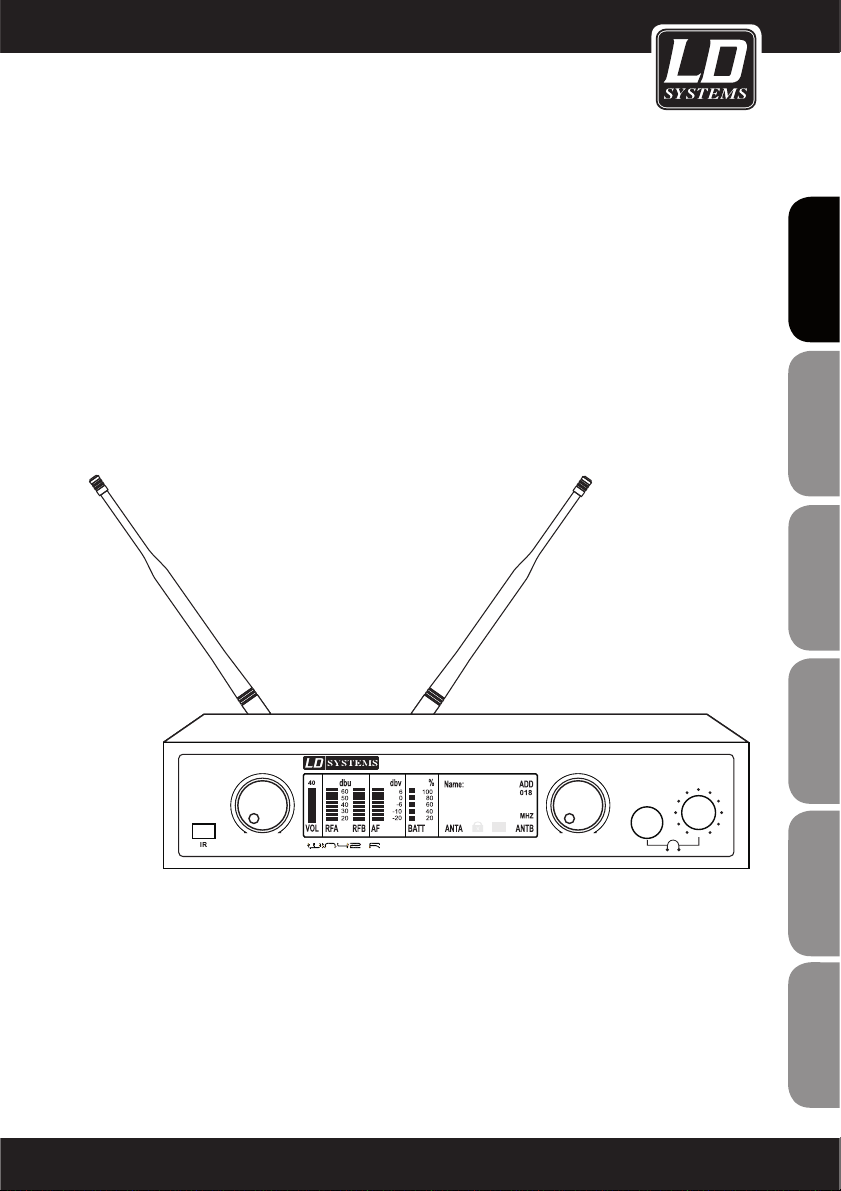

FRONT PANEL / BACK PANEL:
INFRARED (IR) PORT
POWER SWITCH / VOLUME CONTROL / SYNC
LCD DISPLAY
MENU/SELECT
HEADPHONES OUTPUT
HEADPHONES VOLUME CONTROL
AC ADAPTER CONNECTOR
BALANCED XLR OUTPUT
UNBALANCED 6,3 MM JACK OUTPUT
DATA OUT CONNECTOR
TNC ANTENNA CONNECTOR
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
φ
2150





UHF PLL SINGLE CHANNEL RECEIVER
POWER ON/OFF
VOLUME
734.000
PHONES
WIN42
PUSH TO SELECT
MENU
GR/CH:01/01
MU
φ

8
LCD DISPLAY:
DISPLAY FUNCTION
VOL Volume (audio output)
RFA CH A Receiver signal strength
RFB CH B Receiver signal strength
AF Audio level meter
BATT Transmitter Battery Status
Name User name
ADD Address (225)
GR Group
CH Channel
ANTA Antenna A
ANTB Antenna B
Lock
MU Transmitter Mute indicator
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
φ
WIN42 ADD
734.000
GR/CH:01/01

9
PUSH MENU WHEEL TO ACCESS MENU INTERFACE

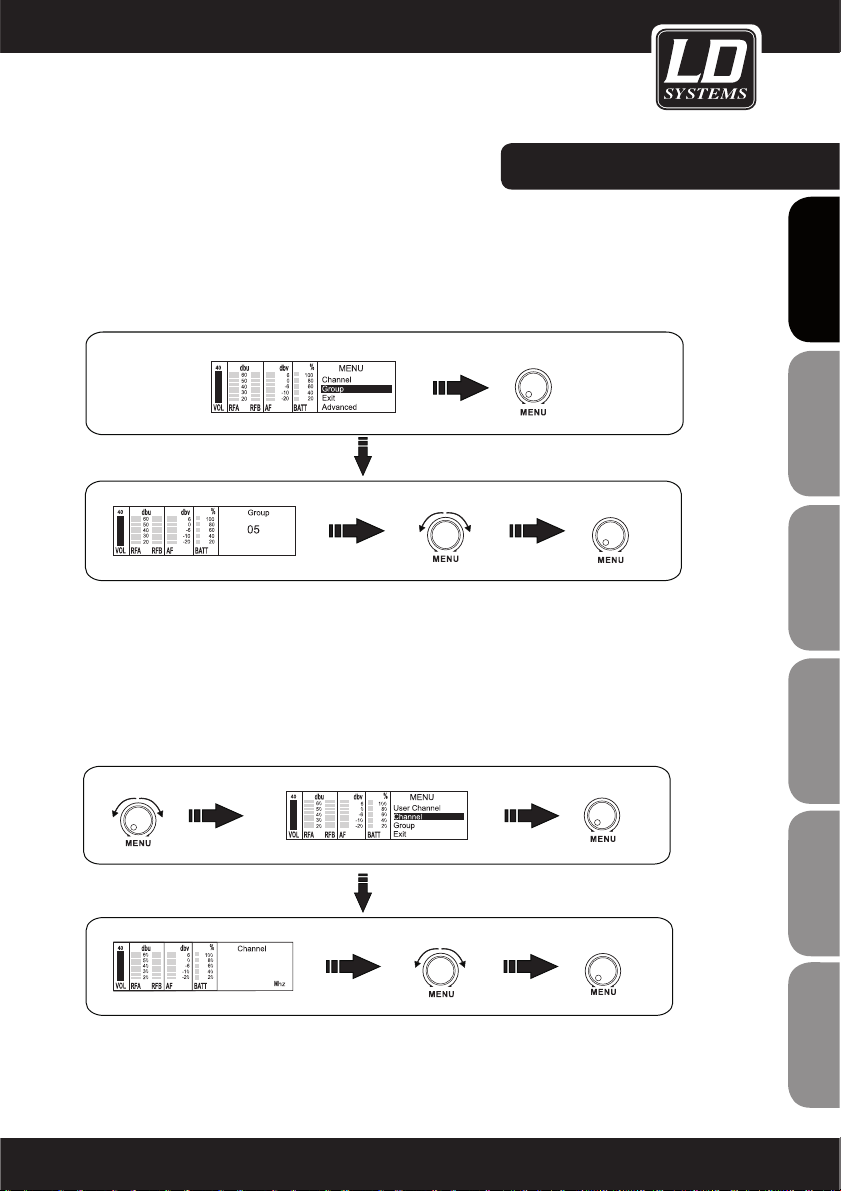

GROUP
Push the MENU wheel and move the cursor to GROUP by turning the MENU wheel and press MENU wheel to ac-
cess Group menu. Turn the MENU wheel to choose GR 1-20 or User and push the menu wheel again to validate
your selection.
Move the cursor to exit and press the MENU wheel, or press the Power button shortly to exit the menu.
CHANNEL
Push the MENU wheel and move the cursor to CHANNEL by turning the MENU wheel and press MENU wheel
to access Channel menu. Turn the MENU wheel to choose the channel number and push again to validate your
selection.
Move the cursor to exit and press the MENU wheel, or press the Power button shortly to exit the menu
SYSTEM SETTINGS:
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
Press
Press
RightLeft
Turn
RightLeft Press
Press
RightLeft
Turn
734.000
01

10

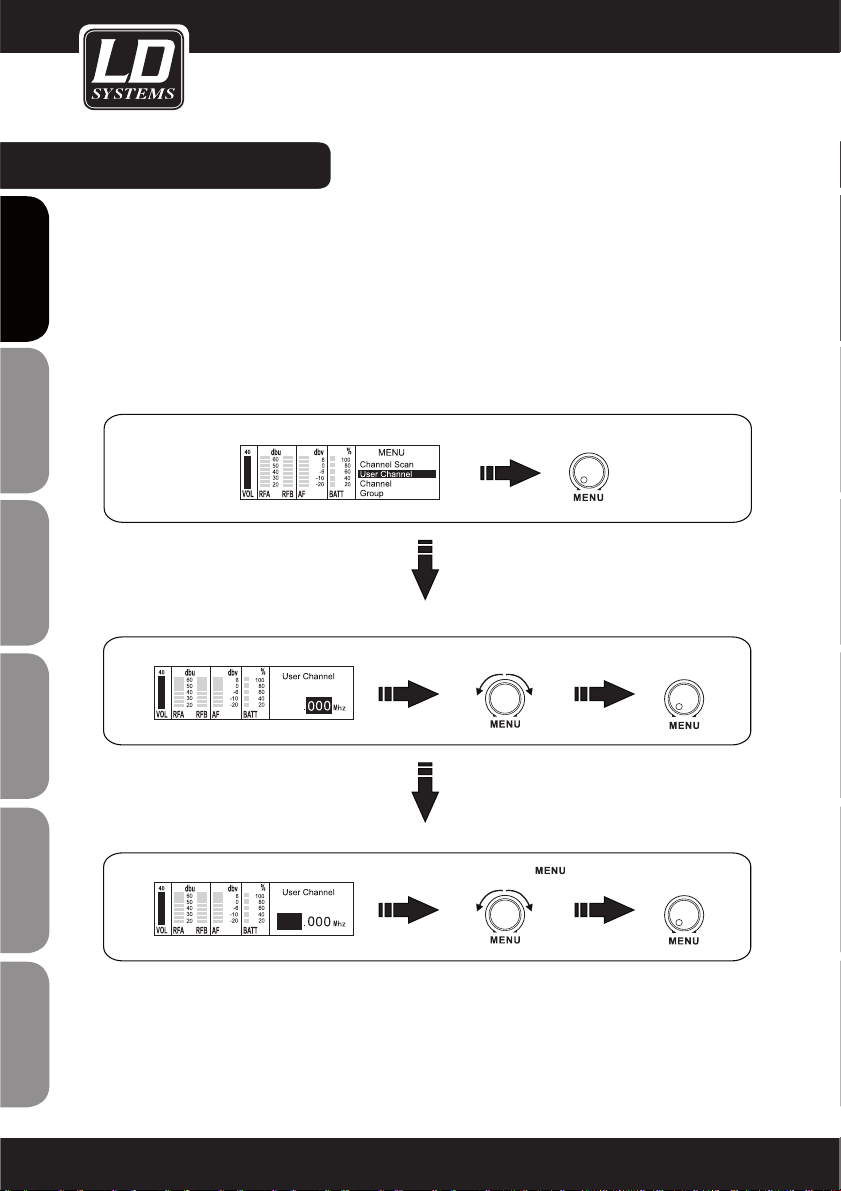

USER CHANNEL
Push the MENU wheel and move the cursor to USER CHANNEL by turning the MENU wheel. Press MENU wheel
to access User Channel menu. Turn MENU wheel to set the last three figures of the frequency (each step for
25KHz). Press MENU wheel to store the setting and continue to set the first three figures of the frequency as
shown below (each step for 1 MHz). Totally there are 1680 tunable frequencies available.
Push MENU wheel again to store the setting.
SYSTEM SETTINGS:
SYSTEM SETTINGS:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
Press
RightLeft
Turn
Press
RightLeft
Turn
Press
734
734

11

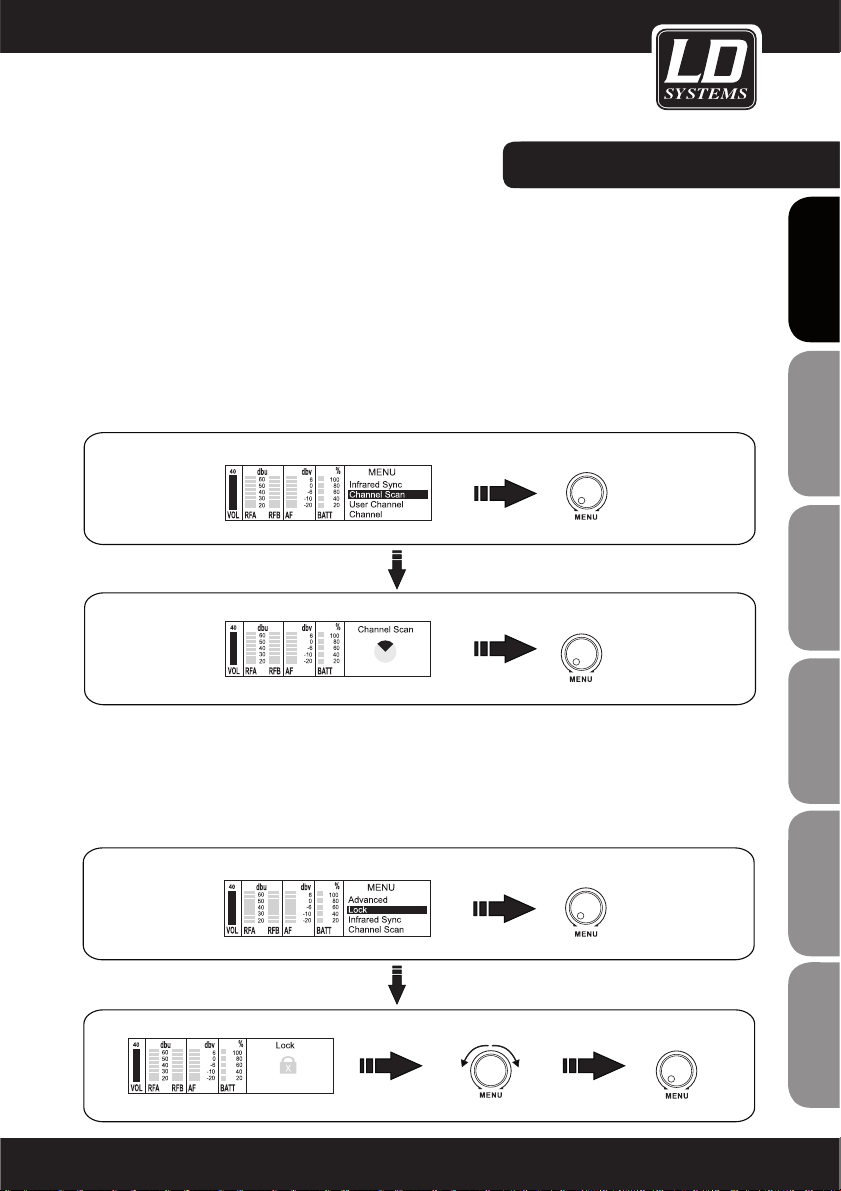

CHANNEL SCAN
Push the MENU wheel and move the cursor to CHANNEL SCAN by turning the MENU wheel. Press the MENU
wheel twice to start scanning. After scanning is complete, the display shows the automatically selected interfe-
rence free frequency in the main user interface.
When using multi-systems and frequency selection is done by the channel scan function, already set up systems
should remain switched on for further channel scan processes. The frequency scan function relates to the
frequency presets in the pre-selected group (1-20).
Note: Each frequency channel must come from the same group (1-20) when using multi-systems. Each system
should be set up in a different address when using multi-systems).
LOCK SETTING
Lock: Push the MENU wheel and move the cursor to LOCK SET by turning the MENU wheel and press MENU
wheel to access Lock menu. Turn the MENU wheel to choose lock (the lock symbol will appear in the display)
and press MENU to store the state.
Unlock: Press MENU wheel to enter LOCK, turn counterclockwise to unlock and press MENU to store the
state. The lock symbol will disappear.
SYSTEM SETTINGS:
SYSTEM SETTINGS:
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
RightLeft Press
Press
Press
Press

12
INFRARED SYNC
Method 1: Push the MENU wheel and move the cursor to INFRARED SYNC by turning the MENU wheel. Press
MENU wheel twice to start infrared synchronisation. Make sure that the infrared (IR) interface of the transmitter is
placed in front of the IR interface of the receiver (within 50 cm).
Method 2: Push VOLUME shortly (in the main user interface) to start the infrared (IR) sync. Make sure that the
infrared (IR) interface of the transmitter is placed in front of the IR interface of the receiver (within 50 cm).
Note: The infrared signal will be sent for 25 seconds, then the display turns back to the main user interface.
SYSTEM SETTINGS:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
UHF PLL SINGLE CHANNEL RECEIVER
POWER ON/OFF
VOLUME
734.000
PHONES
Press
Press
UHF PLL SINGLE CHANNEL RECEIVER
POWER ON/OFF
VOLUME
734.000
PHONES
WIN42
PUSH TO SELECT
MENU
GR/CH:01/01
MU

13
ADVANCED MENU SETUP
Push the MENU wheel and move the cursor to ADVANCED by turning the MENU wheel and press MENU wheel to
access Advanced menu setup.
NAME
Turn the MENU wheel to move the cursor to NAME and press the MENU wheel to access the Name Set menu.
Turn the MENU wheel to edit name by choosing from 0-9, space or A-Z for each figure (maximum 6) and push
the MENU wheel to jump to next figure. After finishing name set, press MENU wheel to store the setting.
ADDRESS
Turn the MENU wheel to move the cursor to ADDRESS and press MENU wheel to access Address menu.
Turn the MENU wheel to edit address by choosing from 0-224. After finishing press the MENU wheel to store the
setting.
Note: Each system should be set up in a different address when using multi-systems. The communication bet-
ween LD WIN42 transmitter and LD WIN42 receiver is based on a specific Address System.
That means that the receiver switches the audio output on only if the addresses of transmitter and receiver
match each other (same address).
Addresses can be set individually in the receiver and the transmitter, but the easier way is to set the address in
the receiver and to transfer the address via Infrared Sync then.
SYSTEM SETTINGS:
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
RightLeft
Turn
Press
Press
DANI01
RightLeft
Turn
Press
Press

SYSTEM SETTINGS:
14

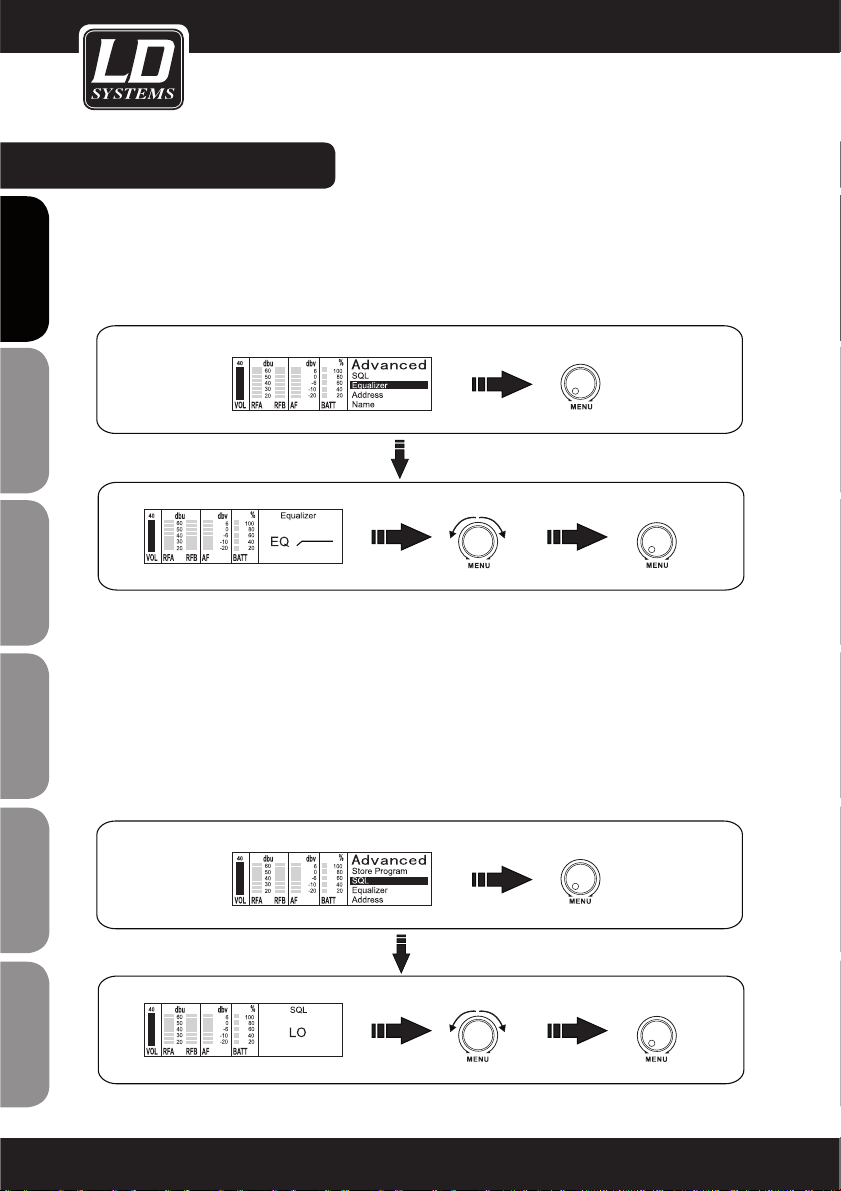

EQUALIZER
Turn the MENU wheel to move the cursor to EQUALIZER and press MENU wheel to access Equalizer menu.
Turn the MENU wheel to choose the suitable mode and press the MENU wheel to store setting.
Note: There are 4 EQ modes available.
SQL (Squelch)
Turn the MENU wheel to move the cursor to SQL and press the MENU wheel to access the SQL Menu.
Turn the MENU wheel to choose the suitable mode and press MENU wheel to store the setting (LO, MID, HI).
Note: The squelch system eliminates unpleasant noise when the transmitter is switched off. It also suppresses
sudden noise when there is no longer sufficient transmission power received by the receiver.
Adjust the squelch (with transmitter switched off) to the lowest possible setting that suppresses hissing noise.
Setting “Hi” can cause smaller distance of transmission path under unfavourable conditions.
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
Press
RightLeft
Turn
Press
Press
RightLeft
Turn
Press

SYSTEM SETTINGS:
15

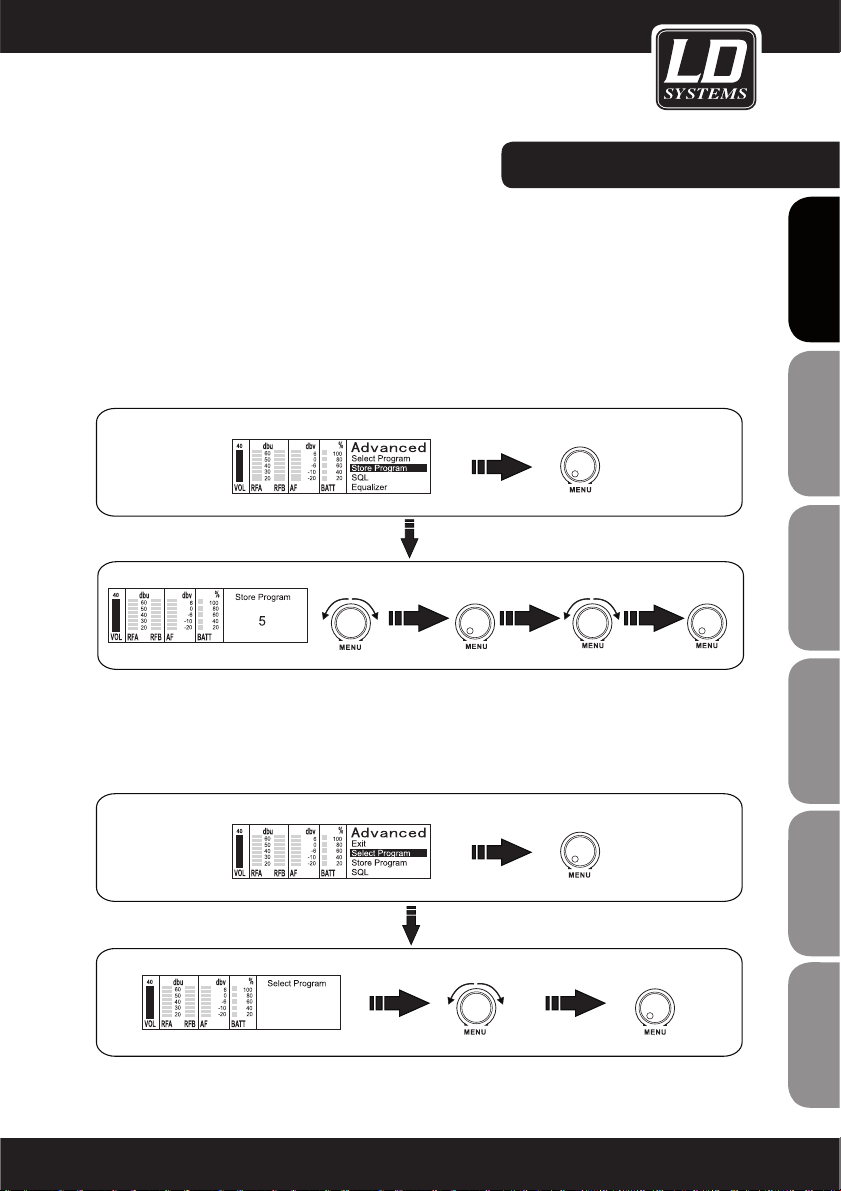

STORE PROGRAM
Turn the MENU wheel to move the cursor to STORE PROGRAM (Name, Group, Channel, Address, EQ, SQL) and
press MENU wheel to access Store Program menu. Turn the MENU wheel to choose from 0-9 and press the
MENU wheel to go to next page ( Store yes? / Store no?).
If you want to store program turn the MENU wheel to “store yes?“ and confirm by pressing MENU again.
The display will return to the main user interface after „Stored“ will appear for two seconds.
If you don‘t want to store program turn the MENU wheel to “store no?“ and confirm by pressing MENU again.
The display will return to the advanced menu.
SELECT PROGRAM
Turn the MENU wheel to move the cursor to SELECT PROGRAM and press MENU wheel to access Select Program
menu.Turn the MENU wheel to choose stored program from 0-9 and press the MENU wheel to load the settings.
EXIT
Turn the MENU wheel to move the cursor to EXIT and press MENU wheel to return to advanced menu.
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
Press Press
RightLeft
Turn
RightLeft
Store (Yes/No)

RightLeft
Turn
Press

LD 01
Press

Press

6

16

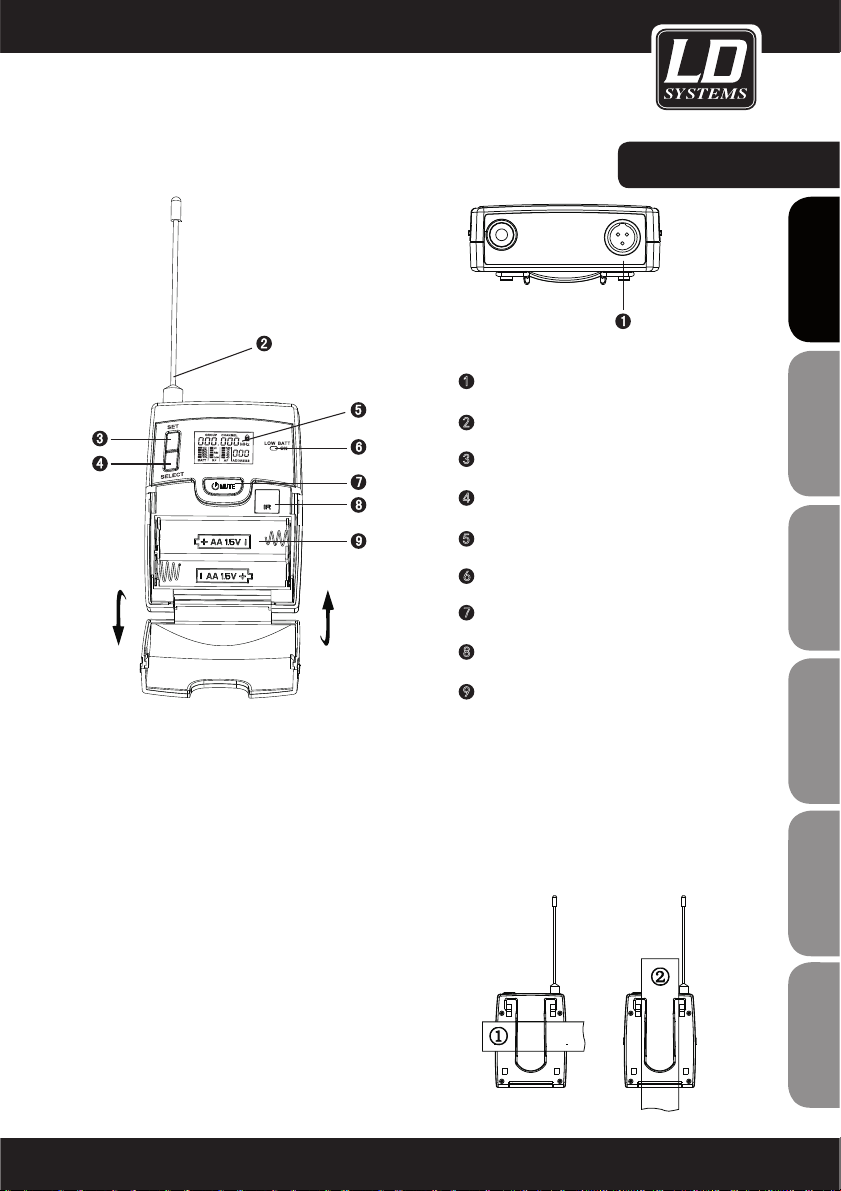

Microphone head
Battery lid
LCD display
SELECT Menu Button
System SET Button
Power / Mute switch
Infrared interface
CHANGING BATTERIES:
1. Unscrew cover
2. Open lid
3. Replace batteries
4. Close lid
5. Screw on cover
WIN42MD:
Note: Microphone will only work with screwed
on cover
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
MUTE
S E T 

S E L E C T
UnscrewScrew
Open Cover
SET
SELECT
SET
SELECT

17
3-pin mini XLR input
Antenna
System SET Button
SELECT Button
LCD display
Low battery indicator
Power / mute switch
Infrared (IR) port
Battery compartment
Changing batteries:
When the receiver or transmitter battery indication blinks, the batteries should be changed within
15 minutes.
Wearing the beltpack transmitter: Clip the transmitter to belt
(1), or slide a guitar strap through the transmitter clip (2).
For best results, slide the transmitter until the belt is pressed
against the base of the clip.
WIN42BP:
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH
O pen C lose
Close
Open

18
DISPLAY FUNCTION
GROUP Current group
CHANNEL Current channel
BATT Battery level indication
RF Transmission power ( Hi, Mid, Lo )
AF Gain setting ( 0 dB, -10, -20, -30, -40 dB)
ADDRESS 0-224
MUTE AF blinks
TRANSMITTER LCD DISPLAY:
1
2
3
MINI-XLR
sleeve tip
6,3 mm jack
1
2
3
MINI-XLR
Condenser with internal pull up resistorGuitar & Bass and other high impendance sources
1
2
3
MINI-XLR
R
2,2k
Condensor without internal pull up resistor
BELTPACK MINI-XLR PIN ASSIGNMENT
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO


19

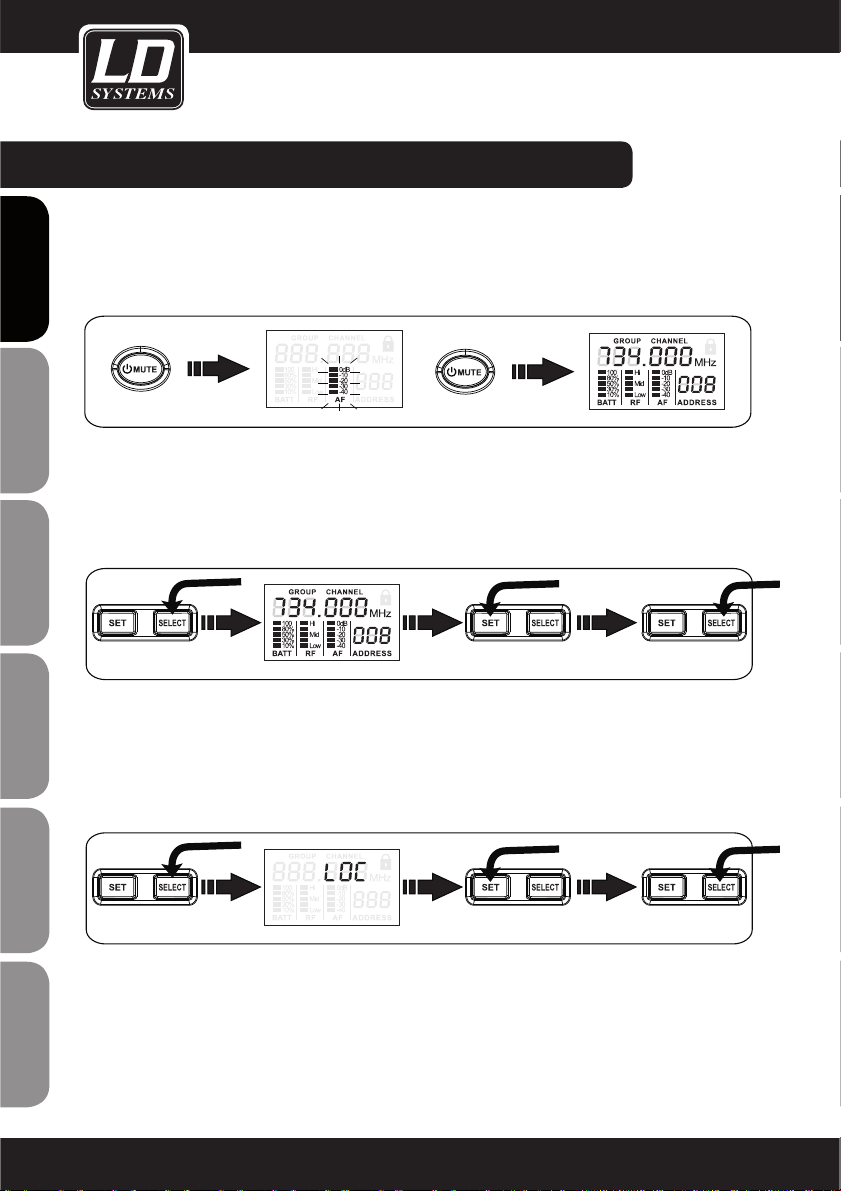

ON / OFF AND MUTE
Press the Power/Mute key for 2 seconds to turn on/off the transmitter. Push the Power/Mute key briefly to mute
the transmitter (AF blinks). Push briefly again to unmute the transmitter.
GROUP / CHANNEL / AF (AUDIO LEVEL) / RF (TRANSMISSION POWER) / ADDRESS /
LOCK SETUP
Press SELECT key for 2 seconds to enter edit modus. Push the SET key briefly to change value and SELECT key
to go to the next function.
LOCK / UNLOCK
Lock: Press the SELECT key for 2 seconds to enter edit modus (group blinks). Press the SELECT key repeatedly
until „LOC“ blinks and press the SET key to lock the transmitter. Press SELECT to confirm.
Unlock: Press the SELECT key until “LOC” blinks. Press the SET key to unlock the transmitter. Press SELECT to confirm.
DISPLAY CURRENT FREQUENCY
Press the SET or the SELECT key shortly under main user interface and the display will show the current working
frequency. Returns to main user interface after 5 seconds automatically.
HANDHELD TRANSMITTER MAIN FUNCTION:
ITALIANOPOLSKIESPAÑOL
FRANCAISFRANCAIS FRANCAISFRANCAIS FRANCAIS
DEUTSCHENGLISH

20

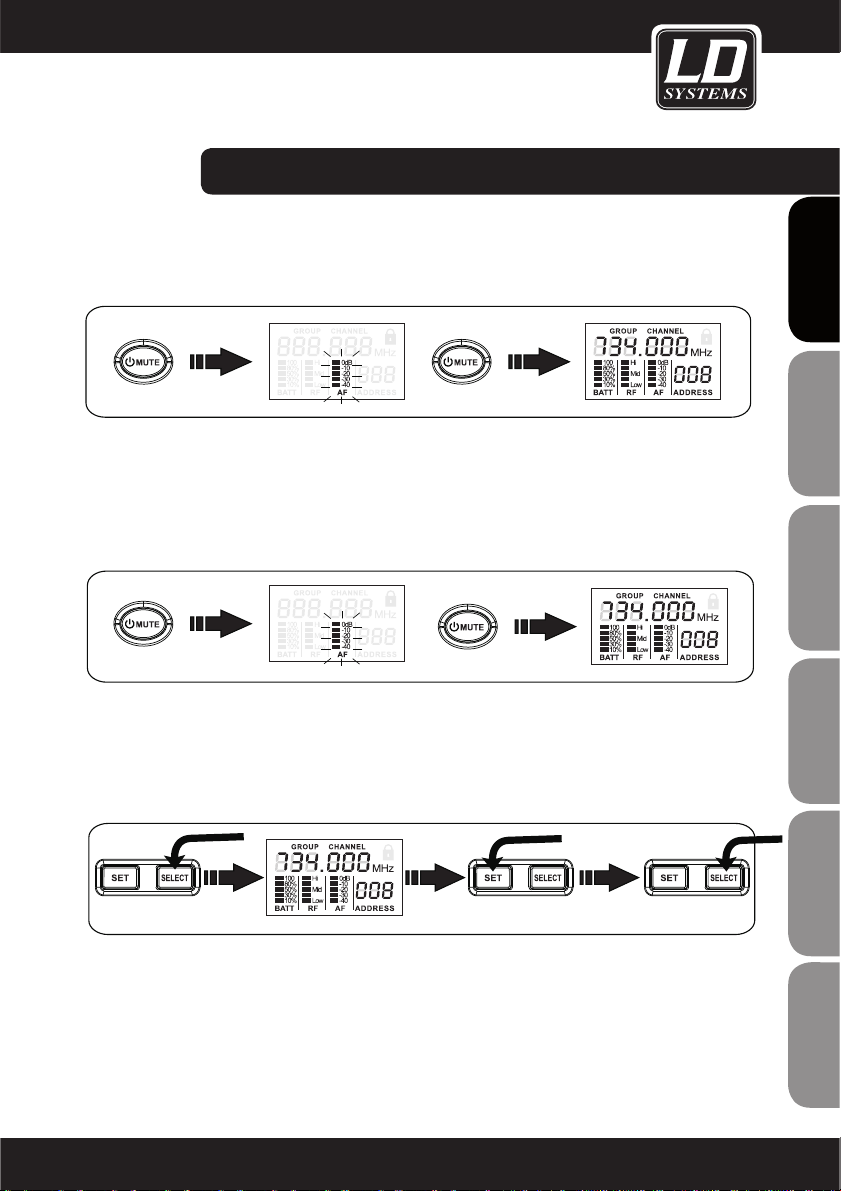

ON / OFF AND MUTE
Press the Power/Mute key for 2 seconds to turn on/off the transmitter. Push the Power/Mute key briefly to mute
the transmitter ( AF blinks). Push briefly again to unmute the transmitter.
GROUP / CHANNEL / AF (AUDIO LEVEL) / RF (TRANSMISSION POWER) / ADDRESS /
LOCK SETUP
Press SELECT key for 2 seconds to enter edit modus. Push the SET key briefly to change value and SELECT key
to go to the next function.
(3) LOCK/ UNLOCK
Lock: Press the SELECT key for 2 seconds to enter edit modus (group blinks). Press the SELECT key repeatedly
until "LOC" blinks and press the SET key to lock the transmitter. Press SELECT to confirm.
Unlock: Press the SELECT key until “LOC” blinks. Press the SET key to unlock the transmitter. Press SELECT to confirm.
(4) DISPLAY CURRENT FREQUENCY
Press the SET or the SELECT key shortly under main user interface and the display will show the current working
frequency. Returns to main user interface after 5 seconds automatically.
BODYPACK TRANSMITTER MAIN FUNCTION:
ENGLISHDEUTSCHFRANCAIS
FRANCAISFRANCAIS FRANCAISFRANCAIS ESPA OLPOLSKIITALIANO
