LD DIO 04 User manual
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D´UTILISATION
MANUAL DE USUARIO
INSTRUKCJA OBSŁUGI
MANUALE D´USO
DIO 04
4 OUTPUT DANTE INTERFACE
LDDIO04
CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO
ENGLISH
INFORMATION ON THIS SHORT MANUAL 3
INTENDED USE 3
EXPLANATIONS OF TERMS AND SYMBOLS 3
SAFETY INSTRUCTIONS 4
NOTES FOR INDOOR INSTALLATION EQUIPMENT 6
PACKAGING CONTENT 7
INTRODUCTION 7
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS 8
CONNECTION EXAMPLES 9
TERMINAL BLOCK CONNECTIONS 11

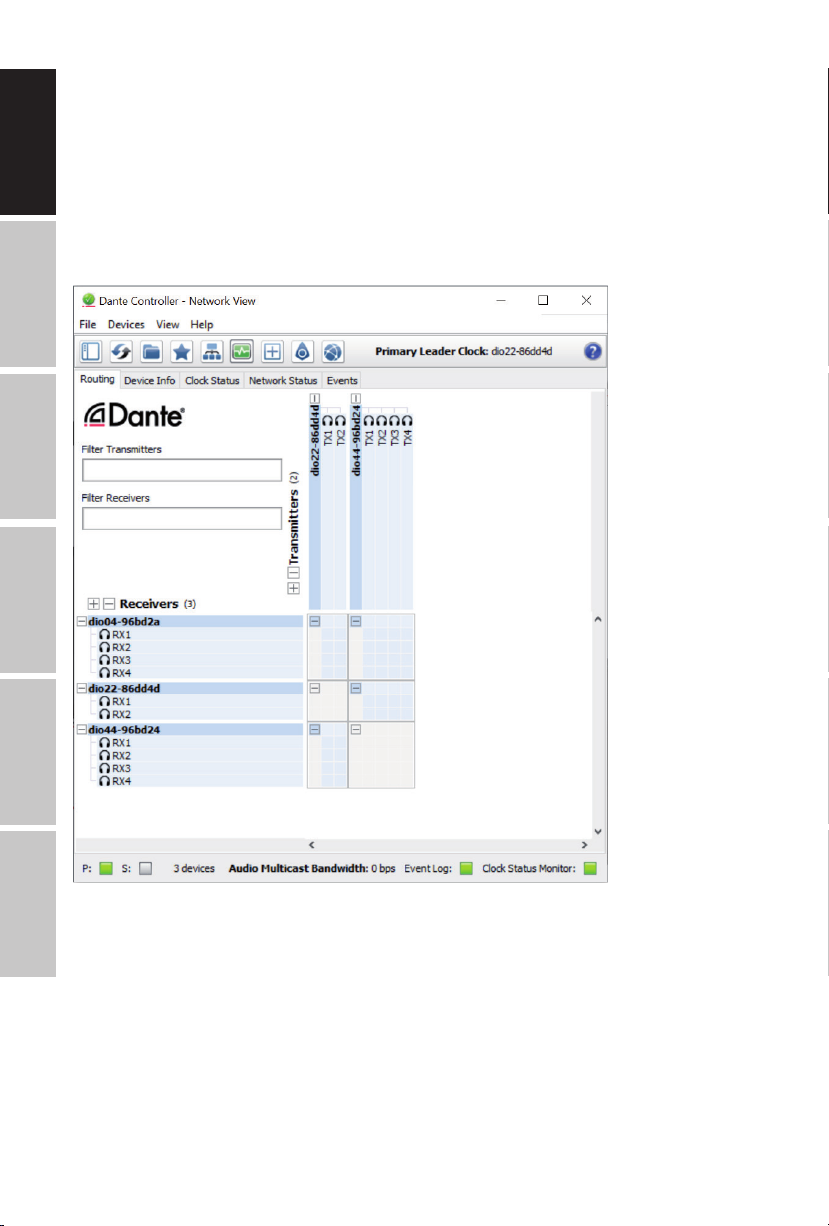

DANTE® CONTROLLER 11
UNDER / ON-TABLE MOUNTING 13
CARE, MAINTENANCE AND REPAIR 13

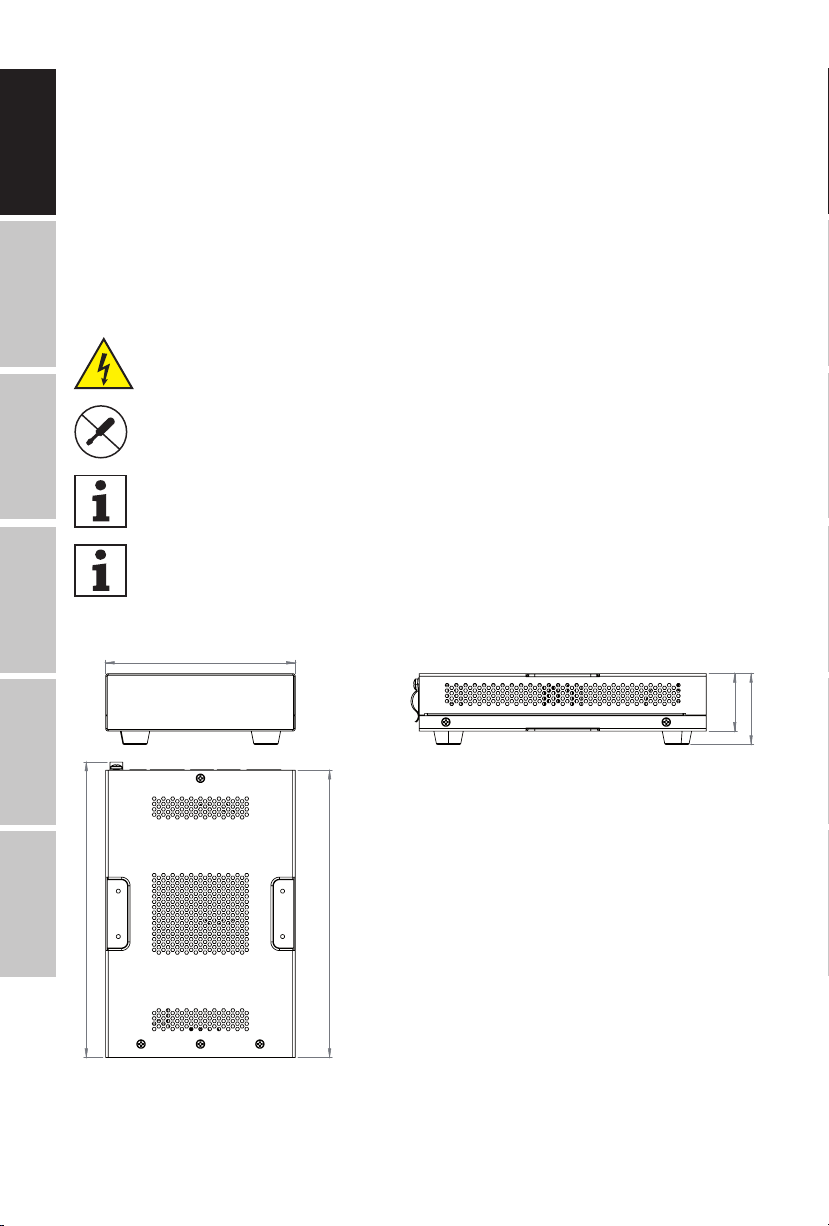

DIMENSIONS (mm) 14
TECHNICAL DATA 15
DISPOSAL 16
MANUFACTURER´S DECLARATIONS 17
DEUTSCH
INFORMATIONEN ZU DIESER KURZANLEITUNG 18
BESTIMMUNGSGEMÄSSER GEBRAUCH 18
BEGRIFFS- UND SYMBOLERKLÄRUNGEN 18
SICHERHEITSHINWEISE 19
HINWEISE FÜR INDOOR-INSTALLATIONSGERÄTE 22
PFLEGE, WARTUNG UND REPARATUR 22
ENTSORGUNG 23
HERSTELLERERKLÄRUNGEN 24
FRANCAIS
INFORMATIONS SUR CE MANUEL ABRÉGÉ 25
UTILISATION RÉGLEMENTÉE 25
EXPLICATIONS DES TERMES ET DES SYMBOLES 25
CONSIGNES DE SÉCURITÉ 26
NOTES POUR L’ÉQUIPEMENT
D’INSTALLATION À L’INTÉRIEUR 29
ENTRETIEN, MAINTENANCE ET RÉPARATION 29
MISE EN DÉCHETTERIE 30
DÉCLARATIONS DU FABRICANT 31
ESPAÑOL
INFORMACIÓN SOBRE ESTE MANUAL ABREVIADO 32
USO CONFORME A LA NORMATIVA 32
EXPLICACIONES DE TÉRMINOS Y SíMBOLOS 32
INSTRUCCIONES DE SEGURIDAD 33
NOTAS PARA LOS EQUIPOS DE
INSTALACIÓN EN INTERIORES 36
CUIDADO, MANTENIMIENTO Y REPARACIÓN 36
DISPOSICIÓN 37
DECLARACIONES DEL FABRICANTE 38
POLSKI
INFORMACJE DOTYCZĄCE NINIEJSZEJ
SKRÓCONEJ INSTRUKCJI OBSŁUGI 39
STOSOWANIE ZGODNIE Z PRZEPISAMI 39
OBJAŚNIENIA TERMINÓW I SYMBOLI 39
INSTRUKCJE BEZPIECZEŃSTWA 40
UWAGI DOTYCZĄCE SPRZĘTU
DO INSTALACJI WEWNĘTRZNYCH 42
PIELĘGNACJA, KONSERWACJA I NAPRAWA 42
DYSPOZYCJA 43
OŚWIADCZENIA PRODUCENTA 44
ITALIANO
INFORMAZIONI SU QUESTO MANUALE BREVE 45
UTILIZZO IN CONFORMITÀ ALLE NORMATIVE 45
SPIEGAZIONI DI TERMINI E SIMBOLI 45
ISTRUZIONI DI SICUREZZA 46
NOTE PER LE APPARECCHIATURE
DI INSTALLAZIONE ALL’INTERNO 48
CURA, MANUTENZIONE E RIPARAZIONE 49
SMALTIMENTO 50
DICHIARAZIONI DEL PRODUTTORE 51
DIO 04 USER MANUAL ONLINE
Scan this QR Code to get to the download section of DIO 04.
Here you can get the complete User manual in the following languages:
EN, DE, FR, ES, PL, IT
www.ld-systems.com/LDDIO04-downloads
COMPLETE USER MANUAL / VOLLSTÄNDIGE BEDIENUNGSANLEITUNG / MANUEL D‘UTILISATION COMPLET /
MANUAL DE USUARIO COMPLETO / KOMPLETNY PODRĘCZNIK UŻYTKOWNIKA / MANUALE D‘USO COMPLETO
3
COMPLETE USER MANUAL / VOLLSTÄNDIGE BEDIENUNGSANLEITUNG / MANUEL D‘UTILISATION COMPLET /
MANUAL DE USUARIO COMPLETO / KOMPLETNY PODRĘCZNIK UŻYTKOWNIKA / MANUALE D‘USO COMPLETO
ENGLISH
YOU MADE THE RIGHT CHOICE!
This device was developed and manufactured under high quality requirements to ensure many
years of trouble-free operation. This is what LD Systems stands for with its name and many years
of experience as a manufacturer of high-quality audio products. Please read these operating
instructions carefully so that you can quickly and optimally use your new LD Systems product.
You can find more information about LD Systems on our website WWW.LD-SYSTEMS.COM
INFORMATION ON THIS SHORT MANUAL
These instructions do not replace the detailed operating instructions
(www.ld-systems.com/LDDIO04-downloads).
Please always read the detailed operating instructions first before operating the unit and
observe the additional safety instructions contained therein!
INTENDED USE
The product is a device for professional audio installation! The product has been developed for
professional use in the field of audio installation and is not intended for use in households!
Furthermore, this product is intended for installation by qualified persons with specialist
knowledge and for operation by instructed persons! The use of the product outside the specified
technical data and operating conditions is considered as not intended! Liability for damages and
third party damages to persons and property due to non-intended use is excluded!
The product is not suitable for:
• Persons (including children) with limited physical, sensory or mental capabilities or lack of
experience and knowledge.
• Children (children must be instructed not to play with the device).
EXPLANATIONS OF TERMS AND SYMBOLS
1. DANGER: The word DANGER, possibly in combination with a symbol, indicates immediately
dangerous situations or conditions for life and limb.
2. WARNING: The word WARNING, possibly in combination with a symbol, indicates potentially
dangerous situations or conditions for life and limb.
3. CAUTION: The word CAUTION, possibly in combination with a symbol, is used to indicate
situations or conditions that may lead to injury.
4. ATTENTION: The word ATTENTION, possibly in combination with a symbol, refers to situations
or states that can lead to damage to property and/or the environment.
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
4
This symbol indicates hazards that can cause an electric shock.
This symbol indicates danger spots or dangerous situations.
This symbol indicates danger from hot surfaces.
This symbol indicates danger from high volumes.
This symbol indicates supplementary information on the operation of the product.
This symbol denotes a device that does not contain any user-serviceable parts.
This symbol indicates electrical equipment designed primarily for indoor use.
SAFETY INSTRUCTIONS
DANGER:
1. Do not open or modify the device.
2. If your device is no longer working properly, liquids or objects have gotten inside
the device, or the device has been damaged in any other way, switch it off immediately
and disconnect it from the power supply. This device may only be repaired by
authorized specialist personnel.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never interrupt the protective conductor. Protection class 2 devices
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device must not be put into operation if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cord of the device is damaged, the device must not be put into operation.
4. Permanently connected power cords may only be replaced by a qualified person.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
5
DANGER:
1. Do not operate the device if it has been exposed to severe temperature fluctuations
(e.g. after transport). Humidity and condensation could damage the device.
Do not switch on the device until it has reached the ambient temperature.
2. Make sure that the voltage and frequency of the mains supply correspond to the
values indicated on the device. If the device has a voltage selector switch, do not
connect the device until this is set correctly. Only use suitable power cords.
3. To disconnect the device from the mains at all poles, it is not enough to press the
on/off switch on the device.
4. Ensure that the fuse used corresponds to the type printed on the device.
5. Make sure that appropriate measures against overvoltage (e.g. lightning) have
been taken.
6. Note the specified maximum output current on devices with a power out connection.
Make sure that the total power consumption of all connected devices does not
exceed the specified value.
7. Only replace pluggable power cords with original cables.
DANGER:
1. Danger of suffocation! Plastic bags and small parts must be kept out of the reach of
people (including children) with reduced physical, sensory or mental abilities.
2. Danger from falling! Make sure the device is installed securely and cannot fall.
Only use suitable tripods or attachments (especially for fixed installations).
Make sure accessories are properly installed and secured. Make sure that the
applicable safety regulations are observed.
WARNING:
1. Only use the device in the manner intended.
2. Only operate the device with the accessories recommended and intended by the
manufacturer.
3. During installation, observe the safety regulations applicable in your country.
4. After connecting the unit, check all cable routes to avoid damage or accidents,
e.g. due to tripping hazards.
5. Be sure to observe the specified minimum distance to normally flammable
materials! Unless this is explicitly stated, the minimum distance is 0.3 m.
ATTENTION:
1. There is a risk of jamming with moving components such as mounting brackets or
other moving components.
2. In the case of units with motor-driven components, there is a risk of injury from the
movement of the unit. Sudden device movement can cause shockreactions.
This symbol indicates hazards that can cause an electric shock.
This symbol indicates danger spots or dangerous situations.
This symbol indicates danger from hot surfaces.
This symbol indicates danger from high volumes.
This symbol indicates supplementary information on the operation of the product.
This symbol denotes a device that does not contain any user-serviceable parts.
This symbol indicates electrical equipment designed primarily for indoor use.
SAFETY INSTRUCTIONS
DANGER:
1. Do not open or modify the device.
2. If your device is no longer working properly, liquids or objects have gotten inside
the device, or the device has been damaged in any other way, switch it off immediately
and disconnect it from the power supply. This device may only be repaired by
authorized specialist personnel.
3. For devices of protection class 1, the protective conductor must be connected
correctly. Never interrupt the protective conductor. Protection class 2 devices
do not have a protective conductor.
4. Ensure that live cables are not kinked or otherwise mechanically damaged.
5. Never bypass the device fuse.
WARNING:
1. The device must not be put into operation if it shows obvious signs of damage.
2. The device may only be installed in a voltage-free state.
3. If the power cord of the device is damaged, the device must not be put into operation.
4. Permanently connected power cords may only be replaced by a qualified person.
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
6
DANGER:
1. Do not install or operate the device near radiators, heat registers, stoves or other
heat sources. Make sure that the device is always installed in such a way that it is
sufficiently cooled and cannot overheat.
2. Do not place any sources of ignition such as burning candles near the device.
3. Ventilation openings must not be covered and fans must not be blocked.
4. Use the original packaging or packaging provided by the manufacturer for transport.
5. Avoid shock or shock to the device.
6.
Observe the IP protection class and the environmental conditions such as temperature
and humidity according to the specification.
7. Devices can be continuously developed. In the event of deviating information on
operating conditions, performance or other device properties between the operating
instructions and the device labeling, the information on the device always has
priority.
8. The device is not suitable for tropical climate zones and for operation above
2000 m above sea level.
ATTENTION:
Connecting signal cables can result in significant noise interference. Make sure that
devices connected to the output are muted during plugging. Otherwise, noise levels
can cause damage.
ATTENTION HIGH VOLUMES WITH AUDIO PRODUCTS!
This device is intended for professional use.
The commercial operation of this device is subject to the applicable national
regulations and guidelines for accident prevention.
Hearing damage due to high volumes and continuous exposure: The use of this product
can generate high sound pressure levels (SPL) which can cause hearing damage.
Avoid exposure to high volumes.
NOTES FOR INDOOR INSTALLATION EQUIPMENT
1. Units for installation applications are designed for continuous operation.
2. Units for indoor installation are not weatherproof.
3. Surfaces and plastic parts of installation equipment can also age, e.g. due to UV
radiation and temperature fluctuations. This does not usually lead to functional
restrictions.
4. with permanently installed units, the deposition of impurities, e.g. dust, is to be
expected. Be sure to observe the care instructions.
5. Unless explicitly stated otherwise on the unit, the units are intended for installation
heights of less than 5 m.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
7
PACKAGING CONTENT
Remove the product from the packaging and remove all packaging material.
Please check the completeness and integrity of the delivery and notify your distribution partner
immediately after purchase if the delivery is not complete or if it is damaged.
The packaging includes:
• 1 x DIO 04 Dante Break Out Box
• 1 set of terminal blocks
• 1 set of rubber feet (pre-assembled)
• 1 mounting set for on-table or under-table installation
• User manual
INTRODUCTION
Part of the TICA® series, the DIO 04 is a four output Dante interface that delivers the capabilities
that audio and AV professionals really need. Equipped with four balanced outputs to connect
to any analogue audio device such as power amplifiers Signal presence lights on each channel
speed installation and fault-finding.
Power from any PoE+ network switch or use the optional, external power supply. Since it comes
with two Dante networked ports, you can daisy chain devices together. It also works as a PoE+
injector: if you use the external power supply, you can power one further networked device in
the chain.
It’s tiny form factor (106 x 44 x 222 mm) and included mounting plates allow it to be installed
discreetly behind screens or under tables. Alternatively, it fits into 1/3 19 inch rack.
Use the optional rack tray to slot up to three TICA® DIO series products alongside each other
and build a system to your exact requirements, using minimal rack space.
Terminal block connections on the analogue outputs make wiring easy.
The perfect solution for professional installers wanting to interface into Dante equipment.
Dante Domain Manager and AES 67 compliant.
FEATURES
• Four output Dante interface
• Connect Dante to line level audio equipment
• Terminal blocks for all analogue connecitons
• Signal indicators on each channel
• Use PoE or an external power supply
• Use as a PoE injector to power another networked device
• Daisy-chain Dante devices together
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
8
CONNECTIONS, OPERATING AND DISPLAY ELEMENTS
4
3
5
1 2
1 TERMINAL BLOCK CONNECTION FOR POWER SUPPLY
Terminal block connection for the device's power supply. To avoid damage to the unit, please use
only the original power supply unit (power supply unit optionally available).
Alternative power supply: Ethernet switch or PoE injector with PoE+ (Power over Ethernet plus)
or better.
2STRAIN RELIEF
Use the strain relief for the flexible cable of the power supply unit to protect the device's power
terminal block connector and the power supply terminal block from damage and to prevent the
terminal block from being pulled out unintentionally.
3OUTPUT 1 – 4
Analogue audio outputs with balanced terminal block connections. The poles +, - and G are
intended for the balanced output signal (suitable for unbalanced cabling). Terminal blocks are
included in the packaging content. If there is no audio signal at the line outputs OUTPUT 1 to 4,
they are automatically muted after some time. If an audio signal is detected, the mute function
is automatically deactivated.
4PSE+DATA (Power Sourcing Equipment)
Dante® interface with RJ45 socket for connecting further Dante® devices to the Dante® network.
If the DIO 04 is supplied with power via an external power supply unit, another DIO 04 can be
supplied with power via PoE (see connection example 2).
5PD+DATA (Powered Device)
Dante® interface with RJ45 socket for connecting the DIO 04 to a Dante® network.
The DIO 04 can be supplied with voltage via PoE+ (Power over Ethernet plus) or better.
7
6
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
9
6 POWER SYMBOL
As soon as the DIO 04 is supplied with voltage, the starting process begins. During the start-up
process, the white power symbol flashes and the line outputs OUTPUT 1 to 4 are muted.
When the start-up process is completed after a few seconds, the symbol lights up permanently
and the unit is ready for operation.
7SIGNAL OUTPUT 1 – 4
Two-colour illuminated digits 1 to 4 for signal detection and clip display.
OUTPUT: As soon as an audio signal with sufficient level is present at an output channel, the
corresponding digit lights up white. As soon as one of the digits lights up red, the corresponding
output stage is operated at the distortion limit. In this case, reduce the level on the source player
so that the digit no longer lights up red.
AIR VENTS
To prevent damage to the device, do not cover the ventilation openings on the left and right
sides and on the top and bottom of the device and ensure that air can circulate freely. Covering
the ventilation openings on the top or bottom of the enclosure when mounting it underneath
or on top of a table is not critical, as the cooling provided by the ventilation openings on the
remaining sides is sufficient.
Tip: Preferably use balanced audio cables for wiring analogue line inputs and outputs.
CONNECTION EXAMPLES
1
Dante™Mixer
Dante® Controller
Questra
Dante® Controller
INPUTS
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8POWER
ZONE X 1208D
NETWORK
REMOTE
9 10 11 12
OUTPUTS
Active Loudspeaker
Active Loudspeaker
ON
23 4
DIP
ON
1 2 3 4
DIP
ON
1 2 3 4
DIPON
1 2 3 4
DIP
24V DC
Power supply
24V DC
Power supply
Ethernet Switch
Ethernet Switch
PoEPoE
OUTPUT 1 - 4
touch control wall panel
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
10
2
Dante™Mixer
Dante® Controller
Questra
Dante® Controller
INPUTS
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8POWER
ZONE X 1208D
NETWORK
REMOTE
9 10 11 12
OUTPUTS
Active Loudspeaker
Active Loudspeaker
ON
23 4
DIP
ON
1 2 3 4
DIP
ON
1 2 3 4
DIPON
1 2 3 4
DIP
24V DC
Power supply
24V DC
Power supply
Ethernet Switch
Ethernet Switch
PoEPoE
OUTPUT 1 - 4
touch control wall panel
3
Dante™Mixer
Dante® Controller
Questra
Dante® Controller
INPUTS
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8POWER
ZONE X 1208D
NETWORK
REMOTE
9 10 11 12
OUTPUTS
Active Loudspeaker
Active Loudspeaker
ON
23 4
DIP
ON
1 2 3 4
DIP
ON
1 2 3 4
DIPON
1 2 3 4
DIP
24V DC
Power supply
24V DC
Power supply
Ethernet Switch
Ethernet Switch
PoEPoE
OUTPUT 1 - 4
touch control wall panel
4
Dante® Controller
INPUTS
1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8POWER
ZONE X 1208D
NETWORK
REMOTE
9 10 11 12
OUTPUTS
Ethernet Switch
PoEPoE
OUTPUT 1 - 4
touch control wall panel
QTP 8
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
12
DANTE® CONTROLLER
A Dante® network is set up using the freely available DANTE® CONTROLLER software. Download
the software from the manufacturer's website www.audinate.com and install it on a computer.
Connect the computer's Ethernet interface to a network interface using a network cable (Cat. 5e
or better) and run the Dante® Controller software. The software has an automatic device detection
function. Signal routing is done by mouse click and the unit and channel designations can be
individually edited by the user. IP address, MAC address and other information about the devices
in the Dante® network can be displayed in the software.
Once the configuration of the devices on the Dante® network is complete, the Dante® Controller
software can be closed and the computer disconnected from the network. The settings in the
units in the network are retained.
When the DIO 04 is disconnected from the Dante® network, the unit's audio outputs are muted
and the power icon on the front panel starts flashing.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
13
UNDER / ON-TABLE MOUNTING
There are two recesses on the top and bottom of the enclosure, each with two M3 threaded
holes, for mounting underneath or on top of the table. Screw the two enclosed mounting plates
to the top or bottom using the enclosed M3 countersunk screws. Now the amplifier can be fixed
in the desired position (see illustration, fixing screws not included). For tabletop mounting, the
four rubber feet must be removed beforehand.
CARE, MAINTENANCE AND REPAIR
To ensure the proper functioning of the unit in the long term, it must be cared for regularly and
serviced as required. The need for care and maintenance depends on the intensity of use and
the environment.
We generally recommend a visual inspection before each start-up. Furthermore, we recommend
that you carry out all the maintenance measures listed below every 500 operating hours or, in
the case of low intensity of use, after one year at the latest. Defects caused by inadequate care
may result in limitations of the warranty claims.
CARE (CAN BE CARRIED OUT BY THE USER)
WARNING! Before carrying out any maintenance work, disconnect the power supply
and, if possible, all appliance connections.
NOTE! Improper care can lead to impairment or even destruction of the unit.
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
14
1. Housing surfaces must be cleaned with a clean, damp cloth. Make sure that no moisture can
penetrate the unit.
2. Air inlets and outlets must be regularly cleaned of dust and dirt. If compressed air is used,
make sure that damage to the unit is prevented (e.g. fans must be blocked in this case).
3. Cables and plug contacts must be cleaned regularly and freed from dust and dirt.
4. In general, no cleaning agents, disinfectants or agents with an abrasive effect may be used
for maintenance, otherwise the surface finish may be impaired. Especially solvents, such as
alcohol, can impair the function of the housing seals.
5. Units should generally be stored in a dry place and protected from dust and dirt.
MAINTENANCE AND REPAIR (BY QUALIFIED PERSONNEL ONLY)
DANGER! There are live components in the unit. Even after disconnecting from the
mains, residual voltage may still be present in the unit, e.g. due to charged capacitors.
NOTE! There are no assemblies in the unit that require maintenance by the user.
NOTE! Maintenance and repair work may only be carried out by specialist personnel
authorised by the manufacturer. In case of doubt, contact the manufacturer.
NOTE! Improperly performed maintenance work can affect the warranty claim.
DIMENSIONS (mm)
142
221
215
43
53
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
15
TECHNICAL DATA
Item number LDDIO04
Product type 0x4 I/O Dante Interface
Inputs 0
Input type Switchable balanced mic or line level
Line outputs 4
Output type Balanced line level with auto mute relay on loss of Dante/AES67 signal
Cooling Convection
Analogue Line Output
Number of output connectors 4
Connection type 3-pin terminal block, Pitch 3.81 mm
Max. Output Level 18 dBu
Interm. Distortion SMPTE < 0.005 % (-20 dBFS to 0 dBFS)
THD + Noise < 0.002% (10 dBu, 20 kHz BW)
Idle Noise > -92 dBu
Dynamic Range > 107 dB (0 dBFS, AES 17, CCIR-2k Weighting)
Frequency response 15 Hz – 20 kHz (-0.5 dB)
Dante® Specications
Audio Channels 4 outputs
Bit depth 24 bit
Sample Rate 48 kHz
Latency Minimum 1ms
Dante Connector 100 BASE-T RJ45
Power over Ethernet (PoE) Specications
Minimum PoE Requirements PoE+ IEEE 802.3at
PSE+Data Capable of powering 1 extra PD unit
Power Input Requirements
Input Voltage 24 V DC
Minimum Current 1.5 A
Power Input Connector Pitch 5.08 mm terminal block (2-pin)
Max power consumption 10 W
Idle power consumption 7.5 W (no signal input)
Power Consumption with
Secondary Port use
22 W
Mains Inrush Current 1.7 A @ 230 V AC
Operating Temperature 0°C – 40°C; < 85% humidity, non condensing
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
16
Item number LDDIO04
General
Material Steel chassis, Plastic front panel
Dimensions (W x H x D) 142 x 53 x 221 mm (height with rubber feet)
Weight 1.0 kg
Included Accessories Mounting plates for surface mount applications,
Terminal blocks for Electrical Connections, rubber feet
DISPOSAL
Packaging:
1. Packaging can be disposed of via the usual waste disposal channels.
2. Please separate the packaging according to the waste disposal and materials
regulations in your country.
Device:
1. This device is subject to the European Directive on Waste Electrical and Electronic
Equipment in its applicable version. WEEE Directive-Waste Electrical and Electronical
Equipment. Old devices and batteries do not belong in household waste. The old
device or batteries must be disposed of via an approved waste disposal service or
a municipal waste disposal facility. Follow the directives in your country!
2. Follow the disposal laws in your country.
3. As a private customer, you can obtain information on environmentally friendly
disposal options from the retailer from whom you purchased the product or from
the relevant regional authorities.
ITALIANO
POLSKI
ESPAÑOL
FRANCAIS
DEUTSCHENGLISH
17
MANUFACTURER´S DECLARATIONS
MANUFACTURER‘S WARRANTY & LIMITATIONS OF LIABILITY
+49 (0)6081 / 9419-0.
Our current warranty conditions and limitation of liability can be found at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf.
Contact your distribution partner for service.
UKCA-CONFORMITY
Hereby, Adam Hall Ltd. declares that this product meets the following guidelines
(where applicable):
Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)
The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment
Regulation 2012 (SI 2012/3032)
Radio Equipment Regulations 201 7(SI 2016/2015)
UKCA-DECLARATION OF CONFORMITY
Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC Regulation 2016 or
Products that are subject to the Radio Equipments Regulations 2017
(SI2017/1206) can be downloaded from www.adamhall.com/compliance/
CE CONFORMITY
Adam Hall GmbH hereby confirm that this product meets the following guidelines
(where applicable):
R&TTE (1999/5/EC) or RED (2014/53/EU) as of June 2017.
Low Voltage Directive (2014/35/EU)
EMC Directive (2014/30/EU)
RoHS (2011/65/EU)
The complete Declaration of Conformity can be found at www.adamhall.com.
CE DECLARATION OF CONFORMITY
Declarations of conformity for products subject to the LVD, EMC, RoHS Directive
Declarations of conformity for products subject to RED Directive
can be downloaded from www.adamhall.com/compliance/.
Subject to misprints and errors, as well as technical or other modifications!
DEUTSCHFRANCAIS
ESPAÑOL ENGLISH
ITALIANO POLSKI
LD-SYSTEMS.COM
REV: 01
