Lean Cars CH9958A User manual

CH9958A
Assembly By Adult Only
Please follow real product, Photo for reference only
Installation and operation manual
Forward and backward function
Alarm light function
Executive standard: EN71 and EN62115 ;GB6675and GB19865
Ride on car

The picture in this manual is to show the product operation and structure, please
follow the real product only if any difference between picture and product happens.
There must be chance not to inform you on time to improve the product result from
appearance or structure, please be understood.
Please read this manual carefully before play the product, it tells you the
right way for operation and install to avoid any possible hurt to your kids.
Please keep this manual and put it in a place where is easy to get.
950 650 460
Specification
Item Specification
Age 2-4years old
Max Weight
Dimension
Speed
6V
Motor
Play Time 1-2 hours / recharger time 8-12hours
1.5-2KM/H
Charger
Out Put DC6V
Batteries
6V
WAARNING:
The following safety hazards may cause serious injury or death
1.Never leave your children unattended
2.Be sure to sit on the seat when using this car
3.Keep your hands, hair and clothes away from moving parts
4.Be sure to wear shoes when operating this car
5.Up to one child is allowed to ride in the vehicle
6.Only on flat roads
7.Do not approach the swimming pool or other water bodies, falling places or steep slopes
8.Do not drive into loose soil.Mud, sand, gravel or wet pavement
9.Do not drive on the road or near the car
20KG

部件说明
1 1 1 1
4
1
1
1
1
3
4
7
10
2
5
8
3
6
9
1
2
3
4
5
6
7
9
8
10
11 Washer 12 M8 Nut
4
11
12
13
1
18
Serial
No. Serial
No. Serial
No.
Component
Name Component Name Component
Name
Quantity Quantity Quantity
seat
Body Drive wheel
Windshields Gear box Assm Rear wheel cover
Non-drive Wheel Steering wheel Charger
Manual
Rear wheel
alignment tube
13

3:Put a gasket, rear wheel alignment pipe, gasket, non drive wheel and gasket into the right side
of rear axle，hen lock the nut and fix it with M8 wrench.Finally, clamp the wheel cover.
4:Install the drive gearbox on the left side of the body. Drive wheel（The convex tooth side is
matched with the gearbox）.Washer.hen lock the nut .Fix with M8 wrench. Finally clip in wheel
cover.
1:Install the gasket on both sides of the front wheel shaft, and then install a non driving wheel
on both sides of the front wheel shaft.
2:Install a gasket on both sides of the non drive wheel, then lock the nut and fix it with an
M8 wrench. Finally, clamp the wheel
Rear wheel cover
Non-drive Wheel
M8 Nut Washer
Drive wheel
Gear box Assm Rear wheel
alignment tube

1.First, insert the connecting line, then insert the wind bracket into the corresponding
holes of the vehicle body with force, so that the wind bracket and the vehicle body are
buckled.(as shown in the figure)
1.Insert the steering wheel firmly into the corresponding hole of the instrument panel to make
the steering wheel and the instrument panel snap together.（as shown in the figure）

1Clip the seat buckle into the corresponding body buckle hole. Then fix the seat with screws.
2.Open the engine cover and clip the 2 No.5 batteries into the battery box of the alarm light.
1.open the seat. Plug in the battery cable and drive motor cable（red to red. White to white）

horn
前进
后退
Alarm light switch Forward / backward switch
power switch
Foot switch
Steering wheel drive pedal
7Instrument cluster functions

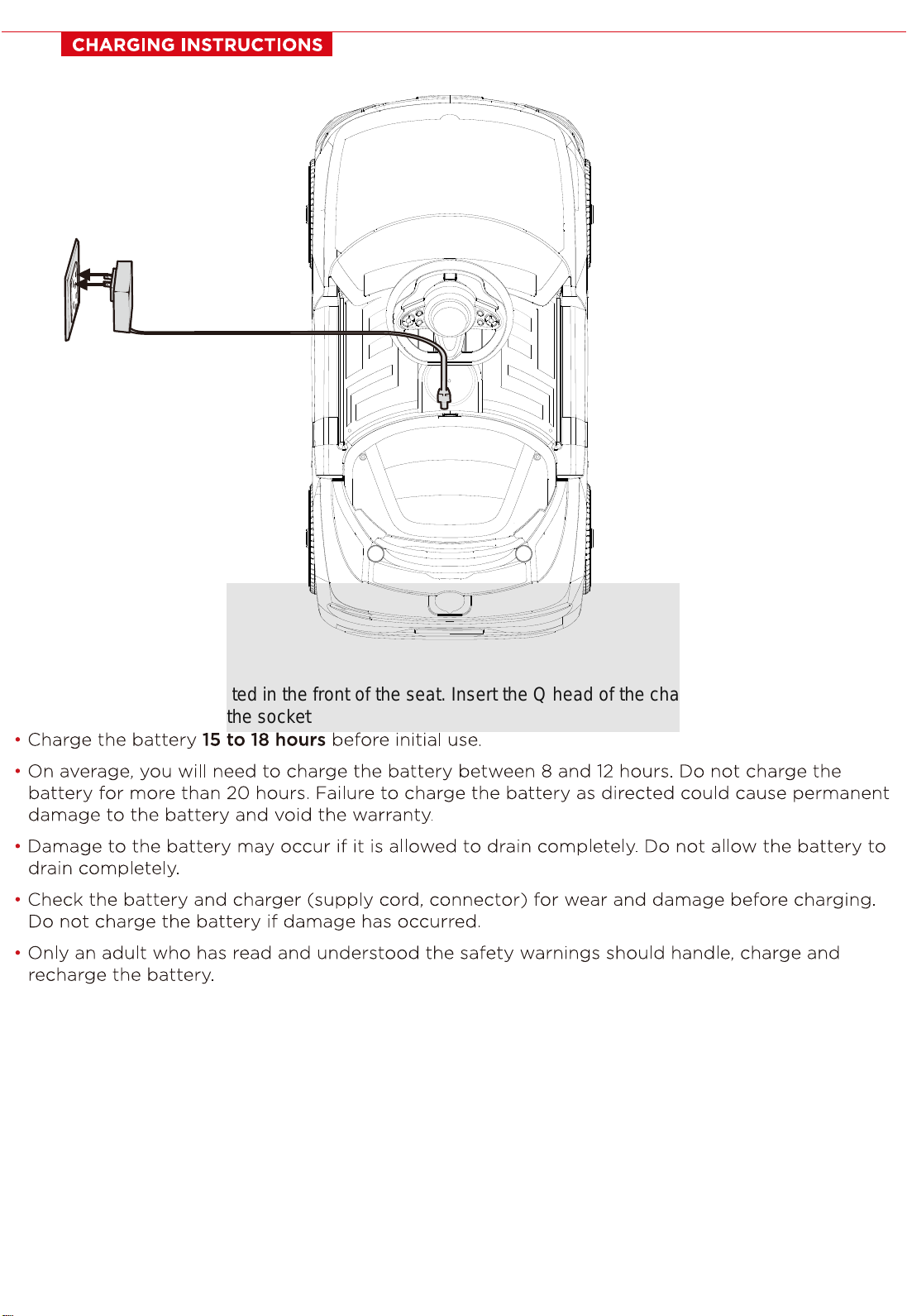

The charging hole is located in the front of the seat. Insert the Q head of the charger into the charging hole.
Insert the other end into the socket

WARNING:
For your baby to drive safely, you must pay attention to the following warnings：
The assembly and adjustment of the product must be carried out by adults. Please keep children
away from moving parts
Small parts inside
Children must use the product under the guidance of adults, and the carer must not leave during
use! Do not get close to the fire
Do not allow children to stand or play on the footboard (or electric vehicle)
The battery must be charged by adults before using this product
In order to avoid harm to children, please keep plastic bags and other packaging materials away
from children! Room breathing danger!
Do not use any accessories not provided by the manufacturer
All batteries shall be inserted with correct polarity
Do not use the charger as a toy
The maximum load-carrying capacity of the vehicle is 20kg, and overload is not allowed
Applicable age range: 2-4years old
Power terminals shall not be short circuited
Toys cannot be connected to more than the recommended number of power supplies
When the vehicle is charging, the toy (vehicle) cannot be operated

PRECAUTIONS FOR USE
When using the electric vehicle for the first time, the battery must be charged for 18 hours,
otherwise the battery will be permanently damaged and cannot be repaired
Before use, please check whether all parts are installed in place and connected firmly
Do not use in dangerous areas such as streets, roads, slopes, ditches, etc
Do not use on smooth ground such as marble tile
Do not switch the forward / reverse switch while the electric vehicle is running.
Be careful not to let the child stand on the seat
It is not allowed to change the circuit and additional live devices of this vehicle
Electric vehicles shall not be allowed to rain or be used in water. Do not pour water or other
liquid on the vehicle or immerse it in water in other ways. Keep away from the fire source to
avoid damage to the circuit
When encountering obstacles, the electric vehicle stops running. Please leave the obstacles
before riding.
Do not use it indoors to avoid damaging furniture or even wrestling children
This product is limited to one person. It cannot be overloaded. The maximum load is 20kg
When not in use, please turn off the power switch. When not in use for a long time, please
unplug the battery connector.
Non rechargeable battery is not rechargeable, take out the exhausted battery from the toy
Do not mix old and new batteries or different types of batteries
The rechargeable battery should be removed from the toy before charging.
MAINTENANCE
To protect your baby from accidental injury, please check and maintain the car regularly
Before loading, please check whether the packing components are complete. If there is
any shortage, please contact our company immediately
Check regularly for damage to loose parts of screws
When installing or using all parts, please check whether they are in good condition
Please clean the product regularly, and be careful not to damage the original electric appliance
When disassembling and assembling, please carefully follow the operation manual to avoid
unnecessary damage.
Please check the product and charger regularly to see if the wire, plug and other parts are
damaged. If there is any damage, stop using until it is repaired.
