LED World QL-F3528A60T-HA-24 User manual

CCT ADJUSTABLE LED FLEX STRIP
Model: QL-F3528A60T-HA-24 (CCT: 2600K(Warm White)~6500K(Cool White))
LISTED
use only with
Class 2 Type
power units
24V
DC Power
5.8
WATTS
FOOT
Safety & Warnings
THREE YEAR LIMITED LIGHTING WARRANTY
LED WORLD INC. warranties this product for three year (some exceptions may apply) from the date of shipping unless otherwise noted in writing. This warranty is expressly in lieu of all other
warranties expressed or implied. Under this Limited Warranty, the obligation of the company is limited to replacing on a prorated basis, at its option, any component found to be defective. This
Limited Warranty does not apply to damage caused by buyer or alteration to the product or incorrect power supply. Factory warrantees are covered by the original manufacturer and claims
must be submitted to them. This product must be used with LED World’s class 2 power supply. Failure to do so will void limited warranty.
LED World Inc. And its providers will never be liable to you or any other person for any indirect, incidental, consequential, special, punitive or exemplary loss or damage arising from, connected
with, the purchase of products, including but not limited to loss of data, business, markets, cost of labour, savings, income, profits, use, production, reputation or goodwill, anticipated or
otherwise, or economic loss, under any theory of liability (whether in contract, tort, strict liability or any other theory or law or equity), regardless of any negligence or other fault or wrongdoing
(including without limitation gross negligence and fundamental breach) by led world inc or any person for whom led world inc is responsible, and even if led world inc has been advised of the
possibility of such loss or damage being incurred.
If a product is defective, we will replace the product with similar or identical product or at our option a credit towards a future purchase. To make a claim under this warranty, obtain a return
authorization number.
ŸDo not power when rolled. Lighting must be installed in a straight line. Do not curl or twist and roll out completely straight before applying power.
ŸOnly install on smooth at surfaces free of burrows that are re retardant.
ŸProduct has an adhesive tape on back. Adhesion can only be made once and the LED strip must fully adhere to surface (ush). Failure to do this step will
damage product. Rigidly support wires with wire clamps.
ŸDuring installation, do not damage the printed circuit. Exposed wires can cause short circuit damaging product and creating a serious hazard. Do not mount in
a manner or support LED Strip light in a manner that can damage the outer jacket or cord insulation. Do not install this lighting system where the exposed bare
conductors can be shorted or contact any conductive materials. Carefully check that there is no wire cross-over or possibility in the future in area of installation.
ŸTo reduce the risk of re and overheating, make sure all connections are tight.
ŸProduct is sold in the maximum length. Do not exceed or extend the length of the roll.
ŸOnly qualied electrician or engineer can perform installation familiar with low voltage wiring techniques. Correct polarity is imperative (+/- is marked on printed
circuit). Parallel connection only.
ŸDO NOT install on ammable material or possibility of in the future. Do not install any luminaire closer than 6 inches (15.25 cm) from any curtain, or similar
combustible materials.
ŸThe light and all its components cannot be mechanically pressed. Never apply to surface above 40°C (104°F).
ŸVoltage must not exceed 24VDC and must be regulated. The Voltage is printed every 6 LEDS. Check that it is the correct voltage before applying power.
ŸThis is not a toy. Keep out of children's reach.
ŸKeep Flex strip spaced ¾” apart if placing next to each other.
ŸLED Flex Strip is bendable on one at widest plane. Maximum bend radius is 4 inches (100mm) on one plane (at).
ŸNot for use in mission critical, aircraft, emergency signs or lifesaving equipment.
ŸStatic electricity can damage LED(s). Handle with care.
ŸInspect installation after one hour and thereafter regularly.
ŸFor stationary use only and not subjected to possible pressure or movement (or in the future).
ŸNot for in-wall use.
ŸMax. Soldering temperature cannot exceed 250°C (482°F) for a max of 4 seconds. Use 22~20 AWG wire to connect.
ŸUse correct wiring as required by local electrical code. Use a 20 gauge wire to attach to strip by solder (2464 type of wire). Connection to power source may use
Wago™ 222-413 in hardwire applications.
ŸCable lighting systems not be installed in bathrooms.
ŸConductors of extra-low-voltage circuits be rigidly supported.
ŸConductors not be installed in contact with combustible materials and not run through walls, ceilings, oors or partitions, and; Uninsulated conductors not be
installed less than 2.2 m (86”) from the oor.
ŸDo not stare directly into the LED Light. Install LED lighting out of direct sight.
1/4
KG
Never Nail or use Staples
Only power with 24VDC
Class 2 Power Source
Never apply weights or walk on strips
Use only with LED World’s Class 2 Type power supply.
Indoor use, Dry locations. Do not expose LED Flex Strip to moisture.
Disconnect power before installing or servicing (at breaker point).
This product is intended to be installed and serviced by a qualied licensed electrician. Install in accordance with the National Electric Code, and local regulations.
Only power with a (listed) constant voltage Class 2 power supply (24V DC).
Never plug into 120V AC. The product requires a optional class 2 Transformer.
1-800-387-4081
ledworldlighting.com ledworld.ca |
Apply to surface at room temperature. Keep
away f r o m  a m m a b l e materials. Surface
temperature MAX 40°C (104°F). Don’t install under,
above or near heat sources (i.e. stoves, replaces)
IMPORTANT INSTRUCTIONS
Please read instructions before using product and SAVE THESE INSTRUCTIONS. Before using this product make sure you have right color, product
(item number) and voltage (printed on product). Check for possibility of damage during shipping. If damaged, or wrong product, do not use.
Disconnect power before installing or using.
Use only with Class 2 Type power supply. Using with any other type of power supply will void the limited warranty.
STATIC ELECTRICITY
CAN DAMAGE
PRODUCT
Copyright © 2017 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 2.7 - 03/07/17

2/4

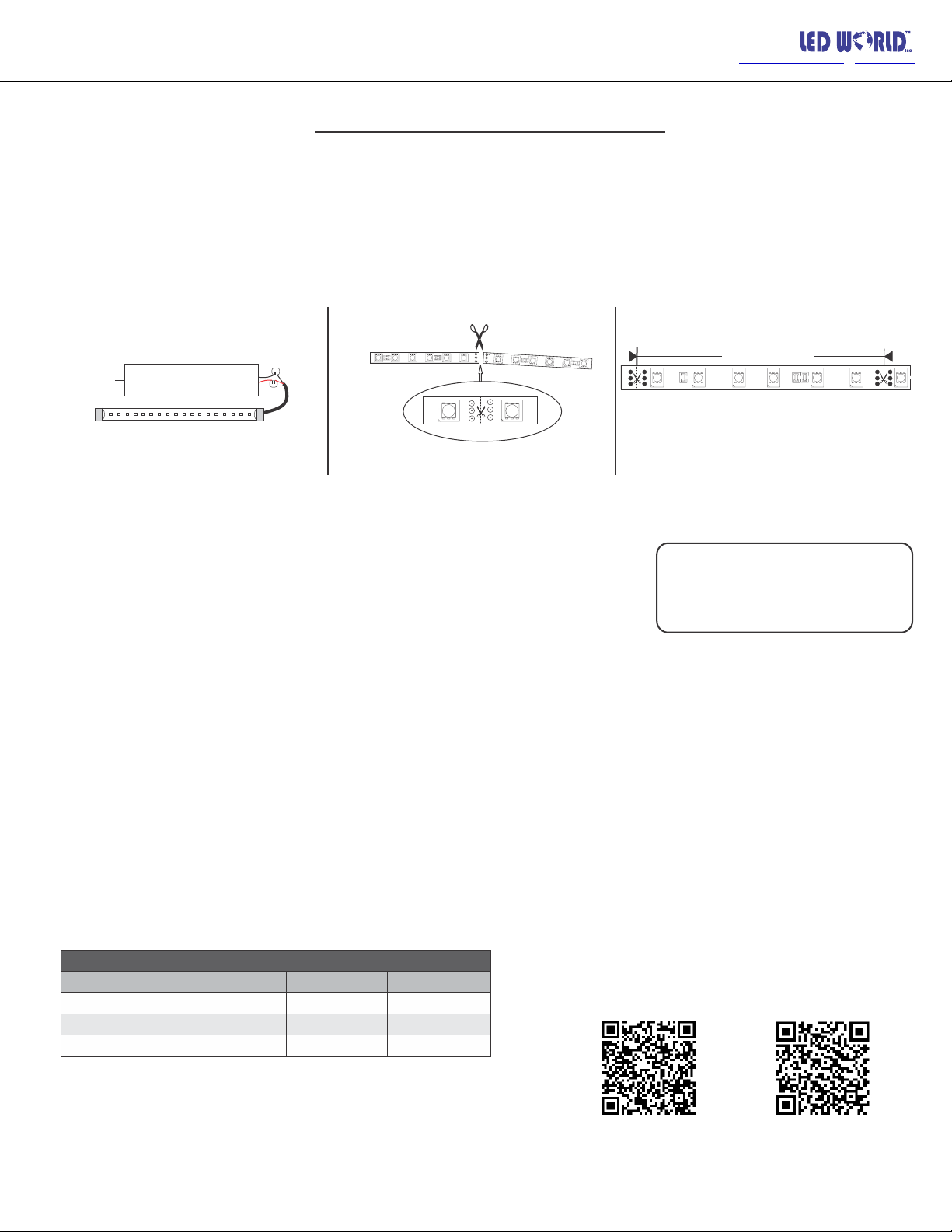

FLEX STRIP CONNECTION
-
Wire connection using WAGO block connectors
Class 2 Power Source
Alpha XLD Series
AC120V
LED Flex Strip
WAGO
Cut instructions
-
Solder Connection Points
Solder connection points are at marked intervals.
Cut points are at every 6 LEDs (24VDC)
Note Polarity Marks
48mm (1.88”)
+
-
+
-
+ + + +
- - - -
1-800-387-4081
ledworldlighting.com ledworld.ca |
Polarity marks must match
((+) to(+) and (-) to (-))
otherwise strip will not work
WIRING FOR VOLTAGE DROP
Voltage drop is normal loss of voltage that occurs as power ows along a wire connection in a low voltage systems, and increases
as the length of a wire connection is increased. Wire length and thickness as well as total light wattage inuence the amount of
voltage drop.
Recommended maximum wire lengths - 12VDC
Wire Guage (AWG)
20 AWG
18 AWG
16 AWG
20W 30W 50W 60W 90W 100W
13 FEET
21 FEET
34 FEET 22 FEET
14 FEET
9 FEET 5 FEET 4 FEET 3 FEET 3 FEET
4 FEET5 FEET7 FEET8 FEET
13 FEET 11 FEET 7 FEET 7 FEET
INSTALLATION PLANNING
LED Flexstrip is a versatile lighting product that can provide a superior lighting solution in a
variety of applications.
Recommend design steps before starting the installation process:
General questions based on lighting requirements:
ŸWhere will your power supply be located
ŸHow will you switch your LED lighting ON and OFF?
ŸWhat is the best layout conguration for your installation with wiring consideration?
ŸHow will you run your wiring to your LED strip lighting?
WATTAGE CALCULATION
The LED Flex Strips have a label on each roll that indicates the voltage and wattage. You must have the correct Class 2 Power
Supply (Transformer) for LED Strip model. To calculate the wattage, measure the total length of LED Strip in your run multiplied by
the wattage of the LED Strip. Remember that a power source should only operate at a maximum 80% of it rated capacity.
For example : 10 feet of QL-F3528A60T-HA-24 x 5.8W = 58 Watts
IMPORTANT NOTE
Mount Strips on Clean (No Wax/Oil),
dry, smooth, burrows free surface.
Adhesion can be made once and LED
Strip must fully adhere to surface.
Download Magnitude app for voltage drop calculations:
Android App IOS App
ŸBack Lighting
ŸCove Lighting
ŸTask Lighting
APPLICATIONS
ŸDisplay Lighting
ŸLighting Store
ŸUnder Cabinet Lighting
ŸAccent Lighting
ŸSign Lighting
ŸFood and Display industry
IMPORTANT INSTRUCTIONS
CCT ADJUSTABLE LED FLEX STRIP
Model: QL-F3528A60T-HA-24 (CCT: 2600K(Warm White)~6500K(Cool White))
-
-
- -
- - - -
Copyright © 2017 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 2.7 - 03/07/17

3/4
1-800-387-4081
ledworldlighting.com ledworld.ca |

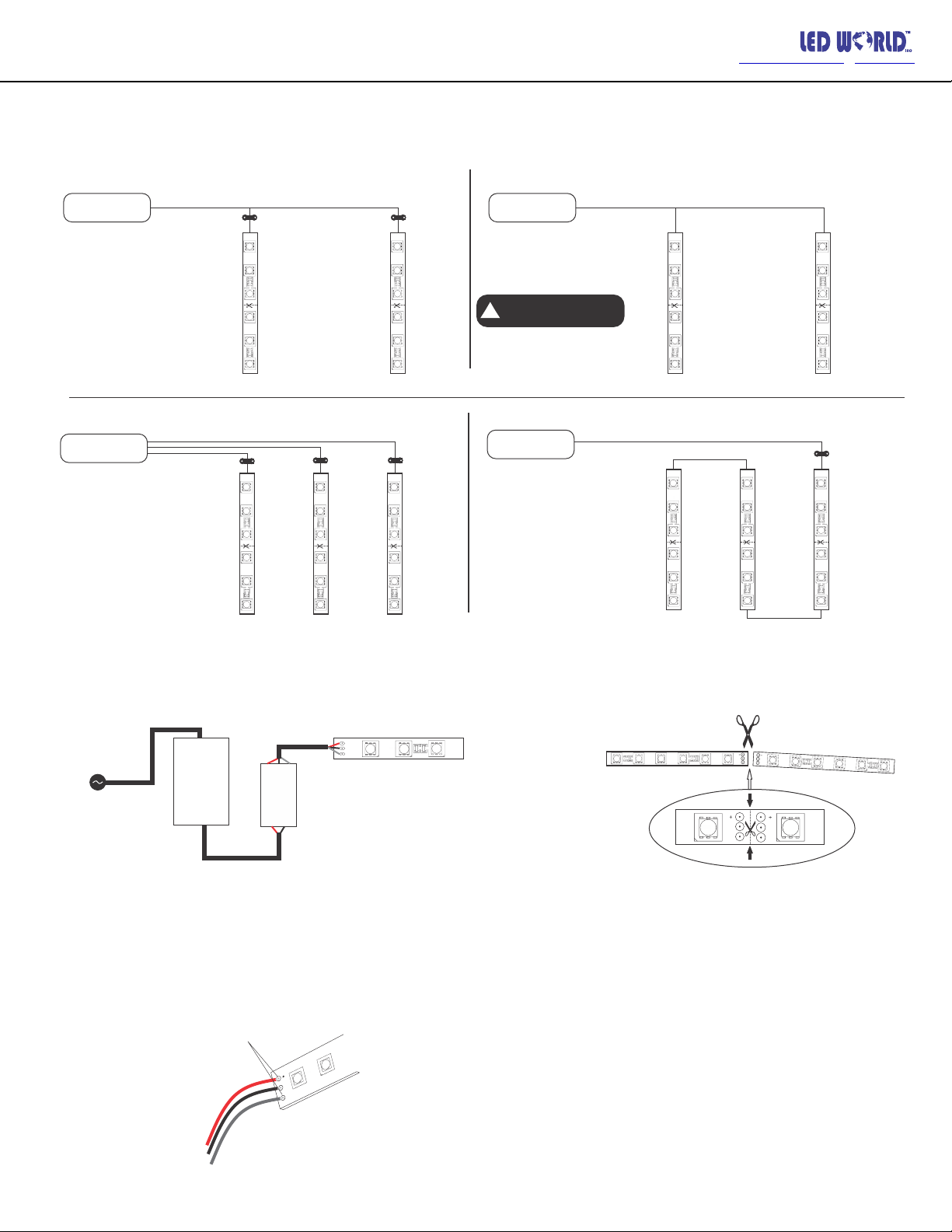

LED STRIP CUTTING
Our strips comes with cut mark sign. Strips are be cuttable at each 6
LEDs. Cut marks lying between set of soldering points.
-
-
--
LAYOUT OPTIONS
Note: Always check the Wattage of your LED Strip or Fixture.
Power Supply Wattage x 0.8 = Available Wattage
CONNECT WITH SOLDERING
Solder the connection. Please refer to our quick connector instruction
sheet.
-
Soldered Contacts
Class 2 Power Supply
Layout 2
40W18W
Available 80W
18W
Class 2 Power Supply
Layout 3
40W18W
Available 80W
18W
24VDC (100W) 24VDC (100W)
Class 2 Power Supply
24VDC (100W)
Class 2 Power Supply
Layout 1
38W38W 50W 50W
Available 80W Available 80W
24VDC (100W)
Layout with Overload
!
Do Not Use
Securely mount wires
using wire clamps
INPUT
120V AC 60Hz
Regulated Class 2 Power Supply
24VDC LED Flexstrip
+
-
Figure shows LED Flexstrip
connected to a Regulated
Class 2 Power Supply
XLD200B-224V-FC
or
LV100-24N-UNV-J
POWERING OPTION
CCT ADJUSTABLE LED FLEX STRIP
Model: QL-F3528A60T-HA-24 (CCT: 2600K(Warm White)~6500K(Cool White))
-
-
-
-
-
-
+ww cw
24V GND
LED Controller
Copyright © 2017 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 2.7 - 03/07/17

4/4

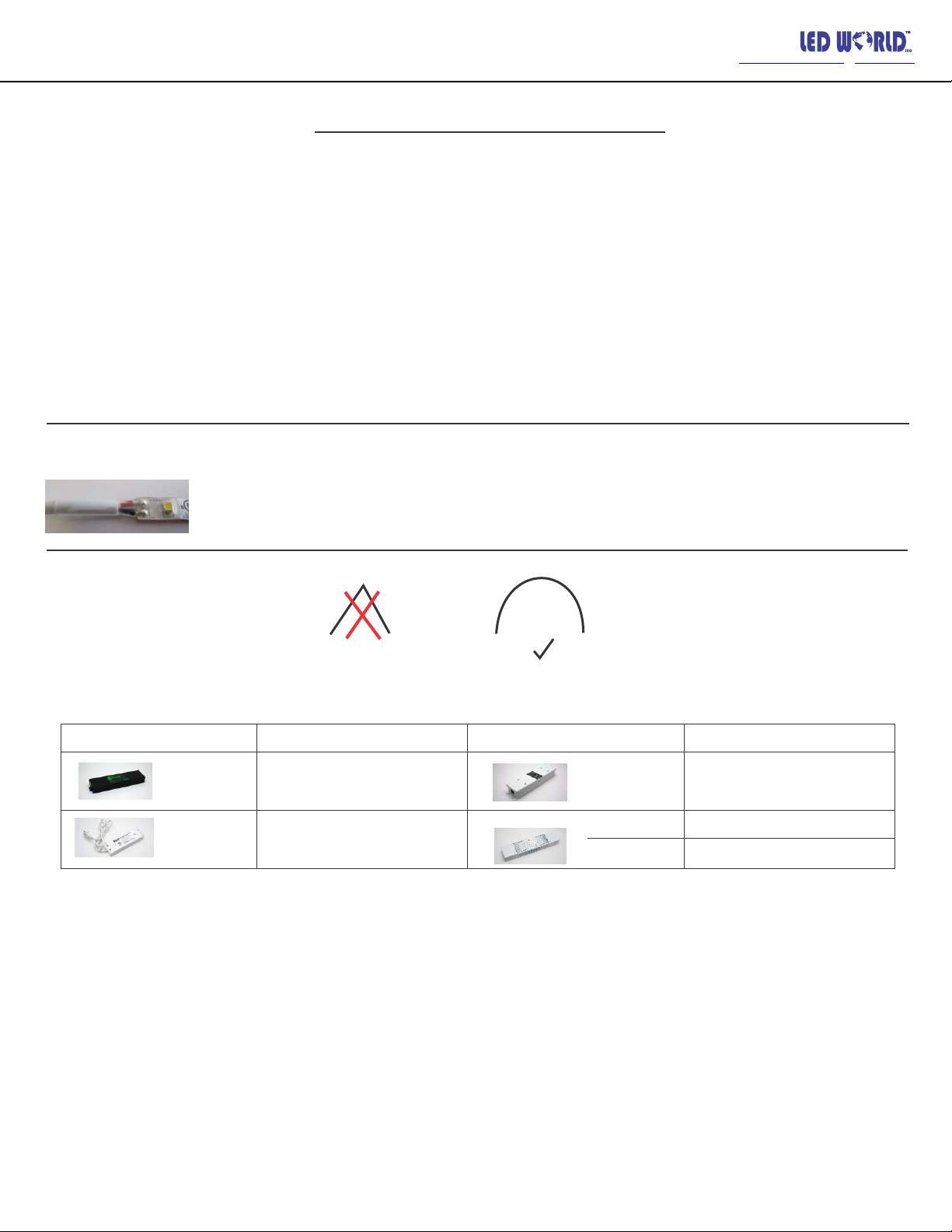

MAXIMUM FLEXSTRIP LENGTH SUPPORTED BY LED WORLD’s CLASS 2 POWER SUPPLY
Power Supply Max Feet of LED Flexstrips Power Supply Max Feet of LED Flexstrips
XLD200B-224V-FC 2 X 13.8 Feet (Each Channel)
Total 27.6 Feet
1-800-387-4081
ledworldlighting.com ledworld.ca |
LV100-24N-UNV-J 13.8 Feet (Continuous 80 Watts)
Apply 1 ½” long electrical heat shrink over all connection points. Secure connection wire with
wire clamp.
IMPORTANT !
Wrong!
4"
(100mm)
On widest one flat plane (only)
Do not bend sideways.
Flexible on one axis
maximum band radius 4”
TROUBLESHOOTING
Tape light strip does not light
ŸMake sure your power supply is turned on and has the correct voltage.
ŸConrm you have the correct polarity (+ to + and - and -) throughout the run of LED Lighting.
ŸHave a electrician check all connections and any switch or dimmer connections from the power supply to the LED Light
Strips.
ŸConsider testing with a multimeter to ensure light strip is receiving 24V power.
LED Flex Strip lights blink on, then go off
ŸThe power supply is not adequate for the length of LED Light Strips you are powering. Install a adequate Class 2 power
supply.
LEDs farthest from the power supply are noticeably dimmer
ŸThis is the result of voltage drop. Decrease the length of the 24V power feed or use thicker power feed wires between
the 24V power supply and the lighting strips.
IMPORTANT INSTRUCTIONS
CCT ADJUSTABLE LED FLEX STRIP
Model: QL-F3528A60T-HA-24 (CCT: 2600K(Warm White)~6500K(Cool White))
MD45W24VA 7.75 Feet (Continuous 45 Watts)
Copyright © 2017 LED WORLD INC™. All Rights Reserved. We are not responsible for errors or omissions. Product and specications subject to change without notice. Registered trademarks are owned by their respective registers, or licensee(s).
7.75 Feet (Continuous 45 Watts)
Multidim
MD45W24VA
MD-024-060VT 8.27 Feet (Continuous 48 Watts)
LED World Inc. | #130 10615 48 ST SE | CALGARY, AB T2C 2B7 | CANADA | Version 2.7 - 03/07/17
