LEDBOX DC AC230V User manual

USER MANUAL
CM
US
CE
CERTIFIED
ETL No.
5019343
IP65
Angle 150°
DC AC230V LED Strip
DIY Cutting & Assembly Operation Guide
RoHs
By TUV
230V
AC
AC 230V
INPUT
ISO
TS16949
3-Step
MacAdam
5 Years
5
UL94 V0
www.ledbox.es
Surge
Protection
1000V
TUV
CERTIFIED
IP65 Test
By TUV
IP65
TEST

Table Of Contents
01
Caution
Cutting Instructions 4
Power Cord Caution! 5
Asssembly Steps
End Cap Assembly 7
Docking Connector Caution! 8
Asssembly Steps 9
L-Type Connector Caution! 10
6
3
Asssembly Steps 11
Jumper Connector Caution! 12
Asssembly Steps 13
Wiring Diagrams 14
Troubleshooting 16
Mounting Profile 15

Before making any Cuts, installation, maintenance or connection,
make sure the light is disconnected the Electrical supply power
When the light use outdoor, Ground Fault Circuit Interrupter (GFCI)
protection should be included on the circuits or electrical outlet.
Failure to do so could result in serious injury.
10cm (Cutting Length)
N
Do not submerge the light in water (Fig. 2.1), or use the product in
the vicinity of standing water or other liquids.
Fig. 2.1
Do not install the light closer than 3meters distance from water
surface, or closer than the vicinity of standing water or other liquids.
Do not cover the light as the covering may cause the flexible light to
overheat and melt or ignite.
Do not puncture, shorten, or splice the light (Fig. 2.2), Doing so
will result in damaging the internal circuit board.
Do not bend past the minimum 50mm diameter (Fig. 2.1), Doing so
will result in causing electric shock and body injury.
50mm Min.
Fig. 2.1
Do not twist past the minimum 30° angle (Fig. 2.3) Doing so will
result in damaging the internal circuit board.
Caution
02
To extend lifespan of the light, do not operate the light in the
temperatures exceeding 60° C (140°F).
Enviroment temperature not exceed -25° C ~ 45° C (-13°F ~ 113°F)
, and LED PIN temperature: maximum 60° C (140°F).
Correct
Incorrect
Fig. 2.2
Fig. 2.3

Cutting Instructions
03
Correct
Place the light horizontally when cutting it, and check out the
marker line at PCB surface, use only factory-recommended
The minimum cutting length is 10cm (Fig. 3.2), and can be cut
internal circuit board.
Fig. 3.1
Cutting Nippers
Incorrect
cutting Nippers to cut (Fig. 3.1), if use other cutter caused the
Fig. 3.2
Min. Cutting Length: 10cm
Marker Line
Cutting Nippers
Marker Line
Fig. 3.4
Cutting Nippers
Marker Line
Wave Cut incorrect
R>90° Cut incorrect
R<90° Cut incorrect
cut from the side is incorrect
Not cut at the marking line, incorrect
Fig. 3.3
Correct — Cut at the marking line
into varous length (e.g. 30cm, 50cm, ... 5000cm Maxi.).
Do not place the light on its side to cut, and doing so will result
in damaging the internal circuit board (Fig. 3.3), and R<90 or °
R>90 internal circuit board° or wave cutting will damage the .
Cutting must be done at the marker line, and pls do not cut
at other place (Fig. 3.4), and will result in damaging doing so
the internal circuit board.

Power Cord
04
Fig. 4.1
Sectional view
Light
Fig. 4.2
Fig. 4.4
Fig. 4.3
Keep 2mm ~ 3mm
reserved for drop Glue
Assembly Caution!
Fig. 4.1 — Firstly Put the Fixing Clip through the light
(As indicated by the blue arrow), and make sure the
two fixed ribs are upwards.
AC Plug *1
Fixing Clip *1
Fixed ribs upwards
Fig. 4.2 — The 2 Pins must be inserted into the back
of the PCB board, to make it energized, and keep the
2-3mm reserved for drop glue.
Correct Inserting
Incorrect Inserting
Incorrect Inserting
Fig. 4.3 — Do not insert the two pins at the surface of
the PCB and LED, which will cause the light to short circuit
and burn out the entire roll of the light, which cause a fire.
Fig. 4.4 — Do not insert the one pin into back side of PCB,
and insert the another one pin at the surface of the PCB
and LED, which will cause the light to short circuit and
burn out the entire roll of the light, which may cause a fire.

04
Glue
Fig. 4.5
AC Plug *1
Light
Fixing Clip *1
Anti-tension Shell *1
Fig. 4.6
①
②
Fig. 4.7
Power Cord
Assembly Steps
③
④
③
⑤Finish
Fig. 4.5 — Pls doing the assembly according to ① ② ③ ④
⑤ steps, and make sure the fixing clip’s two fixed ribs are
upwards.
Fig. 4.6 — Inserting the adhensive silicon glue, and make
IP65 Waterproof.
Fig. 4.7 — The complete assembly
Fixed ribs upwards
Fixed ribs upwards
Sectional view

05
Fig. 5.1
Light
Fixing Clip *1
Anti-tension Shell *1
②
Fig. 5.2
③
Fig. 5.3
①
④
End Cap
Assembly Steps
③
⑤Finish
Fig. 5.1 — Pls doing the assembly according to ① ② ③ ④
⑤ steps, and make sure the fixing clip’s two fixed ribs are
upwards.
Fixed ribs upwards
Fig. 5.2 — Inserting the adhensive silicon glue, and make
IP65 Waterproof.
Fig. 5.3 — The complete assembly
Sectional view
Fixed ribs upwards
Glue

06
Docking Connector
Assembly Caution!
Fig. 6.1
Fig. 6.2
Fig. 6.3
Fig. 6.4

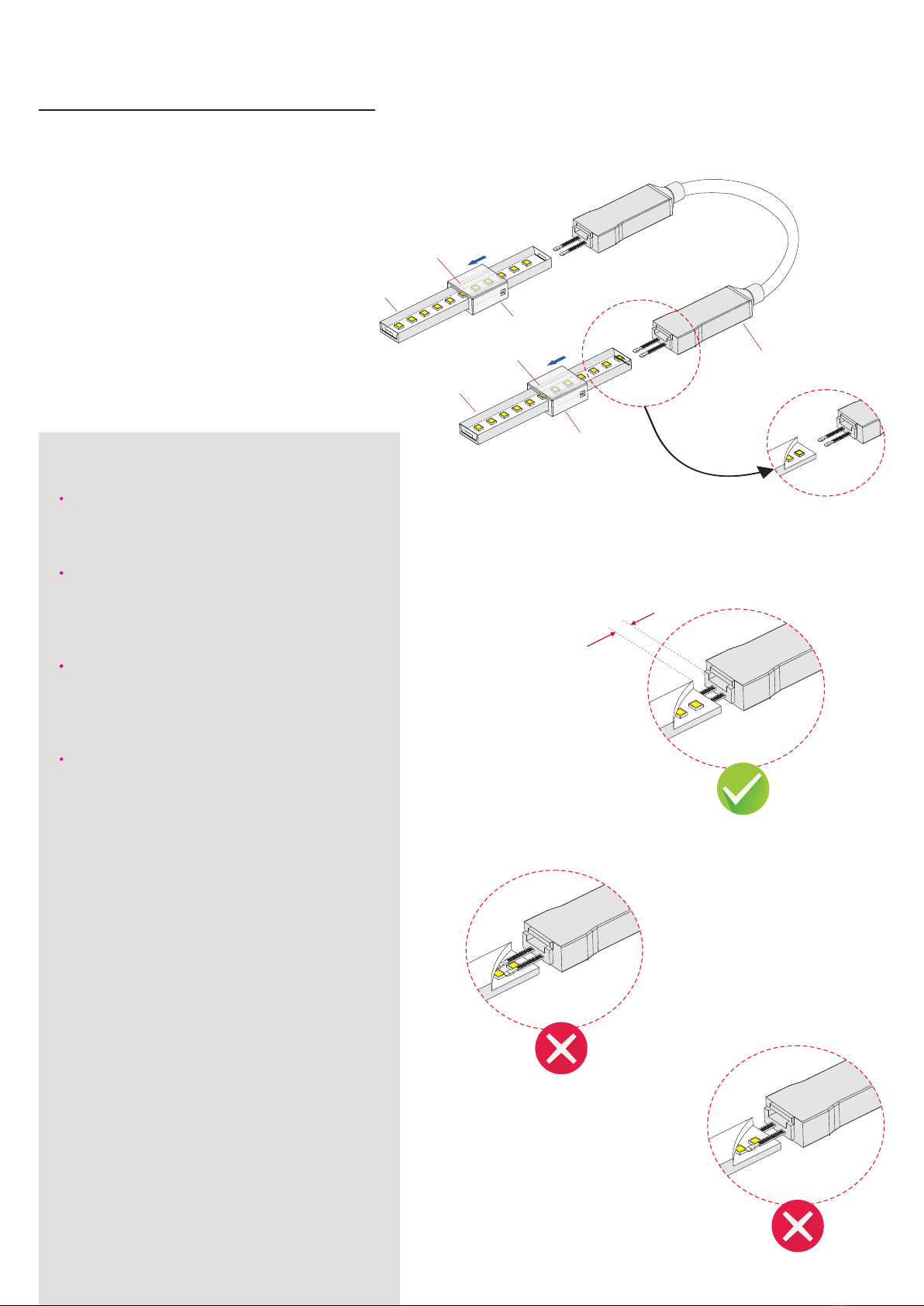

Fig. 6.1 — Firstly Put the two Fixing Clips through the
light (As indicated by the blue arrow), and make sure
the two fixed ribs are upwards.
Fig. 6.2 — The 4 Pins must be inserted into the back
of the PCB board, to make it energized, and keep the
2-3mm reserved for drop glue.
Fig. 6.3 — Do not insert the 4 pins at the surface of
the PCB and LED, which will cause the light to short circuit
and burn out the entire roll of the light, which cause a fire.
Fig. 6.4 — Do not insert the 2 pin into back side of PCB,
and insert the another 2 pin at the surface of the PCB
and LED, which will cause the light to short circuit and
burn out the entire roll of the light, which may cause a fire.
Sectional view
Light
Fixing Clip *1
Fixed ribs upwards Fixing Clip *1
Light
Fixed ribs upwards
Keep 2mm ~ 3mm
reserved for drop Glue
Incorrect Inserting
Correct Inserting
Incorrect Inserting
Feed Connector *1

Light
①
Fixing Clip *1
Anti-tension Shell *1
③
②
⑥
Light
⑤
06
Docking Connector
Assembly Steps
④
④
⑦ Finish
Fig. 6.5
Fig. 6.6
Fig. 6.7
Fig. 6.5 — Pls doing the assembly according to ① ② ③ ④
⑤ ⑥ ⑦ steps, and make sure the fixing clip’s two fixed ribs
are upwards.
Feed Connector *1
Fig. 6.6 — Inserting the adhensive silicon glue, and make
IP65 Waterproof.
Fig. 6.7 — The complete assembly
Sectional view
Glue
Fixed ribs upwards
Fixed ribs upwards
Fixing Clip *1
Fixing Clip *1
Fixed ribs upwards
Fixed ribs upwards
Fixing Clip *1

07
Assembly Caution!
L-Type Connector
Fig. 7.1
Fig. 7.3
Fig. 7.4
Fig. 7.2
Fig. 7.1 — Firstly Put the two Fixing Clips through the
light (As indicated by the blue arrow), and make sure
the two fixed ribs are upwards.
Fig. 7.2 — The 4 Pins must be inserted into the back
of the PCB board, to make it energized, and keep the
2-3mm reserved for drop glue.
Fig. 7.3 — Do not insert the 4 pins at the surface of
the PCB and LED, which will cause the light to short circuit
and burn out the entire roll of the light, which cause a fire.
Fig. 7.4 — Do not insert the 2 pin into back side of PCB,
and insert the another 2 pin at the surface of the PCB
and LED, which will cause the light to short circuit and
burn out the entire roll of the light, which may cause a fire.
Sectional view
Feed Connector *1
Fixing Clip *1
Fixing Clip *1
Light
Light
Keep 2mm ~ 3mm
reserved for drop Glue
Correct Inserting
Incorrect Inserting
Incorrect Inserting
Fixed ribs upwards
Fixed ribs upwards

07
Light
Fixing Clip *1
Light
Feed Connector *1
Anti-tension Shell *1
Assembly Steps
L-Type Connector
Fixing Clip *1
Fig. 7.5
①
②
③
④
④
⑤
⑥
⑦ Finish
Fig. 7.5 — Pls doing the assembly according to ① ② ③ ④
⑤ ⑥ ⑦ steps, and make sure the fixing clip’s two fixed ribs
are upwards.
Fig. 7.6 — Inserting the adhensive silicon glue, and make
IP65 Waterproof.
Fig. 7.7 — The complete assembly
Fig. 7.6
Fig. 7.7
Sectional view
Glue
Fixed ribs upwards
Fixed ribs upwards
Fixed ribs upwards
Fixed ribs upwards

08
Fig. 8.1
Sectional view
Docking Plug *1
Light
Fixing Clip *1
Fig. 8.2
Fig. 8.4
Fig. 8.3
Assembly Caution!
Jumper Connector
Keep 2mm ~ 3mm
reserved for drop Glue
Fixing Clip *1
Fig. 8.1 — Firstly Put the two Fixing Clips through the
light (As indicated by the blue arrow), and make sure
the two fixed ribs are upwards.
Fig. 8.2 — The 4 Pins must be inserted into the back
of the PCB board, to make it energized, and keep the
2-3mm reserved for drop glue.
Fig. 8.3 — Do not insert the 4 pins at the surface of
the PCB and LED, which will cause the light to short circuit
and burn out the entire roll of the light, which cause a fire.
Fig. 8.4 — Do not insert the 2 pin into back side of PCB,
and insert the another 2 pin at the surface of the PCB
and LED, which will cause the light to short circuit and
burn out the entire roll of the light, which may cause a fire.
Fixed ribs upwards
Fixed ribs upwards
Light

08
Glue
Docking Plug *1
Light
Fixing Clip *1
Anti-tension Shell *1
①
②③
Assembly Steps
Jumper Connector
Light
Fixing Clip *1
Anti-tension Shell *1
④
⑤
⑤
⑤
⑥
⑦
⑧ Finish
Fig. 8.5
Fig. 8.6
Fig. 8.7
Sectional view
Fig. 8.5 — Pls doing the assembly according to ① ② ③ ④
⑤ ⑥ ⑦ ⑧ steps, and make sure the fixing clip’s two fixed
ribs are upwards.
Fig. 8.6 — Inserting the adhensive silicon glue, and make
IP65 Waterproof.
Fig. 8.7 — The complete assembly
Fixed ribs upwards
Fixed ribs upwards
Fixed ribs upwards

09
Wiring Diagrams
Hardwire Connection Plug-in Connection
AC Mains
200-240VAC
Light
Junction Box
Light
AC Mains
200-240VAC
L
N
The light can be used in conjunction with a AC200V~AC240V input
,Ensure that the power cable carried current is no greater than 80%
of its capacity, and The light not exceed the maximum length 50m.
The light can be used in conjunction with a AC200V~AC240V input
,Ensure that the power cable carried current is no greater than 80%
of its capacity, and The light not exceed the maximum length 50m.
Wiring diagrams for dimming
AC Mains
200-240VAC
Technical Data
Output Voltage
Input Voltage
Output Current
Waterproof Grade
100V-240V AC
100V-240V AC
1.8A max.
IP20
Size(LxWxH) 45.5x45x20.3mm
Output Power 400W max.
DALI Consumption 2mA max
Allowed Inrush Current Cold Start 75A max.
The number of parallel connected luminaries not more than 10, Otherwise the dimmer damaged due to the high inrush current at the moment of starting.
This phase dimmer adopts trailing edge dimming (reverse phase control), make sure the connected loads support reverse phase control.

10
Installation Steps
Mounting Profile
1000mm
1500mm
2000mm
3
4
6
Notes:
1. The raw material canbe Alumimum, or PC plastic, and Any customized Length available too, such as 0.5m or 1m or 2m length maximum;
2. Each 0.3m length with 1 hole and 1 screw, and installation referece to the following steps;
Code Profile Length(mm) Hole Size (mm)
Φ3.5mm
Φ3.5mm
Φ3.5mm
Hole Number (pcs)W*H(ft)
18.2mm
10mm
MX-PJ-01825 18.2mm * 10mm
Incorrect — Screw head above to
the base of Mounting Profile
Incorrect — the screw into the wall
diagonally at an angle
Correct — Screw head is flush or
lower the base of Mounting Profile
