Lumio Festiva User manual

Fig. 6
Fig. 5
Fig. 4
Fig. 3
Cap
Gravel
Fig. 2
Ramps
Fig. 1
Fig. 1
Short rails
Braces
Screws
Long rails

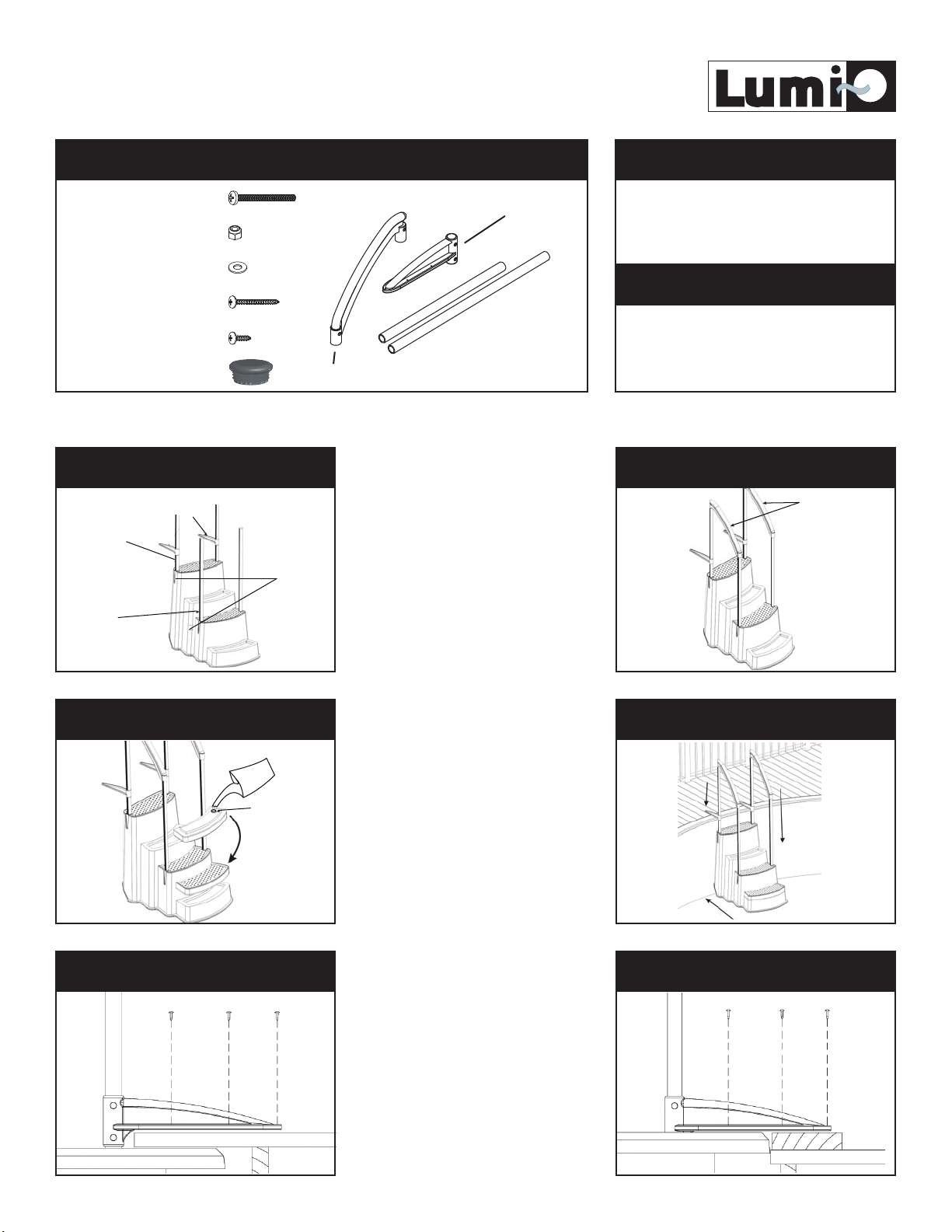

5704 - THE FESTIVA
Rev. 2008-10-24 p.1
Read carefully the cautions and every steps before assembly and using your step.
1. Place the rails on the sides of the step
(short rails on top) and align with the
predrilled holes. Attach using the 2½” (8)
bolts, washers and nuts. Do not tighten the
bolts at this time. Slide the braces over the
short rails (g. 1).
2. Insert the diagonal rails onto the long
and short rails. From the outside of the
step, attach using the 10 x ¾” (4)
screws (g. 2). Tighten the bolts on the
step (as shown in gure 1).
3. Fill the two ballasts with sand* (approx.
40 lb each) until they are completely lled
(g. 3 ). Place one of the ballast on the
bottom step only for now.
4. Place the step against the pool wall, but
leave at least one (1) inch between the step
and the wall. Ensure that the step touches
the ground solidly. Lower the braces until
they rest on the deck (g. 4).
5. Attach the braces to the deck using the
1½” (10) screws. If the deck is above the
toprail, attach the braces
directly to the deck (g. 5).
6. If the deck is lower than the pool, the
braces should be shimmed* to attain the
same level as the pool (g. 6). Ensure the
shim is properly secured to the deck.
*** Caution : File off all stripped or sharp edges before assembly to avoid injuries and pool damage.
To ease the installation of rails and bolts, use a screwdriver to line up the holes.
(8x) Bolts 2 ½” - - -
- - -(8x) Locknut
(16x) Whasers 1/4”
(10x) Screws 1½”
(8x) Screws 10 x ¾”
- - -
- - -
- - -
MATERIAL INCLUDED Required tools :
- Automatic screwdriver
- Pair of grip or wrench 7/16
STEP 1 STEP 2
STEP 3 STEP 4
STEP 5 STEP 6
Not include:
- Shim
- Pea gravel
Note : You will need approximatly
50 lbs. of pea gravel
Ramps (2)
Braces (2)
Support tubes
- Shorts (2)
- Longs (2)
(2x) Caps - - -

REMEMBER - Nothing replaces parental supervision.
Watch children at all times.
Fig. 8
ballast
Fig. 7
Rev. 2008-10-24 p.2
7. If the pool is lower than the deck, the
braces should be shimmed* to attain the
same level as the deck (g. 7). Ensure the
shim is properly secured to the top rail.
8. Place the second ballast on the top step.
Step Maintenance
1 - When adding water in your pool, insert the nozzle of your
hose in the side holes of the step to allow a good water
circulation throughout the season.
2 - When treating your water do not forget to treat the water
inside your step.
CAUTION
:: Install the step on a solid base and at base.
:: Do not jump or dive from the step.
:: The step should be removed from the water when
temperature drop below freezing.
:: Never lift the step by its rail.
:: Use battery-operated tools to avoid electric shock near water
:: Ensure no corrosive materials are added to the step or hardware kit
:: The step shall be installed per manufacturer’s instructions.
:: File o all stripped or sharp edges of hardware to avoid injury.
:: The manufacturer is not responsible for damage or injuries
caused by improper installation or use.
:: For more protection, we suggest to install a step pad* under
the step.
STEP 7 STEP 8
Lumi-O International Inc. Saint-Jérôme, Québec, Canada J7Y 4E5 www.lumi-o.com
This model require a maximum inclination of
the bottom of the swimming pool of
approximately 2 degrees.
* Not included with the step
