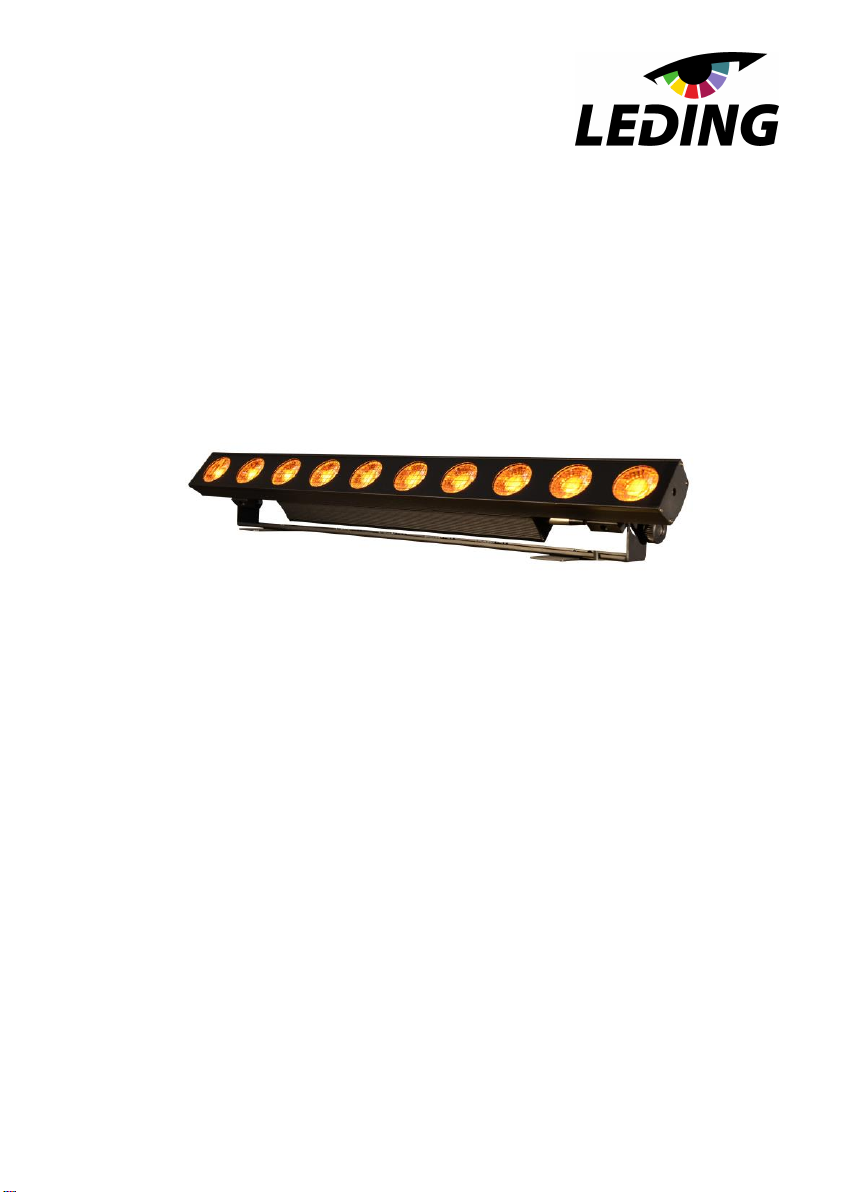

Leding SUNSTRIP 1050 User manual

SUNSTRIP 1050
USER MANUAL

2
Content
INTRODUCTION ...................................................................................................3
DESCRIPTION........................................................................................................3
SAFETY INSTRUCTIONS ..................................................................................3
DMX-512 control connection........................................................................4
DMX-512 connection with DMX terminator.........................................4
Operation.................................................................................................................4
Display Menu .................................................................................................4
Main functions ..............................................................................................5
DMX functions and values......................................................................7
CLEANING AND MAINTENANCE ..................................................................7
INSTALLATION ...................................................................................................16

3
INTRODUCTION
Thank you for having chosen our LEDING
Unpack the device, inside the box you should find:
The fixture device
One power cable
One XLR connection cable
This manual
Please check carefully that there is no damage caused by transportation. Should there
be any problems, consult your dealer and don’t install this device.
DESCRIPTION
Features
Easy multi fixture hanging system, outdoor version available
50w *10pcs LEDs, no ultraviolet radiation
More than 50,000 hours for the LED light source
120 degree
4/2/14/25/2/5/10/20 DMX channels
16 Bit Dimmer
DMX Mode /Master-slave mode
AC 100-240V 50/60Hz 500W
Diecasting heatsink, convection cooling, no fans, no noise
With temperature sensor to extend the lamp life
500 Hz LED scan rate
L: 840mm H:173mm W:74mm, Weight 4.5Kg
IP20 selectable
SAFETY INSTRUCTIONS
This device has left the factory in perfect condition. In order to maintain this
condition and to ensure a safe operation, it’s absolutely necessary for the user to
follow the safety instructions and warning notes written in this user manual.
This device falls under protection-class I. Therefore it is essential that
the device should be earthed.
The electric connection must carry out by qualified person.
If the external flexible cable or cord of this luminaire is damaged, it
shall be exclusively replaced by the manufacturer or his service
agent or a similar qualified person in order to avoid a hazard.
Make sure that the available voltage is not higher than stated at
the end of this manual.
Make sure the power cord is never crimped or damaged by sharp edges.
If this would be the case, replacement of the cable must be done by
an authorized dealer.
Always disconnect from the mains, when the device is not in use or before cleaning it.

4
Only handle the power cord by the plug. Never
pull out the plug by tugging the power cord.
Never look directly into the light source, as sensitive
persons may suffer an epileptic shock.
Important:
Damages caused by the disregard of this user manual are not subject to
warranty. The dealer will not accept liability for any resulting defects or
problems.
DMX-512 control connection
The product has a DMX 512 input fitted with 3-pin XLR connectors. Screened cables in
compliance with EIA RS-485 specifications and the following characteristics must be
used for connections:
- 2 conductors plus screen
- 120Ohm impedance
- low capacitance
- max. transmission rate 250kBaud.
DMX-512 connection with DMX terminator
For installations where the DMX cable has to run a long distance or is in an electrically
noisy environment,such as in a discotheque, it is recommended to use a DMX terminator.
This helps in preventing corruption of the digital control signal by electrical noise. The
DMX terminator is simply an XLR plug with a 120 OHM resistor connected between pins 2 and
3,which is then plugged into the output XLR socket of the last fixture in the chain.
Operation
Display Menu
Menu
Sub-menu
Config Mode
Channel Mode
1ch/2ch/5ch St/5ch
Px/9ch/10ch/18h/20ch/25ch
Keep Screen On
Enable/Disable
Keep DMX Data
Enable/Disable
Fan speed
Ultra low/Low/standard/high
Led direction
Led 1 Left / Led 1 Right
Default Halogen
Curve
Curve 1/2/3/4/5/White/Amber

5
Default Dimmer
Speed
Dim0/Dim1/Dim2/Dim3/Dim4
Fast Dimmer
Enable/Disable
System Info
Temperature
Head XX ℃
Body XX ℃
RDM
RDM_Status
Enable/Disable
RDM_UID
XXX
RDM_ID
XXX
RDM_Label
SOLAR 1050
Led All On
Led All On
Auto Test
Auto Mode 1
Auto Mode 2
Auto Mode 3
Auto Mode 4
Fan Test
On/Off
Led Load
Defaul
False/True
Main functions
1. address:Current DMX address
A.Setting DMX address by button
press ENTER button when show the address menu, then adjust the DMX address
by pressing [UP] or [DOWN] button
Press [ENTER] to confirm or pressing [ESC] to return to main menu.
B.Setting DMX address by controller
1.Set the DMX value of channel 5 to 10-15,channel 17 to 20-26, channel 7 to
30-36,channel 8 to 40-46,then the devices connected to the controller will enter to
the setting address mode
2. Set the DMX value of channel 1 from 0-59,then you will see the the first number
of the Address change to (channel 1 vaule)/10.
For example,when set the value of channel 1 to 20,the first DMX address number
will be 2(20/10=2) ,
3. Set the DMX value of channel 2 from 0-99,then you will see the the sencond
number of the Address change to (channel 2 vaule)/10.
For example,when set the value of channel 2 to 30,the first DMX address number
will be 2(30/10=3) ,
4.Set the DMX value of channel 3 from 0-99,then you will see the the third number
of the Address change to (channel 3 vaule)/10.

6
For example,when set the value of channel 1 to 40,the first DMX address number
will be 3(40/10=4) ,
And the DMX address you set by conctroller will be 234.
5. Set the DMX value of channel 4 to 255,then you will save the DMX address
setted by the controller.
Caution: It won’t save the address if the address number is over 512
6. set the value of channel 5-8 out of the value range show on the step 1,and the
device will exit the setting address mode
2. Config
Setting DMX mode
press ENTER button when show the channel menu, then select the DMX mode by
pressing [UP] or [DOWN] button
Setting Dimmer Curve
press ENTER button when show the dimmer curve menu, then select the
dimmer curve by pressing [UP] or [DOWN] button
Setting Cipher
press ENTER button when show the cipher setup menu, then setup cipher by
pressing [UP] or [DOWN] button
Key mode
press ENTER button when show the key mode menu, then select lock or unlock
by pressing [UP] or [DOWN] button
Show Temperature
press ENTER button when show the Temp Uint CS menu, select the way of
showing the fixture’s temperature in ℃or ℉by pressing [UP] or [DOWN]
button
DMX status
press ENTER button when show the DMX Status menu, then select clear value or
hold value by pressing [UP] or [DOWN] button
DMX direct
press ENTER button when show the DMX direct menu, then select DMX direct
positive or negative by pressing [UP] or [DOWN] button
Display mode
press ENTER button when show the Display Mode menu, then select auto or on
by pressing [UP] or [DOWN] button
3. System info
Temperature
press ENTER button when show the Temperature menu, then it will show the
temperature of the fixture
Fixture time
press ENTER button when show the Fixture time menu, then it will show how long

7
time of the fixture already used
4. Color menu
press ENTER button when show the Color menu, press Enter button to select the
color mode, then adjust the color by pressing [UP] or [DOWN] button
5. White balance
press ENTER button when show the white balance menu, press Enter button to
select the color mode, then adjust the color by pressing [UP] or [DOWN] button
6. Static test
press ENTER button when show the static test menu, select different color by
pressing [UP] or [DOWN] button
7. Auto test
press ENTER button when show the auto test menu, select test mode by pressing
[UP] or [DOWN] button
8. Factory setting
press ENTER button when show the Factory setting menu, adjusting color cablir
by pressing [UP] or [DOWN] button
DMX functions and values
Mode
Channel
Function
value
Remark
1CH
1
Master
Dimmer
000-255
Mode
Channel
Function
value
Remark
2Ch-2Px
1
Dimmer Led
1-5
000 - 255
0 - 100%
2
Dimmer Led
6-7
000 - 255
0 - 100%
Mode
Channel
Function
value
Remark
5CH
Strobe
1
Master
Dimmer
000 - 255
0 - 100%
2
Duration
000 - 255
0 - 100%

8
3
Strobe
000 - 005
Shutter open
006-010
Shutter closed
011 - 092
Regular slow
to fast
093 - 174
Random slow
to fast
175 -250
Random
synchronized
slow to fast
251-255
Shutter Open
Fast dimmer
disable (Note
1)
4
Pattern
000-255
Pattern 1-81
5
Flow Effect
000 - 255
Effect 1- 5
Mode
Channel
Function
value
Remark
5Ch-Px
1
Dimmer Led
1-2
000 - 255
0 - 100%
2
Dimmer Led
3-4
000 - 255
0 - 100%
3
Dimmer Led
5-6
000 - 255
0 - 100%
4
Dimmer Led
7-8
000 - 255
0 - 100%
5
Dimmer Led
9-10
000 - 255
0 - 100%
Mode
Channel
Function
value
Remark
9CH
1
Master
Dimmer
000 - 255
0 - 100%

9
2
ALL White
000 - 255
0 - 100%
3
All Amber
000 - 255
0 - 100%
4
Duration
000 - 255
0 - 100%
5
Strobe
000 - 005
Shutter open
006-010
Shutter closed
011 - 092
Regular slow
to fast
093 - 174
Random slow
to fast
175 -250
Random
synchronized
slow to fast
251-255
Shutter Open
Fast dimmer
disable (Note
1)
6
Pattern
000-255
Pattern 1-81
7
Flow Effect
000-010
Effect Off
011 -014
P1 with fade
015 - 017
P1 Instant
018 - 021
P2 with fade
022 - 024
P2 Instant
025 - 028
P3 with fade
029 - 031
P3 Instant
032 - 035
P4 with Fade
??????????
etc….....
249-252
P37 Random
Pixel fade
(Note 2)
253-255
P37 Random
Pixel instant
(Note 2)
8
Effect Speed
001 - 255
Slow to fast

10
9
Leds mode
001 - 030
Separate
White/Amber
control
031 - 060
Tungsten 1
061 - 090
Tungsten 2
091 - 120
Tungsten 3
121 - 150
Tungsten 4
151 - 180
Tungsten 5
181 - 234
No effect
235 - 244
Led direction 1
< 10 (Hold
3sec)
245 - 255
Led direction
10 > 1 (Hold
3sec)
Mode
Channel
Function
value
Remark
18CH
1
Master
Dimmer
000 - 255
0 - 100%
2
Dimmer Led-1
000 - 255
0 - 100%
3
Dimmer Led-2
000 - 255
0 - 100%
4
Dimmer Led-3
000 - 255
0 - 100%
5
Dimmer Led-4
000 - 255
0 - 100%
6
Dimmer Led-5
000 - 255
0 - 100%
7
Dimmer Led-6
000 - 255
0 - 100%
8
Dimmer Led-7
000 - 255
0 - 100%
9
Dimmer Led-8
000 - 255
0 - 100%
10
Dimmer Led-9
000 - 255
0 - 100%
11
Dimmer
Led-10
000 - 255
0 - 100%
12
Duration
000 - 255
0 - 100%
13
Strobe
000 - 005
Shutter open

11
006-010
Shutter closed
011 - 092
Regular slow
to fast
093 - 174
Random slow
to fast
175 -250
Random
synchronized
slow to fast
251-255
Shutter Open
Fast dimmer
disable (Note
1)
14
Pattern
000-255
Pattern 1-81
15
Flow Effect
000-010
Effect off
011 -014
P1 with fade
015 - 017
P1 Instant
018 - 021
P2 with fade
022 - 024
P2 Instant
025 - 028
P3 with fade
029 - 031
P3 Instant
032 - 035
P4 with Fade
??????????
etc….....
249-252
P37 Random
Pixel fade
(Note 2)
253-255
P37 Random
Pixel instant
(Note 2)
16
Effect Speed
000-255
Slow to fast
17
Leds mode
000 - 009
Curve set in
the menu
010 - 034
Tungsten 1
035 - 059
Tungsten 2

12
060 - 084
Tungsten 3
085 - 109
Tungsten 4
110 - 134
Tungsten 5
135 - 159
Only White
160 - 184
Only Amber
185 - 234
No effect
235 - 244
Led direction 1
< 10 (Hold
3sec)
245 - 255
Led direction
10 > 1 (Hold
3sec)
18
Dimmer speed
000-009
Dim set in
Menu
010 - 019
Dim 0
020-029
Dim 1
030-039
Dim 2
040-049
Dim 3
050-059
Dim 4
060-255
Fade 0 to
10sec (Note 3)
Mode
Channel
Function
value
Remark
20CH
1
Dimmer Led-1
White
000 - 255
0 - 100%
2
Dimmer Led-1
Amber
000 - 255
0 - 100%
3
Dimmer Led-2
White
000 - 255
0 - 100%
4
Dimmer Led-2
Amber
000 - 255
0 - 100%

13
5
Dimmer Led-3
White
000 - 255
0 - 100%
6
Dimmer Led-3
Amber
000 - 255
0 - 100%
7
Dimmer Led-4
White
000 - 255
0 - 100%
8
Dimmer Led-4
Amber
000 - 255
0 - 100%
9
Dimmer Led-5
White
000 - 255
0 - 100%
10
Dimmer Led-5
Amber
000 - 255
0 - 100%
11
Dimmer Led-6
White
000 - 255
0 - 100%
12
Dimmer Led-6
Amber
000 - 255
0 - 100%
13
Dimmer Led-7
White
000 - 255
0 - 100%
14
Dimmer Led-7
Amber
000 - 255
0 - 100%
15
Dimmer Led-8
White
000 - 255
0 - 100%
16
Dimmer Led-8
Amber
000 - 255
0 - 100%
17
Dimmer Led-9
White
000 - 255
0 - 100%
18
Dimmer Led-9
Amber
000 - 255
0 - 100%
19
Dimmer
Led-10 White
000 - 255
0 - 100%
20
Dimmer
Led-10 Amber
000 - 255
0 - 100%

14
Mode
Channel
Function
value
Remark
25CH
1
Master
Dimmer
000 - 255
0 - 100%
2
Dimmer Led-1
White
000 - 255
0 - 100%
3
Dimmer Led-1
Amber
000 - 255
0 - 100%
4
Dimmer Led-2
White
000 - 255
0 - 100%
5
Dimmer Led-2
Amber
000 - 255
0 - 100%
6
Dimmer Led-3
White
000 - 255
0 - 100%
7
Dimmer Led-3
Amber
000 - 255
0 - 100%
8
Dimmer Led-4
White
000 - 255
0 - 100%
9
Dimmer Led-4
Amber
000 - 255
0 - 100%
10
Dimmer Led-5
White
000 - 255
0 - 100%
11
Dimmer Led-5
Amber
000 - 255
0 - 100%
12
Dimmer Led-6
White
000 - 255
0 - 100%
13
Dimmer Led-6
Amber
000 - 255
0 - 100%
14
Dimmer Led-7
White
000 - 255
0 - 100%
15
Dimmer Led-7
Amber
000 - 255
0 - 100%
16
Dimmer Led-8
000 - 255
0 - 100%

15
White
17
Dimmer Led-8
Amber
000 - 255
0 - 100%
18
Dimmer Led-9
White
000 - 255
0 - 100%
19
Dimmer Led-9
Amber
000 - 255
0 - 100%
20
Dimmer
Led-10 White
000 - 255
0 - 100%
21
Dimmer
Led-10 Amber
000 - 255
0 - 100%
22
Duration
000 - 255
0 - 100%
23
Strobe
000 - 005
Shutter open
006-010
Shutter closed
011 - 092
Regular slow
to fast
093 - 174
Random slow
to fast
175 -250
Random
synchronized
slow to fast
251-255
Shutter Open
Fast dimmer
disable (Note
1)
24
Leds mode
001 - 030
Separate
White/Amber
control
031 - 060
Tungsten 1
061 - 090
Tungsten 2
091 - 120
Tungsten 3
121 - 150
Tungsten 4
151 - 180
Tungsten 5

16
181 - 234
No effect
235 - 244
Led direction 1
< 10 (Hold
3sec)
245 - 255
Led direction
10 > 1 (Hold
3sec)
25
Dimmer speed
000-009
Dim set in
Menu
010 - 019
Dim 0
020-029
Dim 1
030-039
Dim 2
040-049
Dim 3
050-059
Dim 4
060-255
Fade 0 to
10sec (Note 3)
CLEANING AND MAINTENANCE
We recommend a frequent cleaning of the device. Please use a soft lint-free and
moistened cloth. Never use alcohol or solvents!
CAUTION!Disconnect from mains before starting maintenance
operation.
There are no servicable parts inside the device. Maintenance and
service operations are only to be carried out by authorized dealers.
If you need any spare parts, please use genuine parts.
If the power supply cable of this device becomes damaged, it has to be replaced by
authorized dealers only in order to avoid hazards.
If you have further questions, please contact your dealer.
INSTALLATION
The device must only be installed at a vibration-free, oscilation-free
and fire-resistant location.

17
