Ledwide Lighting LW-PR50N User manual

Joiners 120°B
Code: J-120B
Joiners 90°B
Code: J-90B
JGear Tray Clip
Code: PR50N-Clip
U-shaped clip
Code: PR50N-Clip
Joiners 90°A
Code: J-90A
Joiners 120°A
Code: J-120A
Joiners 180°A
Code: J-180A
(Optional)
(Optional)
(Optional)(Optional)
(Optional)
(Optional)
Standard IP67 Led Powersupply
20/30/36/45/60W
Code: LW-HLD
Dali & Push Dimmable LED Driver
30/36/60/100W
Code:LW-SCD
(Optional)
(Optional)
NEW
LW-PR50N
LW-PR50N
63.4
42
50
75
30.2
33
30
DRIVER
LEDWIDE LIGHTING CO.,LTD
90°
/ /
/ /
/ /
PR50N
PR50N-O PR50N-N
New opal
60% 74%
<57.6W/m
Aluminum Endcap
((with/without hole)
Code: PR50N-CAP-N
Recessed
63.4*75mm 18mm

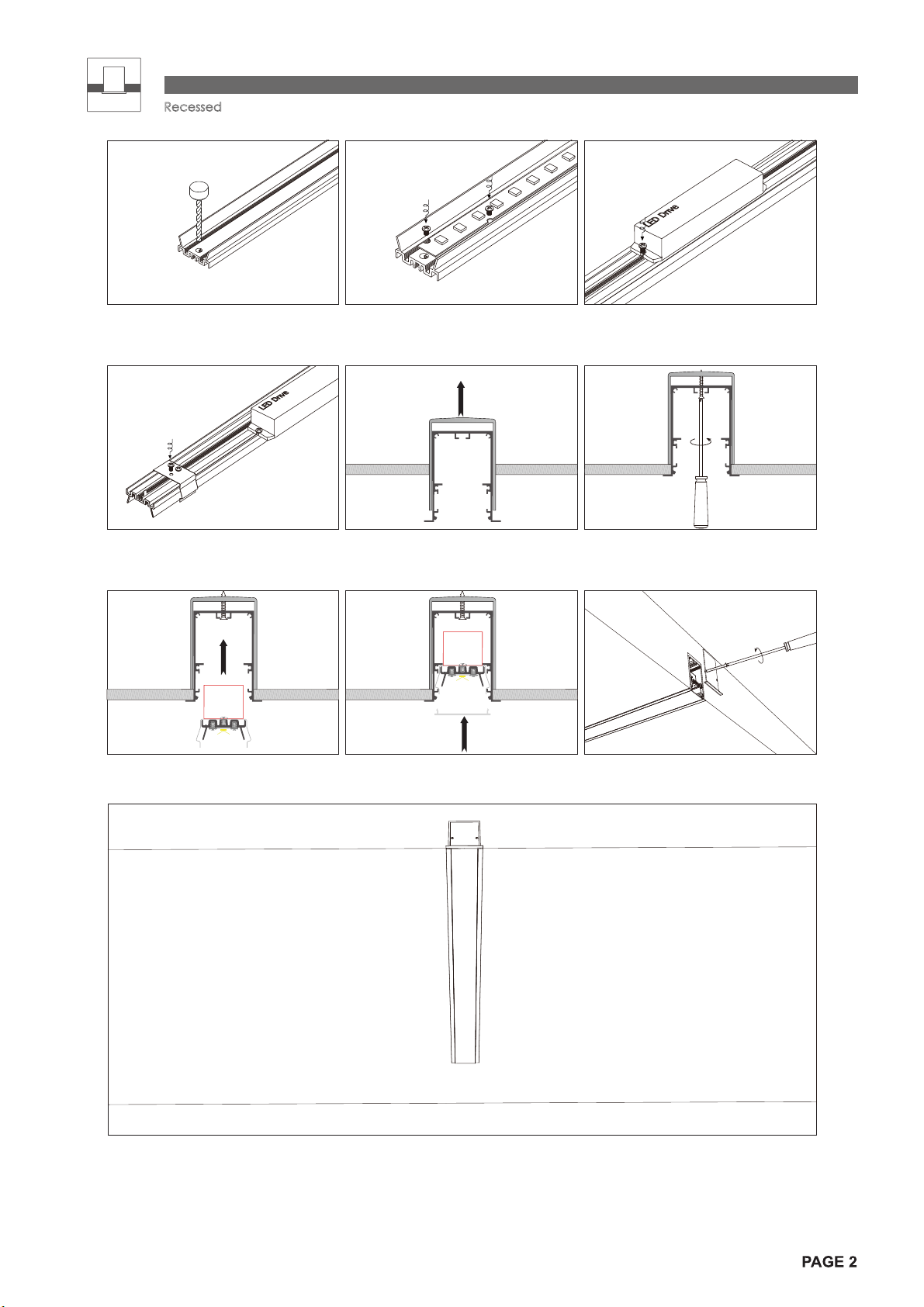

10. Installation completed.
7. Place the reflector into the profile,
and connect the LED strip up
4.Install metal clip, set screw
1. Drill a hole on the reflector for
cable feed from LED strip
5. Place the profile and U clip into the
cut-out hole .
2. Fixing Rigid Led strip on reflector
with suitable screws
6. Screw the profile and U clip to the
cut-out hold.
3.Install power supply, set screws
DRIVER
Installing Instructions
Recessed
8. Attach diffuser into place, working
from end to end
9. Screw the end caps on
DRIVER

Applicable joiners
Installation & Joint Options
