Lee Filters SW150 User manual

SW150 Lens Adaptor Assembly Instructions
CANON 17MM TS-E LENS ADAPTOR
Stage 1
As this lens does not have a standard filter thread,
the lens adaptor has to attach via a bayonet fitting
at the end of the lens.
Front Back
Red locking latchLocking pin

www.leefilters.com
Stage 2

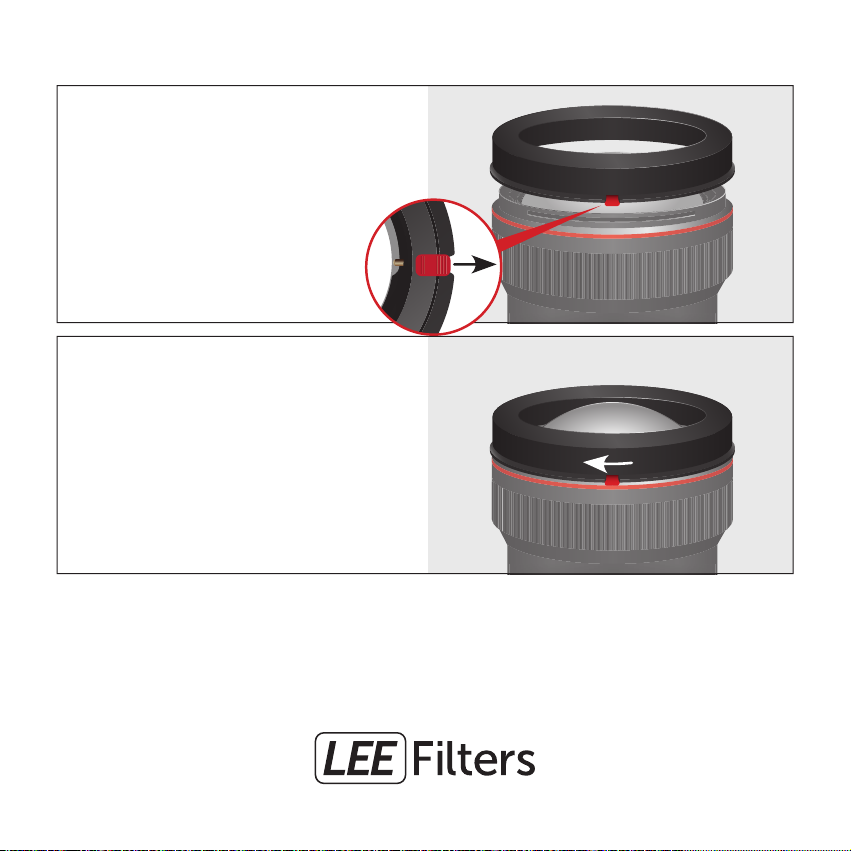

Place the lens adaptor over the end of the lens,
making sure the red locking latch is facing the rear
of the lens. Slide and hold the red locking latch
outwards, to release the locking pin.
Stage 3
Whilst holding the red locking latch in an outward
position, twist the lens adaptor (clockwise) until
it fits on to the bayonet fitting. Once in position,
release the red locking latch. The lens adaptor is
now secured on the lens and ready to use with the
SW150 Filter Holder.
To remove from the lens, slide and hold the
red locking latch outwards. Then twist the lens
adaptor (anticlockwise) until it becomes detached
from the bayonet fitting.
