Leesky LS-1000PDR User manual
MODEL: LS-1000PDR
Warning: This manual contains important safety and
operating instruction. Please read it carefully before
use.
V0.21.08
1
4) During daily use, if there is smoke or explosion sound in the product, please don’t worry, this is due to
the internal fuse protection of the product. Please do not disassemble it by yourself. Please stop
using the product immediately. Disconnect the product from the battery and electrical appliances.
Contact the seller in time and only with seller’s agreement a hired professional personnel can
disassemble the product. Otherwise, it may cause electric shock, fire and serious personal injury.
5) Do not put the inverter under direct sun light or near a heating source.
6) The case of inverter will get hot during using. Do not allow flammable materials such as clothing,
sleeping bags, carpet or any other flammable materials to touch the inverter. The heat from the
inverter can damage these items.
7) The power inverter is designed to be used with a negative ground electrical system! Don't use with
positive ground electrical systems (the majority of modern automobiles, RVs, trucks and boats are
negative ground).
8) Do not disassemble the unit randomly: it may cause fire or electric shock.
9) Do not connect the negative to car chassis when use in car.
10) This device should only be serviced by a qualified technician. This item does not have any
serviceable parts.
11) Prevent body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerator
enclosures during installation.
12) Do not operate the inverter if under the influence of alcohol or drugs. Read warning labels on
prescriptions to determine if your judgement or reflexes are impaired while taking drugs. If there is
any doubt, do not operate the inverter.
13) People with pacemakers should consult their physician(s) before using this product. Electromagnetic
fields in close proximity to a pacemaker could cause interference to or failure of the pacemaker.
14) Keep the inverter well-ventilated. Do not place any objects on top of or next to the inverter or allow
anything to cover the cooling fans;inverter will bel overheating, causing a potential fire hazard and/or
damage to the inverter. Leave adequate ventilation space underneath the inverter as well; thick
carpets or rugs can obstruct air flow, causing the inverter to overheat.
15) Avoid unintentional starting. Be sure the switch is in the OFF position when not in use and before
plugging in any appliance. Disconnect the battery and inverter when not in use for a long time.
16) Keep inverter away from children. Don't install the inverter where it is accessible to children.
17) The power inverter will output the same AC power as utility power, please treat the AC outlets as
carefully as you would your home AC outlets. Do not put anything other than an electrical appliance
into the output terminal. It may cause shock or fire.
18) This product cannot be used for medical and life support equipment.
B. BRIEF
Our power inverter is an advanced tool of power conversion, and it can supply you with AC power
converted from DC power source. Not only can be used in cars, vessels and camping, but also can be used
in emergency when out of electricity.
In order to use the inverter efficiently and safely, please install and use it in a proper way. Please read
the instruction carefully before installing and using the appliance.
C.WARNING AND SAFETY
1) Read the manual before connecting this inverter and keep it for future reference.
2) While opening the product package, please check the integrity of the product and accessories. If there
is any problem, please do not use it.
3) While connecting and using for the first time, if there is smoke or explosion sound in the product,
please stop using immediately and disconnect the product from the battery and electrical appliances.
This may be caused by damage during the transportation or due to moisture during storage in the
warehouse before delivery. Please contact your seller in time.
2
D. PARTS LIST
A. SPECIFICATIONS
DataModel
12VDC
9.5~16VDC
16VDC
9.5VDC
9.8VDC
24VDC
19~32VDC
32VDC
19VDC
19.6VDC
1.3A 0.8A
Continuous Power
Peak Power
Rated input Voltage
Input Voltage Range
Over Voltage Shutdown
Low Voltage Shutdown
Low Voltage Alarm
Output Voltage
Frequency
Wave form
Efficiency
Over heat Protection
Over load protection
Display
Short Circuit protection
USB
No load current
Cooling fan
Operating Temperature
Storage temperature
Size (L×W×H)
Weight
32 ~ 104°F
14 ~ 113°F
31.5×15.2×8.4cm
2.55Kg
The cooling fan won’t work until inverter case reach about
104°F or running loads ≧640W
1000W
2000W
110~120VAC / 220~240VAC (Refer to label)
50Hz / 60Hz ± 1Hz (Refer to label)
Pure Sine Wave
About 90%
149 ± 41°F
1000~1200W
LCD (only on the remote controller)
YES
5VDC，Max2.4A×2
Note: Due to the continuous improvement of products, the technical parameters in
this manual are subject to change without prior notice.
Fan
Negative of DC Input(-)Positive of DC Input(+)
1) Input Panel
E. ASSEMBLE
1) The position of mounting
First ensure that there is enough space to install the inverter, while the installation location must meet
the following requirements:
(1) Drying: Do not use water or other liquids dripping on the inverter.
(2) Cool: a working environment temperature of the product is 32 ~104°F, preferably a temperature of
50~77°F, at a temperature as low as possible within this range.
(3) Ventilation: There should be a certain distance between inverter and other objects, to avoid blocking
the products vents.
(4) Clean: Do not install the products in the dusty, wood chips or other particles. If cooling fan is on, the
particles involved in the inside of the product, thus affecting the normal work.
(5) Inverters and batteries when connected, will produce arcs or sparks, so there should not be around
flammable objects such as gasoline, alcohol, etc.
2) Assemble the inverter
For this big power inverter, which has a heavier weight, preferably mount it on a solid platform, such as
floor, table or mounting bracket fine. In order to avoid falling off, platform for supporting the product
should can bear the weight of sufficient capacity, and it is good with four screws to secure the product.
3) Assemble the remote controller box
(1) Fix the remote box on flat surface where a hole should be made, and use 2 screws to fix it through the
two mounting holes on the remote controller.
(2) Hang the remote on the fixing screws.
(3) Connect the remote box and inverter with the wire.
Note: In case not connect to the remote controller, the inverter can be also used as a normal pure sine
wave inverter, turned on by the power switch on the item.
F. BATTERY
1) Current and voltage
The battery is designed to supply the unit with DC input voltage and the rated voltage should be in
accordance with the rated input voltage of the inverter. Any voltage exceeds the range of the input
voltage of the inverter will cause over voltage or under voltage protection.
In the meantime, the battery should supply sufficient current. The small capacity battery cannot drive
the large power electrical appliance. In this case, the battery will be in under voltage protection because
of the over-discharge of the battery.
The simple calculation method of battery current is: load power divided by battery voltage. Due to the
consumption of the inverter itself, the actual current will be about 10% larger. For example, the voltage of
battery is 12VDC, and load power is 1000W, therefore, the actual current of the battery is about
1000W÷12V×110%≈91.6A.
2) Battery operating time
Battery operating time depends on battery capacity and current, and the calculation formula of
operating time is: battery capacity÷current=battery capacity÷(the load power÷battery voltage×110%). For
example, battery specification is 12V, 2000Ah, load power is 1000W, so the total discharging time is
2000Ah÷(1000÷12×110%)≈21.8 hours.
Note: The result of formula above is on the basic of discharging rate of 20 hours of the battery, that is, the
result is from the discharging current of 2000Ah battery not exceed 100A. When the charging current
exceeds this value, the discharging period will reduce. And the quantity of the electricity of the battery
may also influence the result. Please refer to the specification of the battery manufacturer.
G. CONNECTION
1) Grounding
The power inverter has a terminal on the rear panel marked " Grounding "or " ". This is used to
connect the chassis of the power inverter to the ground. The ground terminal has already connected to
the ground wire of AC output receptacle through the internal connecting wire.
The ground terminal must be connected to the ground wire, which depends on where the power
inverter is installed. In a vehicle, connect the ground terminal to the chassis of the vehicle. In a boat,
connect it to the boat's grounding systems. In a fixed location, connect the ground terminal to earth.
Warning:
● To make sure the firmness of the connection. The ground wire must be 14AWG (2.08mm
2
) or even
larger.
● Do not operate the power inverter without connecting to the ground. Electric shock may be resulted.
3 4
Power ON/OFF Switch
Remote Controller Interface
USB Ports
AC Output SocketGrounding
LED Power
Indicator LED Protect
Indicator
USB
POWER
POWER
PROTECT

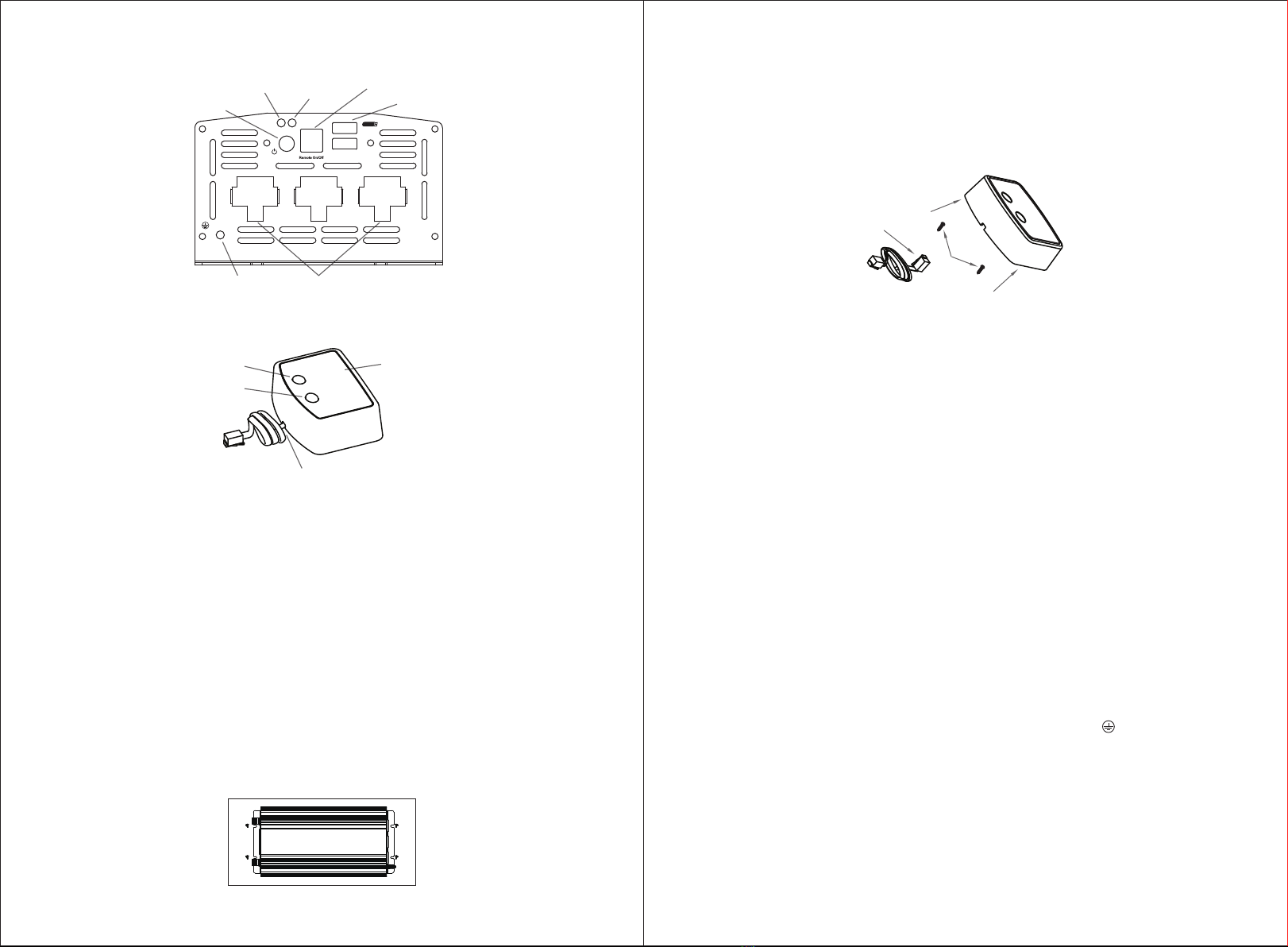

2) Output Panel
3) Remote Controller Box
Power Switch
Backlight Switch
LCD Display
Connecting Wire
②
③
①
①
2) Connect to the battery
(1) Please do all the safety precautions before connection, and then check whether the battery voltage is
in accordance with the input voltage of the inverter. Only the voltage of the battery accords with the
requirements can be allowed to connect with the inverter.

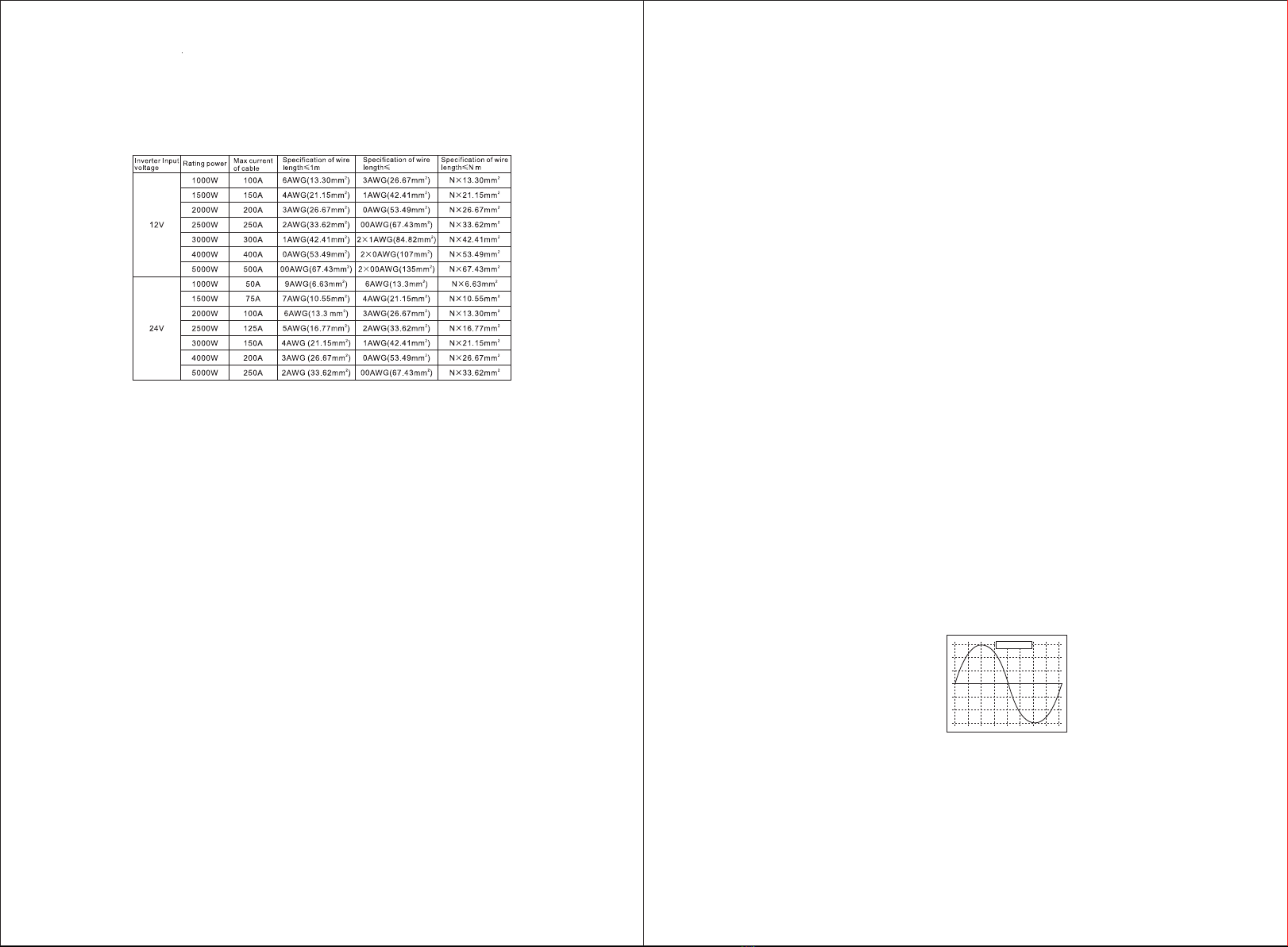

(2) The connecting wire must bear enough current. Depending on the table below, please choose the
input DC wire or larger one.
Note:
(1) The table above is only for your reference. In practice, the thick wire can be replaced by two thin parallel
wires if only the total cross-sectional area of the wire meets the requirements.
(2) In high current, the input DC wire may produce voltage drop, therefore, the operating voltage should be
subject to the value on the terminals. If the voltage drop is too large, you can increase the cross-sectional
area or reduce the length of the lead.
(3) Connect cathode wire of the battery to the cathode terminal (black) on the rear panel of inverter and
then connect the anode wire of the battery to the anode terminal (red) on the inverter, and fix them.
Warning:
(1) Please wear eye patch and work clothes when working around the battery to protect your eyes and skin
from the acid and corrosive objects.
(2) Prepare enough water and soap. In case the acid material splashes on your skin, clean it by soap and
water as soon as possible. If the acid material spays to your eyes accidentally, clean it by cold water
and then sent to hospital.
(3) Do not put any combustible material in the location of installation for it will result in spark when connect-
ed to the battery.
(4) Keep good ventilation. The battery may produce a little inflammable gas when it works, so keep away
from the inverter and it is better to install them in different space.
(5) Fix the connecting wire of the input DC, or it will result in the over-reduction of the voltage or over-tem-
perature of the inverter.
(6) Reverse connection of the polarities or the short circuit will burn the fuse or result in the permanent
damage of the internal elements of inverter.
(7) Take away the metal accouterments, such as ring or watch, when installation, to avoid the short circuit.
(8) Although there is over-voltage protection, it may also cause damage of the inverter if the input voltage
is too high.
3) Connection of the AC appliance
Put the load power plug of the AC appliance into the output AC receptacle of the inverter directly.
Warning:
(1) Make sure that the switches of the inverter and appliance power are in OFF position before connection.
(2) Check the power cord. If it is damaged, it should be connected after replacement.
H. USAGE
1) How to use inverter
(1) Check the output voltage and capacity of the battery to make sure it is in accord with the requirements
of the product.
(2) Connect the battery and the DC cable of the inverter to ensure that the polarities are not connected
reversely and in tight connection.
(3) Long press the switch or the remote of inverter for over 0.5s and then stop, if the indicator light on the
inverter or on the remote control box is on, it means the inverter starts to work normally. This opening
method can avoid turning on the unit by mistakes due to the interference or any factors.
(4) Switch off electrical appliances and put its plug to the AC output socket of inverter. Then switch on
electrical appliance.
(5) The cooling fans inside the inverter do not work until the case temperature rises up to about 104°F or
the load power is more than 640W.
(6) Switch off inverter and remote to stop working. At that time, the indicator lights in. Both inverter and
remote controller are off. The inverter does not consume current of the battery when it is switched off.
2) How to use USB power supply
This model with USB output, can provide stable voltage 5VDC, maximum current 2.4A directly for the
portable device with USB port.
Note: Before using the USB power supply, please make sure the device can be charged by USB and the
maximum working current is no more than 2.4A.
I. ABOUT SOFT START TECHNOLOGY
The output voltage rises up from low to normal when the inverter is turned on. This can reduce attack of
high start-up currents, which can make startup easier of large inductive loads. As for the large inductive
loads, such as electric tools and the capacitive loads, suggest turning on the switch of the appliance firstly
and later the inverter's. The soft start works.
J. OUTPUT WAVE FORM
The output wave form of this inverter is Pure Sine Wave, which is much like the one from utility-supplied
AC electricity, even more purer; pure sine wave is applicable in most of loads, including electrical
equipments, such as Linear Adaptor, switching power supply, transformer, and motor and so on. Compar-
ing with Modified wave form, for inductive loads such as refrigerator and electric fans, pure sine wave form
can improve its power factor and the battery's efficiency and reduce working noises effectively from
appliances. For capacitive loads such as adapter of lap-top, pure sine wave can lower the rush current at
work and reduce interferences to increase reliability and prolong the life of the product.
K. WORK INSTRUCTIONS
When item is working, the power indicator on inverter will be on, and the LCD remote controller will show
battery status, input voltage, and output wattage. When item goes into protection, the protect indicator on
inverter is on, and the LCD remote controller will show the following code:
(1) Warning Sign and IN: LOW is on: Input Low Voltage Protection
(2) Warning Sign and IN: HIGH is on: Input High Voltage Protection
(3) Warning Sign and OVERLOAD is on:Overload Protection or Short-Circuit Protection
(4) Warning Sign and Thermometer Sign is on: Overheat Protection
65
1-2m
162.6 Volta peak
Pure Sine Wave Output
(120 / 240 VAC Model)
L. PROTECTION FUNCTION
1) Input Under-Voltage Alarm: When the input DC voltage is lower than 9.8V /19.6V, the buzzer will whistle
intermittently to remind that the inverter will go into the under voltage protection.
2) Under Voltage Protection: The inverter will automatically shut down when the input DC voltage is lower
than 9.5V/19V. The buzzer will whistle continuously and the green light is off, red light is on. Please turn
off the inverter and use it after recharging the battery.
3) Over Voltage Protection: The inverter will automatically shut down when the input DC voltage is higher
than 16V/32V. The buzzer will whistle continuously and the green light is off, red light is on. Please turn
off the inverter and adjust the input voltage to the admissible range.
4) Overload Protection: The inverter will automatically shut down when the load is higher than the rated
power. The buzzer will whistle continuously. Turn off the inverter and resume to normal operation after
taking away the excessive load.
5) Short-Circuit Protection: The AC output will be automatically shut down when short circuited. It will
automatically reset after the problem is solved.
6) Thermal Protection: The unit will get hot during operation. If the temperature is higher than 149°F, the
inverter will automatically shut down. Then the buzzer will whistle continuously and the green light is off,
red light is on. Please turn off the inverter, and continue using it after the temperature goes back to
normal naturally. Meanwhile find out the factors causing the fault, such as ventilation, ambient tempera-
ture, vent, load power etc. It can avoid similar things from happening again.
WARRANTY
This product is designed using the most modern digital technology and under very strict quality control
and testing guidelines. If however, you feel this product is not performing as it should, please contact us:
We will do our best to resolve your concerns. If the product needs repair or replacement, make sure to
keep your receipt/invoice, as that will need to be sent back along with the package and prepaid to
LEESKY.
Except as noted above, LEESKY makes no warranty of any kind, express or implied, including without
limitation the implied warranties of merchantability and fitness for a particular purpose. In no event shall
LEESKY be liable for indirect, special or consequential damages. This warranty only applies to LEESKY
branded products. All other name brand products are warranted by and according to their respective
manufacturer. Please do not attempt to return non-LEESKY branded products to us.
The following situations will void warranty:
1. The box is distorted, damaged or changed, and interior parts damaged because of an exterior hit or
drop not reported at time of delivery.
2. Connect the DC power incorrectly reversing the polarity.
3. Dismantled or repaired the unit by an unauthorized person.
4. The unit was damaged by incorrect installation or operating method.
To find out where to buy any of our products, you may also e-mail:
Welcome to use LEESKY power inverter. If you have any query during using our
inverter, please contact our service team by email:
87
● Do not use it when the battery is charging
● Check the rated voltage of the battery and make sure
that it is in the allowable range of�the input voltage.
● Cut off the load and let it cool naturally for 10 to 30
minutes.
● Restart it after it resumes to normal temperature. Reduce
the load. avoid blocking the vent and improve the
ventilation condition.
● Reduce the load power, or turn on the appliance first,
then turn on the inverter.
● Choose a bigger inverter
● Change a bigger battery and ensure fully charged.
● Test output voltage with a True RMS meter
● Try to maintain the input voltage in the range of rated
power
● Change the battery of the meter then test again.
● Press the power switch for 1-2 second to turn it on. it is a
long press type switch.
● Check the cables and make sure they are tightly
connected.
1. Load power is too large. Or the actual
power of the appliance exceeds nominal
power.
2. The starting power is larger than rated
power (especially for appliances with
motor)
3. Battery is too small.
● Don't need the tester to do the Grounding Test.
● Refer to the manual to do the Grounding
This is because it is not connected to a"
true Earth ground ", meaning it is not
connected to a metal rod stuck in the Earth.
it would be impossible to do so in a boat or
car while moving. The power inverter DOES
NOT and cannot create a true Earth ground
on its own.
Problem Reason Solutions
Low Input DC Voltage
High Input DC Voltage
Overload
Over temperature
1. The power switch is off.
2. Poor contact with battery.
Reduce the load power
Low Input DC Voltage
No output voltage,
buzzer whistles
continuously
No AC output voltage?
The output voltage is
very low
Cannot drive the load?
Tester indicated
"Open Ground"?
“True RMS” voltage meter is required to
properly measure output voltage of modified
wave inverter
Problem Reason Solutions
Got 40V or so while
testing inverter's
ground wire and
zero line?
The main reason is that ths instantaneous
current is too large, which leads to the
detection of low voltage and trigger
under-voltage alarm.
Starting alarm ? Please restart the inverter several times.
This is normal, there is no current leakage.
This voltage has no meaning, zero line can
be ground.
If the unit still doesn't work normally after using all the methods above, it maybe the
internal faults of the circuit. Please contact us after service.
M. TROUBLESHOOTING TIPS
Table of contents
Other Leesky Inverter manuals
