Legacy ProLine PL5151 User manual

Table of Contents
I. FCC RF Exposure Compliance Requirements - for Occupational Use Only........……… 2
II. About Topaz3...........................................…………………………………………………….. 3
III. About Your Legacy ProLine Radios.............…………………………………………………… 3
IV. Unpacking and Checking Equipment..........…………………………………………………… 4
V. Radio Control Buttons / Operation Features..…………………………………………………. 5
VI. Getting Started.........................................……………………………………………………... 6
ProLine
i
PL5161 /
PL5164
Operating
Instru tions

2
Charging the NiMH Battery Pack................…………………………………………………… 6
Attaching and Removing the Battery Pack.....………………………………………………….. 6
Installing the Antenna..............................……………………………………………………. 6
Installing the Belt Clip..............................……………………………………………………. 7
Installing the Speaker Mic. Jack Cover.........…………………………………………………… 7
Attaching the Optional Speaker Mic............…………………………………………………… 7
VII. Radio Operation.......................................…………………………………………………….. 8
Power On / Transmit...............................…………………………………………………….. 8
VIII. Radio Functions.......................................……………………………………………………… 9
CTCSS Tone Signaling.........................……………………………………………………… 9
Scan Modes........................................………………………………………………………. 9
Normal Channel Scan..........................……………………………………………………… 9
Priority Scan TX ............................…………………………………………………………… 9
Priority Look Back Scan ............………………………………………………………………. 9
Priority Select Scan............…………………………………………………………………….. 9
Vacant Channel Scan............…………………………………………………………………,, 9
Nuisance Delete....................................……………………………………………………. 9
Busy Channel Lockout............................…………………………………………………… 9
Marked Idle..........................................…………………………………………………….. 9
TX Delay..............................................…………………………………………………….. 9
Time-Out-Timer (T-O-T)............................. ………………………………………………. 10
Time-Out-Timer Penalty (TX Inhibit)............………………………………………………. 10
Battery Save..........................................……………………………………………………. 10
Low Battery Warning...............................………………………………………………….. 10
Two-Tone Decode.................................……………………………………………………. 10
VOX (Voice Operated X-mit) ............……………………………………………………….. 10
IX. Mode Operation and Function Set up............…………………………………………………. 10
Power On............………………………………………………………………………………… 10
Channel Change............………………………………………………………………………… 11
Transmit ............………………………………………………………………………………….. 11
Channel Option View............………………………………………………………………….. 11
Low Battery............……………………………………………………………………………….. 11
Menu Tree...........……………………………………………………………………………………… 15
Channel Option, System Option & Display Option Setting............……………………. 15
Channel Option Setting............………………………………………………………………… 15
RX/TX Tone Option Setting............……………………………………………………………. 16
No Tone Select............…………………………………………………………………………… 16

3
CTCSS Tone Select............………………………………………………………………………. 17
DCS Tone Select............…………………………………………………………………………. 17
Invert DCS Tone Select............…………………………………………………………………. 18
Tx Output Power High/Low Setting............………………………………………………….. 18
Normal Scan List On/Off Setting............……………………………………………………… 19
Priority Scan List On/Off Setting............……………………………………………………… 19
Two–Tone Option Setting............……………………………………………………………… 20
System Option Setting............………………………………………………………………….. 21
Beep Tone on/Off Setting............………………………………………………………………. 22
VOX Option On/Off Setting............…………………………………………………………… 22
VOX Sensitivity Setting............…………………………………………………………………. 23
Time-Out-Timer Setting............………………………………………………………………… 23
TOT Penalty Setting............……………………………………………………………………. 24
Busy Channel Lock Out On/Off Setting............…………………………………………… 25
Marked Idle On/Off Setting............………………………………………………………….. 26
SCAN Setting ............……………………………………………………………………………. 27
Scan Mode Setting............………………………………………………………………………. 28
Scan Speed Time Setting............………………………………………………………………. 29
Scan Delay Time Setting............………………………………………………………………. 29
Look Back Time Setting............………………………………………………………………… 30
Priority Scan Setting............…………………………………………………………………….. 31
Tx Delay On/Off Setting............……………………………………………………………….. 31
Power Save Setting............………………………………………………………………………. 31
Power Save On Time Setting............………………………………………………………….. 32
Power Save Off Time Setting............………………………………………………………….. 32
Power Save Delay Time Setting............………………………………………………………. 32
Clear to Talk On/Off Setting............…………………………………………………………… 33
Roger Beep On/Off Setting............…………………………………………………………….. 33
Display Option Setting............………………………………………………………………….. 34
Channel Display Format Setting............………………………………………………………. 34
Display Slide On/Off Setting............………………………………………………………….. 35
X. Licensing, Safety and Service Information..………………………………………………………. 36
FCC Licensing......................................…………………………………………………………. 36
Safety Information.................................………………………………………………………… 36
Service...............................................…………………………………………………………. 36
XI. Maintenance..........................................…………………………………………………………. 36
XII. Software Copyrights................................………………………………………………………… 37
XIII. Topaz3 / Legacy Product Warranty.........…………………………………………………………. 37
I. FCC RF Exposure Compliance Requirements for Occupational Use Only
The Federal Communications Commission (FCC), with its action in General Docket 93-62,
November 7, 1997, has adopted a safety standard for human exposure to Radio Frequency (RF)
electromagnetic energy emitted by FCC regulated equipment. Topaz3 / Legacy subscribes to
the same safety standard for the use of its products. Proper operation of this radio will
result in user exposure far below the Occupational Safety and Health Act (OSHA) and
Federal Communications Commission limits.
CAUTION - DO NOT transmit for more than 50% of total radio use time (50% duty cycle). Transmitting
more than 50% of the time can cause FCC RF exposure compliance requirements to be exceeded.
•This radio is NOT approved for use by the general population in an uncontrolled environment.
This radio is restricted to occupational
use, work related operations only where radio operator must have the knowledge to control the
user’s exposure conditions for satisfying the higher exposure limit allowed for occupational
use.

4
•When transmitting, hold the radio in a vertical position with its microphone 2 inches (5 cm)
away from your mouth.
•This device has been approved for use, at a maximum duty factor of 50%, using the specific belt
clip and leather belt-holster tested for body-worn SAR compliance. Other belt clips or body-worn
accessories may not comply and should be avoided. ALWAYS use
authorized accessories: antennas, batteries, belt clips, speaker mics, etc.
•The radio is transmitting when the red LED on the front of the radio is illuminated. You can
cause the radio to transmit by pressing
the PTT bar on the radio.
•These are required operating configurations for meeting FCC RF exposure compliance. Failure to
observe these restrictions mean
violation.
II. About Topaz3
Topaz3 is the exclusive supplier of Maxon®, Legacy and TruTalk brand communication
products.
Our product line ranges from FCC licensed two-way radios suitable for Business and
Industry (B&I) markets like farm, government, law enforcement, utility, etc. to consumer
communications equipment for recreational and light-duty business markets.
Product offerings include a variety of UHF and VHF handheld and mobile radios, repeaters
and RF link modules as well as FRS (Family Radio Service), GMRS (General Mobile Radio
Service) radios, MURS (Multi User Radio Service) radios, Citizen’s Band radios and weather
monitors.
Available accessory items include a variety of carrying cases, spare batteries, desktop
and mobile chargers,
ear bud speaker microphones and more for each radio model. ALWAYS use authorized accessories.
For additional information on our product line, visit our website: www.topaz3.com
III. About Your Legacy ProLine Radios
The Legacy ProLine models PL5161 (VHF) and PL5164 (UHF) are fully programmable, synthesized radios
featuring:
•16 Channels of operation
•8 Character alphanumeric display
•2 Watts or 5 Watts output power
•Channel scan
•38 Standard and 11 non-standard CTCSS tones
•104 DCS Codes
•Two Tone Decode
•Approved to MIL-STD810F Specifications
•Scan channel delete
•Busy channel lockout
•Programmable CTCSS / DCS tones, wide/narrow channel spacing, and two-tone decode
•TX Inhibit
•Die-cast aluminum frame, polycarbonate cabinet
•Locking single-pin accessory connector
•Battery save circuitry
•Tri-color status LED
•Spring steel belt clip
To assure satisfaction from the radio, we urge you to thoroughly read the operation and function
information
in this manual before operating your ProLine Series radio.
Application of some of the functions described in these Operating Instructions are determined by the
system you use. Your radio communications Dealer will program the radio so that you have the
greatest number of functions possible relative to your needs. Should you have questions regarding

5
the operation of the radio, please consult with your radio communications Dealer, or contact the
Topaz3
Customer Service Department: 1-800-821-7848, Ext. 499.
IV. Unpacking and Checking Equipment
Carefully unpack the radio and its accessories. Use the item list below to identify the
components included
in the product packaging, to ensure that no items are discarded in the packing materials.
Radio Body
Antenna
Battery Charger (with plastic spacer stored in charger base)
AC Adapter
NiMH Battery Pack
Speaker Microphone Jack Cover
Belt Clip
Screw Set
Operating Instructions

6
If any items are missing or damaged, you should
contact the Topaz3 Customer Service Department
for assistance: 1-800-821-7848, Ext. 499.
V. Radio Control Buttons / Operation Features
A) Push-To-Talk (P-T-T) button (left side of radio) Press and hold while speaking into the radio
microphone, release to
listen to incoming messages
B) Monitor button (left side of radio) Press and hold to turn radio squelch off. Release to turn
squelch back on.
C) Microphone (front of radio)
D) Speaker (front of radio)
E) Channel switch (top panel of radio)
F) LED Indicator (top panel of radio) Identifies transmit (red), receive (signal only) orange,
(signal + TONE) green,
setup mode (orange), battery low (flashing red)
G) Power / volume control (top panel of radio) Powers radio on and adjusts radio volume
H) Speaker microphone jack (right side of radio)
I)
Mode button (front of radio)
J)
Up/Down select buttons (front of radio)
K)
Scan button(front of radio)
H
B
A
C
D
I
J
K
F
E G

7
VI. Getting Started
Charging the NiMH Battery Pack
You will need to charge the battery pack fully before initial use. For best results from
your charging cycle,
follow these tips:
•Ensure the ambient temperature is between 41 and 104° F (5 and 40° C) while charging.
Temperatures
outside this range may not fully charge the battery.
•Always switch OFF the transceiver equipped with a NiMH battery pack before charging.
Using the
radio during the charging cycle will hinder correct charging.
•Do not recharge the battery pack if it is already fully charged. Doing so may cause
the life of the
battery pack to shorten or the battery pack may be damaged.
•If the battery is stored for 2 months or more, it is a good idea to complete the
charge / discharge cycle
two or three times to allow the battery capacity to return to normal.
•Never dispose of the battery in fire - it can explode causing personal injury.
•Never attempt to disassemble the battery or remove its case material or charging
contacts. Do not short
the battery terminals.
NOTE: The first few uses from the battery will not be at “normal ” capacity. After
repeating the charge /
discharge cycle two or three times, the battery capacity will increase to provide full
capacity.
1. Plug the AC adapter cable in the adapter jack located on the rear of the charger,
then into an AC outlet.
2. Slide the NiMH battery pack (or the radio equipped with a NiMH battery pack) into the
charging slot.
3. Ensure that the metal contacts on the battery pack come in contact with the charging
terminals.
4. When charging the NiMH battery pack alone, insert the provided plastic spacer (stored
in charger base)
into the charging well, then insert the battery pack.
5. The charger LED will light to advise that charging has begun. Charge the standard
battery pack for
9 hours. THEN REMOVE THE PACK OR RADIO FROM THE CHARGER.
IMPORTANT NOTE: The ACC-410 SLOW charger DOES NOT TURN OFF AUTOMATICALLY after
the charging
cycle has been completed. Damage to the battery or reduced battery life may result if
charged in
excess of the recommended charging time.
Attaching and Removing the Battery Pack
NOTE: After recharging the battery pack, REMOVE IT FROM THE CHARGER. Charging the battery
pack for more than 5 days may reduce the battery life.
The battery pack life is over when its operating time decreases even though it is fully
and correctly charged. Replace the pack with the manufacturer’s recommended model.
Average battery pack life from the supplied 750 mAh battery is 8+ hours; the optional 1350
mAh battery, 10+ hours. This service time is calculated using 90% standby, 5% transmit and
5% receive time and 5W operation.
After charging the battery pack as described, you are ready to install it to the radio
body. Simply;
1. Match the four grooves of the battery pack with the guides on the back of the radio.
2. Slide the battery pack up along the back of the radio until the release latch locks.
To remove the battery pack, push down on the release latch and slide the pack downward,
and away from the
radio.
Installing the Antenna

8
Screw the antenna into the connector on the top of the radio by holding the antenna at
its base and turning it clockwise
until seated. Do not overtighten.
The antenna should never be used to carry your radio, or as a base to clip radio
accessories. Misuse of the antenna
can cause damage, and reduce your radio’s performance.
Installing the Belt Clip
We recommend that the belt clip is installed on the radio. It keeps the radio from coming
in contact with hot surfaces, and away from your body if heat build-up occurs with excess
transmissions.
Use the two supplied screws to install the belt clip. If a replacement is needed, use a
screw designed to the exact
specifications as the original, to prevent accidental contact with internal circuitry, or
possible personal injury. Never use
glue in conjunction with the provided screws. Some of the glue’s components may crack the
radio back panel, causing radio damage and possible personal injury.
Installing the Speaker Microphone Jack Cover
If you are not using an accessory, install the provided cover over the speaker microphone
jack using the screw
supplied. This will keep the radio water resistant.
Attaching the Optional Speaker Microphone
1. Insert the speaker microphone jack into the radio.
2. Use the thumbscrew attachment on the speaker microphone to make connection to the
radio.
NOTE: The radio is not fully water resistant while the speaker microphone is attached.
VII. Radio Operation
Power On / Transmit
Power on the radio by turning the power / volume control clockwise out of detent. You
will hear a confirmation tone on power-up. To check the radio volume, press and hold the
monitor button then rotate the control to desired volume level.
Use the channel switch to choose the desired channel. Press the monitor button to check
the channel for activity. To avoid interrupting another user, make sure the channel is
clear before you begin transmitting.
To transmit, place the radio microphone approximately 2 ” (5 cm) from your mouth. Press
and hold the PTT bar while speaking in a normal tone. Release the PTT bar when you are
finished speaking; the radio will be placed into receive mode.
When the battery pack voltage becomes too low for operation to continue, a tone will
sound, LOW Batt will show in the display, the LED will blink red and the battery icon
located in the lower left corner of the display will flash empty. The radio will allow

9
only one more transmission - change or charge your battery. Refer to the “Low Battery
Warning ” section of this manual.
VIII. Radio Functions
Tone Signaling
To help block out unwanted calls to your radio, the PL5151 and PL5164 can be programmed by
your radio communications
Dealer to look for tones.
Scan Modes
Scanning is a Dealer programmable feature that allows you to monitor a number of
channels. Your radio communications Dealer will help you define a scanning mode and your
channel "scan list".
Once the scan list has been established, initiate scan by pressing the SCAN button. The
SCAN icon will show in the upper left corner of the display to confirm radio scanning.
Normal Channel Scan
If a conversation is detected on any of the channels in the scan list, the radio
will stop on that channel and you will be able to hear the conversation. In normal scan,
you will be able to transmit on that active channel during the programmable scan delay
time. (The scan delay time is the amount of time the radio will stay on that channel
once activity has ceased. Dealer programmable, 4 - 7 seconds is typical).
The radio will resume scanning once the scan delay time has expired, and will continue to
scan until the channel is changed. In scan mode, if radio power is turned off and on, the
radio will return to the scan mode until a channel is changed.
Priority Scan TX
A single channel may be programmed as the "Priority" channel. The radio will constantly
monitor this channel while scanning and when stopped on an active channel. If a call is
detected on the priority channel, the radio will automatically move to, and remain on,
the priority channel. Priority channel activity takes precedence over all other
conversations. During the scan mode if a PTT is initiated the radio will transmit on the
priority channel.
Priority Look Back Scan
A single channel may be programmed as the "Priority" channel. The radio will constantly
monitor this channel while scanning and when stopped on an active channel. If a call is
detected on the priority channel “during a conversation ”, the radio will automatically
move to, and remain on, the priority channel. Priority channel activity takes precedence
over all other conversations.
Priority Select Scan
The selected channel becomes the priority channel. As you change the channel that
channels frequency will become your new priority channel. Priority channel activity
takes precedence over all other conversations.
Vacant Channel Scan
The radio will automatically scan for the first open channel. Once a channel is found
normal scan operation will take place. All radios you intend to communicate must be
programmed for this same scan function.
Nuisance Delete
During receiving a signal or scan delay time, if the monitor button is pressed, the
current receiving channel is deleted in scan list and is no longer scanned. When the power
is turned off and on, the deleted channel is restored to the scan list.
Busy Channel Lockout
When the RX signal is being received, the radio’s transmitter is disabled. Dealer
programming makes this feature active or disabled.
Marked Idle

10
When used in conjunction with busy channel lockout, the transmitter is allowed to operate
as long as valid RX tone is received. Dealer programming makes this feature active or
disabled.
TX Delay
The TX will remain active for approximately 180 seconds even though P-T-T button is
released when using CTCSS tones.
This eliminates squelch tail by sending CTCSS turn-off code (No Tone TX).
Time-Out-Timer (TOT)
The purpose of the time-out-timer is to prevent any single person from using a channel
for an extended period. The time-out-time can be programmed from 10 seconds to 990 seconds
by your radio Dealer. When active the TOT icon will show in the display.
Time-Out-Timer Penalty (TX Inhibit)
When TOT is applied, transmission will be inhibited after time-out-time time expires.
This TX inhibit time can be selected and programmed by your Dealer from 1 second to 100
seconds. For instance, when TOT is set to 3 minutes and TOT penalty is set to 5 seconds,
if you continuously transmit for 3 minutes, the radio will stop transmitting. A tone will
sound with each
PTT bar press until the 5-sec. TX inhibit time expires.
Press the P-T-T bar after the TX inhibit time expires to resume transmitting.
Battery Save
The battery save function decreases the amount of power used when a signal is not being
received and no operations are being performed (no bars are being pressed, no controls are
being used, etc.)
When the channel is not busy and no operation is performed, battery save is enabled. When
an operation is performed, or
a signal is received, battery save is disabled.
Low Battery Warning
When the battery power goes below a pre-determined value, the LED will blink red and a
tone sounds. The radio will then allow only one more transmission. After that, the
transceiver will stop transmitting. Replace or recharge the battery pack.
Two-Tone Decode
Each channel can be programmed with two-tone decode by your radio communications Dealer.
Two-tone selections are: Individual Call, Group Call and Super Group Call.
VOX (Voice Operated X-mit)
Allows your radio to PTT with the sound of your voice for hands free operation. Your radio
has VOX sensitivity adjustment for noisy or windy conditions. VOX icon will be displayed
when option is turned on.
IX. Mode Operation and Function Set Up
Depending on how your dealer has programmed your radio you may be able to change certain
mode and functions of your radio. Please consult your dealer regarding what functions are
available with your radio.
The following information is a menu tree with brief description and display reading of how
to access radio mode functions.
All functions are accessed or turned off or on by pressing the mode button. Using the up
(∧) or down (∨) buttons move your radio display up and down each function feature. To
exit press the PTT or wait for the radio to time out.
** Power On
Power on the radio by turning the power/volume control clockwise out of detent. You
will hear a confirmation tone on power-up. When Power-on, all character and icon are
displayed for around 0.7 sec. A beeps is sounded when the radio is ready to enter
normal operation mode.
* When Power-On, it checks the last Memory and if data is wrong, it will indicate
the below display and beep an error tone. The radio enters normal operation with two
beeps.

11
** Channel Change
Rotate Channel Knob to select the channel among 16 channels your display will change
with each channel selection. Your channel display reading will vary depending on
how your dealer programmed each channel description.
** Transmit
- Press PTT button to transmit. If PTT button is released, the radio returns to
receive mode. Both TX and RX mode are indicated by display icons.
When VOX option is set and voice is input, the radio transmits the signal. If
voice input stops, the radio maintains TX for around 2 sec. if there is no voice
input, the radio returns to receive mode.
** Channel Option View
- In receiving mode, if the Monitor button is pressed for more than 2 sec., the RX
tone option and the TX tone option for each channel selected will display for one
sec.
** Low Battery
- If Battery voltage goes under a predetermined value a Low Battery error message
is shown for 2 sec. The battery Icon will flash.
BEEP
H
BEEP
H
BEEP
H

12

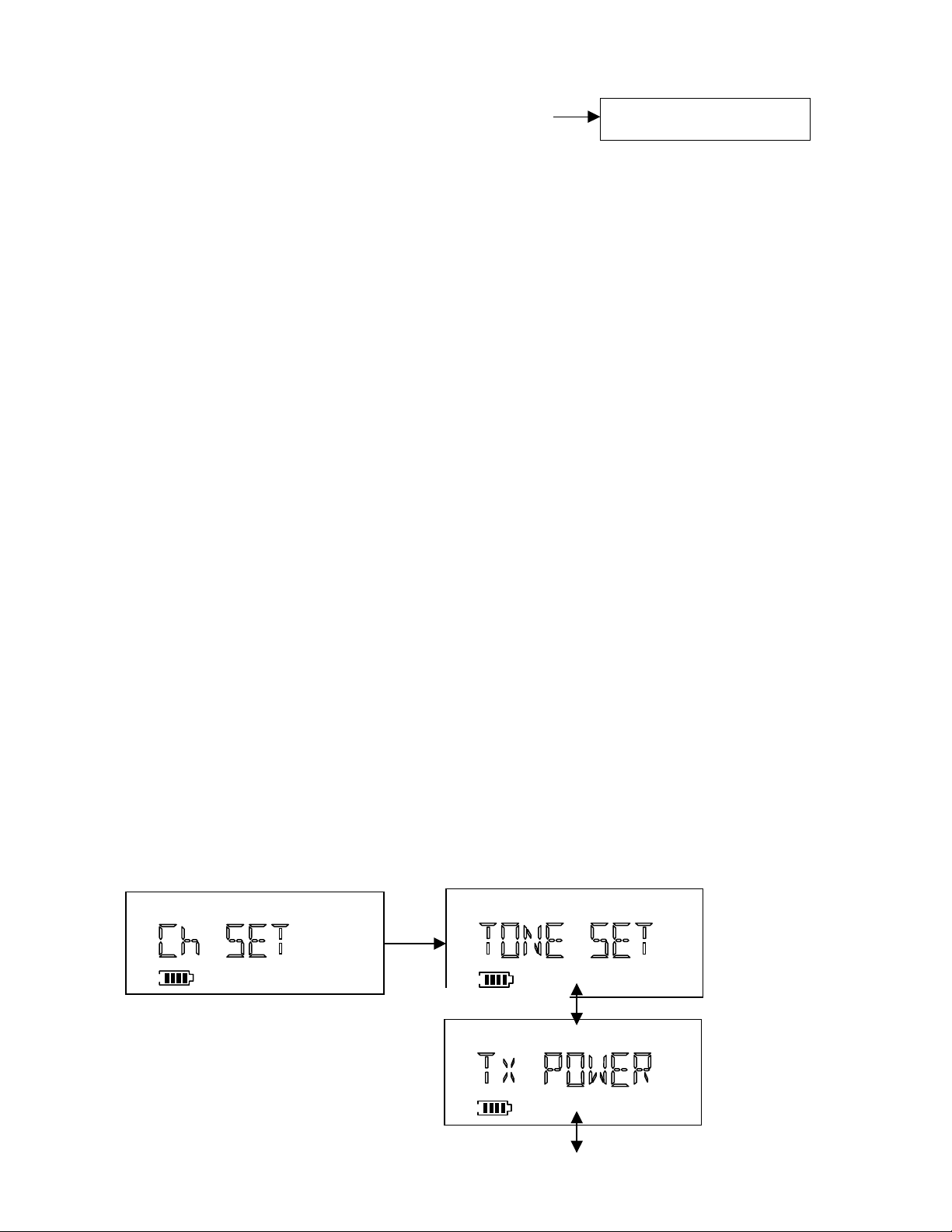

 Menu Tree
Rx Stand- Each Channel Setting
S
y
stem O
p
tion
Dis
p
la
y
O
p
tion
Each
Channel
Setting
Tone
Optio
n Rx
Tx
N
o
CTCSS
DCS
Invert
1 ~ 49
023 ~ 754
023 ~ 754
N
o
CTCSS
DCS
Invert
1 ~ 49
023 ~ 754
023 ~ 754
Tx Out
p
ut Power
N
ormal Scan List
Priorit
y
Scan List
Two-Tone Option
Power Hi
g
h/Low
N
ormal Scan
Priorit
y
Scan
Individual
Grou
p
Tone
Su
p
er Grou
p
On/O
On/O
On/O
S
y
stem O
p
tion Bee
p
Tone Bee
p
VOX VOX

13
VOX
Time Out
Level 1 ~
TOT
TOT
1 ~ 990
TOT Penalt
y
Penalt
y
1 ~ 100
Bus
y
Lock Bus
y
Lock
Marked Idle Marked Idle
Scan Set Scan Mode
N
ormal
Priorit
y
Priority Look Back Scan
Priorit
y
Vacant Channel Scan
Scan S
p
eed
Scan Dela
y
Look Back
Priorit
y
Tx
Power
Clear To
Ro
g
er Bee
p
50 ~ 500
1 ~ 30 sec
1 ~ 10 sec
On
Off
Priorit
y
On/
On
Off
P/S On
P/S Off
P/S Dela
y
On/
On/
50 ~
50 ~
1 ~
Dis
p
la
y
O
p
tion Channel Dis
p
la
y
N
ame Character
Channel No.
Fre
q
uenc
y
Slide Set Slide On

14
* Channel Option, System Option & Display Option Setting.
- To enter Menu Setting, press and release Mode button in receive mode or stand-by
mode.
- In Menu Setting, press Up/Down buttons to move in an up or down direction in the
current menu display setting.
- To enter the Sub-menu of Setting Menu, press mode button, press Up/Down buttons to
move in an up or down direction in the displayed Sub-menu setting. To turn on or
off a Sub-menu setting press and release the mode button. The radio will save the
setting and exit to receiving standby mode.
- If PTT button is pressed, the radio exits to receiving standby mode.
- If Monitor button is pressed, the radio will return to the previous Menu setting
displayed.
*. Channel Option Setting
** Each Channel Menu display format
Slide Off
BEEP
H
BEEP
H
Mode
BEEP
H
Up/Down buttons

15
** Rx/Tx Tone Option Setting
Each Channel Option Menu Setting
Rx Tone Menu Setting
Tx Tone Menu Setting
Mode
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
Mode
BEEP
H
BEEP
H
BEEP
H
Mode
BEEP
H
BEEP
H
Up/Down buttons Up/Down buttons
Up/Down buttons
Up/Down buttons

16
** No Tone Select
Under the above, if MODE button or PTT Button is pressed, it sets No tone for
RX or TX Tone option and
Exits to receiving stand-by mode.
** CTCSS Tone Select
Under the above mode, press Up/Down buttons to select desired CTCSS Tone and then
press Mode button or
PTT button to set RX or TX tone option. The radio will then save selection and exit
to receiving stand-by mode.
** DCS Tone Select
BEEP
H
Mode
Mod
BEEP
H
Mode
Mode
Mode
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
Up/Down buttons
Up/Down buttons

17
Under the above mode, press Up/Down buttons to select desired DCS Tone and then
press Mode button or
PTT button to set RX or TX tone option. The radio will then save selection and
exit to receiving stand-by mode.
** Invert DCS Tone Select
Under the above mode, press Up/Down buttons to select desired DCS Tone and then
press Mode button or
PTT button to set RX or TX tone option. The radio will then save selection and
exit to receiving stand-by mode.
** Tx Output Power High/Low Setting
Under the above mode, press Up/Down buttons to select desired Output Power and then
press Mode button or
PTT button to set the output power to 1W or 5W for the current channel. The radio
will then save selection and exit
to receiving stand-by mode.
Mode
BEEP
H
Mode
BEEP
H
Mode
BEEP
H
BEEP
H
BEEP
H
BEEP
H
Up/Down buttons
Up/Down buttons

18
** Normal Scan List On/Off Setting
Under the above mode, press Up/Down buttons to select On or Off and then press Mode
buttons or
PTT button to set the scan option On or Off for the current channel. The radio will
then save selection and exit to receiving stand-by mode.
** During SCAN the radio scans only channels which are set "On".
** Priority Scan List On/Off Setting
Under the above mode, press Up/Down buttons to select On or Off and then press Mode
button or
PTT button to set the priority scan option On or Off for the current channel.
** If Priority Scan option of “System Option ” menu is on, Priority scan works only
when the channel selector is positioned to the channel with "PSCAN ON".
** Two-Tone Option Setting
BEEP
H
Mode
Mode
Mode
BEEP
H
BEEP
H
Mode
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
Up/Down buttons
Up/Down buttons

19
Under the above mode, press Up/Down buttons to select On or Off and then press Mode
button or
PTT button to set 2-Tone Option (Individual, Group, Super-Group) On or Off for the
current channel.
The radio will then save selection and exit to receiving stand-by mode.
** Individual, Group, Super-Group, Tone A, and Tone B frequency and timing are
dealer programmed.
*. System Option Setting
** System Option Menu display format
BEEP
H
Mode
BEEP
H
BEEP
H
Mode
BEEP
H
BEEP
H
Mode
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
Up/Down buttons
Up/Down buttons

20
** Beep Tone On/Off Setting
Under the above mode, press Up/Down buttons to select On or Off and then press Mode
button or
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H
BEEP
H Mode
BEEP
H
BEEP
H
Up/Down buttons
