Owner's Manual
1 Owner's Manual
LGR 6000Li PORTABLE DEHUMIDIFIER
Model 103614 (F600)
Legend Brands, Inc.
15180 Josh Wilson Road, Burlington, WA 98233
Phone: [phone]
LegendBrands.com
Patents: LBpatents.com
© 2023 Legend Brands, Inc.

5
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.1 Product Introduction
The Legend Brands® LGR 6000Li dehumidifier reduces humidity in enclosed
environments by removing water vapor from the air. The 6000Li is rugged,
durable and highly portable, making it ideal for water damage restoration,
structural drying, and other applications requiring temporary, high-
performance dehumidification.

6
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.2 Safety Warnings
READ AND UNDERSTAND BEFORE OPERATING
SAFETY INSTRUCTIONS
WARNING! Do not alter or modify your unit in any way. Use only replacement
parts authorized by Legend Brands, Inc. Modifications or use of unapproved
parts could create a hazard and will void your warranty. Contact your
authorized distributor for assistance.
WARNING! Explosion or combustion hazard due to flammable refrigerant.
· Do not drill into or braze the dehumidifier.
· Do not attempt to service the refrigeration system! Only authorized service
center personnel should service or decommission the refrigeration system.
· Be aware that refrigerantgases can be odorless.
WARNING! Electric shock hazard, rotating fan, hot surface hazards. Unplug
unit before opening cover for cleaning or servicing. Unit must be grounded.
· Inspect the power cord before use. If cord is damaged,do not use. Always grasp
the plug (not the cord) to unplug.
· Insert three-prong plug on power cord into a matching electrically grounded
outlet. Do not use adapter. Never cut off third prong. Do not use an extension
cord.
· The unit must be operated on a 115V/60Hz circuit protected by a Ground Fault
Circuit Interrupter (GFCI) device.
· Keep motor and wiring dry.
· Do not attempt to repair the unit.For Authorized Service Centers, contact Dri
Eaz.
NOTICE: Do not use in environments where corrosive chemicals are present,
such as chlorine.
NOTICE: The unit should not be used by persons (including children) with reduced

7
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they are given supervision or instruction. Children should not be allowed to play with
the unit.
For proper disposal, this unit should be taken to a recycling entity authorized to
process refrigeration equipment.
WARNING: This product may expose you to chemicals, including lead and
phthalates, known to the State of California to cause cancer, birth defects, or other
reproductive harm. For more information, go to www.P65Warnings.ca.gov
CONTAINS: FCC ID 2ADHKWINC3400; IC 20266-ATWINC3400; CAN-ICES-
003(B)/MB-003(B)

8
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.3 Warranty and Registration
Visit LegendBrands.com to register your purchase. Registration allows us to better
assist you with using, maintaining or servicing your equipment and to contact you in
case we have important safety information concerning your Dri-Eaz product. If you
determine service is required, have your equipmentmodel, serial number and original
proof of purchase available and call your distributor for assistance with obtaining a
return material authorization (RMA).

9
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.4 Controls and Operating
SET UNIT UPRIGHT
NOTICE: Transporting or storing the unit in a horizontal position is not
recommended. When the machine is placedin a horizontal position, the oil from the
compressor can flow into the refrigerant coils and reduce the ability of the
dehumidifier to function and possibly damage the unit.If the unit has been placed in a
horizontal position, set it upright and let it stand for at least 30 minutes before turning
it on.
POSITIONING A DEHUMIDIFIER
For best results, operate your dehumidifiers in an enclosed area. Close all doors and
windows that open to the outside to maximize water removal efficiency. Place your
dehumidifier away from obstructions, and keep it away from anything that could
block airflow into and out of the unit.
EXTEND HANDLE
Release the handle by rotating red locking lever outward, then lift handle up into
place. Rotate red lever back into locked position to secure handle in operating
position.
NOTICE: Do not use the extended handle to lift the unit off the ground horizontally.
Do not use the extended handle as an attachment point to strap the unit in a vehicle
for transport.These uses will place undue strain on the handle attachment points in
the housing.
SET UP DRAIN HOSE
This unit automatically pumps out water on a regular basis. This dehumidifier is
equipped with a quick-connect fitting for attachment to the provided drain hose
located in the tray on top of the unit. Unwrap the entire hose and place the open end
in a sink, drain, bucket or outdoors – anywhere that water can drain out safely. If you
use a bucketor other container for water collection, check it regularly to prevent
overflows.
NOTICE: Uncoil and straighten the entire drain hose. Do not leave any part of the
hose coiledand do not place the end of the hose higher than 20 ft. (6 m) above the
bottom of the unit. Also check for kinks or other obstructions that might restrict the
flow of water. A kink or blockage will cause the unit to turn off produce an error
message.
PLUG IN ELECTRICAL CORD
The dehumidifier should be plugged into a should be plugged into a GFCI-protected

10
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
115 volt outlet rated for at least 15 amps.

11
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.5 Command Hub
HOW TO USE THE COMMAND HUB
The i-Series Command Hubprovides comprehensive dehumidifier controls and
detailed real-time data about the drying environment as well as job hours, self-
diagnosis messages, maintenance reminders and operating status.
For detailed information and additional instructions, please visit the Command Hub
page at LegendBrands.com

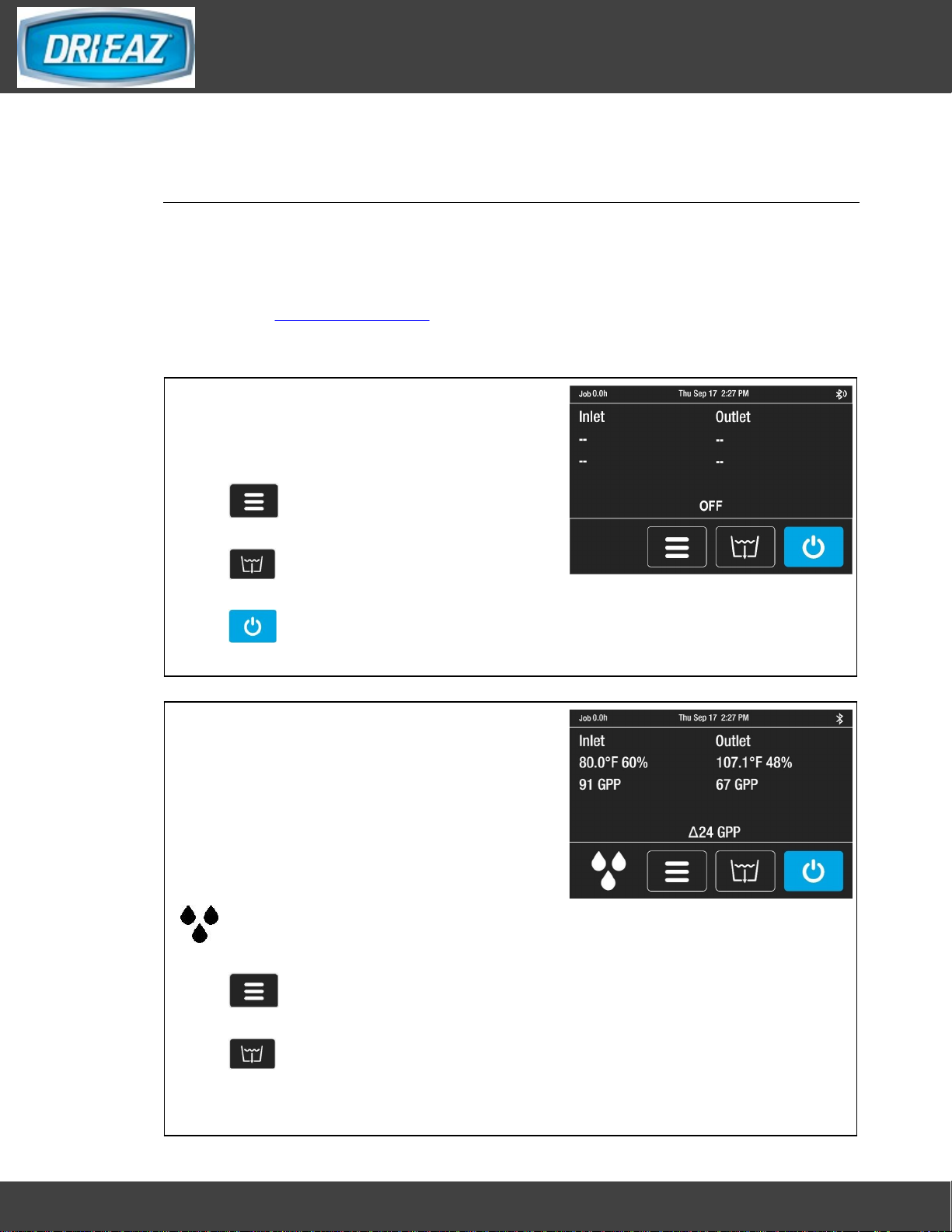

HOME SCREEN VIEWS
Unit OFF
Unit must be plugged in.
Top display bar:
Job hours, current time
Press MENU to access settings and
configuration controls
Press PURGE to pump out condensate
tank
Press ON/OFF to turn unit on.
Unit ON
Press ON/OFF key to switch unit on.
Top display bar:
Job hours, current time
Information display:
Inlet/Outlet temp, %RH and GPP
Current GPP removal
Bottom menu bar:
Quick-Reference Inlet GPP.
1: < 60 GPP; 2: 60–90 GPP; 3: > 90 GPP
Press MENU to access settings and
configuration controls
Press PURGE to pump out condensate
tank

12
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
Press ON/OFF to turn unit off.

13
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.6 Errors and Warnings
If thecontrol system detects a problem, it will display an "Alert" symbol in the upper
right corner of the screen. Press ON/OFF to view the message and OK to clear the
message. NOTE: In the case of an error, the unit will notoperate until the problem is
resolved. Refer to the explanations andsolutions shown below. If these solutions do
not fix the problem, contact your local authorized servicecenter for further assistance.

14
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
CONTROL PANEL
MESSAGE
EXPLANATION AND SOLUTION
ER4 Error
Defrost Thermistor Con
nect
—or—
ER4 Error
Outlet Thermistor Conn
ect
Temp sensor is open, missing, or shorted. Check that
temp sensors are installed correctly on control panel.
If error persists, contact service.
ER5 Error
Inlet RH1 Temp/RH Sen
sor
Inlet Temp/RH sensor is open, missing, or shorted.
Check that inlet temp/RH sensor is installed correctly
on control panel and inlet shroud. If error persists,
contact service.
ER6 Error
Current Sensor Failure
Current sensor failure. If error persists, contact
service.
ER9 Error
Pump Blocked
Check for obstructions in drain hose. Check the
pump.
W1
Low BATTERY
Replacecoin cell battery (3V, CR2032) on control
panel.
W2
BLE Error
W3
Flash Reset
W4
WDT Reset
Cycle power to dehumidifier. If warning persists,
contact service.

15
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.7 At the End of the Job
To reduce the possibility of drips when moving the unit,follow these
additional steps to ensure that all water is removed from the unit.
NOTICE: The unit will complete the defrost cycle even if the unit is turned off but still
plugged in. If the unit is unplugged during the defrost cycle, excessive water may
accumulate in the unit and may drip out when you move the unit.
NOTICE: To ensure the condensate tank empties completely while purging, make sure
the unit is placed upright on a horizontal surface.
1. Do not turn unit off or move it until it has finished the purge cycle.
2. Gently rock the machine to ensure any water remaining on interior
surfaces falls into the sump area.
3. Press the PURGE key once again. When the purge cycle is complete, turn
the unit off.
4. Remove the external drain hose, drain it carefully, coil it and return it to
the storage tray on the top of the unit.

16
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.8 Transport and Storage
NOTICE: Before moving, transporting or storing, purge unit and stow hose and
power cord as described in the “At the End of the Job” section.
NOTICE: Handle the unit carefully. Do not drop, throw or place the unit where it could
fall. Rough treatment can damage the dehumidifier and may create a hazardous
condition or void the warranty.
· Do not use or store near ignition sources, combustible gases, electric heaters or
open flames.
· Do not expose the control panel to moisture, snow or rain.
· Store and transport securely to avoid any damaging impact to internal parts.
· Secure during transport to prevent sliding and possible injury to vehicle
occupants
· Do not transport or store the unit on its front, sides or back. This will help to
prevent any remaining moisture from escaping from the unit or flowing into
areas outside the pump.

17
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.9 Maintenance Schedule
See SERVICE VIDEOS at Legendbrands.com/resources/service-technical-
support/ for detailed instructions on maintaining this unit.
WARNING! Explosion or combustion hazard due to flammable refrigerant.
· Do not use or store near ignition sources, combustible gases, electric heaters or
open flames.
· Do not drill into or braze the dehumidifier.
· Do not attempt to service the refrigeration system! Only authorized service
center personnel should service or decommission the refrigeration system.
· Be aware that refrigerantgases can be odorless.
WARNING! ELECTRIC SHOCK HAZARD. Unplug unit before cleaning or
servicing.
WARNING: Risk of dust and contaminants exposure. Use of respirator mask and
gloves is recommended. If unithas been exposedto potentially dangerous
contaminants, clean thoroughly and sanitize before reuse.
NOTICE: The unit is fitted with sensitive electronic sensors. Protect the sensors and
their lead wires from damage and do not expose them to water or cleaning solution.

18
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
The following tools and supplies are needed to complete the maintenance
procedures described in this manual:
Philips screwdriver
T-20 Torx bit and driver
10 mm nutdriver or socket and ratchet and extension
Cleaning cloths
HEPA vacuum cleaner with soft brush nozzle and crevice nozzle.
Recommended
Cordless drill, small knife, small-jaw pliers, coil cleaning solution, rotomolded
housing cleaning solution.
BEFORE EACH USE
Inspect the electrical cord for damage. Look for fraying, cuts, etc. Replace the cord
if you find any damage.
Inspect filter. Replace if accumulation of dust and debris is visible.
NOTICE: Replace used filters only with a new Dri-Eaz filter #100254 (F579) (24-
pack). Other filter types do not provide adequate filtration or airflow. Each filter is
individually wrapped to protect filtration effectiveness. Remove the wrapper before
installing the filter into the dehumidifier.

19
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
MONTHLY
Inspect coils. Clean when dust accumulation is visible. In normal use,dust can
accumulate and can restrict airflow, reducing performance and causing the unit to
overheat.
To maintain appearance, wipeinterior and exterior surfaces with a damp cloth.For
deepcleaning and a lasting, protective shine,use an automotive interior treatment
product.
AS NEEDED
Clean pump check valve and basin. This requires removal of the front housing.
Clean coils. Inspect the horizontal evaporator (cold) coil with the front cover
removed. If excessive dust and debris is present, vacuum thoroughly and/or clean
with alkaline (non-acidic) coil cleaner.

20
LGR 6000Li Owner'sManual © 2023 Legend Brands, Inc.
Owner's Manual
1.10 Troubleshooting
FAULT
CAUSE
SOLUTION
Water drips out
when moving unit
Unit was
unplugged before
purging was
complete.
Purge unit before moving. See AT
THE END OF THE JOB .
Unit does not
operate
Unit not switched
on.
No power to
machine.
Switch unit on.
Plug in unit; check power cord
connection at wall outlet.
Unit operating, but
room not dry
Not enough time to
dry.
Poor air movement
in room.
Excessive moist air
infiltration.
Make sure “Humidistat” is OFF.
Allow more time for drying.
Increase air movement with air
movers.
Seal off area to reduce infiltration.
Unit collects too
little water
Room air is dry.
Room temperature
is too low.
Filter is clogged.
Coils are clogged.
Make sure “Humidistat” is OFF.
Confirm humidity level with
hygrometer.
Increase room temperature.
Check filter. Replace as necessary.
Check coils. Clean as necessary.
If the problem you are experiencing is not listed here, contact our Service
Department toll-free at 800-932-3030 for further assistance.
15
