Legend LK1-121-03 User manual

MOTION-SENSOR
CEILING LIGHTS
INSTALLATION GUIDE
TWO LIGHT KIT: LK1-121-02
THREE LIGHT KIT: LK1-121-03
FOUR LIGHT KIT: LK1-121-04

Tools Required:
-Electric Drill
-Philips driver bit
-Flathead screwdriver
-Cutting tool for ceiling holes (4.75” Hole Saw is recommended)
-Metric Ratchet Wrench Set
-Tape Measure
-Sharpie
-Masking Tape
-Electronic Multimeter
-Thin work gloves (these will protect your hands from the vehicle frame and
ceiling panel, and make clipping the cables together easier)
Tools Required for Mercedes Sprinters:
-T25 Torx bit
-T30 Torx bit
Other Optional Tools
-Cutting pliers (these may be needed, depending on your preferred
attachment method for the wires)
Legend Light Kit Install Guide v2.2
Page 2 of 36

TABLE OF CONTENTS
Ford Transit Electrical Feed Loom Installation………………………………………..……Page 4
Ram Promaster Electrical Feed Loom Installation……………………………........…..Page 6
Mercedes Sprinter Electrical Feed Loom Installation…………………………………Page 8
LK1-121-02 (2 Light Kit) Installation………………………………………………..………………Page 11
LK1-121-03 (3 Light Kit) Installation…………………………………………………..……………Page 18
LK1-121-04 (4 Light Kit) Installation……………………………………………….………………Page 26
Troubleshooting Tips…………………………………………………………….…………………………Page 36
________________________________________________________
Step 1: Install electrical feed loom cable.
For Ford Transits, refer to step 2 (page 4).
For Ram Promasters, refer to step 3 (page 6).
For Mercedes Sprinters, refer to step 4 (page 8).
Legend Light Kit Install Guide v2.2
Page 3 of 36

FORD TRANSIT FEED LOOM INSTALLATION:
Step 2a: Remove both plastic covers protecting the battery feeds. On the Ford
Transit, this is found on the left-hand side of the driver’s seat base.
Step 2b: Locate the live 12V feed. This will be either of the middle pins, circled
below. In most cases, it is the bottom pin. Verify with a multimeter.
Legend Light Kit Install Guide v2.2
Page 4 of 36

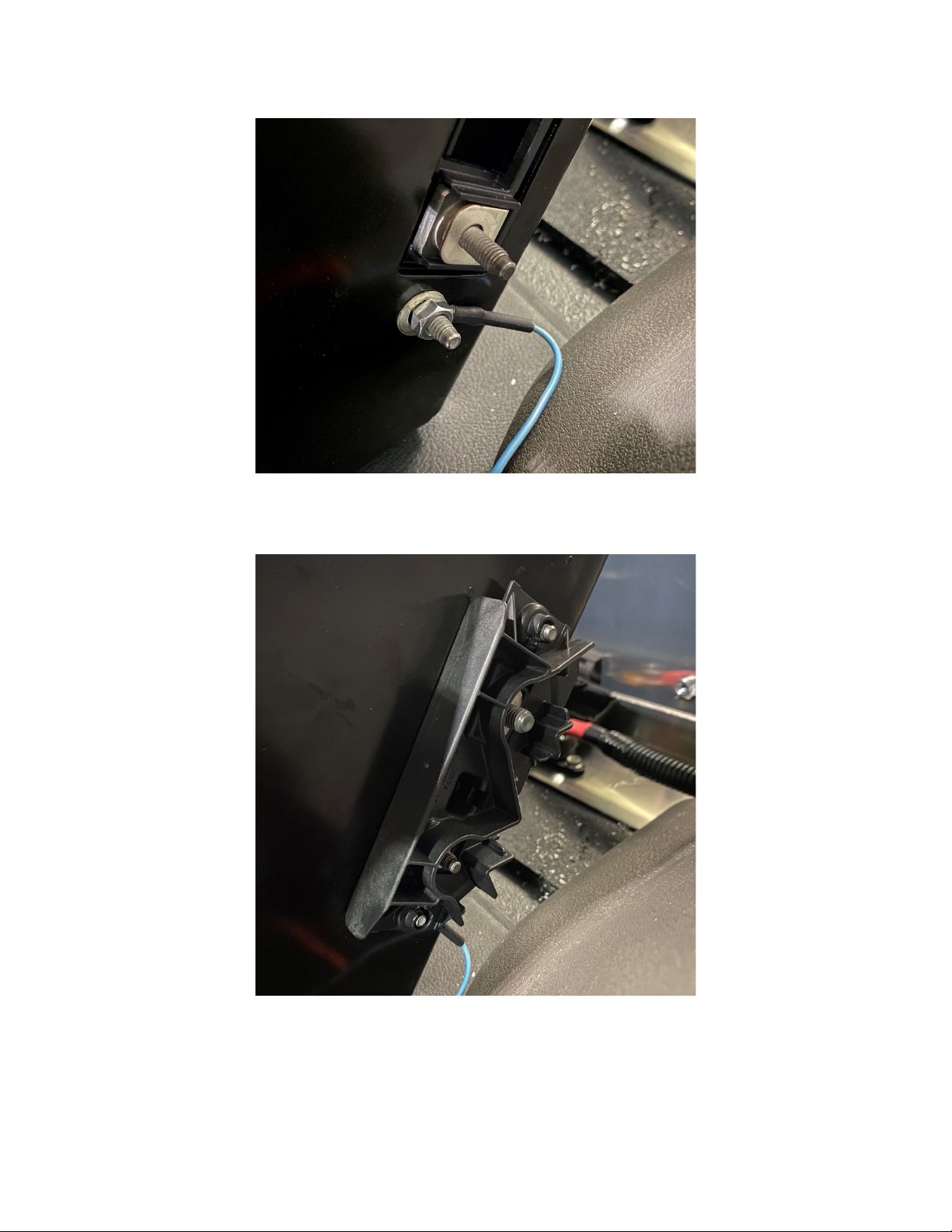

Step 2c: Attach the ground (BLUE) cable as shown below, with one of the
included M6x1 Nyloc nuts.
Step 2d: Re-attach the plastic cover bracket, as shown.
Legend Light Kit Install Guide v2.2
Page 5 of 36

Step 2e: Attach the live (ORANGE) cable to the live 12V pin identified in step
2b, with one of the included M6x1 Nyloc nuts, as shown below.
Step 2f: Re-attach the plastic cover. PROCEED TO STEP 5 (PAGE 10).
________________________________________________________________
RAM PROMASTER FEED LOOM INSTALLATION:
Step 3a: Remove the plastic cover protecting the battery. On the Ram
Promaster, this is found underneath the driver’s floor mat, as shown below.
Legend Light Kit Install Guide v2.2
Page 6 of 36

Step 3b: Attach the ground (BLUE) cable to the battery ground terminal as
shown below; use the existing nut.
Step 3c: Attach the live (ORANGE) cable to the live terminal as shown below;
use the existing nut.
Legend Light Kit Install Guide v2.2
Page 7 of 36

Step 3d: Route the end of the feed loom under the driver seat.
Step 3e: Replace battery covers. PROCEED TO STEP 5 (PAGE 10).
________________________________________________________________
MERCEDES SPRINTER FEED LOOM INSTALLATION:
Step 4a: Locate the battery. In the Mercedes Sprinter this is under the driver
side floor pan. Using Torx T25 and T30 bits, remove the floor pan and battery
cover.
Legend Light Kit Install Guide v2.2
Page 8 of 36

Step 4b: Attach the ground (BLUE) cable to the battery holding case as shown
below. Using the existing Torx bolt.
Step 4c: Attach the live (ORANGE) cable to the live terminal as shown below.
Use the existing nut.
Legend Light Kit Install Guide v2.2
Page 9 of 36

Step 4d: Route the feed end under the matting on the right-hand side of the
driver’s seat.
Step 4d: Replace battery cover and floor. PROCEED TO STEP 5 BELOW.
Step 5: Proceed to light system installation instructions.
For 2 Light Kits (LK1-121-02) turn to page 11.
For 3 Light Kits (LK1-121-03) turn to page 18.
For 4Light Kits (LK1-121-04) turn to page 26.
Legend Light Kit Install Guide v2.2
Page 10 of 36

Motion Sensor Lighting Install Guide:
LK1-121-02 - Two Fixtures
Recommended for: Ford Transit 130LR and 130MR
Ram Promaster 118
Materials Needed:
1x Electrical Feed Loom with bolt-on ring connectors
(AN-0001)
2x Motion Sensor Activated Dome Lights
(AU.25.4P.M.VG.S)
2x 1.5-meter Rappid Cable (SSC1.5MF)
NOTE: The installation should only require 1 ofthese;
an extra cable has been included as a spare.
2x 3-meter Rappid Cable (SSC3MF)
1x T-Connector (SSMFT)
1x Hole Template
2x M6x1 Nyloc Nuts
Legend Light Kit Install Guide v2.2
Page 11 of 36

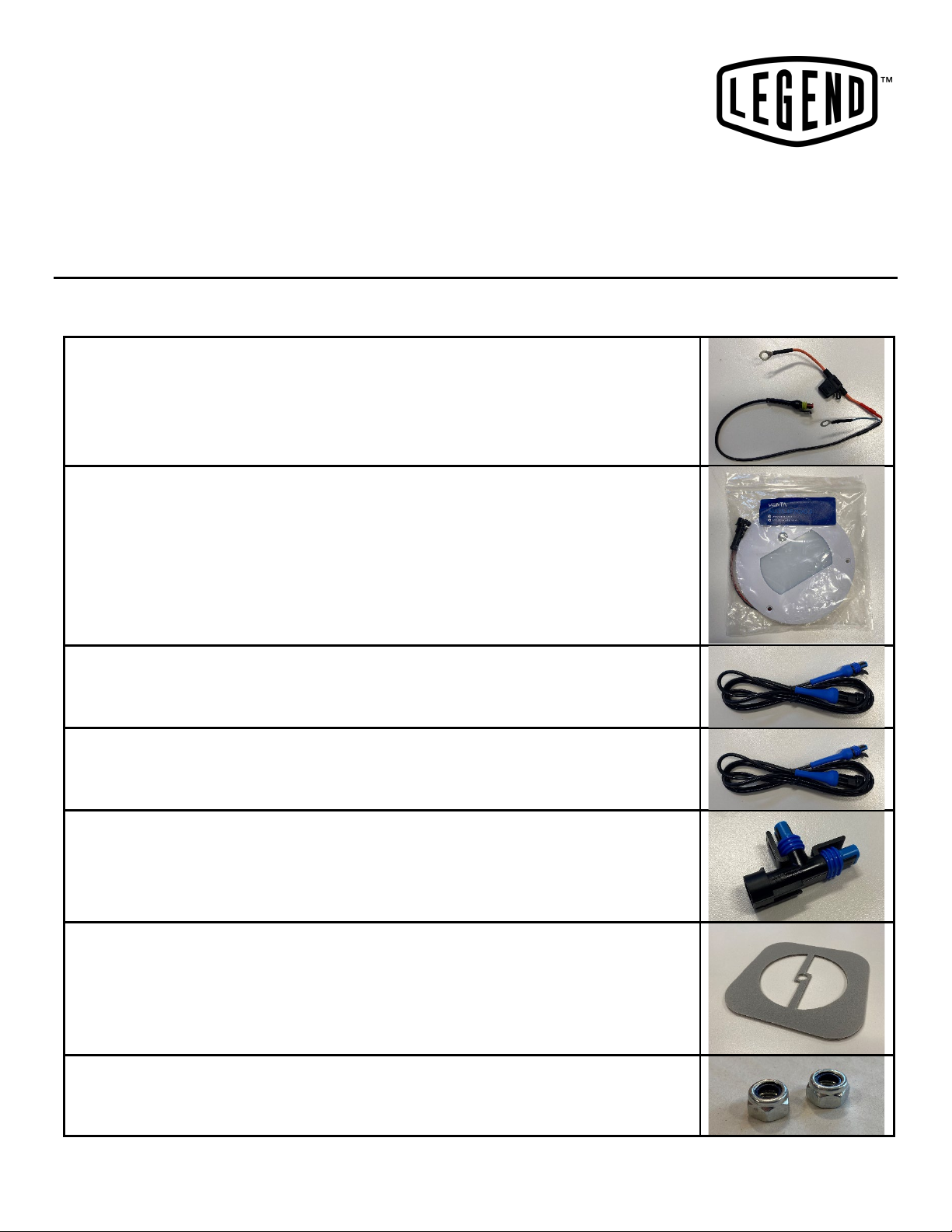

COMPONENT OVERVIEW:
Legend Light Kit Install Guide v2.2
Page 12 of 36

BEFORE STARTING:
-Measure out and cut two 4.75” holes in the desired locations. A hole
template has been included in the kit. If lighting the entire van, it is
recommended to space the holes evenly; simply divide the length of the
ceiling liner by 3. (If the ceiling liner is 120” long, the lights should be spaced
40” apart.)
-If no ceiling liner is being installed, you will need the Legend standalone
brackets. These are attached to the ceiling supports with self-tapping
screws, which are included in the standalone kits.
-There are two lengths of cable in the kit. It is advisable to unfurl each wire
and sort them by length, as they do not come labelled. One is half the length
of the other, so it should be easy to tell them apart.
OTHER INSTALLATION NOTES:
-It is advisable to mark out where the light locations will be on the roof
of the vehicle to make routing the wires to the correct locations easier.
-Wherever possible, use the existing cable trays or gaps in the vehicle frame
to route wires. Toavoid damage to cabling from ongoing use of the vehicle,
ensure that the cables are secured to the vehicle body using tuck tape or
similar (not included).
IMPORTANT: Review the entire guide before starting installation.
Pictures of all components and steps are supplied to ensure correct
installation. Ensure that each connection is securely fastened and
that all wires are secured using the provided clips.
Legend Global Inc. will not accept responsibility for any damages
caused by improper installation.
Legend Light Kit Install Guide v2.2
Page 13 of 36

Step 1: Connect a 3-meter Rappid cable to the feed loom. Ensure that the
housings have clicked together.
Note: if the single 3m cable is not long enough to reach the first light, use the
included extra 1.5m cable.
Step 2: Plug in the T-Connector to the end of the 3-meter cable. Ensure that
the housings have clicked together.
Legend Light Kit Install Guide v2.2
Page 14 of 36

Step 3: Connect the 1.5-meter Rappid cable to the T-Connector. Ensure that
the housings have clicked together. This cable will connect to a light, so ensure
that it can reach the corresponding light location and is on the correct side of
the nearest ceiling joist.
Step 4: Connect a 3-meter Rappid cable to the T-Connector and run it to the
next light location.
Legend Light Kit Install Guide v2.2
Page 15 of 36

Step 5: Ensure that the cables can reach the desired light locations, then
secure them to the vehicle side frame and ceiling cross beams using your
preferred method. Legend recommends tuck tape or similar.
Step 6: Install ceiling liner, if applicable.
Step 7: Unplug the feed loom from the rest of the circuit. This will make sure
the lights stay off while you are installing them, which will be easier on your
eyes.
Step 8: Connect the Dome Lights to the Rappid cables. Ensure that the
housings have clicked together.
Step 9: Re-attach the feed loom to the circuit. The lights should power on.
If they do not, check that the fuse has been inserted into the feed loom; if
fuse is properly installed, refer to the troubleshooting guide on page 36.
WARNING: The lights are very bright and may cause temporary blindness if
looked at directly for short durations. When plugged in, the light will turn on
and remain lit for 3 seconds, then turn off.
Legend Light Kit Install Guide v2.2
Page 16 of 36

Step 10: Secure the lights to the ceiling. If ceiling liner is installed, use the
screws included with the lights. If installing on the standalone brackets, use the
self tappers included in the bracket package.
THIS COMPLETES THE INSTALLATION.
Legend Light Kit Install Guide v2.2
Page 17 of 36

Motion Sensor Lighting Install Guide:
LK1-121-03 - Three Fixtures
Recommended for: Ford Transit 148 LR/MR/HR
Ram Promaster 136 LR/HR, 159 HR
Mercedes Sprinter 144 LR/HR
Materials Needed:
1x Electrical Feed Loom with bolt-on ring connectors
(AN-0001)
3x Motion Sensor Activated Dome Lights
(AU.25.4P.M.VG.S)
4x 1.5-meter Rappid Cable (SSC1.5MF)
NOTE: The installation should only require 3 of these;
an extra cable has been included as a spare.
2x 3-meter Rappid Cable (SSC3MF)
2x T-Connector (SSMFT)
1x Hole Template
2x M6x1 Nyloc Nuts
Legend Light Kit Install Guide v2.2
Page 18 of 36

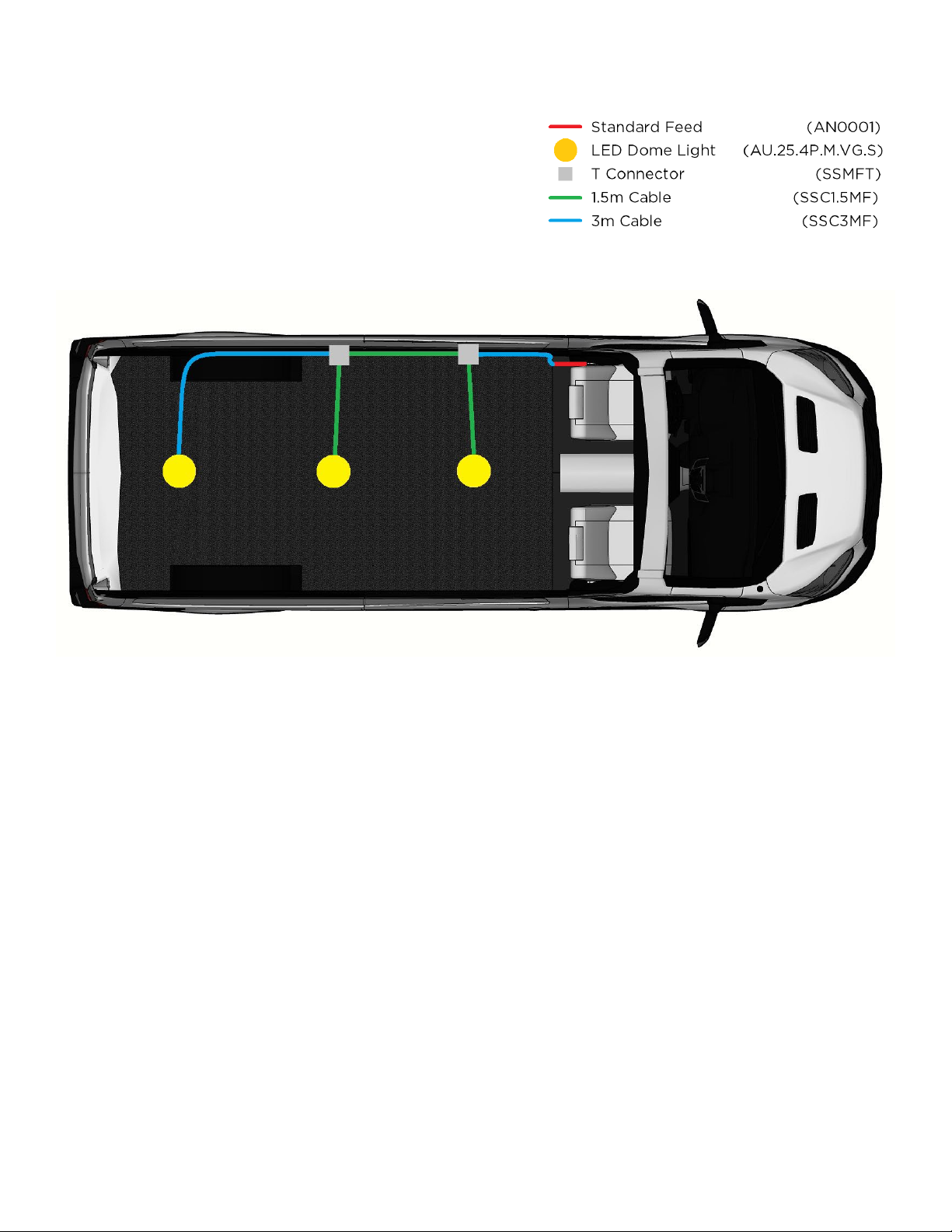

COMPONENT OVERVIEW:
Legend Light Kit Install Guide v2.2
Page 19 of 36

BEFORE STARTING:
-Measure out and cut three 4.75” holes in the desired locations. A hole
template has been included in the kit. If lighting the entire van, it is
recommended to space the holes evenly. To do this:
oDivide the length of the van by 6.
oSpace the first light location using the result.
oSpace each subsequent light using 2x the result.
oFor example: if installing in a 120” long ceiling, 120”/6 = 20”. Space the
first light 20” from the end, then each subsequent light 40” apart. This
usually gives the best light coverage.
-If no ceiling liner is being installed, you will need the Legend standalone
brackets. These are attached to the ceiling supports with self-tapping
screws, which are included in the standalone kits.
-There are two lengths of cable in the kit. It is advisable to unfurl each wire
and sort them by length, as they do not come labelled. One is half the length
of the other, so it should be easy to tell them apart.
OTHER INSTALLATION NOTES:
-It is advisable to mark out where the light locations will be on the roof of
the vehicle to make routing the wires to the correct locations easier.
-Wherever possible, use the existing cable trays or gaps in the vehicle
frame to route wires. To avoid damage to cabling from ongoing use of the
vehicle, ensure that the cables are secured to the vehicle body using tuck
tape or similar (not included).
IMPORTANT: Review the entire guide before starting installation.
Pictures of all components and steps are supplied to ensure correct
installation. Ensure that each connection is securely fastened and
that all wires are secured using the provided clips.
Legend Global Inc. will not accept responsibility for any damages
caused by improper installation.
Legend Light Kit Install Guide v2.2
Page 20 of 36
