Legends Renegade User manual

Legends - Renegade GPS Speedometer Cluster
Button - Used to operate gauge screen and programming
menus and options.
Screen - Displays - mileage,
programming options,
menus, and other useful
information.
High Beam Indicator
Check Engine Indicator
Brake Indicator
Left Turn Signal
Right Turn Signal
4 Wheel Drive
(4x4) Indicator
Low Fuel Indicator
Temperature
Warning Indicator

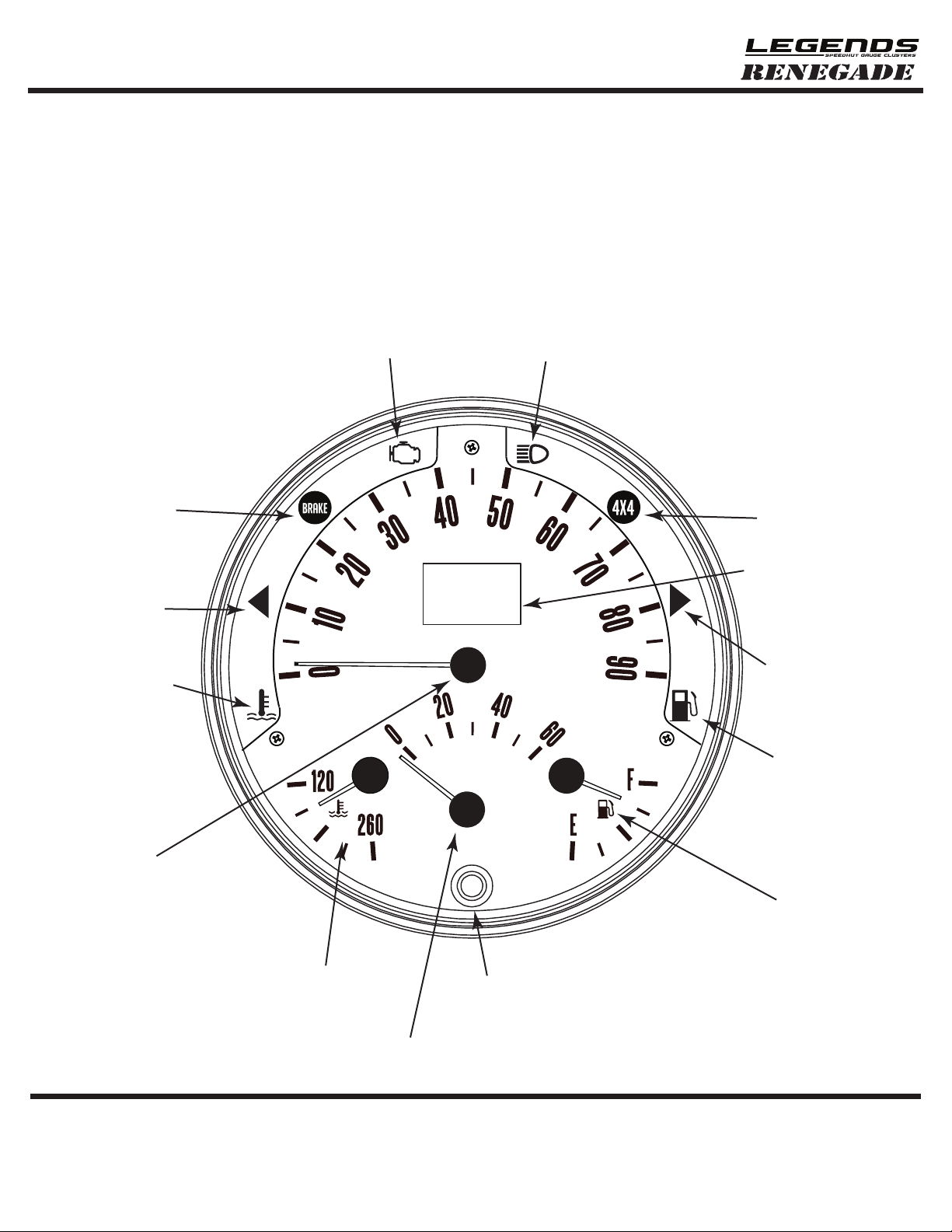

FIGURE 1: Gauge Display Guide
Temperature Gauge
Fuel Level Gauge
Speedometer
Tachometer (Not available on some models)
- 1 -
Installation Instructions
1. Disconnect the vehicle battery.
2. Connect the gauge power requirements as shown in figures 2 & 3.
3. Wire all the components to the proper sources and senders. (See figures 2 & 3)
4. Reconnect the vehicle battery.
5. Power up the gauge and program the various gauge components (if needed). (See Gauge Operation Instructions)
MPH
RPM
WARRANTY - Speedhut Inc. warrants to the consumer for a period of 5 years from the date of purchase that this product will be free from defects in materials or workmanship. Speedhut warrants to the consumer for a
"LIFE-TIME" that the product circuit board will be free from defects in materials or workmanship. This warranty is limited to the repair or replacement of Speedhut Inc products. Speedhut Inc is not responsible for special,
incidental or consequential damages or costs incurred due to the failure of this product. Modification to the product, improper use or installation, accident, water damage, abuse, unauthorized repairs or alterations voids
this warranty. Speedhut Inc disclaims any liability for consequential damages due to breach of any written or implied warranty on all products manufactured by Speedhut Inc. Please contact Speedhut Customer Support
If you have a problem with this product | [email protected] | 801-221-1460 (9am - 5pm MST)

Legends - Renegade GPS Speedometer Cluster
Power Draw = 0.2 Amp
3A to 5A Inline Fuse Recommended
for +12
1
3
4
5
6
7
8
910
11
12 13
14
15
16
17
18
19
2
GPS Antenna
Blue wire with White Stripe - High Beam Indicator
Red wire with Green Stripe - Speed Sensor
Green wire with Orange Stripe - Left Turn Signal
Black (Double Pigtail paired with wire #6) - CAN High
Green wire with Red Stripe - Right Turn Signal
Black [White Striped] (Double Pigtail paired with wire #4) - CAN Low
Black wire - Brake Indicator
Red wire with Black Stripe - GPS Hot Start (Connect to +12VDC non- ).
Yellow wire with Black Stripe - Fuel Level Ground
14. Red (Triple Pigtail paired with wires #13 and #15) - +12VDC Switched (5 Amp Inline Fuse Recommended, Power Draw is 0.2 Amp)
15. Black (Triple Pigtail paired with wires #13 and #14) - Ground
16. Yellow wire with Black Stripe - Water Temp Ground
17. Yellow wire - Tachometer Signal (available on some models)
18. Black (Double Pigtail paired with wire #19) - EL Inverter
19. Black [White Striped] (Double Pigtail paired with wire #18) - EL Inverter
20. Purple Wire - Check Engine Indicator
- 2 -
FIGURE 2: Wiring Guide
See Figure #3 for more wiring info.
20

Renegade Cluster - Installation
Ground (black)
+12 volts Dash lighting (white)
Snap connection for dial lighting
+12 Volts
(#14 Red)
(#15 Black)
Ground
(#13 White)
+12 Volts Dash lighting
Power distribution cable
(#3 Green/Orange)
(#5 Green/Red)
(#1 Blue/White)
left turn signal +12V pulse
right turn signal +12V pulse
high beam wire +12V
Inverter
GPS Hot Start (#8 Red/Black Wire)
Connect to +12VDC non- .
(25 micro-amp draw) See Figure 8
GPS Antenna (See Figure 8)
INVERTER IS REQUIRED FOR GAUGE DIAL LIGHTING
(Pointer (needle) lighting)
(Main gauge power)
(Gauge Dial lighting)
Dial Lighting Inverter Note: Single EL dial lighting inverter included with individual gauge.
Multi-gauge EL dial inverter included with gauge set of 3 to 8 gauges.
***Protect any unused connectors. Damage to an unused connector could cause inverter failure.***
Fuel level signal (#10 Pink)
Tachometer Signal (#17 Yellow Wire)
(Available on some models)
Attach to included wire harness and connect to Tachometer signal out (See Figure 9)
Brake Light [GND] (#7 Black)
Fuel Level Ground Wire (#9 Yellow/Black)
4X4 Indicator [GND] (#11 Orange)
Water Temperature Signal (#12 Yellow/Red)
Water Temperature Ground (#16 Yellow/Black)
(Wire Pair CAN high #4 and CAN low #6)
OBDII
(See Figure 7 for details)
(Wire Pair #18 and #19)
Snap connection
Note: Tie together the +12VDC
dash lighting wire (#13 white) to
the +12VDC inverter white wire
and connect to the same dash
lighting source.
Snap connection
FIGURE 3: Connection Guide
See Figure #2 for more wiring information and numbering.
Speed signal (#2 Red/Green)
Connect to Speed Sender (See Figure 4)
- 3 -
Check Engine [GND]
(#20 Purple Wire)
Attach to included wire harness and connect to Fuel Level Sender (See Figure 5)
Attach to included wire harness and connect to Temperature Sender (See Figure 6)
Power Draw = 0.2 Amp
3A to 5A Inline Fuse Recommended
for +12

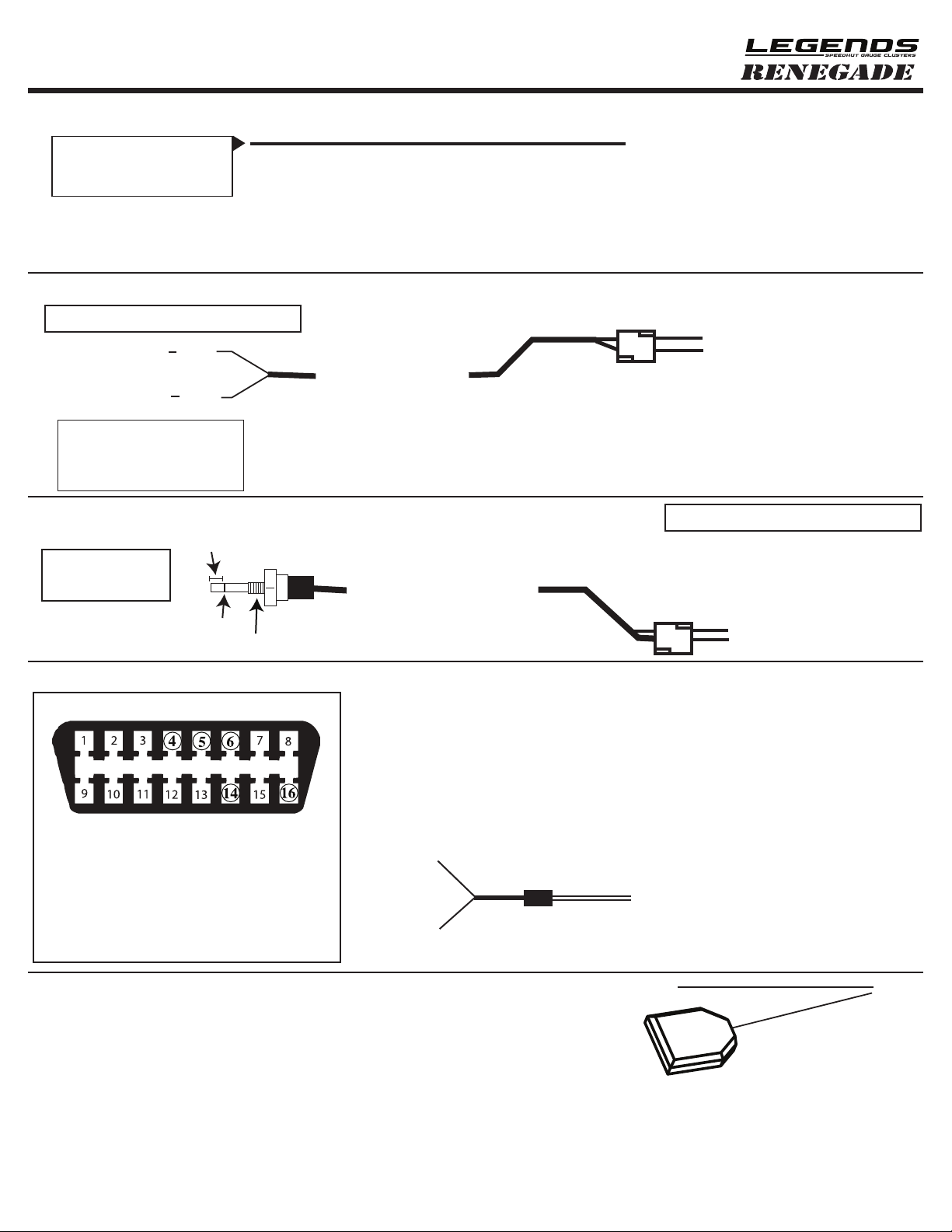

Legends - Renegade GPS Speedometer Cluster - Figures #4 - #8
See Figures 2 and 3 for more wiring and installation information.
- 4 -
Speedometer Signal Wire (Red/Green Wire)
FIGURE 4: OPTIONAL Backup Speedometer Sender Connection (Requires GPS signal for calibration, See Figure 8)
FIGURE 5: Fuel Level Sender Connection(see Gauge Operation Instructions for calibration instructions)
FIGURE 6: Temperature Sender Connection
Connect to the speedometer
pulse signal. Acceptable
signals ranging from 1V - 100Volts.
500 - 250,000 pulses per mile.
Speedometer
Fuel Level Wires (Pink and Yellow/Black)
Fuel level signal gauge wire (Pink)
Alternate ECU Setup: You can connect signal wire directly to the speedometer signal out on the vehicle’s ECU.
(white)
(black)
fuel sender output
fuel sender ground
Note: Fuel sender ground should be
connected to the fuel level sender
ground. If you do not have a fuel
level sender ground connect to the
chassis ground.
Fuel Level Ground gauge wire (Yellow/Black)
Temperature Gauge Wires
(Yellow/Red and Yellow/Black)
(Yellow/Red)
(Yellow/Black)
(Fuel Level Wiring Harness)
1/8 npt threads
Harness Wires:
White wire - Signal
Black wire - Ground
Trimable area
DO NOT trim pass the slot.
(Temperature Gauge Wiring Harness)
Black
Black/white
CAN high
CAN low
Does your vechicle support the CAN-BUS protocol?
OBDII Note: Speedhut CJ Speedometer gauge will not function when used in conjunction
with any other OBDII device. Cycle the gauge power to restore proper gauge function.
OBDII CAN (J1979) protocol Pinout:
If the vehicle has wires that connect to pins 6 and 14 of the
OBDII connector then the vehicle supports the CAN-BUS
(J1979) protocol.
Pin 4 -- Chassis Ground
Pin 5 -- Signal Ground
Pin 6 -- CAN High (data)
Pin 14 -- CAN Low (data)
Pin 16 -- +12volt Battery power (NOT a source for gauge power)
V ehicl e’s OBDII connector pin numbering
FIGURE 7: OBDII Setup
1. Connect power distribution requirements as shown in Figures 2 & 3.
(Make sure that the vehicle battery is disconnected)
2. Connect the black CAN high wire (#4) to the OBDII pin 6, Connect the
white striped black CAN low wire (#6) to the OBDII pin 14.
[CAUTION: Do not connect to a powered OBDII system. Failure to do so will throw
a check engine code.]
3. Mount gauge for easy viewing.
Gauge
Note: When gauge power is off the pointer(needle)
will remain in last powered position.
Note: When gauge power is off the pointer(needle)
will remain in last powered position.
FIGURE 8: GPS Antenna and Hot Start Wire +12Volts Hot Start (Red/Black)
+12 Volts constant power (25 micro-amp draw)
GPS ANTENNA
Gauge
1. Connect GPS receiver antenna into back of speedometer.
2. For best performance, mount GPS antenna with as much view of sky as possible (preferably on the roof of
the vehicle). The GPS antenna is waterproof and magnetic. If the car’s roof is not accessible then mount the
antenna on top of the vehicle’s dash with as much exposure as possible to the sky through the window.
NOTE: Antenna is able to receive signal through some thin materials i.e. wood,
glass, fiberglass, and plastic. All types of metal will block the signal.
3. Hot start feature is optional. Connecting the hot start wire to constant +12volts allows GPS to quickly acquire satellites in less than 2 seconds.
This feature saves your current satellite position within the speedometer enabling it to quickly restore your position on power up when Speedometer has been
powered off.
NOTE: Please note that if the speedometer has been powered off longer than 4 hours, it could take up to 1 minute to acquire signal due to the satellites moving significantly
from your location. This is normal.
Power Draw NOTE: The hot start current draw is extremely low (25 micro-amp) and will have virtually zero impact on a vehicle’s battery charge. Hot start wire should be
connected directly to battery +12voltage and should remain powered 100% of the time.

Legends - Renegade GPS Speedometer Cluster - Tachometer Connections
(Available on some models)
- 5 -
- negative
+
Y
e
l
l
o
w
w
i
r
e
1 revolution of engine
8 CYL early style single coil example
(dia 1)
1 revolution of engine
8 CYL twin coil packs
(dia 2)
C2
To spark plugs
Y
e
l
l
o
w
w
i
r
e
C1
2 revolutions of engine
8 CYL coil on plug
(dia 3)
Y
e
l
l
o
w
w
i
r
e
Setup the Tachometer to run
2 pulses per rev when
connecting it to the engines’ECU.
ECU
Tachometer (Yellow)
ACC (12v)
4.7K -10K Ω 0.25 watt minimum
(dia 4)
+
Yellow
wire
Yellow
wire
C1
Yellow
wire
Important note: Connecting the tachometer to the wrong wire will NOT damage the tachometer or your ignition.
Note: If you plan to operate the tachometer using OBDII CAN-BUS (J1979), then you do not need to connect the Tachometer signal wire.
FIGURE 9:
Your vehicle ignition system will fall under one of these 4 ignition types. The type of ignition system will determine where the yellow tachometer signal wire
(wire #17) is connected and what the number of pulses per revolution the tachometer should be set to.
Type #1 (single coil) - Up until the 1990’s tachometers picked up the signal from the (-) side on a single ignition coil, reading every pulse sent to all the cylinders.
For example, an 8 cylinder (4 stroke) engine fires 4 spark plugs per revolution or all 8 spark in 2 revolutions. Connecting the yellow wire to the negative side of the
single coil on an 8 cylinder results in picking up 4 sparks in 1 revolution (see diag. 1). This type of ignition was used pre-dominantly until the 1990’s and distributes
sparks to each spark plug. In some vehicles during the 90’s the coil and distributer merged into one unit, but it is the same ignition system - one coil that distributes
sparks to all cylinders. When connecting the yellow wire to this style of ignition you will be picking up all cylinder sparks (see diag. 5).
Type #2 (coil pack) - (diag. 2) is used in the 96 Mustang v8 with twin coil packs. Coil pack #1 (C1) controls the firing of 4 spark plugs and coil pack #2 (C2) controls
the remaining 4 spark plugs. 2 or more separate coils are within each coil pack assembly. In this example each of the 2 coils within each coil pack sends sparks to
2 cylinders at the same time. When one cylinder is firing in the compression stroke, it's paired cylinder is "waste" firing in the exhaust stroke. Each separate coil
within the pack is controlled by it’s own trigger wire. In other words, if you hooked up the yellow wire to one coil trigger wire within one coil pack, it will see only a
fraction of the total engine sparks (see diag. 5).
Type #3 (coil on plug) – An individual coil is placed directly on top of each spark plug eliminating the spark plug wires. The yellow wire , when hooked up to any
coil, will pick up only 1 pulse per 2 revolutions or 1/2 pulse per 1 revolution (see dia 3). For this type of ignition the yellow wire from the tachometer will connect to
the trigger wire on one of the coils. Typically there will be 3 or 4 colored wires coming off of them, but the fourth wire will be blue on one coil and green on the next
coil.
Type #4 (tach output from ECU) Some vehicles will have a tachometer output wire coming from the ECU. The yellow wire from our tachometer can receive signal
Diag 5: Tachometer yellow wire connection
Type #1 ignitions Type #2- Coil Packs Type #3- Coil on Plug Aftermarket ignitions / tach output
- negative
Yellow
wire
Yellow wire connects to:
negative side of coil.
12 cyl = 6 Pulses / rev
10 cyl = 5 Pulses / rev
8 cyl = 4 Pulses / rev
6 cyl = 3 Pulses / rev
4 cyl = 2 Pulses / rev
(see Tachometer
Calibration)
Yellow wire connects to:
1 Pulses / rev. (as a good starting point)
(see Tachometer Calibration)
Yellow wire connects to:
1/2 Pulses / rev. (as a good starting point)
(see Tachometer Calibration)
Yellow wire connects to:
tachometer output terminal
12 cyl = 6 Pulses / rev
10 cyl = 5 Pulses / rev
8 cyl = 4 Pulses / rev
6 cyl = 3 Pulses / rev
4 cyl = 2 Pulses / rev
(see Tachometer Calibration)

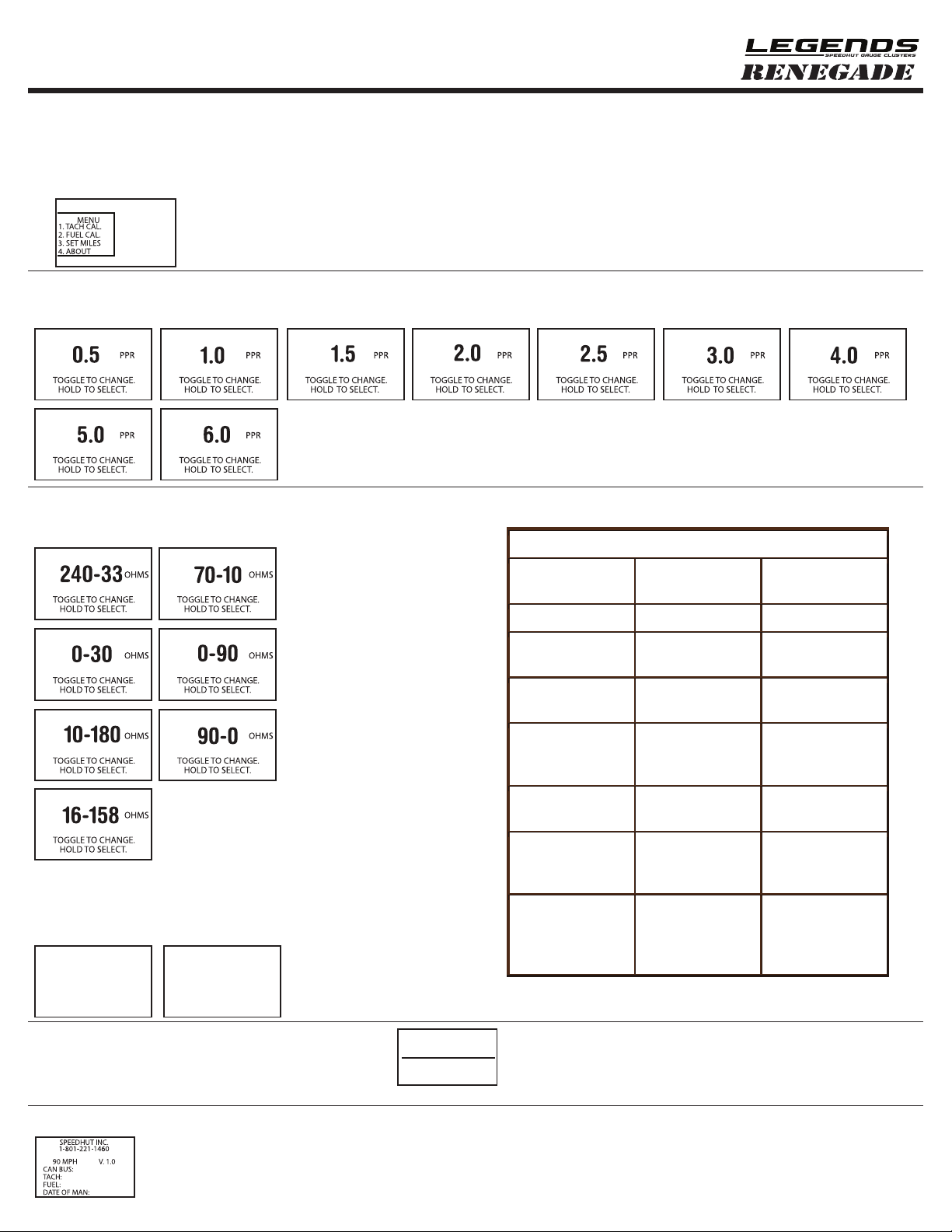

Legends - Renegade GPS Speedometer Cluster - Gauge Operation Instructions
(GPS features)
- 6 -
Elevation
Speed
Direction
2
GPS SPEEDOMETER:
When the gauge is powered on, it will begin to search for satellites to acquire a GPS signal.
After a GPS signal is aquired the screen will display “GPS ACTIVE”.
When the the GPS signal is active the following displays and menus will be available:
To access and use the on screen menu:
Press the button (located on the front of the gauge) to select different options.
Press and hold the button to gain access to an option or menu selection.
Elevation feature is acquired from GPS satellites and shows the current elevation from sea level in feet or meters depending on model.
Speed feature shows mph or kmh in display
Shows the current direction
Note: Default direction is North(N). Correct direction is displayed only when moving.
Clock
Clock feature. Time is acquired from GPS satellites. User only needs to adjust the hour setting for his/her time zone.
Press and hold button to set clock hours. (color will invert)
Toggle through am / pm hours until correct time is reached.
Release button for several seconds and time is stored. (color will return to normal)

Legends - Renegade GPS Speedometer Cluster - Gauge Operation Instructions
Follow these steps below for all menu items
1. Press and hold button down while turning on gauge power to enter the calibration menu.
2. A quick button press will toggle LCD screen through all the available menu settings and display.
3. Press and hold to select the menu item (2-3 seconds).
4. Press and hold button to change setting.
Use the “TACH CAL.” menu to calibrate the TACHOMETER Pulses Per Rev (PPR) [available on some models]:
Repeatedly press the button to toggle through the following PPR options:
(Press and hold to set a selected PPR)
Use the “FUEL CAL.” menu to calibrate the the ohm range for the FUEL LEVEL:
Repeatedly press the button to toggle through the following OHM ranges:
(Press and hold to set a selected Ohm range)
How to calibrate the FUEL LEVEL gauge to custom Ohm Range:
After toggling through the Ohm ranges there will be an “EMPTY”
option and a “Full” option.
EMPTY option: While your fuel tank is empty press and hold to set.
FULL option: While your fuel tank is full press and hold to set.
(Fuel Level Calibration, Tachometer Calibration, Set Odometer, and About Screen)
- 7 -
FULL
TOGGLE TO CHANGE.
HOLD TO SELECT.
EMPTY
TOGGLE TO CHANGE.
HOLD TO SELECT.
Empty Full Vehicle
Application
0 ohms 30 ohms Most pre-'65 GM
0 ohms 90 ohms Most GM
‘65-present
16 ohms 158 ohms Most Fords
'87-present
73 ohms 8-12 ohms Most Fords before
'87 and most
Chrysler
240 ohms
33 ohms
Use with 3262
sender
10 ohms 70 ohms Ford Bi- Metallic
Gauges (pre 1987
F-Series Trucks)
15 ohms 160 ohms Ford Magnetic
Gauges (1987 and
later F-Series Trucks)
CHART 1: Common Factory Ohm Ranges
Use the “Set Miles” menu to set the Odometer miles:
Repeatedly press the button to toggle through the digits:
(Press and hold to cycle the numbers 0-9)
To save: do not press the button for 5 seconds.
Use the “About” screen to view manufacturing date and other diagnostic information:
000000MI
1. HOLD TO SCROLL.
2. QUICK TO TOGGLE
