LEGRAND CHIEF TA210E User manual

I N S T A L L A T I O N I N S T R U C T I O N S
IntelliSHOT
®
Thinstall
™ Camera Bracket
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
TA210E

TA210E Installation Instructions
2
DISCLAIMER
Legrand | AV and its affiliated corporations and subsidiaries
(collectively “Legrand | AV”), intend to make this manual
accurate and complete. However, Legrand | AV makes no claim
that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Legrand | AV
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Legrand | AV
assumes no responsibility for accuracy, completeness or
sufficiency of the information contained in this document.
Chief®, IntelliSHOT® and Thinstall™are registered trademarks
of Legrand AV Inc.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all accessories are
properly assembled and installed using the instructions
provided.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all equipment and accessories mounted on each TA210E
shelf does not exceed 10 lbs (4.54 kg) per bracket.
WARNING: Use this accessory only for its intended use as
described in these instructions. Do not use attachments not
recommended by the manufacturer.
WARNING: Never operate this accessory if it is damaged.
Return the accessory to a service center for examination and
repair.
WARNING: Do not use this accessory outdoors.
--SAVE THESE INSTRUCTIONS--

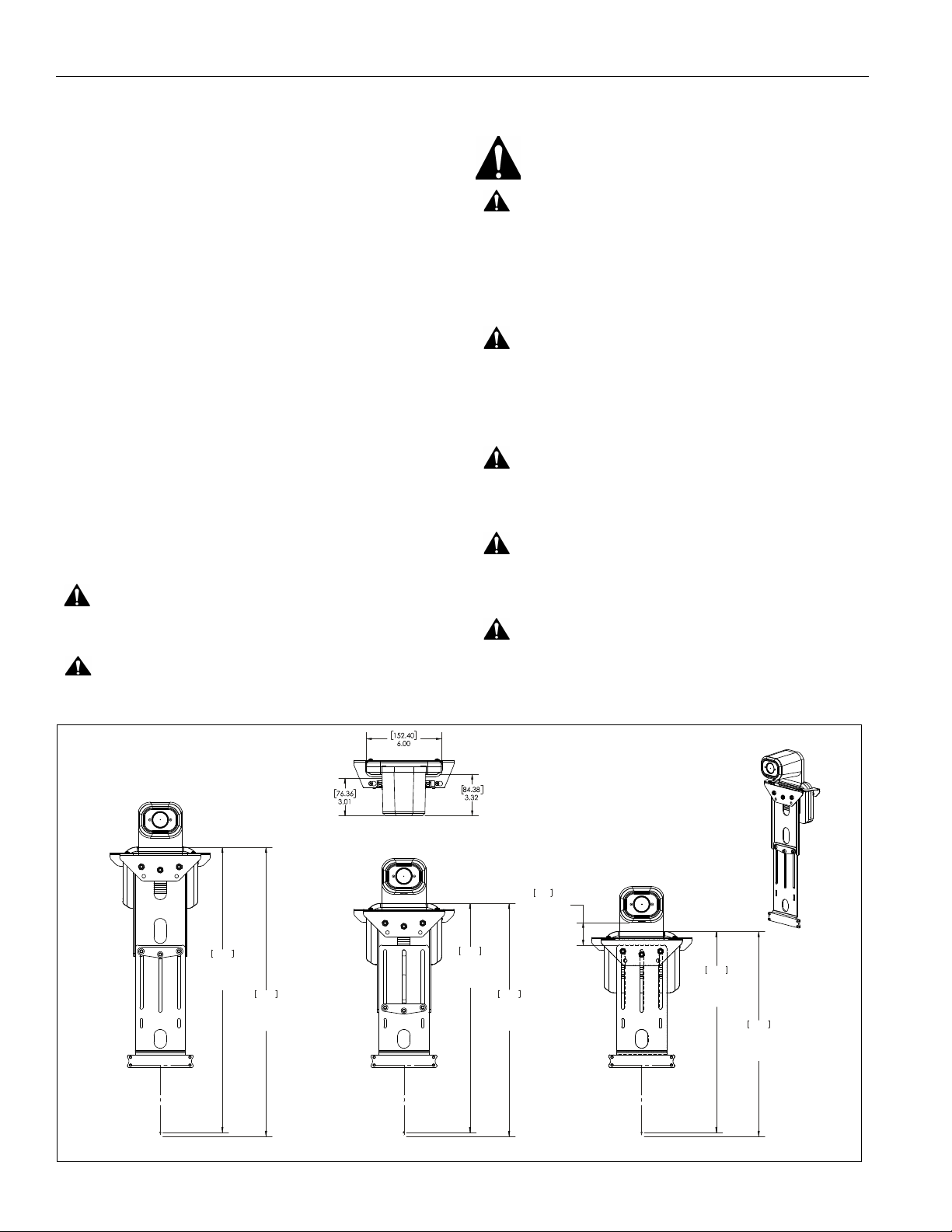

DIMENSIONS
23.10
DISTANCE TO C/L OF
TS5XXX SERIES
SW I NG A R MS
586.7
22.79
DISTA NC E TO C / L O F
TH E TS3XXX SER IES
SW I NG A R MS
578.8
HIGHEST EXTENSION
18 .60
DISTA NC E TO C/L OF
TS 5XXX SERIES
S WI NG A R MS
47 2 .4
18.29
DISTA NC E TO C/L OF
TH E TS3X X X SERIES
S W IN GA RM S
464 .5
LOWEST EXTENSION
WITH EXTENDER BRACKET
1.81
HEIGH T
ADJUS TM E N T
45.9
16 .35
DISTANCE TO C /L OF
TS 5 XXX SERIE S
S W IN GA RM S
41 5 .3
16.04
DISTANCE TO C /L OF
TH E TS3 X X X SERIES
SW I NG A R MS
40 7 .4
HIGHEST EXTENSION
WITHOUT EXTENDER BRACKET
MOUNT CAN BE USED
EITHER ABOVE OR BELOW
THE SCREEN

Installation Instructions TA210E
3

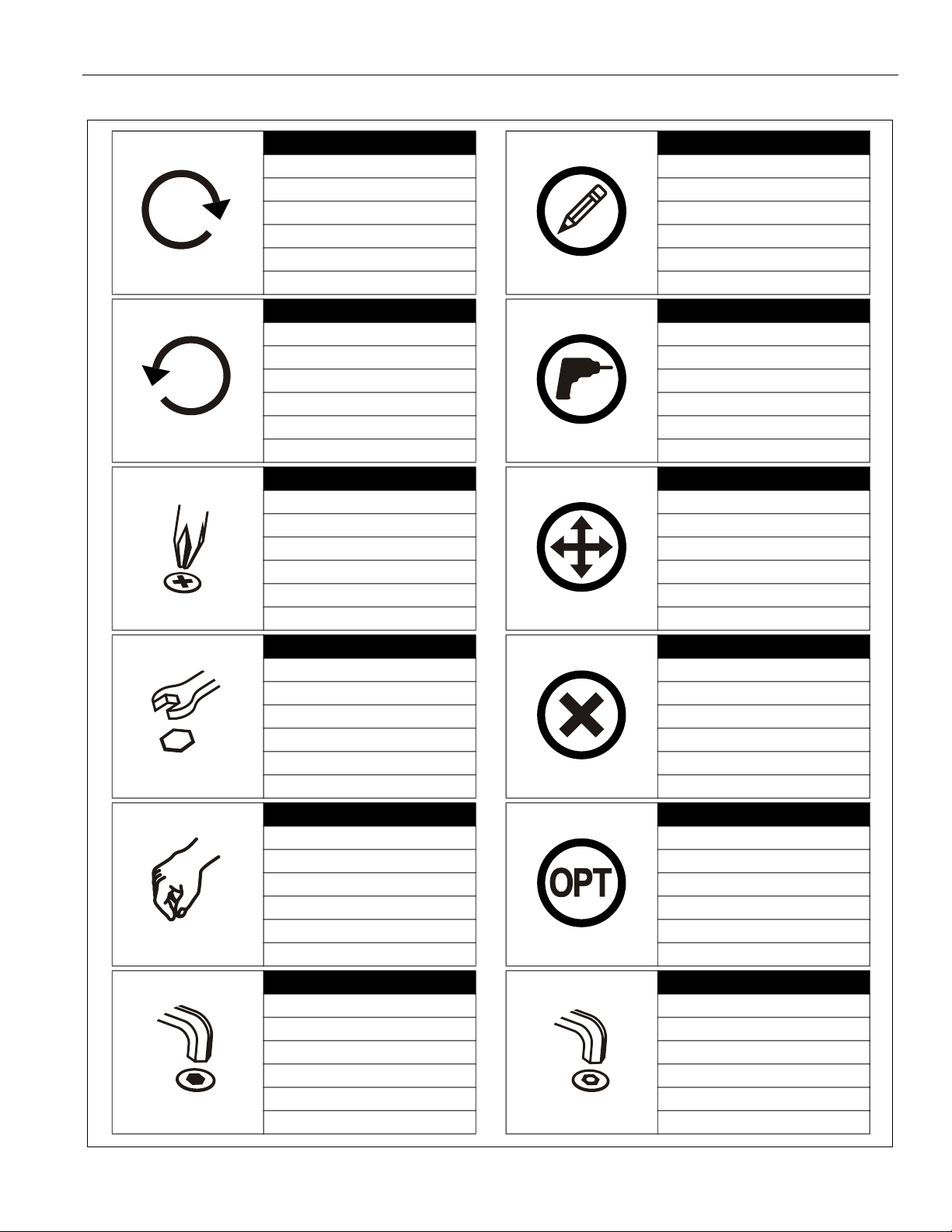

LEGEND
Tighten Fastener
Apretar elemento de fijación
Befestigungsteil festziehen
Apertar fixador
Serrare il fissaggio
Bevestiging vastdraaien
Serrez les fixations
Loosen Fastener
Aflojar elemento de fijación
Befestigungsteil lösen
Desapertar fixador
Allentare il fissaggio
Bevestiging losdraaien
Desserrez les fixations
Phillips Screwdriver
Destornillador Phillips
Kreuzschlitzschraubendreher
Chave de fendas Phillips
Cacciavite a stella
Kruiskopschroevendraaier
Tournevis à pointe cruciforme
Open-Ended Wrench
Llave de boca
Gabelschlüssel
Chave de bocas
Chiave a punte aperte
Steeksleutel
Clé à fourche
By Hand
A mano
Von Hand
Com a mão
A mano
Met de hand
À la main
Hex-Head Wrench
Llave de cabeza hexagonal
Sechskantschlüssel
Chave de cabeça sextavada
Chiave esagonale
Zeskantsleutel
Clé à tête hexagonale
Pencil Mark
Marcar con lápiz
Stiftmarkierung
Marcar com lápis
Segno a matita
Potloodmerkteken
Marquage au crayon
Drill Hole
Perforar
Bohrloch
Fazer furo
Praticare un foro
Gat boren
Percez un trou
Adjust
Ajustar
Einstellen
Ajustar
Regolare
Afstellen
Ajuster
Remove
Quitar
Entfernen
Remover
Rimuovere
Verwijderen
Retirez
Optional
Opcional
Optional
Opcional
Opzionale
Optie
En option
Security Wrench
Llave de seguridad
Sicherheitsschlüssel
Chave de segurança
Chiave di sicurezza
Veiligheidssleutel
Clé de sécurité

TA210E Installation Instructions
4
TOOLS REQUIRED FOR INSTALLATION
PARTS
5/32" (included)
1/8" (included)
#2
3/8"
7/16"
A (1)
B (1)
C (1)
[Hanging bracket]
[Extension bracket]
[Camera bracket]
D (1)
[Backing bracket] E (4)
#10-24 x 3/8" F (3)
1/4-20 x 5/8" G (6)
1/4"
H (4)
5/32"
J (4)
1/8"
L (1) M (1)
#10-24 x 1/2" M4 x 8mm
K (4)
#10-24
N (1)
[Attachment bracket]
P (3)
1/4-20 x 7/8"
Q (3)
1/4-20

Installation Instructions TA210E
5
Installation
Shelf Assembly

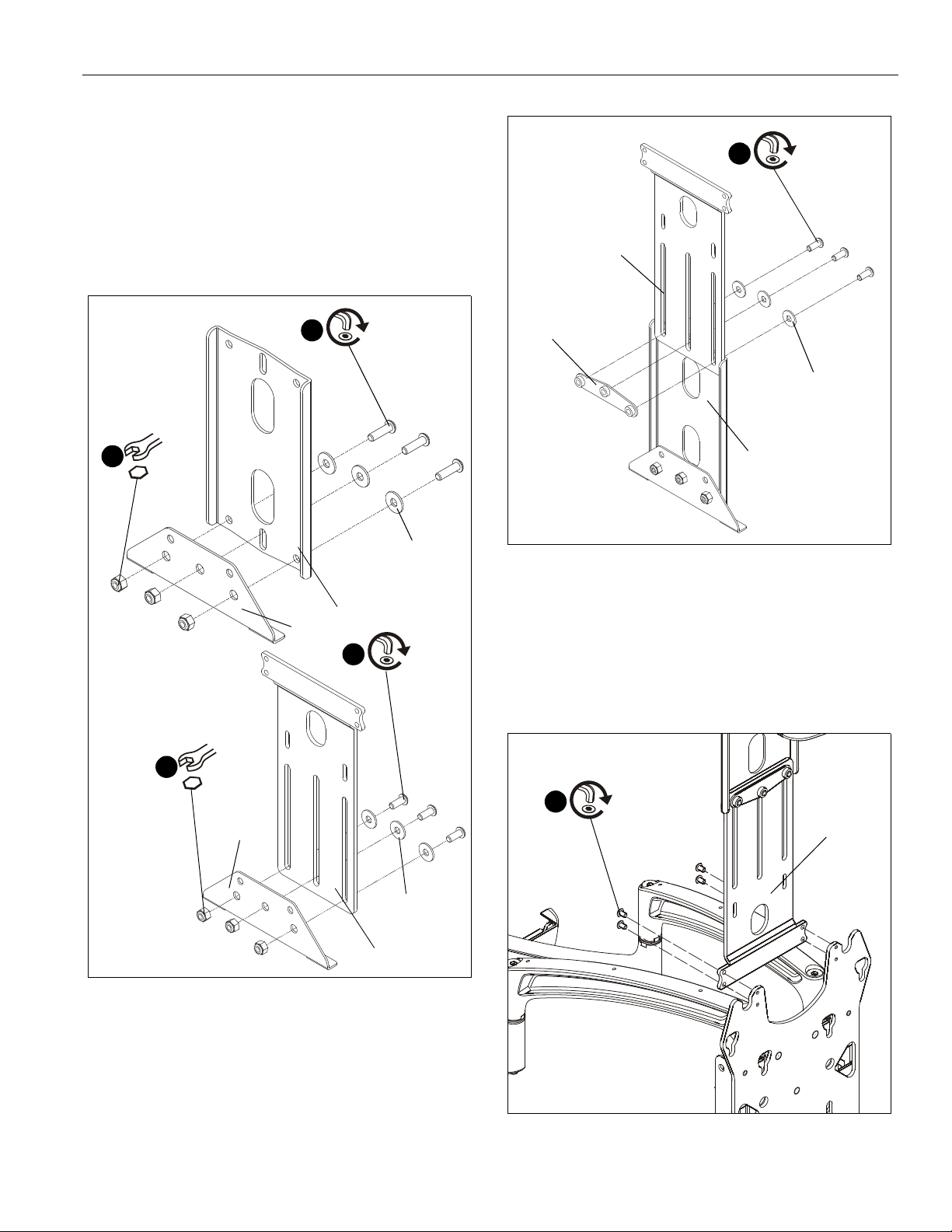

1. Use three 1/4-20 x 7/8" button head cap screws (P), three
1/4" washers (G) and three 1/4"20 lock nuts (Q) to connect
attachment bracket (N) to either extension bracket (B) or
hanging bracket (A). (See Figure 1)
NOTE: Use extension bracket (B) for larger displays or if
component needs to be mounted further from the
display.
Figure 1
2. If using extension bracket, use three 1/4-20 x 5/8" button
head cap screws (F) and three 1/4" washers (G) to attach
extension bracket (B) to hanging bracket (A). (See Figure 2)
Figure 2
Installation to Faceplate
TS525 or iCF50 Installation
NOTE: Display does NOT have to be removed for bracket
installation.
1. Use four #10-24 x 3/8" button head cap screws (E) to
connect hanging bracket (A) to swing arm faceplate. (See
Figure 3)
Figure 3
1
(P) x 3
(G) x 3
(B)
(N)
1
(P) x 3
(G) x 3
(A)
(N)
With extension bracket
Without extension bracket
(Q) x 3
1
(Q) x 3
1
2
(F) x 3
(G) x 3
(A)
(D)
(B)
(display not shown for clarity)
(upper installation)
(A)
(E) x 4
1

TA210E Installation Instructions
6
TS3XX or iCF30 Installation

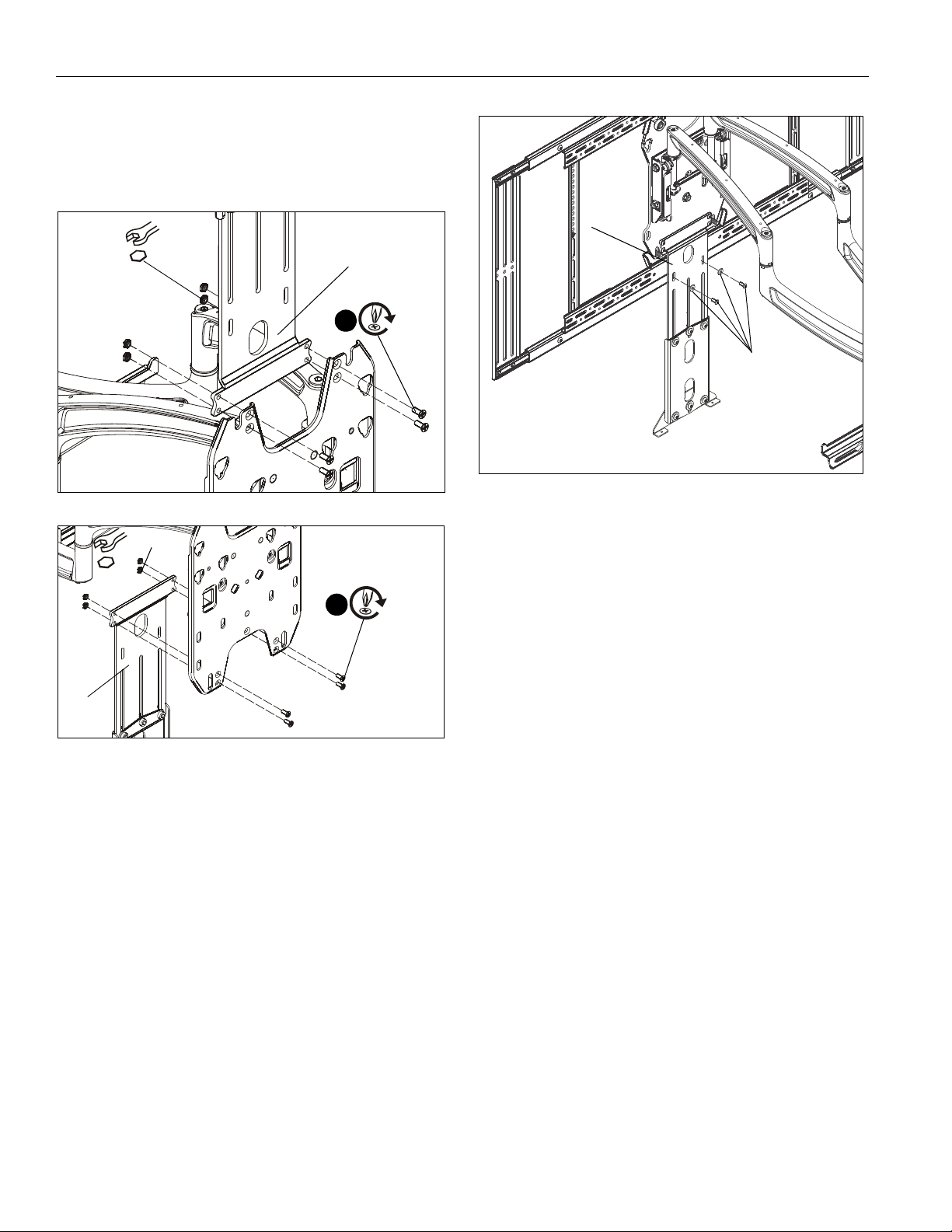

1. If already installed, remove display from faceplate. See
swing arm installation instructions for details.
2. Use four #10-24 x 1/2" Phillips head screws (H) and four
#10-24 lock nuts (K) to connect hanging bracket (A) to
faceplate. (See Figure 4) and (See Figure 5)
Figure 4
Figure 5
3. Reinstall display to faceplate. See swing arm installation
instructions for details.
NOTE: If also installing side speaker brackets (TA300),
hanging bracket (A) should also be attached to TA300
horizontal brackets for additional support. Use
hardware provided with TA300. (See Figure 6)
Figure 6
(A)
(K) x 4
2
(H) x 4
(upper installation)
(display not shown
for clarity)
(lower installation)
(display not shown
for clarity)
2
(H) x 4
(K) x 4
(A)
(A)
TA300 hardware

Installation Instructions TA210E
7
Camera/Component Installation
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all equipment and accessories mounted on the TA210E
brackets does not exceed 10 lbs (4.54 kg) per bracket.

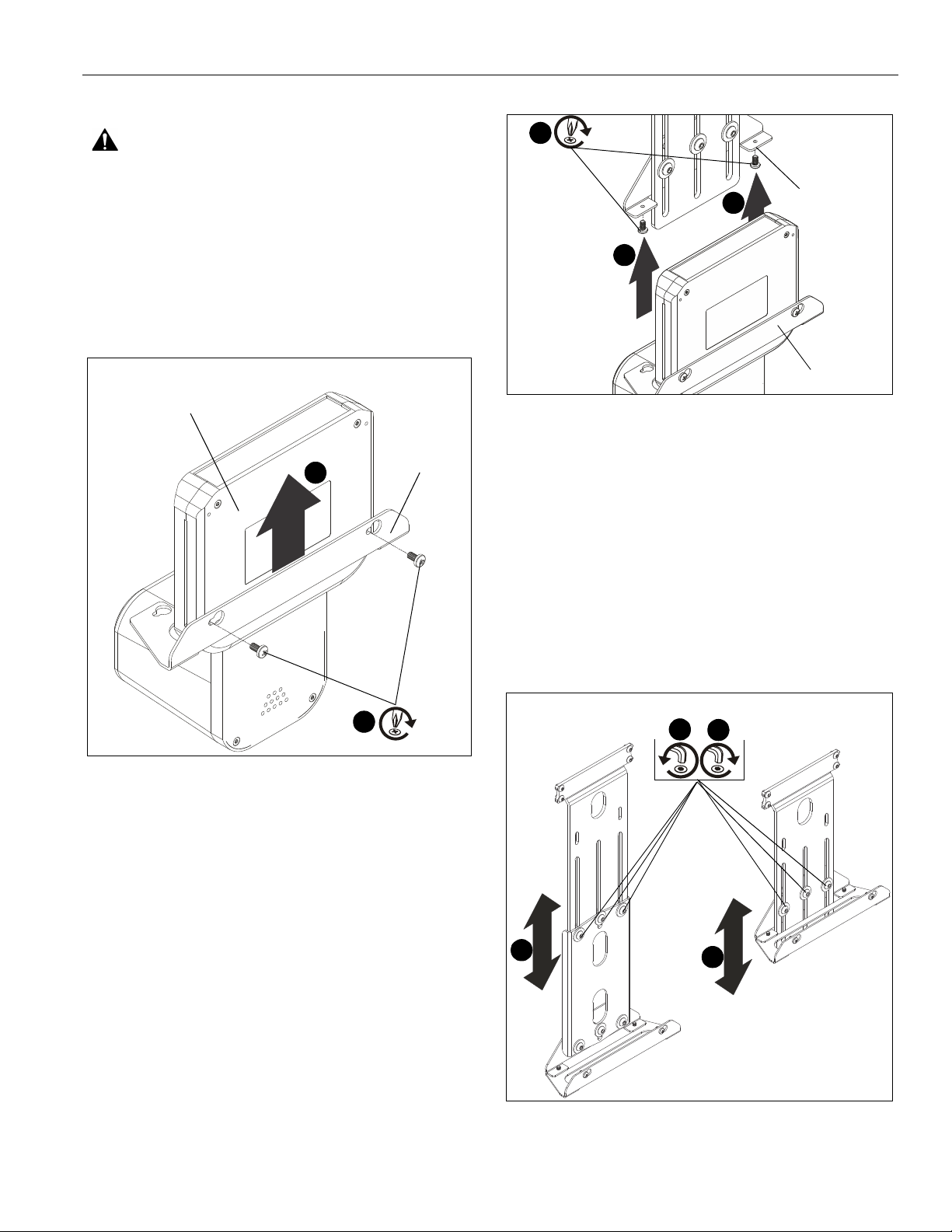

1. Position camera (not included) inside camera bracket (C) so
that camera mounting holes line up with keyholes on back
of bracket. (See Figure 7)
2. Use two M4 x 8mm Phillips pan machine screws (J) to
secure camera bracket (C) to camera. (See Figure 7)
Figure 7
3. Loosely install two M4 x 8mm Phillips pan machine screws
(J) into lower holes on attachment bracket (N). (See Figure
8)
4. Install camera to attachment bracket by placing keyholes on
camera bracket (C) over screws installed in Step 3. (See
Figure 8)
5. Tighten screws (J) to secure camera in position. (See
Figure 8)
Figure 8
Adjustments
Height Adjustment
NOTE: Camera must be removed from mount prior to adjusting
height.
1. Loosen three 1/4-20 x 5/8" button head cap screws (F)
holding extension bracket (B) or camera bracket (C) to
hanging bracket (A). (See Figure 9)
2. Adjust height of shelf (C) as desired.
3. Tighten three 1/4-20 x 5/8" button head cap screws (F)
holding extension bracket (B) or camera bracket (C) to
hanging bracket (A). (See Figure 9)
Figure 9
camera (not included)
2
(J) x 2
1
(C)
(J) x 2
3
4
4(N)
(N)
(C)
2
13
with extension bracket without extension bracket
2

TA210E Installation Instructions
USA/International A 6436 City West Parkway, Eden Prairie, MN 55344
P800.582.6480 / 952.225.6000
F877.894.6918 / 952.894.6918
Europe A Franklinstraat 14, 6003 DK Weert, Netherlands
P+31 (0) 495 580 852
F+31 (0) 495 580 845
Asia Pacific A Office No. 918 on 9/F, Shatin Galleria
18-24 Shan Mei Street
Fotan, Shatin, Hong Kong
P852 2145 4099
F852 2145 4477
8800-003233 Rev02
2021 Legrand | AV
www.legrandav.com
11/2021
