LEGRAND 4 306 31 User manual

LE04752AA
• Discrete indoor IP Camera D1
4 306 31
USER MANUAL

2
Indice
1 Accessories ............................................................................................ 4
2 General Introduction .............................................................................. 5
2.1 Overview ................................................................................................................... 5
2.2 Features .................................................................................................................... 5
2.3 Specications ........................................................................................................... 6
3 Framework .............................................................................................. 13
3.1 Front panel ................................................................................................................ 13

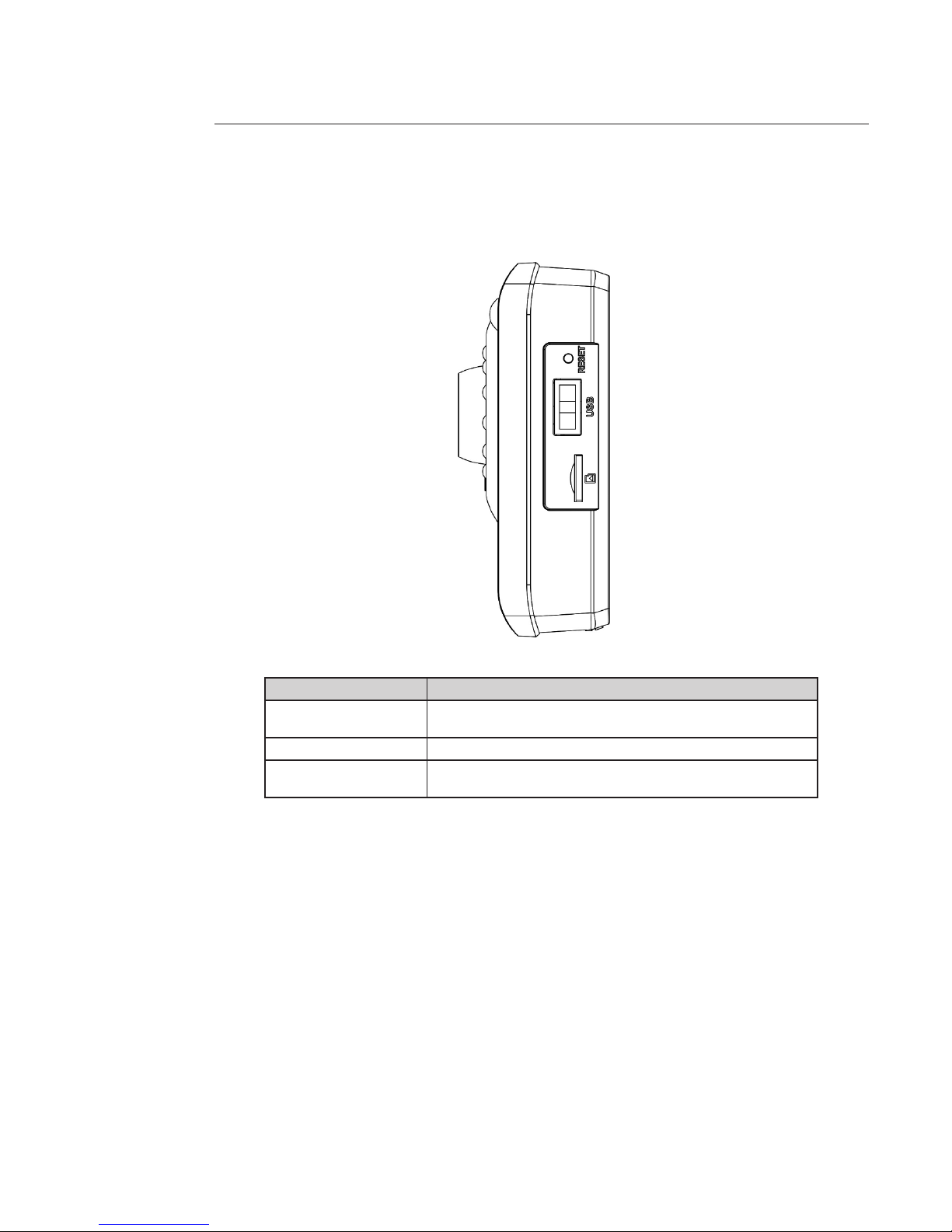

3.2 Side panel ................................................................................................................. 14
3.3 Bottom panel ............................................................................................................ 15
4 Installation ............................................................................................ 16
5 Quick Conguration Tool ..................................................................... 18
5.1 First Connection....................................................................................................... 18
6 Connecting to a Device and Opening the Web Application ............... 26
6.1 PC Conguration ..................................................................................................... 26
6.2 Connection with the Search Tool ............................................................................ 27
6.3 Connection with Internet Explorer ......................................................................... 28
6.4 Login .................................................................................................................... 28
7 Main Interface Introduction ................................................................... 30
7.1 Log in .................................................................................................................... 30
7.2 Monitor Channel Menu Tree ................................................................................. 31
7.3 System Menu ............................................................................................................ 32
7.4 Monitor Window Switch ........................................................................................... 33
7.5 Preview Window Switch ..........................................................................................33
7.6 PTZ Control ............................................................................................................... 33
7.7 Color and More Setup .............................................................................................. 33
8 Congure ............................................................................................... 35
8.1 System Information ................................................................................................ 35
8.2 System Conguration ............................................................................................ 37
8.3 Advanced ................................................................................................................. 53
8.4 Additional Function ................................................................................................59

3
9 Search ................................................................................................ 62
10 Alarm ................................................................................................ 64
11 About ................................................................................................ 65
12 Log out ................................................................................................ 66
Annex 1: No-IP DDNS ......................................................................................................... 67
Annex 2: Using Google Chrome ........................................................................................ 73
Annex 3: Using Firefox ...................................................................................................... 75
Annex 4: Using IE8 .............................................................................................................. 77
Annex 5: Email Function .................................................................................................... 80
Annex 6: Routers conguration ......................................................................................... 83

4
1 Accessories
Name Qty
IP Camera 1
5V power adapter 1
Universal holder 1
Quick Start Guide 1
CD 1

5
2 General Introduction
2.1 Overview
This device integrates traditional camera and network video technology. It adopts audio video data collection,
transmission and storage. It can connect to the network directly without any auxiliary device.
This device uses standard H.264 video compression technology which maximally guarantees the video quality.
It can be used alone or used in a network area.
It can be connected to the network and used from a network client-end.
2.2 Features
User Management Different user rights for each group, one user belongs to one group.
The user right shall not exceed the group right.
Data Transmission Support cable network data transmission via Ethernet.
Reserved extension USB port support WIFI module.
Storage Function
Support central server backup function in accordance with configuration and
setup in alarm or schedule setting.
Support record via Web and the recorded file are stored in the client-end PC.
Support local SD card hot swap.
Alarm Function
Real-time respond to local alarm input and video detection as user pre-defined
activation setup and exert audio prompt(allow user to pre-record audio file).
Realize real-time video detect such as motion detect, camera masking and vi-
deo loss.
Network Monitor
Supports one-channel audio/video data transmission to network terminal.
Max supports 10 connections.
Adopts the following audio and video transmission protocol: HTTP, TCP, UDP,
RTP/RTCP and etc.
Support web access.
Network Management
Configuration and management via Ethernet.
Support device management via web.
Support various network protocols.
Peripheral Equipment Support peripheral equipment connection via the RS232 port.
Support serial port (RS232/RS485) transparent data transmission.
Power External power adapter. Support DC 5V.
Assistant Function
Day/Night mode auto switch (ICR).
Support system resource information and running status real-time display.
Support log function.
Support video watermark function.

6
2.3 Specications
2.3.1 Performances
Model
Parameter
4 306 31
Camera
Sensor Type 1/4-inch CMOS
Pixel PAL: 640 (H) x 480 (V)
IR distance 7-10 m
Video format PAL
Shutter 1/50 - 1/10000s
Min. Illumination Color 0.1Lux/F1.2 B/W 0.01Lux/F1.2 (IR mode 0Lux)
Auto Iris N/A
SNR > 50dB
Video
Standard PAL: 1f/s ~ 25f/s
Encode Capability H.264
Encode Bit Stream
VGA (640 * 480)
QVGA (320 * 240)
CIF (352 * 288)
QCIF (176 * 144)
QQVGA (160 * 120)
Video Recording Speed PAL: 1-ch 1f/s ~ 25f/s adjustable
Network Capacity Max support 10 network users to monitor simultaneously
Power Consumption 3W (IR on)
Power DC 5V
Temperature - 10°C ~ + 55°C
Working Environment Humidity 10% ~ 90%
Dimension (H * W * D) 106 mm * 102 mm * 127 mm

7
2.3.2 Function specication
Specication Note
CCD Video Mirror Support left-right video switch.
Process Flip Support video upside down flip function.
Scene Mode Support scene mode setup.
Video
Resolution VGA, QVGA, CIF, QCIF, QQVGA
Video Compression S Standard H.264 compression format
Motion Detection Take 18*22 pix as a macro unit. Support 396 detection
zones. Sensitivity level ranges from 1 to 6.
Dual-stream 2-ch real-time VGA.
Network
WEB access via IE browser.
PPPoE dial function
DHCP auto get IP address
DDNS
SMTP email function
NTP time synchronization.
DNS domain parse
IP address auto search function
Record
Schedule Record Support max 6 periods.
Manual Record
After enabling manual record, no matter system is in
schedule or alarm status or not, system just begins
recording.
Alarm Record System automatically enables recording function when
alarm occurred.
Motion Detection Record When input video changes, system automatically ena-
bles record operation.
OSD
Time Title Display
There are 255 layers. O is the bottom layer and 255 is
the highest layer. O means completely transparent and
255 is opaque.
Channel Title Display Please refer to the above information.
Privacy Mask Max supports 4 zones.
Storage Network storage based on SDK
Local SD card storage, support high-speed card/low-speed card.
Alarm Integrated PIR
Event Management Send out motion detect alarm notice via email.
Send out the picture via the email.
Control RS232 for debug
On-line Upgrade
Network remote upgrade
Support upgrade tool.
COM upgrade
Upgrade from network via COM command.
Device Management
COM control platform
View IPC running status or IPC parameter via COM port.
Network client-end Log in the client-end software in the PC to monitor IPC.

8
Specication Note
Parameter Congura-
tion
IPC provides user interface, device information, video information, COM setup,
record setup, motion detection setup, alarm setup, OSD information interfaces to
modify system setup.
IPC provides running information such as user port, log, status, user management,
email setup, date modification.
Log
System can record the important event log record Record the following information,
System operation, setup operation, alarm event, record management, user
management, clear log.
Digital watermark Prevent from unauthorized data modification.
Power Supply DC 5V power supply
RESET Support hardware reset. System needs to reboot to activate the default setup.
Port ESD protection
9-pin input/output port
Network port
5V power adapter
Others
One red/green power status indication light.
One yellow network connection indication light
IR light
Installation Bracket installation

9
2.3.3 Factory Default Setup
Function conguration type Item Name Default setup
General Setup
Date format DD MM YYYY
DST Enable
Date separator ‘ / ‘
Time format 24H
Language English
When HDD is full Overwrite
Record duration 8 min
Device No. 8
Video type PAL
Encode Setup
Main stream Channel Channel01
Compression
Audio/Video
H.264
Enable audio and video
General bit stream Main stream
Resolution VGA
Frame rate 12
Bit stream control VBR
Quality High
Bit stream value 1536
I frame interval control 24
Extra stream Extension stream Main stream
Audio/Video enable Enable audio and video
Resolution CIF
Frame rate 12
Bit stream control VBR
Quality High
Bit stream value 396
I frame interval control 24
Image color Brightness: 50
Contrast: 50
Saturation: 50
Hue: 50
Watermark Enable
Stream type: all
Type: Character
Character: DigitalCCTV
Privacy Mask Never
Time title Enable. OSD transparent: 128
Channel title Enable. OSD transparent: 128
Shedule setup
Channel Ch01
Pre-record 5 seconds
Time Setup Start time 0:00:00
End-time 23:59:59
Record All Period: Enable motion detec-
tion/alarm

10
Function conguration type Item Name Default setup
Shedule setup
Time Setup Snapshot All Period : Enable motion detec-
tion/alarm
Week All week
COM Setup
Option COM01
Function Console
Data bit 8
Stop bit 1
Baud rate 115200
Parity None
Network setup
Ethernet Port 01
DHCP Enable
IP address 192.168.1.108
Subnet mask 255.0.0.0
Gateway 192.168.0.1
Device name Compact Soho
TCP port 37777
HTTP port 80
UDP port 37778
Network user connection amount 20
Network transmission QoS Disable
Remote host Multiple broadcast group
Multicast IP Adress 239.255.42.42
Port 36666
Email setup Disable
Multiple DDNs Enable with “No IP” as default
NAS setup Disable
NTP setup Disable
IP Filter Disable
Alarm setup
Event type Local input
Alarm input Input 01, disable
Type Normal open
Period Period: Start time 0:00:00
End time: 23:59:59
All period: enable
Week: All weeks
Anti-dither 0 second
Record channel 1, enable
Record latch 10 seconds
Send email Disable
Alarm setup
PTZ activation Disable
Event type: never
Address: 0
Capture Disable

11
Function conguration type Item Name Default setup
Video detection
Event type Motion detection
Channel Ch01, Enable
Sensitivity 3
Time period setup Period:
Start time 0: 00:00
End time: 23:59:59
All period: enable
Week: All weeks
Anti-dither 0 second
Record channel 1, enable
Record latch 10 seconds
Send email Disable
PTZ activation Event type: Never
Address: 0
Disable
Capture Disable
PTZ Setup
Channel Ch01
Protocol None
Address 1
Baud rate 9600
Data bit 8
Stop bit 1
Parity None
Default and Backup
All Disable
General Disable
Encode Disable
Schedule Disable
RS232 Disable
Network Disable
Alarm Disable
Video detection Disable
Maintain Disable
Channel No. Disable
Advanced
Abnormity Even Type No disk, Disable
Send email Disable
User account admin/admin (reusable)
888888/888888(reusable)
666666/666666(reusable)
default
Snapshot Channel Ch01
Snapshot Snapshot mode Snapshot_Timing
Frame rate 1f/s
Resolution VGA
Quality 60%
Auto maintain Auto reboot Never
Auto delete old
files
Never

12
Function conguration type Item Name Default setup
Camera cong
Channel 1
Exposure Mode Auto
Night Vision Auto
Backlight Compensation N/A
Signal Type INT
Mirror Disable
Flip Disable
Auto Registration
SN 1
IP 0.0.0.0
Port 7000
DNS Setup DNS 202.101.172.35
Alternative DNS 202.101.172.35

13
3 Framework
3.1 Front Panel
Port Port Name Function
Port 1
POWER
Power indication light.
When system is recording, the green light flashes. The interval is
0.5s. When system is running:
The red light becomes on when system boots up.
When system is running properly, the green light becomes on.
When system is upgrading, the red light flashes. The interval is
0.5s.
NETWORK Network indication light. The yellow light flashes when network
connection is proper.
Port 2 / Device lens
Port 3 PIR receiver enclosure Passive IR motion detect port. It can detect the object of the IR
radiant (such as the human body or other heating object.)
Port 4 IR Light It is to send out the IR compensation light to enhance the night
vision effect.
Port 5 Photosensitive resistance It is to sense the environment illumination to open/close the IR
light.

14
3.2 Side Panel
Refer to the following figure for side panel information.
Port Name Function
SD card port Micro SD card port. You can insert the SD card. Please format
the SD card via the WEB if it is your first time to use it.
USB port USB Port. You can connect to the WIFI module or 3G module.
RESET Press it for at least 5 seconds and then release, you can reboot
the device.

15
3.3 Bottom Panel
Refer to the following figure for Bottom panel information.
Port Name Function
I/O Port I/O port, connect to MD9M data converter cable
LAN 10M/100M self-adaptive Ethernet port. Connect to the network
cable.
DC 5V Power input port. Input DC 5V.

16
4 Installation
1- Place the gasket in the universal holder
2- Place the end of the holder to the screw hole in the real panel of the device.
3- Turn the universal holder clockwise to fix the device firmly.
4- Dig three holes in the wall (or in the ceiling) in accordance with the holes of the universal holder.

17
5- Insert the three screws of the universal holder to the holes you just dug, and then fix the screws firmly.
6 - Turn the knob to adjust the IP camera to the suitable angle.

18
5 Quick Conguration Tool
The quick configuration tool allows you to search for a device's IP address, even if it is in another segment
(cameras, DVR, NVR, encoders and decoders) and to modify it. The configuration tool is available on the CD
supplied with the product.
It also allows the software to be upgraded or certain parameters to be modified.
This tool is used to connect to devices with an IP address in the same segment only.
5.1. First Connection
5. 1.1 Connection with the conguration tool (to change the IP address or upgrade a device's internal
software)
To open the software, double click the "ConfigTool.exe" icon on the CD supplied with the product.
To search for devices connected to the network:
- Click the "Refresh" button; the tool will search for devices connected to the network and display it in the form of
a list.

Description
1Number
2Device IP address
3Device TCP port
4Device subnet mask
5Device default gateway
6Device MAC address
7Refresh the list
8Access to the camera's network configuration menu
9Disconnection from the camera's network configuration menu
1234 5 6
789

191919
To connect to a device and open the web application:
- Highlight it (single click in the list).
- Right click the highlighted line.

- Click on "Open Device Web".
- The following web page opens:

If the connection fails:
- either the camera does not have an IP address in the same segment as the PC
(see chapter 5.1.2 to change it),
- or the Internet Explorer security parameters are not set correctly (see chapter 6 to change them).

20
5. 1.2 Connection with the conguration tool (to change the IP address or upgrade a device’s internal
software)
To search for devices connected to the network:
- Click the «Refresh» button; the tool will search for devices connected to the network and display them in the
form of a list (see chapter 5.1.1 for details of the interface).
To connect to a device:
- Highlight it (single click in the list).
- Click on button 8 (or double click on the highlighted line).
- The following window opens:

Function Note
IP address Device IP address
User name Device user name
Password Device password
Port Device TCP port
Login Connection
Cancel Cancel
Click "Login" once the information has been entered.
If the following screen appears, this means that the device address is not in the same IP addresses segment as
the PC on which the configuration tool is currently running. It will therefore not be possible to connect.


- Manually modify the IP address by entering the desired new address.
- Click OK to save the new address in the device.
