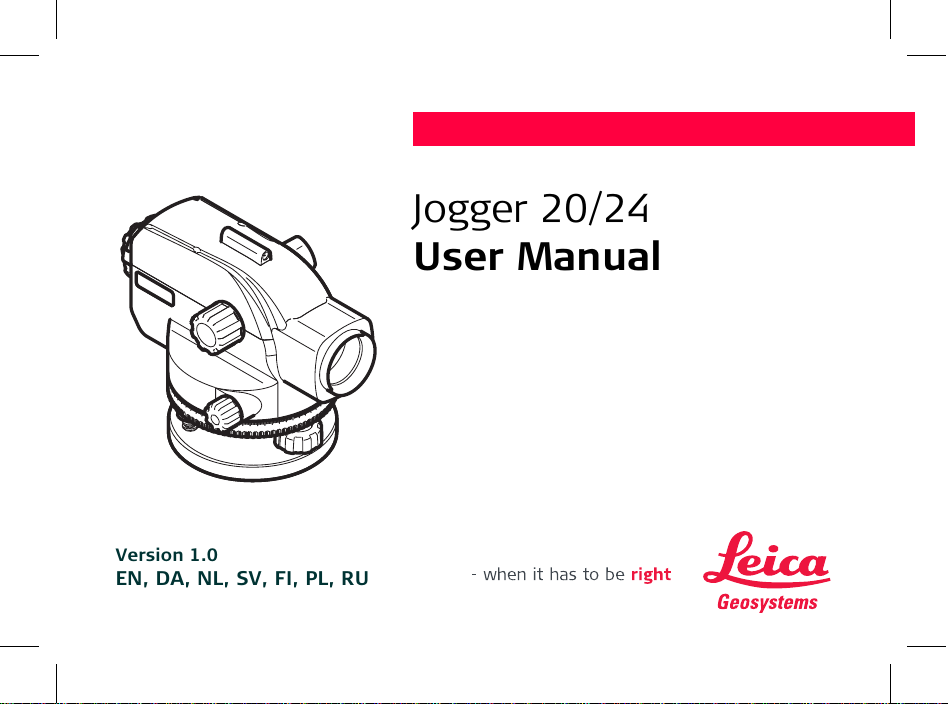

Leica Geosystems Jogger 20 User manual

Jogger 20/24
User Manual
Version 1.0
EN, DA, NL, SV, FI, PL, RU
All manuals and user guides at all-guides.com

all-guides.com

AB
C

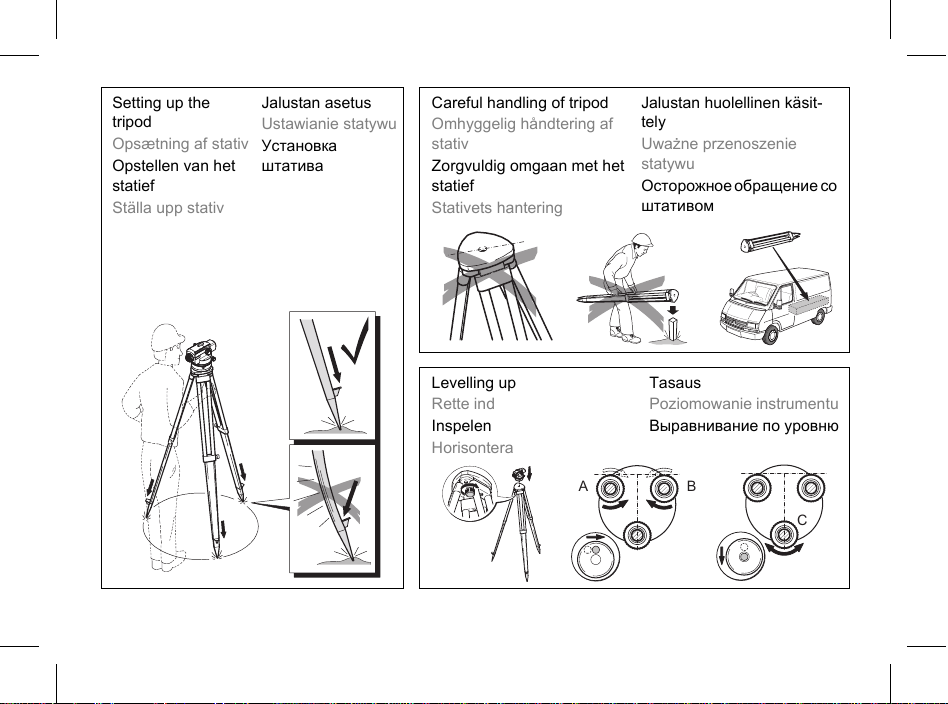

Careful handling of tripod
Omhyggelig håndtering af
stativ
Zorgvuldig omgaan met het
statief
Stativets hantering
Jalustan huolellinen käsit-
tely
Uważne przenoszenie
statywu
Осторожное обращение со
штативом
Levelling up
Rette ind
Inspelen
Horisontera
Tasaus
Poziomowanie instrumentu
Выравнивание по уровню
Setting up the
tripod
Opsætning af stativ
Opstellen van het
statief
Ställa upp stativ
Jalustan asetus
Ustawianie statywu
Установка
штатива
All manuals and user guides at all-guides.com

EN
DA
NL
SV
FI
PL
RU

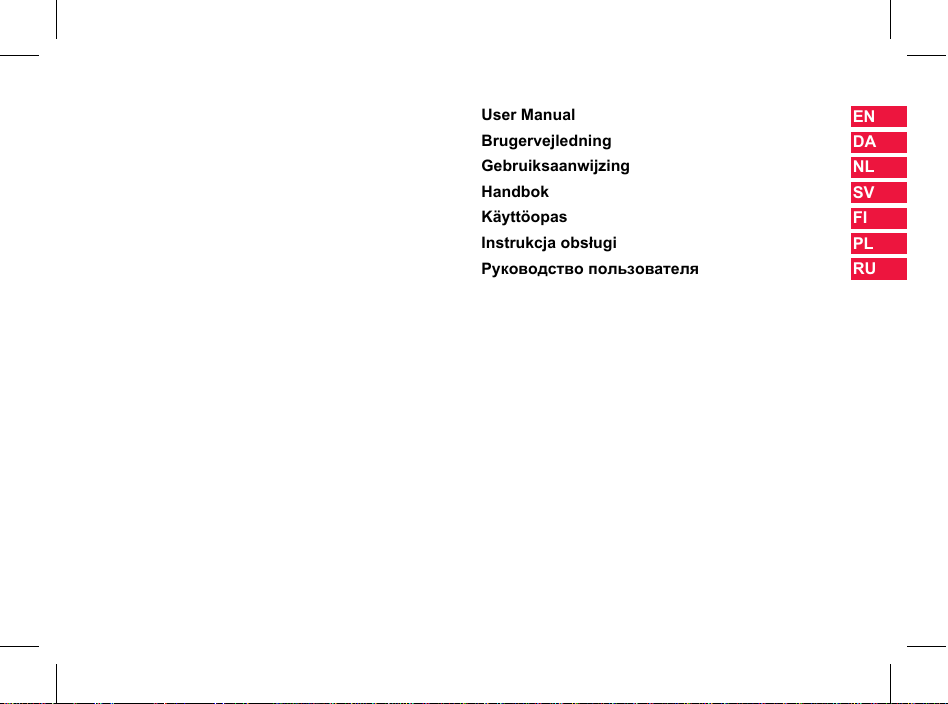

User Manual
Brugervejledning
Gebruiksaanwijzing
Handbok
Käyttöopas
Instrukcja obsługi
Руководство пользователя
All manuals and user guides at all-guides.com

1Jogger 20/24-1.0.0en
EN
DE
FR
ES
PT
IT
NO

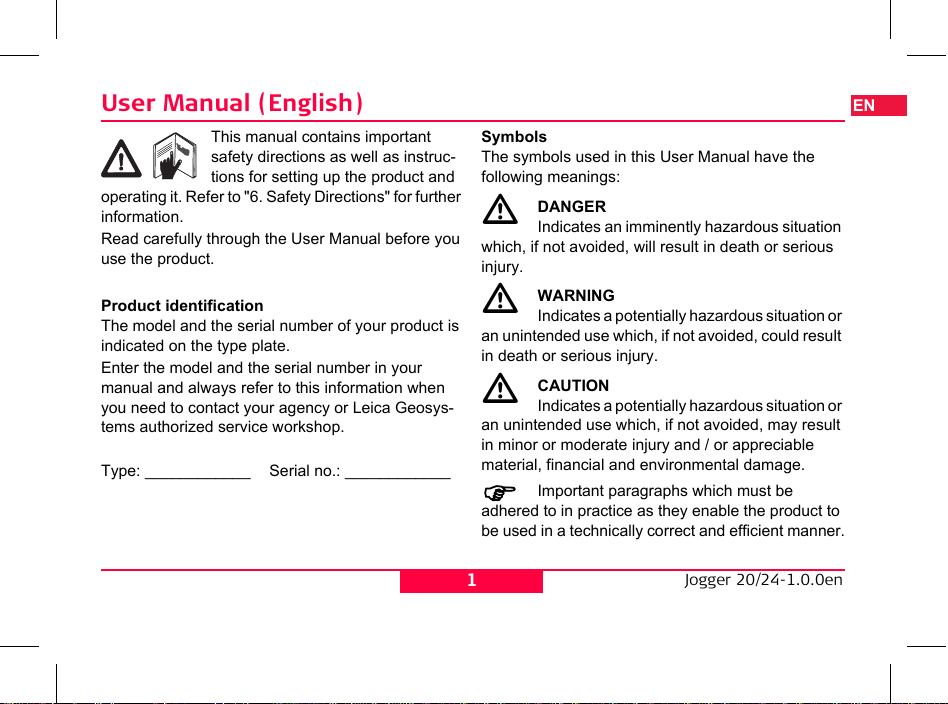

User Manual (English)
This manual contains important
safety directions as well as instruc-
tions for setting up the product and
operating it. Refer to "6. Safety Directions" for further
information.
Read carefully through the User Manual before you
use the product.
Product identification
The model and the serial number of your product is
indicated on the type plate.
Enter the model and the serial number in your
manual and always refer to this information when
you need to contact your agency or Leica Geosys-
tems authorized service workshop.
Type: ____________ Serial no.: ____________
Symbols
The symbols used in this User Manual have the
following meanings:
DANGER
Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious
injury.
WARNING
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, could result
in death or serious injury.
CAUTION
Indicates a potentially hazardous situation or
an unintended use which, if not avoided, may result
in minor or moderate injury and / or appreciable
material, financial and environmental damage.
)Important paragraphs which must be
adhered to in practice as they enable the product to
be used in a technically correct and efficient manner.
All manuals and user guides at all-guides.com

2
Introduction Jogger 20/24-1.0.0en
EN
DE
FR
ES
PT
IT
NO
1. Introduction
The Jogger 20/24 is a modern automatic level for the
construction industry.
It is a level for all construction levelling and alignment
works.
Operating this level is simple. Learning is effortless
and it works for anyone in your team.
• Easy to use
• Fast set-up with side mirror view at bubble
• Smooth foot-screws for ease of adjustment
• Peep sight for quick line up to target
• Dust and water resistant
2. Important parts
a) Footscrew
b) Endless drive (both
sides)
c) Objective
d) Focusing knob
e) Peep Sight
f) Reflecting Mirror
g) Eyepiece
h) Horizontal Circle
i) Circular Bubble
j) Adjustment screw
cover
dc feg
hba b ij
All manuals and user guides at all-guides.com

3Jogger 20/24-1.0.0en
Distance/Angle measurement
EN
DE
FR
ES
PT
IT
NO
3. Distance/Angle measurement
Reading:
Upper distance line: 2.670 m
Lower distance line: 2.502 m
Difference L: 0.168 m
Distance d: 16.8 m
Result: Distance d = 100 x L
1. Align instrument to point A and
Turn Hz-circle to "0".
2. Align instrument to point B and
aim on the centre of the staff.
3. Read off Hz-angle from Hz
circle: Example above:
Hz = 60°
AB
All manuals and user guides at all-guides.com

all-guides.com

4
Checking and adjusting of the
line-of-sight
Jogger 20/24-1.0.0en
EN
DE
FR
ES
PT
IT
NO
4. Checking and adjusting of the line-of-sight
With the circular bubble centred
and adjusted, the line of sight
should be horizontal.
Checking (see example):
1. Choose a distance of appr. 30 m
within a gentle terrain.
2. Set up a staff at both final points
(A, B).
3. Set up the instrument at point I1
(halfway between A and B, just
pass it down) and centre the
bubble.
4. Read both staffs.
reading on A = 1.832 m
reading on B = 1.616 m
∆H = A - B = 0.216 m
5. Set up the level about 1 m from
staff A
6. Read staff A (eg.: 1.604 m)
7. Find nominal reading B; eg.:
Reading A - ∆H = 1.604 m -
0.216 m = 1.388 m
8. Read staff B, compare nominal-
/actual- reading.
)When the difference
nominal-/actual- reading is more
than 3 mm the line of sight must be
adjusted.
1. Turn the adjusting srew until the
middle hair gives the required
reading (eg. 1.388 m).
2. Check line of sight again.
)Before starting field work
or after long periods of storage/
transport of your equipment check
the field adjustment parameters
specified in this User Manual.
dd
A
B
∆H
H=1.832 H=1.616
δδ
I
1
A
B
∆H
δ
I
2
actual = 1.604
nominal
= 1.388
All manuals and user guides at all-guides.com

5Jogger 20/24-1.0.0en
Care and Transport
EN
DE
FR
ES
PT
IT
NO
5. Care and Transport
5.1 Transport
Transport in the field
When transporting the equipment in the field, always
make sure that you
• either carry the product in its original transport
container,
• or carry the tripod with its legs splayed across your
shoulder, keeping the attached product upright.
Transport in a road vehicle
Never carry the product loose in a road vehicle, as it
can be affected by shock and vibration. Always carry
the product in its transport container and secure it.
Shipping
When transporting the product by rail, air or sea,
always use the complete original Leica Geosystems
packaging, transport container and cardboard box, or
its equivalent, to protect against shock and vibration.
Field adjustment
After transport inspect the field adjustment parameters
given in this user manual before using the product.
5.2 Storage
Product
Respect the temperature limits when storing the
equipment, particularly in summer if the equipment is

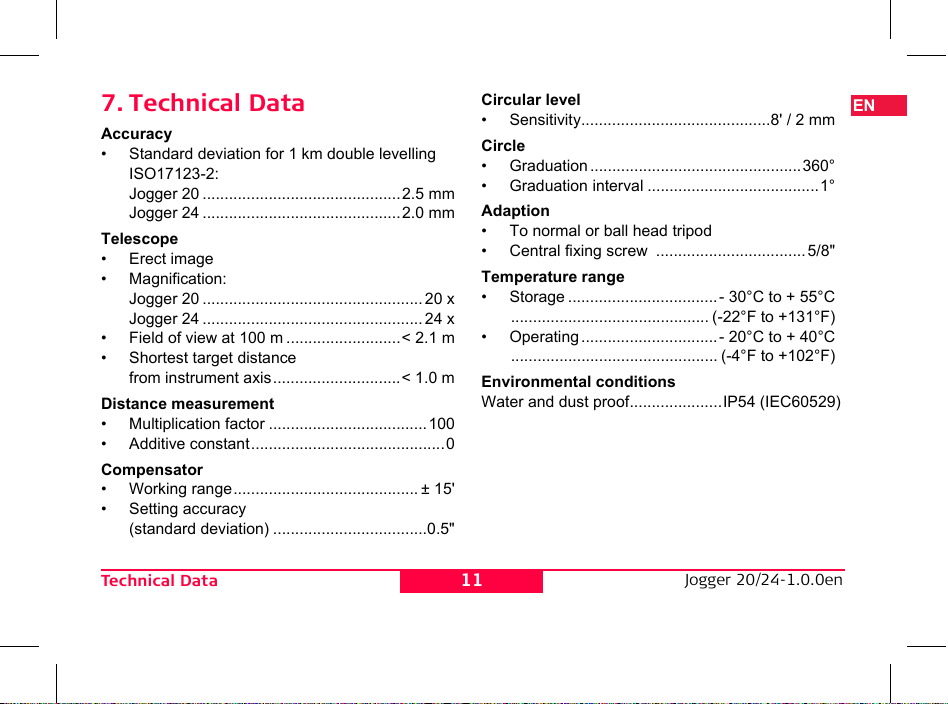

inside a vehicle. Refer to "7. Technical Data" for
information about temperature limits.
Field adjustment
After long periods of storage inspect the field adjust-
ment parameters given in this user manual before
using the product.
5.3 Cleaning and Drying
Product and Accessories
• Blow dust off lenses.
• Never touch the glass with your fingers.
• Use only a clean, soft, lint-free cloth for cleaning.
If necessary, moisten the cloth with water or pure
alcohol.
Do not use other liquids; these may attack the
polymer components.
All manuals and user guides at all-guides.com

6
Safety Directions Jogger 20/24-1.0.0en
EN
DE
FR
ES
PT
IT
NO

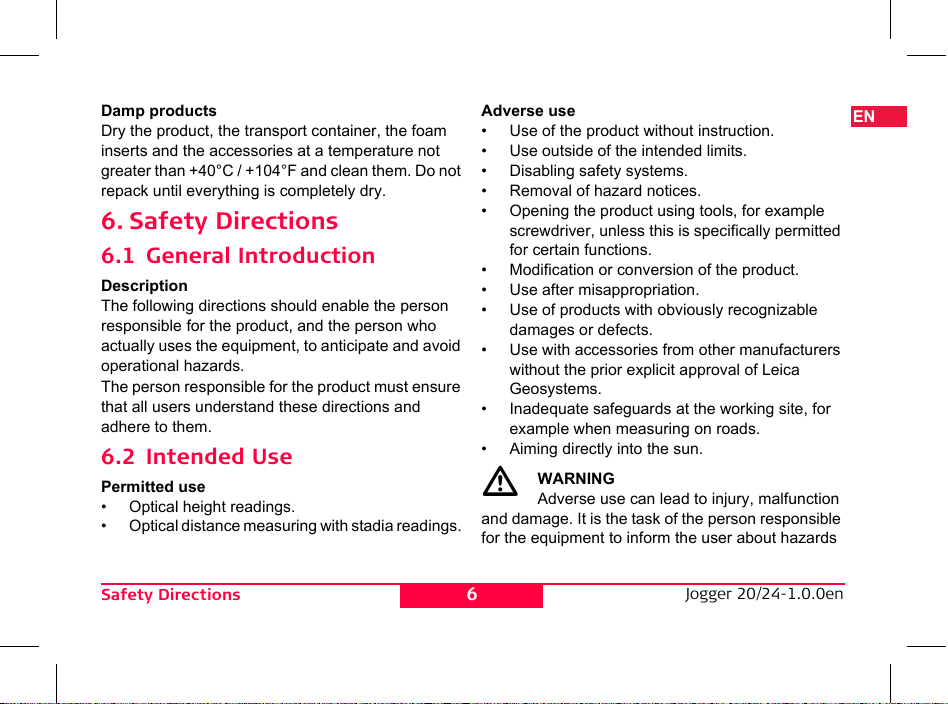

Damp products
Dry the product, the transport container, the foam
inserts and the accessories at a temperature not
greater than +40°C / +104°F and clean them. Do not
repack until everything is completely dry.
6. Safety Directions
6.1 General Introduction
Description
The following directions should enable the person
responsible for the product, and the person who
actually uses the equipment, to anticipate and avoid
operational hazards.
The person responsible for the product must ensure
that all users understand these directions and
adhere to them.
6.2 Intended Use
Permitted use
• Optical height readings.
• Optical distance measuring with stadia readings.
Adverse use
• Use of the product without instruction.
• Use outside of the intended limits.
• Disabling safety systems.
• Removal of hazard notices.
• Opening the product using tools, for example
screwdriver, unless this is specifically permitted
for certain functions.
• Modification or conversion of the product.
• Use after misappropriation.
• Use of products with obviously recognizable
damages or defects.
• Use with accessories from other manufacturers
without the prior explicit approval of Leica
Geosystems.
• Inadequate safeguards at the working site, for
example when measuring on roads.
• Aiming directly into the sun.
WARNING
Adverse use can lead to injury, malfunction
and damage. It is the task of the person responsible
for the equipment to inform the user about hazards
All manuals and user guides at all-guides.com

7Jogger 20/24-1.0.0en
Safety Directions
EN
DE
FR
ES
PT
IT
NO
and how to counteract them. The product is not to be
operated until the user has been instructed on how
to work with it.
6.3 Limits of Use
Environment
Suitable for use in an atmosphere appropriate for
permanent human habitation: not suitable for use in
aggressive or explosive environments.
6.4 Responsibilities
Manufacturer of the product
Leica Geosystems AG, CH-9435 Heerbrugg, herein-
after referred to as Leica Geosystems, is responsible
for supplying the product, including the user manual
and original accessories, in a completely safe condi-
tion.
Manufacturers of non Leica Geosystems acces-
sories
The manufacturers of non Leica Geosystems acces-
sories for the product are responsible for developing,
implementing and communicating safety concepts
for their products, and are also responsible for the
effectiveness of those safety concepts in combina-
tion with the Leica Geosystems product.
Person in charge of the product
The person in charge of the product has the following
duties:
• To understand the safety instructions on the
product and the instructions in the user manual.
• To be familiar with local regulations relating to
safety and accident prevention.
• To inform Leica Geosystems immediately if the
product and the application becomes unsafe.
WARNING
The person responsible for the product must
ensure that it is used in accordance with the instruc-
tions. This person is also accountable for the training
and the deployment of personnel who use the
product and for the safety of the equipment in use.
All manuals and user guides at all-guides.com

8
Safety Directions Jogger 20/24-1.0.0en
EN
DE
FR
ES
PT
IT
NO
6.5 Hazards of Use
WARNING
The absence of instruction, or the inade-
quate imparting of instruction, can lead to incorrect
or adverse use, and can give rise to accidents with
far-reaching human, material, financial and environ-
mental consequences.
Precautions:
All users must follow the safety directions given by
the manufacturer and the directions of the person
responsible for the product.
CAUTION
Watch out for erroneous measurement
results if the product has been dropped or has been
misused, modified, stored for long periods or trans-
ported.
Precautions:
Periodically carry out test measurements and
perform the field adjustments indicated in the user
manual, particularly after the product has been
subjected to abnormal use and before and after
important measurements.
DANGER
Because of the risk of electrocution, it is very
dangerous to use staffs in the vicinity of electrical
installations such as power cables or electrical rail-
ways.
Precautions:
Keep at a safe distance from electrical installations.
If it is essential to work in this environment, first
contact the safety authorities responsible for the
electrical installations and follow their instructions.
CAUTION
Strong magnetic fields in the immediate
vicinity (e.g. transformers, melting furnaces...) may
influence the compensator and lead to measuring
errors.
Precautions:
When measuring near strong magnetic fields, check
results for plausibility.
All manuals and user guides at all-guides.com

all-guides.com

9Jogger 20/24-1.0.0en
Safety Directions
EN
DE
FR
ES
PT
IT
NO

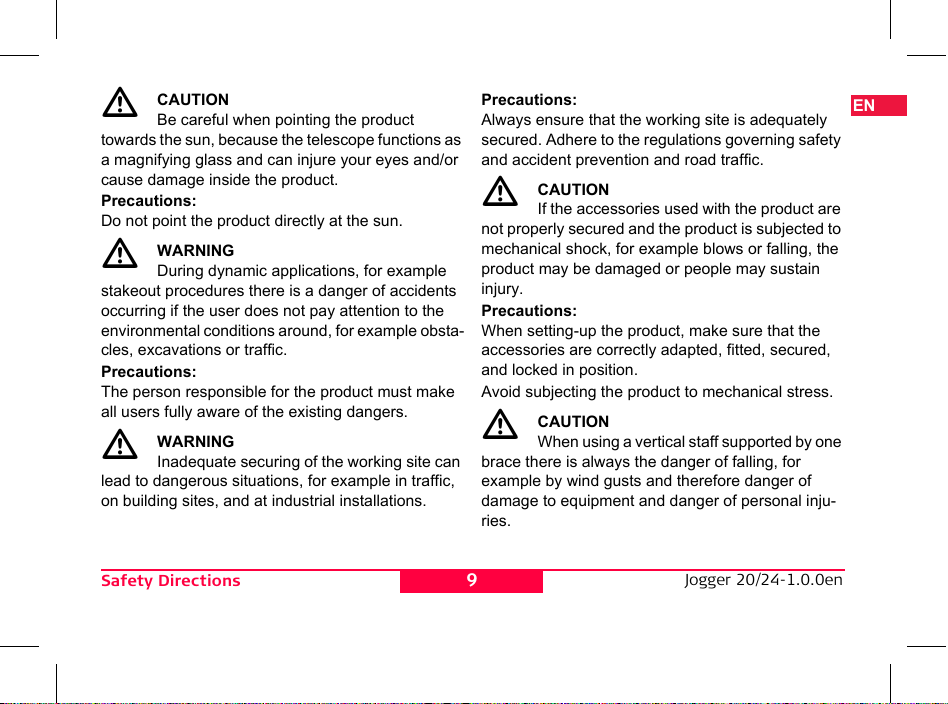

CAUTION
Be careful when pointing the product
towards the sun, because the telescope functions as
a magnifying glass and can injure your eyes and/or
cause damage inside the product.
Precautions:
Do not point the product directly at the sun.
WARNING
During dynamic applications, for example
stakeout procedures there is a danger of accidents
occurring if the user does not pay attention to the
environmental conditions around, for example obsta-
cles, excavations or traffic.
Precautions:
The person responsible for the product must make
all users fully aware of the existing dangers.
WARNING
Inadequate securing of the working site can
lead to dangerous situations, for example in traffic,
on building sites, and at industrial installations.
Precautions:
Always ensure that the working site is adequately
secured. Adhere to the regulations governing safety
and accident prevention and road traffic.
CAUTION
If the accessories used with the product are
not properly secured and the product is subjected to
mechanical shock, for example blows or falling, the
product may be damaged or people may sustain
injury.
Precautions:
When setting-up the product, make sure that the
accessories are correctly adapted, fitted, secured,
and locked in position.
Avoid subjecting the product to mechanical stress.
CAUTION
When using a vertical staff supported by one
brace there is always the danger of falling, for
example by wind gusts and therefore danger of
damage to equipment and danger of personal inju-
ries.
All manuals and user guides at all-guides.com

10
Safety Directions Jogger 20/24-1.0.0en
EN
DE
FR
ES
PT
IT
NO

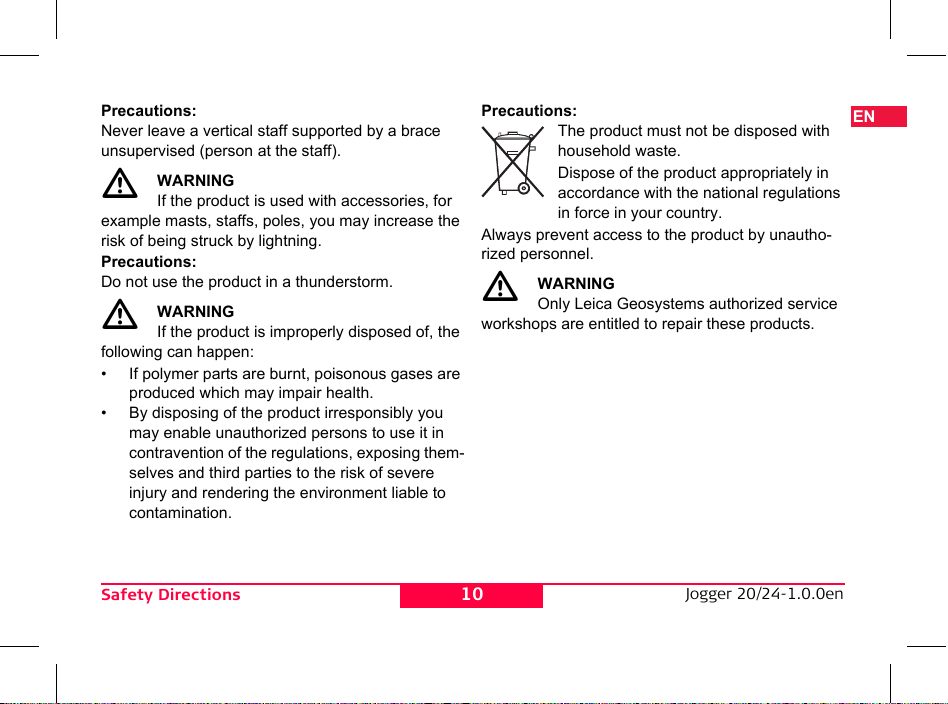

Precautions:
Never leave a vertical staff supported by a brace
unsupervised (person at the staff).
WARNING
If the product is used with accessories, for
example masts, staffs, poles, you may increase the
risk of being struck by lightning.
Precautions:
Do not use the product in a thunderstorm.
WARNING
If the product is improperly disposed of, the
following can happen:
• If polymer parts are burnt, poisonous gases are
produced which may impair health.
• By disposing of the product irresponsibly you
may enable unauthorized persons to use it in
contravention of the regulations, exposing them-
selves and third parties to the risk of severe
injury and rendering the environment liable to
contamination.
Precautions:
The product must not be disposed with
household waste.
Dispose of the product appropriately in
accordance with the national regulations
in force in your country.
Always prevent access to the product by unautho-
rized personnel.
WARNING
Only Leica Geosystems authorized service
workshops are entitled to repair these products.
All manuals and user guides at all-guides.com

11 Jogger 20/24-1.0.0en
Technical Data
EN
DE
FR
ES
PT
IT
NO
7. Technical Data
Accuracy
• Standard deviation for 1 km double levelling
ISO17123-2:
Jogger 20 .............................................2.5 mm
Jogger 24 .............................................2.0 mm
Telescope
• Erect image
• Magnification:
Jogger 20 .................................................. 20 x
Jogger 24 .................................................. 24 x
• Field of view at 100 m ..........................< 2.1 m
• Shortest target distance
from instrument axis.............................< 1.0 m
Distance measurement
• Multiplication factor ....................................100
• Additive constant............................................0
Compensator
• Working range.......................................... ± 15'
• Setting accuracy
(standard deviation) ...................................0.5"
Circular level
• Sensitivity...........................................8' / 2 mm
Circle
• Graduation ................................................360°
• Graduation interval .......................................1°
Adaption
• To normal or ball head tripod
• Central fixing screw ..................................5/8"
Temperature range
• Storage ..................................- 30°C to + 55°C
............................................. (-22°F to +131°F)
• Operating...............................- 20°C to + 40°C
............................................... (-4°F to +102°F)
Environmental conditions
Water and dust proof.....................IP54 (IEC60529)
All manuals and user guides at all-guides.com

EN
DA
NL
SV
FI
PL
RU
1Jogger 20/24-1.0.0da

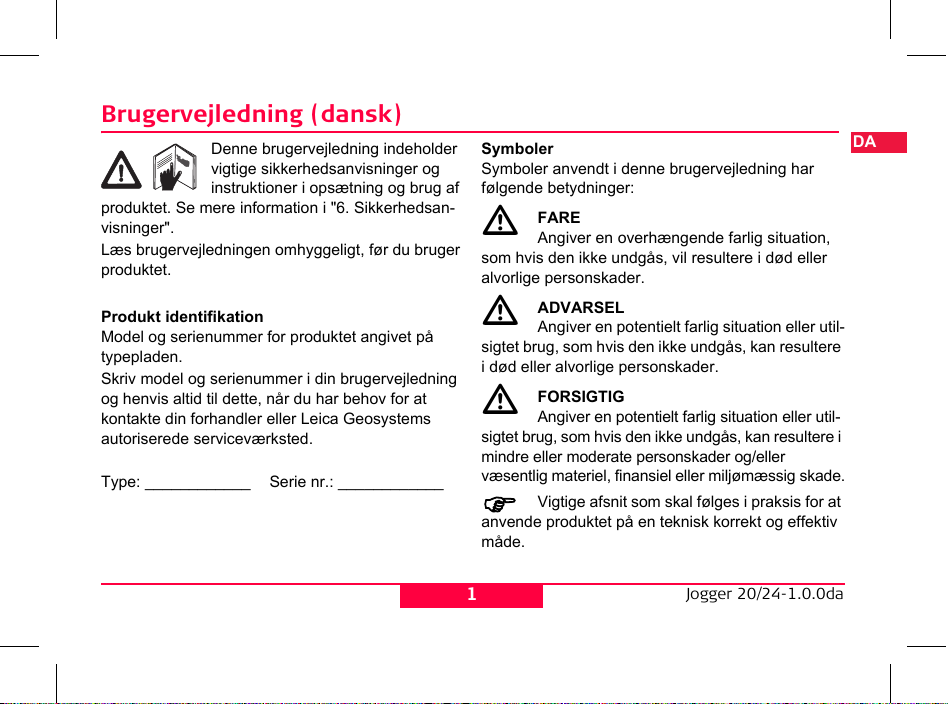

Brugervejledning (dansk)
Denne brugervejledning indeholder
vigtige sikkerhedsanvisninger og
instruktioner i opsætning og brug af
produktet. Se mere information i "6. Sikkerhedsan-
visninger".
Læs brugervejledningen omhyggeligt, før du bruger
produktet.
Produkt identifikation
Model og serienummer for produktet angivet på
typepladen.
Skriv model og serienummer i din brugervejledning
og henvis altid til dette, når du har behov for at
kontakte din forhandler eller Leica Geosystems
autoriserede serviceværksted.
Type: ____________ Serie nr.: ____________
Symboler
Symboler anvendt i denne brugervejledning har
følgende betydninger:
FARE
Angiver en overhængende farlig situation,
som hvis den ikke undgås, vil resultere i død eller
alvorlige personskader.
ADVARSEL
Angiver en potentielt farlig situation eller util-
sigtet brug, som hvis den ikke undgås, kan resultere
i død eller alvorlige personskader.
FORSIGTIG
Angiver en potentielt farlig situation eller util-
sigtet brug, som hvis den ikke undgås, kan resultere i
mindre eller moderate personskader og/eller
væsentlig materiel, finansiel eller miljømæssig skade.
)Vigtige afsnit som skal følges i praksis for at
anvende produktet på en teknisk korrekt og effektiv
måde.
All manuals and user guides at all-guides.com

EN
DA
NL
SV
FI
PL
RU
2Jogger 20/24-1.0.0da
Introduktion
1. Introduktion
Jogger 20/24 er et moderne automatisk nivellerings-
instrument for anlægsvirksomhed.
Det er et nivelleringsinstrument til alle anlægsnivelle-
ringer og linienivellementer.
Betjening af dette nivelleringsinstrument er enkelt.
Det kræver ikke den store anstrengelse at lære, og
det virker for alle i dit team.
• Let at bruge
• Hurtig opsætning med sidespejl til libelle
• Velfungerende fodskruer til let justering
• Synssigte til hurtigt at rette ind mod mål
• Støv- og vand-tæt
2. Vigtige dele
a) Fodskrue
b) Endeløs gang
(begge sider)
c) Objektiv
d) Fokuseringsknap
e) Synssigte
f) Reflekterende spejl
g) Øjestykker
h) Horisontal cirkel
i) Rundt libelle
j) Justeringsskrue-
afdækning
dc feg
hb a b i j
All manuals and user guides at all-guides.com

all-guides.com
