Leica Geosystems TM6100A User manual

Leica TM6100A
User Manual
Version 1.0
English
±¾ÎÄÓÉÌìÀÖ²â»æÍø£¨www.tleer.cn£©ÕûÀíÌṩ

2TM6100A
Introduction
Introduction
Purchase Congratulations on the purchase of a TM6100A instrument.
This manual contains important safety directions as well as instructions for setting
up the product and operating it. Refer to "6 Safety Directions" for further informa-
tion.
Read carefully through the User Manual before you switch on the product.
Product
identification
The type and the serial number of your product are indicated on the type plate.
Enter the type and serial number in your manual and always refer to this information
when you need to contact your agency or Leica Geosystems authorized service work-
shop.
Type: _______________
Serial No.: _______________

Introduction TM6100A 3
Symbols The symbols used in this manual have the following meanings:
Type Description
Danger Indicates an imminently hazardous situation which, if not
avoided, will result in death or serious injury.
Warning Indicates a potentially hazardous situation or an unintended use
which, if not avoided, could result in death or serious injury.
Caution Indicates a potentially hazardous situation or an unintended use
which, if not avoided, may result in minor or moderate injury
and/or appreciable material, financial and environmental
damage.
Important paragraphs which must be adhered to in practice as
they enable the product to be used in a technically correct and
efficient manner.
Trademarks • CompactFlash and CF are trademarks of SanDisk Corporation
• Bluetooth is a registered trademark of Bluetooth SIG, Inc
All other trademarks are the property of their respective owners.
Validity of this
manual Description
General This manual applies to all TM6100A instruments.

4TM6100A
Introduction
Available
documentation Name Description and Format
User Manual All instructions required in order to operate the product
to a basic level are contained in the User Manual.
Provides an overview of the product together with
technical data and safety directions.
 
Name Description and Format
System
Field Manual
Describes the general working of the product in
standard use and specific onboard application
programs. Intended as a quick reference field guide.
 
Technical
Reference
Manual
Overall comprehensive guide to the product and
program functions. Included are detailed descriptions
of special software/hardware settings and soft-
ware/hardware functions intended for technical
specialists.

Refer to the following resources for all TM6100A documentation and soft-
ware
• the TPS6000 Product CD
• http://metrology.leica-geosystems.com/en/Downloads_6843.htm

Table of Contents TM6100A 5
Table of Contents
In this manual Chapter Page
1 Description of the System 8
1.1 System Components 8
1.2 System Concept 11
1.2.1 Software Concept 11
1.2.2 Data Storage and Data Conversion Concept 13
1.2.3 Power Concept 15
1.3 Container Contents 16
1.4 Instrument Components 17
2 User Interface 20
2.1 Keyboard 20
2.2 Hot Key Assignments 24
2.3 Screen 27
2.4 Operating Principles 29
2.5 Icons 35
3 Operation 37
3.1 Instrument Setup 37
3.2 Battery 40
3.2.1 Operating Principles 40

6TM6100A
Table of Contents
3.2.2 Instrument Battery 41
3.3 Working with the CompactFlash Card 43
3.4 Accessing Survey Application Program 46
3.5 Built-in autocollimation device 49
3.6 Connection to Application Computer 51
3.7 Limitation of the horizontal and vertical movements 55
4 Check & Adjust 60
4.1 Overview 60
4.2 Preparation 63
4.3 Combined Adjustment (l, t, i and c) 65
4.4 Tilting Axis Adjustment (a) 69
4.5 Adjusting the Circular Level of the Instrument and Tribrach 74
4.6 Adjusting the Circular Level of the Prism Pole 76
4.7 Inspecting the Laser Plummet of the Instrument 77
4.8 Servicing the Tripod 79
4.9 Adjustment of the autocollimation reticule 80
5 Care and Transport 82
5.1 Transport 82
5.2 Storage 84
5.3 Cleaning and Drying 85
5.4 Maintenance 87

Table of Contents TM6100A 7
6 Safety Directions 88
6.1 General Introduction 88
6.2 Intended Use 89
6.3 Limits of Use 91
6.4 Responsibilities 92
6.5 Hazards of Use 93
6.6 Laser Classification 99
6.6.1 General 99
6.6.2 Laser Plummet 101
6.7 Electromagnetic Compatibility EMC 104
6.8 FCC Statement, Applicable in U.S. 107
7 Technical Data 110
7.1 Angle Measurement 110
7.2 Conformity to National Regulations 111
7.2.1 Communication side cover with Bluetooth 111
7.3 General Technical Data of the Instrument 112
8 International Limited Warranty,
Software License Agreement 119

1 - 8TM6100A
Description of the System
1 Description of the System
1.1 System Components
Main components
TM6100A_001
TM6100A
Component Description
TM6100A • an instrument of highest accuracy for measuring, calculating
and capturing data.
• connected with LGO Tools to view, exchange and manage data.
Application
Software
Third party metrology software with an interface to the TM6100A
for acquisition, analysis, management and reporting of data.
LGO Tools An office software consisting of a suite of standard and extended
programs for the viewing, exchange and management of data.

Description of the System TM6100A 1 - 9
Terminology The following terms and abbreviations may be found in this manual:
Term Description
TPS Total Station Positioning System
LGO Tools LEICA Geo Office Tools
Motorised TM6100A instruments are fitted with internal motors, enabling
automatic horizontal and vertical turning are referred to as
Motorised.
Communication
side cover
Communication side cover with integrated Bluetooth is a compo-
nent with external devices, i.e. laptop with application software.

1 - 10TM6100A
Description of the System
Instrument models Model Description
TM6100A Electronic theodolite, motorised, 0.5" accuracy.
LEICA Geo Office
Tools
• LGO Tools supports TM6100A instruments. It also supports all other Leica TPS
instruments.
•LGO Tools is based on a graphical user interface with standard Windows® oper-
ating procedures.
• LGO Tools provides the following functionality:
Functionality Description
Standard
Functionality
Includes data exchange between computer and instrument, data
management including viewing and editing, reporting, creation
and management of codelists, creation and use of format files for
data conversion, uploading and deleting of system software and
application programs.
• Supported operating systems: Windows® XP, Windows® 2000.
• Refer to the online help of LGO Tools for additional information.

Description of the System TM6100A 1 - 11
1.2 System Concept
1.2.1 Software Concept
Description TM6100A instruments support the following types of software.
Software type Software type Description
System
software
This software comprises the central functions of the instrument.
It is also referred to as firmware.
The programs Survey and Setup are integrated into the firmware
and cannot be deleted.
The English language is integrated into the firmware and cannot
be deleted.
Language
software
Numerous languages are available for the TM6100A instruments.
This software is also referred to as system language.
The system software enables a maximum of three languages
which can be stored at any one time - the English language and
two other languages. The English language is the default
language and cannot be deleted. One language is chosen as the
active language.

1 - 12TM6100A
Description of the System
Software upload All instrument software is stored in the System RAM of the instrument. The software
can be uploaded onto the instrument using the following methods:
• Using LGO Tools the software is transferred via the serial interface to the
CompactFlash card in the instrument, which is then stored to the System RAM.
• By connecting the CompactFlash card directly to the computer either via an
internal card slot housing or an external OMNI drive, the software is transferred
to the card, which is then stored to the System RAM.
Application
programs
A suite of optional specific application programs are available for
the instrument.
Some of the programs are activated freely and require no license
key and others require purchasing and are only activated with a
license key.
Third party appli-
cation programs
There are various third party applications available for the
TM6100A, onboard or computer based software. Please contact
your Leica Geosystems representative for details.
Customised
application
programs
Customised software specific to user requirements can be devel-
oped using the GeoC++ development kit. Information on the
GeoC++ development environment is available on request from a
Leica Geosystems representative.
Software type Description

Description of the System TM6100A 1 - 13
1.2.2 Data Storage and Data Conversion Concept
Description Data is stored within a job in a database on a memory device. This is either a
CompactFlash card or an internal memory.
Memory device CompactFlash card: A CompactFlash card housing is standard. A CompactFlash
card can be inserted and removed. Available capacity:
256 MB and 1 GB.
Whilst other CompactFlash cards may be used,
Leica recommends Leica CompactFlash cards
and cannot be held responsible for data loss or
any other error that may occur when using a
non-Leica card.
Internal memory: An internal memory is always fitted. It resides inside the
instrument. Available capacity: 256 MB.
Unplugging connecting cables or removing the CompactFlash card during the meas-
urement may cause loss of data. Always return to TM6100A Main Menu before
removing the CompactFlash card and switch off the instrument before removing
cables.

1 - 14TM6100A
Description of the System
Data conversion Export
Data can be exported from a job in a wide range of ASCII formats. A standard set of
Export Formats is delivered with the system. Customized export format can defined
in Format Manager which is a PC tool in LEICA Geo Office Tools. Refer to the online
help of LGO Tools for information on creating format files.
Data can also be exported from a job in DXF or LandXML format.
Import
Data can be imported from ASCII, DXF, GSI8 or GSI16 format.
Transfer raw data
to LGO Tools
Raw data can be transferred between the database on the CompactFlash card or the
internal memory of the instrument and LGO Tools in two ways:
• From the CompactFlash card or the internal memory directly via a serial interface
to a project in LGO Tools on a PC.
• From the CompactFlash card using for example an OMNI drive as supplied by Leica
Geosystems to a project in LGO Tools on a PC.
CompactFlash cards can be used directly in an OMNI drive as supported by Leica
Geosystems. Other PC card drives may require an adapter.

Description of the System TM6100A 1 - 15
1.2.3 Power Concept
General Use the Leica Geosystems batteries, chargers and accessories or accessories recom-
mended by Leica Geosystems to ensure the correct functionality of the instrument.
Power options Instrument
Power for the instrument can be supplied either internally or externally. An external
battery is connected to the instrument using a LEMO cable.
Internal battery: One GEB241 battery fitted into the battery compartment.
External battery: One GEB171 battery connected via cable

1 - 16TM6100A
Description of the System

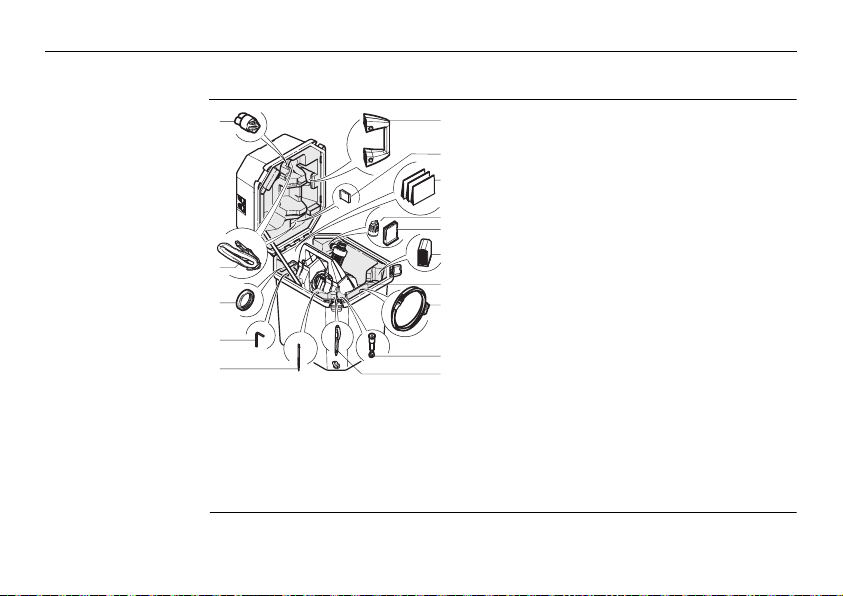

1.3 Container Contents
Container for
instrument and
delivered
accessories
a
b
i
j
l
m
n
o
k
h
f
g
c
d
e
TM6100A_039
a) Protective cover for instrument and
sunshade for objective lens
b) Container straps
c) Counterweight for diagonal eyepiece or
zenith eyepiece - optional
d) Allen key
e) Spare stylus
f) Room for normal handle
g) Compact Flash card with cover
h) User manual
i) Autocollimation lamp AL51 - optional
j) CompactFlash card adapter with cover -
optional
k) Internal battery GEB241 - optional
l) Instrument with supplied stylus and
tribrach
m) Data transfer cable GEV218 - optional
n) Diagonal eyepiece GFZ3 or zenith
eyepiece GOK6 (eyepiece for steep
sighting) - optional
o) Ball pen - optional

Description of the System TM6100A 1 - 17
1.4 Instrument Components
Instrument
components
part 1 of 2

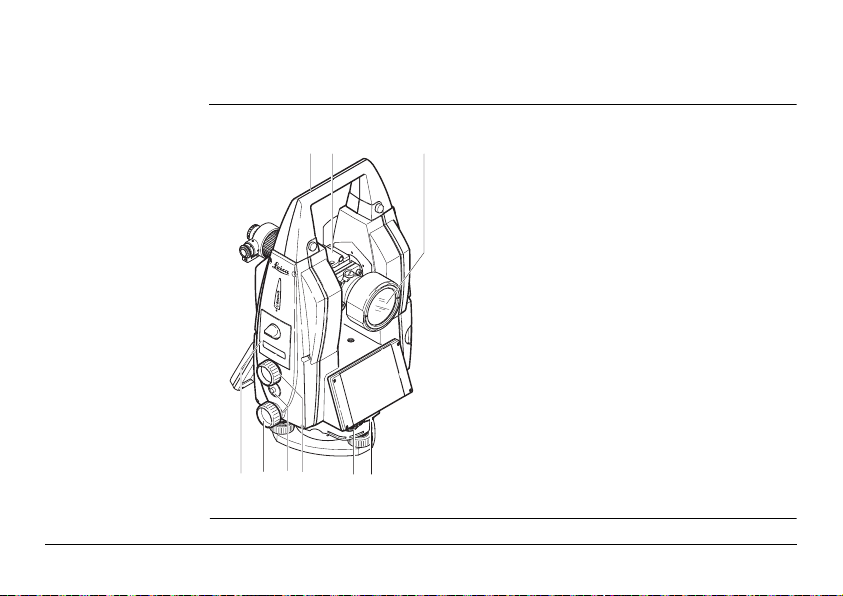

The instrument components of a TM6100A instrument are shown below.
a b c
dfge h i
TM6100A_002
a) Carry handle
b) Optical sight
c) Panfocal telescope
d) CompactFlash card compartment
e) Horizontal drive
f) User defined SmartKey
g) Vertical drive
h) Lemo connector
i) Tribrach

1 - 18TM6100A
Description of the System
Instrument
components
part 2 of 2
j k l m
nq r spo
TM6100A_003
j) Vertical drive
k) Focusing ring
l) Autocollimation device
m) Interchangeable eyepiece
n) Battery compartment
o) Stylus for touch screen
p) Screen
q) Circular level
r) Footscrew
s) Keyboard

Description of the System TM6100A 1 - 19
Internal target An internal target GUS29 may be factory fitted to the telescope of the TM6100A to
facilitate the mutual accurate collimation of two theodolites. Depending on the
measurement task, the internal target can be rotated into or out of position.
a
b
c
TM6100A_004
a) TM6100A
b) Knob to rotate internal target GUS29
c) Panfocal telescope
The internal target GUS29 is rotated into the visible positions when the marker line
on the knob is perpendicular to the line of sight.
When the marker line on the knob is parallel to the line of sight, the internal target
GUS29 is out of sight.

20TM6100A
User Interface
2 User Interface
2.1 Keyboard
Keyboard a
b
c
d
e
f
g
F2F1 F3 F4 F5 F6
SHIFT
PgDn
PgUp
F7
F8 CE ESC
USER PROG
F9
F10
F11
F12 789
456
123
0.
ABC DEF GHI
JKL MNO PQR
STU VWX YZ
/$% _@& *?!
ON
OFF
TM6100A_005
