LEISUREWIZE LW638 User manual

Portable Butane
Cabinet Heater
LW638 - Red
LW639 - Black
Read and understand these instructions before attempting any
operation of this heater and retain for future reference!

WARNING.
1. Read these instructions before using this appliance.
2. Use an approved regulator which is adjusted to the gas supply pressure required,
(NOT supplied).
3. Do not keep pressing the ignition button for more than 40 seconds.
4. Never disconnect the regulator while container valve is open.
5. Do not change gas cylinder in any areas which contain an open flame.
6. Do not expose your container to extreme heat.
7. Do not locate any other container within the space which the heater is used.
8. Do not insert your finger or any other material through the front panel of the heater.
9. Leave at least 1 metre distance between your heater and any other heat source.
10. Do not let unauthorized persons interfere with your heater.
11. Do not place appliance under socket outlet.
12. Don't use the heater in basements, bathrooms or bedrooms.
13. This heater must not be used without a gas container fitted for stability purposes.
14. Do not cover your heater.
15. Fabrics, clothing, hangings, net curtains, bed linens and other flammable materials may
ignite if placed against the outlets of your heater.
16. In the event of a leak, the appliance valve should be turned off and the regulator
disconnected from the container.
17. After use, turn off the appliance at the gas valve.
18. Only use in a well ventilated area.
STORAGE
1. Disconnect container.
2. Store container in a well-ventilated area away from combustible material. Storage should
preferably be in an outhouse but must not be in a basement or high-rise flat.
3. The heater should be covered in a dry, dust-free sheet or in its original packaging.
CLEANING
1. Use a damp cloth (not wet) with a solution of soapy water to clean the exterior and
container storage area of your heater.
2. Make sure that no water gets onto the burners or pilot/light area. Wipe the heater
completely dry before use.
3. Do not use abrasive cleaners as they may damage the quality paint finish.
MAINTENANCE
1. Check flexible tube between regulator and heater before every operation and replace it if
perished, worn or damaged. In any case consider its expiration date to replace the tube
2. It is recommended that the heater is maintained each year by authorized personnel.

1. Ignition Button
2. Control Button
3. Carrying handles.
4. Guard.
5. Atmospheric sensing device, pilot with flame supervision device and ignition system.
1 2
3
5
4

CONNECTING THE GAS TANK
1. Use an approved regulator according to gas supply pressure and approved tubing supplied
with a length of 50cm and no longer than 100cm. When connecting the regulator to the
container avoid twisting of hose.
2. Slowly open the valve of the container and check if there is any gas leakage by brushing the
connections with soapy water. NEVER USE A MATCH! Any gas leakage will form bubbles.
In the event of gas leakage the appliance should be turned off by closing the valve and the
regulator disconnected from the bottle. Place container in its proper space and attach the
rear cover.
HOW TO CHANGE LPG CONTAINER
1. Container must be replaced in a flame-free atmosphere.
2. Do not smoke while changing the container.
3. When you needed to replace your empty container, turn off gas container's valve.
4. Make sure that the heater is extinguished completely.
5. Remove the regulator from the empty container.
6. Following the steps described in "Connecting the gas tank" to connect a filled one.
IMPORTANT
1. It is important that all gas connections have been correctly connected to prevent any leakage.
2. Put gas tank in an upright position. Using the gas tank horizontally may damage your heater
and create serious problems.
3. If a newly fitted gas tank is used, ignition may be impaired as there may be some inert
gas present in the container. In this case, change the gas tank with another which is
partially used.
4. When you light your heater for the first time or if it has not been used in a long time. Please
note; try to light the heater in open air (garden or balcony). Take your heater inside after 15
minutes operation.
5. Do not use your heater while sleeping. Do not use your heater in high-rise flats. Do not use
your heater in basements, bathrooms or bedrooms.
6. This appliance requires a hose (supplied) and a regulator (NOT supplied), check with your gas
supplier. The guard on the appliance is to prevent risk of fire or injury form burns and no part
of it should be permanently removed.

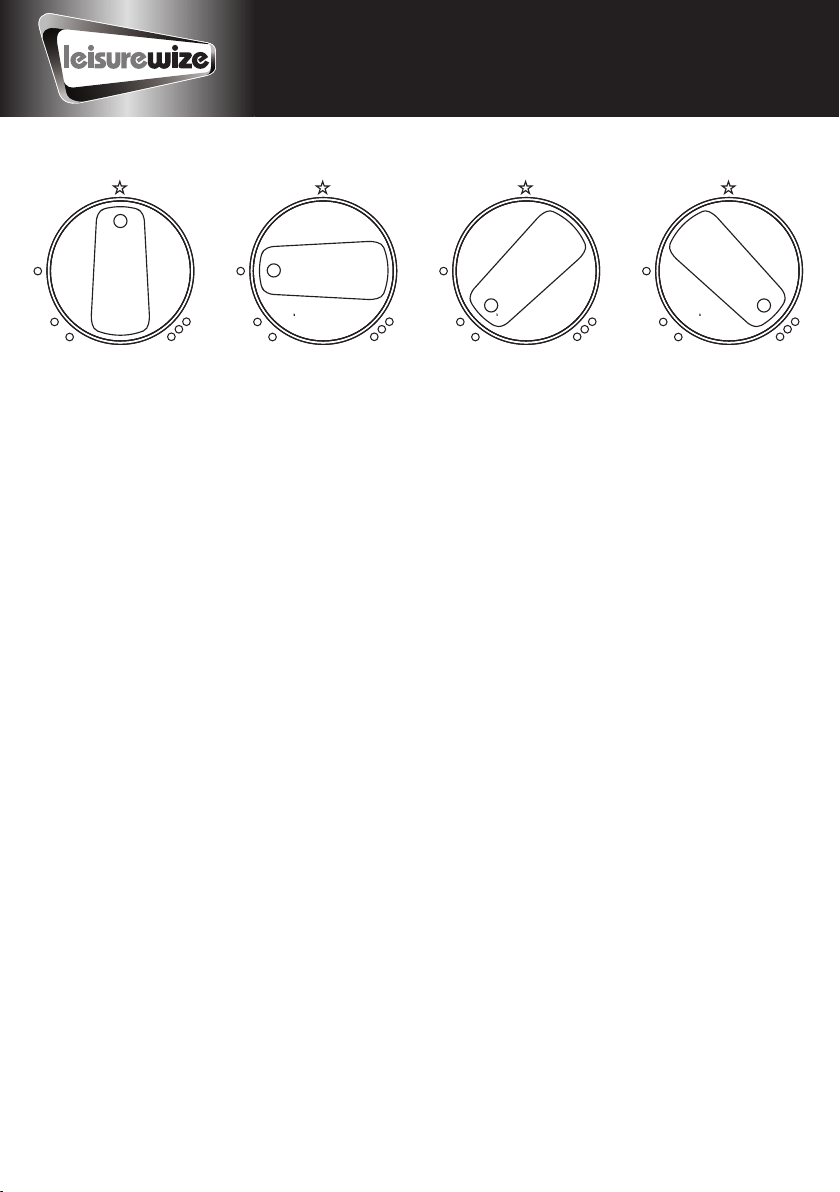

CONTROL BUTTON:
Ignition Position Minimum Position Medium Position Maximum Position
IGNITION INSTRUCTIONS
1. BUTTON POSITIONS:
A. The heater has an ignition setting & 3 gas settings.
Ignition position (I); Minimum position (m); Medium position (mm); Maximum position (mmm);
B. Turn on the gas supply on the gas tank.
2. LIGHTING:
Using one hand Press down the control button for 10 seconds at the position (I), at the same
time press down the piezo igniter key (next to the control button) with thumb of the opposite
hand. Continue this procedure until pilot has ignited. Approximately 20 seconds later slowly
release the control button. If the pilot is ignited, it means that the heater is at its minimum
position (m). If pilot flame goes out, please repeat procedure.
3. HEAT LEVEL SETTINGS:
To change from minimum to medium. Please gently press down the control button and turn it to
position (mm). To change from medium to maximum. Please gently press down the control
button and turn it to position (mmm).
4. SWITCHING OFF:
Please gently press down the control button and turn to position (I). Turn off the gas supply on
the gas tank. If the heater will not be used for a period of time, please disconnect the regulator
from the gas tank and replace any valve protection plug or cover. If the heater fails to extinguish,
please do not disconnect the regulator from the container and remove the heater outdoors and
let the gas in the container empty.
PLEASE NOTE:
Please be sure the control button has been locked after changing it’s position. Control button can't
be turned if you haven't pressed it down to turn.

NOTE: READ THE INSTRUCTIONS BEFORE USING THIS APPLIANCE. VENTILATION: USE ONLY
IN A WELL-VENTILATED ROOM. DO NOT CHANGE GAS CYLINDER IN THE PRESENCE OF
NAKED flames.
THIS APPLIANCE REQUIRES INSTALLATION BY A COMPETENT PERSON THIS APPLIANCE REQUIRES
AN APPROVED HOSE AND REGUALATOR CHECK WITH YOUR GAS SUPPLIER.
1. Always use Heater in
accordance with user's
instructions supplied with
each heater. Keep this
instructions in a safe place.
2. DO NOT place clothes or
other material on the heater.
As apart from danger of fire,
their presence could affect
the efficiency of the
appliance.
3. DO NOT position Heater
close to armchairs ,
fabrics, bed linen and
other furniture.
4. DO NOT move Heater
from room to room
when operating.
5. DO NOT position the heater
alongside a wall or near
curtains and other
flammable materials. The
following minimum distances
should be used: 20cm from
sides, 150cm from front.
ALWAYS face heater towards
center of room. placing on a
surface where it can twist on
its castors if knocked by a
child or dog etc.
6. In the event of gas leakage.
Extinguish all naked flames. turn
off the heater's gas supply. DO
NOT disconnect the regulator.
Check all connections. Slowly turn
the gas on and brush the
connections with soapy water, any
gas leak point will form bubbles. If
a leak is found, turn the gas OFF
and inform your gas supplier. DO
NOT use the heater until it has
been checked & maintained by a
qualified engineer.
SAFETY PRECAUTIONS:

SYMPTOMS FAULT REMEDY
1. Pilot will not light
automatically.
No spark across electrode gap. (a) Ensure that pizeo-electric
igniter is functioning
correctly.
(b) Check that electrical lead
is not damaged.
2. Pilot will not light
automatically but points (a)
to (e) are satisfactory and
the pilot will light with a
match.
Incorrect position of spark in
relation to pilot gas flow.
Re-position spark plug so that
spark jumps across gas flow.
3. Heater will not remain alight
when pressure is released
from ignition button.
Electro-magnetic valve closes
whilst heater is alight.
(c) Ensure that thermocouple
probe is located in pilot
flame.
(d) Ensure good connection
between thermocouple
and valve.
(e) Check thermocouple.
(f) Check electromagnetic
valve.(by gas engineer).
4. After changing to maximum
position with all three
plaques alight. One or more
plaques appear below
normal intensity.
(a) Blocked jets.
(b) Partially blocked supply
tube.
(a) Remove and clean blocked
jet.
(b) Remove supply tube,
remove jets and blow
through the tube.
5. Difficulty in cross lighting
from position 1 to position
2 or 3.
(a) Air draught directed away
from first plaque.
(b) Position of the pilot flame.
(a) Change the location of the
appliance so that it is not
adversely affected by air
draught.
(b) Position pilot so that flame
impinges across bottom
corner of 2nd plaque as
well as 1st plaque.
6. Smell of combustion. Missing piece of ceramic
fireclay.
Inspect perimeter of each
plaque and locate place
where some fireclay has
been displaced. Check with
qualified engineer.
FAULT FINDLING CHART
(REPAIR TO BE CONDUCTED BY AUTHORISED PRESONNEL ONLY)

Streetwize Accessories:
Unit 1, Royce Trading Estate, Ashburton Road West,
Trafford Park, Manchester M17 1RY
Sales enquiries: [email protected]
Technical enquiries: [email protected]
Telephone: [phone]
www.streetwizeaccessories.com
WARRANTY: The 12 month warranty on this product will need to be activated within 30 days
of purchase, please go to our web site and click on the “Warranty” link and enter your details
on the warranty screen. www.streetwizeaccessories.com.
M17 1RY
Specifications:
Heat Load: 1.4Kw (min), 2.8Kw (mid), 4.2Kw (max).
Heating Area: 60 cubic metres.
Gas Consumption: 110g/hr (min), 200g/hr (mid), 305g/hr (max).
Gas flameout, ODS & Anti-tilt safety features.
Piezo electric ignition switch.
3 Pce ceramic heating plates with safety grill.
Includes hose & clips (x2).
LW638 - Red
Gas Type: Butane
Gas Pressure: 28-35 mBar
Quantity: 1 Pce
Weight: 8.5 Kg
Product dimensions: 425mm (W) x 390mm (D) x 730mm (H)
Please Note: This Portable Butane Cabinet Heater is NOT supplied with a
regulator. These are available from most Butane gas suppliers.
Please Note: Do NOT dispose of the packaging until you
are completely satisfied with the product.
