LEM .35 HP Operation instructions

LEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.com
LEM MEAT GRINDER
LEM Products
1-877-536-7763 www.lemproducts.com
USE AND MAINTENANCE INSTRUCTIONS
LEM is the exclusive distributor of Fabio Leonardi Grinders in the U.S.A.
FOR ELECTRIC MEAT GRINDERS
.35 HP .75 HP 1.0 HP 1.5 HP
PLEASE READ BEFORE OPERATING EQUIPMENT
IMPORTANT WARRANTY INFORMATION PLEASE READ
FILL OUT AND RETURN ENCLOSED WARRANTY CARD
THIS WARRANTY COVERS THE LEONARDI MEAT GRINDERS.
THE WARRANTY IS EXTENDED TO THE ORIGINAL PURCHASER ONLY.
WARRANTY DURATION: This product is warranted to the original purchaser for a period of two
(2) years from the original purchase date. EACH UNIT COMES WITH A WARRANTY CARD, WHICH
MUST BE FILLED OUT COMPLETELY AND RETURNED IMMEDIATELY, WITH A COPY OF THE
PURCHASING RECEIPT. FAILURE TO RETURN YOUR WARRANTY CARD WILL LIMIT WARRANTY
TO 90 DAYS WITH PROOF OF PURCHASE.
WARRANTY COVERAGE: This product is warranted against defective materials or workmanship.
The warranty is void if the product has been damaged by accident, misuse, neglect, modication
or improper service or repairs by unauthorized personnel. It is also void if damaged in shipment
or by other causes not arising out of defects in the materials or workmanship. This warranty does
not extend to any units which have been in violaton or written instructions furnished, or to units
which have been altered or modied.
WARRANTY DISCLAIMERS: This warranty is in lieu of all warranties expressed or implied, and no
representative or person is authorized to assume any other liability in connection with the sale of our
products. There shall be no claims for defects or failure of performance under any theory of sort,
contract or commercial law including, but not limited to negligence, gross negligence, strict liability
or breach of contract.
The manufacturer declines all responsibility for damage to persons, things or animals arising from
the failure to comply with the norms contained in this manual. The manufacturer reserves the right
to make modications at anytime to the models while maintaining the main characteristics described
herein. The manufacturer also declines all responsibility for any errors in compiling this manual.
WARRANTY PERFORMANCE: During the above two year warranty period, a product with a defect
will either be repaired or replaced after the product has been inspected by an LEM Service
Technician. NO PRODUCT WILL BE EVALUATED UNLESS THE ORIGINAL SALES RECEIPT OR THE
WARRANTY CARD IS ON FILE. The repaired product will be in warranty for the balance of the
two year warranty period. No charge will be made for such repair or replacement.
IMPORTANT NOTICE: If any parts are missing or defective, please contact our Customer Service
Department for assistance at 1-877-536-7763. (M-F 8:30am to 4:30pm EST) DO NOT RETURN TO
THE STORE WHERE THE GRINDER WAS PURCHASED.
LEM PRODUCTS MERCHANDISE RETURN POLICY WARRANTY SERVICE:
To obtain service under terms of this warranty, please contact us at 1-877-536-7763 to obtain
authorization prior to returning the merchandise. No merchandise will be accepted without prior
authorization. Please return the product pre-paid in the original packaging if possible, enclose a
copy of your receipt, (Keep a copy of your proof-of-purchase for your records.) and include a
written explanation of the issue. Ship to LEM Products, 4440 Muhlhauser Road, West Chester, OH 45011.
LEM Products is not responsible for damage incurred in shipping, make certain to pack product properly.
Return shipping charges are the responsibility of the purchaser. Packages returned to LEM should be
insured for the value of the product to cover any damages that may occur during shipping.
4440 Muhlhauser Road, West Chester, OH 45011

LEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.com LEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.com
2 3
SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed to reduce the risk of
re, electric shock, and injury to persons, including the following:
1. Read all instructions before using the appliance.
2. Place unit on a rm level surface.
3. To avoid re or shock hazard, plug the appliance directly into a 120V AC electrical outlet.
4. To protect surfaces from damage, lift, do not push or pull unit.
5. Use extreme caution when operating grinder in the presence of children.
KEEP OUT OF REACH OF CHILDREN
.
6. Always unplug unit when not in use, when changing parts or cleaning.
7. When unplugging, be sure to pull by the plug and not the cord.
8. To disconnect unit, turn switch to OFFposition, then remove plug from outlet.
9. Never use ngers to push meat into grinder head. Always use the meat stomper provided.
10.Thoroughly clean the unit and all parts after each use with hot soapy water.
ALWAYS KEEP WATER AWAY FROM ELECTRICAL MOTOR
.
11.Use appliances only for intended household use as described in this manual. Any other use not
recommended by the manufacturer may cause a malfunction or injury. The use of attachments
not recommended or sold by LEM Products may cause hazards and will void warranty.
12.To avoid the risk of re, do not use extension cords. If an extension cord must be used
temporarily, be certain that it is a #12 wire.
13.Do not attempt to repair or adjust any electrical or mechanical functions on this unit without contacting
an LEM repair technician Toll Free at 1-877-536-7763.Doing so will void warranty. Servicing should be
performed as directed by qualied personnel only.
14.Discontinue use if plug or outlet is hot. It is recommended that the outlet be replaced if plug or
outlet is hot to the touch.
FOR SAFETY, DISCONNECT GRINDER WHEN NOT IN USE:
Do not operate unit without meat. Do not overload unit when grinding. When grinder is turned
o, cooling fan will no longer operate. Do not touch housing during cool down period. Housing
will take a few minutes to cool down after unit is turned o. Store unit in a cool dry area.
CIRCUIT BREAKER INFORMATION:
Your LEM grinder is equipped with a circuit breaker to protect the unit. In the event of a power
disruption, abnormal operation or over heating, the motor will temporarily shut down to prevent
damage. If this should happen, follow the seven steps listed below.
Step 1: Turn On/O switch to o.
Step 2: Unplug unit.
Step 3: Check inside of grinding unit and remove any obstruction.
Step 4: Wait 1 or 2 minutes, then plug unit into wall outlet again.
Step 5: Push Restart Button and release. (Located on back panel of grinder.)
Step 6: Turn switch on.
Step 7: Resume Operation.
TROUBLE SHOOTING:
If your unit fails to operate, contact LEM Products technical assistance toll free at 1-877-536-7763.
If meat is mashing instead of extruding in strings from the grinding plate, chill the meat to 40°, and
check to see that the plate and blade are properly installed. For an overheated plug or grinder
housing discontinue use and contact technical assistance toll free at 1-877-536-7763.
This product is equipped with a polarized AC (Alternating Current) plug (a plug having one blade
wider than the other). This plug will t into the power outlet only one way. (If the plug does not t
fully into the outlet, reverse the plug, if it still does not t, contact a qualied individual to install the
proper outlet. DO NOT DEFEAT THE SAFETY PURPOSE OF THIS POLARIZED PLUG IN ANY WAY.
ASSEMBLY: (See Diagram, Page 6)
1. BEFORE USING: Wash all parts of the head in hot soapy water. This will remove any grease
residue and dirt left from the manufacturing process. DO NOT PUT PARTS IN DISHWASHER.
2. Remove retaining ring (#8), grinding plate (#7), knife (#6) and screw feeder (#4) from the head
(#1). Be sure that the locking screw (not shown) on side of motor coupler is back all the way out.
Insert head into the motor coupler with the at portion of the head’s collar positioned directly
under the locking bar of the motor coupler. Turn the head to the left so the locking bar ts into
the slot in the collar of the head. Tighten the locking screw against head of collar.
3. Insert screw feeder (#4) into head and turn until the worm gear drive slips into the at shaft
of the motor.
4. Place the knife (#6) on square auger stud (#5) of screw feeder (#4) with blades facing out.
5. Place grinding plate (#7) on screw feeder stud in front of knife. Make sure notch in plate is on
locating stud in head. (Cutting edge of knife should be facing and ush against the grinder plate.)
6. Screw retaining ring (#8) on head until tight. Hand-tighten as tight as you can. Do not
over-tighten. Over-tightening will cause undo wear on the knife and plate of the grinder. If ring
is not tight enough, meat may mash instead of being cut by the knife. A dull knife or plate will
also cause mashing of the meat. If mashing occurs, disassemble the grinder, remove all meat
from grinder and plate, reassemble grinder and tighten ring tighter than it was previously
before beginning to grind meat again.
7. Insert meat pan (#9) into head securely.
OPERATING INSTRUCTIONS
GRINDING: When making burger from wild game, add a minimum of 10% pork fat to the meat.
This will give the burger moisture, but still not make it fatty. If pork fat is not available, use beef fat.
Never use beef suet. Suet is too hard and the burger will be cooked before the suet melts causing
suet particles to remain in the burger.
Cut meat into small pieces that will easily t into the throat of the grinder head. Meat should be 40°
or colder and free of gristle and sinew. Feed meat slowly into the throat of the head. Use the meat
stomper to push meat into the throat of the head. Do not force meat. NEVER USE FINGERS
TO PUSH MEAT INTO THE HEAD. Grind meat through the coarse plate rst, turn motor o and
unplug the grinder. Then, remove the coarse plate and clean the head of sinew, fat or gristle that
has accumulated during the rst grind. Assemble the unit with the ne plate, plug grinder in and
regrind the meat. If meat mashes instead of coming through the plate in “strings”, see #6 under
assembly section in this manual.
STUFFING SAUSAGE CASINGS: When making sausage, use at least 20% fat with your meat and
grind it like burger. Mix the seasoning with the meat after the rst grind and grind a second time.
For a coarser grind, grind the meat through the 3/16” plate once, then mix the seasoning with the
meat. Unplug the grinder, remove the grinder knife and plate. Install the stung plate (#12) in
place of the knife and plate. Put stung tube in front of stung plate and secure with the retaining
ring. Slide casings onto stung tube making sure to leave the end of the tube open. Turn grinder
on and feed meat into the head until meat is at the end of the stung tube. Stop grinder and pull
casing out past the opening of stung tube about 1”. Tie a knot in the casing. Restart grinder.
This procedure will keep the casing from lling up with air when you rst start stung. Continue
to feed meat into head until the casing is lled.
CLEANING: Unplug grinder and disassemble the grinder head. Wash all parts in hot, soapy
water and thoroughly rinse in hot water. Allow parts to dry completely. Spray parts with
food-grade silicone to prevent rust and keep your grinder in like new condition.

LEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.comLEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.com
Ref. Description Code for Ref. Description Code for
1.5 HP
1 Back panel stainless
steel
Cable holder
Power cabel
2
4 Side screw for
front & back panel
5 Top cover stainless
steel
6 Lower screw for
front panel
7 Motor
8 Oil seal
9 Oil seal bushing
10 Drive gear back bushing
13
11 Drive gear
12 O-ring for drive gear
Handle
14 Handle screw
15 Front ange bushing
for drive gear
16 Front ange gasket
17 Nylon spacer
1.5 HP
18 Iron spacer 61518I
19 Snap ring 61519I
20 Front ange screw 61520I
21 Front ange 61521I
22 Knob 61522I
23 Step gear bushing 61523I
24 Step gear 61524I
25 Rubber feet 61525I
26 Bottom cover
stainless steel 61526I
27 Circuit breaker 61527I
28 Switch 61528I
29 Capacitor 61529I
30 Fan cover 61530I
31 Base for motor 61531I
32 Screw and bolt for
motor base 61532I
33 Front panel
stainless steel 61533I
34 Bottom screw
for motor base 61534I

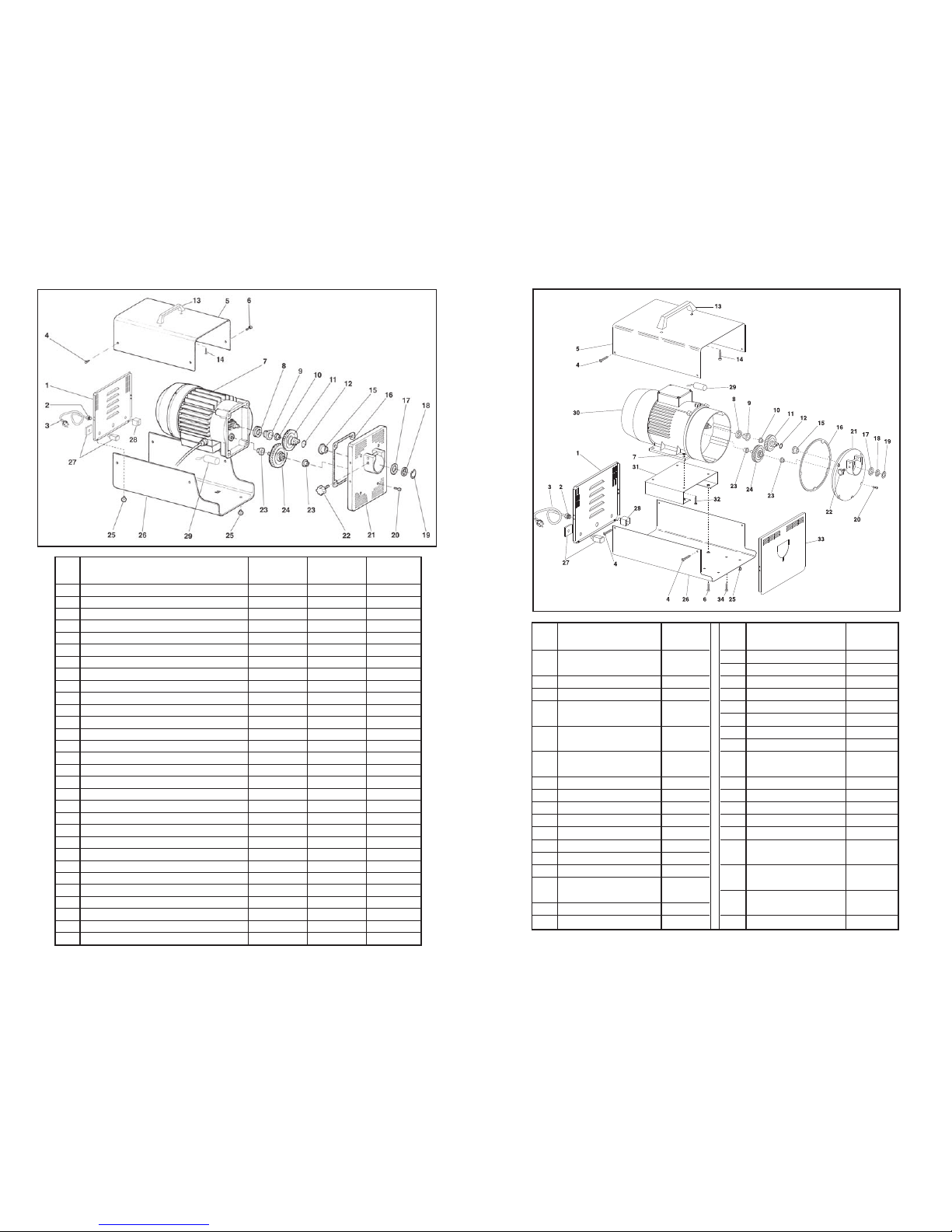

PARTS LIST FOR .35 HP, .75 HP & 1HP MOTORS
Ref. Description Code for Code for Code for
.35 HP .75 HP 1 HP
1 Back panel stainless steel 83501I 77501I 70101I
20538Cable holder2 I 77502I 70102I
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Power cable
Slide screw for back panel
Top cover-stainless steel
Slide screw for front panel
Motor
Oil seal
Oil seal bushing
Drive gear back bushing
Drive gear
O-ring for drive gear
Handle
Handle Screw
Front ange bushing for drive gear
Front ange gasket
Nylon spacer
Iron spacer
Snap ring
Front ange screw
Front ange
Knob
Step gear bushing
Step gear
Rubber feet
Bottom cover stainless steel
Circuit breaker
Switch
Capacitor
Fan Cover
83503
83504I
83505I
83506I
83507I
83508I
83509I
83510I
83511I
83512I
83513I
83514I
83515I
83516I
83517I
83518I
83519I
83520I
83521I
83522I
83523I
83524I
83525I
83526I
83527I
83528I
83529I
83530I
I 83503I
77504I
77505I
77506I
77507I
83508I
83509I
83510I
83511I
83512I
77513I
77514I
83515I
83516I
83517I
70118I
83519I
77520I
77521I
83522I
83523I
83524I
83525I
77526I
77527I
77528I
77529I
77530I
83503I
70104I
70105I
70106I
70107I
83508I
83509I
83510I
83511I
83512I
70113I
83514I
83515I
83516I
83517I
70118I
83519I
77520I
77521I
83522I
83523I
83524I
83525I
77526I
77527I
70128I
70129I
77530I
4 5
PARTS LIST FOR 1.5 HP MOTOR
61501I
61502I
61503I
61504I
61505I
61506I
61507I
61508I
61509I
61510I
61511I
61512I
61513I
61514I
61515I
61516I
61517I

*Stung tube set sizes. #8 Grinder – 3/8", 1/2", 3/4", 1" (10mm., 15mm., 20mm. & 25mm.)
#12, #22, #32 Grinders – 3/8", 3/4", 1", 1-1/8"
(10mm., 20mm., 25mm. & 30mm.)
The LEM meat grinders are manufactured by Fabio Leonardi, Inc., to comply with
LEM Products specications. Leonardi is one of the oldest grinder manufacturers
in Italy. These grinders are equipped with a stainless steel housing for durability and
ease of cleaning. All units have a 110 volt, gear driven, permanently lubricated motor
and are equipped with a circuit breaker to prevent overloading or overheating. Standard
equipment for all grinders includes: long-lasting, stainless steel coarse and ne plates, a
stainless steel knife, a meat stomper, a large stainless steel pan, 4 stung tubes and a
stung plate. All models have a 2 year manufacturer’s warranty on parts and labor.
The LEM meat grinder will provide you with years of dependable, ecient service
if properly used and maintained. Keep your grinder parts clean and lubricated during
storage with a food grade silicone spray. (Available at LEM Products.)
GRINDER HEAD FOR .35 HP, .75 HP, 1 HP, 1.5 HP
6 7
Stainless Steel Grinder Plates
Catalog Grinder Plate Plate
Number Size Hole Diameter
343SS #8 1/8” 2-1/2”
344SS #8 3/16” 2-1/2”
473SS #8 1/4” 2-1/2”
345SS #8 3/8” 2-1/2”
474SS #8 1/2” 2-1/2”
347SS #10/12 1/8” 2-3/4”
046SS #10/12 3/16” 2-3/4”
475SS #10/12 1/4” 2-3/4”
047SS #10/12 3/8” 2-3/4”
476SS #10/12 1/2” 2-3/4”
348SS #20/22 1/8” 3-1/4”
049SS #20/22 3/16” 3-1/4”
477SS #20/22 1/4” 3-1/4”
050SS #20/22 3/8” 3-1/4”
478SS #20/22 1/2” 3-1/4”
479SS #20/22 3/4” 3-1/4”
376SS #32 1/8” 3-7/8”
052SS #32 3/16” 3-7/8”
481SS #32 1/4” 3-7/8”
053SS #32 3/8” 3-7/8”
482SS #32 1/2” 3-7/8”
483SS #32 3/4” 3-7/8”
LEM GRINDER REPLACEMENT PARTS & ACCESSORIES
2” Aluminum Stung Tubes
Catalog Number Grinder Size
609 #8
084 #12
085 #22
086 #32
Grinder Accessory Items
Catalog
Number Item
401 Tomato Squeezer Attachment
433A Cuber/Tenderizer Attachment
200 Ground Meat
A,B,C,D Packaging System
686 Grinder Cleaning Brush Set
648 Grinder Cover
.35HP & .75 HP
650 Grinder Cover
1HP & 1.5HP
Grinder Size Unit Weight Hourly Production Watts Volts
#8-.35 HP 29 lbs. 240 lbs. 261 110
#12-.75 HP 37 lbs. 360 lbs. 560 110
#22-1 HP 52 lbs. 550 lbs. 746 110
#32-1.5 HP 72 lbs. 720 lbs. 1119 110
GRINDER SPECIFICATIONS FOR .35 HP, .75 HP, 1 HP, 1.5 HP
LEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.comLEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.com
Ref. Description .35 HP .75 HP 1 HP 1.5 HP
TC 8 TC 12 TC 22 TC 32
1 Main Body / Head 0801 1201 2201 3201
2 Screw feeder drive 0802 1202 1202 1202
3 Screw feeder nylon bushing 0803 1203 1203 1203
4 Screw feeder/auger 0804 1204 2204 3204
5 Square auger stud 0805 1205 2205 3205
6 Knife 0806 1206 2206 3206
7 Grinding plate 3/16” holes 08074.5 12074.5 22074.5 32074.5
8 Retaining ring 0808 1208 2208 3208
9 Meat Pan 0809 1209 2209 3209
10 Stomper 0810 0810 0810 0810
11 Stung tube set* 0811 1211 2211 3211
12 Stung plate 0812 1212 2212 3212

LEM Products
4440 Muhlhauser Road
West Chester, OH 45011
LEM WARRANTY REGISTRATION
NAME:__________________________________________________________________________
ADDRESS:_______________________________________________________________________
CITY: ____________________________________ STATE: ________ ZIP: __________
Date of Purchase: __________________________
Product Purchased: (Check One)
GRINDERS: 0.35HP #8 0.75HP #12 1HP #22 1.5HP #32
STUFFERS: SACKER 0-25-6LB SACKER 0-50-11LB SACKER 100-22LB
TOMATO SQUEEZERS: SP3-Electric SP3-Manual
Purchased for: Gift Personal Use Work
Purchased by: Male Female
Age of Purchaser: Under 35 35-44 45-54 55-65 Over 65
Product Purchased from: Catalog Store Internet
I am (Check all that apply.): Hunter Farmer Home User Sausage Maker
Meat Processor Store Owner
PLACE
STAMP
HERE
LEM Products •West Chester, OH 45011 •PH: 1-877-536-7763 •www.lemproducts.com
