LENCO MDV-24 User manual

MDV-24
2.1DVDHome Cinema Centre
Forinformation andsupport,www.lenco. eu

-1-
FOREWORD
THANKS
Thankyou forpurchasingthisproduct!
Yourchoiceoftheproduct sufficientlydisplaysyourexpertiseinacousticequipment.
Wearehonored toprovide youwithmoresatisfactoryproducts.Tobring
the functionalityof yourdeviceintofull play, it issuggested thatyou trytofind sometime
Toread thisusermanualbeforeconnectingand operatingyoursystem, sothatyoucan
Graspsystemconnectionsandrequirementsinuse, and get enhanced enjoyment and
Pleasureinusingtheproduct fromthe verybeginning.
IMPORTANTNOTICE
Pleaseunpack carefully, andkeepall the accessoriesinthe sameplace.
Pleasecheck anypossibilitiesinshippingdamage.If yourdevicesaredamaged
orcannotbeoperated,pleasenotifyyourlocaldealersimmediately.Ifthe
deviceisshipped toyourplacedirectly,pleasecontactthe carrierassoonas
possible.Onlytheconsignee (individualorcompanytoreceivethe devices)is
entitled toclaimindemnitytothecarrierinthe lightofshippingdamages.We
recommend that youkeeptheoriginalcartonsandpackingmaterialssoundlyfor
futureshipping.
SPECIALNOTE
1.Minimumdistancesaround the apparatusforsufficientventilation;
2.The ventilation shouldnotbe impeded bycovering theventilationopeningswithitems,
suchasnewspapers, table-clothes, curtains, etc;
3.No naked flamesources, suchaslighted candlesshouldnot be placedon the apparatus;
4.Attention shouldbe drawtothe environmentalaspectsof batterydisposal;
5.The useof apparatusintropicaland/ormoderateclimates;
6.Wherethe mainsplug oran appliancecouplerisused asthe disconnectdevice,the
disconnect deviceshallremainreadilyoperable.
7.Thisunitiscontrolled bymicro-computer;itmaycauseerrordisplaying when thisunitis
posited ininterferentialplace.Inthiscase,pleaseturnoffthe powerexceed 10 seconds,
and the unitwillresumenormal afterturningon.

-2-
CONTENT
FOREWORD ..1
CONTENT ...2
FRONTPANEL... ..3
BACK PANEL 4
REMOTECONTROL 5
CONNTECTIONWITHTV ...6
CONNECTIONWITHAMPLIFIER ..7
SYSTEMCONNECTION ..8
BASICOPERATION .. ..9-16
DVDMENUSETUP .. .17-21
SPECIFICATION ..22
TROUBLESHOOTING 23
ACCESSORIES

-3-

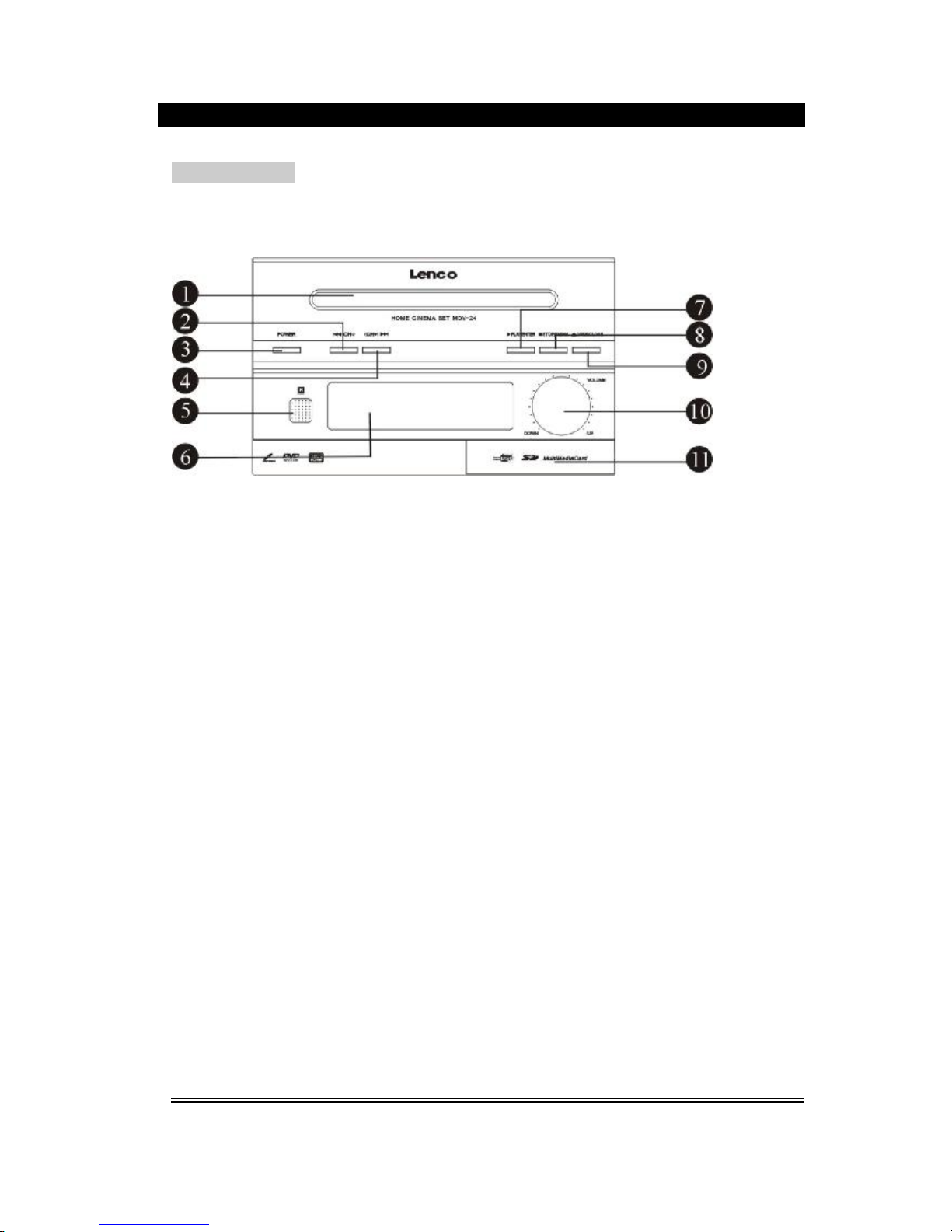

FRONTPANEL
1.Disc tray
2.Previous/Channel-
3.Power
4.Next/Channel+
5.Remotecontrolsensor
6.Displayscreen
7.Play/Enter
8.Stop/FM/AM
9.Open/Close
10.Volumeup/down
11.Built-inUSB, Multi-mediacardports

-4-

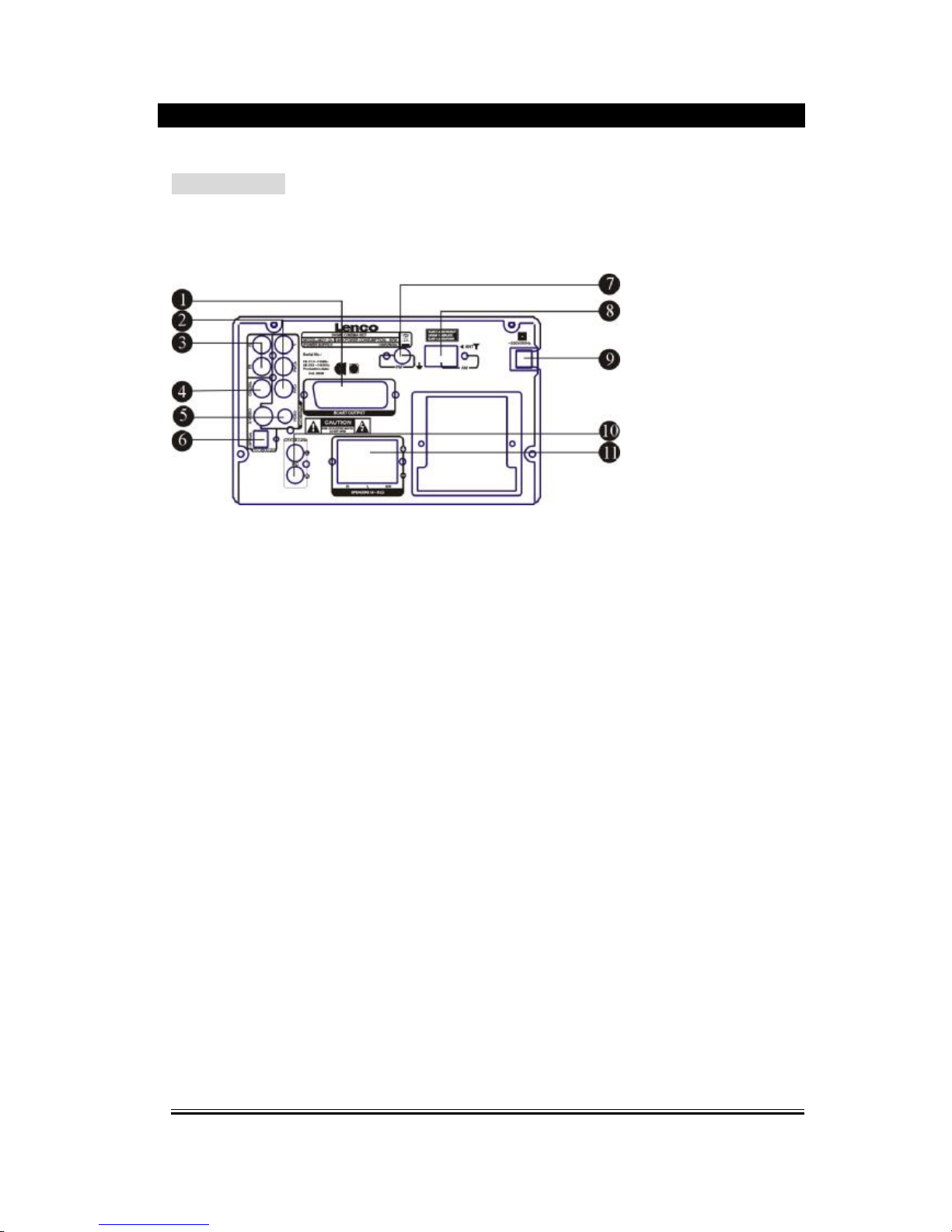

BACK PANEL
1.Scart output
2.Y, Pb/Cb, Pr/Crcomponent output
3.L/Rfront audiooutput
4.Coaxialoutput
5.S-video andVideooutputs
6.Opticalfiberoutput
7.FMantennainterface
8.AMantenna interface
9.Powersupplyinput
10.L/Raudioinput
11.2.1speakeroutput

-5-

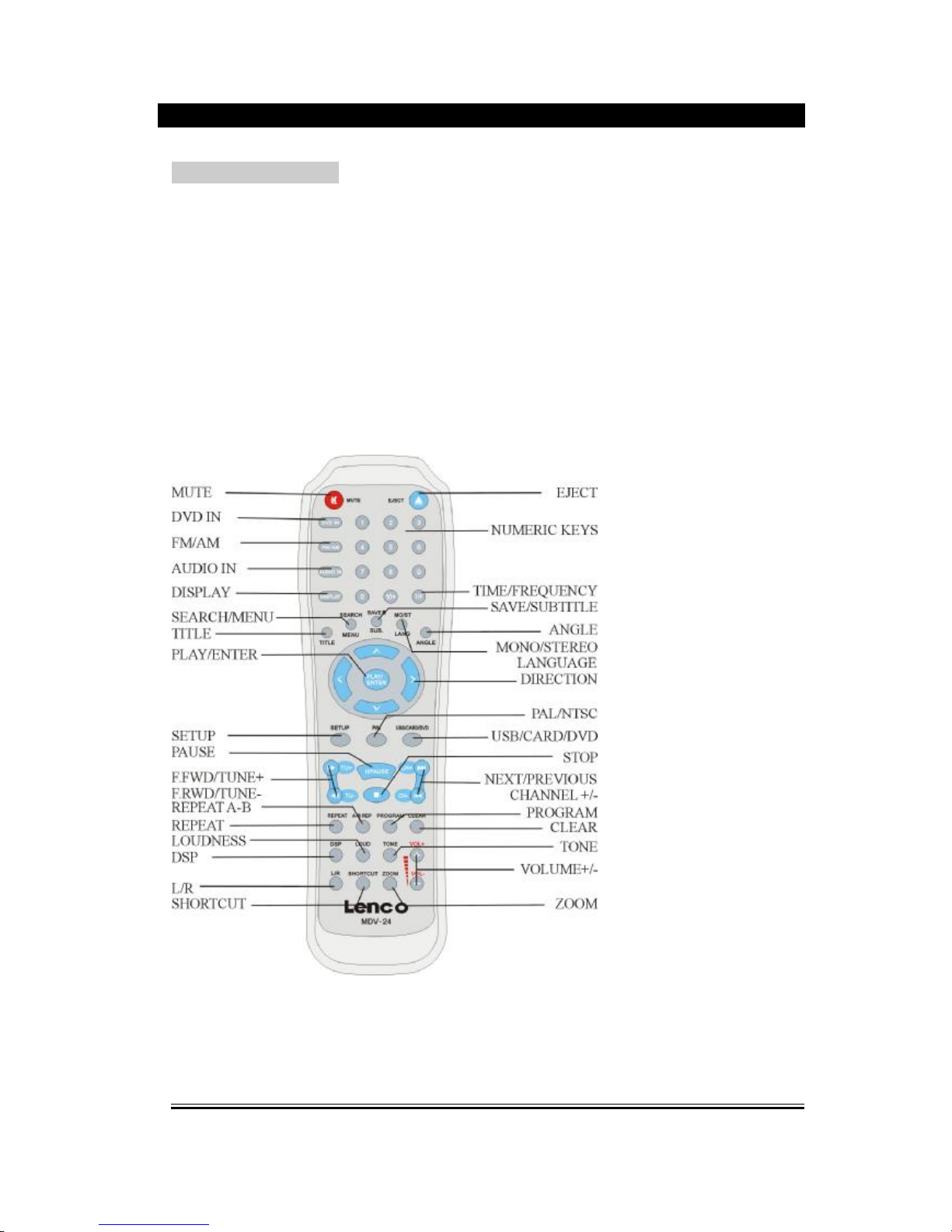

REMOTECONTROL
NOTE:
1.Placethebatteriesintheremotecontrolandturnontheplayer, puttheemitteragainstthesensorof
playerforremotecontrol.
2.Thedistanceofremotecontrolshouldnot exceed7meters, orelse,it willbeinvalid.
3.If thesensororremotecontrolemitterisstuck withforeign matters,itmayresultinthemalfunction in
signalreceptionornotatall.
4.Theremotecontrolfunctionmaybeaffectedunderthestronginterferencesignals,suchaspower
supplyandotherstronghigh-frequency signals.
REMARK: RemoteControlBatteryType:Size:AAAStandardVoltage: 1.5V

-6-
CONNECTIONWITHTV
1.If yourTV-set hasAVterminal,connectthisunittoTV-set withA/Vcables, andset TV-settobe
AVstatusafterconfirmingtheconnectioniscorrect.(Figure1)
2.If yourTV-sethasS-Videoterminal,pleaseusetheS-Videoconnection cabletoconnectthe
playerand TV-set, toobtainahigherqualityimage.(Figure2)
3.IfyourTV-sethaschromaticsoutputterminal,pleaseusethree connectioncablestoconnect
theplayerandTV-set, toobtainamorevividimage.(Figure3)
4.ThisunithasanoutputinterfaceforSCARToutput, whichcan directlybeconnectedwithTV-set.
(Figure4)
Note:
1.Pleaseturnoff thebothplayerandTVbeforetheyareconnectedtothepowerlinefromthe
socket.
2.Youmayadjust thecorrespondingsystemaccordingtoyourTVsystemwhilewatchingvarious
discs.
3.IftherearemultipleconnectionsbetweenvideoplayerandTV,pleaseselectoneand unplug
otherssoasnottoaffectthequalityofimagesand sound.
4.Donotswitchon /off orpresspowerswitchfrequently, switching onandoffeachtimemust have
an intervalof3seconds.
5. Donotconnectthedigitalopticalorcoaxialoutputjack ofthisplayerwiththeanaloguesignal
inputterminalforreception.

-7-
CONNECTIONWITHAMPLIFIER

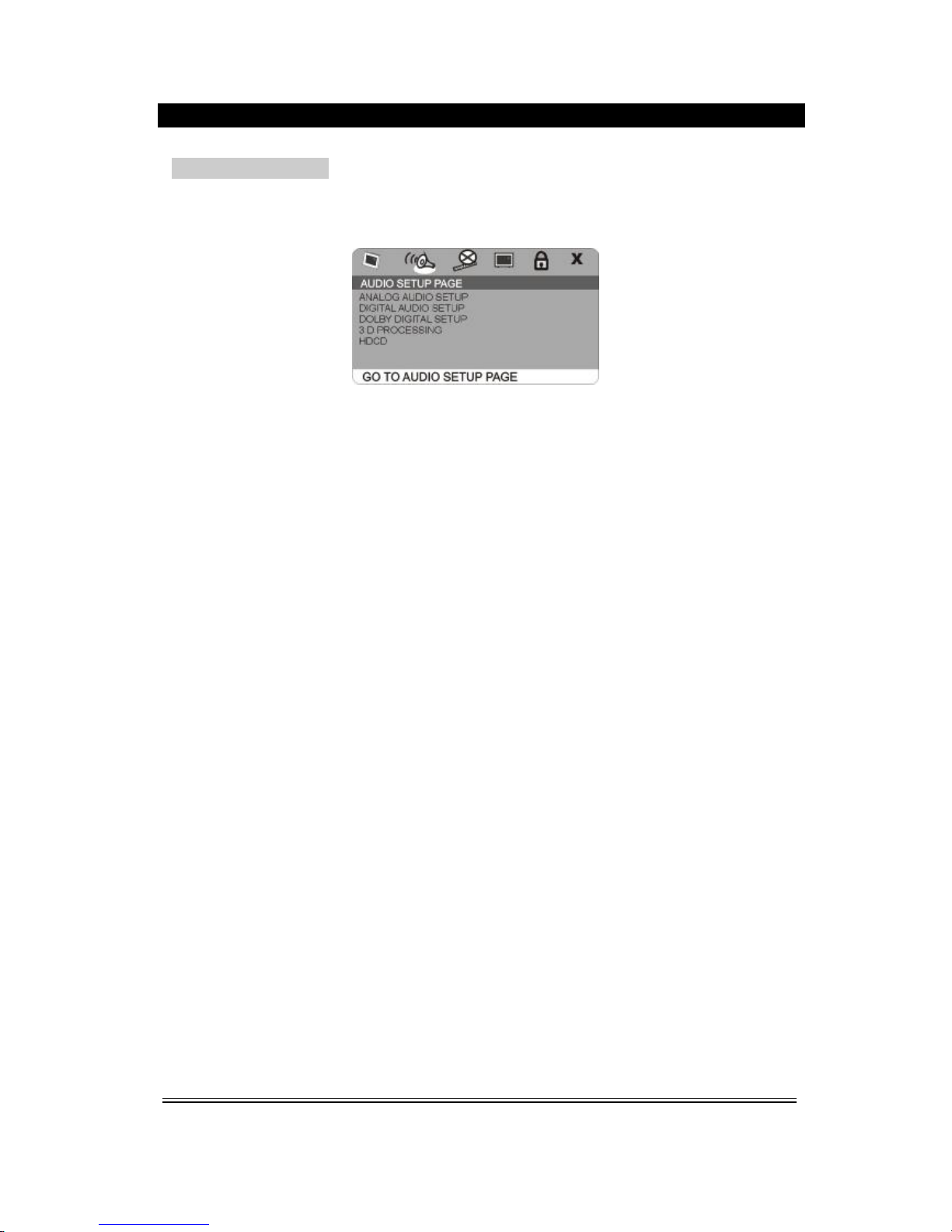

Setup ofDigitalAudioOutput
Connecttheopticalorcoaxialoutputjacktotheamplifier.Whileinofplayorstopmode,
press thesetup buttonon theremotecontroltoopenthesystemsetup page,switchto
audiosetup pagebypressing thedirectionalbuttons,thenmovethecursortoAudioOut,
selectSPDIF/RAWorSPDIF/PCM,press Play/Enter buttontofinish.Press setup button
againtoexitthesetup.

-8-
SYSTEMCONNECTION
Pleaserefertothefollowingfiguretoconnectyouracousticequipment.
Tokeepalltheconnectioncorrectlyandfirmly.
Powersupplycanbeconnectedfinally.

-9-
BASICOPERATION
PREPARATIVE
1).Beforeturningon,check whetheralltheconnectionarecorrectandreliable. Plug thepower
plugintothecorresponding powersocket.
2).PressPower buttononthefront paneltoturnon.
3).Press Eject button on theremotecontrol(orOpen/Close button on thefrontpanel)tocarry
thedisc trayoutside, putthedisc intothetray,pressEject orOpen/Close buttonagain, this
unit startstoread andplay.
MUTE
Inplaystatus,If theMute buttonispressed,therewill be no audiooutput, thesoundis
eliminated,howevertheimagewillstillbeplayednormally.Thenpress thebuttonagainor
press Vol.+/- button toexitthemutestatus,thesound resumestobeitsnormalstatus.
STATUSDISPLAY
Inplaystatus,pressDisplay button,theTVscreenwill displaythefollowingdata:
VCD/CD display:singleelapsed,TR(track remain),totalelapsed, DR (directlyremain),
displayoff.
DVDdisplay:titleelapsed,titleremain,chapterelapsed, chapterremain,displayoff.
SOUNDTRACK SWITCH
1WhileplayingVCDorCDdisc,pressL/R buttontoselectthe multipleoutputmodessuch
asMonoL,MonoR,StereoandMix-mono.Press thebutton oncetoswitchone
soundtrack.
2WhileplayingDolbyKaraokedisc,press L/R buttontoselectthedifferentvocaleffects:
Vocal1, Vocal2, BothVocal, NoVocalAssist,VoiceCanceland NoVocal.
3WhileplayingDVDdisc,pressLANG buttoncanselectmultiplelanguagesforplayback.
(OnlyappliestothediscslikeDVDrecordedinmultiplelanguages.)
FASTFORWARD&FASTBACKWARD
Inplaystatus,press Tune- buttonorTune+ , therewillbevariousspeedsoffastforward
and fast backward,shownasfollows,
FORWARD X2,FORWARDX4,FORWARDX8,FORWARDX16,FORWARD X32,PLAY
BACKWARDX2,BACKWARDX4, BACKWARDX8, BACKWARDX16, BACKWARDX32, PLAY
PREVIOUS&NEXT
Inplaystatus,press CH- button,thedevicewillskiptothe previousoneforplay,press
CH+ button,thedevicewill skiptothenext one.
SUBTITLESELECTION
When theplayedDVDdiscrecordsmultiplesubtitles,youcanmakeselectionsofsubtitle
languagebypressingSUB button:
English, French, German, SpanishandDutch.
