LENCO MDV-7 User manual

MDV-7
2.1DVDHome Cinema Centre
Forinformation andsupport,www.lenco. eu

-1-
FOREWORD
THANKS
Thankyou forpurchasingthisproduct.
Yourchoiceoftheproduct sufficientlydisplaysyourexpertiseinacousticequipment.
Wearehonored toprovide you withmoresatisfactoryproducts.It issuggested thatyou
sparesometimetoread thisusermanualbeforeconnectingand operatingyoursystem.
Soyou can get enhanced enjoyment and pleasurewhileusingthisproduct.
IMPORTANTNOTICE
Pleaseunpack carefully, andkeepall the accessoriesinthe sameplace.
Pleasecheck anypossibilitiesinshippingdamage.If yourdevicesaredamaged orcannot
beoperated,pleasenotifyyourlocaldealersimmediately.If the deviceisshipped toyour
placedirectly,pleasecontactthecarrierassoonaspossible.Onlytheconsignee
(individualorcompanytoreceivethe devices)isentitled toclaimindemnitytothecarrier
inthe lightofshippingdamages.Werecommend thatyou keepthe originalcartonsand
packingmaterialssoundlyforfutureshipping.
SPECIALNOTE
1.Minimumdistancesaround the apparatusforsufficient ventilation;
2.Theventilation shouldnotbeimpeded bycoveringthe ventilation openingswithitems,
suchasnewspapers, table-clothes, curtains, etc;
3.Nonaked flamesources,suchaslighted candlesshouldnotbeplaced on the
apparatus;
4.Attentionshouldbedrawtothe environmentalaspectsofbatterydisposal;
5.Theuseofapparatusintropicaland/ormoderateclimates;
6.Wherethe mainsplugoran appliancecouplerisused asthe disconnectdevice,the
disconnectdeviceshall remainreadilyoperable.
7.Thisunitiscontrolledbyamicro-computer;thereforeadisplayerrormay
occurwhen thereisathunderstorm,staticinterruption orotherinterference.
Inthiscase,pleaseturnoff the powerfor10 secondsand the unitwill reset
tonormalonceit isswitched on.

-2-
CONTENT
FOREWORD ..1
CONTENT ...2
FRONTPANEL... ..3
BACK PANEL 4
REMOTECONTROL 5
CONNTECTIONWITHTV ...6
CONNECTIONWITHAMPLIFIER ..7
SYSTEMCONNECTION ..8
BASICOPERATION .. ..9-16
DVDMENUSETUP .. .17-21
SPECIFICATION ..22
TROUBLESHOOTING 23
ACCESSORIES

-3-
FRONTPANEL
1.STADNBY
2.REMOTECONTROLSENSOR
3.DISCTRAY
4.(F.RWD/TUNE-)/(F.FWD/TUNE+)
5.(PREVIOUS/CHANNEL-)/(NEXT/CHANNEL+)
6.USB AND MULTI-MEDIACARD PORTS
7.OPEN
8.FM/DVD/AUDIO
9.DISPLAY SCREEN
10.PLAY/ENTER
11.STOP
12.VOLUEMUP/DOWN

-4-
BACK PANEL
1.FMANTENNAINTERFACE
2.SCARTOUTPUT
3.VIDEO OUTPUT
4.Y, Pb/Cb, Pr/CrCOMPONENTOUTPUT
5.L/RAUDIO OUTPUT
6.COAXIALOUTPUT
7.S-VIDEO OUTPUT
8.OPTICALFIBEROUTPUT
9.L/RAUDIO INPUT
10.L/RSPEAKERSOUTPUT
11.SUBWOOFEROUTPUT
12.POWERON/OFF
13.POWERSUPPLYINPUT

-5-

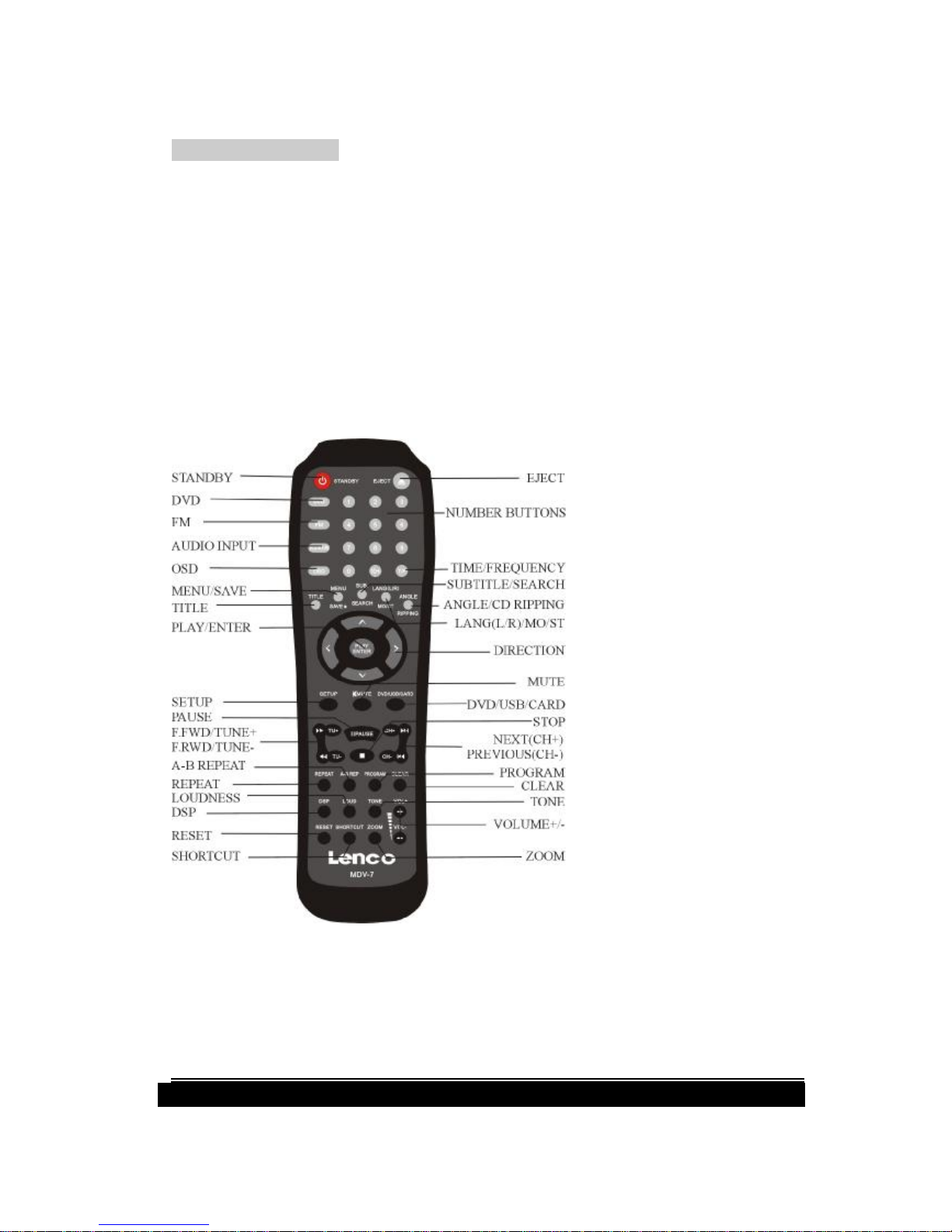

REMOTECONTROL
NOTE:
1.Placethebatteriesintheremotecontrolandturnontheplayer; puttheemitteragainst thesensorof
playerforremotecontrol.
2.Thedistanceofremotecontrolshouldnot exceed7meters, orelse,it willbeinvalid.
3.If thesensororremotecontrolemitterisstuck withforeign matters,itmayresultinthemalfunction in
signalreceptionornotatall.
4.Theremotecontrolfunctionmaybeaffectedunderthestronginterferencesignals,suchaspower
supplyandotherstronghigh-frequency signals.
REMARK: RemoteControlBatteryType:Size:AAAStandardVoltage: 1.5V

-6-
CONNECTIONWITHTV
1.If yourTV-set hasAVterminal,connectthisunittoTV-set withA/Vcables, andset TV-settobe
AVstatusafterconfirmingtheconnectioniscorrect.(Figure1)
2.If yourTV-sethasS-Videoterminal,pleaseusetheS-Videoconnection cabletoconnectthe
playerand TV-set, toobtainahigherqualityimage.(Figure2)
3.IfyourTV-sethaschromaticsoutputterminal,pleaseusethree connectioncablestoconnect
theplayerandTV-set, toobtainamorevividimage.(Figure3)
4.ThisunithasanoutputinterfaceforSCARToutput, whichcan directlybeconnectedwithTV-set.
(Figure4)
Note:
1.Pleaseturnoff thebothplayerandTVbeforetheyareconnectedtothepowerlinefromthe
socket.
2.Youmayadjust thecorrespondingsystemaccordingtoyourTVsystemwhilewatchingvarious
discs.
3.IftherearemultipleconnectionsbetweenvideoplayerandTV,pleaseselectoneand unplug
otherssoasnottoaffectthequalityofimagesand sound.
4.Donotswitchon /off orpresspowerswitchfrequently, switching onandoffeachtimemust have
an intervalof3seconds.
5. Donotconnectthedigitalopticalorcoaxialoutputjack ofthisplayerwiththeanaloguesignal
inputterminalforreception.

-7-
CONNECTIONWITHAMPLIFIER
Setup ofDigitalAudioOutput
Connecttheopticalorcoaxialoutputjacktotheamplifier.Whileinofplayorstopmode,
press theSETUP buttonontheremotecontroltoopenthesystemsetuppage,switchto
audiosetup pagebypressing thedirectionalbuttons,thenmovethecursortoAudioOut,
selectSPDIF/RAWorSPDIF/PCM,press PLAY/ENTER buttontofinish.Press SETUP
button againtoexitthesetup.

-8-

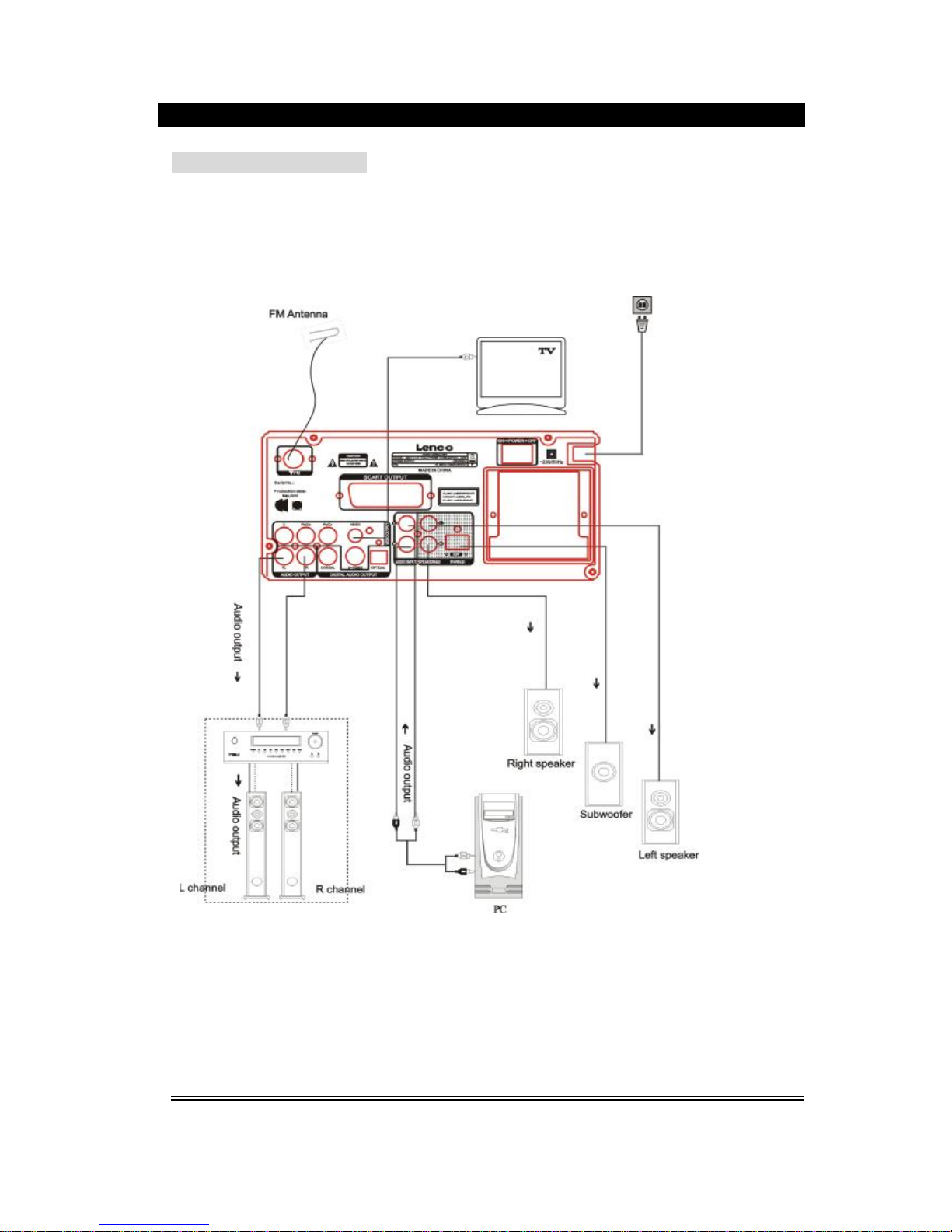

SYSTEMCONNECTION
Pleaserefertothefollowingfiguretoconnectyouracousticequipment.
Tokeepalltheconnectioncorrectlyandfirmly.
Powersupplycanbeconnectedfinally.

-9-
BASICOPERATION
PREPARATIVE
1). Beforeturningon, check whetheralltheconnectionarecorrectand reliable. Plug thepowerpluginto
thecorresponding powersocket.
2).PressSTANDBY buttononthefrontpaneltoturnon.
3).Press EJECT button ontheremotecontrol(orOPEN button on thefrontpanel)tocarrythedisc tray
outside,put thedisc intothetray,press EJECT orOPEN button again, thisunitstartstoread andplay
thedisc.
MUTE
Inplaystatus, iftheMUTE buttonispressed, therewillbeno audiooutput, thesound iseliminated,but
theimagewillstillbeplayednormally.Thenpress thebuttonagainorpressVOL.+/- button toexitthe
mutestatus,thesoundresumestobeitsnormalstatus.
STATUSDISPLAY
Inplaystatus,pressOSD button, theTVscreenwilldisplaythefollowingdata:
VCD/CD display:singleelapsed,TR(trackremain),totalelapsed, DR(directoryremain),displayoff.
DVDdisplay:titleelapsed,titleremain,chapterelapsed, chapterremain,displayoff.
SOUNDTRACK SWITCH
InplayingVCD,DVCD,pressLANG(L/R) buttontoselectthemultipleoutputmodessuchasMonoL,
Mono R,Stereo, etc.Press thebuttononcetoswitchonesoundtrack.
InplayingDVD,press LANG(L/R) button can selectmultiplelanguagesforplayback.(Onlyappliestothe
discslikeDVDrecordedinmultiplelanguages.)
FASTFORWARD&FASTBACKWARD
Inplaystatus,press TUNE- buttonorTUNE+ ,therewillbevariousspeedsoffast forwardandfast
backward,shownasfollows,
FORWARD X2,FORWARDX4,FORWARDX8,FORWARDX16,FORWARD X32,PLAY
BACKWARDX2,BACKWARDX4, BACKWARDX8, BACKWARDX16, BACKWARDX32, PLAY
PREVIOUS&NEXT
Inplaystatus,press CH- button,thedevicewillskiptothe previousoneforplay,pressCH+
button, thedevicewillskiptothenext one.
SUBTITLESELECTION
When theplayedDVDdiscrecordsmultiplesubtitles,youcan makeselectionsofsubtitlebypressing
SUB button:
English, French, German, Spanish, Dutch,Portugueseand Italian.
CD RIPPING
WhileplayingtheCD,press RIPPING button,andtheprompt ofoperationwillappearsontheTVscreen;
following theprompt,theCD`Saudiotracks will berippedintoMP3formatsandstoredintheUSB
device.
