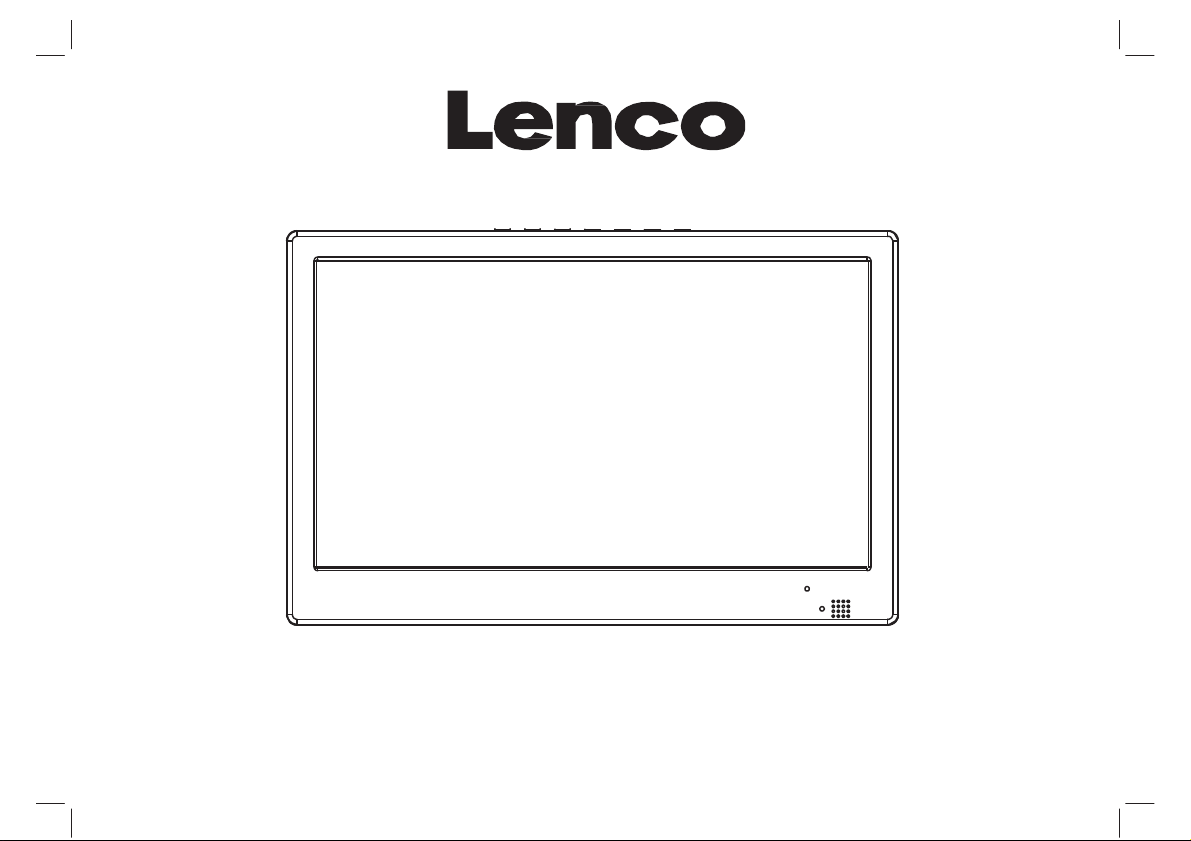

LENCO TFT-1026 User manual

PHT-1008 SUNPLUS 9202 方 案 英 语 说 明 书 185 * 132 m m
USER'S MANUAL
TFT-1026
www.lenco.com

1

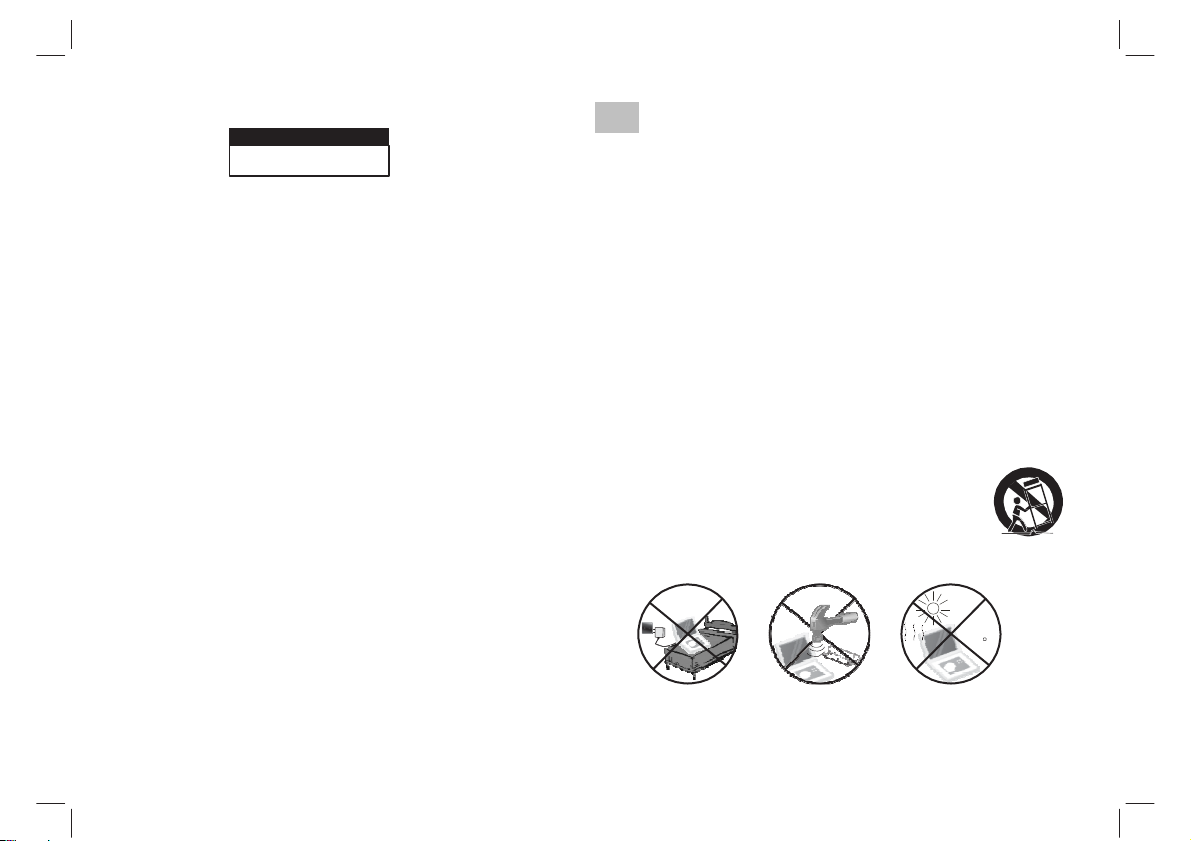

Safety Precautions
WARNING
N
Notes on Copyrights:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Warning: Never stare directly into the laser beam.
Warning: when the unit using by child, parents must make sure
to let the child understand all contents in Instruction book how
battery using to guarantee using battery correctly all the time.
Warning: when find battery overheat, swell or dour, please
stop using battery and contact service centre for getting
replacement.
Warning: do not charging battery on the place of insufficient
ventilation such as: mattress, sofa, cushion , soft mat......
Warning: we will not take any responsibility if user incorrectly
use battery, not following our warning instruction label on the
battery case.
It is forbidden by law to copy, broadcast, show,broadcast via
cable,play in public, or rent copyrighted material without permission.
This product features the copy protection function developed by
Macrovision.Copy protection signals are recorded on some
discs.When recording and playing the pictures of these discs picture
noise will appear.This product incorporates copyright protection
technology that is protected by method claims of certain U.S.Patents
and other intellectual property rights owned by Macrovision
Corporation and other rights owners.Use of this copyright protection
technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless
otherwise authorized by macrovision Corporation. Reverse
engineering or disassembly is prohibited.
SERIAL NUMBER:
You can find the serial number on the back of the unit.This number
is unique to this unit and not available to others.You should record
requested information here and retain this guide as a permanent
record of your purchase.
Model No. ______________________________
Serial No. ______________________________
Date of Purchase_________________________
charge
strong
impact
over
heat
40 C

2
Identification of Controls
Main Unit
1 2 3 4 5 6 7
1 . SOURCE
2 . SETUP
3 . ENTER
4 . UP
5. DOW N
6 . LEFT
7. RIGHT
8
8 . AV OUT
9 9 . AV IN
10.Earphone Socket
10 11.ON/OFF
11 12.DC IN 9-12V
12
13. ANT.
14. HDMI INPUT
15.USB
13
14
15

3
Identification of Controls

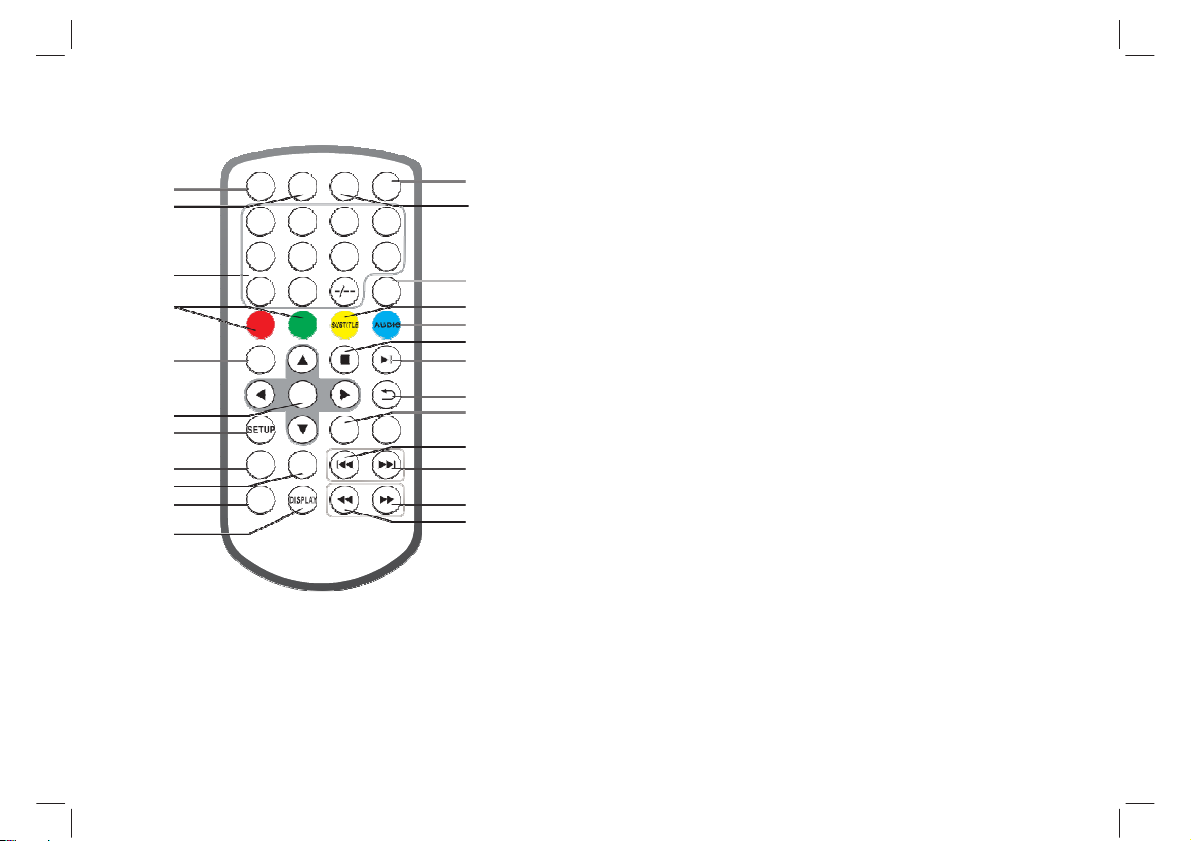

Remote control unit
1
POWER
VOL- VOL+
SOURCE
1
2
2
13
5.REC
1
2
3
4
Recor
d
digita
l
servic
e
5 6 7 8
6.ENTER
3
9 0
MUTE
14 Confirm and Enter
4
1
5
7.SETU
P
1
6
Mai
n
Menu/Retur
n
1
7
5
REC
18 8.FAV
Ope
n
Favorit
e
Progr
a
ENTER
19
6
2
0
9.TV/RADIA
O
7
TTX
Switc
h
betwee
n
T
V
a
n
21
8
FAV
TV/RADIO
22 10.EXIT
4.RED/GREEN
Some specific function
ms List Menu
d Radio source
9
10
EXIT
11
1.POWER
On/off the power supply
2.VOL -
Adjust VOLUME.
3.0-9 NUMBER BUTTON
Selects numbered items in a menu.
-/--: Cursor button
23 11.DISPLAY
24 display the information of the current signal
12.SOURCE
DVB/AV/MEDIA/HDMI INPUT.
13.VOL +
Adjust VOLUME.
14.MUTE
Mute the sound
15.SUBTITLE
Press SUBTITLE repeatedly during playback to viwe a different
subtitle languages , if avilable.

4
Identification of Controls
Remote control unit
16.AUDIO
Press AUDIO repeatedly during playback to hear a different audio
language or audio track, if avilable.
17.STOP
18.PLAY/PAUSE
19.RETURN
20.TTX
21. BUTTON
Previous option.
22. BUTTON
Next option.
23. BUTTON
Fast forward
24. BUTTON
Fast backward

5
SETUP
MENU:
Picture Menu
Section Picture Menu Items
Value Default Value
1Picture Mode
Standard/ Optimal
Soft/
V
ivid / User
Standard
2Brightness 0~100 50
3Contrast 0~100 50
4Sharpness 0~10 5
5Colour 0~100 50
6Tint 0~100 50
7Backlight 0~100 100
8Color Temp
Standard,Warm,Cool
Standard
9Noise Reduction
Off,Low,Middle,High
Middle
10 Reset
--
–
Notes: The Brightness, Contrast, Sharpness, Colour, Tint and
Backlight can be set only when “Picture Mode” is “User”,
otherwise they are be set as relevant default value.
Sound Menu
This section will introduce some properties setting about system Sound.
Section Sound Menu Items
Value Default
1Sound Mode
Standard,Movie,Music,Speech,User
Standard
2Bass 0~100 50
3Treble 0~100 50
4EQ ENTER(EQ setting menu) ENTER
5Balance -50~50 0
6Surround Off
， On Off
7AVL Off
， On Off
8Reset ENTER
（ OK ， Cancel ）
Cancel
Notes: The Bass, Treble and Backlight can be set only when
“Sound Mode” is “User” otherwise they will be set as relevant default
value.

6
SETUP
MENU:
TV Channel MENU
Functions in this page:
Channel Management: To manage (Delete/Rename/Swap/Lock/
Skip) all channels.
Favorite Management: To set favorite channels.
Country: Set Country’s type, different countries adjust to different
search condition.
Auto Search: select auto search.
Digital Manual Search: To search digital channel by entering
parameters manually.
LCN On/Off: On or off LCN
Feature Menu
This chapter will describe the function of Feature in Main Menu.
Child Lock: Enter the Child Lock sub
page The Child Lock sub page:
1.Child Lock
On: turn on Child Lock. User need to enter password to watch the channels
which are locked. Also need to enter password when user tries to change
settings in items like “reset system”/“reset database” etc.
Off: turn off Child Lock.
2.KeyPad Lock
On: turn on KeyPad Lock. Keypad event will get no response if it is On.
Off: turn off KeyPad Lock.
3.Parental Lock
Off: turn off Parental Lock.
4-18: turn on Parental Lock and set the age levels permitted to watch the
program.
Language:System language setting includes OSD Language, Preferred
Subtitle, Preferred Audio, Digital Teletext Language and Analogue Teletext
Language.Change Pin Code
KEY_RIGHT or KEY_ ENTER to enter the pin code changing page.

7
SETUP
MENU:
Index Setup Menu Items
Value Default
1OSD Timer ( 5, 10, 15, 20, 25, 30
Seconds, Never)
Never
2HDMI Mode (Auto, PC , Video ) Auto
3Blue Screen (Of, On) Off
4Aspect Ratio (Auto, 4:3, 16:9, Full,
Zoom1, Zoom2, Panorama)
16:9
5Reset TV Setting “ENTER “ --
6Software Upgrade
“ ENTER “ --
Clock
It is used to check out the current system time and set time
zone/DST.
Sleep Timer
When TV is running, start sleep function by setting Sleep Timer in any
case. This function allows the TV power off within a period of time
automatically. Supported time period are: Off, 15 Mins, 30Mins,
45Mins and 60Mins.
Auto Standby
When TV is running, Auto Power Off function can be start by setting
Auto Power off Timer in any case. This function allows user to power
off the TV within a period of time. Supported time period are: Off, 3
Hours, 4 Hours.
Hearing impared
This function offers a subtitle such as a “stroke on the door” or “the
bell starts to ring” for the current scene in case that the user is weak
in hearing.
PVR/Timeshift
1.Record File Format
Recording format: TS, PS.
2.Partition Select
Enter Partition Select menu.
Display partition’s information.
Format partition function.
Set default partition function.
3.Auto Timeshift
Auto Timeshift: off (Stop auto Timeshift), Auto (Start auto
Timeshift).
4.Timeshift Buffer
Set Timeshift Buffer: auto, 30Mins, 1hr, 2hr.
5.Record List
Enter Record List menu.
Display Recorders’ information.
Playback Recorders.
Setup Menu
This chapter will describe the function of Setup in Main Menu.

8
SETUP
MENU:
、
PVR. (PVR files
playback)
Problem PotentialReasons What to do
No picture Power isn't connected Connect the power
The power switch is not on Switch on the power
Screen shows
No Signal
DVB-T cable not connected Plug in the DVB-T cable
Incorrect setting Reset setting
No sound from
speaker
No or incorrect connection
with audio cable
Connect the audio
correctly
cable
Sound on mute Turn off mute function
Incorrect sound track Try another sound track
Only sound, no
image on the
screen
No or incorrect connection
with AV cable
Make sure cables are
connectedcorrectly
The program is
program
a radio Press <TV/RADIO> key
shift into TV mode
to
Remote Control
is not responding
The battery is exhausted Change battery
Remote Control is not
facing or close enough
to the Set Top Box
Adjust the position of the
Remote Control and move
closer to the unit
The image stopped
suddenly or mosaic
The signal is too weak
Strengthen the signal
MEDIA MENU:
Select media （ Press source key ）
Multimedia Home Page manages all the information of media.
KEY_RIGHT/KEY_LEFT can help to switch the items. KEY_ENTER
will confirm the selected item and enter the detailed menu.
Sub Items:
1 、 Photo. (Photos playback)
2 、 Music. (Music playback)
3 、 Movie. (Movie playback)
4
5 、 E-book. (E-book playback)
Menu shows as follows:
Support file ：
Photo: bmp, jpg,jpeg
Movie: avi, mpeg1/2/4 , divx ,xvid, ts,mkv
Music: mp3, wma, ogg
Ebook: ttx
TROUBLESHOOTING

9
Identification of Controls
Technical Specifications
Item Sub Item Parameter
Tuner
Input Frequency
170~230MHz
470~860MHz
RF Input level
-25~-82dBm
IF Bandwidth
7MHz and 8MHz
Modulation
QPSK,16QAM,64QAM
Video
Decoder Format
MPEG4 AVC/H.264 HP@L4
MPEG2 [e-mail]
Output Port
CVBS
Audio
Decoder Format
MPEG-1 (layer1&2&3)
Audio output
Stereo
Power
Voltage
DC 9V (1.0A)
Working Power 12W
Service and support
For information: www.lenco.com
For support: http://lencosupport.zendesk.com
Lenco helpdesk:
Germany 0900-1520530 (Local charges)
The Netherlands 0900-23553626 (Local charges + 1ct p/min)
Belgium 02-6200115 (Local charges)
France 03-81484280 (Local charges)
The helpdesk is accessible from Monday till Friday from 9 AM
till 6 PM.
When contacting Lenco, you will always be asked for the model
and serial number of your product. The serial number can be
found on the back of the device. Please write down the serial
number below:
Model:TFT-1026
Serial number:_________________________________
Lenco offers service and warranty in accordance to European
law, which means that in case of repairs (both during and after
the warranty period) you should contact your local dealer.
Important note: It is not possible to send products that need
repairs to Lenco directly.
Important note: If this unit is opened or accessed by a non-
official service center in any way, the warranty expires.
This device is not suitable for professional use. In case of
professional use, all warranty obligations of the manufacturer
will be voided.
This symbol indicates that the relevant electrical product or
battery should not be disposed of as general household waste
in Europe. To ensure the correct waste treatment of the product
and battery, please dispose them in accordance to any
applicable local laws of requirement for disposal of electrical
equipment or batteries. In so doing, you will help to conserve
natural resources and improve standards of environmental
protection in treatment and disposal of electrical waste (Waste
Electrical and Electronic Equipment Directive).

1
0
Products with the CE marking comply with the EMC Directive
(2004/108/EC) and the Low Voltage Directive (2006/95/EC)
issued by the Commission of the European Community.
The declaration of conformity may be consulted at
http://www.lenco.eu/supportfiles/CE/194bf73b6bwet3h.pdf
®All rights reserved
