Overview 3
Overview
Front view
Note Your computer model might look slightly different from the illustration.
1Optical drive eject/close button (optional)
Used to eject the tray of the optical drive. After you insert a disc
into the tray, press the eject/close button to close the tray.
2Optical drive status indicator (optional)
This indicator is on when the optical drive is in use.
3Storage drive status indicator
This indicator is on when the storage drive is in use.
4Card reader slot (optional)
Used to read data from a supported memory card.
5Power button
Used to turn on your computer. When you cannot shut down the
computer from the operating system, press and hold the power
button for four or more seconds to turn off the computer.
6Power indicator
This indicator is on when the computer is on.
7Microphone connector
Used to connect a microphone to your computer. You can use the
microphone to record sounds or interact with the computer using
speech-recognition software.
8Headphone connector
Used to connect headphones to your computer.
Overview 4
9USB 3.0 connectors (2)
Used to connect a USB-compatible device. For optimal data
transfer, connect a USB 3.0 device to a USB 3.0 connector instead
of a USB 2.0 connector.
10 USB 3.0 connectors (2)
Used to connect a USB-compatible device. For optimal data
transfer, connect a USB 3.0 device to a USB 3.0 connector instead
of a USB 2.0 connector.
11 Illuminated red dot
This indicator is on when the computer is on.
12 Internal speaker (optional)
Used to listen to the sounds from your computer without using a
headset or headphones.
Overview 5
Rear view
Note Your computer model might look slightly different from the illustration.
1Microphone connector
Used to connect a microphone to your computer when you want
to record sound or use speech recognition software.
2VGA-out connector
Used to send video signals from the computer to another video
device, such as a monitor.
3DisplayPort®-out connectors (2)
Used to send audio and video signals from the computer to
another audio or video device, such as a high-performance
monitor.
4USB 3.0 connectors (2)
Used to connect a USB-compatible device. For optimal data
transfer, connect a USB 3.0 device to a USB 3.1 or USB 3.0
connector instead of a USB 2.0 connector.
5USB 2.0 connectors (2)
Used to connect a device that requires a USB 2.0 connection.
6PS/2 keyboard connector
Used to connect a keyboard that uses a Personal System/2
(PS/2) keyboard connector.
7Audio line-out connector
Used to send audio signals from the computer to external
devices, such as powered stereo speakers, headphones, or
multimedia keyboards. To connect a stereo system or other
external recording device, connect a cable between the audio line-
in connector of the device and the audio line-out connector of the
computer.
Note If your computer has both an audio
line-out connector and a headset or
headphone connector, always use
the headset connector or headphone
connector for earphones, headphones,
or a headset. The headphone connector
does not support headset microphones.
Overview 6
8Audio line-in connector
Used to receive audio signals from an external audio device, such
as a stereo system. To attach an external audio device, connect a
cable between the audio line-out connector of the device and the
audio line-in connector of the computer.
9Serial connector
Used to connect an external modem, a serial printer, or other
devices that use a serial connector.
10 Ethernet connector
Used to connect an Ethernet cable for network access.
11 PS/2 mouse connector
Used to connect a mouse, a trackball, or other pointing devices
that use a PS/2 mouse connector.
12 Security-lock slot
Used to secure a Kensington-style cable lock.
13 Padlock loop
Used to secure a padlock.
14 PCI-Express card area
To improve the operating performance of the computer, you
can connect PCI-Express cards into this area. Depending on the
computer model, the connectors in this area vary.
15 Cable lock slots (2) (optional)
Used to secure a cable lock.
16 Power cord connector
Used to connect the power cord to your computer for power
supply.
Overview 7
System board
Note See Front view or Rear view for additional component descriptions.
14-pin power connector
2Microprocessor fan connector
3Auxiliary fan connector 2
4Internal speaker connector
510-pin power connector
6SATA power connectors (2)
7SATA 3.0 connectors (3)
8Auxiliary fan connector 1
9M.2 storage drive slot
10 Power button board connector
11 Illuminated red dot connector
12 Thermal sensor connector
13 Front USB 2.0 connector 2
14 Front USB 2.0 connector 1
15 Parallel connector
Overview 8
16 Serial (COM2) connector
17 PCI Express x1 card slots (2)
18 PCI Express x16 graphics card
slot
19 System fan connector
20 Microprocessor socket
21 Coin-cell battery
22 M.2 Wi-Fi card slot
23 Cover presence switch
connector (Intrusion switch
connector)
24 Memory slot (DIMM1)
25 Memory slot (DIMM2)
26 Memory slot (DIMM3)
27 Memory slot (DIMM4)
Overview 9
Machine type and model label
The machine type and model label identies the computer. When you contact Lenovo for help, the machine
type and model information helps support technicians to identify the computer and provide faster service.
The machine type and model label is attached on the side of the computer as shown.
Specications 10
Specications
Power supply •180 watt automatic voltage-sensing power supply
•210 watt automatic voltage-sensing power supply
Storage drives Up to three storage drives
Video features The integrated graphics card supports the following:
•DisplayPort-out connector
•VGA-out connector
Audio features The integrated audio card supports the following:
•Audio line-in connector
•Audio line-out connector
•Headphone connector
•Internal speaker (optional)
•Microphone connector
The optional discrete audio card provides an enhanced audio experience and
extended capabilities.
Input/Output (I/O) features •Audio connectors (audio line-in, audio line-out, headphone, and
microphone)
•Card reader slot (optional)
•Display connectors (DisplayPort-out and VGA-out)
•Ethernet connector
•PS/2 keyboard connector
•PS/2 mouse connector
•Serial connector
•USB connector
Specications 11
Expansion •Card reader (optional)
•Memory slot
•Optical drive (optional)
•PCI Express x1 card slot
•PCI Express x16 graphics card slot
•Storage drive bay
Network features •Ethernet LAN
•Wireless LAN (optional)
•Bluetooth (optional)
Physical dimensions •Width: 92.5 mm (3.6 inches)
•Height: 343.5 mm (13.5 inches)
•Depth: 290.5 mm (11.4 inches)
Weight
(without the package)
•Maximum conguration as shipped: 6.0 kg (13.2 lb)
Locking the computer 12
Locking the computer
Locking the computer cover
Locking the computer cover helps prevent unauthorized
access to the inside of your computer. Your computer
features a padlock loop so that the computer cover
cannot be removed when a padlock is installed.
Attaching a Kensington-style cable lock
You can use a Kensington-style cable lock to secure your
computer to a desk, table, or other nonpermanent xture.
The cable lock connects to the security-lock slot at the
rear of your computer. Depending on the type selected,
the cable lock can be operated with a key or combination.
The cable lock also locks the buttons used to open the
computer cover. This is the same type of lock used with
many notebook computers. You can order such a cable
lock directly from Lenovo by searching for Kensington at:
http://www.lenovo.com/support.
Locking the computer 13
Attaching a cable lock
A cable lock can be used to secure devices, such as the
keyboard and the mouse, by locking the device cables to
the computer. The cable lock connects to the cable-lock
slots on the rear of the computer.
To install a cable lock, do the following:
1 Insert the clip 1into the cable-lock slot 4.
2 Guide the cables you want to lock into the grooves
of the cable lock.
3 Press the clip 2into the cable-lock slot 3until it
snaps into position.
Replacing hardware 14
Replacing hardware
Before replacing hardware
Attention Do not open your computer or attempt any repairs before reading the Important
Product Information Guide.
Read these notes before replacing hardware:
• Some of the hardware components explained in this manual are optional.
• Use computer components provided only by Lenovo.
• When installing or replacing an option, use the appropriate instructions explained in this manual along
with the instructions that come with the option.
• In most areas of the world, Lenovo requires the return of defective CRUs. Information about this will
come with the CRU or will come a few days after the CRU arrives.
Handling static-sensitive devices
Do not open the static-protective package containing the new component until the defective component
has been removed and you are ready to install the new component. Static electricity, although harmless to
you, can seriously damage computer components.
When you handle parts and other computer components, take these precautions to avoid static damage:
• Limit your movement. Movement can cause static electricity to build up around you.
• Always handle parts and other computer components carefully. Handle PCI/PCI-Express cards, memory
modules, system boards, and microprocessors by the edges. Never touch any exposed circuitry.
• Prevent others from touching the parts and other computer components.
• Touch the static-protective package containing the part to a metal expansion-slot cover or other
unpainted metal surface on the computer for at least two seconds. This reduces static electricity from
the package and your body before you install or replace a new part.
• When possible, remove the new part from the static-protective package, and install it directly in the
computer without setting the part down. When this is not possible, place the static-protective package
that the part came in on a smooth, level surface and place the part on the package.
• Do not place the part on the computer cover or other metal surface.
Replacing hardware 15
Knowing replaceable parts
Customer Replaceable Units (CRUs)
CRUs are computer parts that a user can upgrade or replace. There are two types of CRUs: self-service and
optional-service.
Self-service CRUs You can install self-service CRUs easily. These CRUs might be standalone,
latched, or secured by up to two screws.
Examples of self-service CRUs include the keyboard, mouse, any USB
device, and the power cord. Other self-service CRUs might include memory
modules, adapter cards, hard disk drives, and optical drives.
Note Users are responsible for replacing all self-service CRUs.
Optional-service CRUs Handling optional-service CRUs requires some technical skills and simple
tools (such as a screwdriver).
These CRUs are isolated parts within the computer. They are usually
concealed by an access panel that is secured by more than two screws. You
must remove the screws and panel to access the specic CRU.
Optional-service CRUs can be removed and installed by users or, during the
warranty period, by a Lenovo service technician.
Field Replaceable Units (FRUs)
FRUs are computer parts that a trained technician can upgrade or replace.
For detailed FRU information, such as the FRU part numbers and supported computer models, go to:
http://www.lenovo.com/serviceparts-lookup
Replacing hardware 16
CRUs and FRUs locations
Refer to the following illustrations to check the locations of CRUs and FRUs within the computer.
Note Some of the following parts are optional on some models.
Self-service CRU
1Computer cover p. 28
9Memory module p. 35
11 M.2 storage drive p. 42
12 M.2 storage drive bracket
p. 45
13 Secondary storage drive
bezel p. 33
14 Secondary storage drive
p. 33
15 Secondary storage drive
bracket p. 33
17 Optical drive bracket p. 30
18 Optical drive p. 30
22 Front bezel p. 29
23 Dust shield p. 21
24 Keyboard p. 23
25 Mouse p. 25
26 Power cord p. 27
27 Primary storage drive p. 31
28 Primary storage drive
bracket p. 31
29 Storage converter p. 31
34 Vertical stand p. 22
38 PCI Express card p. 37
Replacing hardware 18
FRU
2Heat sink fan duct p. 62
3Heat sink and fan
assembly p. 62
4Coin-cell battery p. 66
7Cover presence switch
(Intrusion switch) p. 68
8Microprocessor p. 64
10 System board p. 69
16 Optical drive cable p. 69
19 Power button board p. 60
20 Card reader p. 61
21 Front I/O bracket p. 59
30 Storage drive cable p. 69
31 Illuminated red dot cable
p. 55
32 Thermal sensor p. 57
33 Internal speaker p. 53
35 Chassis p. 69
37 Wi-Fi antennas (2) p. 51
Replacing CRUs 19
Replacing CRUs
Before replacing CRUs
To check the locations of CRUs, see CRUs and FRUs locations.
Attention Do not open your computer or attempt any repairs before reading the Important
Product Information Guide.

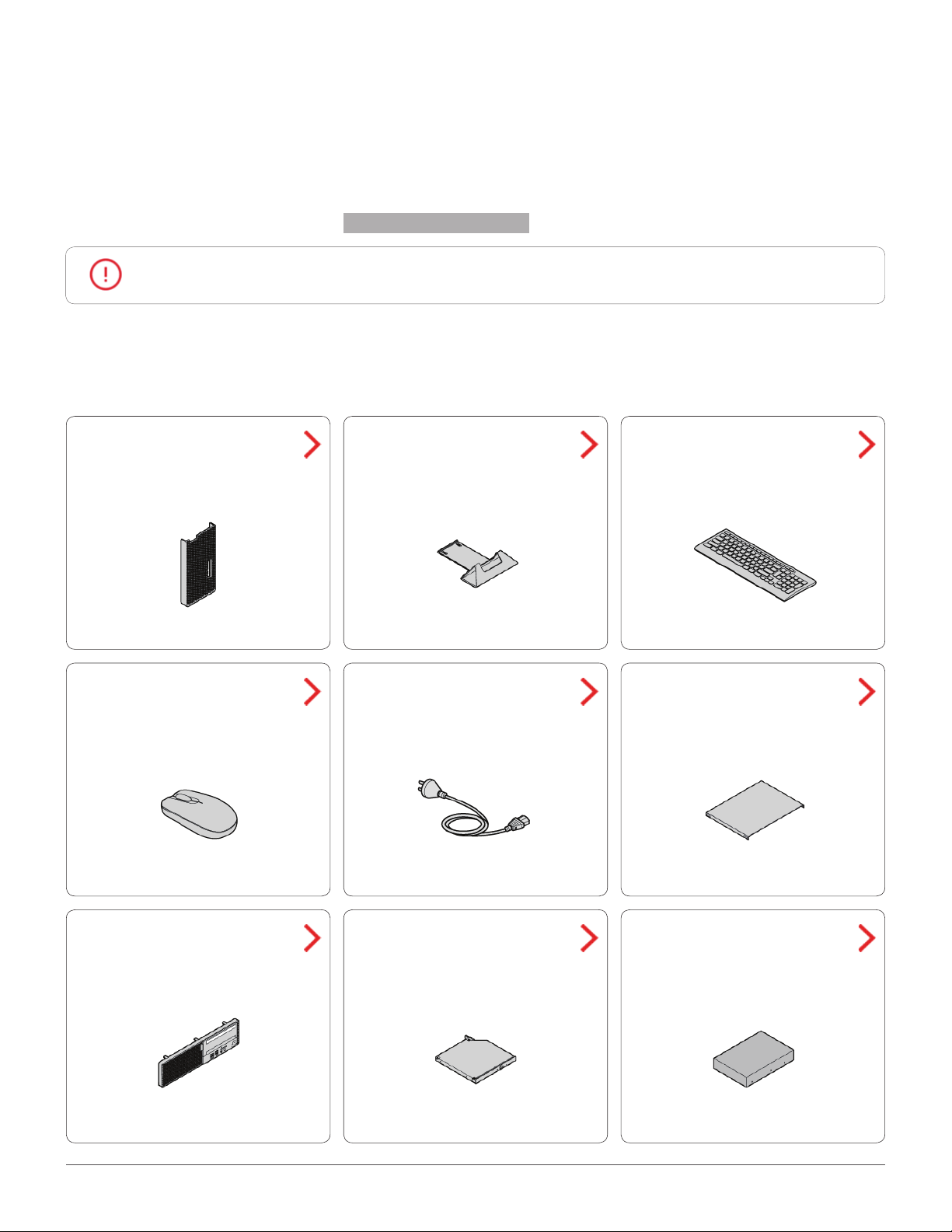

Before replacing a CRU, click the illustration of the part to check the brief procedures.
Dust shield
Mouse or wireless
mouse
Keyboard or wireless
keyboard
Computer cover
Vertical stand
Power cord
Front bezel Storage driveOptical drive
This manual suits for next models
4
Table of contents
Other Lenovo Desktop PC manuals
