Lenovo IdeaCentre B540 User manual

Version 1.0
Machine type: 10097/2566 [B340]
10099/2568 [B540]
10101/3363 [B540p]
10098/2567 [B345]
10100/4749 [B545]
2012.02
Lenovo
IdeaCentre B3/B5 Series
User Guide
31501557

Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
The interface and functions shown in this User Guide are provided for reference
only and may differ from actual product appearance. Product design and
specifications may be changed without notice.
Danger: Be aware of extremely hazardous or potentially lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2012. All rights reserved.
LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered
pursuant a General Services Administration “GSA” contract, use, reproduction, or
disclosure is subject to restrictions set forth in Contract No. GS-35F-05925.
© 2012. Lenovo

1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view of the computer......................................................2
1.2 Left and right view of the computer .........................................3
1.3 Rear view of the computer.......................................................4
1.4 TV button instructions (selected models only) ..........................5
1.5 Computer stand ......................................................................6
1.6 Connecting your computer ......................................................7
1.7 Important information about using the computer .....................8
1.8 Wired keyboard (selected models only)..................................10
Chapter 2 Touch screen user instruction ............................. 11
2.1 Touch Screen Calibration.......................................................12
2.2 User Gesture Instructions for the Touch screen......................12
2.3 Attentions when using the Touch Screen ...............................20
Chapter 3 Using the Onekey TV (selected models only)..... 23
3.1 Guide to the remote control (selected models only)................25
3.2 Onekey TV Instructions (ASTC model) (selected models
only) ......................................................................................28
3.3 Onekey TV Instructions (DVB-T model) (selected models
only) ......................................................................................30
3.4 Onekey TV Instructions (ATV model) (selected models only)...33
Chapter 4 Using the Rescue System .................................... 35
4.1 OneKey Recovery..................................................................36
4.2 Driver and Application Installation ..........................................36
4.3 System Setup........................................................................37

2Contents
4.4 System Backup .....................................................................38
4.5 System Recovery ..................................................................38
4.6 Create Recovery Disc ............................................................38
Chapter 5 Troubleshooting and Confirming Setup.............. 39
5.1 Troubleshooting Display Problems .........................................40
5.2 Troubleshooting Audio Problems ...........................................41
5.3 Troubleshooting Software Problems.......................................41
5.4 Troubleshooting Problems with Optical Drives and Hard
Disks .....................................................................................42
5.5 Special considerations for troubleshooting Windows .............43
5.6 Performing Daily Maintenance Tasks......................................44
Chapter 6 Hardware Replacement Guide............................. 45
6.1 Overview ...............................................................................46
6.2 Replacing hardware...............................................................49
Appendix. ....................................................................................60
Energy Star Statement.................................................................61

1
2
3
4
5
6
Chapter
This chapter contains the following
topics:
ØIntroduction to the computer hardware
ØInformation on computer connections
Note: The descriptions in this chapter
might be different from what you see on
your computer, depending on the computer
models and configurations.
User Guide 1
Using the Computer Hardware

2User Guide
1.1 Front view of the computer
Attention: Be careful not to block any air vents on the computer. Blocked
air vents can cause overheating.
1
2
3 7 8 9 10 11 12 13 14 654
Built-in microphone area Camera
Built-in IR Emitter(do not block)
(selected models only)
Hard Disk Drive Indicator
Bluetooth status indicator WIFI status indicator
TV indicator Volume down
Volume up Brightness down
Brightness up Novo Vision button
PC mode / HDMI-in / AV-in switch Monitor On/Off
Attention: The effective range of the Built-in IR Emitter is 10 feet (3m).

3
User Guide

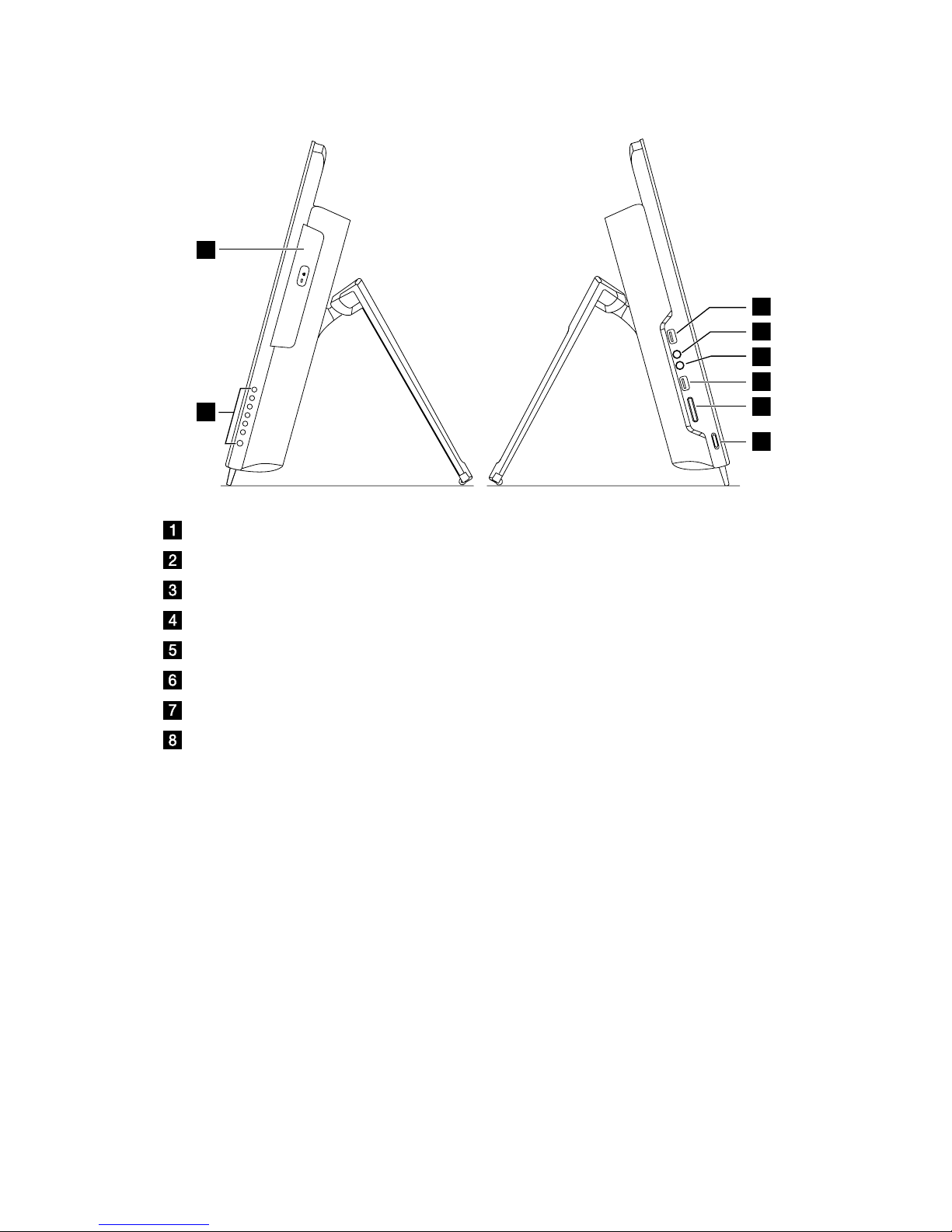

1.2 Left and right view of the computer
1
2
3
4
5
6
7
8
Optical drive
TV buttons (selected models only)
USB connector
Headphone port
Microphone port
USB connector
Memory card reader
Power button

4User Guide

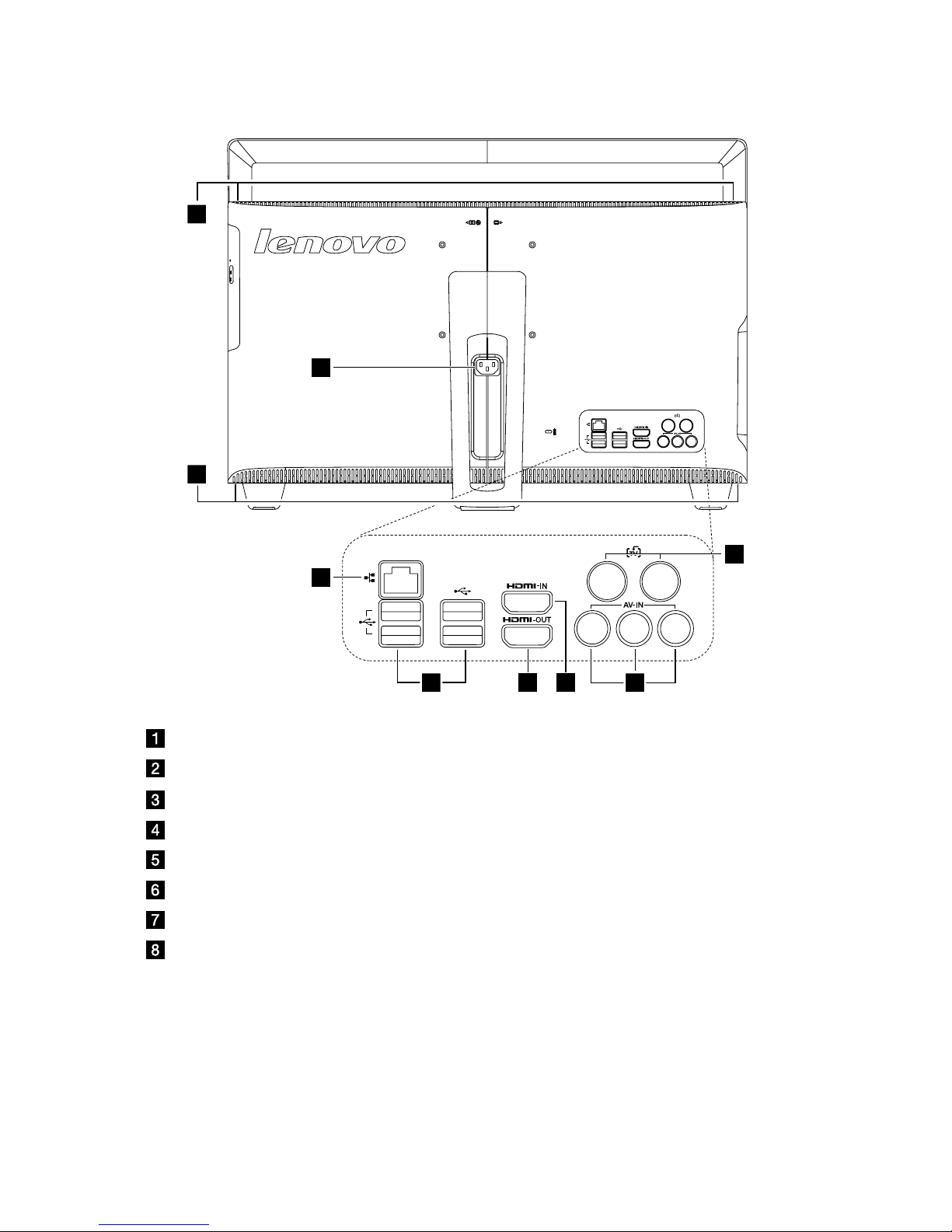

1.3 Rear view of the computer
1
7
3 4
6
2 5
8
8
Ethernet port
USB connectors
HDMI-out connector
HDMI-in connector (selected models only)
AV-IN connectors (selected models only)
TV tuner ports (selected models only)
Power connector
Air vents (do not block)

5
User Guide

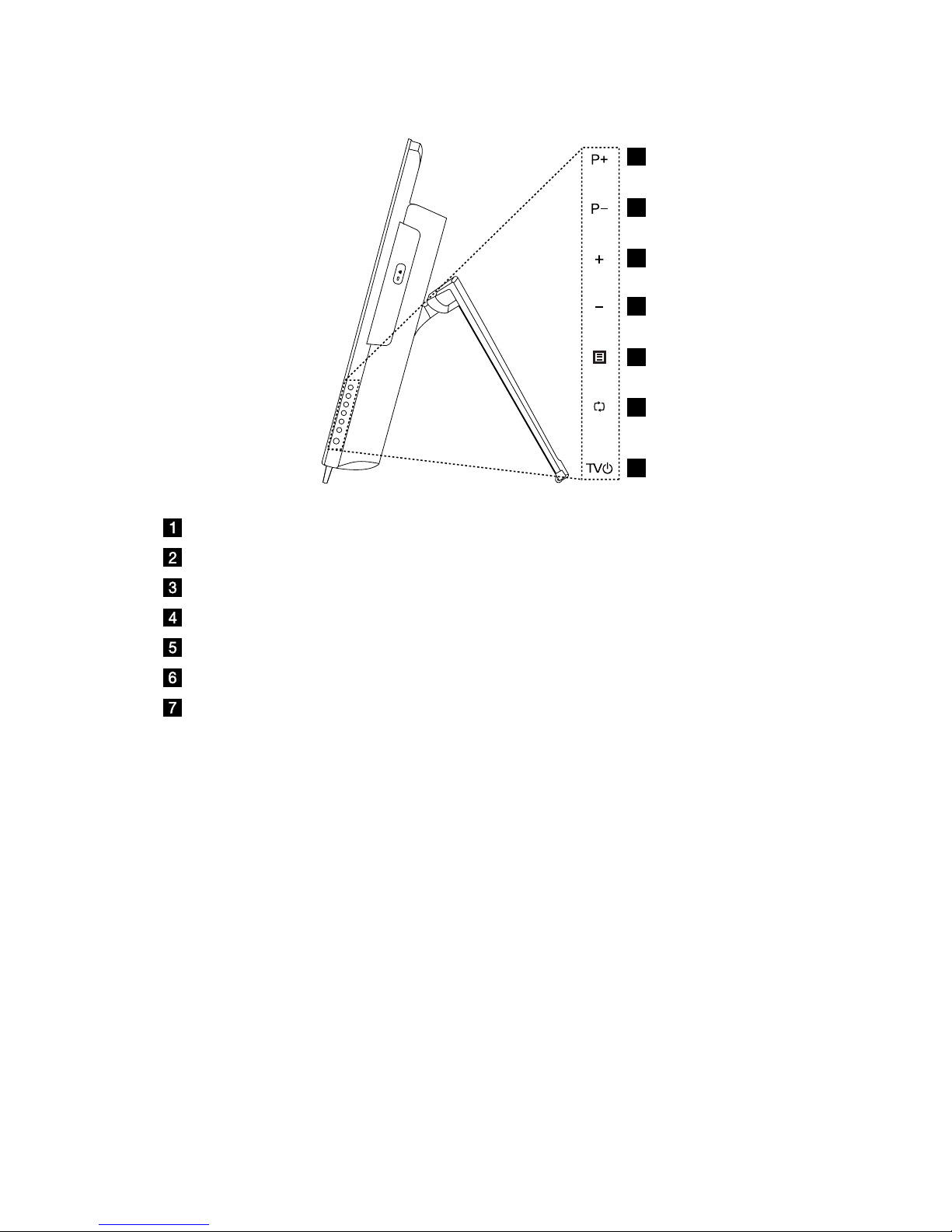

1.4 TV button instructions (selected models only)
1
2
3
4
5
6
7
Channel up
Channel down
Volume up
Volume down
TV mode menu button
Signal source selection button
TV power On/Off

6User Guide
1.5 Computer stand
Use the stand to position the display to your preference. It can be rotated between
15º and 40º from the vertical.
Attention:
1. The computer stand must remain installed at all times to ensure
maximum system stability.
2. Make sure the angle of the computer is at least 15 degrees from the
vertical; otherwise the computer will be unstable and could fall over.

7
User Guide
1.6 Connecting your computer
Note: Your computer may not have all of the connectors described in this
section.
1.6.1 Basic connector instructions
Connector Description
Microphone Use this connector to attach a microphone to your
computer when you want to record sound or if you use
speech-recognition software.
Headphone Use this connector to attach headphones to your
computer when you want to listen to music or other
sounds without disturbing anyone.
USB connector Use this connector to attach a device that requires a
USB connection.
Ethernet connector Use this connector to attach the computer to an
Ethernet-type local area network.
HDMI connector
(optional)
Connects to the HDMI connector on your display or TV.
TV-Tuner connector
(optional)
Connects to an external antenna to view programs
using the optional TV tuner card.
AV-in connector
(optional)
Connects to the composite audio and video
connectors on your video device.
Note: If your computer is equipped with a wireless keyboard or mouse,
follow the installation instructions for those devices.

8User Guide

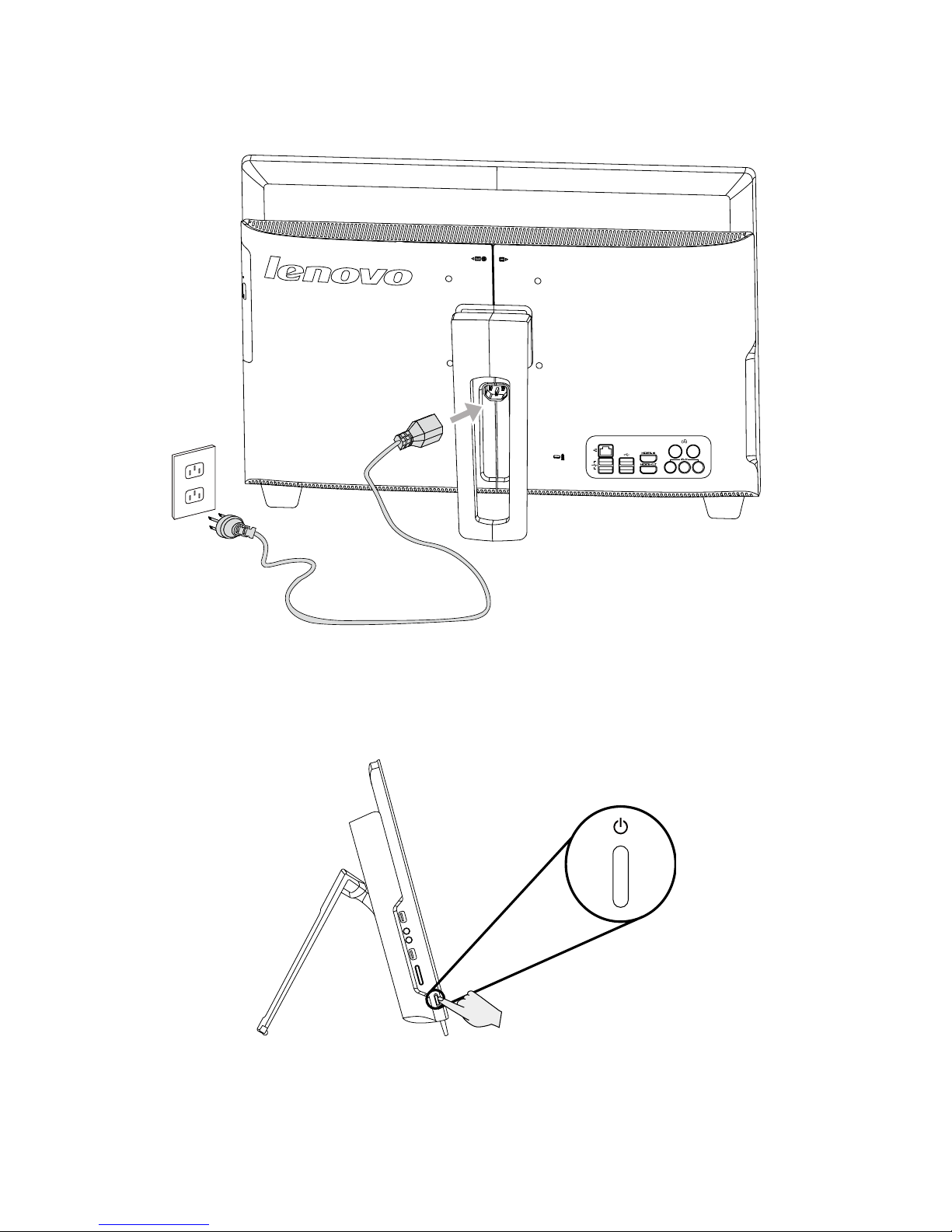

1.6.2 Connecting the power cord
Connect the power cord properly to grounded electrical outlets.
1.7 Important information about using the computer
Press the power button on the side of the computer to turn on the computer.

9
User Guide
Note: The buttons at the bottom of the screen are touch buttons. When
you touch these, the indicator lights turn on.
Hold the computer tightly when you carry it.

10 User Guide
1.8 Wired keyboard (selected models only)
LVT —— After entering Windows, press this key to launch the LVT (Lenovo
Vantage Technology) program, Lenovo’s pre-loaded Home PC software.
In addition to its own functions, the LVT program will allow you to start
other Windows compatible software, specially configured to run on this
model of computer.
F2 —— Your computer has the Lenovo Rescue System installed. To learn
more about this program, repeatedly press and release the F2 key
once turning on the computer until the Lenovo Rescue System open.

1
2
3
4
5
6
Chapter
Touch screen user instruction
User Guide 11
This chapter contains the following
topics:
ØTouch Screen Calibration
ØUser Gesture Instructions for the Touch screen
ØAttentions when using the Touch Screen
Attention: Only some selected models are
equipped with touch screens.

12 User Guide
The monitor has touch capability due to a touch-sensitive screen installed. A touch
screen is an input device just like a mouse or a keyboard, and the user’s hand
transmits position information via the touch screen to the computer. With this
technology, you only need to touch the pictures or words on the computer display
lightly with your finger, and the computer will react.
2.1 Touch Screen Calibration
Prior to first use or whenever the touch screen reacts in a different place where you
are touching it, start the calibration program. The procedure is as follows:
1. In Windows 7, Select “Start” – “Control Panel”.
2. In Control Panel, select “Hardware and Sound”.
3. In “Hardware and Sound” window, select “Tablet PC Settings”.
4. In “Tablet PC Settings” dialogue, click “Calibrate” button.
2.2 User Gesture Instructions for the Touch screen
The Touch screen supports single touch and rotational movements, enlargement
and reduction multi-touch operations, and the user can transmit position
information to the computer via touch. The touch screen uses a very low pressure
movement recognition method, which only needs the finger to move lightly on the
computer display screen or make a simple hand gesture to be detected by the
main computer processor.
2.2.1 Basic Hand Gestures
1. Single Click / Double Click
For the item selected on the touch screen, touch it one or two times with finger,
to perform a single click or double click operation. This is similar to the action
performed by clicking the mouse left button.

13
User Guide

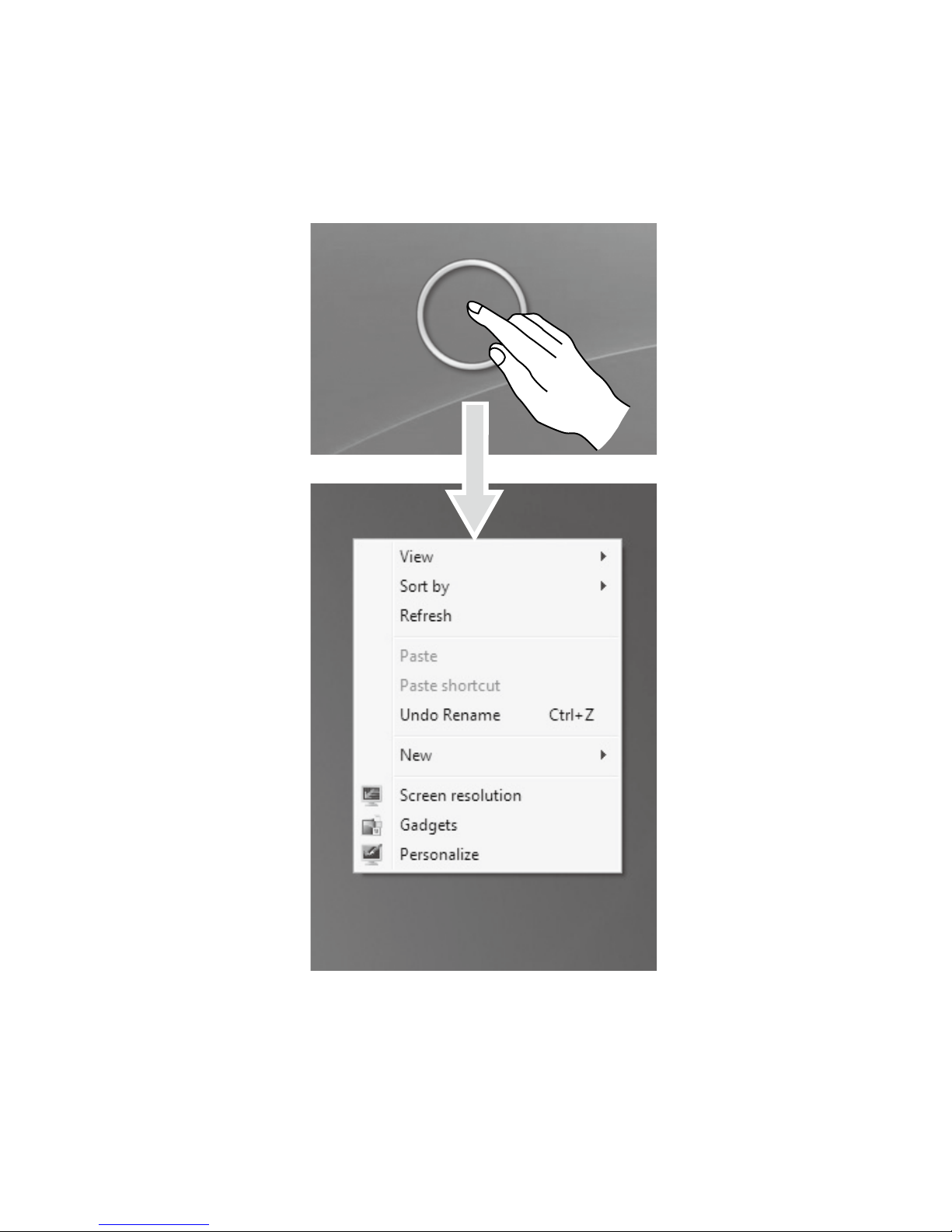

2. Single Finger Right Click
For the item selected on the touch screen, press and hold your finger on the
screen until a circle appears. After lifting your finger from the touch screen, a menu
bar will pop up, completing the single finger right click operation. This is similar to
the action performed by clicking the mouse right button.

14 User Guide

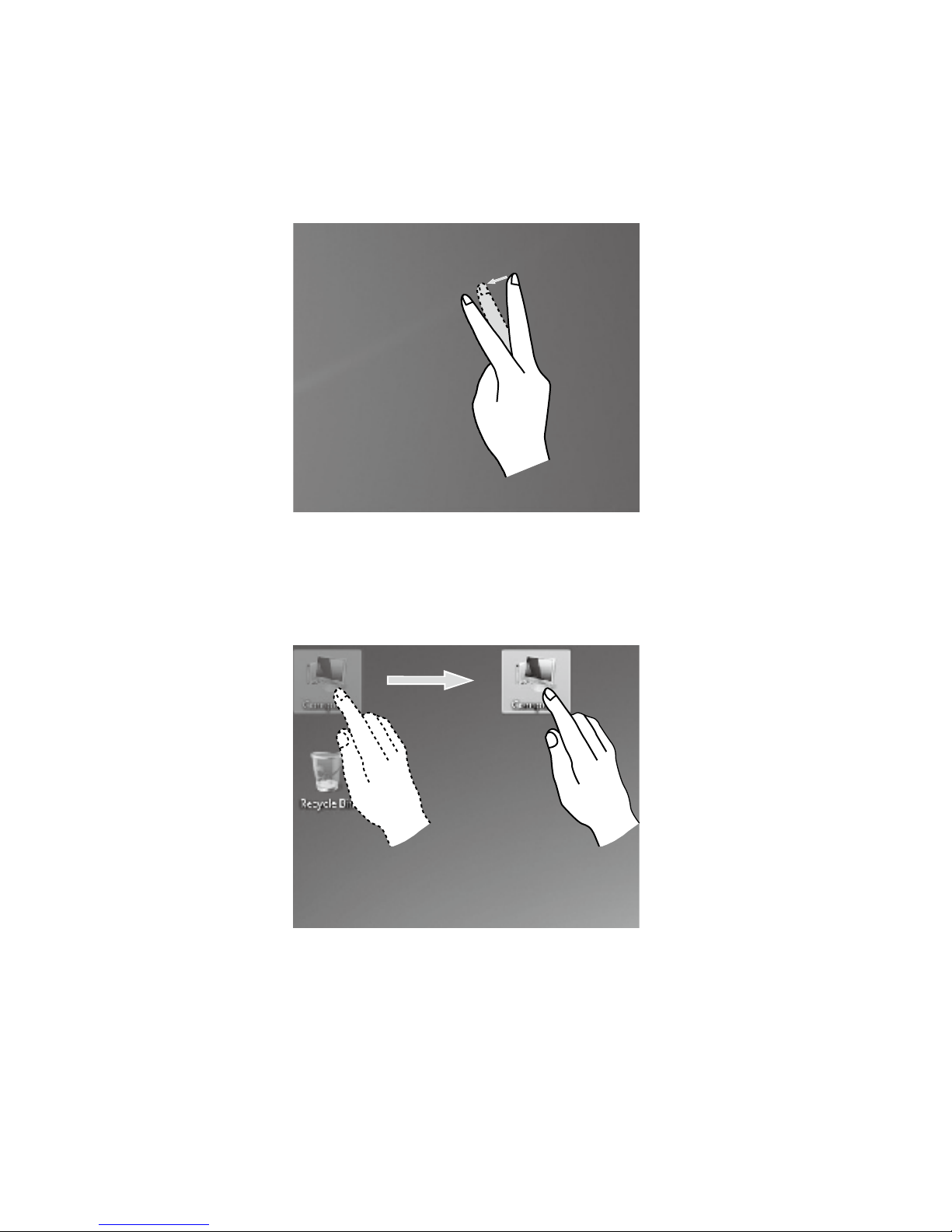

3. Double Finger Right Click
First touch a finger to the screen to select the desired item and hold it there, then
touch another finger anywhere nearby on the screen and quickly lift it up again,
to complete a double finger right click operation. The area where the first finger is
placed can be used to show the right-click menu or perform related operations.
12
4. Dragging Movement
First touch your finger on the desired item on the screen and hold it there, then
make a dragging movement. This is similar to the click and drag movement you
can make with a mouse.

15
User Guide

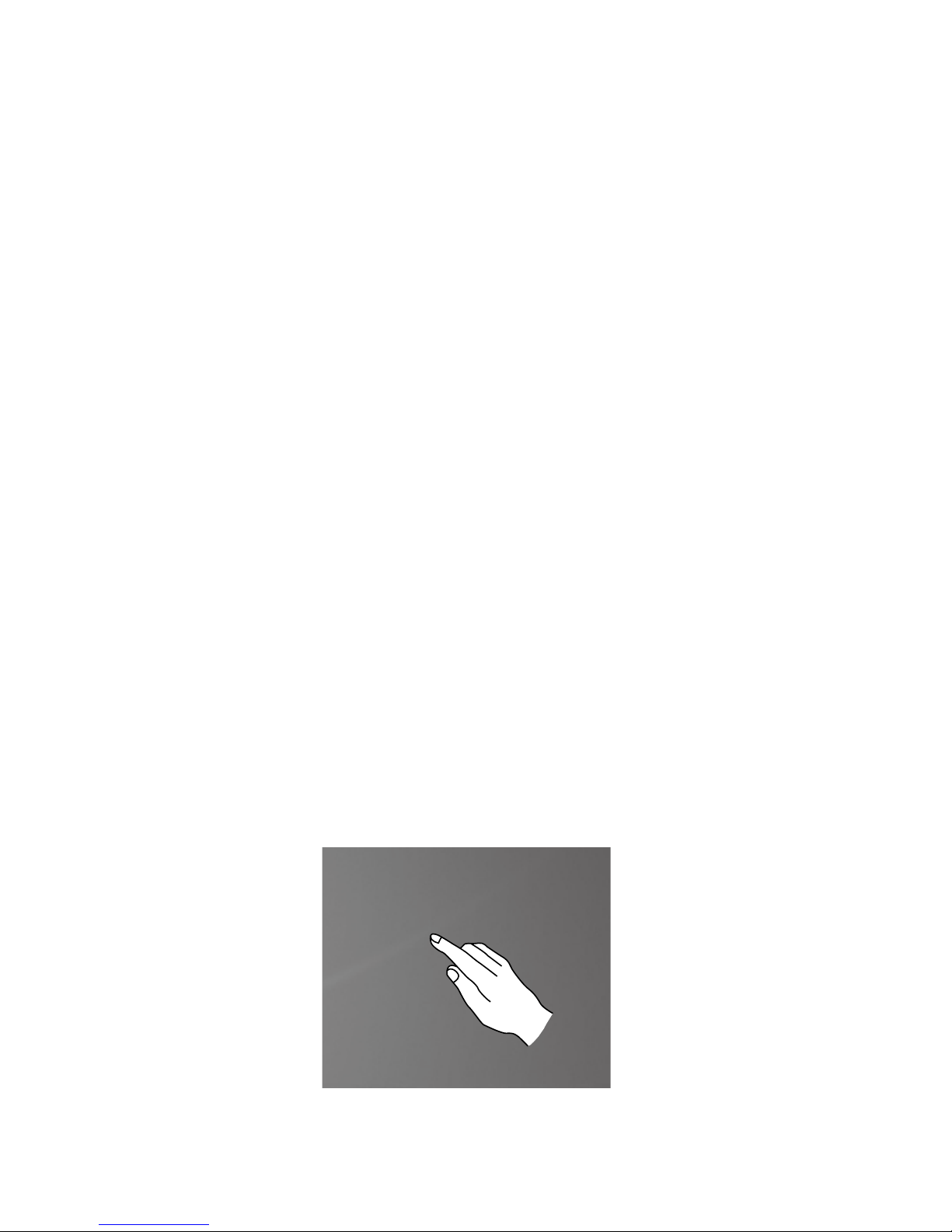

5. High Speed Slide
If you touch the screen with a single finger and slide it a short distance horizontally
(about 5 cm), then quickly lift it up again, this is called a High Speed Slide, and the
screen will show the “Forward” or “Back” icon.
In the default situation, a high speed horizontal sliding movement will execute a
forward or back operation. For example: Forward and Back operations for the
IE browser; or Previous and Next slide operations in Windows Photo Viewer
slideshow mode.
about 5 FP
6. Rolling Movement
When you move your finger one time vertically (or horizontally) on the touch screen,
this is called a Rolling Operation. For example: This operation is similar to moving
the scroll wheel on the top of a mouse, and produces the same results as the scroll
wheel interface does.
