Lenovo IdeaCentre K315 User manual

Version 6.0 2011.08
User Guide
IdeaCentre K3 Series
Machine type: 10062/7727
10073/1169
10066/7747
10067/7748
10079/1197/3098
31500404

Important Safety Information
Before using this manual, it is important that you read and understand all of the
related safety information for this product. Refer to the Safety and Warranty Guide
that you received with this product for the latest safety information. Reading and
understanding this safety information reduces the risk of personal injury or damage
to your product.
Danger: Be aware of extremely hazardous or lethal situations.
Attention: Be aware of possible damage to programs, devices, or data.
Note: Pay attention to this important information.
© Copyright Lenovo 2007, 2011.

1
Contents
Contents
Important Safety Information
Chapter 1 Using the Computer Hardware.............................. 1
1.1 Front view of the chassis .........................................................2
1.2 Rear view of the chassis ..........................................................3
1.3 Connecting your computer ......................................................7
1.4 Power Dial (Selected models only) .........................................14
Chapter 2 Using the Rescue System .................................... 19
2.1 OneKey Recovery..................................................................20
2.2 Driver and Application Installation ..........................................20
2.3 System Setup........................................................................21
2.4 System Backup .....................................................................22
2.5 System Recovery ..................................................................22
2.6 Create Recovery Disc ............................................................22
Chapter 3 Using the Computer Software ............................. 23
3.1 Lenovo Dynamic Brightness System......................................24
3.2 Lenovo Eye Distance System ................................................25
3.3 BackOn Track........................................................................26
Chapter 4 Troubleshooting and Confirming Setup.............. 29
4.1 Troubleshooting Display Problems .........................................30
4.2 Troubleshooting Audio Problems ...........................................31
4.3 Troubleshooting Software Problems.......................................31
4.4 Troubleshooting Problems with Optical Drives and
Hard Disks.............................................................................32
4.5 Special considerations for troubleshooting Windows .............33
4.6 Performing Daily Maintenance Tasks......................................34

1
2
3
4
Chapter
This chapter contains the following
topics:
Computer hardware introduction
Information on computer connections
Note: The descriptions in this chapter
might be different from what you see on
your computer, depending on the computer
models and configurations.
User Guide 1
Using the Computer Hardware

2User Guide
1.1 Front view of the chassis
Attention: Be careful not to block any air vents on the computer. Blocked
air vents can cause overheating.
9
8
3
1
2
4
5
6
7
Power button
Power Dial indicator ON/OFF
File backup button
USB connector
Microphone connector
Headphone connector
Memory card reader (Selected models only)
Optical drive (Some models are equipped with only one optical drive)
Power Dial switch

3
User Guide

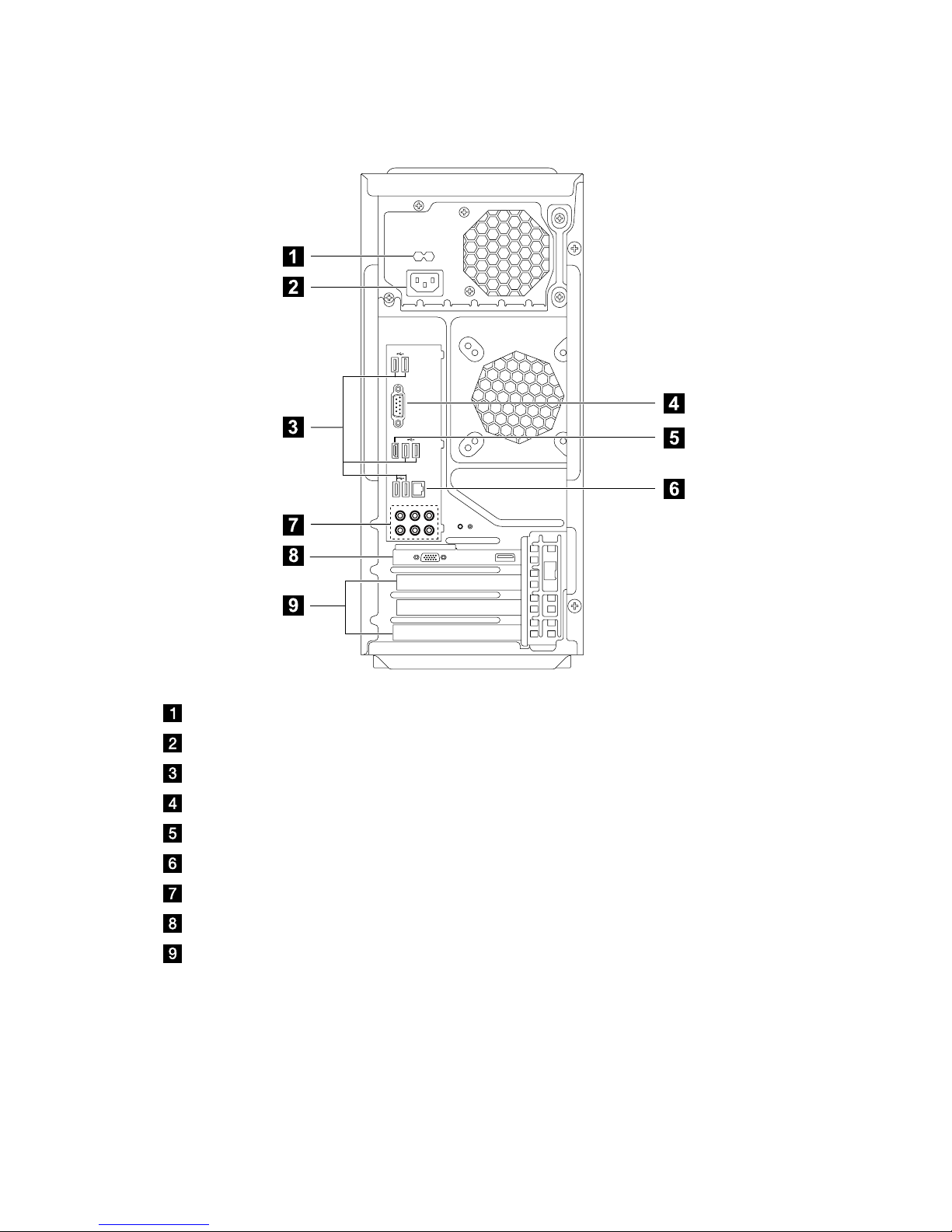

1.2 Rear view of the chassis
IdeaCentre K315
Voltage selection switch (Selected models only)
Power connector
USB connectors (6)
On-board VGA connector
HDMI connector
Ethernet connector
Audio connectors (6)
Standalone graphic card (Selected models only)
Expansion card slots (Access connectors for any installed PCI express cards)

4User Guide
IdeaCentre K335
Voltage selection switch (Selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
eSATA connector
USB connectors (6)
HDMI connector
On-board VGA connector
Ethernet connector
Audio connectors (6)
Standalone graphic card (Selected models only)
Expansion card slots (Access connectors for any installed PCI express cards)

5
User Guide

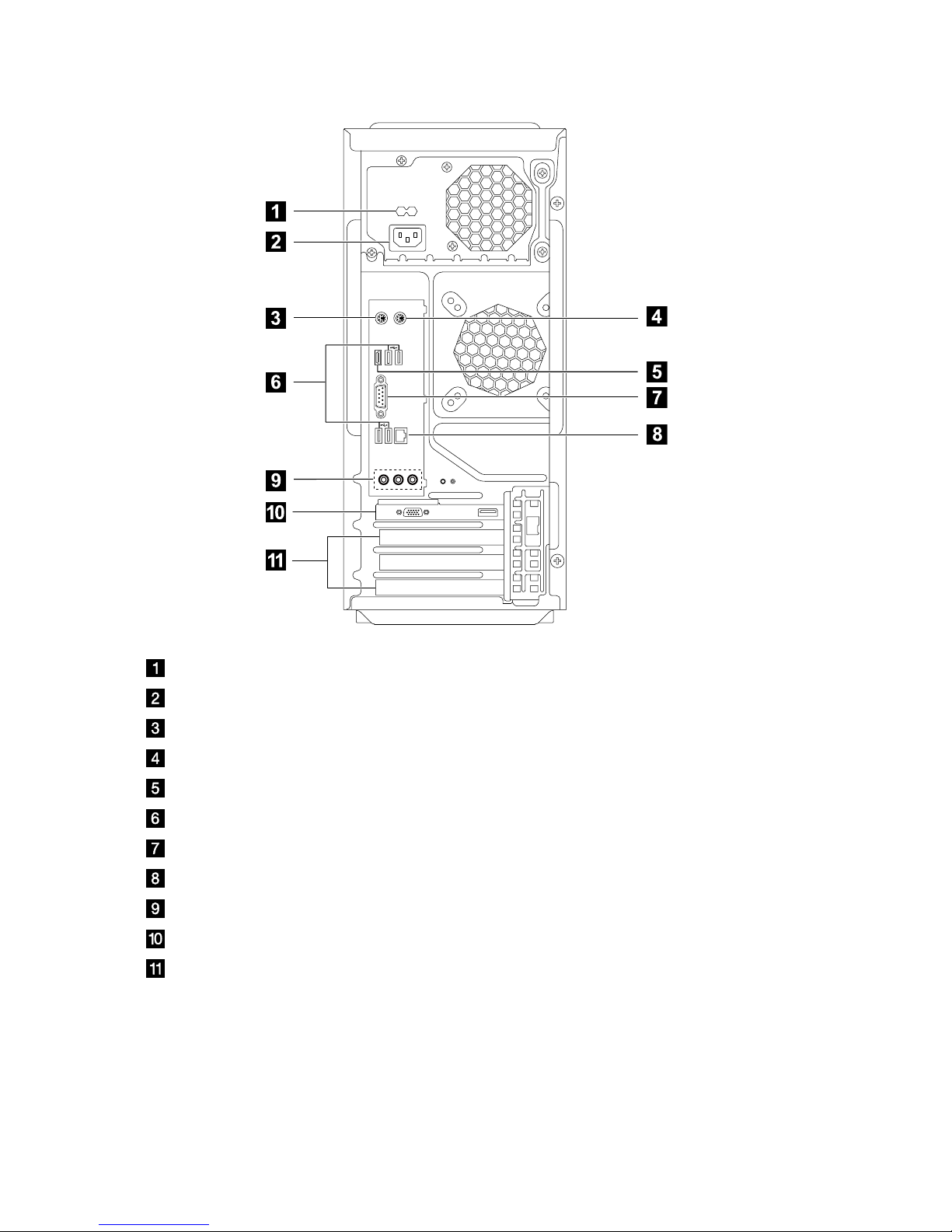

IdeaCentre K330
Voltage selection switch (Selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
USB connectors (6)
eSATA connector
Ethernet connector
Audio connectors (6)
Standalone graphic card
Expansion card slots (Access connectors for any installed PCI express cards)

6User Guide
IdeaCentre K330A/IedaCentre K330B
Voltage selection switch (Selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
HDMI connector
USB connectors (4)
On-board VGA connector
Ethernet connector
Audio connectors (3)
Standalone graphic card (Selected models only)
Expansion card slots (Access connectors for any installed PCI express cards)

7
User Guide
1.3 Connecting your computer
Use the following information when connecting your computer.
• Lookforthesmallconnectoriconsonthebackofyourcomputer.Matchthe
connectors to the icons.
• Ifyourcomputercablesandconnectorpanelhavecolor-codedconnectors,
match the color of the cable end with the color of the connector.
Note: Your computer may not have all of the connectors described in this
section.

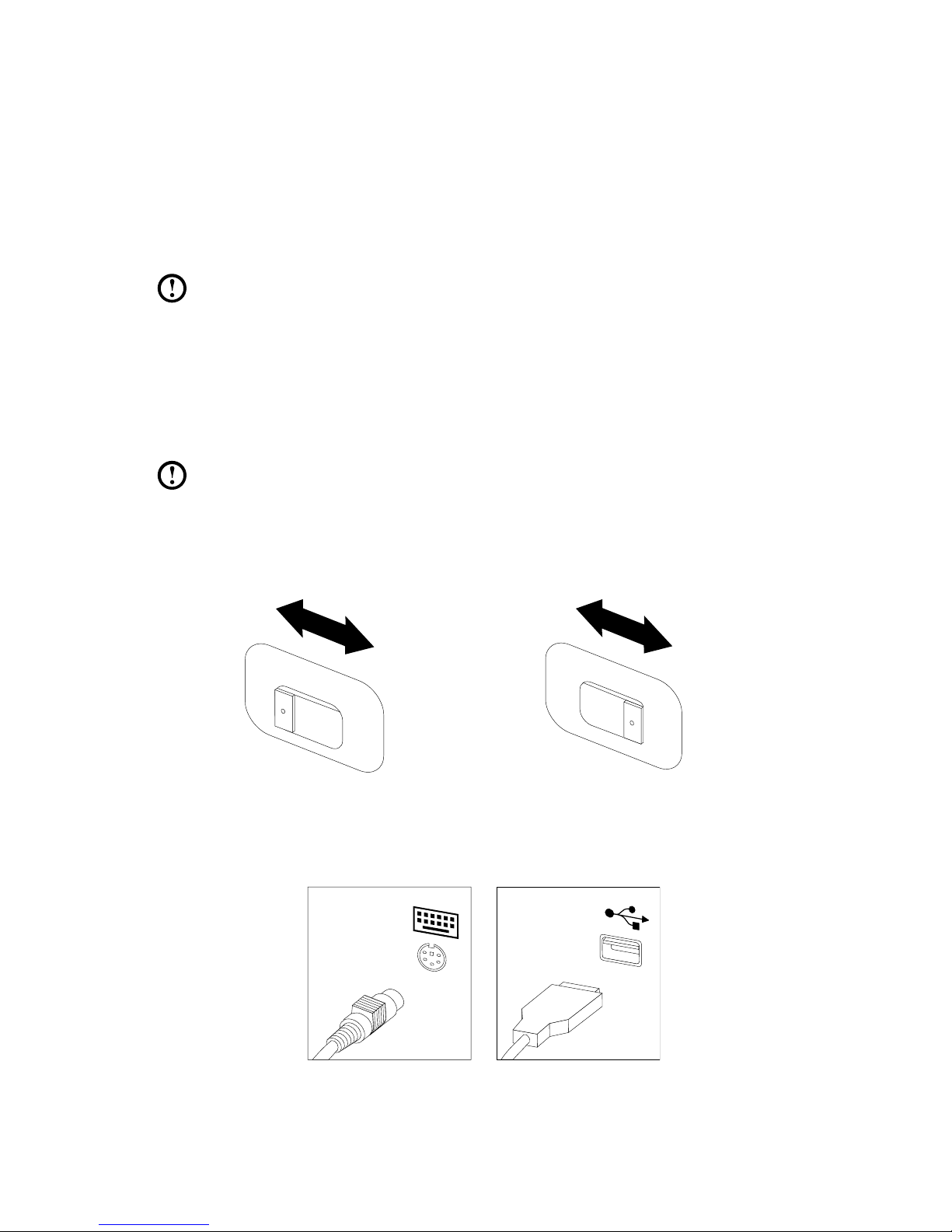

1.3.1 Check the position of the voltage-selection switch on
the rear of the computer. Use a ballpoint pen to slide the
switch if necessary.
Note: Some computers do not have a voltage switch. These computers
control voltage automatically.
• Ifthevoltagesupplyrangeis100-127VAC,settheswitchto115V.
• Ifthevoltagesupplyrangeis200-240VAC,settheswitchto230V.
115
230
1.3.2 Connect the keyboard cable to the appropriate keyboard
connector (PS/2 connector or USB connector).

8User Guide
1.3.3 Connect the mouse cable to the appropriate mouse
connector (PS/2 connector or USB connector).
Note: If your computer is equipped with a wireless keyboard or mouse,
follow the installation instructions for those devices.
1.3.4 Connect the monitor cable to the monitor connector on
the computer.
• If you have a Video Graphics Array (VGA) Standard monitor, connect the
cable to the connector as shown.
Note: If your model has two monitor connectors, be sure to use the
connector on the graphics adapter.
• If you have an HDMI monitor, your computer must have an adapter that
supports the HDMI monitor installed. Connect the cable to the port as
shown.

9
User Guide

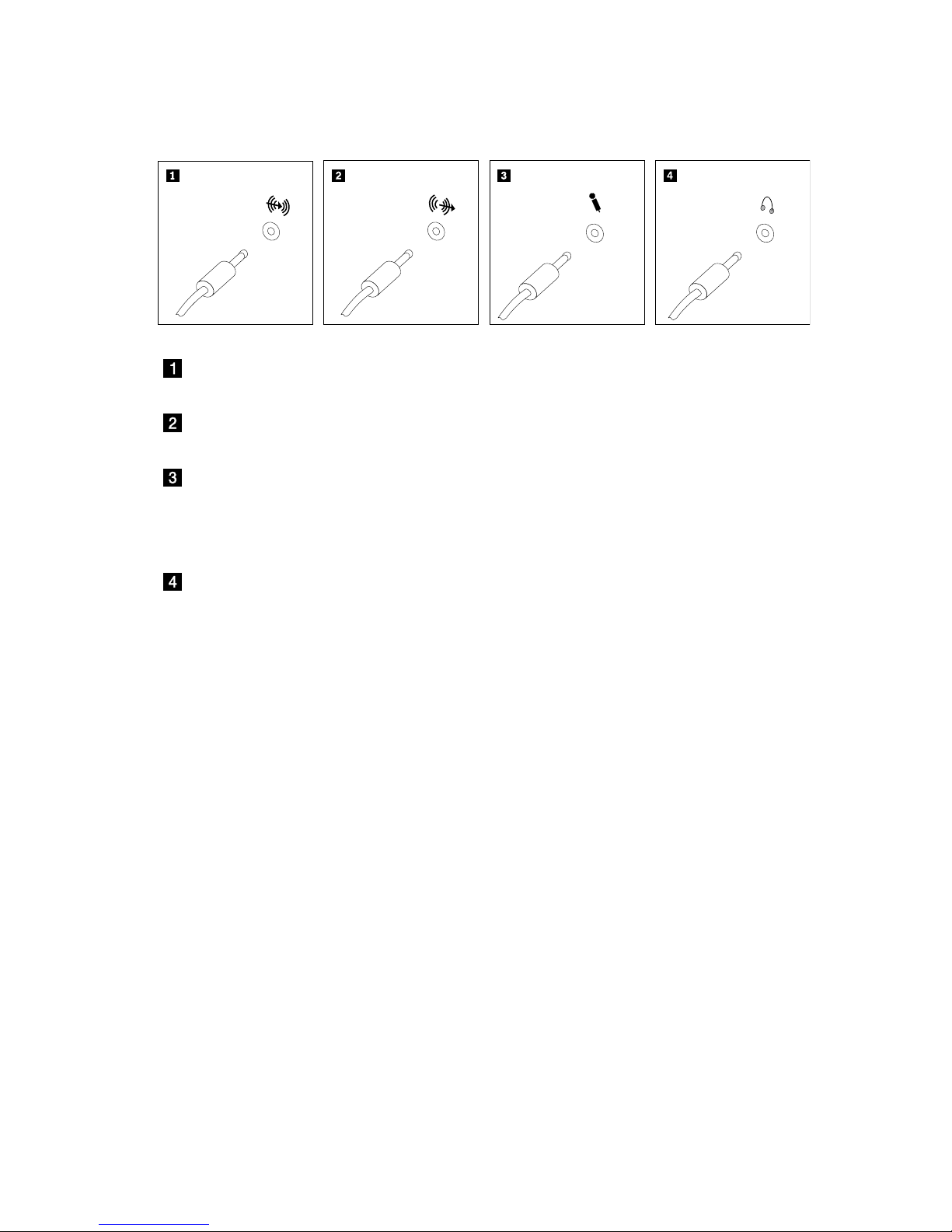

1.3.5 If you have audio devices, attach them using the
following instructions.
Audio line-in This connector receives audio signals from an external audio
device, such as a stereo system.
Audio line-out This connector sends audio signals from the computer to
external devices, such as powered stereo speakers.
Microphone Use this connector to attach a microphone to your
computer when you want to record sound or if you use
speech-recognition software. This connector might be
located on the front of the computer.
Headphone Use this connector to attach headphones to your computer
when you want to listen to music or other sounds without
disturbing anyone. This connector might be located on the
front of the computer.

10 User Guide
1.3.6 7.1 Audio configuration instructions
Use the following illustration when connecting a 7.1 surround sound audio system:
Side surround connector Microphone connector
Rear surround connector Front line-out connector
Center/subwoofer connector Audio line-in connector
Note: For more detailed settings, click Start → Control panel → Hardware
and Sound → Lenovo HD Audio Manager. Follow the instructions to
configure advanced settings.
Sound configuration is as follows:
1. Right click the Sound icon in the system property bar and select the sounds
option to setup the sounds in the pop-up dialog box.
2. Select a playback device from the playback dialog box, then click the
configure button to configure it.
3. Select 7.1 surround from audio channels in the pop-up speaker setup dialog
box and proceed with the speaker setup by following the prompts.
4. 7.1 surround sound can be used once this configuration procedure is complete.

11
User Guide
Note: If the audio configuration interfaces above are different from
those on your computer, you may use the above steps as a reference to
configure the 7.1 surround sound audio device system in your actual audio
configuration interface and read the electronic Help information for further
assistance.

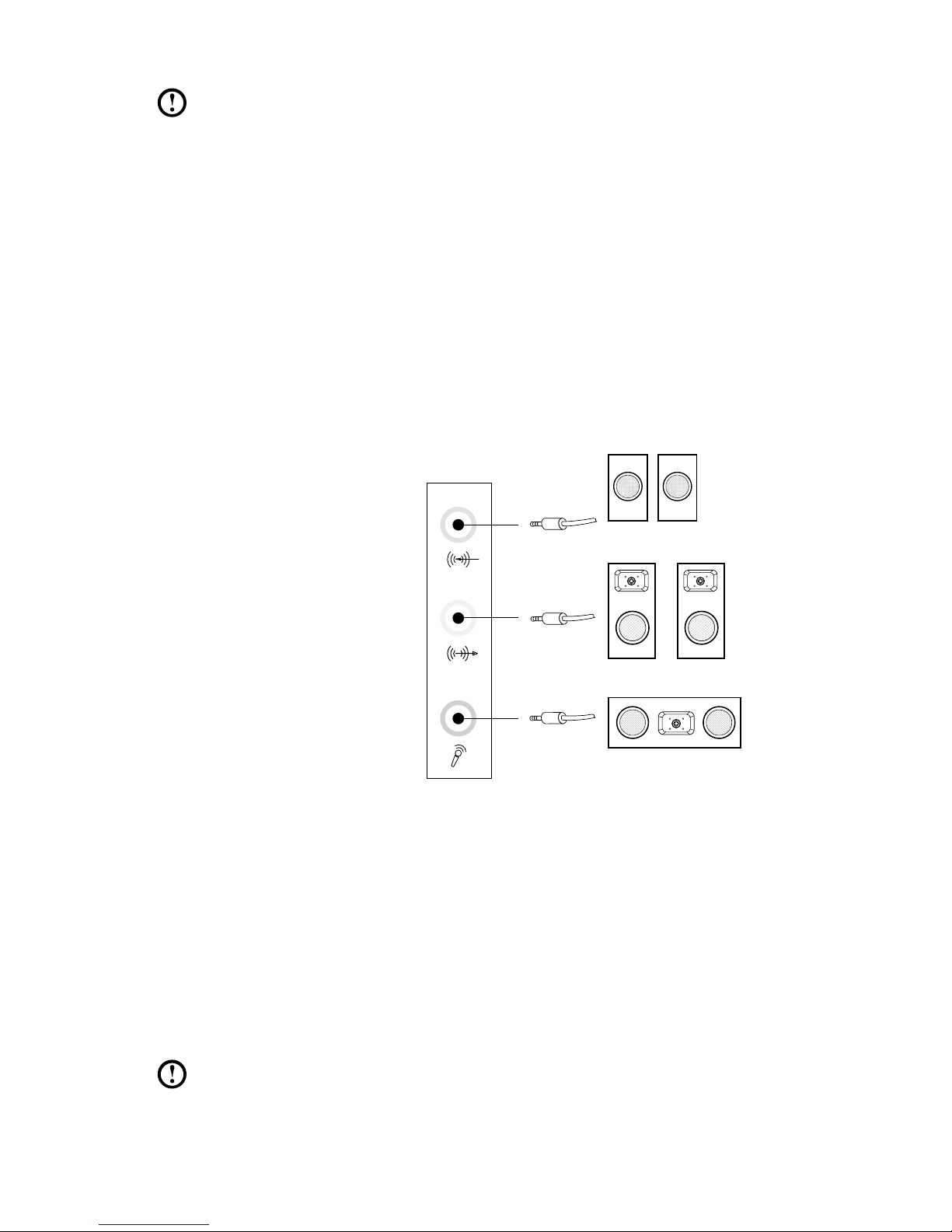

1.3.7 5.1 Audio configuration instructions: (This instruction
is only for the pc model which mainboard supports audio
transforming from 2.0 stereo to 5.1 surround.)
This model of computer supports transforming stereo sound into 5.1 surround
sound.
Use the following guides when connecting to the 5.1 surround audio device:
Front channel
Surround
Center-LEF
Blue line-in connector
Green line-out connector
Pink Mic-in connector
The configurations are as followings:
1. Right click the Sound icon in system property bar and select sounds option to
setup the sounds in the pop-up dialog box.
2. Select a playback device from the playback dialog box, and then click configure
button to configure it.
3. Select 5.1 surround from audio channels in the pop-up speaker setup dialog
box to proceed with the speaker setup by following as prompted.
4. After the configuration, 5.1 surround can be used.
Note: If the audio configuration interfaces in above are different from your
actual computer, you may use above steps as reference to configure the

12 User Guide
5.1 surround audio device in your actual audio configuration interface and
read the electronic Help information for further assistance.
1.3.8 Connect any additional devices that you have. Your
computer may not have all the connectors shown here.
USB connector Use this connector to attach a device that requires a USB
connection.
TV tuner
connector
Only supported on systems with optional TV tuner card.
Ethernet
connector
Use this connector to attach the computer to an Ethernet-
type local area network.
1.3.9 Connect the power cords properly to grounded electrical
outlets.

13
User Guide
1.3.10 If your computer is equipped with a Memory Card
Reader Connector, it can read/write data from the
following:
Memory Stick, Memory Stick PRO, Memory Stick Duo,
Memory Stick PRO Duo.
Secure Digital Card, SD High Capacity Card, Mini Secure Digital Card,
Mini SD High Capacity Card, Multi Media Card, Reduced Size Multi Media
Card, Multi Media Card Plus, Multi Media Card Mobile, XD Micro Drive,
Compact Flash Type I, Compact Flash Type II

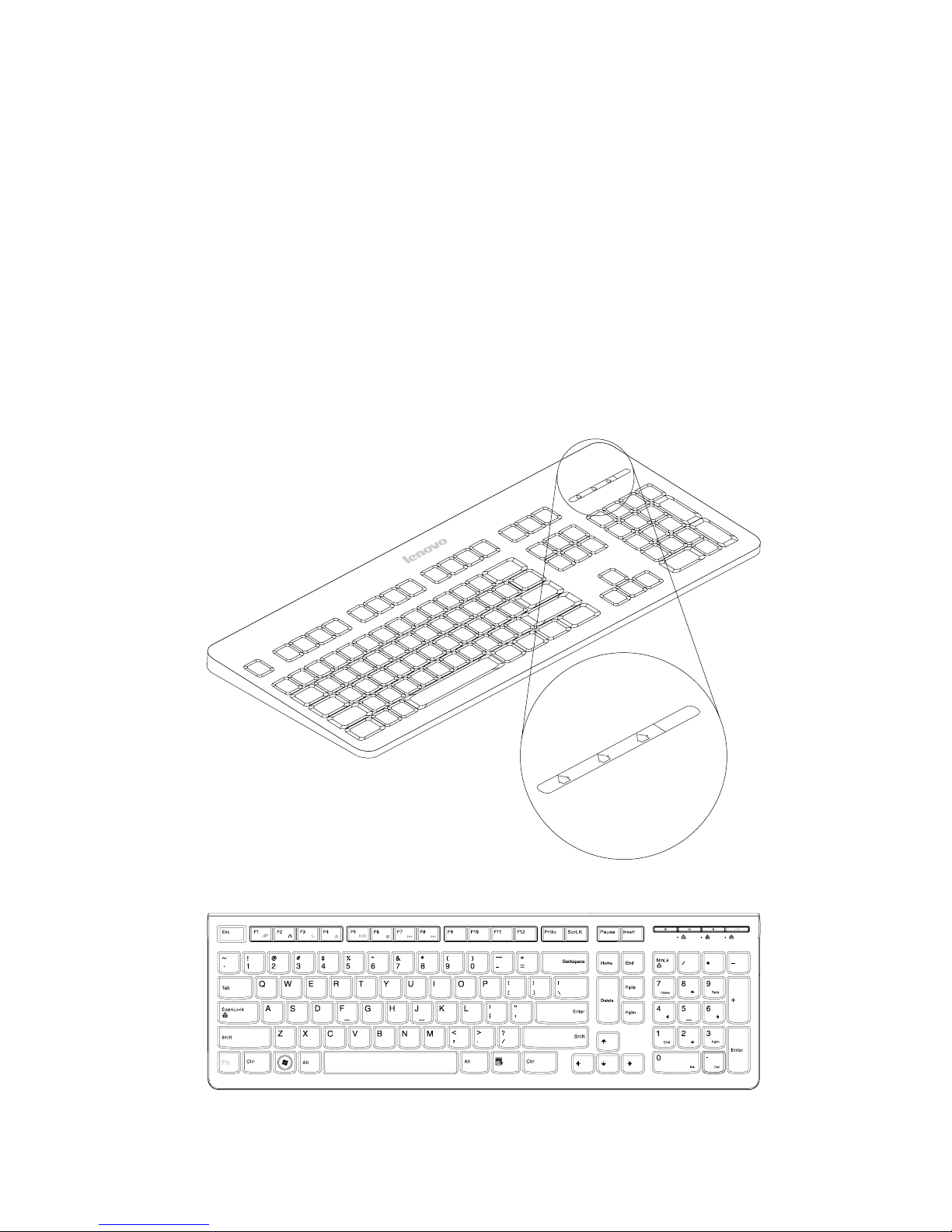

1.3.11 Wired keyboard (Selected models only)
PS/2 keyboard
LVT
LVT
USB keyboard

14 User Guide
LVT —— After entering Windows, press this key to launch the LVT (Lenovo
Vantage Technology) program, Lenovo’s pre-loaded Home PC software.
In addition to its own functions, the LVT program will allow you to start
other Windows compatible software, specially configured to run on this
model of computer. (Selected models only)
F2 —— Your computer has the Lenovo Rescue System installed.To learn more
about this program, repeatedly press and release the F2 key once
turning on the computer until the Lenovo Rescue System open.

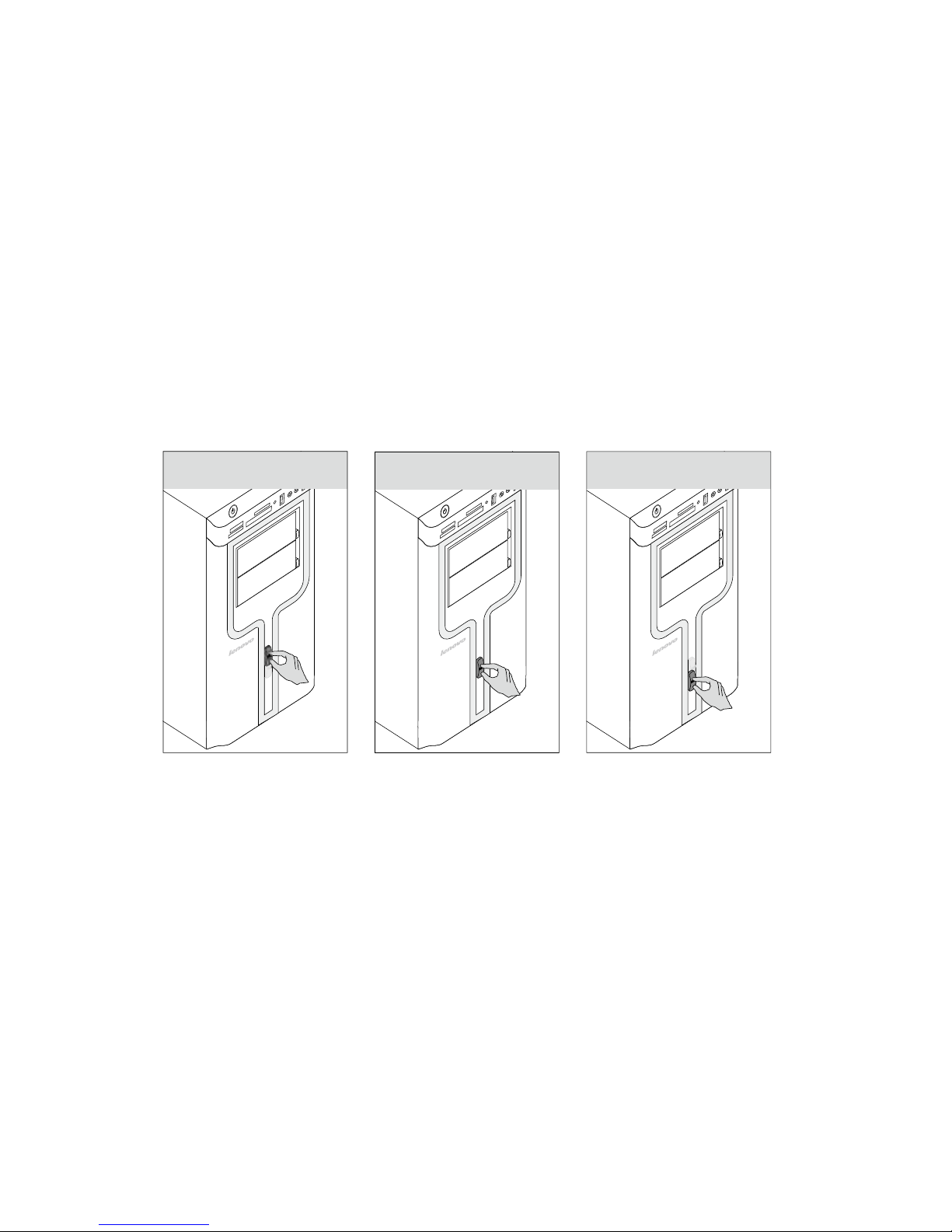

1.4 Power Dial (Selected models only)
The Power Dial feature allows your computer to switch to different modes, thus
providing you with customized experiences during operations.
TURBO
TURBO mode
AUTO
AUTO mode
COOL
COOL mode
Operation of the Power Dial
The Power Dial function supports three operating modes: AUTO TURBO and
COOL. System resources are optimized by toggling between those three different
modes. Different modes are used for different applications.
Display the main screen of the software
Double click the Power Dial icon in the Quick Launch bar.

15
User Guide
Open the running status for
each component under the
Mode Switch:
GPU — Show the
percentage of
the current GPU
clock frequency
against the nominal
maximal GPU clock
frequency.
CPU — Show the
percentage of
the current CPU
clock frequency
against the nominal
maximal CPU clock
frequency.
ODD — The status of the
optical drive.
HDD — The status of the
hard disk drive.
AUTO
AUTO mode
AUTO
