Overview
This guide is intended to be used by customers who are replacing Customer
Replaceable Units (CRUs) as well as trained service personnel who are replacing
Field Replaceable Units (FRUs). In this guide, CRUs and FRUs will often be referred
to as parts.
Note: Trained service personnel should refer to the Hardware Maintenance
Manual (HMM) for parts ordering information.
This guide does not include procedures for all parts. It is expected that cables,
switches, and certain mechanical parts can be replaced by trained service
personnel without the need for step-by-step procedures.
Note: Use only parts provided by Lenovo®.
The description of the TV-Tuner card in this manual applies only to those computer
models that have the TV-Tuner card installed. It does not apply to those computer
models that do not have the TV-Tuner card installed.
This guide contains procedures for replacing the following parts:
• Memory modules
• Hard disk drive
• Optical drive
• Heatsink, Fan
• CPU
• VGA card
• Keyboard, Mouse (wired)
• External speaker
Safety information for replacing CRUs
Do not open your computer or attempt any repair before reading the “Important
safety information” in the Safety and Warranty Guide that was included with your
computer. If you no longer have this copy of the Safety and Warranty Guide, you
can obtain one online from the Support Web site at
http://consumersupport.lenovo.com.
31041595_K3_HRG(H57)_EN_V3.0.ind1 1 2009.11.17 10:53:23 AM

2Hardware Replacement Guide
Additional information resources
If you have Internet access, the most up-to-date information for your computer is
available from the World Wide Web.
You can find the following information:
• CRU removal and installation information
• Publications
• Troubleshooting information
• Parts information
• Links to other useful sources of information
To access this information, go to http://consumersupport.lenovo.com.
Tools required
To disassemble the computer, you need the following tools:
• Wrist grounding strap and conductive mat for preventing electrostatic
discharge
• Flat screwdriver
• Phillips screwdriver
• Hex screwdriver
• Plastic flat screwdriver
• Plastic tweezers
Note: The screws for the different components vary in size. During the
disassembly procedure, group the screws with their corresponding
components to avoid a mismatch when replacing the components.
Handling static-sensitive devices
Static electricity, although harmless to you, can seriously damage computer
components.
When you are replacing a part, do not open the static-protective package
containing the new part until the defective part has been removed from the
computer and you are ready to install the new part.
When you handle parts and other computer components, take these precautions
to avoid static-electricity damage:
31041595_K3_HRG(H57)_EN_V3.0.ind2 2 2009.11.17 10:53:24 AM

3
Hardware Replacement Guide
• Limit your movement. Movement can cause static-electricity to build up around
you.
• Always handle parts and other computer components carefully. Handle
adapters, memory modules, system boards, and microprocessors by the
edges. Never touch any exposed circuitry.
• Prevent others from touching the parts and other computer components.
• Before you replace a new part, touch the static-protective package containing
the part to a metal expansion-slot cover or other unpainted metal surface on
the computer for at least two seconds. This reduces static electricity in the
package and your body.
• When possible, remove the new part from the static-protective packaging,
and install it directly in the computer without setting the part down. When this
is not possible, place the static-protective package that the part came in on a
smooth, level surface and place the part on it.
• Do not place the part on the computer cover or other metal surface.
31041595_K3_HRG(H57)_EN_V3.0.ind3 3 2009.11.17 10:53:24 AM

4Hardware Replacement Guide
Locations
Chapter
This chapter provides illustrations to help locate the various connectors, controls
and components of the computer. To remove the computer cover, refer to
“Removing the computer cover”.
Locating components and connectors
The following illustrations will help you to locate the various components and
connectors in your computer.
Internal components

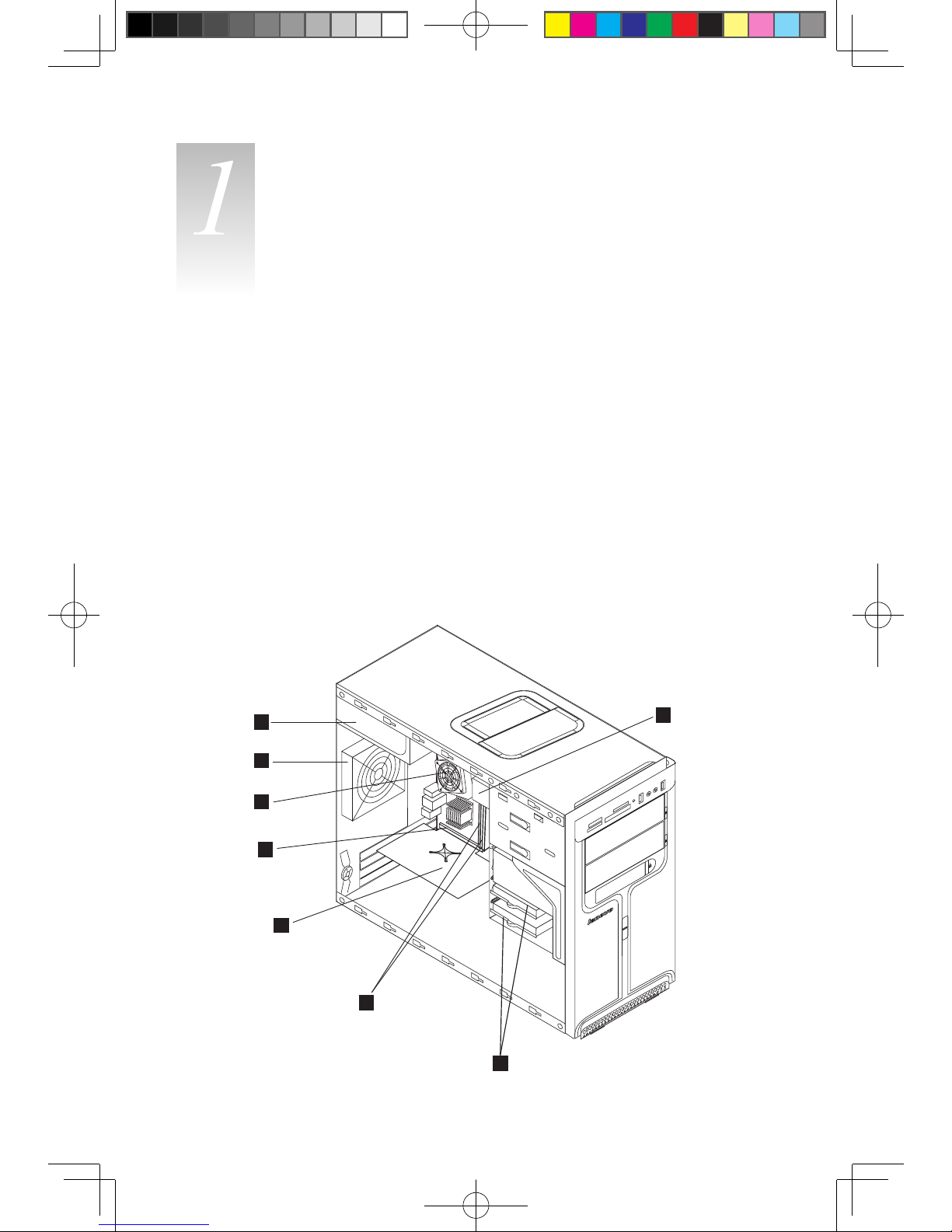

The following illustration shows the components inside your computer.
1
3
2
4
5
6
7
8
31041595_K3_HRG(H57)_EN_V3.0.ind4 4 2009.11.17 10:53:24 AM

5
Hardware Replacement Guide
Power supply PCI Express adapter card
System fan Memory modules
Microprocessor fan and heat sink Hard disk drive
PCI Express adapter connector Optical drive
Front view

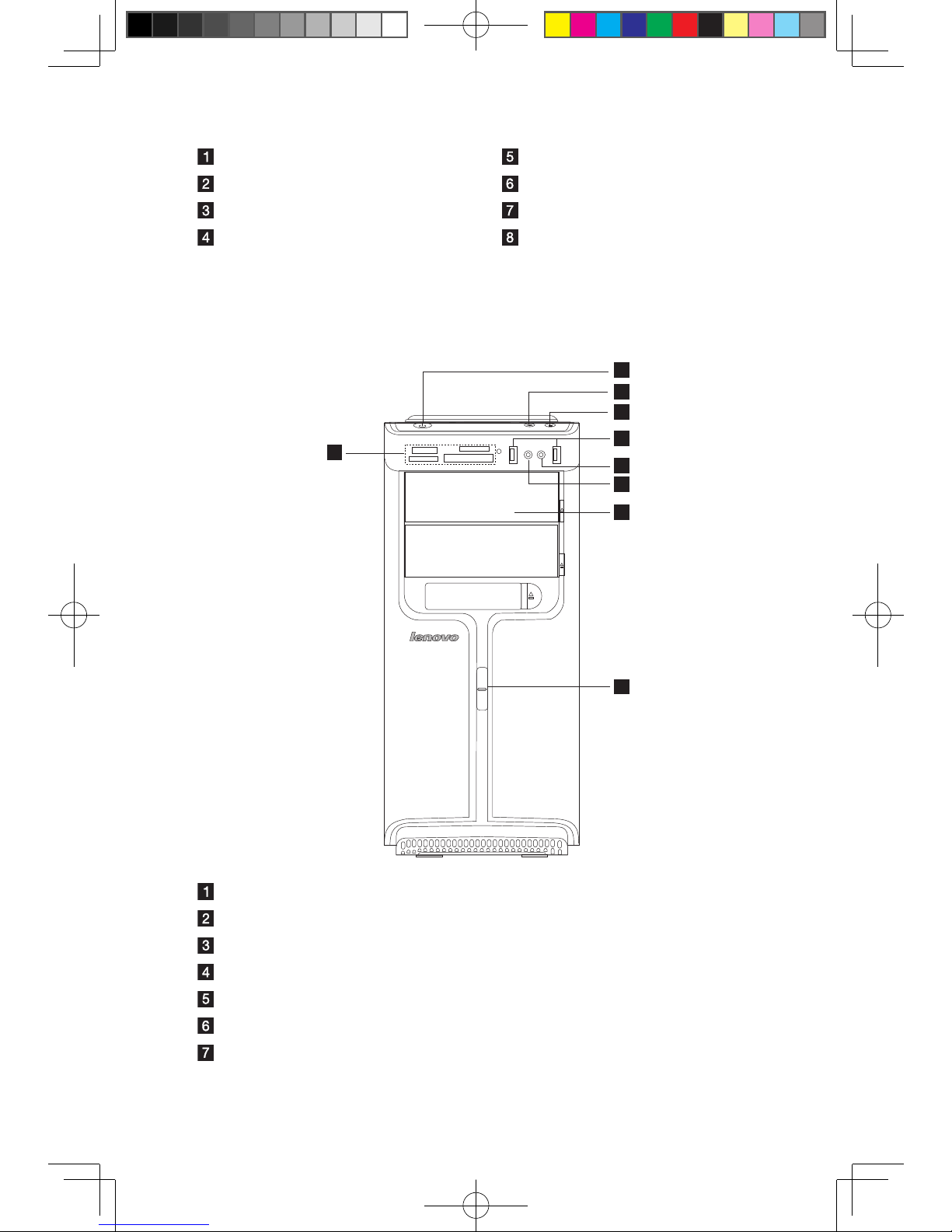

The following illustrations show the location of connectors on the front of the
computer.
9
8
3
1
2
4
5
6
7
Power button
Power Dial indicator ON/OFF
File backup button
USB connector
Microphone connector
Headphone connector
Memory card reader (selected models only)
31041595_K3_HRG(H57)_EN_V3.0.ind5 5 2009.11.17 10:53:26 AM

6Hardware Replacement Guide
Optical drive (Some models are equipped with only one optical drive.)
Power Dial switch
Rear view
The following illustration shows the location of connectors on the rear of the computer.
Voltage selection switch (selected models only)
Power connector
PS/2 keyboard connector
PS/2 mouse connector
On-board VGA connector ( selected models only)
HDMI port
USB connectors (6)
Ethernet connector
SPDIF port
Audio line-out sockets (2)
Audio line-in sockets (2)
31041595_K3_HRG(H57)_EN_V3.0.ind6 6 2009.11.17 10:53:28 AM

7
Hardware Replacement Guide
Microphone connector
PCI Express x16 graphics adapter connector (Some models are equipped
with this connector. For more information about the graphics adapter, see the
description below).
WiFi antenna connector (This connector only equipped on the model with
WiFi card. For more information about this connector, see WM600-B-LO
Wireless 802. 11b/g Wireless PCI-E Adapter Card User Manual.)
TV-Tuner (selected models only)
Identifying parts on the system board
The system board (sometimes called the planar or motherboard) is the main circuit
board in your computer. It provides basic computer functions and supports a
variety of devices that are factory-installed or that you can install later.

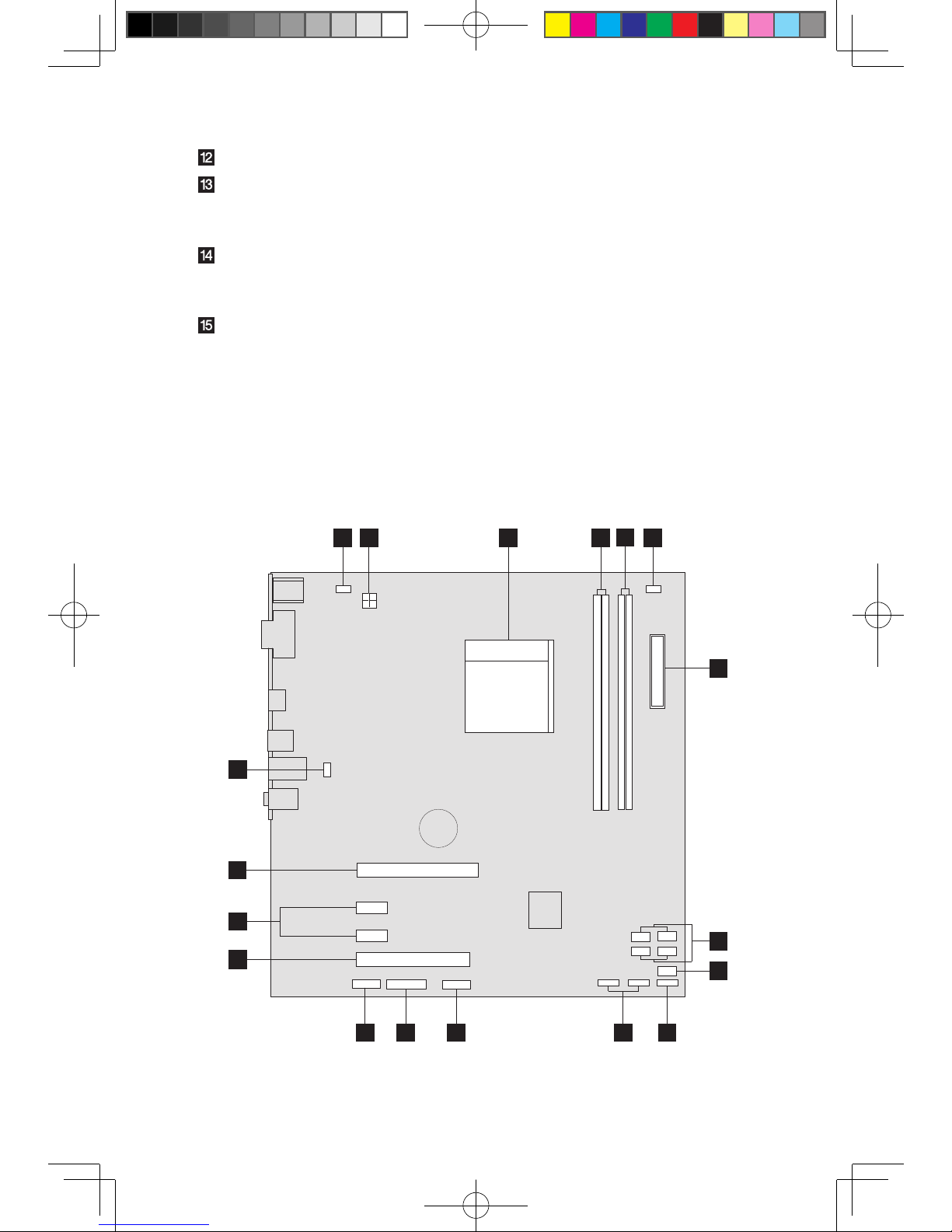

The following illustration shows the locations of parts on the system board.
98
7
4
6
1
1817 2
3
5
10
1112
13
14
15
16
31041595_K3_HRG(H57)_EN_V3.0.ind7 7 2009.11.17 10:53:28 AM

8Hardware Replacement Guide
Microprocessor and heat sink
Memory connectors(2)
Memory connectors(2)
Thermal sensor header connector
Power connector
SATA IDE connectors (4)
eSATA connector
Front panel connector
Front USB connectors(2)
Front USB connector
Serial(com2) connector
Front audio connector
PCI apater connector
PCI Express X 1 adapter connectors(2)
PCI Express X 16 graphics adapter connector
System fan connector
Microprocessor fan connector
12V power connector
31041595_K3_HRG(H57)_EN_V3.0.ind8 8 2009.11.17 10:53:29 AM

9
Hardware Replacement Guide
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com.
Note: Use only parts provided by Lenovo.
General information
Pre-disassembly instructions
Before proceeding with the disassembly procedure, make sure that you do the
following:
1. Turn off the power to the system and all peripherals.
2. Unplug all power and signal cables from the computer.
3. Place the system on a flat, stable surface.
Removing the computer cover
Attention:
Turn off the computer and wait 3 to 5 minutes to let the computer cool
before removing the computer cover.
To remove the computer cover:
1. Remove any media (diskettes, CDs, or memory cards) from the drives, shut
down your operating system, turn off all attached devices, and the computer.
2. Unplug all power cords from electrical outlets.
Replacing hardware
Chapter
31041595_K3_HRG(H57)_EN_V3.0.ind9 9 2009.11.17 10:53:30 AM

10 Hardware Replacement Guide
3. Disconnect all cables attached to the computer. This includes power cords,
input/output (I/O) cables, and any other cables that are connected to the
computer. Refer to “Locating connectors on the rear of the computer”.

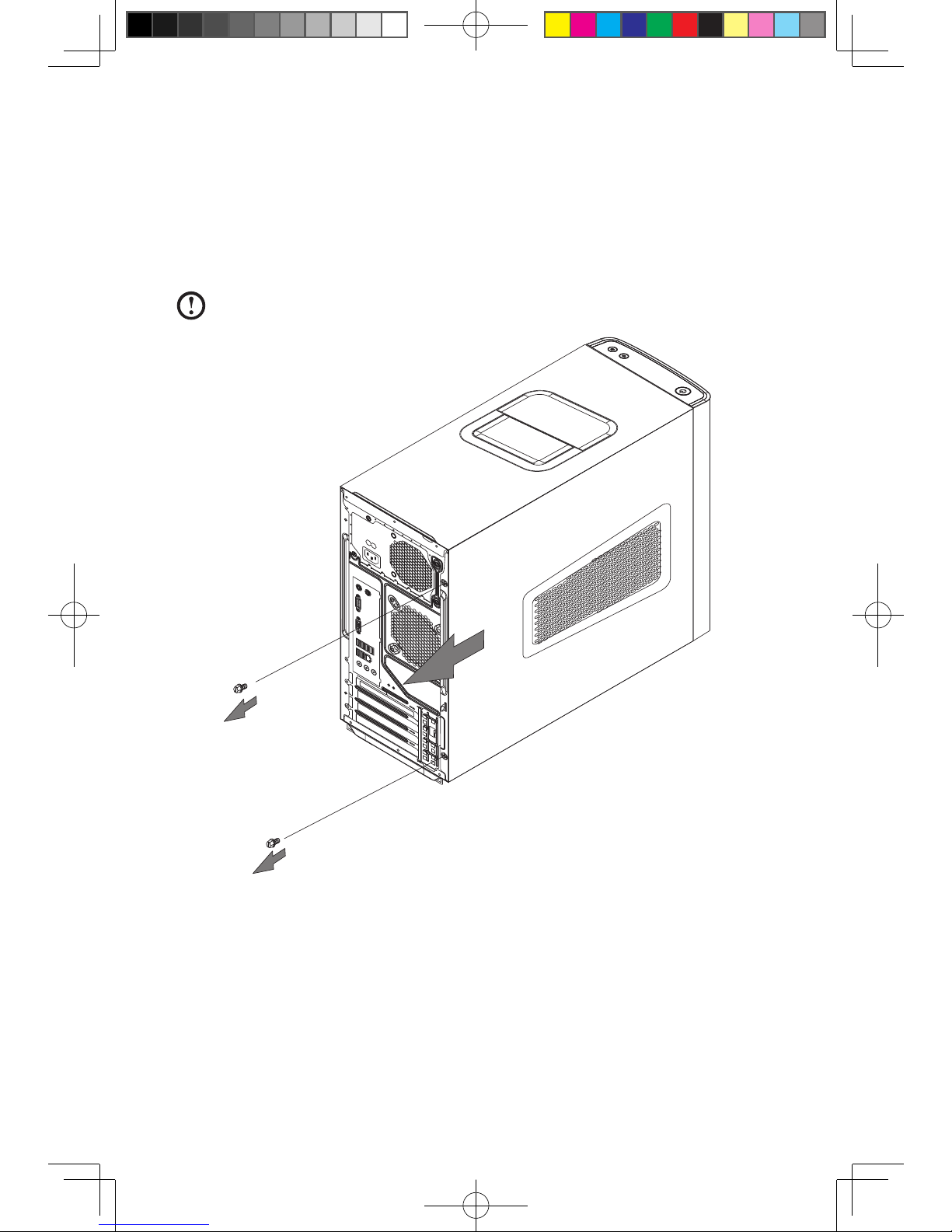

4. Remove the two screws that secure the computer cover at the rear of the
chassis.
5. Slide the computer cover to the rear of the chassis to remove.
Note: For this procedure, it helps to lay the computer on its side.
31041595_K3_HRG(H57)_EN_V3.0.ind10 10 2009.11.17 10:53:38 AM

11
Hardware Replacement Guide
Removing the front bezel
To remove the front bezel:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.

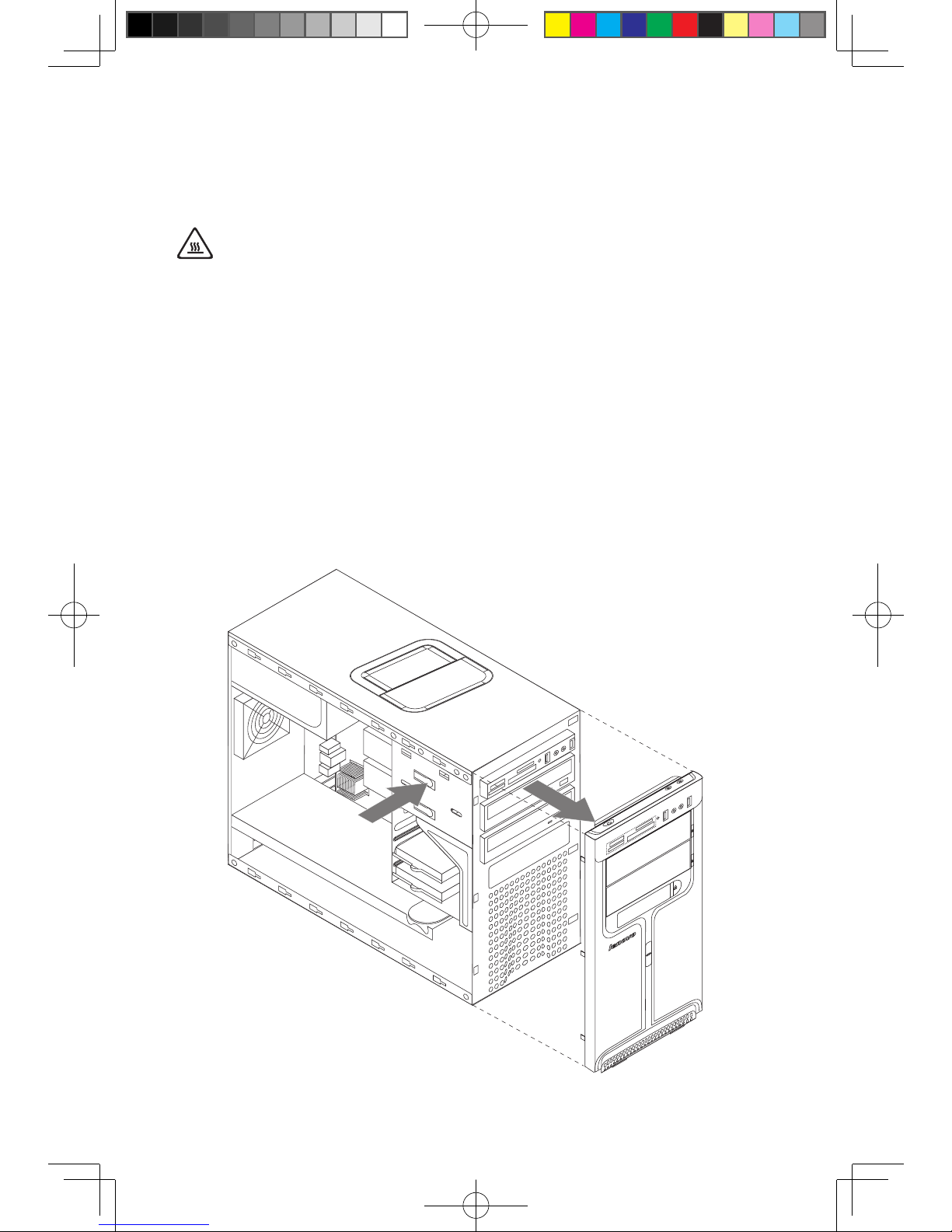

2. Remove the front bezel by releasing the three plastic tabs inside the chassis
and push the bezel outward as shown.
3. To reinstall the bezel, align the plastic tabs on the bottom of the bezel with the
corresponding holes in the chassis, and then snap it into position at the bottom
and top of the chassis.
4. Refer to the “Completing the installation”.
31041595_K3_HRG(H57)_EN_V3.0.ind11 11 2009.11.17 10:53:50 AM

12 Hardware Replacement Guide

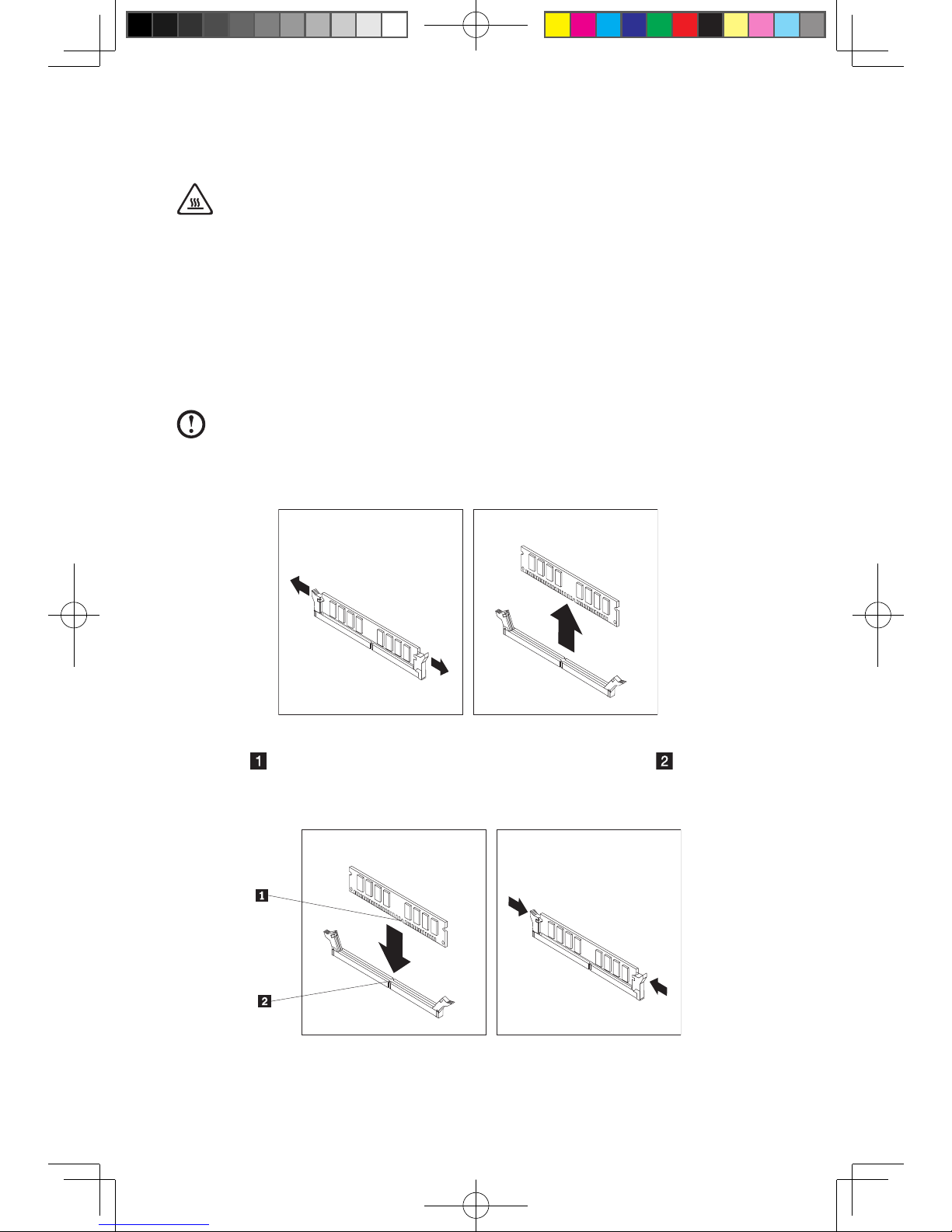

Replacing a memory module
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com.
To replace a memory module:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Locate the memory module connectors. Refer to “Locating components”.
3. Remove the memory module being replaced by opening the retaining clips as shown.
4. Position the new memory module over the memory connector. Make sure the
notch on the memory aligns correctly with the connector key on the
system board. Push the memory module straight down into the connector until
the retaining clips close.
5. Refer to the “Completing the installation”.
31041595_K3_HRG(H57)_EN_V3.0.ind12 12 2009.11.17 10:53:51 AM

13
Hardware Replacement Guide
Replacing the hard disk drive
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com.
To replace the hard disk drive:
1. Remove the computer cover. Refer to “Removing the computer cover”.
Note: For this procedure, it helps to lay the computer on its side.
2. Disconnect the data and power cables from the hard disk drive.

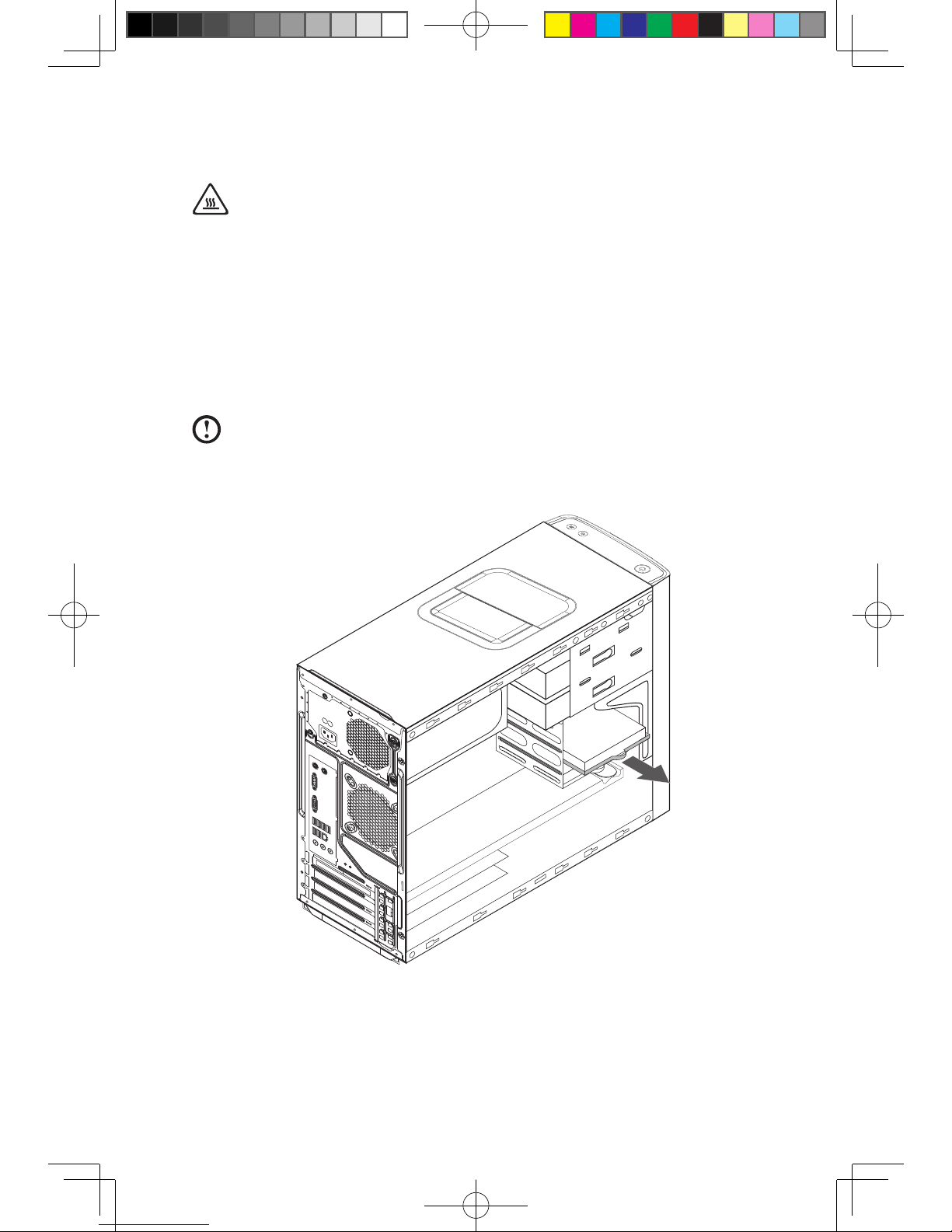

3. Use the plastic handle to slide the hard disk drive out of the drive bay.
4. Slide the new hard disk drive into the drive bay.
5. Pivot in the drive bay in place.
6. Connect the power and signal cables to the hard disk drive. Refer to “Identifying
parts on the system board”.
31041595_K3_HRG(H57)_EN_V3.0.ind13 13 2009.11.17 10:53:59 AM

14 Hardware Replacement Guide
7. Refer to the “Completing the installation”.
Replacing an optical drive
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace an optical drive
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Remove the front bezel. Refer to “Removing the front bezel”.
3. Disconnect the data and power cables from the rear of the optical drive.
4. Press the release button and push the optical drive straight out of the front of
the chassis.
31041595_K3_HRG(H57)_EN_V3.0.ind14 14 2009.11.17 10:54:08 AM

15
Hardware Replacement Guide
5. Slide the new optical drive into the bay from the front until it snaps into
position.
6. Connect the data and power cables to the drive.
7. Install the front bezel. Refer to the steps 3 of the “Removing the front bezel”.
8. Install the computer cover. Refer to “Completing the installation”.
Replacing the system fan assembly
Attention:
Do not remove the computer cover or attempt any repair before reading the
“Important safety information” in the Safety and Warranty Guide that was
included with your computer or in the Hardware Maintenance Manual (HMM)
for the computer. To obtain copies of the Safety and Warranty Guide or
HMM, go to the Support Web site at http://consumersupport.lenovo.com
To replace the system fan assembly:
1. Remove the computer cover. Refer to “Removing the computer cover”.
2. Locate the system fan assembly. Refer to “Identifying parts on the system
board”.
3. Disconnect the system fan assembly cable from the system board. Refer to
“Identifying parts on the system board”.
31041595_K3_HRG(H57)_EN_V3.0.ind15 15 2009.11.17 10:54:09 AM

16 Hardware Replacement Guide
4. Pull the system fan assembly out of chassis.
31041595_K3_HRG(H57)_EN_V3.0.ind16 16 2009.11.17 10:54:09 AM

17
Hardware Replacement Guide
5. Install the new system fan assembly by aligning the rubber mounts of the
system fan assembly with the holes on the chassis and push the rubber
mounts through the holes.
6. Pull on the tips of the rubber mounts until the fan assembly is in place.
7. Connect the system fan assembly cable to the system fan connector on the
system board.
8. Refer to the “Completing the installation”.
31041595_K3_HRG(H57)_EN_V3.0.ind17 17 2009.11.17 10:54:18 AM
